| Brand | BAUKNECHT |
| Model | G7CE3034 |
| Product type | Electric ceramic glass cooktop |
| Dimensions (W x D x H) | 76.2 cm x 53.3 cm x 5.0 cm (approx.) |
| Weight | ~12 kg (approx.) |
| Power supply | 240 V, 60 Hz, 40 A (approx.) |
| Number of burners | 4 |
| Control type | Rotary knobs |
| Main functions | Double/triple elements, keep warm zone, ACCUSIMMER function |
| Safety | Hot surface indicator lights, individual burner shut-off |
| Surface | Ceramic glass, easy to clean |
| Cleaning | Use a cooktop cleaner and a scraper for stubborn stains |
| Maintenance | Clean after each use, avoid rough-bottomed utensils |
| Recommended utensils | Flat bottom, diameter adapted to the cooking zone |
| Accessories | Polishing cream (ref. 31464B), scraper (ref. WA906B), care kit (ref. 31605) |
| Spare parts | FSP parts available through Whirlpool customer service |
| After-sales service | Whirlpool Canada: 1-800-807-6777 |
| Warranty | 1 year parts and labor |
| General information | Made for BAUKNECHT by Whirlpool |
Frequently Asked Questions - G7CE3034 BAUKNECHT

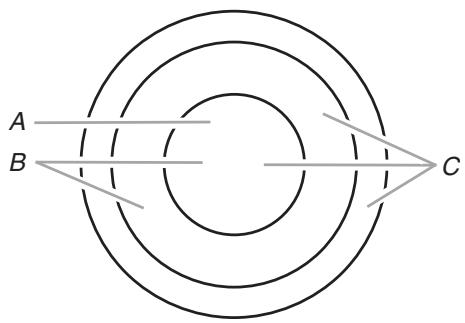

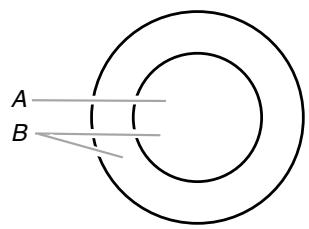

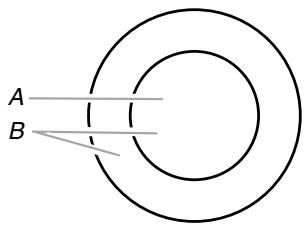

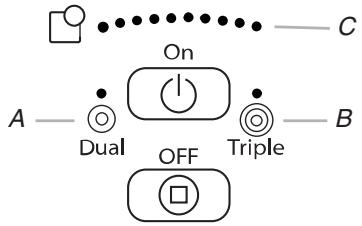

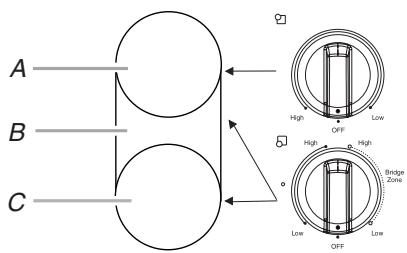

How to use the double or triple element?
Press the knob and turn it from the OFF position to the DUAL or TRIPLE position to activate the additional zones. Use single zones for small pots and double/triple zones for large ones.
Tip: The setting is memorized for the next use.
Tip: The setting is memorized for the next use.

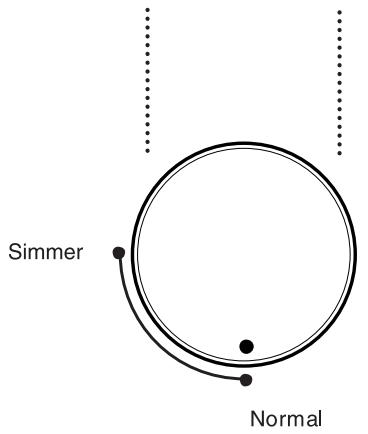

How does the ACCUSIMMER function work?
Turn the ACCUSIMMER knob to the SIMMER position. Then, adjust the temperature between Low and High for precise simmering. The zone does not glow red, except for the outer ring on triple elements at high power.
Important: Return to NORMAL after use.
Important: Return to NORMAL after use.
What to do if the cooktop does not turn on?
First check that the fuse is not blown or the circuit breaker is not tripped. Make sure the knob is pressed before turning. If the problem persists, contact an electrician.
Note: On touch models, clean the surface of the control panel.
Note: On touch models, clean the surface of the control panel.
How to clean the ceramic glass?
Use a special cooktop cleaner (ref. 31464B) and a scraper for stubborn stains. Clean sugary spills as soon as possible. Avoid steel wool and abrasive cleaners.
Advice: Polish with a damp cloth until the white film disappears.
Advice: Polish with a damp cloth until the white film disappears.
How to use the keep warm zone?
Turn the Keep Warm zone knob to the desired setting (Low to High). This zone does not glow red; an indicator light turns on. Cover food with a lid or aluminum foil, without plastic wrap.
Max duration: 1 hour to preserve quality.
Max duration: 1 hour to preserve quality.
Which utensils to use on this cooktop?
Use flat-bottomed utensils with a diameter adapted to the zone (not exceeding 1.3 cm from the zone). Avoid rough bottoms that scratch. Materials like aluminum, stainless steel with copper base, or enameled steel are suitable.
Caution: Do not slide utensils.
Caution: Do not slide utensils.

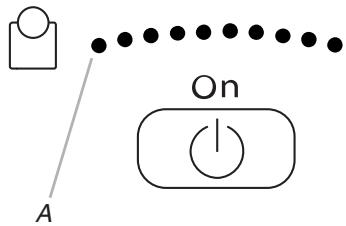

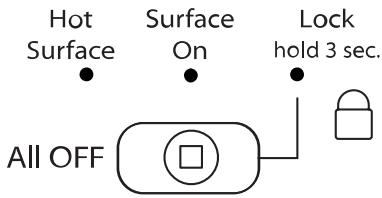

How to interpret the indicator lights?
The hot surface indicator stays on as long as the zone is too hot to touch, even after turning off. The power indicator lights up when a burner is on. In case of a power outage, the hot surface indicators may stay on for up to 45 min after power is restored.
How to save energy with this cooktop?
Use pots whose diameter exactly matches the cooking zone. Cover food during cooking. Use the ACCUSIMMER function for precise simmering without waste. Turn off the burners a few minutes before the end to use residual heat.
Where to find spare parts?
Order FSP (Factory Specification Parts) from Whirlpool customer service. In Canada, call 1-800-807-6777 or visit www.whirlpool.ca. Accessories like the scraper (WA906B) or polishing cream (31464B) are available.
What to do in case of broken ceramic glass?
If the cooktop is broken, do not use the appliance: liquids can penetrate and cause electric shock. Contact a qualified technician immediately. Do not attempt to repair yourself.
