USER MANUAL WED7990XG BAUKNECHT
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
DANGER
You can be killed or seriously injured if you don't immediately follow instructions.
WARNING
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING - "Risk of Fire"
- Clothes dryer installation must be performed by a qualified installer.
- Install the clothes dryer according to the manufacturer's instructions and local codes.
- Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
- To reduce the risk of severe injury or death, follow all installation instructions.
- Save these instructions.

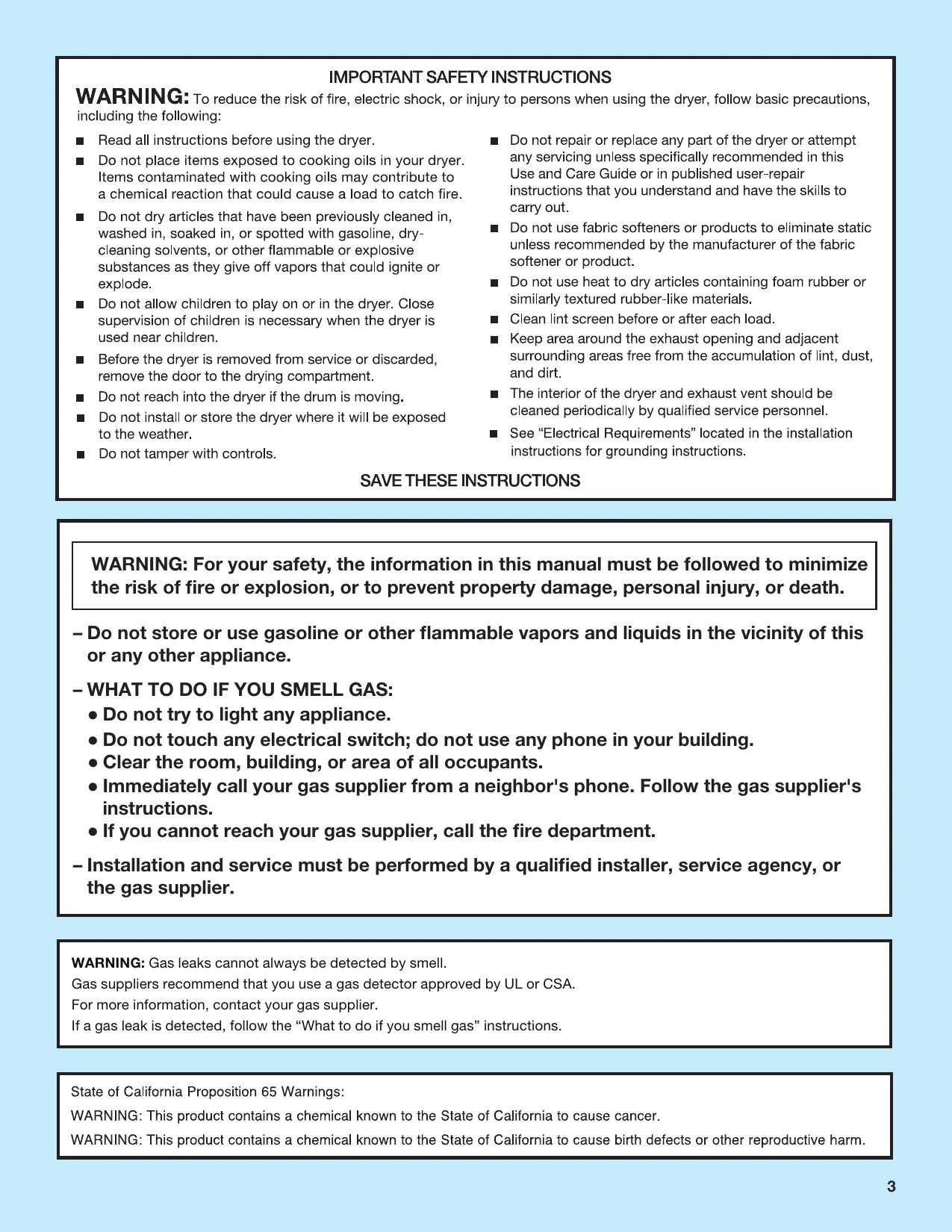

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following:
Read all instructions before using the dryer.
- Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
- Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.
- Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.
Before the dryer is removed from service or discarded, remove the door to the drying compartment.
Do not reach into the dryer if the drum is moving.
- Do not install or store the dryer where it will be exposed to the weather.
Do not tamper with controls.
- Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.
- Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
- Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
Clean lint screen before or after each load. - Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.
See "Electrical Requirements" located in the installation instructions for grounding instructions.
SAVE THESE INSTRUCTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury, or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
WHAT TO DO IF YOU SMELL GAS:
-
Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Clear the room, building, or area of all occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
-
If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the "What to do if you smell gas" instructions.
State of California Proposition 65Warnings:
WARNING: This product contains a chemical known to the State of California to cause cancer.
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
WARNING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death or fire.
Good Air Flow
Along with heat, dryers require good air flow to efficiently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See Installation Instructions.
The venting system attached to the dryer plays a big role in good air flow.
Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer.
Maintain good air flow by:
- Cleaning your lint screen before each load.

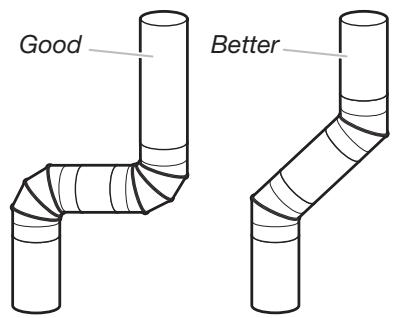

Replace plastic or foil vent material with 4'' (102 mm) diameter heavy, rigid vent material.
Use the shortest length of vent possible.
Use no more than four 90^ elbows in a vent system; each bend and curve reduces air flow.
Remove lint and debris from the exhaust hood.
- Remove lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for final product check.
Clear away items from the front the dryer.

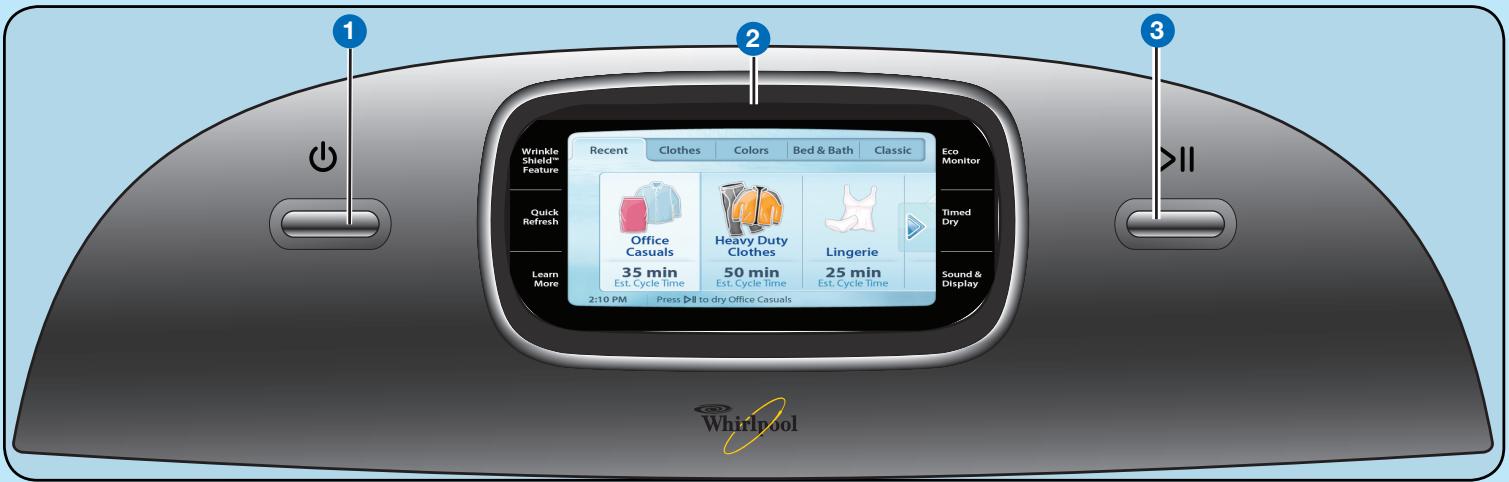

1 POWER BUTTON
Touch to turn the dryer ON. Touching once while the dryer is ON will cancel the current cycle. Touching twice will turn the dryer OFF.
The easy-to-use touch screen displays cycle information, settings and options, and more. To select an option, simply touch the icon for the desired option. To adjust settings, touch and drag the selector to the desired value.
3 START/PAUSE BUTTON
Touch to start the selected cycle; touch again to pause a cycle.

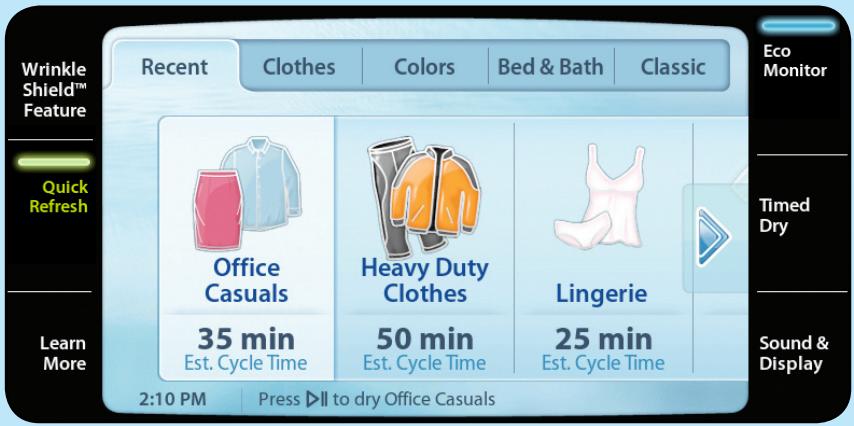

Touch Screen Controls
If a button along the side of the display has a green bar above it, that feature is currently activated. A blue bar indicates that you are in the display screen for that feature.
WRINKLE SHIELD™ BUTTON
Touch to activate the WRINKLE SHIELD™ feature. This option helps keep wrinkles from forming when you cannot unload the dryer promptly at the end of a cycle.
QUICK REFRESH
Touch this button to smooth out wrinkles and reduce odors from loads consisting of one to twelve dry items. A small amount of water is sprayed into the dryer drum after several minutes of tumbling with heat.
LEARN MORE
If a yellow bar appears above Learn More, touch this button to view additional information about the selected cycle, option, or setting.
ECO MONITOR
Your dryer is specially designed to conserve energy. Each cycle, along with any selected options, will result in different energy usage. Touch the Eco Monitor to see how well you are saving energy.
TIMED DRY
Touch this button to select a specific amount of drying time and a drying temperature. When a Timed Cycle is selected, the Estimated Time Remaining display shows the actual time remaining in your cycle.
SOUND & DISPLAY
Adjust settings such as screen calibration, end of cycle signal, volume, LCD brightness, language, factory settings, date, time, and custom dry level. Sales & service mode is for qualified service personnel.

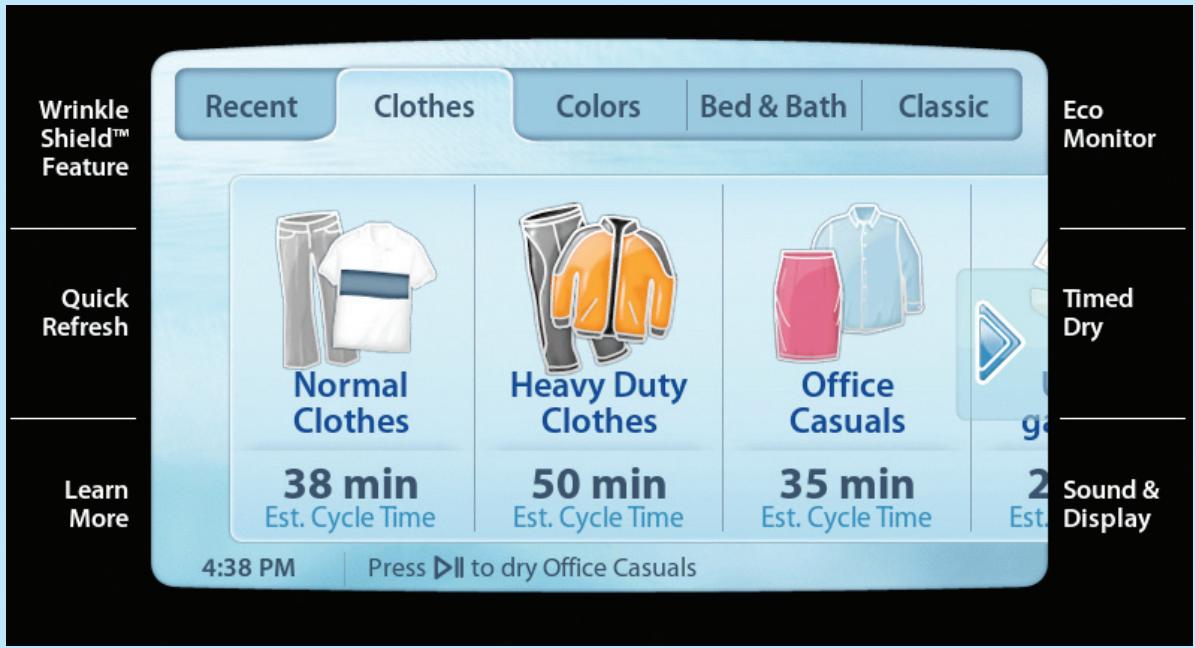

The main screen has 5 tabs, each with several automatic cycles. Each tab allows you to select automatic cycles based on what you want to dry, for example, by clothing type, color, or common household items. The RECENT tab lists the last 7 cycles used and saves any customized settings applied to these cycles. To select a cycle, touch the tab the cycle is in (see Cycle Chart on next page), then touch the arrows until the desired cycle is shown. Then simply touch the cycle icon to select. For additional information on each cycle and recommended loads, touch LEARN MORE.
Automatic Cycles
If you select Adjust Settings, manually choose and adjust each setting individually using the buttons across the bottom of the screen. If an option is not available, it will be grayed out and cannot be selected. To change settings from the cycle defaults, touch Adjust Settings.
Timed Dry
If you select Timed Dry, you can set a specific amount of drying time and drying temperature. When a Timed Cycle is selected, the Estimated Time Remaining display shows the actual time remaining in your cycle.

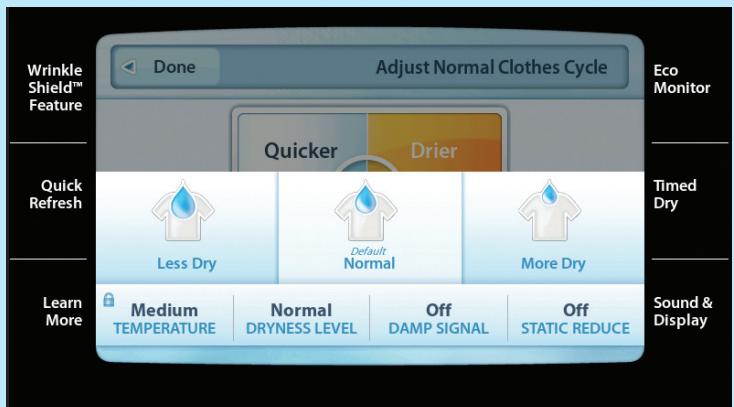

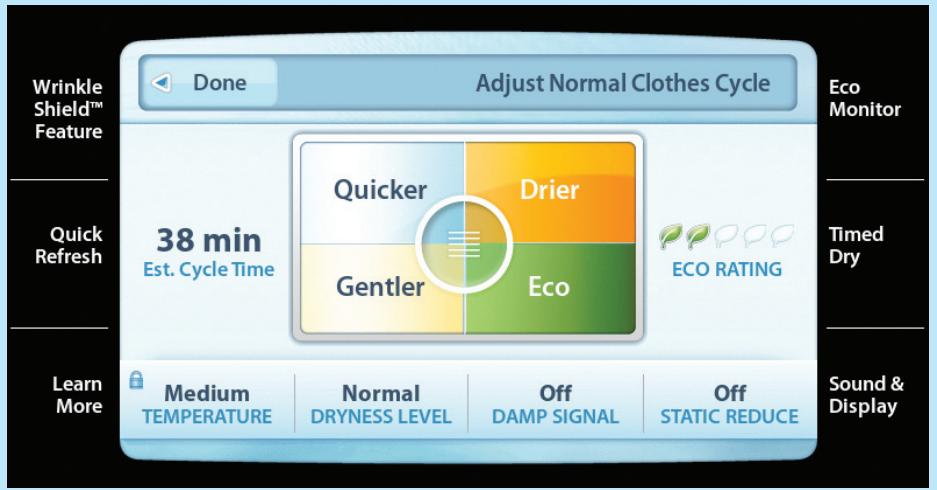

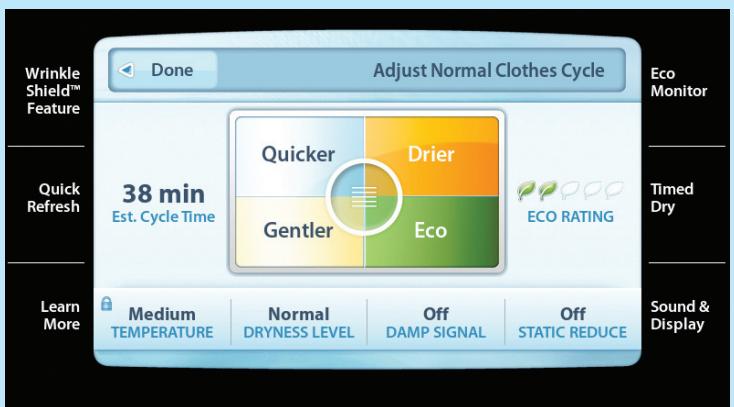

Use Automatic cycles for Better Fabric Care and Energy Savings
Use the Automatic Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles, drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off when the load reaches the selected dryness. With Timed Dry, the dryer runs the amount of time set and could result in shrinkage, wrinkling, and static due to over-drying with certain fabrics. Use Timed Dry for the occasional damp load that needs a little more drying time, when using the drying rack, or for items that require drying without heat such as rubber, plastic, and heat-sensitive fabrics.
Cycle Chart
| Tab: | Cycle: | Additional Information: |
| Recent | This tab shows the last 7 cycles used. | When the dryer is turned on for the first time, this tab will include a couple popular cycles. The displayed cycles will change as you use your dryer. |
| Clothes | Normal Clothes Heavy Duty Clothes Office Casuals Undergarments Jeans Kidswear Baby Items Athletic Wear Lingerie Swimwear Sweaters Shoes | These cycles allow you to sort and dry loads based on the type of clothing. |
| Colors | Whites Load Lights Load Brights Load Mixed Load Darks Load | This tab features cycles that allow you to sort and dry by colors, with settings designed to protect colors. |
| Bed & Bath | Towels Bed Sheets Blankets Fiber/Feather Filled Pillows Foam Backed/Filled Items Rubber Mattress Pad Fabric Shower Curtains Fiber Stuffed Animals Sleeping Bags | Select specialized cycles from this tab to dry common household items. Cycles are designed to maximize cleaning effectiveness while allowing for bulky or water resistant items. |
| Classic | Enhanced Touchup Quick Dry Bulky Items Eco Normal | This tab includes a variety of special purpose and utility cycles. |
Once a cycle is selected, you will have the option of adjusting drying settings and options such as the dryness level, Damp Signal, and Static Reduce. If an option is not adjustable, it will show a "Locked" symbol.
You can manually adjust the settings and options, or use the palette and the dryer will automatically select the best settings.
Manual Adjustment
To manually adjust settings, press the adjust settings bar, select the desired dryness level and then add additional options such as Damp Signal and Static Reduce. If an option is not adjustable, it will show a "Locked" symbol.
Using the Palette
To use the palette, simply touch the area you would like to select and the dryer will adjust the dryness level, temperature, and drying time automatically. You may also add options such as Damp Signal and Static Reduce.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from dryer.
Do not dry anything that has ever had anything flammable on it (even after washing).
Failure to follow these instructions can result in death, explosion, or fire.
WARNING
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in death or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer.
Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping.

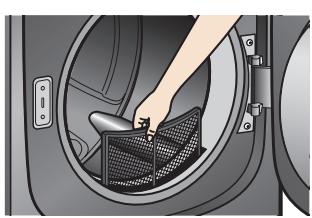

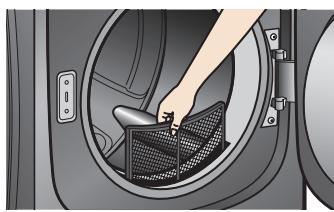

1. Clean the lint screen
Clean the lint screen before each load. A screen blocked by lint can increase drying time.
IMPORTANT:
Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.
If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint.
- The lint screen is located in the front of the dryer. Pull the lint screen straight up to remove. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.
- Push the lint screen firmly back into place.

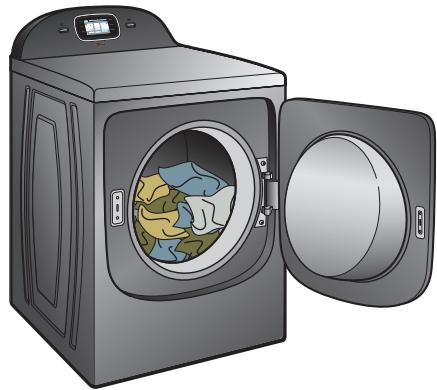

2. Load clothes evenly into dryer
Load garments evenly in dryer drum.
IMPORTANT: Do not tightly pack dryer. Items need to move freely. Tightly packed loads can lead to poor drying performance, and may increase wrinkling and tangling.
3. Touch POWER to turn on dryer
Touch the POWER button to turn on the dryer. When you open the door, the drum light will turn on.

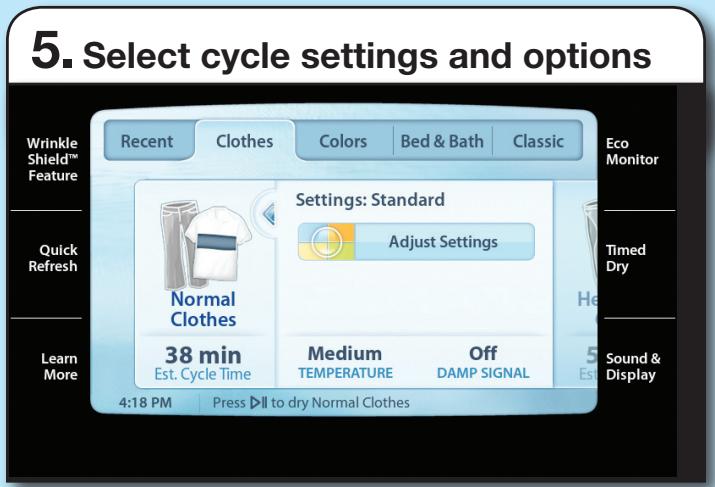

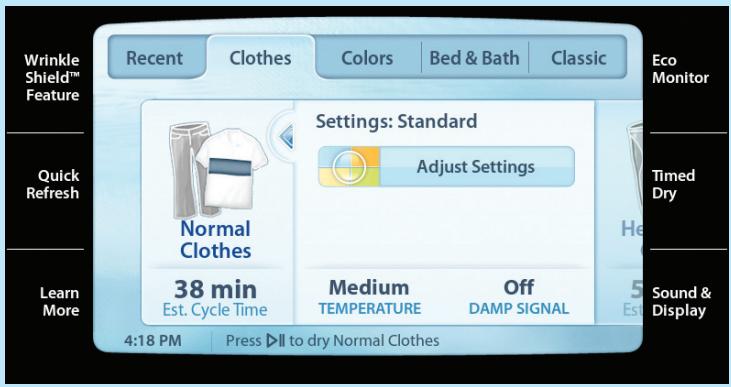

Automatic Dry Cycles
Automatic Cycles provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles, drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off when the load reaches the selected dryness level. The dryer will default to Normal Dryness level to give you optimal dryness for your load and save energy.

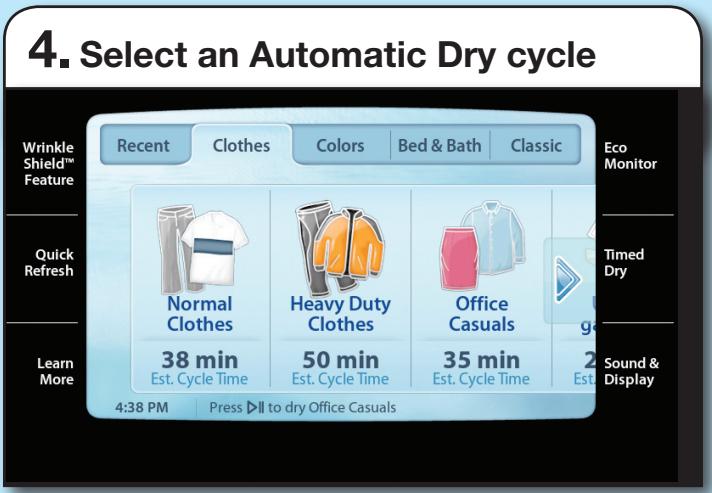

Use the touch screen to select the desired cycle. Cycles are grouped in tabs by type, and the last 7 cycles used will appear in the Recent tab. Touch the and arrows to scroll left or right.
Once you have selected the cycle, standard settings for the cycle will be displayed. If you wish to change the standard settings, you may adjust the settings using the adjustment palette, or by selecting the desired settings individually after pressing adjust settings bar. Once you have selected the desired settings and options, touch Done to return to the main cycle screen.
Not all settings and options are available with all cycles.
Always read and follow fabric care labels instructions
to avoid damage to your garments.

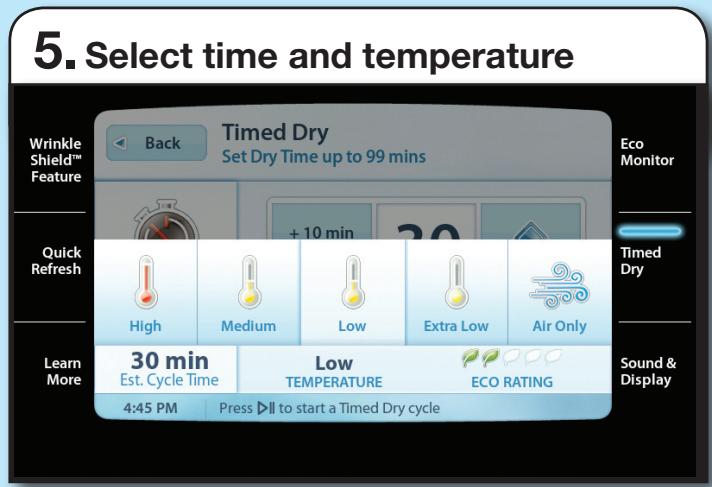

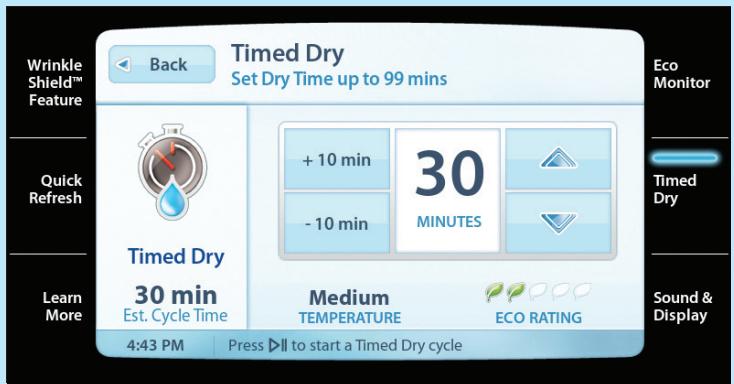

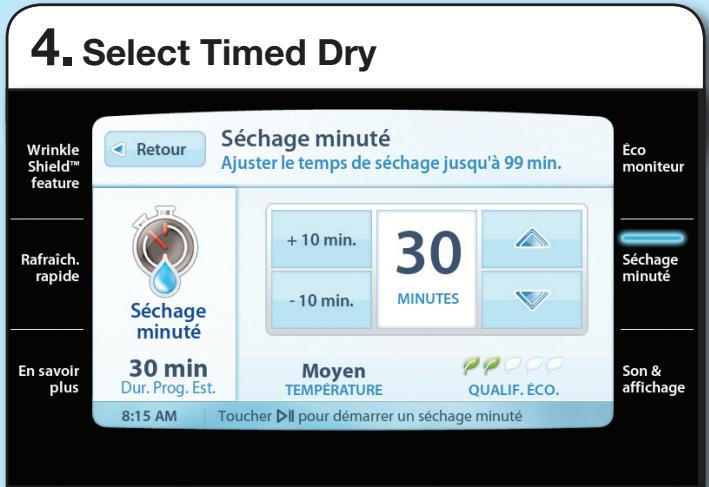

Timed Dry
Use Timed Dry to manually select the drying time and temperature, such as when using the drying rack or to finish items that are still damp after an Automatic Cycle.
Touch the up and down arrows to adjust the drying time in 1 minute increments. Touch +10 min. or -10 min. to adjust the time in 10 minute increments.
The default drying temperature is High. Touch TEMPERATURE to select a different temperature, if desired.
Always read and follow fabric care labels instructions to avoid damage to your garments.
6. Touch START/PAUSE to begin dry cycle
If desired, add fabric softener sheet (not recommended on Steam Cycles). Follow package instructions. Close the door, then touch the START/PAUSE button to start the dry cycle. When the cycle has finished, a "DRY" message will be displayed and the end of cycle signal will sound (if set). (The damp signal sounds during the cycle to indicate when the clothes go from wet to damp.) Promptly remove garments when cycle is done to reduce wrinkling, or you can make sure the Wrinkle Shield™ feature is set.
Stopping and Restarting
You can stop your dryer anytime during a cycle.
To pause your dryer:
Opening the door will pause the cycle or touching the START/PAUSE button.
To resume the current cycle:
Close the door and touch the START/PAUSE button.
To stop your dryer:
Touch the POWER button once. Press a second time to turn dryer off.
To restart your dryer:
Close the door. Select a new cycle and temperature (if desired). Touch the START/PAUSE button.

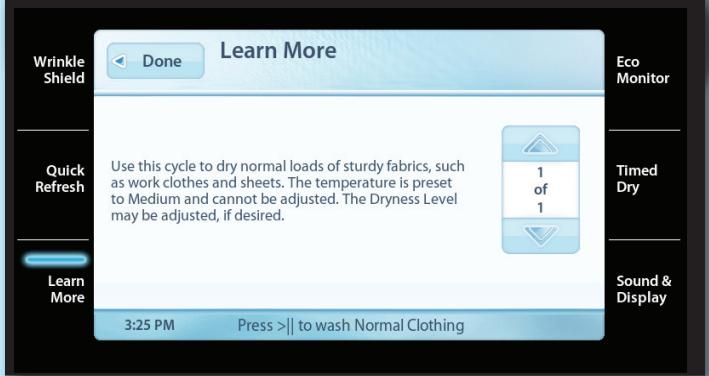

Learn More
Touch the Learn More button to display additional information about using a cycle or feature, if desired. When you are finished, touch DONE to return to the previous screen.

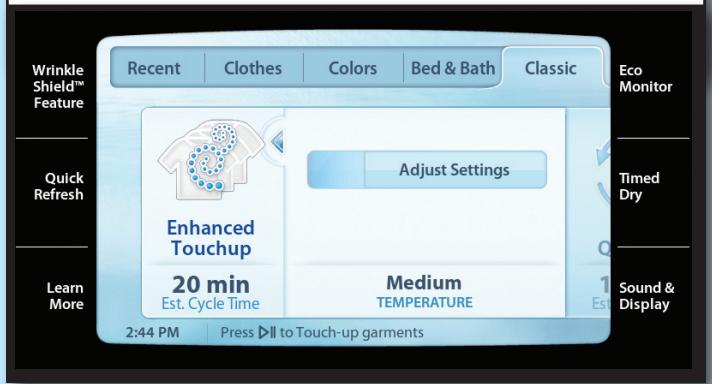

Steam
Some cycles, such as Quick Refresh and Enhanced Touch Up, add a small amount of water to the dryer drum after several minutes of tumbling with heat. This will help loosen wrinkles and reduce odors. Steam may also be added as an option with the Wrinkle Shield feature to help minimize wrinkling.
NOTE: Results may vary depending on fabric. 100% cotton garments with wrinkle-free finish may yield better results than those without. Use of a fabric softener sheet is not recommended with steam cycles as it may cause temporary staining on the clothes.

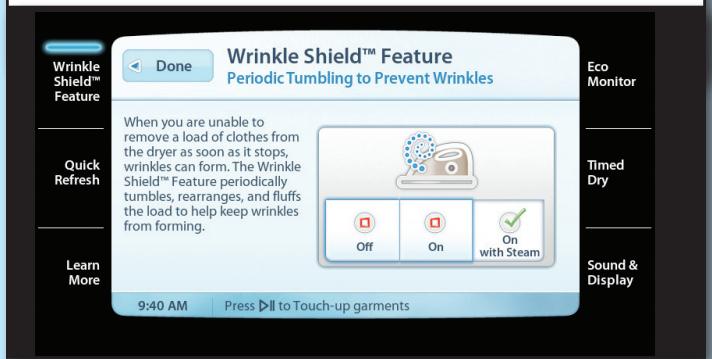

Wrinkle Shield
Touch to activate the WRINKLE SHIELD feature. This option helps keep wrinkles from forming when you cannot unload the dryer promptly at the end of a cycle.

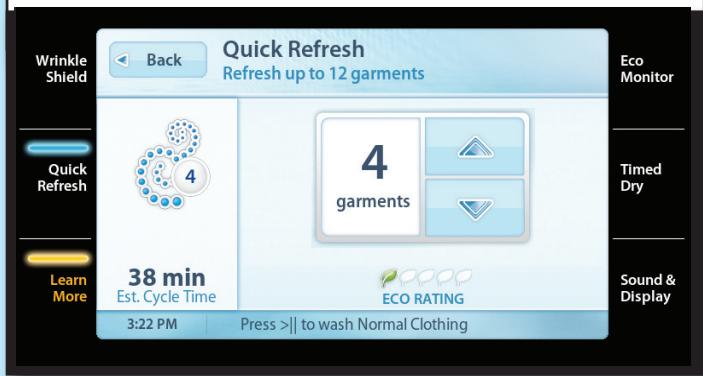

Quick Refresh
Use this cycle to smooth out wrinkles and reduce odor from loads consisting of one to twelve dry items of wrinkle-free cotton, cotton-polyester blend, common knits and synthetic garments to be refreshed by touching the arrow keys up or down to increase or decrease the number of garments.

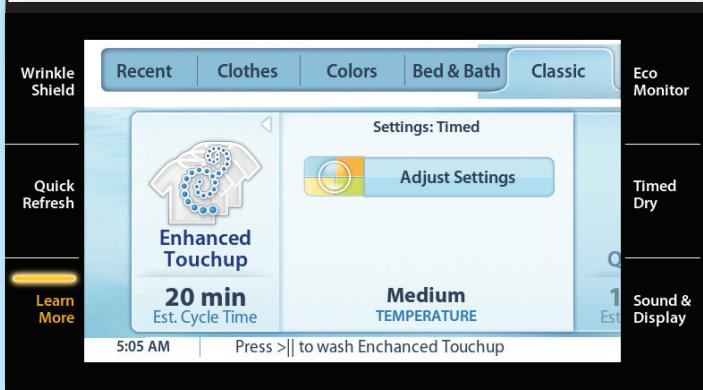

Enhanced Touch Up
This cycle is best for touching up clothes that have been left in the dryer too long. In this cycle, a small amount of water is sprayed into the dryer drum after several minutes of tumbling with heat. The dryer will continue to tumble with heat followed by a brief cool down. The dry time and temperature can be adjusted for this cycle.
NOTE: Tightly packed loads can lead to poor drying performance, and may increase wrinkling and tangling.

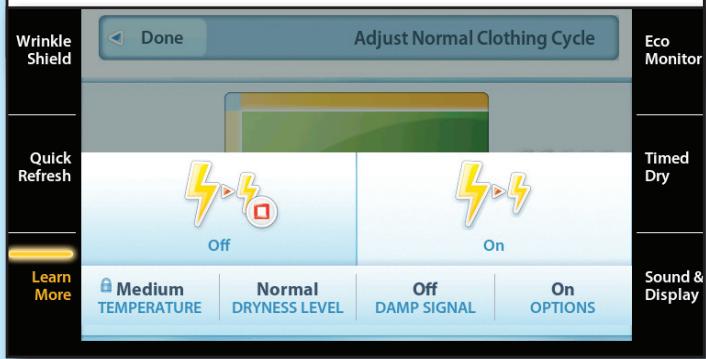

Static Reduce
By adding the Static Reduce option to a cycle, a small amount of water is sprayed into the dryer drum after several minutes of tumbling with heat. This helps reduce static build-up in the load.

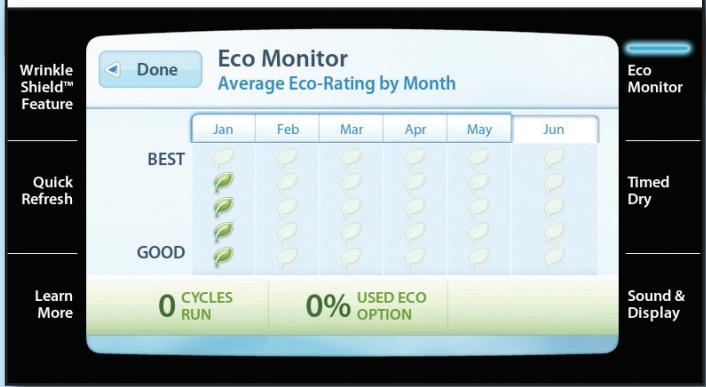

Using the EcoMonitor
Your dryer features an EcoMonitor, which allows you to keep track of energy savings over time. Using cycles with the Eco option and drying on low heat will raise your Eco rating.
LED drum light
The dryer light automatically turns on inside the dryer drum when you open the door.
An LED drum light is used. The LED lights should not require changing; however, if replacement is needed, please contact a qualified service technician.
USING THE DRYING RACK
To obtain a drying rack for your dryer, follow the instructions included in your dryer drum. Remove and discard any packing material before use.
Use the Drying Rack for items that you do not want to tumble dry, such as sweaters and tennis shoes. When you use the drying rack, the drum continues to turn, but the rack remains stationary.
The drying rack is intended for use with the Timed Dry cycles only. The drying rack cannot be used with Automatic cycles.

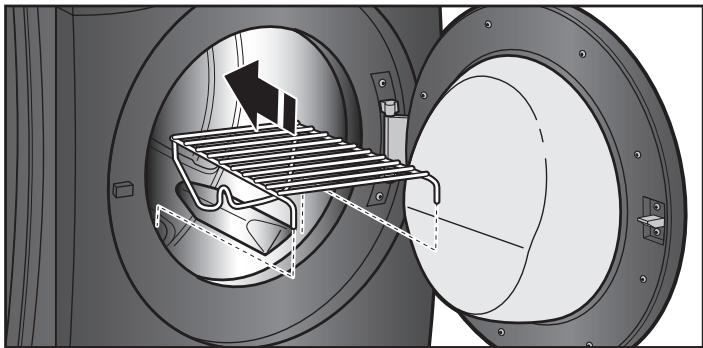

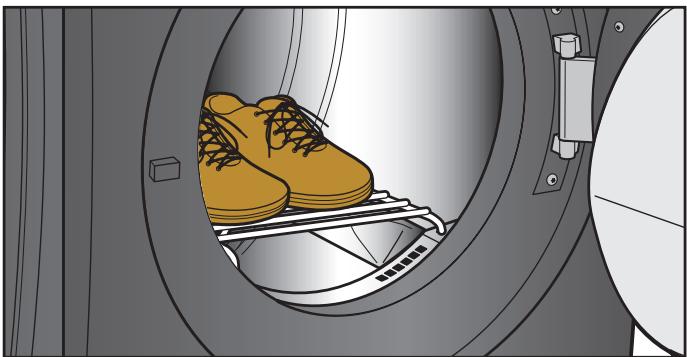

To use the drying rack:
IMPORTANT: Do not remove the lint screen.
- Open the dryer door.
- Align the two hooks on the front of the drying rack with the holes in the dryer door opening and press down fully into holes. Rest the rear support on the dryer back ledge.
- Place wet items on top of the drying rack. Allow space around items for air to circulate. The drying rack does not move, but the drum will rotate. Make sure items do not hang over the edges or between drying rack grille.
- Close the door.
- Select a Timed Dry/Air Only, or Low Temperature cycle. Items containing foam, rubber, or plastic must be dried on a clothesline or by using the Air Only setting.
- When the cycle is selected, the Estimated Time Remaining display shows the default time. You can change the actual time in the cycle by increasing or decreasing the cycle time.
- Start the dryer.
NOTE: Check the lint screen and remove any lint accumulated from items dried on the drying rack after the cycle is finished.
Touching the SOUND & DISPLAY button will access Sound & Display menu, where you can adjust preferences such as screen calibration, end of cycle signal, volume, LCD brightness, language, factory settings, date, time, and custom dry level. Sales & service mode is for qualified service personnel.

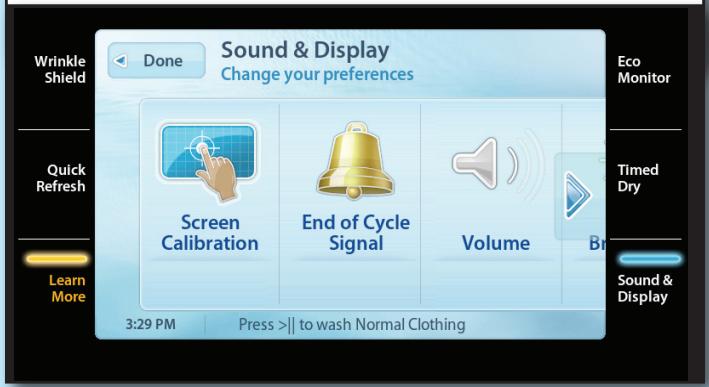

Setting general preferences
The touch screen will display the current preference settings. To change a setting, touch the icon for that preference and follow the on-screen instructions.

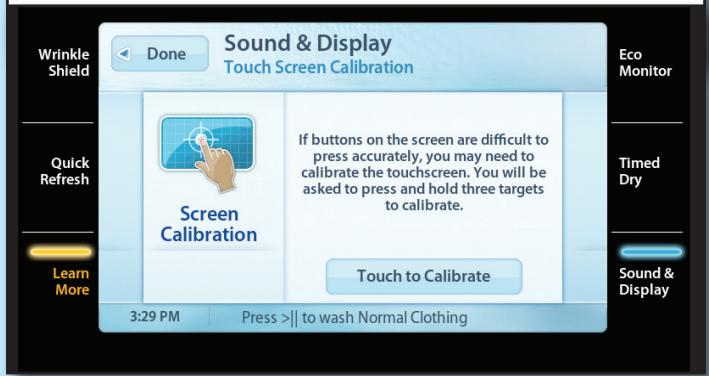

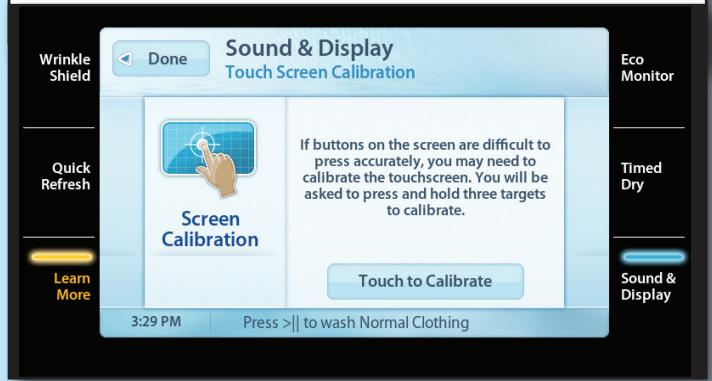

Calibrating the touch screen
If you are having difficulty selecting or dragging the correct icons with the touch screen, for example, if you touch one icon but one adjacent to it is selected instead, the touch screen may need calibration.
To calibrate:
- Touch the SOUND & DISPLAY button to access the Sound & Display preferences.
- Select TOUCH SCREEN CALIBRATION.
- Follow the on-screen instructions to calibrate the touch screen.
WATER INLET HOSE
- Replace inlet hose after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found.
When replacing your inlet hose, mark the date of replacement on the label with a permanent marker.
The Touch Screen should be cleaned periodically to remove fingerprints or dust.
- Make sure the dryer is OFF.
- Wipe the touch screen area with soft, damp cloth.
- Wipe dry with clean, soft towel.
IMPORTANT: To avoid damaging the touch screen window, do not use chemicals or abrasive products.
CLEANING THE DRYER INTERIOR
Keep your dryer as clean and fresh as your clothes. To keep dryer interior odor-free, follow this recommended monthly cleaning procedure:
- Apply a liquid, nonflammable household cleaner to the stained area of the drum and rub with a soft cloth until stain is removed.
- Wipe drum thoroughly with a damp cloth.
- Tumble a load of clean cloths or towels to dry the drum.
NOTE: Garments that contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry unstable dye items inside out to avoid transfer of dye.
Keep dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from dryer.
Place dryer at least 18 inches (460 mm) above the floor for a garage installation.
Failure to do so can result in death, explosion, or fire.
CLEANING THE LINT SCREEN
Clean the lint screen before each load. A screen blocked by lint can increase drying time.
IMPORTANT:
Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.
If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint.
Every load cleaning
- The lint screen is located in the front of the dryer. Pull the lint screen straight up to remove. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.
- Push the lint screen firmly back into place.
As needed cleaning
- Roll lint off screen with your fingers.
- Wet both sides of lint screen with hot water.
- Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.
- Rinse screen with hot water.
- Thoroughly dry lint screen with a clean towel. Insert lint screen back into dryer.
REMOVING ACCUMULATED LINT
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified person.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending on dryer usage.
VACATION OR STORAGE CARE
Operate your dryer only when you are home. If moving, or not using your dryer for a period of time, follow these steps:
- Unplug or disconnect power to dryer.
- Gas Models: Close shutoff valve in gas supply line.
- Clean lint screen. See "Cleaning the Lint Screen."
- Steam Models Only: Turn off the water supply to the dryer. This helps to avoid unintended flooding (due to a water pressure surge) while you are away.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
MOVING CARE
For power supply cord-connected dryers:
- Unplug the power supply cord.
- Steam models only: Shut off water faucet.
- Steam models only: Disconnect the water inlet hose from faucet, then drain the hose. Remove the hose from the back of the dryer. Transport hose separately.
- Make sure leveling legs are secure in dryer base.
- Use tape to secure dryer door.
For direct-wired dryers:
- Turn off power at fuse or breaker box.
- Disconnect wiring.
- Steam models only: Shut off water faucet.
- Steam models only: Disconnect the water inlet hose from faucet, then drain the hose. Transport hose separately.
- Make sure leveling legs are secure in dryer base.
- Use tape to secure dryer door.
REINSTALLING DRYER
Follow the "Installation Instructions" to locate, level, and connect the dryer.
SPECIAL INSTRUCTIONS FOR STEAM MODELS
Water Inlet Hose
Replace inlet hose and hose screen after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hose if bulges, kinks, cuts, wear, or leaks are found.
When replacing your inlet hoses, record the date of replacement.
To winterize dryer
- Unplug dryer or disconnect power.
- Shut off water faucet.
- Disconnect water inlet hose from faucet and drain.
To use dryer again
- Flush water pipes. Reconnect water inlet hose to faucet. Turn on water faucet.
- Plug in dryer or reconnect power.
Error messages

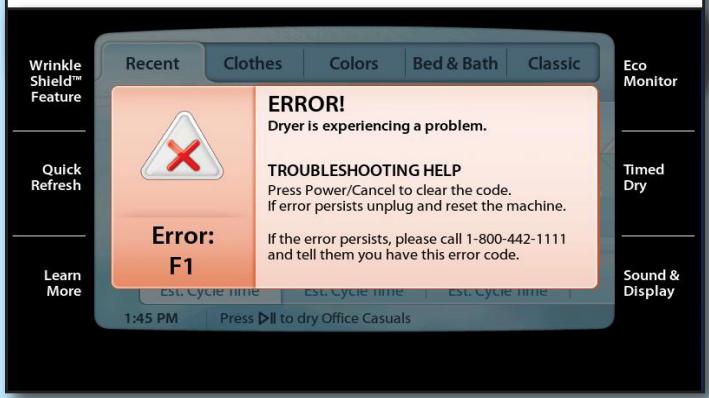

If your dryer experiences a problem, it will display an F code (and F followed by a number) and additional instructions. Follow the on screen instructions.
| First try the solutions suggested here or visit our website at www.whirlpool.com/help for assistance and to possibly avoid a service call. | ||
| If you experience | Possible Causes | Solution |
| Dryer will not run | ||
| Is the dryer door firmly closed. | Open door, reclose firmly, and press START. | |
| Was the start button firmly touched. | Make sure Start button was firmly pressed. | |
| Has a household fuse blown, or has a circuit breaker tripped? | There may be 2 household fuses or circuit breakers for the dryer. Check that both fuses are intact and tight, or that both circuit breakers have not tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. | |
| Is the correct power supply available? | Electric dryers require 240-volt power supply. Check with a qualified electrician. | |
| Was a regular fuse used? | Use a time-delay fuse. | |
| Unusual sounds | ||
| Has the dryer had a period of non-use? | If the dryer hasn't been used for a while, there may be a thumping sound during the first few minutes of operation. | |
| Is a coin, button, or paper clip caught between the drum and front or rear of the dryer? | Check the front and rear edges of the drum for small objects. Clean out pockets before laundering. | |
| Is it a gas dryer? | The gas valve clicking is a normal operating sound. | |
| Are the four legs installed, and is the dryer level front to back and side to side? | The dryer may vibrate if not properly installed. See “Installation Instructions.” | |
| Is the clothing knotted or balled up? | When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer. | |
| No heat | ||
| Has a household fuse blown, or has a circuit breaker tripped? | The drum may be turning, but you may not have heat. Electric dryers use 2 household fuses or circuit breakers. Replace both fuses or reset the circuit breaker. If the problem continues, call an electrician. | |
| Is the valve open on the gas supply line on gas models? | For gas dryers, is the valve open on the supply line. | |
| Dryer displaying code message | ||
| “PF” (power failure), check the following: | Was the drying cycle interrupted by a power failure? Touch and hold START to restart the dryer. | |
| “F” Variable (F1, F2, F20, etc.) service codes: | Call for service. | |
| “L2” Diagnostic Code (low or no line voltage condition): | The drum will turn, but there may be a problem with your home power supply keeping the dryer's heater from turning on. The dryer will continue to run when this diagnostic code is present. Touch any key to clear the code from the display and return to the estimated time remaining. Try the following: Check to see if a household fuse has blown or circuit breaker has tripped. Electric dryers use two household fuses or breakers. Replace the fuse or reset the circuit breaker. In the U.S.A., Confirm the power cord is properly installed. Refer to “Electrical Connection” in the Installation Instructions for details. Select a Timed Dry heated cycle, and restart the dryer. If the message persists, consult a qualified electrician. | |
| Dryer displaying code message (cont.) | ||
| “AF” (low airflow condition): | The dryer will continue to run when this diagnostic code is present. Touch any key to clear the code from the display and return to the estimated time remaining.Try the following:Clean lint screen.Check to see if the vent run from the dryer to the wall is crushed or kinked.Confirm the vent run from the dryer to the wall is free of lint and debris.Confirm the exterior vent exhaust hood is free of lint and debris.Confirm your vent system falls within the recommended run length and number of elbows for the type of vent you are using.Refer to “Plan Vent System” in the Installation Instructions for details Select a Timed Dry heated cycle, and restart the dryer.If the message persists, have your entire home venting run cleaned. | |
| Clothes are not drying satisfactorily, drying times are too long | ||
| Is the lint screen clogged with lint? | Lint screen should be cleaned before each load. | |
| Is the exhaust vent or outside exhaust hood clogged with lint, restricting air movement? | Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lint or replace exhaust vent with heavy metal or flexible metal vent. See “Installation Instructions.” | |
| Are fabric softener sheets blocking the grille? | Use only one fabric softener sheet, and use it only once. | |
| Is the exhaust vent the correct length? | Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. See “Installation Instructions.” | |
| Is the exhaust vent diameter the correct size? | Use 4" (102 mm) diameter vent material. | |
| Is the dryer located in a room with temperature below 45°F (7°C)? | Proper operation of dryer cycles requires temperatures above 45°F (7°C). | |
| Is the dryer located in a closet? | Closet doors must have ventilation openings at the top and bottom of the door. The rear of the dryer requires 5" (127 mm) of airspace, and the sides and front of the dryer require a minimum of 1" (25 mm). See “Installation Instructions.” | |
| Has the Air Only modifier been selected? | Select the right temperature for the types of garments being dried. See “Additional Features.” | |
| Is the load too large and heavy to dry quickly? | Separate the load to tumble freely. | |
| Are clothes coming out of the Quick Refresh cycle with damp or wet spots? | Under certain environmental or installation conditions you may experience under drying. Select the Timed Dry cycle (30 min. default time), which can be customized by choosing temperature by touching TEMP and/or cycle time by touching the Time Adjust up or down buttons. | |
| Load is too hot | ||
| Were laundry items removed from the dryer before the end of the cycle. | Allow the Cool Down cycle to finish before removing laundry from dryer. All cycles are cooled slowly to reduced wrinkling and make it easier to handle. Items removed before Cool Down may feel very warm. | |
| Was a high temperature cycle used, or was a separate temperature control set on high. | Select a lower temperature, and use an automatic drying cycle. These cycles sense the temperature or the moisture level in the load and shut off when the load reaches the selected dryness. This reduces overdrying. | |
| Cycle time too short | ||
| Is the automatic cycle ending early? | The load may not be contacting the sensor strips. Level the dryer.Use Timed Dry for very small loads. Change the dryness level setting on Automatic Cycles.Increasing or decreasing the dryness level will change the amount of drying time in a cycle. If loads are consistently ending too early, see also Changing the Automatic Dry Default Settings. | |
| Lint on load | ||
| Is the lint screen clogged? | Clean lint screen. Check for air movement. | |
Warranty
LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.
ITEMS EXCUSED FROM WARRANTY
This limited warranty does not cover:
- Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
- Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
- Service calls to repair or replace appliance light bulbs, air filters, or water filters. Consumable parts are excluded from warranty coverage.
- Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
- Cosmetic damage, including scratches, dents, chips, or other damage to the finish of your major appliance, unless such
damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
- Pick up and delivery. This major appliance is intended to be repaired in your home.
- Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
- Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available.
- The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool's published installation instructions.
- Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined.
DISCLAIMER OF IMPLIED WARRANTYES
IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, first see the Frequently Asked Questions portion of our website. If after reviewing our website, you need additional assistance, or if you would like to order Whirlpool FSP® Factory Specified Parts, you may call Whirlpool.
In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.
07/08
Keep your dryer as clean and fresh as your clothes.
To keep dryer interior odor-free, follow this recommended monthly cleaning procedure:
