Product type	Under-cabinet range hood
Brand	BAUKNECHT
Model	GZ9736XSS
Use	Residential only
Width	30" (76.2 cm) or 36" (91.4 cm) depending on model
Power supply	120 V, 60 Hz, 15 A, AC only, dedicated circuit recommended
Lighting	Halogen lamp 12 V, 20 W max, G-4 base
Venting diameter	6" (15.2 cm) round, rigid metal duct recommended
Ventilation speeds	3 speeds: low, medium, high
Heat detection	Built-in thermostat: activates or increases speed when excessive heat is detected
Controls	Mechanical switches for light and fan (on/off and speed)
Grease filters	Metal, dishwasher-safe or hand-washable
Charcoal filter (optional)	Ref. 8212566, replace every 6 months for recirculation mode
Installation modes	External venting (roof or wall) or recirculation (with charcoal filter)
Minimum installation height	24" (61 cm) above the cooktop; 30" (76.2 cm) recommended for venting
Decorative duct cover	Extendable for 8 ft (2.4 m) to 9 ft (2.7 m) ceiling; extension available (ref. 8212565)
Maintenance	Clean surfaces with mild detergent; wash grease filters frequently
Warranty	1 year parts and labor (United States and Canada)
Customer service	Whirlpool Canada: 1-800-807-6777 (parts and assistance)

Frequently Asked Questions - GZ9736XSS - INSTALLATION INSTRUCTION BAUKNECHT

What is the minimum installation height above the cooktop?

The minimum required height is 24" (61 cm) between the hood and the cooktop. For external venting installation, a height of 30" (76.2 cm) is recommended. Always follow local codes.

What type of duct should be used for venting?

Use exclusively a rigid metal duct of 6" (15.2 cm) diameter. Flexible duct is not recommended as it reduces performance. Do not use plastic duct.

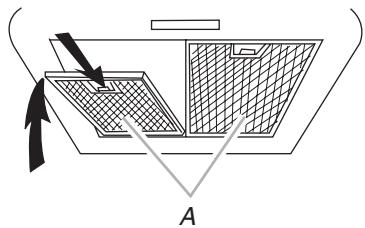

How to clean the metal grease filters?

Wash the filters frequently in the dishwasher or in a solution of hot water and mild detergent. Let them dry completely before reinstalling. Do not use abrasive pads.

How often should the charcoal filter be replaced?

The charcoal filter (ref. 8212566) must be replaced every 6 months to ensure optimal efficiency in recirculation mode.

Can I use an electrical extension cord?

No, using an extension cord is prohibited. If the cord is too short, have a qualified electrician install a nearby outlet.

How to install the hood in recirculation mode?

Remove the backdraft damper, install the 5" to 6" adapter provided with the charcoal filter, then connect a 5" flexible duct to the deflector. Follow the instructions in the manual for mounting the duct cover.

What to do if the hood does not work?

First check the circuit breaker or fuse. Make sure the hood is properly plugged in. If the problem persists, contact customer service at 1-800-807-6777.

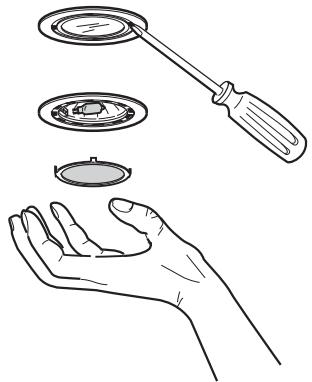

How to replace the halogen bulb?

Turn off the power supply. Remove the lamp cover with a flat-head screwdriver. Replace with a halogen 12 V, 20 W max, G-4 base bulb. Use a paper towel to avoid touching with fingers.

What is the required electrical power?

The hood requires a power supply of 120 V, 60 Hz, 15 A, AC only. A dedicated circuit with time-delay fuse or circuit breaker is recommended.

Where is the product rating label located?

The rating label is located behind the left filter, on the back wall of the hood. It indicates the model and serial number.

USER MANUAL GZ9736XSS - INSTALLATION INSTRUCTION BAUKNECHT

30" (76.2 CM) AND 36" (91.4 CM) WALL-MOUNT CANOPY RANGE HOOD

Installation Instructions and Use & Care Guide

HOTTE DE CUISINIÈRE POUR MONTAGE MURAL 30'' (76,2 CM) ET 36” (91,4 CM)

Location Requirements 4

Venting Requirements (vented models only) 5

Electrical Requirements 6

INSTALLATION INSTRUCTIONS 7

Prepare Location 7

Install Mounting Bracket 7

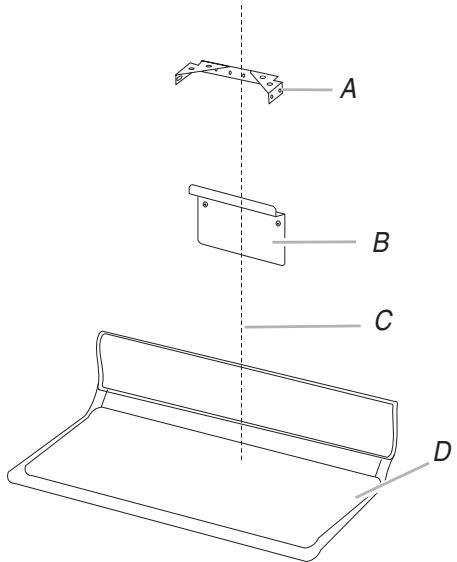

Install Flue Mounting Bracket 8

Prepare Range Hood 8

Install Range Hood. 9

Complete Installation 12

RANGE HOOD USE 12

Range Hood Controls 12

RANGE HOOD CARE 12

Cleaning. 12

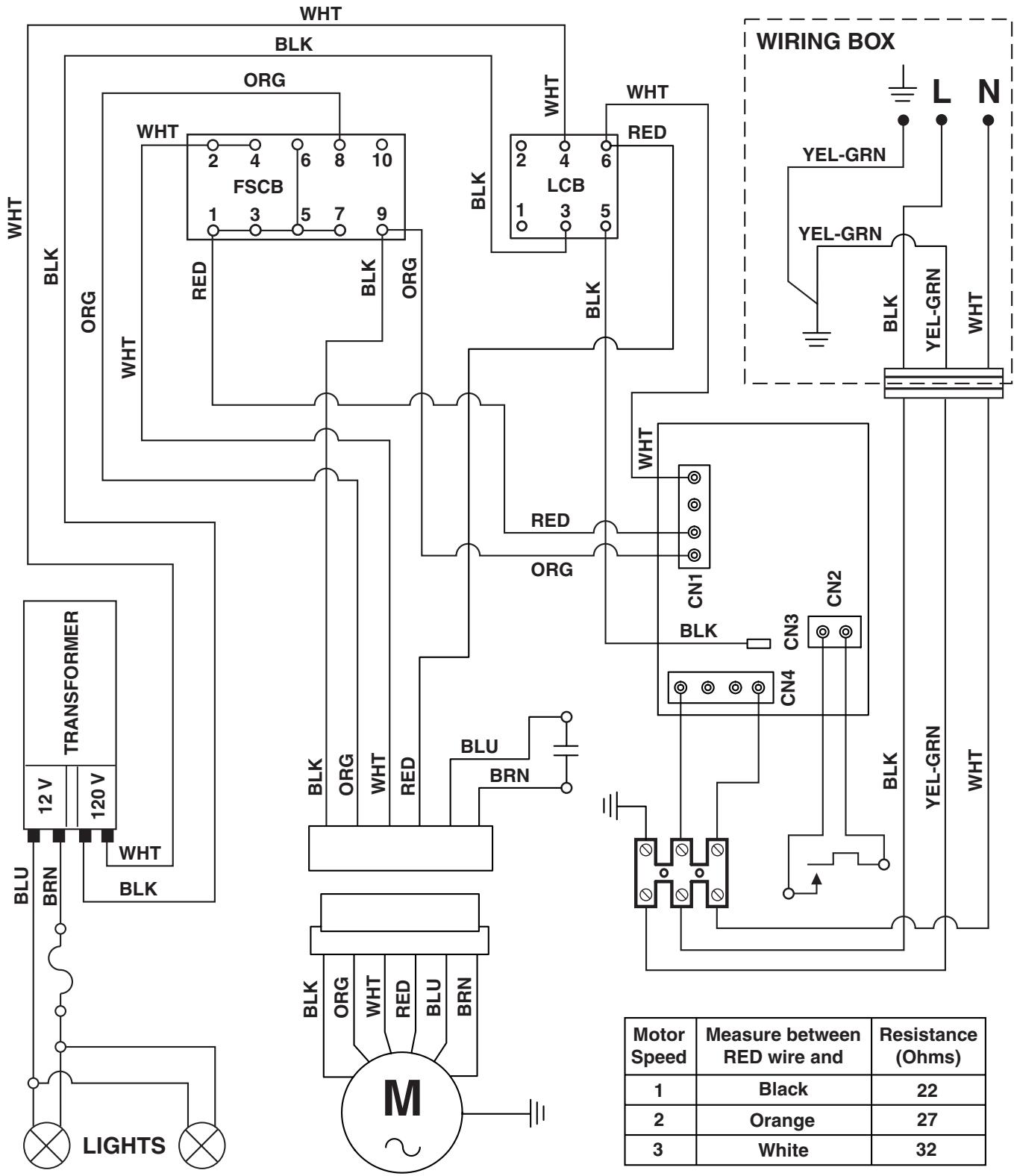

WIRING DIAGRAM 14

ASSISTANCE OR SERVICE. 15

In the U.S.A. 15

Accessories 15

In Canada 15

WARRANTY 16

TABLE DES MATIÈRES

SECURITE DE LA HOTTE DE CUISINIÈRE 17

EXIGENCES D'INSTALLATION 19

ASSISTANCE OU SERVICE 31

31

Au Canada. 31

GARANTIE 32

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.
Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Level
■ Drill
5/16" (8 mm) drill bits for pilot holes
532" (4 mm) drill bits
Pencil
Tape measure or ruler
Caulking gun and weatherproof caulking compound
Phillips screwdriver
- Vent clamps
Metal snips

For vented installations, you will also need:

1 wall or roof cap
Metal vent system

For non-vented (recirculation) installations, you will also need:

Charcoal Filter Kit Part Number 8212566
See "Assistance or Service" section to order.
5" (12.7 cm) diameter expandable/flexible aluminum duct
- Vent clamps for a 6'' (15.2 cm) diameter duct

Parts supplied

Remove parts from packages. Check that all parts are included.

Literature package
Decorative flue assembly
2 metal grease filters for 30^ (76.2 cm) models

3 metal grease filters for 36" (91.4 cm) models

Parts bag containing:

Damper
Mounting bracket
Flue mounting bracket
8 drywall anchors
8 - 4.8 x 38 mm pan head mounting screws
6-3.9x9.5mm pan head screws
2 - 3.9 x 5.7 mm flat head screws

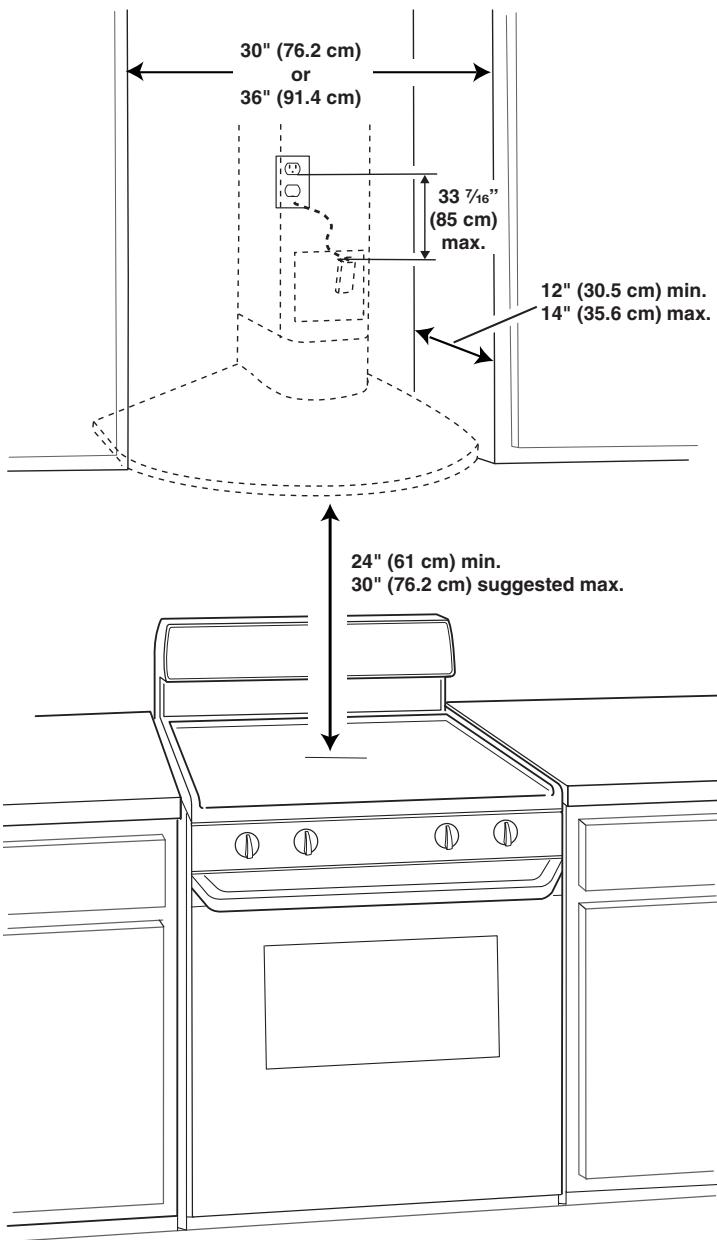

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/ serial rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult the cooktop/ range manufacturer installation instructions before making any cutouts.

Grounded electrical outlet is required. See "Electrical Requirements" section.

The canopy hood is factory set for venting through the roof or wall. For non-vented (recirculating) Installation see "Non-vented (recirculating) Installations" in "Prepare Location" section.

Charcoal Filter Kit Part Number 4393848 is available from your dealer or an authorized parts distributor.

All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local codes.

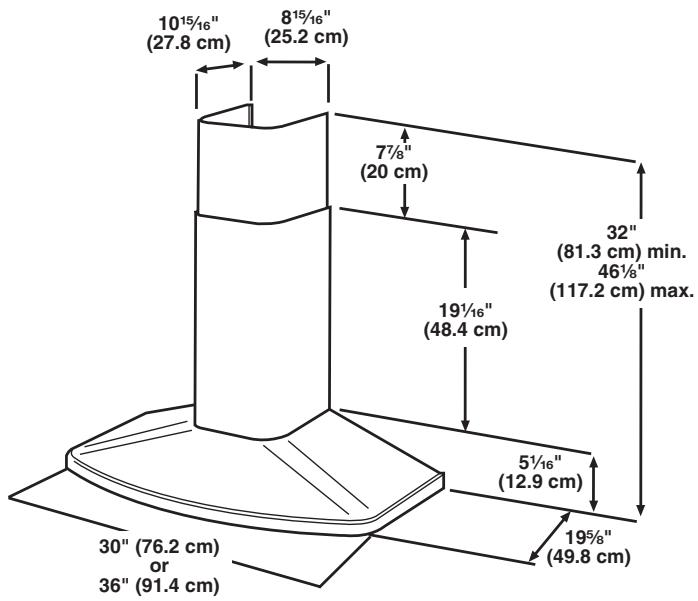

Product Dimensions

Venting Requirements

(vented models only)

• Vent system must terminate to the outdoors, except for nonvented (recirculating) installations.
• Do not terminate the vent system in an attic or other enclosed area.
• Do not use 4^ (10.2 cm) laundry-type wall cap.
  Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.

For the most efficient and quiet operation:

Use a straight run or as few elbows as possible.
Use no more than three 90^ elbows.
Make sure there is a minimum of 24^ (61 cm) of straight vent between the elbows if more than 1 elbow is used.
Do not install 2 elbows together.
Use clamps to seal all joints in the vent system.
The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
Use caulking to seal exterior wall or roof opening around the cap.
The size of the vent should be uniform.

Cold weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a nonmetallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your area.

Venting Methods

This canopy hood is factory set for venting through the roof or wall.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90^ elbow is needed.

Rear discharge

A 90^ elbow may be installed immediately above the hood.

For non-vented (recirculating) installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting an activated carbon filter and the deflector. Fumes and vapors are recycled through the top grille.

Roof Venting
Wall Venting
Non-vented (recirculating)

A. Roof cap
B. 6'' (15.2 cm) round vent

A. Wall cap
B. 6'' (15.2 cm) round vent

A. Deflector
B. 6'' (15.2 cm) round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece	6" (15.2 cm) Round
45° elbow	2.5 ft (0.8 m)
90° elbow	5.0 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example vent system

The following example falls within the maximum vent length of 35 ft (10.7 m).

1-90°elbow = 5.0 ft(1.5m)
1-wall cap = 0.0 ft (0.0m)
8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Length of system = 13.0 ft (3.9m)

Electrical Requirements

Observe all governing codes and ordinances. A 120 Volt, 60Hz , AC only 15-amp fused, electrical supply (or circuit breaker) is required. (A time-delay fuse or circuit breaker is recommended.) It is recommended that a separate circuit serving only this appliance be provided.

Set the grounded 3 prong outlet within the space covered by the decorative flues.

GROUNDING INSTRUCTIONS

For all cord connected appliances:

The range hood must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The range hood is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the range hood is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the range hood.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Prepare Location

It is recommended that the vent system be installed before hood is installed.
Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
Check your ceiling height and the hood height maximum before you select your hood.
- To avoid damage or dirt, place a thick, heavy covering over countertop, cooktop, or range.

1. Disconnect power to outlet.
2. Determine which venting method to use: roof, wall, or non-vented.
3. Select a flat surface for assembling the range hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface.

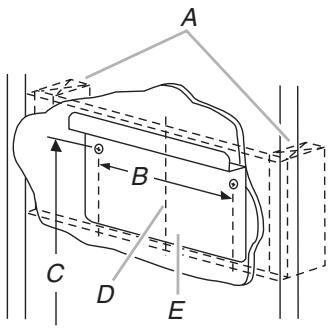

2. Determine and mark the centerline on the wall where the range hood will be installed. Mark location of mounting bracket on wall section using the dimensions shown.

A. Framing behind drywall (optional)
B. 51 / 16'' (12.9 cm)
C. 381/16'' (96.7 cm) = bottom of hood 24" (61 cm) above cooktop 441/16'' (111.9 cm) = bottom of hood 30" (76.2 cm) above cooktop
D. Centerline
E. Hood mounting bracket

Install Mounting Bracket

Wall-Mount Installation - Style 1

1. Drill two 5 / 6 (8 mm) pilot holes for drywall anchors.
2. Install drywall anchors.
3. Attach the hood mounting bracket to the wall using two 4.8 × 38 mm pan head mounting screws.

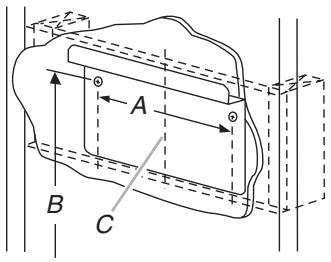

A. 5% (12.9 cm)
B. 38% to 44% (96.7 cm to 111.9 cm) above cooktop
C. Centerline

On 8 ft (2.4 m) ceilings, the required hood distance above the cooktop is a minimum of 24'' (61 cm) and a suggested maximum of 30'' (76.2 cm) for vented installations. For non-vented (recirculating) installations, the minimum is 24'' (61 cm) and the suggested maximum is 28'' (71.1 cm).

On 9 ft (2.7 m) ceilings, the required hood distance above the cooktop is a minimum of 26'' (66 cm) and a suggested maximum of 30'' (76.2 cm). The air vents on the upper decorative flue will be exposed after installation.

For ceilings from 9 ft (2.7 m) to 10 ft (3 m), purchase the optional Chimney Extension Kit Part Number 8212565. See "Assistance or Service" to order. The hood distance above the cooktop is minimum of 24'' (61 cm) and a suggested maximum of 30'' (76.2 cm). The air vents on the upper decorative flue will be exposed after installation if the range hood is mounted 24 - 27" (61 - 68.6 cm) from the cooktop.

Chimney Extension Kit (Optional)

Follow instructions provided with kit.

Chimney Extension Kit Part Number 8212565. See "Assistance or Service" to order.

Wood Frame Installation - Style 2 (optional before drywall installation)

1. Construct wood wall framing so that it is flush with interior surface of wall studs. The framing must be centered over the installation location. The height of the framing must allow for the mounting bracket to be secured to the framing within the dimensions shown.

A. 5 / 16 (12.9 cm)
B. 381 / 16'' to 441 / 16'' (96.7 cm to 111.9 cm) above cooktop
C. Centerline

1. After the wall surface is finished, drill two 513 2'' (4 mm) pilot holes.
2. Install the mounting bracket to the frame using two 4.8 × 38 mm pan head mounting screws.

Install Flue Mounting Bracket

1. Assemble the flue mounting bracket by attaching the 2 side brackets to the center bracket using the 2 flat head bracket screws provided. Adjust outside width as shown.

A. 3.9 × 5.7 mm flat head bracket screws

B. 9^13 / 16 (24.9 cm)

1. Center the mounting bracket directly over the range hood location.
2. Drill two 5 / 16 pilot holes for drywall anchors.

3. Install drywall anchors.

4. Attach the flue mounting bracket to the ceiling using two 4.8 × 38 mm pan head mounting screws.

A. Flue mounting bracket
B. Hood mounting bracket
C. Centerline
D. Cooktop surface

Prepare Range Hood

NOTE: Remove the plastic film from all exterior surfaces of the hood and decorative flues, prior to final installation.

Vented Installation

Install the damper into the duct connector of the range hood.

A. Damper
B. Duct connector

Non-vented (recirculating) Installation

Damper supplied with hood is not required in a non-vented (recirculating) installation. Install the 5'' (12.7 cm) to 6'' (15.2 cm) adapter supplied with the Charcoal Filter Kit, Part Number 8212566. See "Assistance or Service" section to order.

A. 5'' (12.7 cm) to 6'' (15.2 cm) adapter
B. Blower collar

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

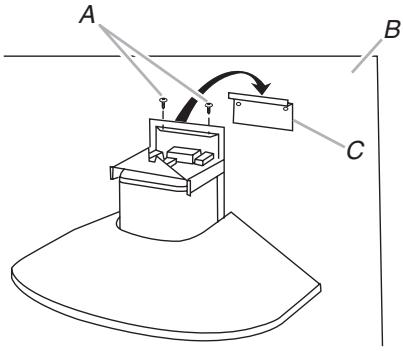

1. Using two or more people, lift the range hood into the prepared installation location.
2. Align the rectangular opening on the back of the range hood with the hood mounting bracket. Slowly lower the range hood until it securely engages the bracket.

A. 3.9 × 9.5 ~mm pan head screws
B. Wall
C. Hood mounting bracket

1. Level the range hood with two 3.9 × 9.5 mm pan head screws.
2. Mark location of 4 mounting holes on wall with pencil.
3. Remove range hood from mounting bracket.
4. If installing screws into wood, drill four 5/32'' (4 mm) pilot holes. OR

If using drywall anchors, drill four 5 / 16'' (7.9 mm) pilot holes.

1. If mounting the range hood to drywall, insert drywall anchors.
2. Lift range hood back into the prepared installation location.

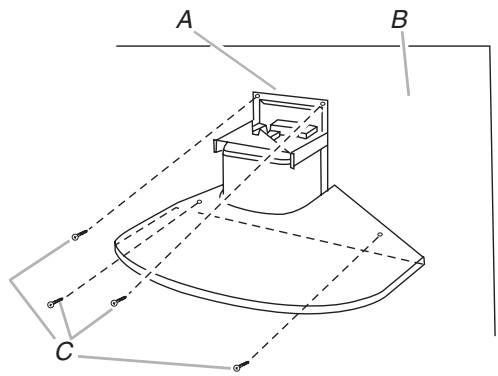

3. Secure the range hood with four 4.8 × 38 mm pan head mounting screws.

A. Range hood
B. Wall
C. 4.8 × 38 ~mm pan head mounting screws

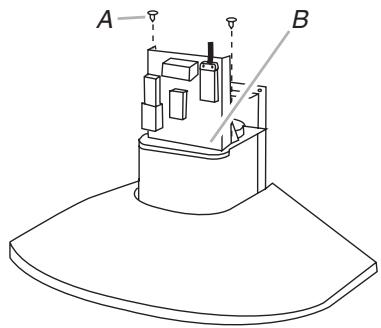

1. Mount the wiring assembly to the range hood with two 3.9 × 9.5 mm pan head screws.

A. 3.9 × 9.5 ~mm pan head screws
B. Wiring assembly

Vented Installation - Style 1

1. Attach an adequate length of 6'' (15.2 cm) round metal duct to the range hood duct connector.

A. 6'' (15.2 cm) round metal duct
B. Duct connector

1. Seal connection with vent clamp.

A. 6'' (15.2 cm) round metal duct
B. Vent clamp

1. Slide the lower decorative flue into the recessed area of the range hood top.

A. Lower decorative flue
B. Recessed area

1. Slide the upper decorative flue down inside the lower decorative flue.

On 8 ft (2.4 m) ceilings the air vents on the upper decorative flue are concealed by installing the decorative flue with air vents down.

A. Upper decorative flue
B. Lower decorative flue
C. Upper decorative flue vents concealed

On 9 ft (2.7 m) to 10 ft (3 m) ceilings, air vents on the upper decorative flue will be exposed after installation.

A. Upper decorative flue
B. Lower decorative flue
C. Upper decorative flue vents exposed

1. Plug into a grounded 3 prong outlet.

1. Raise the upper decorative flue until its holes align with the holes in the flue mounting bracket.
2. Mount the decorative flue to the flue mounting bracket with two 3.9 × 9.5 mm mounting screws.

A. Flue mounting bracket
B. 3.9 × 9.5 mm mounting screws

1. Install metal grease filters by inserting the back edge of filter into the rear channel of the filter opening. Push handle toward the rear and push the filter up. Push filter toward the front and insert into the front channel.

A. Metal grease filters

Non-vented (recirculating) Installation - Style 2

IMPORTANT: For this installation, you will need Charcoal Filter Kit Part Number 8212566.

1. To determine the length of flexible duct that is necessary when the deflector is positioned near the ceiling, measure the distance from the adapter to the deflector.

A. Deflector
B. Adapter
C. Distance from adapter to deflector

1. Attach the flexible metal duct to the 5'' (12.7 cm) adapter. Seal connection with vent clamp.

A. 5'' (12.7 cm) flexible metal duct

B. Vent clamp location
C. Blower collar

1. Assemble the deflector to the flexible metal duct.
2. Attach the duct to the deflector's connector with vent clamps.
3. Slide the lower decorative flue into the recessed area of the range hood top.

A. Lower decorative flue
B. Recessed area

1. Slide the upper decorative flue down inside the lower decorative flue.
   NOTE: The upper decorative flue vents must be visible.

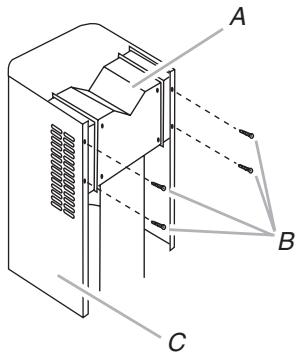

2. Secure the deflector to the upper decorative flue with 4 flat head screws (included in charcoal filter kit).

A. Deflector
B. Four flat head screws
C. Upper decorative flue

1. Plug into a grounded 3 prong outlet.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Raise the upper decorative flue until the holes align with the holes in the flue mounting bracket.
2. Mount the decorative flue to the flue mounting bracket with two 3.9 × 9.5 mm mounting screws.

A. Flue mounting bracket
B. 3.9 × 9.5 mm mounting screws

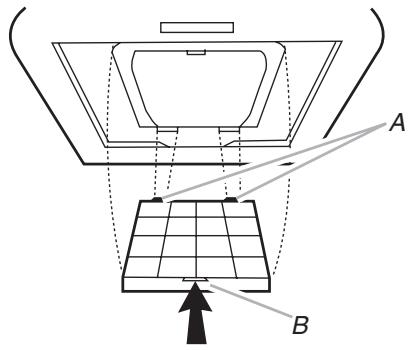

1. Install charcoal filter by inserting tabs of filter into housing as shown. Press inward on the clamp and rotate the filter upward until the clamp engages the housing.

A. Tabs
B. Clamp

1. Install metal grease filters by inserting the back edge of filter into the rear channel of the filter opening. Push handle toward the rear and push the filter up. Push filter toward the front and insert into the front channel.

A. Metal grease filters

1. Reconnect power.

Complete Installation

A. Light switch
B. Blower switch

1. Move the light switch to "1" position. The light should turn on.
2. Move blower switch to "1" position. The blower should operate.
3. Move the blower speed switch to "1" position for low speed, "2" position for medium speed or "3" position for high speed.
4. Move blower and light switches to "0" position to turn off blower and light.
5. If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown.

NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The range hood controls are located on the underside of the canopy.

A. Light switch
B. Blower switch

Range Hood Controls

Operating the light

1. Move the light switch to the "1" position to turn on the light.
2. Move the light switch to the "0" position to turn off the light.

Operating the blower and adjusting blower speed

1. Move the blower switch to the “1” position for low speed, the “2” position for medium speed or the “3” position for high speed.
2. Move the blower switch to the “0” position to turn off the blower.

Heat Sensing

This range hood is equipped with a heat sensing thermostat. This thermostat is a device that will turn the blower on or speed the blower up if it senses excessive heat above the cooking surface.

If the blower is off, the heat sensing thermostat will turn the blower on to high speed.

If the blower is on at a lower speed setting, the heat sensing thermostat will turn the blower up to high speed.

When the temperature level drops to normal, the blower will return to its original setting.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Be sure lights are cool before cleaning the hood.

Exterior surfaces

Clean the range hood with a mild detergent and soft cloth. Do not use abrasive cleanser or steel-wool pads.

Metal grease filters

The filters should be washed frequently. Place metal filters in dishwasher or hot detergent solution to clean. Drain water through edge holes and let each filter dry thoroughly before replacing it.

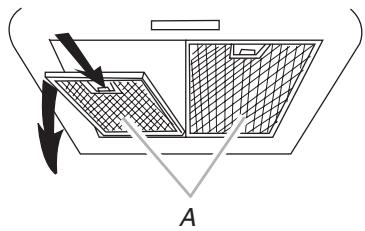

To remove metal filters:

1. Turn off blower and lights.
2. Push handle toward the rear and pull downward.

Pull filter toward the front.

A. Metal grease filters

To replace the metal grease filter:

1. Insert back edge of filter into the rear channel of the filter opening.
2. Push handle toward the rear and push the filter up.
3. Push filter toward the front and insert into the front channel.

Charcoal Filters - For non-vented (recirculating) installations The charcoal filter should be changed every 6 months.

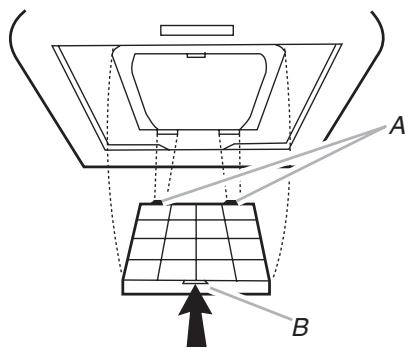

To remove the charcoal filter:

Press inward on the clamp and rotate the filter downward until the 2 tabs can be removed from the housing.

A. Tabs
B. Clamp

Replacing a Halogen Lamp

IMPORTANT: To avoid blowing internal fuse, do not use replacement bulb larger than 12-volt, 20-watt.

Turn off the range hood and allow the halogen lamps to cool. Replace bulb by using a tissue to handle bulb or while wearing cotton gloves. Do not touch bulb with bare fingers.

If new lights do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power or unplug the range hood.
2. Use a flat-blade screwdriver and gently pry the light cover loose.

1. Remove the burned out lamp.
2. Replace lamp with a 12-volt, 20-watt maximum, halogen lamp made for a G-4 base. Use a tissue to handle the lamp or wear cotton gloves. Do not touch the lamp with bare fingers.
3. Replace the light cover.
4. Reconnect power or plug in range hood.

Fuse Replacement

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power or unplug the range hood.

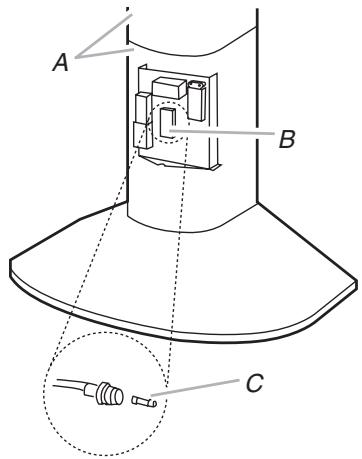

2. Remove the decorative flue.

A. Decorative flue
B. Fuse box
C. Fuse

1. Open the fuse box by removing screw.
2. Replace with the same type of fuse (5 x 20 mm, 4A, 125V).

WIRING DIAGRAM

FAN SPEED CONTROL BOARD (FSCB)
SPEED	1	2	3
CONTACT	1-2	1-8	1-9

LIGHT CONTROL BOARD (LCB)
OFF	ON
2-4	4-6
1-3	3-5

SE1L7A

ASSISTANCE OR SERVICE

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified parts replacement parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
Installation information.
Use and maintenance procedures.
■ Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Accessories

Chimney Extension Kit

Part Number 8212565

Charcoal Filter Kit

Part Number 8212566

In Canada

Call the Whirlpool Canada LP Customer Interaction Centre toll free: 1-800-807-6777.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.
Use and maintenance procedures.
■ Accessory and repair parts sales.
- Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at:

Customer Interaction Centre Whirlpool Canada LP 1901 Minnesota Court Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty applies only when the major appliance is used in the country in which it was purchased.

ITEMS WHIRLPOOL WILL NOT PAY FOR

1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair house fuses or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
5. Any food loss due to refrigerator or freezer product failures.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery. This major appliance is designed to be repaired in the home.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service in remote locations.
10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
11. Replacement parts or repair labor costs when the major appliance is used in a country other than the country in which it was purchased.

DISCLAIMER OF IMPLIED WARRANTY; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting," additional help can be found by checking the "Assistance or Service" section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

SECURITE DE LA HOTTE DE CUISINIÈRE

ASSISTANCE OU SERVICE

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

GARANTIE DES GROS APPAREILS MÉNAGERS WHIRLPOOL CORPORATION

GARANTIE LIMITEE DE UN AN
