USER MANUAL RACLETTE 4 TRANSPARENCE LAGRANGE

Kolom in thermohard plastic

LA RACLETTE D'OIGNONS AU JAMBON

Pour 6 personnes

Description of appliance

1. Colonne in termoindurente

Columns en termoendurecible

Thermosetting-plastic columns

On/off button with lighted indicator

1. Cordone fisso

Cable fijo

Fixed cord

Raclette pans with anti-stick coating

Painted steel base (depending on model)

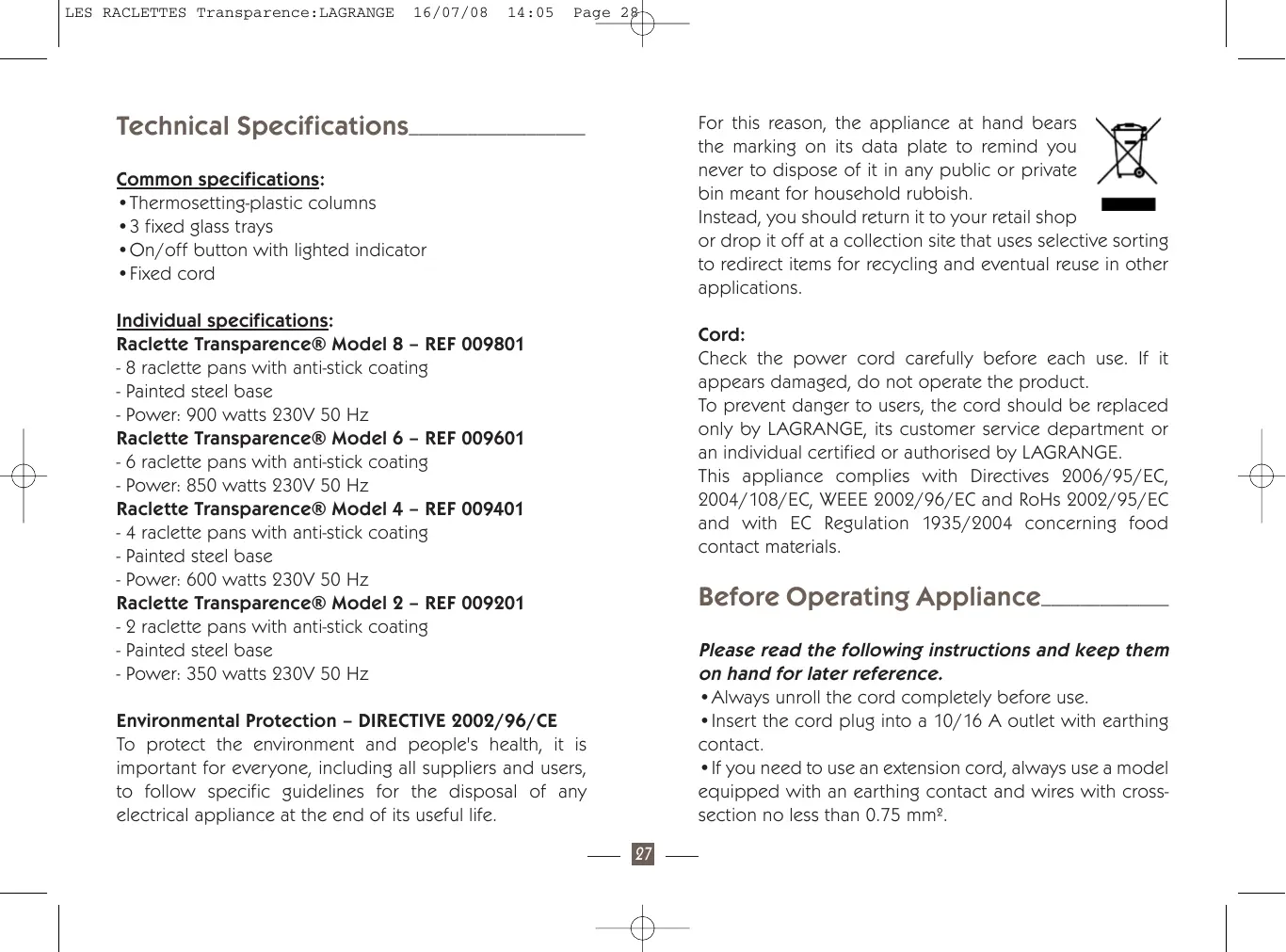

Technical Specifications

Common specifications:

Thermosetting-plastic columns
- 3 fixed glass trays
- On/off button with lighted indicator
- Fixed cord

Individual specifications:

Raclette Transparency® Model 8 - REF 009801

• 8 raclette pans with anti-stick coating
• Painted steel base
• Power: 900 watts 230V 50 Hz

Raclette Transparency® Model 6 - REF 009601

• 6 raclette pans with anti-stick coating
• Power: 850 watts 230V 50 Hz

Raclette Transparency® Model 4 - REF 009401

• 4 raclette pans with anti-stick coating
• Painted steel base
• Power: 600 watts 230V 50 Hz

Raclette Transparency® Model 2 - REF 009201

• 2 raclette pans with anti-stick coating
• Painted steel base
• Power: 350 watts 230V 50 Hz

Environmental Protection - DIRECTIVE 2002/96/CE

To protect the environment and people's health, it is important for everyone, including all suppliers and users, to follow specific guidelines for the disposal of any electrical appliance at the end of its useful life.

For this reason, the appliance at hand bears the marking on its data plate to remind you never to dispose of it in any public or private bin meant for household rubbish.

Instead, you should return it to your retail shop

or drop it off at a collection site that uses selective sorting to redirect items for recycling and eventual reuse in other applications.

Cord:

Check the power cord carefully before each use. If it appears damaged, do not operate the product.

To prevent danger to users, the cord should be replaced only by LAGRANGE, its customer service department or an individual certified or authorised by LAGRANGE.

This appliance complies with Directives 2006/95/EC, 2004/108/EC, WEEE 2002/96/EC and RoHs 2002/95/EC and with EC Regulation 1935/2004 concerning food contact materials.

Before Operating Appliance

Please read the following instructions and keep them on hand for later reference.

• Always unroll the cord completely before use.
• Insert the cord plug into a 10/16 A outlet with earthing contact.

• If you need to use an extension cord, always use a model equipped with an earthing contact and wires with cross-section no less than 0.75 ~mm^2 .

• Take all necessary precautions to prevent risk of tripping on the main or extension cord.

• It is recommended to connect the appliance to a system with a residual differential current appliance with current limit not exceeding 30 ~mA .
• Before cleaning, unplug the appliance and let cool completely.
• Never submerse the appliance in water.
• For your safety, it is recommended to never leave the appliance in a location exposed to weather or damp conditions.
• Never use the appliance as a heating device.
• Do not leave the appliance plugged in when not in use.

• Do not touch the metal parts or glass trays during operation as they may be hot.

• Persons (including children) not capable of using the appliance in complete safety, whether due to their physical, sensory or mental capacity or to lack of experience or knowledge, may under no circumstances operate this appliance without supervision or instructions from a responsible person.

• This appliance is not designed for activation through use of an external timer or any type of remote control system.
• Children should be watched to ensure that they do not use the appliance as a toy.

Operation and Use

1- First Use

• When unpacking the appliance, take care to remove and check all packing for parts and to remove the label affixed to the glass tray.
• It is recommended to clean the pans before using them for the first time.

A new appliance may smoke slightly when used for the first time.

2-Operation

• Place the appliance on a flat surface.
• Unroll the cord completely.
• Plug in the appliance and turn the switch on; the indicator will light up.
• Preheat the appliance for 15 minutes before inserting pans.
• Place the cheese in the raclette pans.
• Place the pans into the appliance, making sure that the cheese is not so thick that it comes into contact with the heating element.
• Remove* and enjoy when the cheese has reached the desired colour and consistency.

Note: It is normal for the cooking temperature to vary slightly over the entire cooking surface.

• If you have finished or would like to pause cooking during a meal, the pans may be placed on the bottom tempered-glass level. If you use the 'hot-holding' feature, it is normal for the cheese to congeal somewhat.

To give cheese a thinner consistency, place the pan on the upper level again for a few minutes.

*Important: the handles of the raclette pans may become very hot due to the radiant heat from the element. For your comfort, grasp pans only by the translucent portion of the handle.

Maintenance

Always unplug the appliance and let cool completely before cleaning.

Your appliance has glass trays and consequently requires special care during cleaning and maintenance.

• Glass trays and element: clean with a sponge, a little hot water and liquid detergent.

Note: the glass trays are fixed, do not try to remove them.

Note: To avoid scratching the glass, never use an abrasive sponge or metal pad.

• First, clean the top of each tray, and then turn the appliance over carefully and clean the underside of each tray.

Note: The element does not come out. Instead, carefully wipe the glass trays around it.

• Let sit for 2 to 3 minutes. Then, before the water evaporates completely, dry the trays with paper towels.
• Dry the element thoroughly.

• Tip: to remove stubborn stains and grease more easily, use glass cleaner.

• Pans: clean with a non-abrasive sponge using hot water and liquid detergent. Rinse. To avoid scratching the non-stick coating, do not scrub the pans with metal pads or brushes or abrasive products.

Note: The pans may be left to soak or placed in a dishwasher.

• Metal columns and base (depending on model): clean using only a soft, damp, non-abrasive sponge. Wipe with a dry cloth.

Take care not to allow electrical parts to come into contact with water. Never submerse the appliance in water.

General warranty conditions

Your appliance is subject to a 2-year warranty.

In order to benefit from an additional year of warranty coverage free of charge, register on the LAGRANGE Web site (www.lagrange.fr).

The warranty covers parts and labour and also covers manufacturing defects.

The warranty excludes deterioration due to misuse or failure to follow the user instructions, or due to dropping the product and breaking the enamel.

THIS WARRANTY APPLIES TO DOMESTIC USE; UNDER NO CIRCUMSTANCES DOES IT COVER PROFESSIONAL USE.

The vendor's legal warranty obligations in no way exclude the Manufacturer's legal warranty obligations relating to faults or manufacturing defects in accordance with Article 1641 and subsequent articles of the French Civil Code.

In the event of a breakdown or malfunction, contact your retailer.

In the event of a technical fault occurring within 8 days of purchase, the appliance may be exchanged. After this period, it is repaired by LAGRANGE's after-sales service

Recipes

Suggestions: Select a nice Raclette cheese. Plan for approximately 200 g of cheese per person.

LA RACLETTE

Serves 6

Ingredients: 1.2 kg Raclette cheese cut into thin slices; 12 potatoes; variety of cold meats (e.g., cooked ham, cured raw ham, smoked ham, dried meats, Grisons meat cut into thin strips, sausage); side dishes as desired (cocktail onions or other pickles/chutneys).

Cook the potatoes in their skins and then place them on the upper glass tray in a heat-resistant dish containing enough water to cover the bottom. Add one or more slices of Raclette cheese to each pan. Heat the cheese until its surface forms a thin, golden crust.

Serve with the cold meats, salad, cocktail onions, pickles and chutneys, mushrooms, a dash of ground white pepper on the cheese, sliced tomatoes or aubergines, etc., accompanied by a dry white Savoy wine (Apremont, Abymes, Chignin or Roussette).

LA RACLETTE 4 SAISONS

Serves 6

Ingredients: 1.2 kg Raclette cheese; variety of cold meats (e.g., Grisons meat, cooked or cured raw ham, sausage); salad; quail eggs; smoked lardoons, cubed.

Steam or boil the potatoes in their skins. Halve the potatoes and place them on the upper glass tray to keep warm in a heat-resistant dish containing enough water to cover the bottom. Heat the cheese in the pans until it begins to melt and add the smoked lardoons.

Serve with side dishes depending on the season:

• Spring: asparagus tips, cherry tomatoes, carrots, turnips, potatoes...
• Summer: celery stalks, grilled sweet peppers, basil leaves, pineapple pieces, courgettes, cauliflower...
• Autumn: sweet corn, nuts, hazelnuts, raisins, sliced chestnuts, artichoke hearts, smoked lard, cocktail onions...
• Winter: meatballs, sliced roasted veal or chitterlings...

17 Chemin de la Plaine

ZA les Plattes

BP 75

69390 VOURLES

France

www.lagrange.fr

[e-mail]

LAGRANGE
