Product Type	Electric Kettle
Brand	Panasonic
Model	NC-K301
Capacity	1.0 L
Power Rating	1200 W
Voltage	220-240 V, 50/60 Hz
Boiling Time	Approximately 4-5 minutes
Material	Stainless steel interior, heat-resistant plastic exterior
Cordless Operation	Yes, with 360° swivel power base
Auto Shut-Off	Yes, once boiling is complete
Boil-Dry Protection	Yes, prevents operation without water
Overheat Protection	Yes, thermal fuse for safety
Water Level Window	Clear gauge on the side
Lid	Wide opening, easy to fill and clean
Filter	Removable anti-scale filter
Handle	Ergonomic, cool-touch grip
Power Indicator	LED indicator for power status
Dimensions (W x D x H)	Approx. 20 x 15 x 25 cm
Weight	Approx. 1.2 kg
Cleaning and Maintenance	Wipe exterior with damp cloth; descale regularly
Included Accessories	Power base, removable filter, instruction manual
Warranty	2 years standard manufacturer warranty
Color	White with stainless steel finish

Frequently Asked Questions - NC-K301 PANASONIC

How do I descale my Panasonic NC-K301 kettle?

To descale, fill the kettle with a mixture of white vinegar and water (1:2 ratio), boil, then let it sit for 15 minutes. Empty, rinse thoroughly, and boil fresh water twice. Regular descaling keeps performance and longevity.

Can I boil water and leave it in the kettle?

It is best to pour out water after boiling. Leaving water may cause mineral build-up and affect the taste. Always empty and dry the interior after use.

Why does my kettle shut off before boiling?

This could be due to limescale buildup on the heating element. Descaling the kettle should resolve the issue. If the problem persists, check if the boil-dry protection is activated, as insufficient water can also trigger this.

What is the maximum capacity of the NC-K301?

The maximum capacity is 1.0 liter. Do not exceed the max fill line marked on the water level window, as overfilling can cause water to splash during boiling.

Is the power base easy to store?

Yes, the 360° swivel base has a compact design. The cord wrap underneath the base allows convenient storage, keeping your countertop tidy.

Can I use the kettle to heat other liquids like milk or coffee?

No, this kettle is designed for water only. Heating other liquids can cause damage, dangerous overflows, and void the warranty. Use appropriate appliances for other beverages.

How long does it take to boil a full pot?

With a 1200 W heating element, a full liter of water typically reaches boiling in about 4 to 5 minutes. Actual time depends on starting water temperature.

Does the kettle have a filter in the spout?

Yes, the kettle includes a removable anti-scale filter to prevent limescale particles from pouring into your drink. Clean it periodically under running water.

Is the NC-K301 safe to use with children around?

The kettle has multiple safety features including auto shut-off, boil-dry protection, and a cool-touch handle. However, always keep the kettle and its cord out of reach of young children due to hot surfaces.

What should I do if the kettle stops working suddenly?

First, check if it is plugged in and the base connection is secure. If the kettle is still cold, the thermal fuse may have triggered due to overheating. Contact Panasonic support for repair or replacement if needed.

USER MANUAL NC-K301 PANASONIC

Operating Instructions

Electric Kettle (Household Use)

English

Model No. NC - K101

NC - K301

NC-K101 NC-K301

Thank you for purchasing the Panasonic product.

• This product can only use for boiling water, it does not have thermal insulation function.
• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN3 - 8).
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Contents Page

Safety Precautions	EN3
Important Information EN8
Parts Names and Handling Instructions EN9
How to Use EN10
How to Clean EN12
Troubleshooting	EN13
Specifications EN15

Safety Precautions

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■The following charts indicate the degree of damage caused by wrong operation.

WARNING:

Indicates potential hazard that could result in serious injury or death.

CAUTION:

Indicates potential hazard that could result in minor injury or property damage.

■The symbols are classified and explained as follows.

This symbol indicates an action that must be avoided.

This symbol indicates an action that must be carried out.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

• Do not disassemble, repair or modify this appliance. → Consult the place of purchase or a Panasonic service center.
• Do not damage the power cord or power plug.

Following actions are strictly prohibited. Modifying or placing near heating element, bending, twisting, pulling along, pulling over sharp edges, putting heavy objects on top, bundling the power cord and carrying the appliance by the power cord.

- Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

→ If the power cord is damaged, it must be replaced by the manufacturer, its service centre or similarly qualified person in order to avoid a hazard.

EN3

Safety Precautions

Please make sure to follow these instructions.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

• Do not plug or unplug the power plug with wet hands.
• Do not immerse the appliance (include the power base and power base connector), power cord and power plug in water or splash it with water and / or any liquid.

- Do not allow the bottom of the appliance to get wet when filling directly from the tap or placing it in the sink.

• Do not let the power cord hang over the edge of table or worktop, or touch hot surfaces.
• Do not allow infants and children to play with packaging material.

(It may cause suffocation.)

• Do not allow foreign material (especially metal components such as pins and wires or dust) to adhere to the body connector or power base connector.
• Do not touch or put your face close to the spout during or after use.

- Especially keep the appliance out of reach of infants and children.

• Do not block the spout with a cloth etc.
• Do not close the lid vigorously.
• Do not fill with any substance other than water. This appliance is for boiling water only.
• Do not shake or tip over the body.
• Do not use to store ice cubes.
• Do not put the body on any heat source or in a microwave.
• Do not lick the power base connector.

- Pay attention when infants and children are near the appliance.

● Make sure the lid is closed firmly when boiling water or pouring water.

EN4

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

● Always keep the infants and children away from the appliance including power cord.

- Insert the power plug firmly.

● Dust off the power plug regularly.

→ Unplug the power plug, and wipe with a dry cloth.

● Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal or breaking down:

• The power plug and the power cord become abnormally hot.
• The power cord is damaged or the appliance power fails.
• The main unit is deformed, has visible damage or is abnormally hot.

• Water leaks from the body.

- The steam continues more than 3 minutes.

- There is another abnormality or failure.

→Unplug the appliance immediately and contact to the service center for the check or the repair.

EN5

Safety Precautions

Please make sure to follow these instructions.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electrical over heating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.
- Do not pour water above the maximum water level indication line. If the appliance is overfilled, boiling water may be ejected.

CAUTION

To avoid risk of electric shock, fire, burn, injury or property damage.

- Never leave the appliance unattended during operation. - Do not use the appliance for any purpose other than those described in these instructions.

- Do not touch the hot parts (such as the spout etc.) immediately while appliance is in use or after use.

- The accessible parts may become hot during use. Be careful with the residual heat source especially after use.

- Do not pour hot water or move the appliance while the water is boiling.

● Maker sure the power switch is turned off before removing the appliance from the power base (stand).

- Do not use the appliance on following places.

- On uneven surfaces, on carpet, non - water - resistant surface or tablecloths etc.

- Places where it may be splashed with water or near a heat source.

- Near any open water sources such as sinks, or the like.

EN6

CAUTION

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

- Do not use the appliance near a wall, furniture, or in enclosed spaces such as a built - in cupboard. (It may cause discoloration or deformation.)

● Make sure to hold the power plug when unplugging the power plug. Never pull on the power cord.

● Always ensure the appliance is switched off and unplug the power plug from outlet when the appliance is not in use, before moving and cleaning.

- Place the appliance on a firm dry, clean flat heatproof worktop.

● Beware not to tripped over or get caught in the power cord while in use.

- Do not open the lid while the water is boiling and immediately after use. When opening the lid, steam and hot liquid may spurt out or drop on your hand.

● Pour out any remaining hot water from the spout.

- The appliance is only to be used with the stand provided. Do not use power source other than the dedicated power base, or use the power base with any other equipment.

● Unplug and allow the appliance cool down before moving, cleaning and storing away.

● Beware when pouring hot water. Pour slowly, and do not over - tilt the appliance.

- Remove the appliance from its stand before filling or pouring.

- Do not touch the appliance with wet hands.

- Do no press down the power switch except boiling water.

- When carrying the appliance, make sure lid has been set firmly.

- Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN12 "How to Clean")

● This product is intended for household use only.

EN7

Important Information

- Do not drop the body or power base to avoid damaging it.

- Do not move the body or power base by dragging. (It may scratch the table or work surface.)

- Do not turn the power switch on without water. (It may cause malfunction.)

- Do not use the appliance outdoors.

- Do not place a cloth on the lid. (It may cause malfunction or deformation.)

- Make sure the appliance is properly located on the stand before switching on.

- Beware of steam when the appliance is refill with water immediately after boiled.

- Do not move the appliance by holding the lid.

- Make sure to avoid direct sunlight or cleaning the appliance with detergent which contains hypochlorous acid (HClO).

This symbol on the products indicates “Hot surface and should not be touched without caution”.

EN8

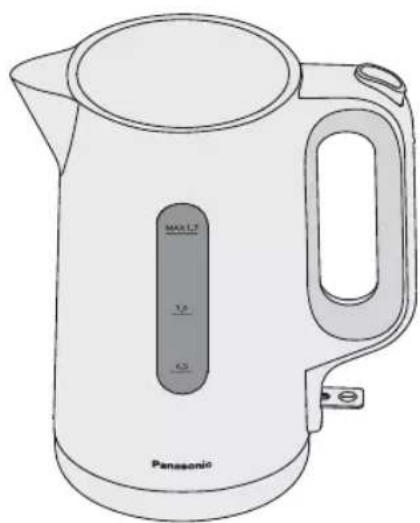

Parts Names and Handling Instructions

English

● Illustration of the product in this instructions are exemplified by NC - K101.

Before use

- Clean the appliance by following the steps below for the first time or when you have not used it for a while.

① Fill water up to the maximum water level and boil. (P. EN10)
② Pour the water out from the spout. (P. EN11 After use, pour out any remaining water.)

- Do not use a socket or extension cord.

EN9

How to Use

1 Open the lid and fill with water.

2 Close the lid, put the machine on the power base and insert the power plug.

- Do not insert the power plug before filling the water and closing the lid.

Adjusting the length of the power cord

* Wind the power cord on the bottom of the power base to adjust the length.

* Pass the power cord out through the position of opening. (Do not put the power base on the power cord.)

EN10

3 Turn on the power switch. (Press to “|”)

When the water has boiled, the power switch turns off automatically.

The machine takes around 6 minutes to boil. Water temperature 23 °C, room temperature 23 °C, water to max level, 220 V.

• To stop boiling before the water has boiled, turn off the power switch.

Note

- Immediately after the water has boiled, do not force the machine to continue heating the water by keep pressing the power switch. (It may cause malfunction.)

4 Remove from the power base and pour.

■ After use, pour out any remaining water.

* Keep the lid closed when pouring away the water.

Boil dry protection

When the power switch is on without water, an boil dry protection works to automatically turn off the power in order to prevent accidents and malfunction due to overheating.

① Allow the body to cool sufficiently.
② Remove the body from the power base and fill the water.
③ Place it on the power base and turn on the power switch again.
* If you switch on the appliance when there is no water in it, it may smell strange.

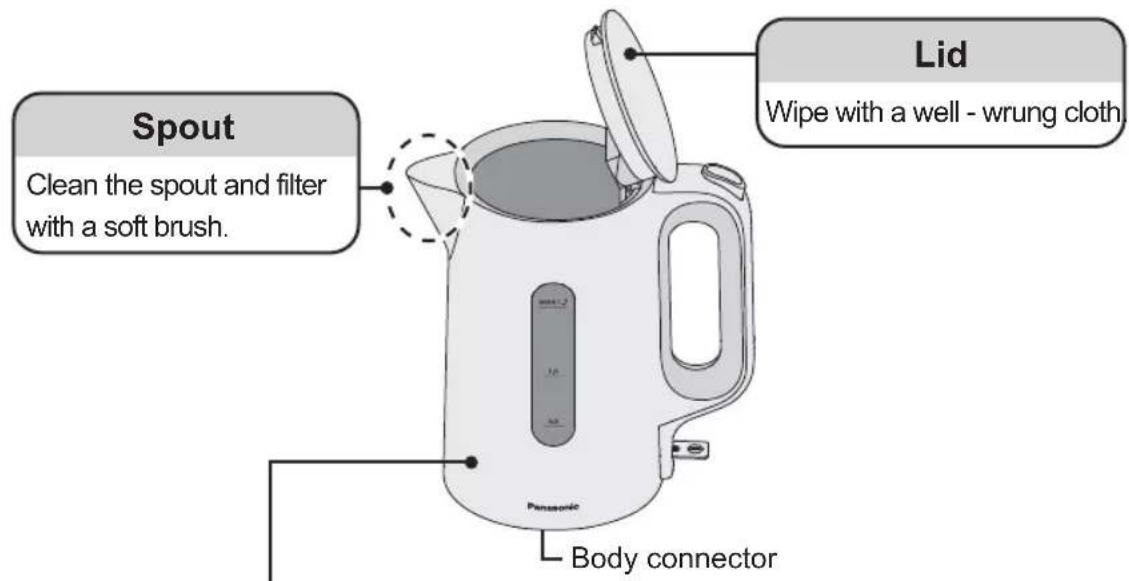

How to Clean

■ Clean the appliance after every use.
■ Before cleaning, be sure to disconnect the power plug from outlet, pour away the hot water, and cool down the body.

Note

• Do not use dish soap. (This may cause a residual odour.)
• Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon brush, otherwise the surface will be damaged.
  • Do not wash in a dishwasher.
• Do not clean the appliance with pointed object such as a toothpick or pin.

Body

(Outside)

Wipe with a well-wrung cloth.

(Inside)

Rub with a soft sponge and rinse.

Scale build-up

Minerals such as calcium carbonate contained in the water build up in the machine.

→ Please remove the scale.

① Remove it regularly using:

- Scale remover Follow the instructions supplied with the scale remover.

- Citric acid Fill the machine with water half way up and boiled it. After switch is off, put approx. 80 g of citric acid and stir it well. Let it still for approx. 30 min.

- Vinegar Fill the machine with water up to Max level and boiled it. After switch is off, put approx. 100 mL of vinegar and stir it well. Let it still for approx. 2 hours.

② After removal, repeat the following steps a few times: fill with water, boil, pour away.

EN12

To store

- Dry it thoroughly.

- Put in a plastic bag and seal the bag to prevent insects etc. from entering.

Troubleshooting

Please check the following points before arranging for service.

EN13

Troubleshooting

EN14

Specifications

		NC - K101 NC - K301
Power supply 220 - 240 V 50 ~		-60 Hz
Power consumption 1850 - 220 W		0 W
Dimensions (W × D × H) (approx.)	Body 225 × 23	2 × 144 (mm) 241 × 21	8 × 144 (mm)
	Body + Power base	225 × 255 × 144 (mm)	241 × 239 × 144 (mm)
Mass (approx.)	Body	0.73 kg	0.88 kg
	Body + Power base	0.98 kg	1.12 kg
Rated capacity (approx.)		1.7 L
Length of the power cord (approx.)		0.70 m

• In certain regions (high altitude, very cold locations), it may not be possible to obtain the predetermined performance.

مشخصات قى

NC - K101 NC - K301

Manufacturer: Panasonic Taiwan Co., Ltd.

579, Yuan Shan Road, Chung-Ho

District, New Taipei City, Taiwan

Jebel Ali Dubai United Arab Emirates

* For GSO Member Countries
