S 32 TNV 08 - TV SABA - Free user manual and instructions

USER MANUAL S 32 TNV 08 SABA

Balance (Balance) 37

Casque (Headphone) 37

Volume 37

Balance (Balance) 37

Mode Son (Sound Mode) 37

AVL 37

Effet (Effect) 37

Source PIP (PIP Source) 39

Échanger PIP (PIP Swap) 39

PAP 39

PAP activé-désactivé (on-off) 39

Image PAP (PAP Picture) 39

Source PAP (PAP Source) 39

Échanger PAP (PAP SWAP) 39

Fond bleu (Blue Background) 40

Fond du menu (Menu Background) 40

Délai d'expiration du menu (Menu Timeout) .... 40

Supprimer (Delete) 41

Modes Image incrustee (PIP), Image et image (PAP) 45

Panoramaique (Panoramic): 46

14:9 47

Cinéma 47

(PROGRAMME UP)/PROGRAMME

PRECEDENT (PROGRAMME DOWN)

Mode Favori (Favourite Mode)

Position PIP (Pip position)

Source PIP (PIP Source)

Échanger PIP (PIP Swap)

Image PAP (PAP Picture)

Source PAP (PAP Source)

Fond bleu (Blue Background)

Panoramaique (Panoramic):

PAL/SECAM B/G D/K I/I' L/L

RéCEPTION DES CHÂINES

VHF (BAND I/III)

UHF (BAND U)

HYPER BANDE

Power Source 57
Power Cord 57
Moisture and Water 57
Cleaning 57
Ventilation 58
Heat and Flames 58
Lightning 58
Replacement Parts 58
Servicing 58
Waste Disposal 58
Information for Users in European Union
Countries 58
Disconnecting the Device 59
Headphone Volume 59
Installation 59
LCD Screen 59
Warning 59

Overview of the Remote Control 60
LCD TV and Operating Buttons 61
Viewing the Connections 62
Power Connection 64
Aerial Connection 64

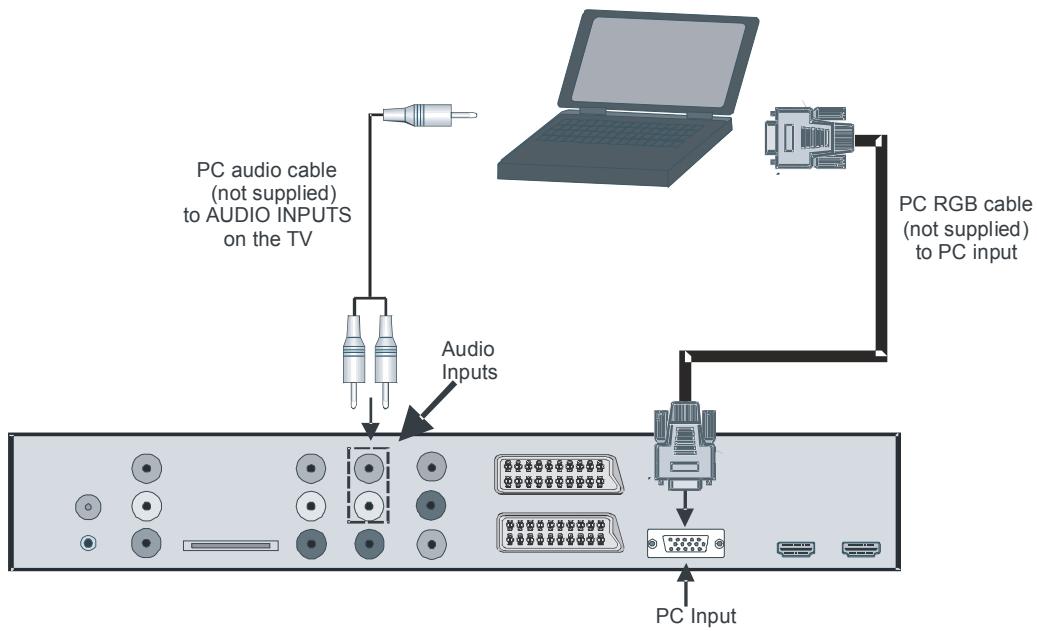

Connecting the LCD TV to a PC 65
Connecting to a DVD Player 66
Using Other Connectors 67

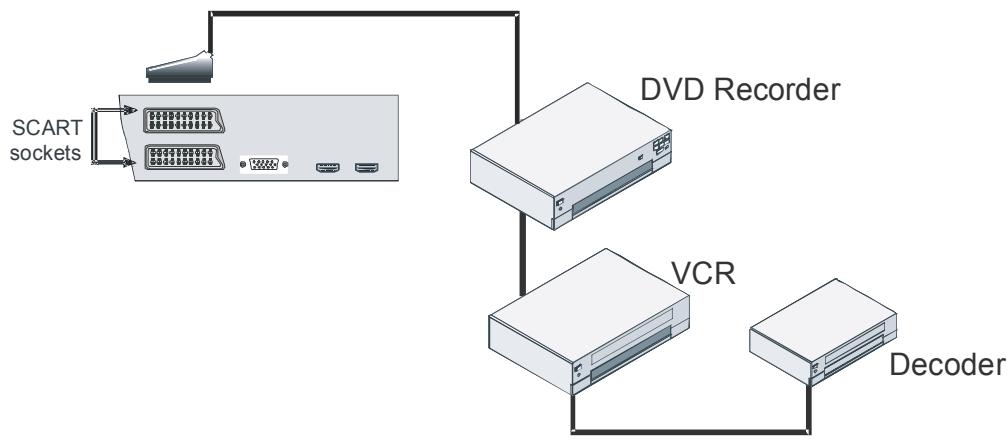

Connecting Other Equipment via Scart 68
Inserting Batteries in the Remote Control
Handset 69

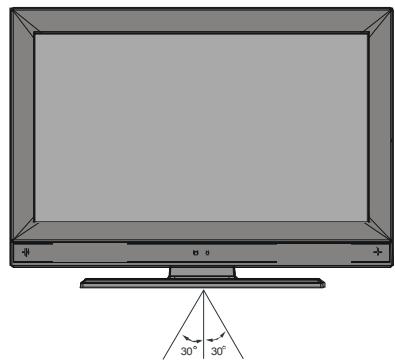

Operating Range for the Remote Control 69
Switching the TV On/Off 70
To Switch the TV On 70
To Switch the TV Off 70
Input Selection 70
Basic Operations 71

Operation with the Buttons on the TV 71

Volume Setting 71
Programme Selection 71
Viewing Main Menu 71
AV Mode 71

Operation with the Remote Control 71

Volume Setting 71
Programme Selection (Previous or Next
Programme) 71
Programme Selection (Direct Access) 71

nner 71

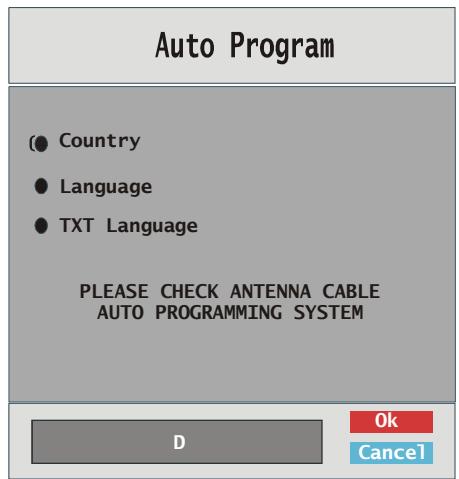

Initial Settings 72
General Operation 73

Information Banner 73

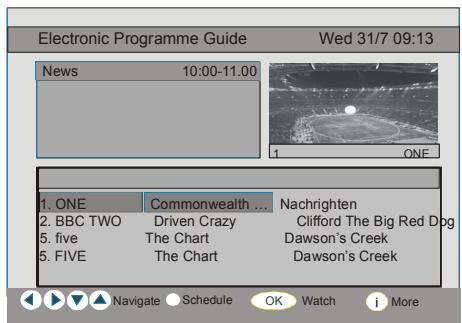

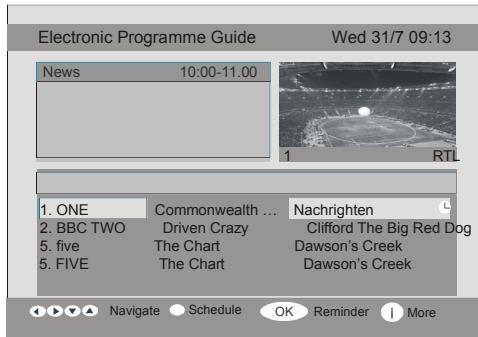

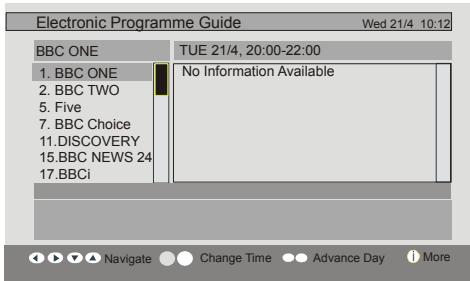

ElectronicProgramme Guide (EPG) 74

Displaying the Subtitles 75
Teletext 75

IDTV Menu System 75

Channel List 75

Navigating the Entire Channel List 75

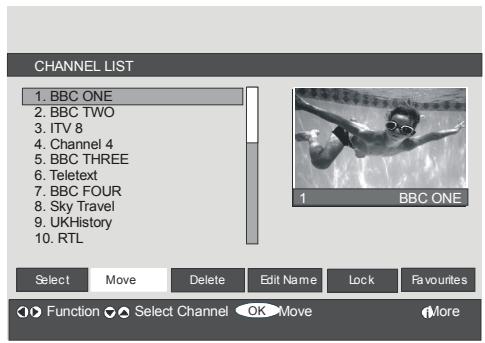

Moving the Channels in the Channel List..... 76

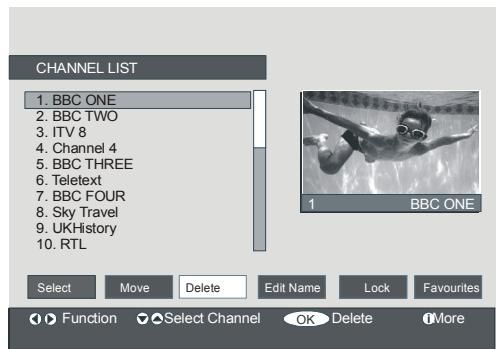

Deleting the Channels in the Channel List ... 76

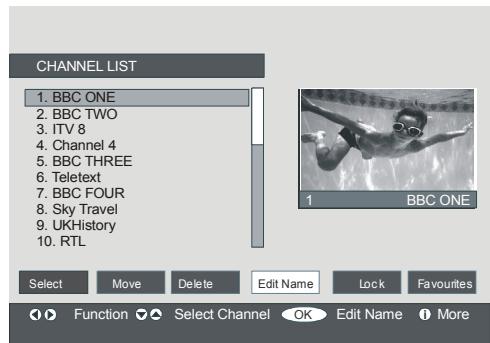

Renaming channels 76
Adding Locks to Channels 77

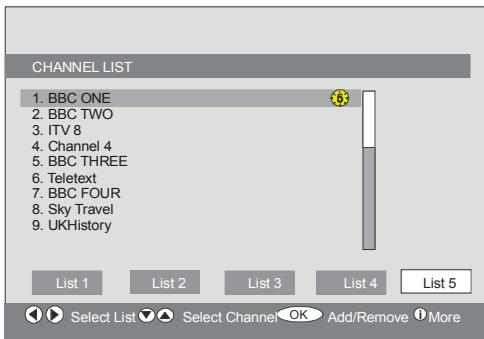

Setting Favourites 77
How to Add a Channel to a Favourites List.... 77

Removing a Channel from a Favourite List .. 78

Using BLUE Button to Navigate through the
Favourite Channels 78
On Screen Help 78

Installation 78

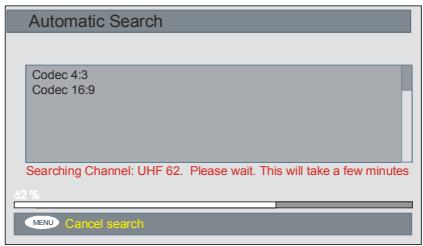

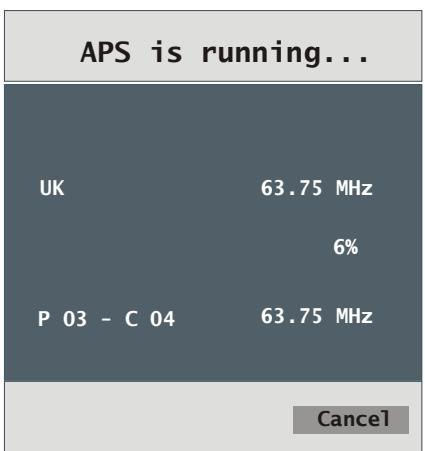

Automatic Search 78
Manual Search 79
Clear Service List (^*) 79

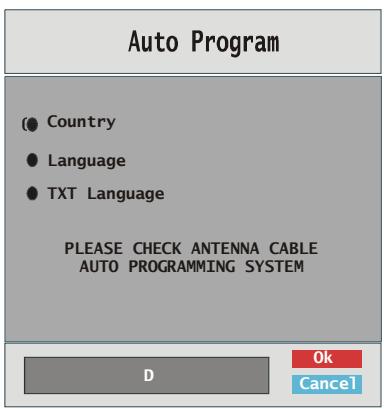

First Time Installation 80

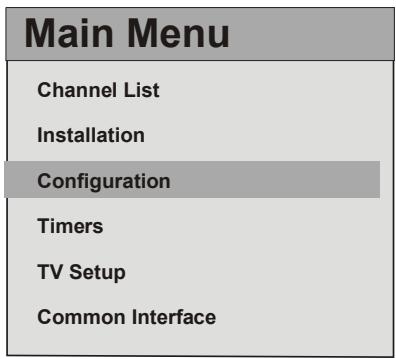

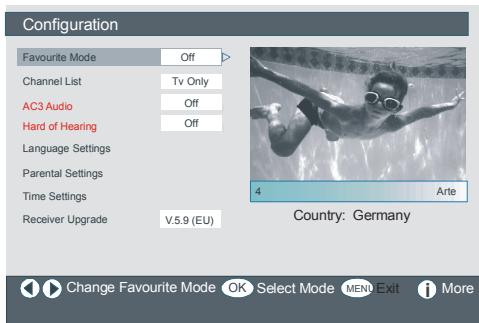

Configuration 80

Favourite Mode 81
Channel List 81
AC3 Audio () 81
Hard of Hearing (^) 81
Language Settings 81
System Language 81
Audio Language 81
Subtitle Language 82
Language Settings 82
Parental Settings 82

Maturity Lock 82

Set Lock Key 83

Time Settings 83

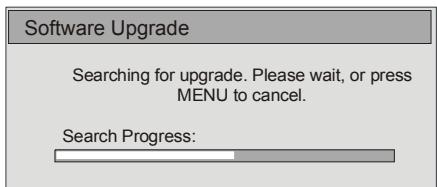

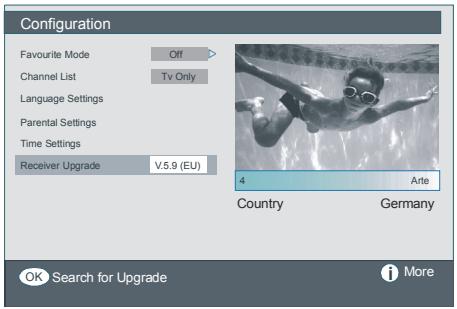

Receiver Upgrade 83

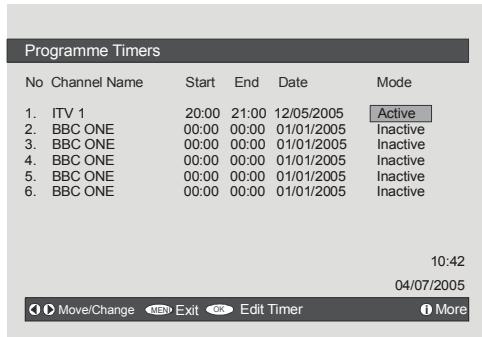

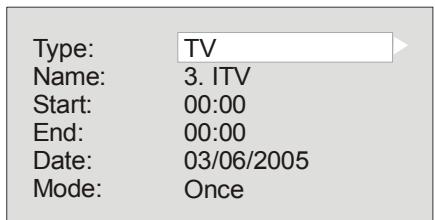

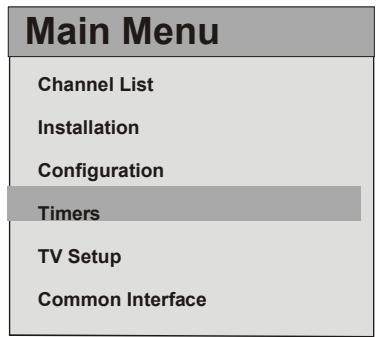

Timers 83

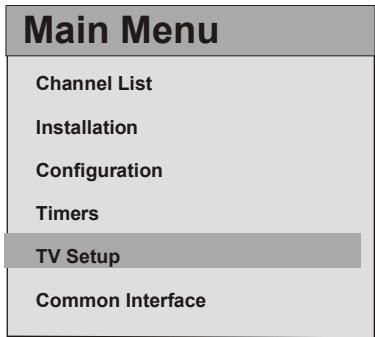

TV Setup 84

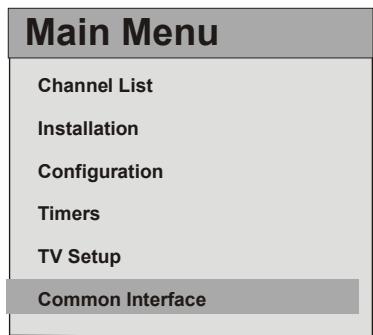

Common Interface 84

Navigating the Analogue TV Menu System 85
Analogue TV Menu System 86

Picture Menu 86

Mode 86
Contrast/Brightness/Sharpness/Colour/Hue ... 86
Colour Temp 86
Noise Reduction 86
Game Mode (optional) 86
Film Mode 86

3D Comb 86

Picture Zoom 87
Reset 87
Store 87

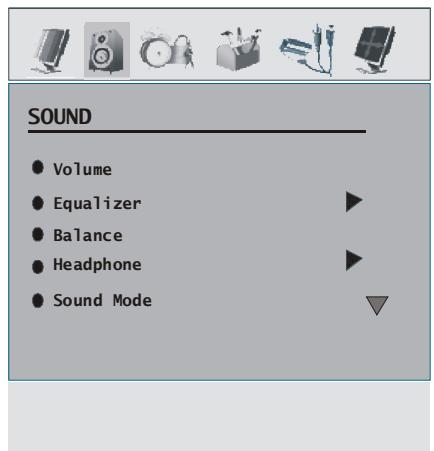

Sound Menu 87

Volume 87
Equalizer 87
Balance 87

Headphone 87

Volume 87

Balance 87

Sound Mode 87

AVL 88

Effect 88

Dynamic Bass 88

Subwoofer 88

3D Panorama 88

Store 88

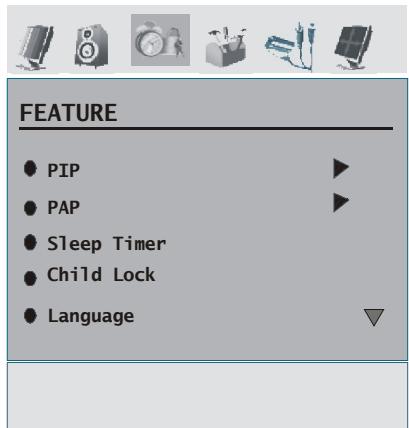

Feature Menu 88

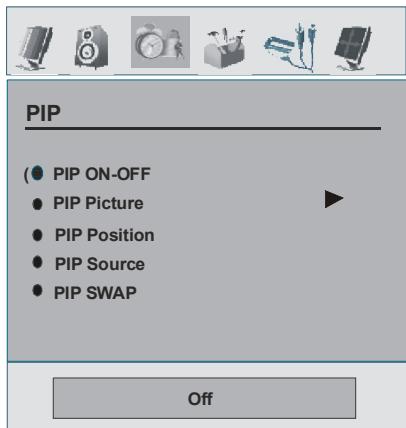

PIP 88

PIP ON-OFF 88

PIP Picture 89

PIP Position 89

PIP Source 89

PIP SWAP 89

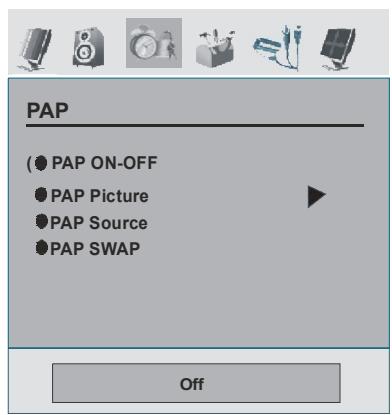

PAP 89

PAP ON-OFF 89

PAP Picture 89

PAP Source 89

PAP SWAP 89

Sleep Timer 89

Child Lock 90

Language 90

EXT-2 Out 90

PC Audio In 90

Blue Background 90

Menu Background 90

Menu Timeout 90

Teletext Language 90

Default Zoom 90

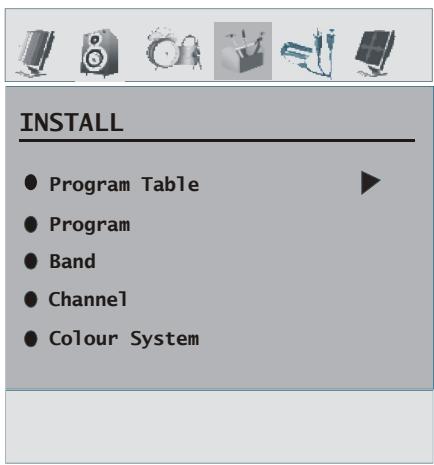

Install Menu 90

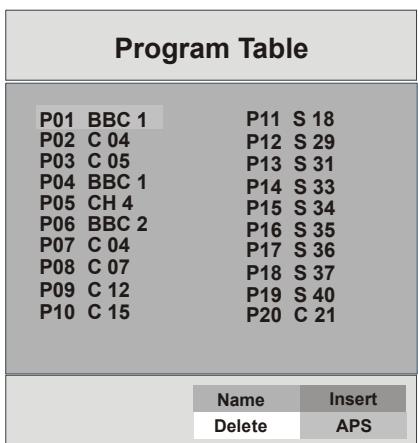

Program Table 91

Name 91

Insert 91

Delete 91

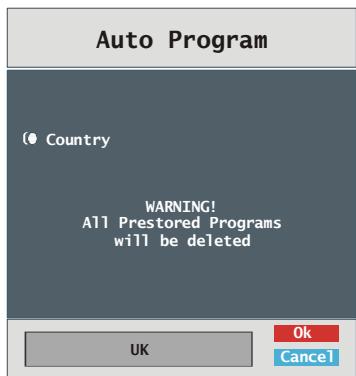

APS (Auto Programming System) 91

Country. 91

Program 92

Band 92

Channel 92

Colour System 92

Sound System 92

Fine Tune 92

Search 92

Store 92

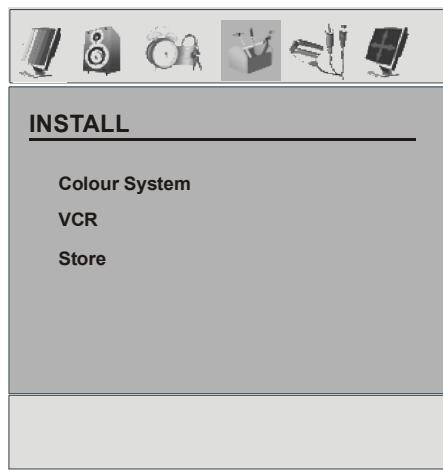

Install Menu in AV Modes 92

Colour System 92

VCR 92

Store Program 92

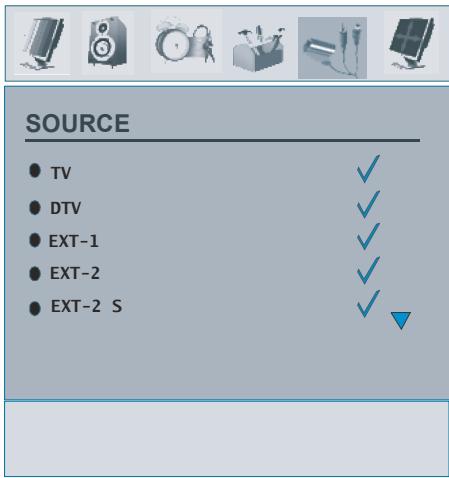

Source Menu 93

C Mode Menu System 93

Sound Menu 93

Feature Menu 93

PC Picture Menu 93

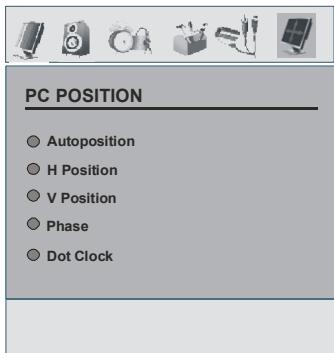

PC Position Menu 93

Autoposition 94

H (Horizontal) Position 94

V (Vertical) Position 94

Phase 94

DotClock 94

Displaying TV Information 94

Mute Function 94

PIP (Picture-in-Picture) and PAP (Picture-and-

Picture) Modes 94

Picture Mode Selection 95

Freezing Picture 95

Zoom Modes 95

Auto 95

16:9 95

4:3 95

Panoramic 95

14:9 Zoom 95

Cinema 96

Subtitle 96

Teletext 96

Tips 97

Screen Care 97

Image Persistence 97

No Power 97

Poor Picture 97

No Picture 97

Sound 97

Remote Control 97

Input Sources 97

CI Module 97

Appendix A: PC Input Typical Display Modes 98

Appendix B: AV and HDMI Signal Compatibility ... 99

Appendix C: Pin Specifications 100

Specifications 101

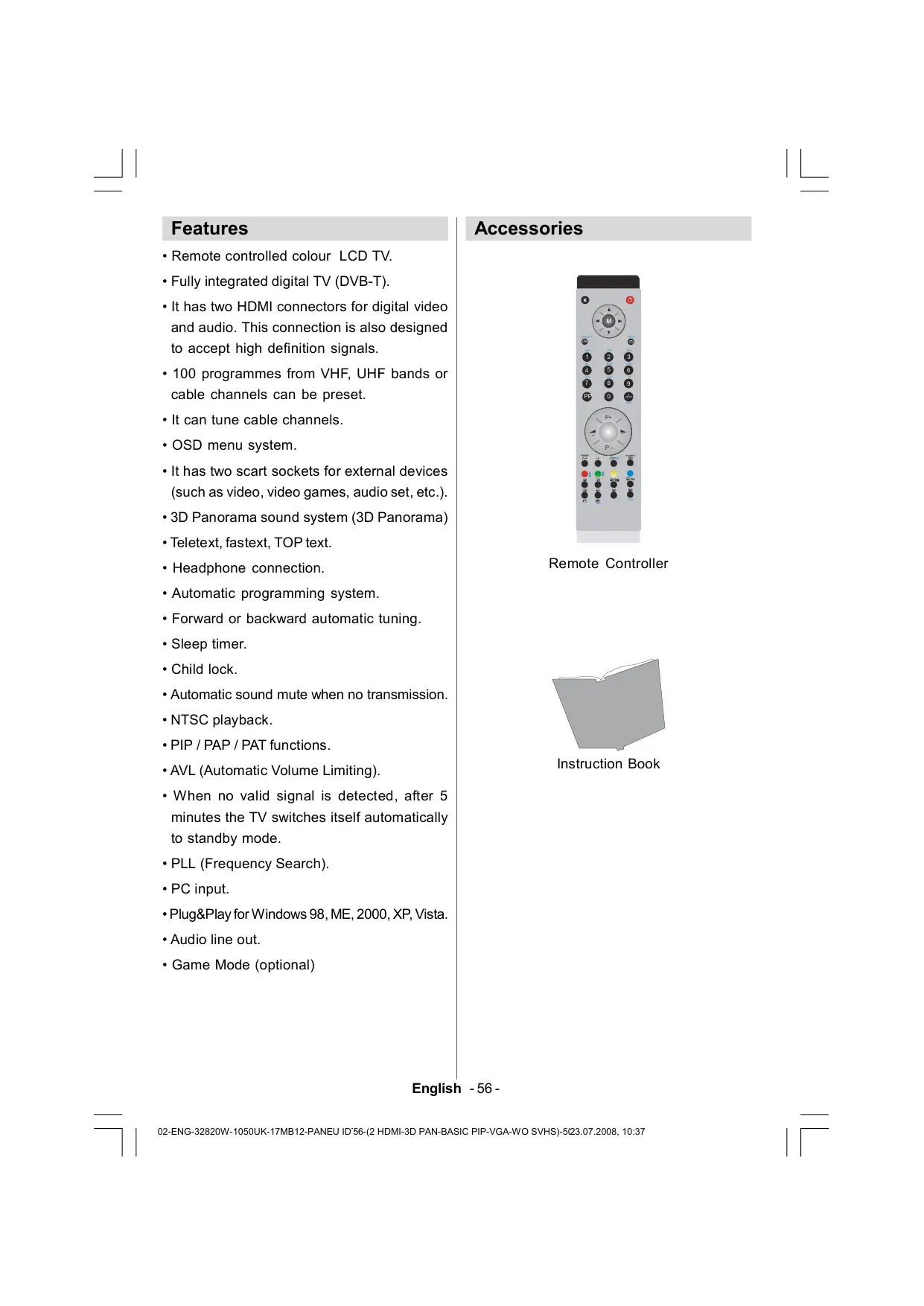

Features

• Remote controlled colour LCD TV.
  Fully integrated digital TV (DVB-T).
• It has two HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
• 100 programmes from VHF, UHF bands or cable channels can be preset.
• It can tune cable channels.
• OSD menu system.
• It has two scart sockets for external devices (such as video, video games, audio set, etc.).
  3D Panorama sound system (3D Panorama)
• Teletext,fastext,TOP text.
• Headphone connection.
  Automatic programming system.
• Forward or backward automatic tuning.
• Sleep timer.
• Child lock.
  Automatic sound mute when no transmission.
• NTSC playback.
• PIP / PAP / PAT functions.
• AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.
• PLL (Frequency Search).
• PC input.
  Plug&Play for Windows 98, ME, 2000, XP, Vista.
  Audio line out.
  Game Mode (optional)

Accessories

Remote Controller

Instruction Book

Introduction

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this

manual thoroughly.

Please do keep this manual in a safe place for future references.

This set is intended for private use only.

Preparation

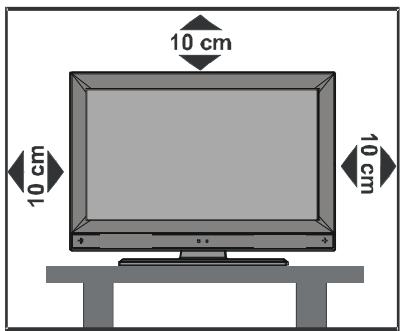

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this device in moderate climates.

Safety Precautions

Please read the following recommended safety precautions carefully for your safety. Power Source

The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to

rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as

lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal.

Information for Users in European Union Countries

This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are

separate collection systems for recycling in EU.

For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning

Do not leave your TV in standby or operating mode when you leave your house.

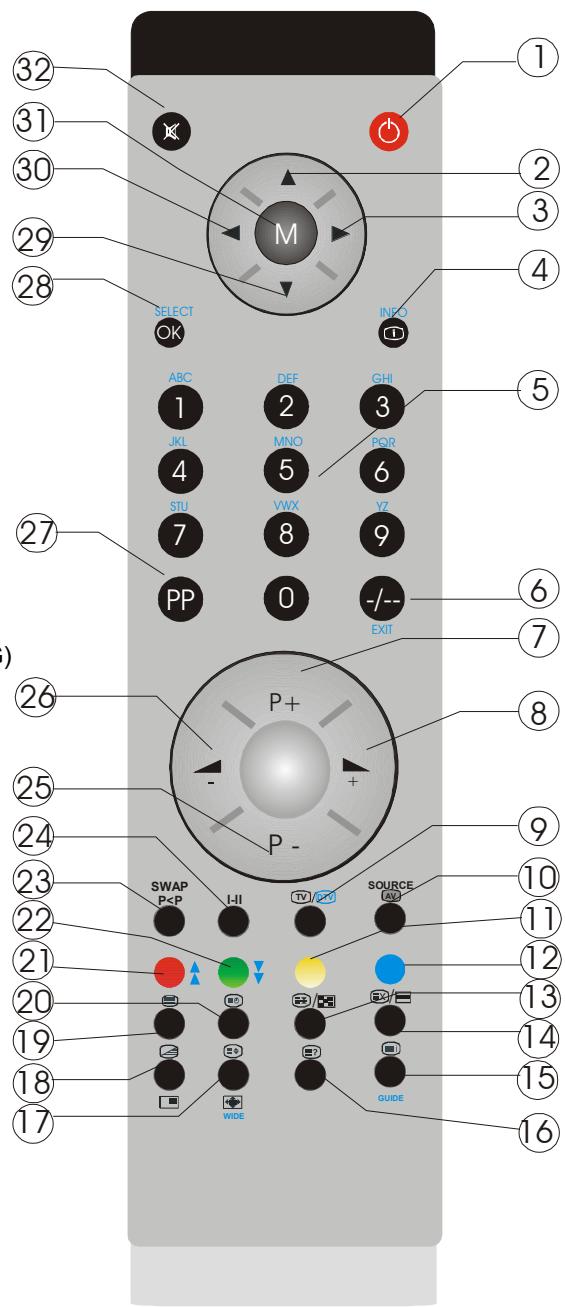

Overview of the Remote Control

1 Standby

② Cursor up
③ Cursor right
4 Info (program table)
⑤ Direct programme
No function
⑦ Programme up
Volume up
⑨ TV/Quit menu
10 External source
Feature menu/

Audio Language On/Off in DTV

12 Installation menu
Hold (in TXT mode) / PIP position
14 Update (in TXT mode) / PAP mode
15 Index page

GUIDE= Electronic Programme Guide (EPG)

16 Reveal (in TXT mode)
⑰ Expand (in TXT mode) / Image Size
18 Mix (in TXT mode) / PIP mode
(19) Teletext
② Time
② Page up / Sound menu
22 Page down / Picture menu Subtitle on/off in the digital mode
23 Previous programme
24 Mono-Stereo / Dual I-II
25Programme down
Volume down
27 Personal preferences
28 Okay (store) / Select
⑨ Cursor down
30 Cursor left
③Menu
(32) Mute

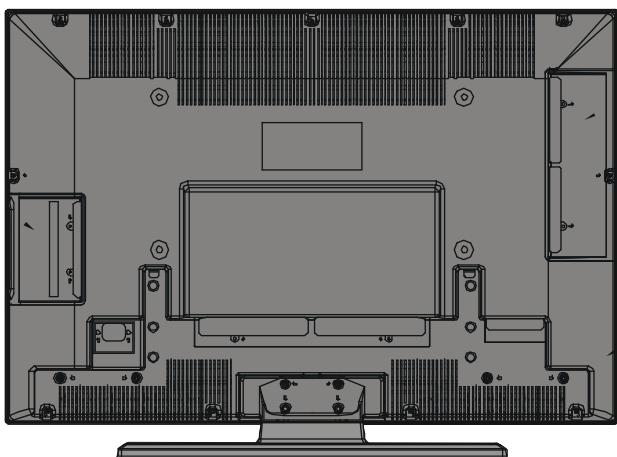

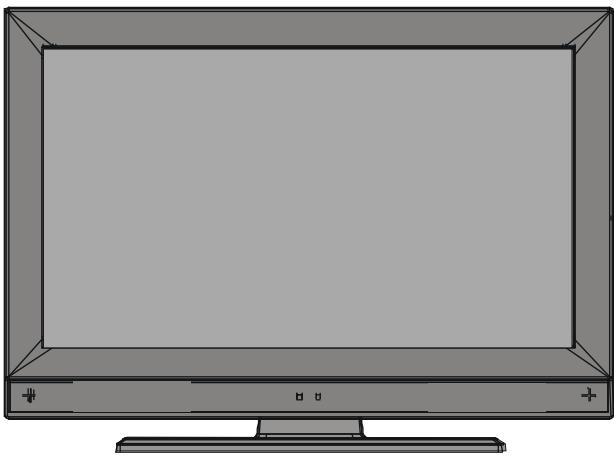

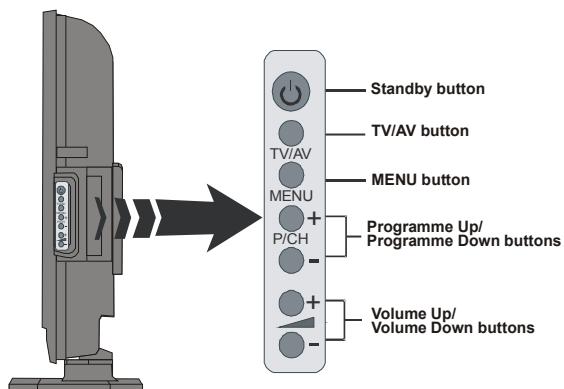

LCD TV and Operating Buttons

English -61-

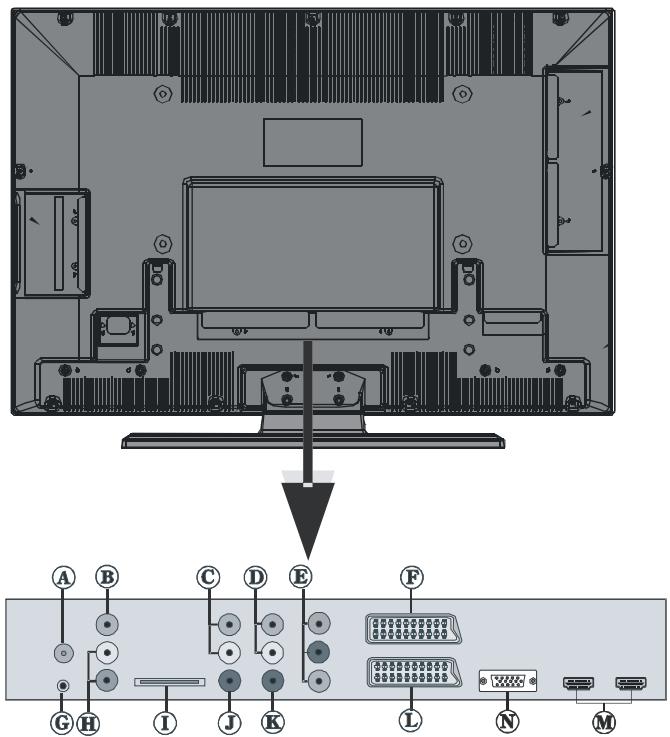

Viewing the Connections

RF Input connects to an antenna or a cable.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration below.

Video Input is used for connecting video signals of external devices.
Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.
Audio Line Outs output audio signals to an external device such as an optional sound system.

To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.
① PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr.

Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio.

Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.

Component Video Inputs (YpBPr) are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.

SCART 2 inputs or outputs for external devices.
⑥ Headphone jack is used for connecting an external headphone to the system.

Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
Audio Inputs are used for connecting audio signals of external devices.

Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.

Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

① CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see “Common Interface” section.

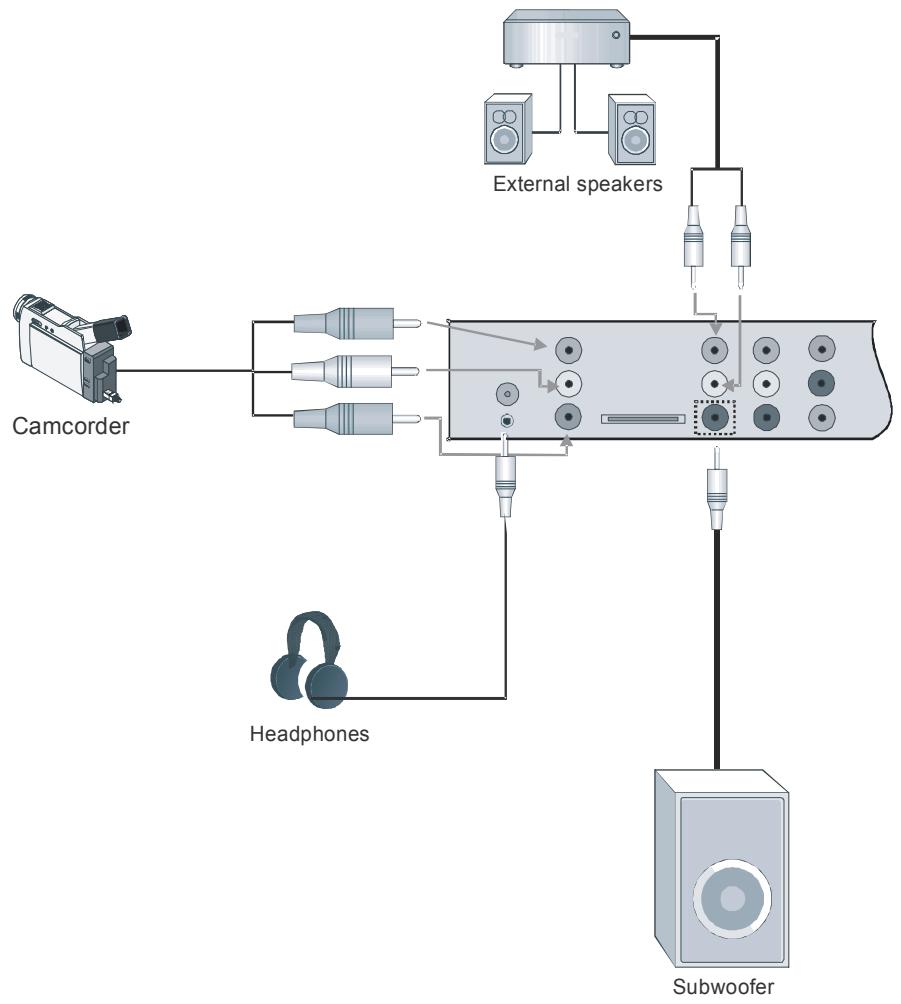

Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass effect.

Use an appropriate RCA cable to connect the set to a subwoofer unit.

S/PDIF Out is used for transferring digital audio signals. Use an RCA cable to transfer audio signals to a device that has S/PDIF input.
SCART 1 inputs or outputs for external devices.

Connect the SCART cable between SCART sockets on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART sockets, the TV will automatically switch to AV mode. If both sockets are employed at the same time, SCART 1 will override SCART 2 unless manually selected.

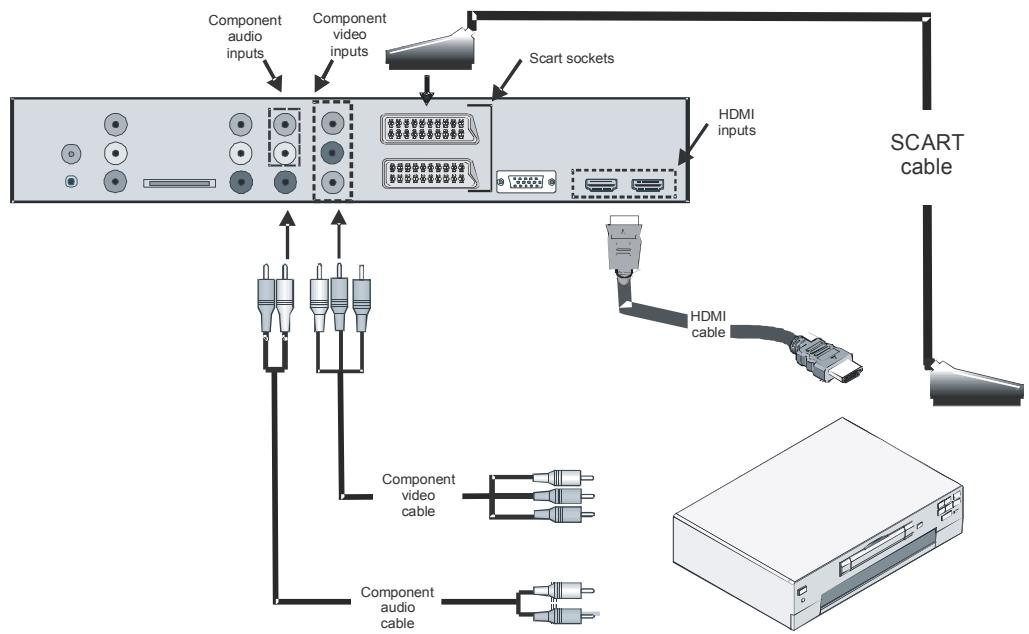

HDMI Inputs are for connecting a device that has an HDMI socket.

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection.

Note(optional): When it is desired to watch HDMI-1 and HDMI-2 source with a DVI to HDMI cable, in order to enable audio, there are two options that can be used:

• When you want to connect DVI and HDMI 1, the audio signal line must be connected to audio input in the component terminal (YPbPr).
• When you want to connect DVI and HDMI 2, the audio signal line must be connected to PC audio input.

-If there is an optional third HDMI(side) socket on your TV, no sound input will be available through.

PC Input is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
• Plug the power cable to the mains socket outlet.

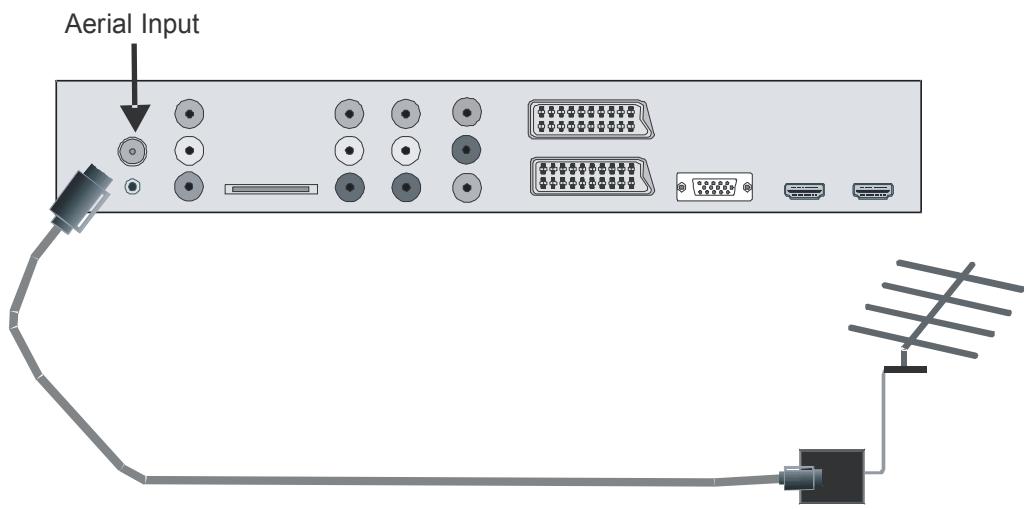

Aerial Connection

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

English -64-

Connecting the LCD TV to a PC

For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set.

• Power off both computer and display before making any connections.
• Use 15-pin D-sub display cable to connect a PC to the LCD TV.
• When the connection is made, switch to PC source. See "Input selection" section.
• Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.
• Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, "Input selection" section.
• You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown below.

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Using Other Connectors

You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• For connecting a camcorder, connect to the VIDEO IN socket and the AUDIOSOCKETS. Do not connect the camcoder to VIDEO IN socket at the same timesince it can cause noise in the picture. For selecting the related source, see the section"Input selection" in the following parts.
• To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set's manual for further queries.
• To listen the sound from headphones, connect to the HEADPHONE jack of theTV.
• For connecting a subwoofer, connect to the SUBWOOFER OUT.

English -67-

Connecting Other Equipment via Scart

Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART sockets. Note that cables shown in the illustration are not supplied.

Power off both the TV and the devices before making any connections.

For more information, refer to your device's own instruction book.

Inserting Batteries in the Remote Control Handset

• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
• Insert two AAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.

Operating Range for the Remote Control

• Point the top of the remote control toward the LCD TV's remote sensor LED while pressing a button.

Remote range is approximately 7m/23ft.

Switching the TV On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC, 50Hz .
• Press STANDBY button. Then the standby LED lights up.
• To switch on the TV from standby mode either:
• Press the button, P + / P - or a numeric button on the remote control.
• Press the -P/CH or P/CH+ button on the TV. The TV will then switch on.

Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

To Switch the TV Off

• Press the button on the remote control or STANDBY button on the TV, so the TV will switch to standby mode.
• To power down the TV completely, unplug the power cord from the mains socket.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources.

• Press SOURCE button on your remote control for directly changing sources.
  or,
• Select "Source" option from the main menu by using or button. Use then or button to highlight an input and press button to select.

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV Volume Setting

• Press - button to decrease volume or + button to increase volume, so a volume level scale (slider) will be displayed on the screen.

Programme Selection

• Press P/CH + button to select the next programme or P/CH - button to select the previous programme.

Viewing Main Menu

• Press the MENU button to enter main menu. In the Main menu select sub-menu using P/CH - or P/CH + buttons and enter the sub-menu using - or + buttons. To learn the usage of the menus, refer to the menu system sections.

AV Mode

• Press the TV/AV button at the control panel on the TV to switch your TV to AV modes.

Operation with the Remote Control

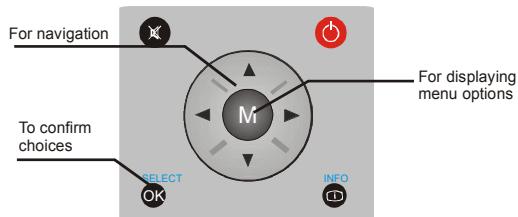

• The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.
• Functions of the menu system are described in the following sections.

Volume Setting

Press - button to increase the volume. Press + button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press P/CH - button to select the previous programme.
• Press P/CH + button to select the next programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10 - 999 (for IDTV) or 10-99 (for analogue), press the numeric buttons consecutively (e.g. for programme 27, first press 2 and then 7). When the pressing time is due for the second numeric button, only the first digit programme will be displayed. The limit of the delay time is 3 seconds.
• Press directly the programme number to reselect single digit programmes.

nner

• Whenever you change channel, using the P-/P+ button or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen. This will remain on the screen for approximately three seconds.
• The information banner can also be displayed at any time while watching TV by pressing the button on the remote control:

see the detailed help information easily. Press i button again to exit help menu.
- The starting time for EPG is the current time.

Initial Settings

When the TV set is operated for the first time, the IDTV turns on first. Because this is the first time that the IDTV has been used, there are no channels stored in the memory.

When the TV is turned on for the first time, the menu for the language selection appears on the screen. The message "Welcome please select your language!" is displayed in all language options sequentially in the OSD.

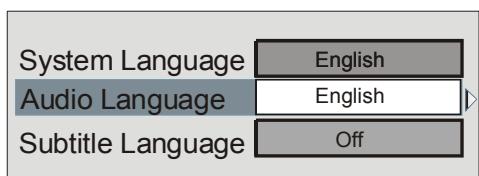

By pressing the or buttons highlight the language you want to set and press OK button. In the dialog box "Set Language" is displayed next to "OK" item to indicate that "Press SELECT button to set the highlighted language option."

You can get information about the menu usage by pressing i button. Press i button again to exit the help menu.

After then, "First time installation" OSD will appear on the screen. By pressing or buttons, select the country you want to set and press OK button.

After the "First time installation" is performed, the following message appears on the screen:

• To start automatic search, select "Yes", to cancel select "No".
• To select the “Yes” or “No” option, highlight the item by using or buttons and press OK button.

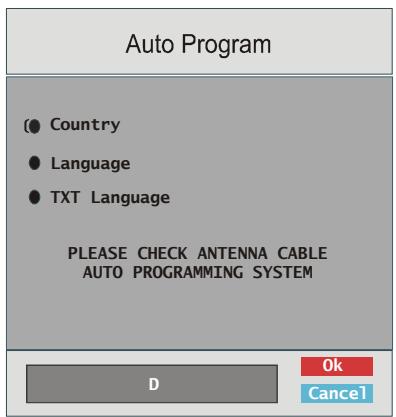

The IDTV will automatically tune to the UHF transmission channels 21 to 68, searching for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take about five minutes. To cancel searching, you can press MENU button at any time during the process. The following OSD will be displayed during the automatic search:

After Automatic Search is completed, the following message asking for analogue channel search appears on the screen. TV switches to the analogue TV mode.

To search for analogue channels, select "Yes". The following menu will be displayed to search for analogue channels:

English -72-

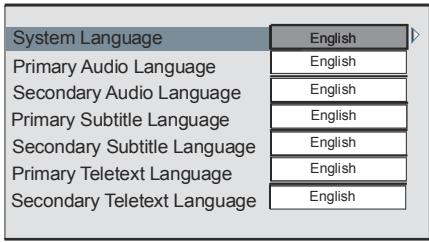

Select your Country, Language and Text language by using or and 1 / 1 buttons. Press OK or RED button to continue. To cancel, press the BLUE button.

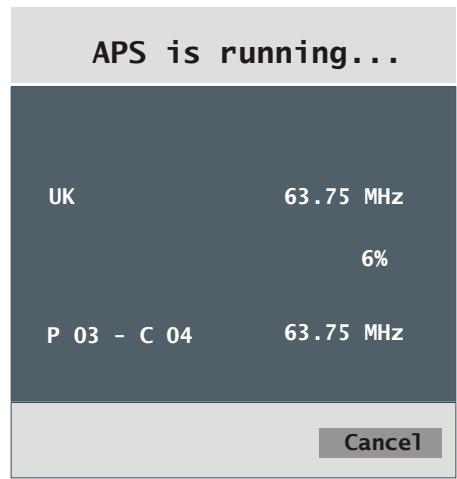

The following menu will be displayed during the automatic tuning:

After initial aps is finalized, a programme list will appear on the screen. In the programme list you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the names of the programmes, you can change them in Program table. For details, see the section, "Program table".

General Operation

Pressing the TV/DTV button at any time while watching television programmes will switch the TV set between the digital terrestrial television broadcasting and the analogue broadcasting.

Information Banner

• Whenever you change the channel using the P/CH + or P/CH - buttons or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen. This will remain on the screen for approximately three seconds.
• The information banner can also be displayed by pressing the button at any time while watching the TV. Pressing button again removes the banner.

4	RTL	09:10
CH 48		Signal
Now:	NEWS	04:35-11:00
Next:	NEWS	11:00-17:55

• The information banner gives information on the channel selected and the programme on it.
• The name of the channel is displayed along with its channel list number and with an indication of the strength of the signal received on this tuning channel.
• The current and next programme information are given with the beginning and ending time.
• The current time information is displayed along with channel name.

Hint: Not all channels broadcast the programme data. If the name and times of the programme are not available then "No Information Available" is displayed in the information banner.

Note: If the selected channel is locked, you must enter the correct four digit key to view the channel. In such a situation, a dialog box asking for the lock key will be displayed:

Enter Lock Key

Electronic Programme Guide (EPG)

Some, but not all, channels send information about the current and next events. Please note that event information is updated automatically. If there are no event information data available for channels, only channel name with "No Information Available" banner is displayed.

• Press GUIDE button to view the EPG menu.
• Press or buttons to navigate in Channels or Programmes.
• Press or buttons to navigate through the channel and programme list.
• In EPG Menu, you can easily see the extended help information by pressing the button.

• You can close this window by pressing the same button again.
• In the EPG menu all channels are displayed. The current channel is highlighted when you enter the EPG menu.
• Use or buttons to change the channel. Also press RED or GREEN buttons to scroll up/down the pages for the channels. Press

OK button to watch the highlighted channel.

• If you highlight an event, short event description, extended event description, start and end time of the event are displayed on the screen.
• If you press OK button when a next event is highlighted, a reminder is set for the highlighted programme and a clock icon appears across the highlighted channel line as shown in the following EPG menu figure.

Programme reminders is set to signal that a programme is about to start when you are watching another channel. If you set reminder for a programme, then you will be asked for switching to that channel when the reminder time is due.

• When you press the BLUE button you can view the extended schedule of the programmes.
• By pressing the button you can see the detailed help information easily. By pressing button again you can exit help menu.
• By pressing the BLUE button, the following EPG menu appears on the screen:

• By pressing YELLOW/BLUE button, you can advance the schedule of a day backwards/ forwards.
• By pressing / buttons you can change the schedule time.
• If you press i button you can see the detailed help information easily. By pressing i button again you can exit help menu.

Displaying the Subtitles

With digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles. Subtitles can be displayed when watching these programmes.
- Whenever GREEN button is pressed, subtitle selection OSD will be displayed on the screen. You can set subtitles as On or Off. For subtitle language options, refer to “Language Settings” in the “Configuration Menu” section.

Teletext

Use of teletext and its functions are identical to the analogue text system. Please do refer to the "Analogue teletext" explanations.

IDTV Menu System

The IDTV menu can only be shown when watching digital terrestrial broadcasting. Press the TV/DTV button to turn the IDTV on while the TV is in the analogue mode.

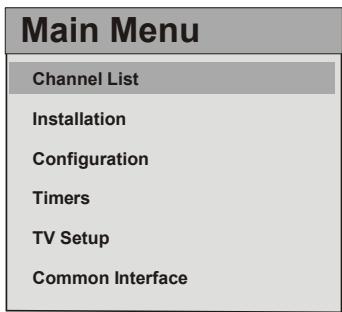

• Press MENU button and the menu below appears on the screen:

Channel List

Using or buttons on the remote control in main menu, make sure that the first item, Channel List, is highlighted and press the OK button to display the Channel List.

The following operations can be performed in this menu:

• Navigating the entire list of channels
• Moving channels
• Deleting channels
• Renaming channels
• Adding locks to channels
• Setting favourites
• Channel List is the place where the channels are managed.

Navigating the Entire Channel List

• Press or keys for selecting the previous or next channel.
• You can press or buttons to move pageup or page down.
• To watch a specific channel, highlight it using or buttons and then press OK button,

while the "Select" item on Channel List menu is highlighted via or buttons.

Moving the Channels in the Channel List

• Press or buttons to select the channel that will be moved.
• Press or buttons to select the "Move" item on Channel List menu.
• “Move” is displayed next to OK item to indicate that you can press OK to move the highlighted channel to the desired position on the channel list. Channel list OSD is illustrated below:

Press OK button and the following OSD will be displayed:

Enter a number by using the numeric buttons on the remote control and press OK to confirm.

Note: If you enter the same programme number of the channel that you want to move, "... channel services will be replaced. Do you want to continue?" OSD will be displayed. Press OK to confirm or select "No" to cancel.

Deleting the Channels in the Channel List

• Press or buttons to select the channel that will be deleted.

• Press or buttons to select the "Delete" item on Channel List OSD.

As seen on Channel List menu, "Delete" is displayed next to OK item at the bottom of the screen to indicate that you can press OK button to delete the highlighted channel in the channel list:

Press OK button to delete the highlighted channel in the channel list. Then the message below appears on the screen:

• Press or buttons to highlight the desired option.
• If OK button is pressed while "Yes" is highlighted, the highlighted channel will be deleted.
• Selecting "No" cancels the deletion.

Renaming channels

To rename a specific channel, the channel must be highlighted by pressing or buttons. Then highlight the "Edit Name" item by pressing or buttons. Press OK button to activate rename feature. Channel list menu OSD is shown below:

Now pressing or buttons moves to the previous/next character. Pressing or buttons toggles the current character, i.e., 'b' character becomes 'a' on and 'c' on . Pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the key one by one as the button is pressed.

Press the MENU button to cancel the editing or OK button to save the new name.

Adding Locks to Channels

Channel Locking provides a password-protected access to channels selected by parents.

In order to lock a channel you should know the Parental Lock password (default value is set to 0000 in the factory and can only be changed from the Configuration menu).

By pressing or buttons, highlight the channel to be locked and select the "Lock" option by pressing or buttons. Then press the OK button and a password box is displayed:

Enter Lock Key

Setting Favourites

You can set various channels as favourites so that only the favourite channels are

navigated. To set a favourite you should highlight the "Favours" item at the bottom of the Channel List menu.

To set a favourite you should highlight the "Favourites" item at the bottom of the Channel List menu. Then press OK button and Edit Favourite Lists menu appears on the screen.

You can list your favourite channels using List 1, List 2, List 3, List 4 or List 5.

Using 5 lists enables listing channels for different categories (sport, music etc.). And by activating the favourites list number that you want in Favourite Mode submenu of Configuration menu, you enable only the channels in the selected list.

Channel list OSD will look like this:

How to Add a Channel to a Favourites List

• By pressing / buttons, highlight the channel that you want to add to the favourite list.
• Select the list number by pressing / buttons.
• By pressing OK button, the highlighted channel is added to selected list number.
• For each channel, an icon indicates which favourite list a channel is in. (i.e. In figure above, ① icon indicates that BBC ONE is added to List 1.)

Removing a Channel from a Favourite List

• Highlight the channel that you want to remove from the favourite list.
• Highlight the list number from which the channel will be removed, and press OK button. The icon indicating the list that contains the channel disappears on the menu.

Note: A channel can be added to more than one favourite list.
- To activate Favourites, go to the Configuration menu and select the list number in Favourite Mode you want to activate by pressing or buttons. To cancel Favourites, set Favourite Mode to Off.

Using BLUE Button to Navigate through the Favourite Channels

You can navigate through the favourite channel lists by pressing BLUE button. Each time you press the BLUE button, you can navigate through the favourite channels that are top of the each channel list, sequentially.

While a channel list is selected, you can navigate through the favourite channels in that list by pressing P/CH + or P/CH - buttons.

On Screen Help

For all menus press i button to display the help information about the menu functions. For Channel List menu the following message is displayed on the screen:

Press the SELECT button on your remote control to tune to the highlighted channel.
MENU to exit this screen.

Hint: Pressing 1 button can help you for displaying information in IDTV.

Installation

The Installation menu is mainly intended to help you for creating a Channel Table in most efficient way. Select Installation from the main menu by pressing or buttons as illustrated below:

This menu includes the following items:

Automatic Search
- Manual Search
Clear Service List ()
- First Time Installation

Automatic Search

Automatic search is started by pressing OK button while Automatic Search item is highlighted.

The following message appears on the screen:

Please check antenna connection. Do you want to start automatic search? Your previous...

Yes No

Highlight "Yes" or "No" by using or buttons and press OK button to confirm.

If "Yes" is selected, automatic search starts.

Selecting "No" cancels automatic search.

After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Highlight "Yes" and press OK button to search for analogue channels. The following menu appears on the screen for analogue channel search:

Select your Country, Language and Text language by using or and 1 / 1 buttons. Press OK or RED button to continue. To cancel, press BLUE button. The following menu will be displayed during the automatic tuning:

After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the programme names, you can change them via Program Table. See "Install Menu" section.

All channels found are stored in a sorted form with respect to their channel numbers. Some services may not appear with the correct channel number. This is because some broadcasters have no channel number information.

Manual Search

In Manual Search, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For every valid channel number, signal level, signal quality and network name are shown at the bottom of the screen.

In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.

Clear Service List (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press or button to select Clear Service List and then press OK. The following OSD will be displayed on the screen:

Press OK to cancel.

Select Yes by pressing or button and press OK to delete all of the channels.

First Time Installation

The user can use this item to load default settings, which were loaded to the receiver at the factory.

To install factory settings, highlight "First Time Installation" menu item and press OK button, then you will be asked whether or not to delete the settings. Selecting "Yes" by pressing OK button while the "Yes" is highlighted will delete the existing channel table.

After factory settings are loaded, "First Time Installation" menu will be displayed.

The menu which is displayed for language selection appears on the screen at first. By using or buttons, select the desired language option, and press OK button to activate.

After the language is selected, a message asking for automatic search appears on the screen:

Highlight "Yes" item by pressing or buttons and press OK button to start installation. After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Highlight “Yes” item by pressing or buttons and press OK button to search for analogue

channels. The following menu appears on the screen for analogue channel search:

Select your Country, Language and Text language by using or and / buttons. Press OK or RED button to continue. To cancel, press the BLUE button.

Configuration

Press MENU button to display the main menu and the button twice to highlight Configuration, then press OK button to display the Configuration menu. Press MENU button to exit the menu.

The various configuration functions are displayed in a list, along with a quarter-screen image of the currently selected channel. You can select a function by highlighting the corresponding menu line using the or buttons. Configuration menu will look like this:

Favourite Mode

This function enables or disables the favourite channel list mode.

Use or buttons to set Favourite Mode to List 1, List 2,..., List 5 or Off.

Selecting "Off" disables the favourite channel List mode.

If the "Favourite Mode" is set On by selecting a channel list number, pressing P/CH+ and P/CH- buttons in normal operating mode will only navigate through the channels that were previously defined as favourites in the selected channel list.

Channel List

In the Configuration Menu, highlight the Channel List item by pressing or buttons.

Use the or buttons to set the Channel List to "TV only" or "Radio only".

This feature enables navigation only through the selected channel list type.

If "Radio only" is set, you can only navigate through the Radio channels in the channel list by using P + or P - buttons.

AC3 Audio (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

In the Configuration Menu, highlight the AC3 Audio item by pressing or buttons. Use

the or buttons to set the AC3 Audio as On or Off.

If the channel that you are watching supports AC3 Audio, turn this setting on.

Hard of Hearing (^*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use or button to select Hard of Hearing and then press or button to set this setting as On or Off.

If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Language Settings

In the configuration menu, highlight the Language Settings item by pressing or buttons. Press OK and Language Settings sub menu will be displayed on the screen:

Use or buttons to highlight the menu item that will be adjusted.

System Language

System Language determines the on-screen menu language.

Use or buttons to set the System Language setting.

Audio Language

Digital terrestrial television channels can broadcast simultaneous soundtracks in more than one language. This function selects which language soundtrack you will hear when switching to a channel broadcasting with the multiple soundtracks.

Use or buttons to cycle through the language options.

Subtitle Language

Digital terrestrial television channels can broadcast with subtitles displayed on the screen for hard-of-hearing people. This function selects the desired subtitle language and enables the automatic display of subtitles whenever subtitle information is broadcast.

Use or buttons to cycle through "Off" and language options.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

In the configuration menu, highlight the Language Settings item by pressing or buttons. Press OK and Language Settings sub menu will be displayed on the screen:

Use or buttons to highlight the menu item that will be adjusted and then press or button to set.

Notes:

• System Language determines the on-screen menu language.
  Audio Language is used for selecting the soundtrack of a channels.
• Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

Parental Settings

Some channels broadcast material which you do not want younger members of the family to watch. Any channel can be 'locked' so that it cannot be selected for viewing unless a four-digit PIN code is entered. In this way any channel not suitable for younger viewers can be prohibited.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Use or buttons to highlight Parental Settings. Press OK button to enter Parental Settings menu. A dialog box asking for the lock key is displayed:

There is only one key which is set to "0000" initially. Enter lock key. If wrong Lock Key is entered, the following message is displayed on the screen and the TV returns to the previous menu:

If it is correct, the Parental Settings menu including following items will be displayed:

Use or buttons to highlight the menu item that will be adjusted.

Maturity Lock

Use or buttons to set Maturity Lock.Here, you can set/reset locking function for the Main Menu or the Installation Menu to restrict access. If the menu lock is disabled, there will be free access to the menu system.

Off: All menus are unlocked.

Main Menu: Main menu is accessible only with the correct lock key. So the user cannot add, delete, rename or move the channels and cannot set the timers.

Installation: Installation menu is locked, so the user cannot add channels.

Changes will be updated after exiting Configuration Menu.

Set Lock Key

Also in this menu you can change the lock key and set/change parental lock mode.

Time Settings

In the configuration menu, highlight the Time Settings item by pressing or buttons. Press OK and Time Settings sub menu will be displayed on the screen:

Use or buttons to highlight the Time Zone Setting. Time Zone Setting is set using or buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Current Time and Time Zone options will not be available to be set.

If MANUAL option is selected as the Time Zone Setting, Time Zone can be altered:

• By pressing or buttons select Time Zone. Use or buttons to change the Time Zone between GMT-12 or GMT+12. Current Time on the top of the menu list will then change according to the selected Time Zone.

Receiver Upgrade

The IDTV can be upgraded via the configuration menu, entered from the main menu. Select Receiver Upgrade by pressing or buttons:

In the configuration menu, highlight the "Receiver Upgrade" item by pressing or buttons and press "OK" button to start upgrade process. The following menu appears on the screen.

After the search progress is completed, the message "Completed searching for upgrade. No new software was found" appears on the screen if no new software is found.

Timers

Display the main menu by pressing the MENU button. Highlight the Timers line by pressing or buttons and press OK button and the Timers menu OSD will be displayed.

Up to five separate timer events can be set and each is displayed in the Programme Timers screen, showing the event number,

the channel to be selected, the start time, end time, date and the mode - whether that event is active (and will be acted on) or not.

• To set an event, highlight its mode button using or buttons and press OK button to display the timer entry window.

• Here, the six settings consisting of the channel type, channel name, start time, end time, date and frequency mode can be set. You can move freely between each setting using or buttons.
• The channel type is set using or buttons. It enables displaying the channels only with the selected type.
• The channel name is set using or buttons to display the channel which broadcasts the programme.
• The start time, end time and date are each set with the numeric buttons on the remote control in 24-hour format.
• The frequency mode determines how often the receiver operates this event and is set with the or buttons to be either Once, Daily, or Weekly.

Hint If an invalid number for the start or end times or the date is entered, "Entered time is not valid" message appears on the screen.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed from the main menu. Press the MENU button to display the main menu and use or buttons to highlight "TV Setup". Press OK button to display TV Setup menu screen.

You can find detailed information for all menu items in "Analogue TV Menu System" section.

Common Interface

Press MENU button to display the main menu and use the or buttons to highlight the "Common Interface" line and press OK button.

It is required to subscribe to a pay channel company to view the pay channels of the Digital Terrestrial broadcasting.

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the Television using the following procedure.

• Switch off the TV and unplug from the mains.
• Insert the CAM, and then the viewing card to the slot that is located in the terminal cover at the left-hand side of the TV (from front view).
• The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.
• Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.
• Some CAMs may require the following set up. Please set the CAM by entering the IDTV menu, Common Interface then pressing OK button. (CAM set up menu is not displayed when it is not required.)
• To see the viewing contract information:
• Enter IDTV; press MENU button, then highlight Common Interface and press OK button.
• When no module is inserted, "No Common Interface module detected" message appears on the screen.
• Refer to the module instruction manual for details of the settings.

NOTE: Insert or remove the CI module only when the TV is in STAND-BY mode or SWITCHED OFF.

Navigating the Analogue TV Menu System

• Press M to display the main menu.
• Press or button to select an icon.
• Use or button to highlight.
• Press or buttons to change the settings.
• Press for more options.
• Press OK to store.
• To exit the menu or return from sub-menu screen, press M.

Note: These explanations are valid for the navigation of the analogue TV menu system. To select options that are explained in the following parts, refer to "Navigating the Analogue TV Menu System".

Analogue TV Menu System

Picture Menu


Mode
Contrast
Brightness
Sharpness
Colour

Mode

For your viewing requirements, you can set the related mode option.

Press or button to select Mode. Press or button to choose from one of these options: Cinema, Dynamic and Natural.

Contrast/Brightness/Sharpness/Colour/Hue

Press or button to select the desired option. Press / button to set the level.

Note: Hue option can only be visible when the TV receives an NTSC signal.

Colour Temp

Press or button to select Colour Temp. Press / to choose from one of these options: Cool, Normal and Warm.

Note:

• Setting Cool option gives white colours a slight blue stress.
• Setting Warm option gives white colours a slight red stress.
• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount.

Press or button to select Noise Reduction. Press / to choose from one of these options: Low, Medium, High or Off.

Game Mode (optional)

Select Game Mode by pressing or button. Use / button to set Game Mode as On or Off. When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on.

Note:

-Picture mode selection button on the remote control will have no function while Game Mode is on.
-If the TV is switched to PIP/PAP mode, Game Mode setting will be disabled and be removed from the Picture menu.

Film Mode

Films are recorded at a different number of frames per second to normal television programmes.

Press or button to select Film Mode. Press / button to set this feature On or Off. Turn this feature on when you are watching films to see the fast motion scenes clearly.

3D Comb

3D Comb is used to improve colour transitions and colour quality of pictures.

Select 3D Comb by pressing / button. Press / button to set this feature On or Off.

Note: 3D Comb feature is not functional in NATU-RAL picture mode.

Picture Zoom

Select Picture Zoom by pressing / button.

Use / buttons, to change picture zoom to Auto, 16:9, 4:3, Panoramic, 14:9 Zoom, Cinema, Subtitle or Zoom.

Reset

Press or button to select Reset. Press or OK button to reset the picture modes to factory default settings.

Store

Press or button to select Store. Press or OK button to store the settings. "Stored" will be displayed on the screen.

Sound Menu

Volume

Press or button to select Volume. Press / button to change the level of the Volume.

Equalizer

Press or button to select Equalizer. Press / or OK button to enter equalizer menu.

In equalizer menu the sound mode can be changed to Pop, Rock, Jazz, Flat, Classic or User by pressing / button. Select the desired frequency by or button and increase or decrease the frequency gain by pressing / button.

Press the MENU button to return to the previous menu.

Note: Equalizer menu settings can be changed only when the Equalizer Mode is in User.

Balance

This setting is used for emphasizing left or right speaker balance.

Press or button to select Balance. Press / button to change the level of the balance. Balance level can be adjusted between -32 and +32.

Headphone

Press or button to select Headphone. Press button to view the headphone menu. Headphone sub-menu options are described below:

Volume

Press or button to select Volume. Press button to increase headphone volume level. Press button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.

Balance

Press or button to select Balance. Press button to increase balance to the right. Press button to decrease balance to the left. Balance level can be adjusted between -32 and +32.

Press the MENU button to return to the previous menu.

Sound Mode

Press or button to select Sound Mode. Using / button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Press or button to select AVL. Press 1 / 2 button to set the AVL as On or Off.

Effect

If you are watching a mono broadcast, set Effect on to obtain a better sound effect which will be more stereo-like. If the current sound system is stereo, switching this effect on will give a more spatial effect.

Press or button to select Effect. Press button to set Effect as On or Off.

Dynamic Bass

Dynamic Bass is used to increase bass effect of the TV set.

Press or button to select Dynamic Bass. Use / button set Dynamic bass to Low, High or Off. It is not recommended to select High while listening at high volume levels.

Subwoofer

It is possible to connect an external, active subwoofer to the TV set to give a much deeper bass effect.

Press or button to select Subwoofer. Subwoofer can be set to On or Off.

Dynamic Bass is not available if Subwoofer is set to On.

Set Subwoofer to On when you connect an external subwoofer to the set.

3D Panorama

This feature is used to create the impression that sound is coming from around the room instead of from the speakers of the TV set.

Press or button to select 3D Panorama.

Use / button to set 3D Panorama as On or Off.

Store

Press or button to select Store.

Press or OK button to store the settings. "Stored" will be displayed on the screen.

Feature Menu

PIP

In the Feature menu, highlight PIP item by pressing / buttons. Press button to enter PIP submenu:

PIP ON-OFF

You can activate or deactivate PIP mode by pressing / button.

PIP Picture

Press button to enter PIP Picture submenu. Adjustments of Contrast, Brightness, Sharpness, Colour, Reset and Store items in this part are identical with Picture menu in the analogue TV menu System. Refer to Picture menu explanations in the previous parts.

PIP Position

This setting is used for moving the sub picture. Select PIP Position item by using / button. Use / button to adjust PIP position. PIP Position info will be displayed at the bottom of the menu OSD. You can directly change PIP position by pressing / buttons.

Positions available are: Bottom Right, Bottom Center, Bottom Left, Top Left, Top Center and Top Right.

PIP Source

PIP Source setting enables you to select the source of the sub picture.

Select PIP Source item by using / button. Use / button to set PIP source.

Note: When main picture source is TV, EXT-1, EXT-2 or BAV, PIP window can only be set to HDMI-1, HDMI-2, YPbPr, PC source or vice versa.

PIP SWAP

Select PIP SWAP item by using / button. Use / button to set. This function enables to swap between the main and the PIP picture.

PAP

In the Feature menu, highlight PAP item by pressing / buttons. Press button to enter PAP submenu:

PAP ON-OFF

You can activate or deactivate PAP mode by pressing / button.

PAP Picture

Press button to enter PAP Picture submenu. Adjustments of Contrast, Brightness, Sharpness, Colour, Reset and Store items in this part are identical with Picture menu in the Menu System. Refer to Picture menu explanations in the previous parts.

PAP Source

Select PAP Source item by using / button. Use / button to set PAP source.

Note: When main picture source is TV, EXT-1, EXT-2 or BAV, PIP window can only beset to HDMI-1, HDMI-2, YPbPr, PC source or vice versa.

PAP SWAP

Select PAP SWAP item by using / button. Use / button. This function enables to swap between the main and the PAP picture.

Note: See Appendix C for all PIP/PAT modes.

Sleep Timer

Press or button to select Sleep Timer. Use / button to set the Sleep Timer.

The timer can be programmed between Off and 120 minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode.

Child Lock

Press or button to select Child Lock.

Use / button to set the Child Lock On or Off. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons (except for the STANDBY button) will not work.

Hence, if one of those buttons is pressed, "Child Lock On" will be displayed on the screen when the menu screen is not visible.

Language

Press or button to select Language. Use / button to select the Language.

EXT-2 Out

Use this setting to define Ext-2 signal output.

Press or button to select Ext-2 Out. Use / button to set Ext-2 Out to TV/DTV, EXT1, BAV, YPbPr Audio or PC Audio.

Note:

• For copying from a DVD or VCR device, you should set desired option for EXT-2 output. If you plug your device to EXT-1, you will copy the picture that comes from the tuner.

PC Audio In

Select PC Audio In by pressing / button.

Using / button, you can change the PC Audio In to TV/DTV, EXT-1, EXT-2, BAV, YPbPr Audio or PC Audio.

Blue Background

If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On.

By pressing or button, select Blue Background. Press / button to set Blue Background as On or Off.

Menu Background

Press or button to select Menu Background. You can set menu background level by pressing / button.

Menu Timeout

To set a specific display timeout for menu screens, set a value for this option.

Press or button to select Menu Timeout. Use / button to change menu timeout to 15 sec, 30 sec or 60 sec.

Teletext Language

Press or button to select Teletext Language. Use / button to change Teletext Language to West, East, Turk/Gre, Cyrillic or Arabic.

Default Zoom

While zoom mode is set as AUTO, the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt.

Press or button to select Default Zoom. You can set Default Zoom to Panoramic, 16:9, 4:3 or 14:9 Zoom by pressing / button.

HDMI Full Mode

Press or button to select HDMI Full mode.

Use / button to set the HDMI Full mode On or Off. This feature will be visible while in HDMI modes in 1080i or 720P. Feature will be invisible while in other resolution and Pip/Pap modes. If an overflow happens in the picture, you can set HDMI Full mode as on to watch more properly.

Install Menu

Program Table

Select Program Table by pressing / button. Press "▶" to display Program Table:

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically.

Name

To change the name of a programme, select the programme and press the RED button.

The first letter of the selected name will be

highlighted. Press or button to change that letter and / button to select the other letters. By pressing the RED button, you can store the name.

Insert

Select the programme which you want to insert by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting automatic tuning, Auto Programming System menu will appear on the screen:

Country

Press or button to select your country. If you want to exit from A.P.S. function, press the BLUE button.

When you press OK or RED button for starting automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS function stops and Program Table appears on the screen.

If you wait until the end of APS, Program Table will be displayed with the programmes found and located.

Program

Press or button to select Program. Use / button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 100 programme storage between 0 and 99.

Band

Band can be selected either C or S. Press / button to select Band.

Channel

Channel can be changed by / button or numeric buttons.

Colour System

Press or button to select Colour System. Use / button to change the colour system to PAL, SECAM or AUTO.

If sound system is set to I (the UK setting), SECAM will not be available for the colour system settings.

Note: In AV modes, you can choose NTSC 3.58, NTSC 4.43 or PAL60 as well.

Sound System

Press or button to select Sound System. Press / button to change the sound system to BG,DK,L or L'.

Fine Tune

Press or button to select Fine Tune. Press / button to adjust the tuning.

Search

Press or button to select Search. Use / button to start programme searching. You can also enter the desired frequency using the numeric buttons while Search item is highlighted.

Store

Press or button to select Store. Press or OK button to store the settings. "Program Stored" will be displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when the TV is in AV modes. Note that limited options will be available. Switch to TV mode for viewing complete version of the Install menu.

Colour System

Press or button to select Colour System. Use / button to change the colour system to PAL, SECAM, PAL 60, NTSC 4,43, NTSC 3,58 or AUTO.

VCR

Press or button to select VCR. Use / button to set the VCR as On or Off.

Store Program

Press or button to select Store Program. Press or OK button to store the settings. "Program Stored" will be displayed on the screen.

Source Menu

Press or button and select the sixth icon. Then press or OK button. Source menu appears on the screen:

SOURCE

TV
DTV
EXT-1
EXT-2
EXT-2 S

In source menu, highlight a source by pressing or button and switch to that mode by pressing button. Source options are; TV, DTV, EXT-1, EXT-2, EXT-2 S, BAV, HDMI-1, HDMI-2, YPbPr or PC.

Note: Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source.

PC Mode Menu System

See "Connecting the LCD TV to a PC" section for connecting a PC to the TV set.

For switching to PC source, press SOURCE button on your remote control and select PC input. You can also use "Source" menu to switch to PC mode.

Note that PC mode menu settings are available only while the TV is in PC source.

Sound Menu

The items in this menu are described at "Sound Menu" section explained in "Analogue TV Menu System".

Feature Menu

Feature menu settings are identical to the settings explained in "Feature Menu" section in "Analogue TV Menu System".

PC Picture Menu

For adjusting PC picture items, do the following:

Press / button to select the first icon. PC Picture menu appears on the screen.

Brightness, Contrast and Colour Temperature settings in this menu are identical to settings defined in TV picture menu under "Analogue TV Menu System".

PC Position Menu

Select the sixth icon by pressing / button. PC Position menu appears on the screen:

English -93-

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display.

Select Autoposition item by using or buttons. Press OK button.

Warning: Please ensure auto adjustment is performed with a full screen image to ensure best results.

H (Horizontal) Position

This item shifts the image horizontally to right hand side or left hand side of the screen.

Select H Position item by using or button. Use / button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top or bottom of the screen.

Select V Position item by using or button. Use / button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Select Phase item by using or buttons. Use / button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Select Dot Clock item by using or buttons. Use / button to adjust the value.

Displaying TV Information

Programme Number, Programme Name, Sound Indicator and Zoom Mode information is displayed on the screen when a new programme is entered or i button is pressed.

Mute Function

Press button to disable sound. Mute indicator will be displayed in the upper side of the screen.

Mute

To cancel mute, there are two alternatives; the first one is pressing the 品 button and the second one is increasing the volume level.

PIP (Picture-in-Picture) and PAP (Picture-and-Picture) Modes

Press the button to switch to PIP mode. At PIP Mode, a small picture (PIP picture) is displayed on the main picture. There are 1 size and 4 positions (upper left, upper right, bottom left and bottom right) available for the PIP window. You can use button to change the PIP position. Aspect Ratio of the PIP window is fixed and 4:3.

When PIP Mode is entered, the default active window is the PIP window and the active window is indicated by a red frame around it. The active window can be changed by pressing / button. The status info OSD belongs to active window. The place of the status OSDs are same for both windows.

Press the button again to exit the PIP mode. Press the button to switch to PAP mode. At PAP Mode, two pictures with equal sizes are displayed on the screen. Aspect Ratios of the windows are fixed.

When you switch to PAP Mode, main window in PIP Mode will be displayed on the right side of the screen. The active window can be changed by pressing / button.

Press the button again to exit the PAP mode.

Note: When main picture source is TV, EXT-1, EXT-2 or BAV, PAP or PIP window can only be set to HDMI-1, HDMI-2, YPBPR, PC source or vice versa.

Picture Mode Selection

By pressing PP button, you can change Picture Mode settings in accordance with your viewing requirements.

Freezing Picture

You can freeze the picture on the screen by pressing the OK button on the remote control. Press the OK button to freeze picture. Press again to quit freeze mode.

Note: This feature will be unavailable to be used while watching PC, YPBPr and HDMI sources.

Zoom Modes

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

Press WIDE button to directly change the zoom mode.

Available zoom modes are listed below.

Note:

• In YPbPr and HDMI modes, while in 720p-1080i resolutions, only 16:9 mode is available.
• In PC mode, only 4:3 and 16:9 modes are available.

Auto

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the

picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

• When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

14:9 Zoom

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

Teletext On-Off / PAT Mode

Activates teletext mode when pressed once. Pressing this button again will split the screen into two windows, one displaying the teletext and the other displaying the current channel. Pressing again will quit the teletext mode.

Index

Selects the teletext index page.

Mix

Places the teletext screen over the programme.

Expand

Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size.

Reveal

Shows hidden information (e.g. solutions of games).

old

Holds a text page when convenient. Press again to resume.

Subcode Pages / Time

Selects subcode pages if available when the teletext is activated. When the teletext is not activated, displays time info if the programme has teletext transmission.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics.

When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs.

The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing P - or P + commands will request the next or previous page respectively.

Tips

Screen Care

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen.

For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.

Image Persistence

Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power

If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthy audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.

Also make sure the correct input source has been selected.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the button?

Sound is coming from only one of the speakers. Is the balance set to one extreme?

See Sound menu.

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that no device is connected.

Check the AV cables and connections if you have tried to connect a device.

CI Module

If you are experiencing a problem with the CI module, it is possible that CI module is not properly inserted. Remove the CI card and then reinsert.

If the problem persists, it is possible that your CI module is not recognized. Try inserting a different CI module.

Appendix A: PC Input Typical Display Modes

The display has a maximum PC resolution of 1360 × 768 , frequency range of 56 - 75Hz .

The following table is an illustration of some of the typical video display modes.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Mode	Resolution		Frequency
	Horizontal	Vertical	Hor.(kHz)	Ver.(Hz)
1	640	480	31.5	60
2	640	480	37.9	72
3	640	480	37.5	75
4	800	600	35.2	56
5	800	600	37.9	60
6	800	600	48.1	72
7	800	600	46.9	75
8	1024	768	48.4	60
9	1024	768	56.5	70
10	1024	768	60	75
11	1280	1024	64	60
12	1280	768	47.8	60
13	1360	768	47.7	60

Appendix B: AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT-1(SCART 1)	PAL 50/60		O
	NTSC 60		O
	RGB 50		O
	RGB 60		O
EXT-2(SCART-2)	PAL 50/60		O
	NTSC 60		O
	RGB 50		X
	RGB 60		X
	S-VHS 50		O
	S-VHS 60		O
BAV	PAL 50/60		O
	NTSC 60		O
YPbPr	480I	60Hz	O
	480P	60Hz	O
	576I	50Hz	O
	576P	50Hz	O
	720P	50Hz	O
	720P	60Hz	O
	1080I	50Hz	O
	1080I	60Hz	O
HDMI1HDMI2	480I	60Hz	O
	480P	60Hz	O
	576I	60Hz	O
	576P	60Hz	O
	720P	60Hz	O
	720P	50Hz	O
	1080I	50Hz	O
	1080I	50Hz	O
	1080P	50Hz	X
	1080P	60Hz	X
	1080P	24 Hz	X

(X: Not Available, O: Available)
Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...) If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Pin Specifications

Signal Input

PC RGB Terminal (D-sub 15-pin connector)

Pin	Input signal
1	R
2	G or sync on green
3	B
4	No connection
5	No connection
6	R.GND
7	G.GND
8	B.GND
9	No connection
10	GND
11	No connection
12	[SDA]
13	H(sync or H/V composite sync
14	V-sync. [V.CLK]
15	[SCL]

• When different kinds of input signals are simultaneously input to the monitor via graphics board or the like, the monitor will automatically select the signals in the following priority order:

Sync signal type	Priority
H/V separate sync.	1
H/V composite sync.	2
sync.on Green *	3

• Even in the case of the recommended signals shown on the following page, there may be instances when correct display is not possible. In this case, use H/V separate sync, H/V composite sync.

HDMI connector pin specifications

Pin	Input signal	Pin	Input signal
1	TMDS Data2+	11	TMDS Clock Shield
2	TMDS Data2 Shield	12	TMDS Clock-
3	TMDS Data 2-	13	CEC
4	TMDS Data 1+	14	Reserved (N.C. on device)
5	TMDS Data1 Shield	15	SCL
6	TMDS Data1-	16	SDA
7	TMDS Data0+	17	DDC/CED Ground
8	TMDS Data0 Shield	18	+5V Power
9	TMDS Data0-	19	Hot Plug Detect
10	TMDS Clock+

SCART connector pin specifications

Pin	Input signal	Pin	Input signal
1	AUDIO OUT (RIGHT)	12	Not used
2	AUDIO IN (RIGHT)	13	RGB-R GND
3	AUDIO OUT (LEFT/MONO)	14	GND
4	AUDIO GND	15	RGB-R / S.VHS CHROMINANCE IN
5	RGB-B GND	16	BLANKING SIGNAL
6	AUDIO IN (LEFT/MONO)	17	COMPOSITE VIDEO GND
7	RGB-B IN	18	BLANKING SIGNAL GND
8	AUDIO / RGB SWITCH / 16:9	19	COMPOSITE VIDEO OUT
9	RGB-G GND	20	COMPOSITE VIDEO / S.VHS LUMINANCE IN
10	Not used	21	GND / SHIELD (CHASSIS)
11	RGB-G IN

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K'I/I' L'L'

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20/ S21-S41)

NUMBER OF PRESET CHANNELS 100

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz

AUDIO

3D Panorama

AUDIO OUTPUT POWER (W_RMS) (10% THD)

2 × 8 ~W

POWER CONSUMPTION (W)

180W

<1 W (Standby)

PANEL

16:9 display, 32" Screen Size

DIMENSIONS (mm)

DIMENSIONS (mm)
D	L	H	Weight (kg)
210	805	587	15,8	With foot
120	805	543	13,9	Without foot
