0504 - Power tool SKIL - Free user manual and instructions

Brand	SKIL
Model	0504
Product type	Line laser level
Category	Power tool
Dimensions (L x W x H)	Dimensions not specified
Weight	0.37 kg
Power supply	2 AA batteries (LR6) / 1.5 V
Laser type	650 nm, class 2
Output power	< 1 mW
Accuracy	± 1 mm/m
Operating temperature	0°C to 40°C
Storage temperature	-10°C to 50°C
Battery life	Approximately 40 hours
Main functions	Projection of horizontal, vertical and intermediate angle lines, manual leveling, magnetic base, tripod mount
Included accessories	Leveling plate, magnetic base, tripod base
Optional accessories	Laser viewing glasses (SKIL 2610395907), tripod 1.20 m (SKIL 2610395906) or 1.80 m (SKIL 2610398078)
Safety	Do not look directly into the beam, do not point at people or animals, use with caution
Maintenance and cleaning	Clean with a damp cloth after removing the batteries
Repairability	Repair only by an authorized SKIL after-sales service center
Warranty	In accordance with applicable legislation

Frequently Asked Questions - 0504 SKIL

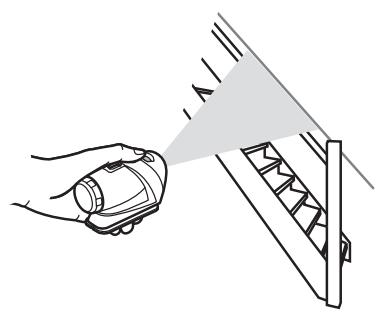

How to turn the laser level on and off?

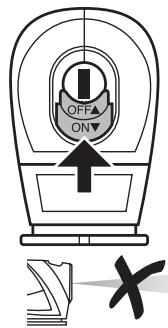

To turn on, push the on/off switch (A) down; to turn off, push it up. Never point the beam at eyes.

How to install the batteries?

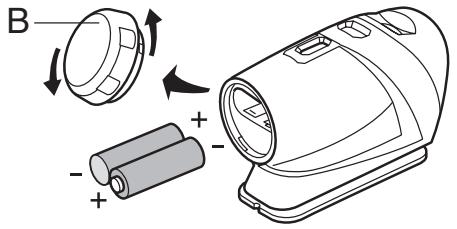

Make sure the tool is off. Remove the battery compartment cover (B) by turning counterclockwise. Insert 2 AA (LR6) batteries observing polarity. Replace the cover by turning clockwise.

What is the accuracy of this laser level?

The accuracy is ± 1 mm/m.

Can I use this tool on a tripod?

Yes, mount the tripod base (L) on a tripod with standard 1/4-20 UNC thread. Attach the leveling plate (H) to the tool using the alignment peg (J), then screw the assembly onto the tripod.

What to do if the laser beam is weak or does not turn on?

Replace the batteries with two new AA batteries. If the problem persists, contact a SKIL after-sales service center.

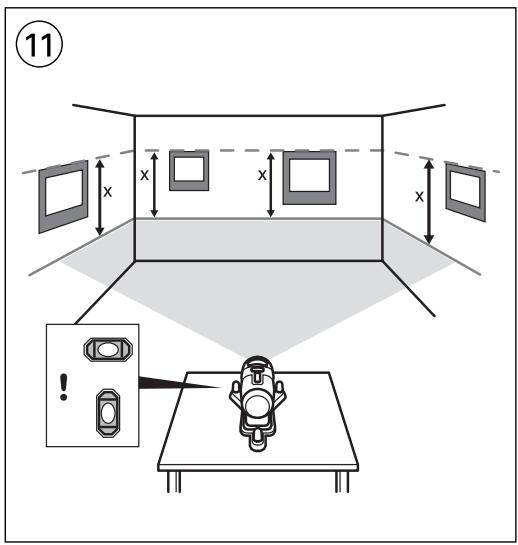

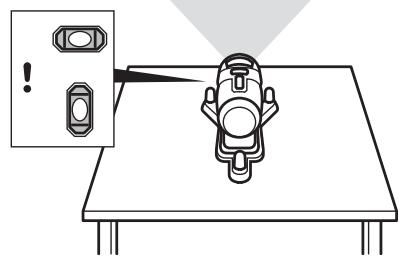

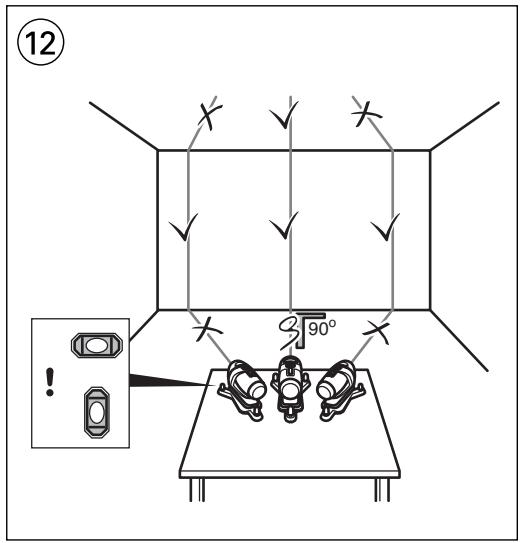

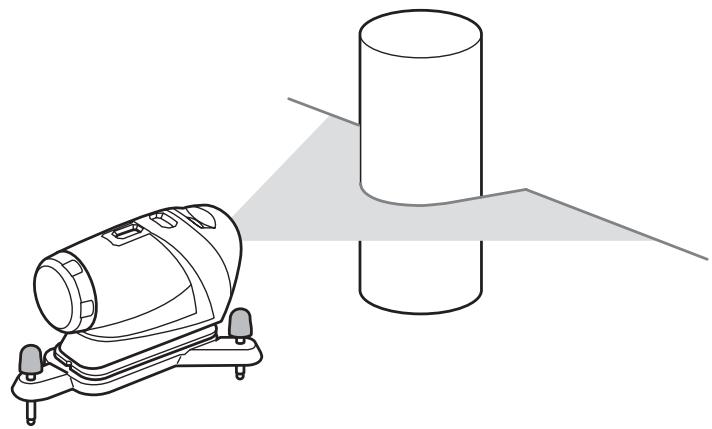

How to project a horizontal or vertical line?

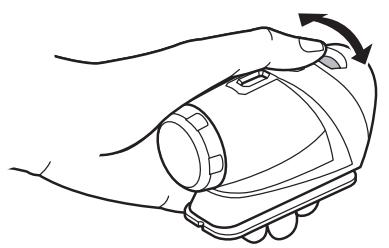

Turn the adjustment knob (C) fully to the right for a horizontal line or to the left for a vertical line. Check that the bubble of the two spirit levels (F) is centered.

Is the tool waterproof?

No, protect the tool from moisture, dust and direct sunlight. Store it in its case after use.

How to clean the tool?

Remove the batteries before cleaning. Use a damp cloth to clean the exterior. Do not use harsh chemicals.

What is the laser class?

The laser is class 2 with power less than 1 mW. Never look directly into the beam and do not use optical instruments to observe it.

Where can I find spare parts or accessories?

Optional accessories (laser viewing glasses, tripod) are available under the SKIL references indicated in the manual. For any repair, contact an authorized SKIL after-sales service center. More information at www.skileurope.com.

USER MANUAL 0504 SKIL

GB INSTRUCTIONS page 9
F INSTRUCTIONS page 10
D HINWEISE
INSTRUCTIES bladz. 13
S INSTRUKTIONER sida 15
DK INSTRUKTION side 17
N ANVISNING side 18
FIN OHJEET sivu 20
E INSTRUCCIONES pag. 21
P INSTRUÇÖES pág. 23
IISTRUZIONI pag.25
H LEIRAS oldal 29
CZ POKNY strana 28
TR KILAVUZ sayfa 30

PL INSTRUUKCJA strona 31
RU INHCTPYKUIN cTpaHua 33
U A IHCTPYKLIJA CTpaHua 35
GR O△HΓIΕΣ σελιδα 37
RO INSTRUCTIUNI pagina 39
BG YKA3AHNE cTpaHnca 40
SK POKNY strana 42
HRUPUTE stranica 44
SRBUPUTSTVA stranica 45
SLO NAVODILA stran 47
EST KASUTUSJUHEND lehekulg 49
LV INSTRUUKCIJA lappuse 50
LT INSTRUKCIJA puslapis 52

www.skileurope.com

①

(2)

(3)

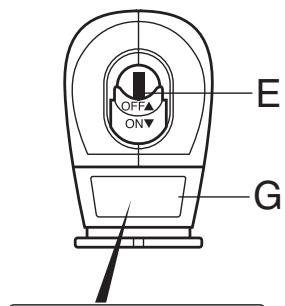

LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

EN 60825-1:2007

Pmax<1mW,λ=650nm

(4)

(5)

(6)

7

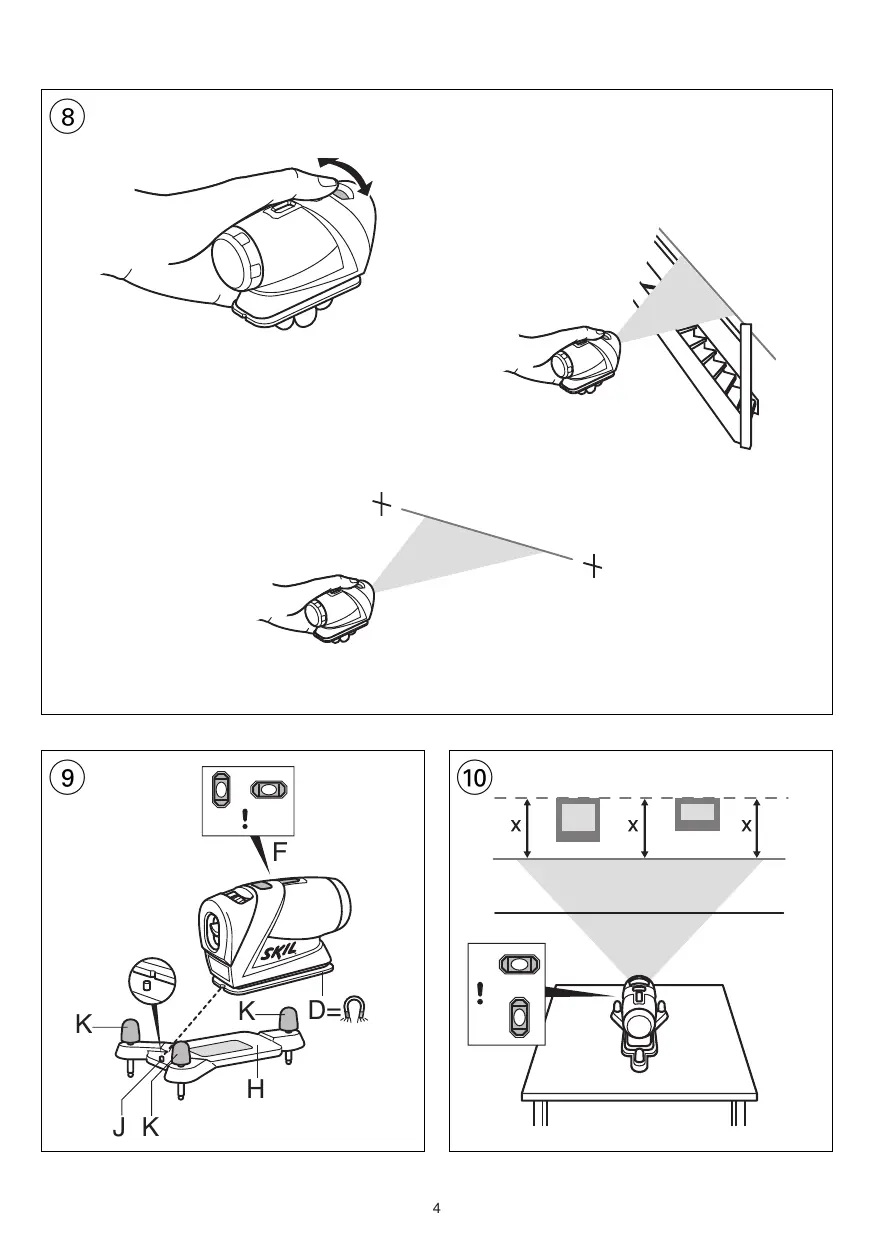

(8)

(13)

(14)

15
(16)

2610398078

ACCESSORIES
SKIL Nr.

2610395906

2610395907

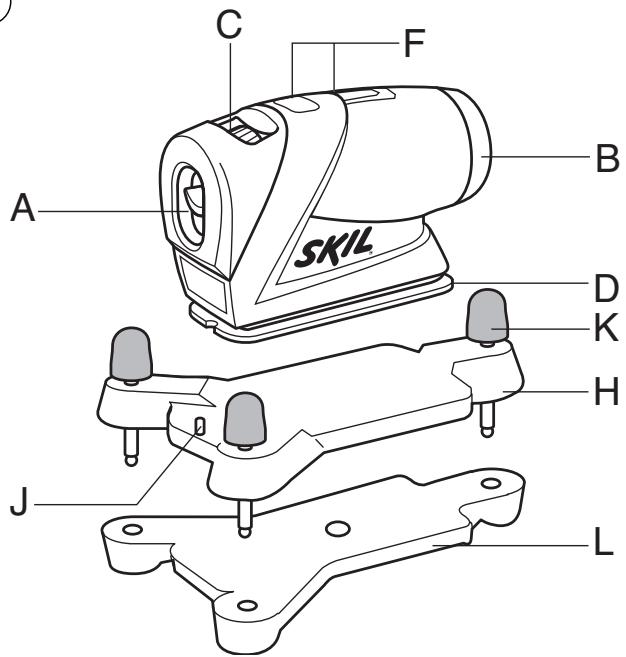

• Tripod base L ⑬
  For using the tool in combination with a tripod

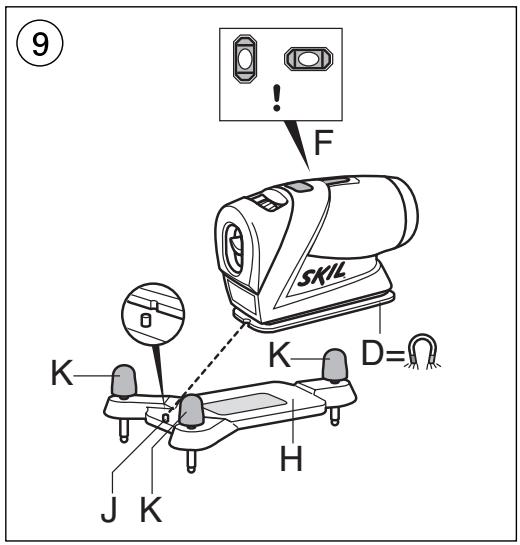

• mount the tool on leveling plate H by using alignment pin J
• screw tripod base L onto a tripod with a standard threading of 1/4-20 UNC
• place tool with leveling plate onto tripod base L
  ! ensure that the tool is firmly fixed to the tripod base
• Laser viewing glasses (in +SET execution only; also available as SKIL accessory 2610395907) ^ 14
• for improving the view of the laser line
  ! these glasses will not protect your eyes against laser radiation

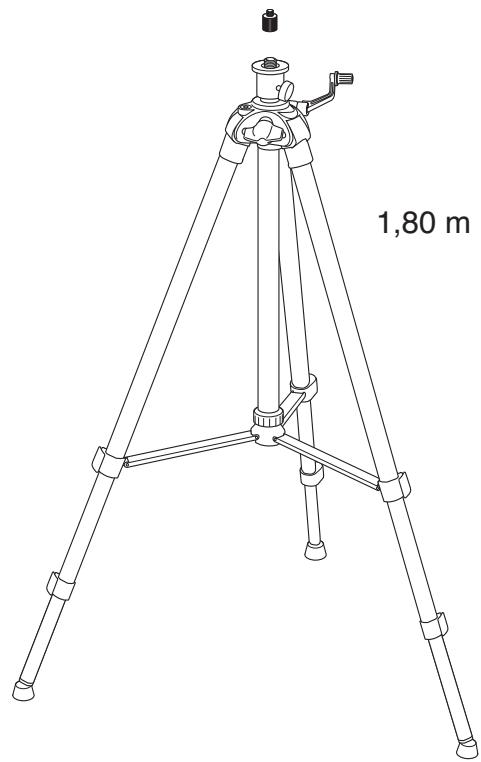

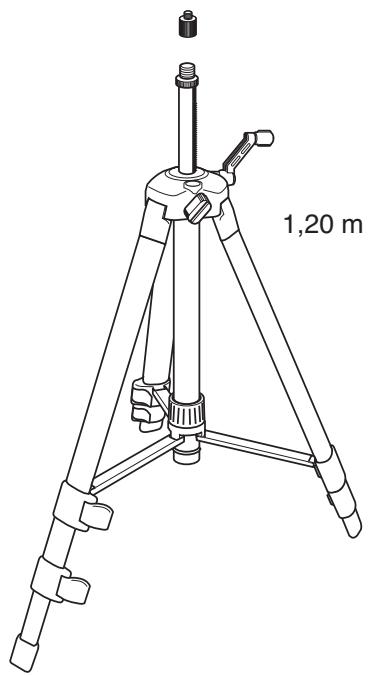

• Tripod (in +SET execution only; also available as SKIL accessory 2610395906 (1,20 m) / 2610398078 (1,80 m))

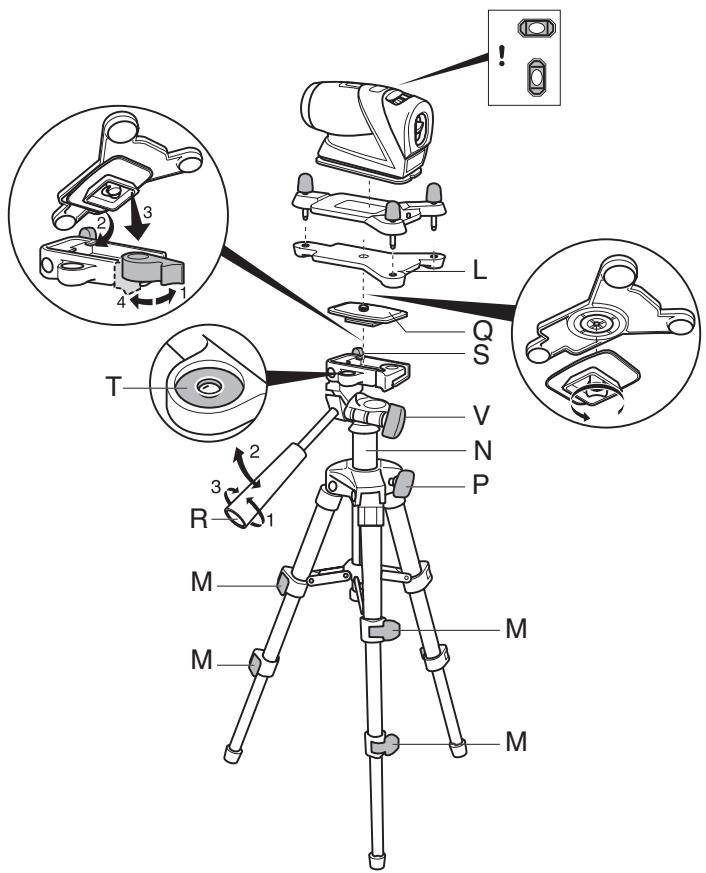

• unfold the tripod
• adjust length of 3 legs with clips M
• adjust length of rod N with knob P
• first mount adapter Q to tripod base L, before mounting it to tripod
• ensure that the tripod base is firmly fixed to the tripod
• first level the tripod with handle R, knob S and level T, before leveling the tool itself
• use knob V for rotating the tripod base around its axis

MAINTENANCE / SERVICE

• Do not expose the tool to continuous vibration or extremely hot or cold temperatures
• Always store the tool indoors in its protective carton/ case
  Always keep the tool free of dust, moisture and direct sunlight
• Clean the tool with a damp cloth! always remove the batteries before cleaning the lens
• Do not disassemble or modify the tool in any way
• Do not attempt to change any part of the laser lens

• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

• send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service-station (addresses are listed on www.skileurope.com)

ENVIRONMENT

• Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
  symbol 16 will remind you of this when the need for disposing occurs
