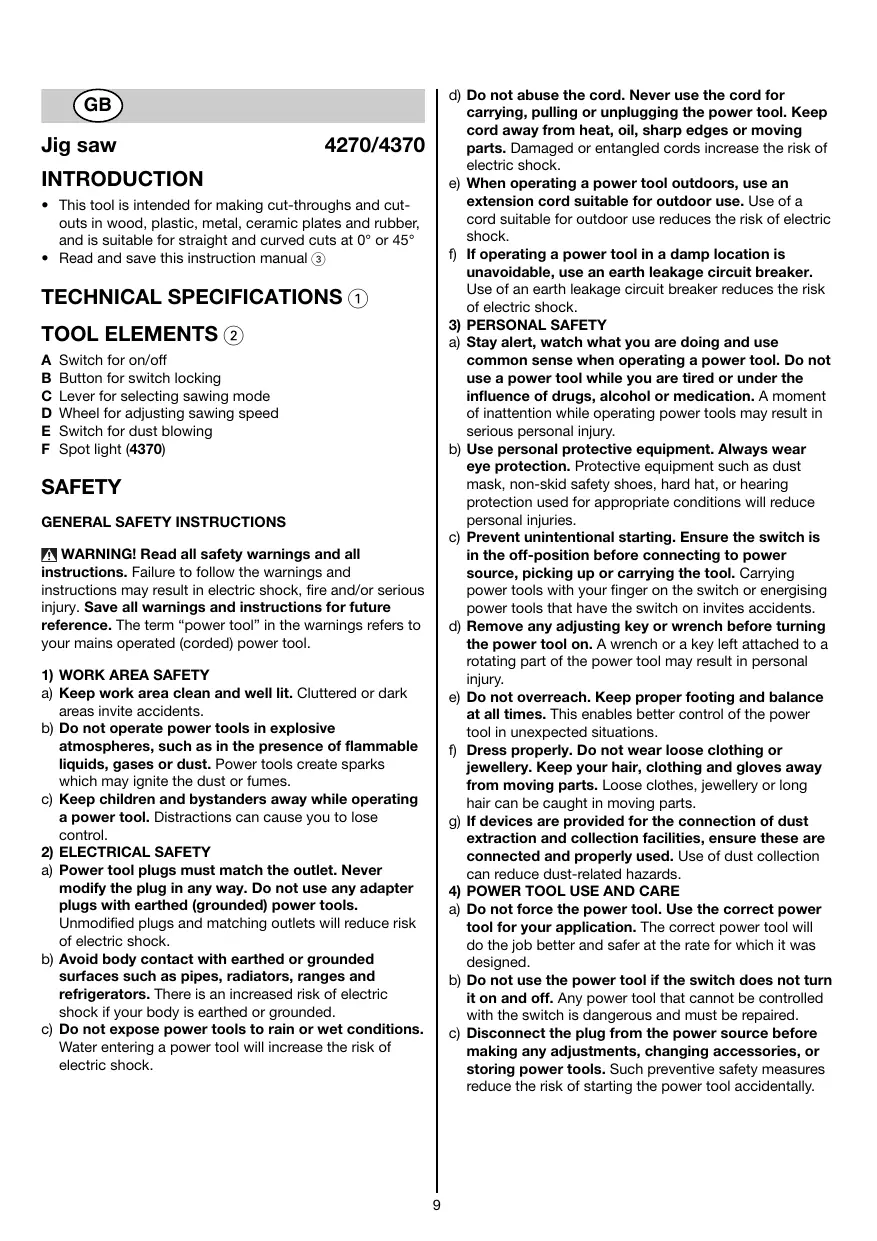

USER MANUAL 4270AC SKIL

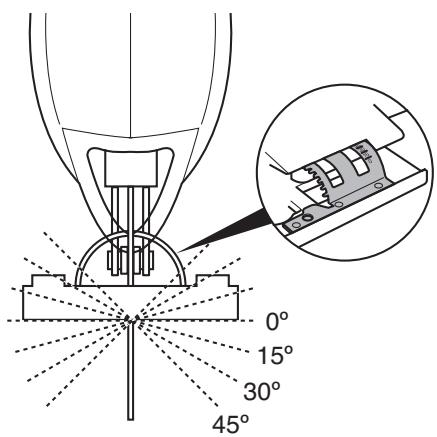

INTRODUCTION This tool is intended for making cut-throughs and cut- outs in wood, plastie, metal, ceramic plates and rubber, and is suitable for straight and curved cuts at 0° or 45° Read and save this instruction manual (3)

TECHNICAL SPECIFICATIONS (1)

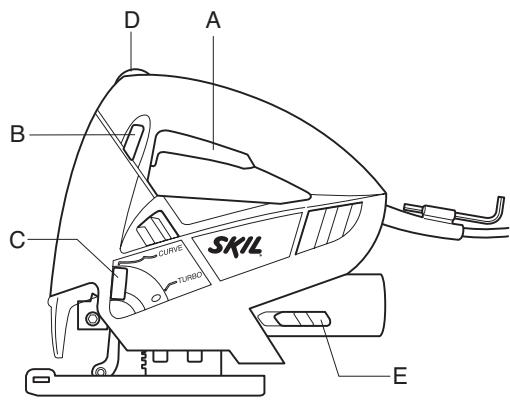

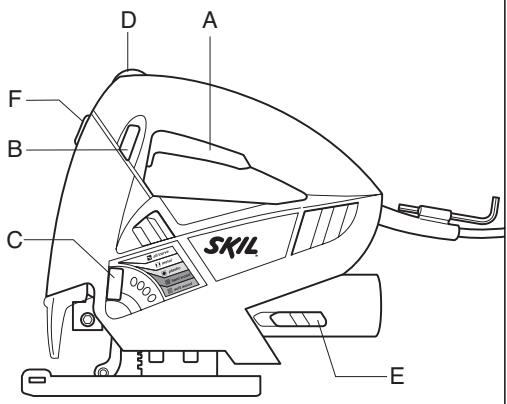

A Switch for on/off B Button for switch locking

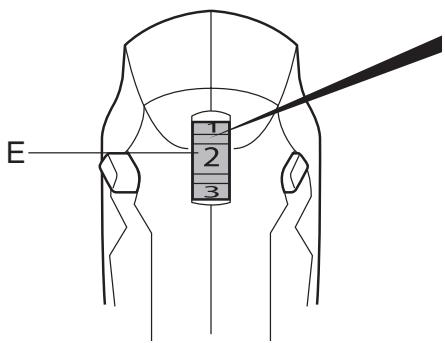

C Lever for selecting sawing mode D Wheel for adjusting sawing speed E Switch for dust blowing

SAFETY GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool.

2) Keep work area clean and well lit Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

©) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

2) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

©) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric

If operating a power tool in a damp location is

unavoïdable, use an earth leakage circuit breaker.

Use of an earth leakage circuit breaker reduces the risk

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. À moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the s\ in the off-position before connecting to power source, picking up or carrying the tool. Carrying pouser tools with your finger on the switch or energising pouser tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. À wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

# Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If der led for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source before making any adjustments, changing accessories, or Storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are

less likely to bind and are easier to control.

9) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

4) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR JIG SAWS

Always keep the cord away from moving parts of the too; direct the cord to the rear, away from the tool Ifthe cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug Never use tool when cord is damagedi have it replaced by a qualified person

Do not work materials containing asbestos (asbestos is considered carcinogenic)

Take protective measures when during work dust can develop that is harmful to one’s health, combustible or explosive (some dusts are considered carcinogenic); wear a dust mask and work with dust/ chip extraction when connectable

Do not use a saw blade which is cracked, deformed or dull

Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

Keep hands away from the saw blade while the tool is in use

Remove all obstacles on top of as well as underneath the cutting path before you start cutting

Always disconnect plug from power source before making any adjustment or changing any accessory Wear protective goggles when working with materials which produce chips

Avoid damage that can be caused by screws, naïls and other elements in your workpiece; remove them before you start working

Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualiied person; never open the tool yourself

Always check that the supply voltage is the same as the

voltage indicated on the nameplate of the tool (tools

with a rating of 230V or 240V can also be connected to

When used outdoors, connect the tool via a fault

current (F1) circuit breaker with a triggering current of

30 mA maximum, and only use an extension cord which

is intended for outdour use and equipped with a

splashproof coupling-socket

The noise level when working can exceed 85 dB(A):

When you put away the tool, switch off the motor and

ensure that all moving parts have come to a complete

SKIL can assure flawless functioning of the tool only

when original accessories are used

Use completely unrolled and safe extension cords with

a capacity of 16 Amps (U.K. 13 Amps)

In case of electrical or mechanical malfunction,

immediately switch off the tool and disconnect the plug

This tool should not be used by people under the age of

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

+_ Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug

+_Iffor any reason the old plug is eut off the cord of this

tool, it must be disposed of safely and not left

Switch locking for continuous use (5)

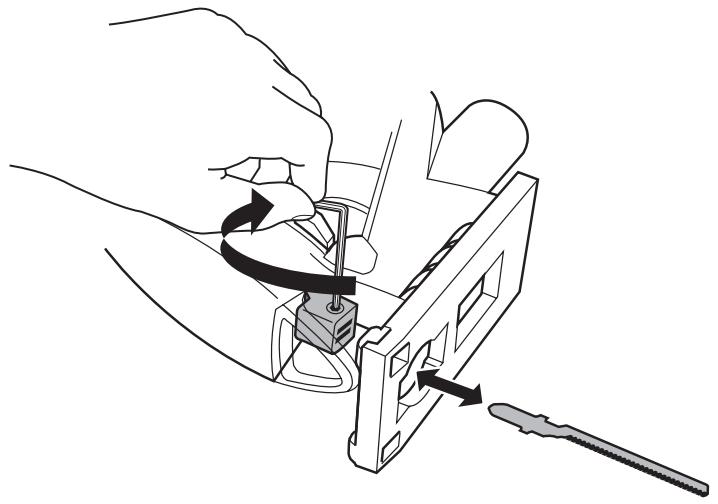

Changing saw blades ()

1_ insert blade to full depth with teeth facing forward G)

-_ for best results select “CURVE" (4270) / “al/curve”

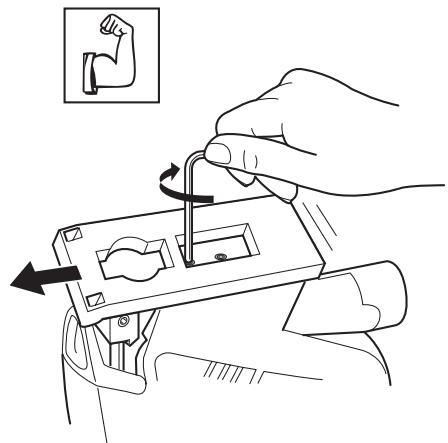

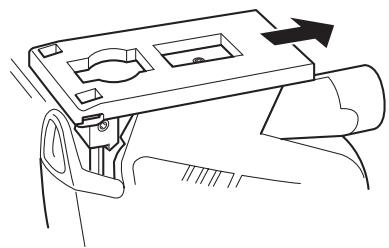

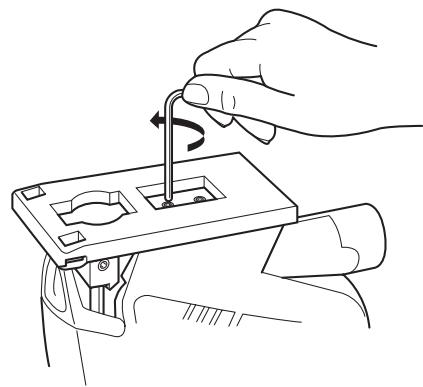

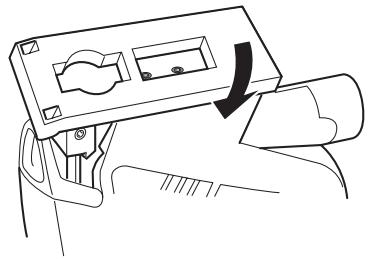

ensure that footplate rests flat against tool

Selecting sawing mode ()

= "CURVE" for aceurate cutting, straïght + curved

-_ “TURBO” for fast cutting, straight cuts only always select “CURVE” when sawing splinter- sensitive material

1 setting (‘all/curve”) for accurate cutting in all

materials, straight + curved

4 settings for fast cutting in different materials,

plastic brown = hard wood

always select “all/curve” when sawing splinter- sensitive material

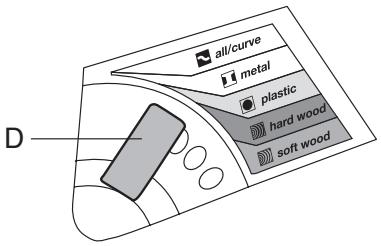

+_Adjusting sawing speed to material used fo)

!_ifthe tool does not run with wheel D in position 1, select a higher sawing speed and lower the sawing speed while the tool runs

L_do not use vacuum cleaner when cutting metal

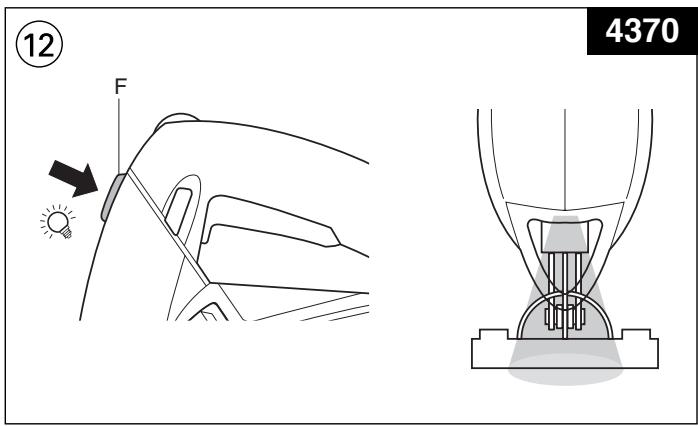

Spot light 62 (4370)

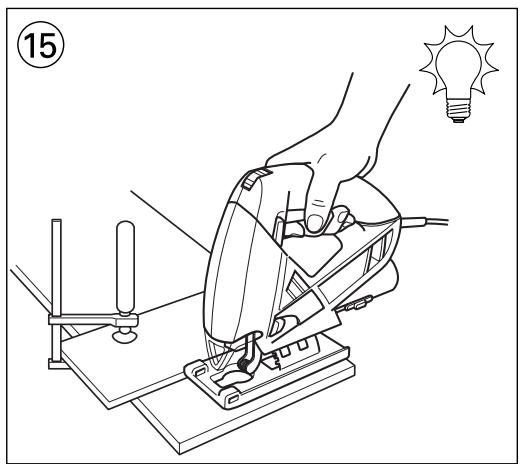

before switching on the tool, ensure that front end of

footplate rests flat on the workpiece

hold tool firmly with both hands, so you will have full

control of the tool at all times

ensure that complete surface of footplate rests firmiy

ensure that the blade has come to a complete

standbstill, before you lift the tool from the workpiece

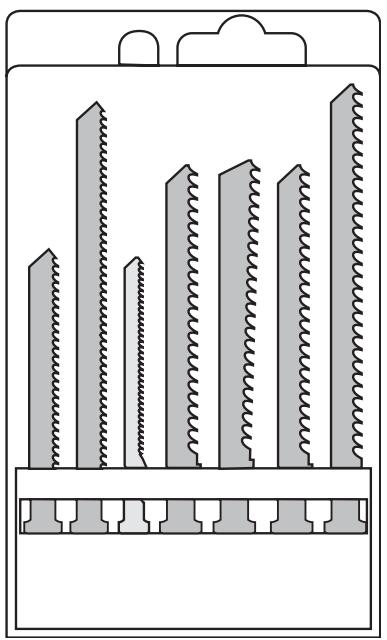

APPLICATION ADVICE Use the appropriate saw blades (3)

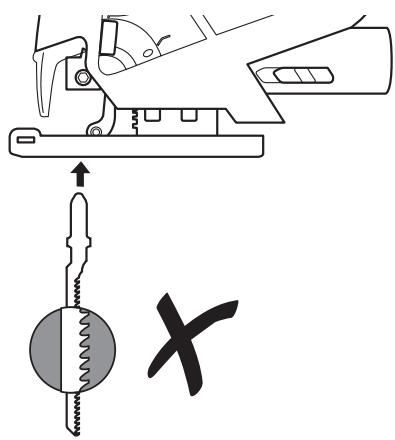

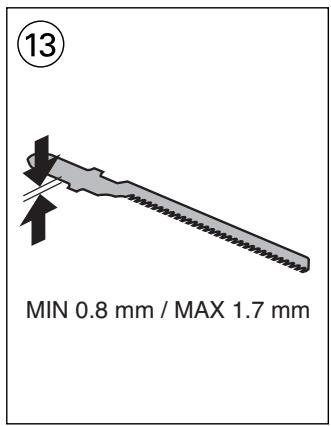

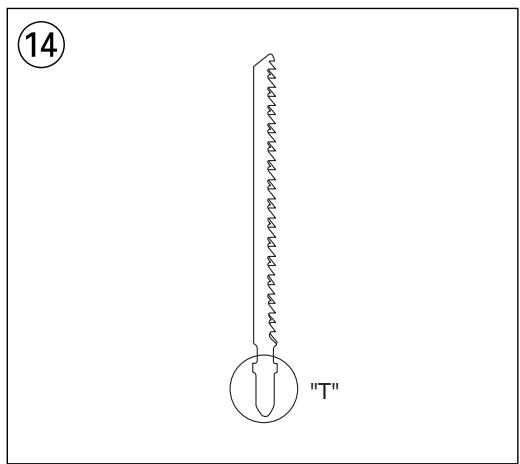

! use T-shank blades only 4

When cutting metals, lubricate saw blade regularly with

For an accurate straight cut, guide tool with footplate

along the edge of a straight piece of wood (5)

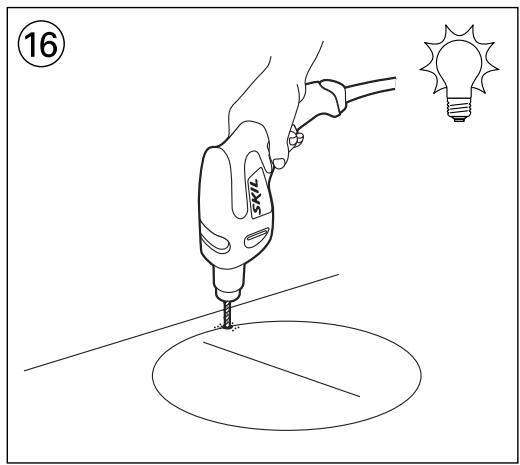

Pre-drill a hole before making cut-outs fi

Splinter-free cutting

-_ cover cutting-line with several layers of wide tape before cutting

-_ always face the good side of the workpiece down

For more tips see www.skileurope.com

GUARANTEE / ENVIRONMENT

+ Always keep tool and cord clean (especially the ventilation slots)

!_ disconnect the plug before cleaning

This SKIL product is guaranteed in accordance with statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling will be excluded from the guarantee

In case of a complaint, send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

Do not dispose of electric tools, accessories and packaging together with household waste material only for EU countries)

-_ in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility symbol &) will remind you of this when the need for disposing occurs

[CE DECLARATION OF CONFORMITY We deciare under our sole responsibIy ariniS products in contormity win he olowng (standards or standardized documents: EN 60 745, EN 55 014, in accordance with the provisions of the directives 78/23/C, |2004/108/EC, 98/87/EC.

INOISEMIBRATION Measured in accordance with EN 60 745 the sound pressure level of this tool s 90 dB(A) and the sound power level 101 dB{A) (standard deviation: 3 dB), and the vibration # m/s? (hand-arm method)

[Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

4270 4370 nl 10.9 m/s? EI 8.8 m/s 11.8 m/s? C2] 13.3 m/s? 1.5 m/s? El 1.5 m/s?
