Product type	Portable monobloc air conditioner
Brand	Cecotec
Model	Forceclima 9900 Smarttouch
Category	Air conditioning
Cooling power	Approximately 9000 BTU/h
Recommended cooling area	Approximately 25 m²
Power supply	220-240 V ~ 50 Hz
Power consumption	Approximately 1.1 kW
Refrigerant	R290 (propane, flammable)
Functions	Cooling, dehumidification, ventilation, automatic mode, night mode, timer
Control	Touchscreen, remote control, mobile app
Connectivity	Built-in Wi-Fi for remote control
Dehumidification	Extracts humidity up to 1.5 L/h
Water tank capacity	Approximately 1 L
Noise level	Approximately 65 dB
Dimensions (W x D x H)	Approximately 32 x 32 x 70 cm
Weight	Approximately 25 kg
Safety	Overheating protection, flammable gas, child lock
Installation	Window kit included, easy installation
Maintenance	Filter cleaning, tank draining, exterior cleaning
Spare parts	Available via the official After-Sales Service
Repairability	Repair by the After-Sales Service or qualified personnel
Warranty	2 years
Usage	Indoor only, minimum area 7 m²
General information	Compliant with gas regulations, secure storage

Frequently Asked Questions - Forceclima 9900 Smarttouch CECOTEC

How to install the Cecotec Forceclima 9900 Smarttouch air conditioner?

To install the air conditioner, place it near a window and use the included window kit to exhaust the hot air. Make sure the room is at least 7 m² and that the ventilation openings are unobstructed. Follow the instructions in the manual to avoid risks.

How to use the Wi-Fi function and control the device remotely?

Download the compatible Cecotec app, connect the device to your home Wi-Fi network via the touchscreen, then control the temperature, modes, and scheduling remotely from your smartphone.

What type of refrigerant does this air conditioner use? Is it dangerous?

It uses R290 refrigerant (propane), classified A3, highly flammable and low toxicity. It is important to follow the safety instructions, especially avoiding sources of ignition and ensuring good ventilation during maintenance.

What is the recommended area for this air conditioner?

This model is designed to cool a room of about 25 m², depending on ceiling height and sun exposure. The minimum room area is 7 m² for safety reasons.

How to clean the air conditioner filters?

Turn off the device and unplug it. Remove the air filters, wash them with warm water and a mild detergent, dry them completely before putting them back. Clean them every two weeks for optimal performance.

What to do if the device does not turn on?

Check that the power cord is plugged in, that the outlet works, and that the water tank is drained correctly. If the problem persists, contact the official Cecotec After-Sales Service.

Is the air conditioner suitable for a bathroom?

No, this portable air conditioner is designed for indoor use in dry and ventilated rooms. Do not install it in a bathroom or any humid environment to avoid the risk of electric shock.

How to empty the water tank?

When the tank is full, the corresponding indicator lights up. Unplug the device, remove the drain plug and let the water flow into a container. You can also use a drain hose for continuous drainage.

What is the warranty for this product?

Cecotec offers a 2-year warranty on this air conditioner, covering manufacturing defects. Keep your purchase receipt and contact the official After-Sales Service for any repair.

Is the product repairable?

Yes, the air conditioner can be repaired by the official Cecotec After-Sales Service. Use original spare parts to ensure safety and performance. Never attempt to repair the device yourself.

USER MANUAL Forceclima 9900 Smarttouch CECOTEC

Safety instructions 9

EN 1. Parts and components 87

1. Before use 88

2. Installation 88

3. Operation 90

4. Connectivity and Wi-Fi section 91

5. Cleaning and maintenance 92

6. Troubleshooting 93

7. Technical specifications 100

8. Recycling of electrical and electronic equipment 102

9. Technical support and warranty 102

10. Information on data stored by connected products in accordance with Regulation (EU)

2023/2854 ("Data Regulation") 103

1. Copyright 103

2. EU Declaration of Conformity 103

EU01_123704_ForceClima 7900 SmartTouch Connected EU01_123705_ForceClima 9900 SmartTouch Heating Connected

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards

involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• The appliance must be powered at a low safety voltage as stated on the marking.
• If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.
• The installation of pipelines should be kept to a minimum.
• Piping must be protected from physical damage and must not be installed in a space without ventilation.
• Compliance with national gas regulations must be observed.
• Mechanical connections shall be accessible for maintenance purposes.
• The minimum room floor area for the room where the appliance may be installed is 7 m² .
• WARNING: keep the ventilation openings clear from obstructions.
• NOTE: servicing should be performed only as recommended by the manufacturer.
• The appliance shall be installed in accordance with national electrical installation regulations
• WARNING: the appliance must be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• WARNING: the appliance must be stored in a room without continuously operating open flames (e.g. an operating gas appliance) or sources of ignition (e.g. an operating electric heater).
• The appliance must be stored in such a way as to prevent mechanical damage.
• Any person involved in work or intervention on a refrigerant

circuit should hold a current valid certificate issued by an industry-accredited assessment authority, authorising their competence to handle refrigerants safely in accordance with an industry-recognised assessment specification.

• Servicing should only be carried out as recommended by the equipment manufacturer. Maintenance and repairs requiring the assistance of other qualified personnel must be carried out under the supervision of the person competent in the use of flammable refrigerants.
• Service personnel must be instructed to perform the following when servicing an appliance using a flammable refrigerant.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• Do not carry or pull the appliance from the power cable. Do not use the cord as a handle. Do not push the cable against corners or sharp edges. Do not crush the power cable with the full weight of the appliance. Keep the cable away from hot surfaces.
• Do not operate the appliance if its cable, plug, or body show visible damage, do not operate properly, or have been dropped.
• Do not use the appliance in confined spaces with explosive or flammable vapours.
• Keep the portable air conditioner away from heat sources.

• Do not try to repair the appliance by yourself. Contact Cecotec's Official Technical Support Service.

• Do not install and use the portable air conditioner in the bathroom or other humid environments.

• The portable air conditioner is designed for indoor use only and is not compatible with other uses.
  This symbol means: Warning, flammable material; Safety group: A3, highly flammable and low toxicity.
• This symbol means: CAUTION! Read the instruction manual before using the appliance.
• This symbol means: Operator's manual; instructions for use. Before installing the air conditioner, read the instruction manual first.
• This symbol means: Service indicator; read instruction manual. Before repairing the air conditioner, read the instruction manual first.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Do not subject batteries to mechanical shock.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not use the remote control if powered with batteries that differ in capacity, size, or type.
• Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Use the batteries only for their intended purpose.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

https://cecotec.es/es/information/declaration-of-conformity

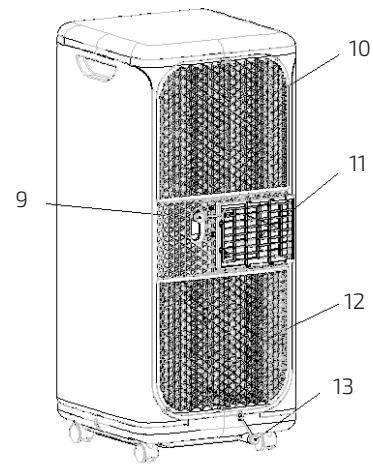

1. PARTS AND COMPONENTS

Fig. 1

1. Top cover
2. Handle
3. Air inlet grille
4. Rear housing
5. Wheels
6. Control panel
7. Air outlet
8. Front housing
9. Continuous drainage outlet
10. EVA filter
11. Air vent
12. CON filter
13. Drainage outlet
14. Exhaust hose assembly
15. Window sealing plate assembly

Control panel

Figure 2:

1. Power touch icon
2. Sleep mode touch icon
3. Increase touch icon
4. Mode touch icon
5. Display
6. Speed selection touch icon
7. Decrease touch icon
8. Timer touch icon
9. Oscillation touch icon
10. Wi-Fi indicator light
11. Full tank indicator

Remote control

Figure 3:

1. Power button
2. Timer button
3. Decrease button
4. Mode button
5. Increase button

6. Speed selection button

7. Sleep mode button

8. Oscillation button

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• Remote control
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Warnings:

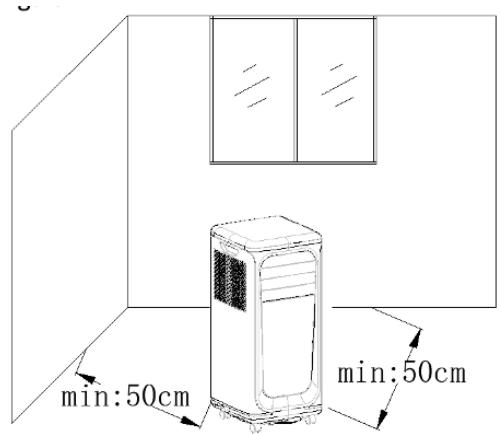

Before using the portable air conditioner, keep the unit upright for at least 2 hours after unpacking or any transport. The unit is portable. When moving it within the room, always keep it upright and place it on a flat, stable surface. Do not install or use the equipment in bathrooms or other humid environments.

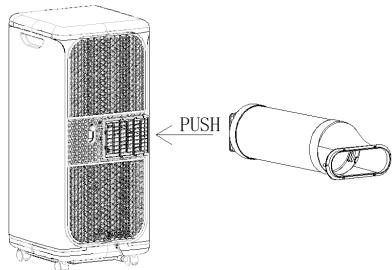

Assembly of the exhaust hose

Fig. 4.

1. Remove the outer connector assembly and the exhaust hose assembly (14), removing the protective plastic bags.
2. Insert the exhaust hose assembly (the end with the exhaust connector) into the slot/connection piece on the rear panel of the unit and push to the left until it clicks into place, completing the assembly (see Figure 4).

Installation of the window sealing plate assembly (15)

1. Open the window partially and position the window sealing plate assembly (15) in the opening horizontally as shown in Figure 5 or vertically as shown in Figure 6.
2. Extend the assembly sections until both ends make firm contact with the window frame and secure the assembly components in that position.
3. Position the unit, with the exhaust hose assembly (14) and its accessories already fitted, in front of the window. Maintain a minimum distance of 50 cm between the equipment and walls or other objects. Fig. 7

Notes:

• The flat end of the exhaust hose connections must snap-fit into their housing.
• Do not deform, constrict, or make sharp bends in the hose. Avoid bends greater than 45° . Keep the hose unobstructed to ensure adequate ventilation of the exhaust air.
• The effective length of the exhaust hose must be between 280 and 1500 mm.
• Do not use extension tubes or replace the hose with a different one, this may cause malfunction.
• Do not block the exhaust hose; otherwise, overheating may occur.

Manual drainage

Fig. 8

1. When the unit stops due to the full tank indicator (26), switch off the unit and unplug the power cable. Move the unit carefully to avoid spillage of water accumulated in the lower tray.
2. Place a container beneath the drainage outlet (13), located at the rear/side of the equipment.
3. Unscrew the drainage cap and remove the plug, water will flow automatically into the container.

Notes:

• Keep the drainage cap and plug for reinstallation when finished.
• During drainage, you may tilt the appliance slightly backwards.
• If the container cannot collect all the water, replace the plug before it fills to prevent spillage on the floor or carpet.
• Once emptied, insert the plug and tighten the drainage cap.

Continuous drainage

Fig. 9

1. For ventilation and dehumidification modes, unscrew the cap from the continuous drainage outlet (9), remove the plug, and connect the drainage tube.

2. For heating mode, use the drainage outlet (13) for continuous drainage. Connect the drainage tube.

3. Direct the other end of the tube to a container or drain and secure it, always maintaining a downward gradient and without siphons.

4. OPERATION

- When connecting the unit to the mains for the first time, the buzzer emits a startup sound and the equipment enters standby mode.

Control panel operation

• Power touch icon (16): Switches the unit on and off. With the unit on, press to switch it off; with the unit off, press to switch it on.
• Mode touch icon (19): With the unit on, cycles through the available modes.
• Speed speed selection touch icon (21): Allows you to choose high or low speed in cooling and fan modes. Under certain "freeze protection conditions", the unit may not follow the selected speed. In dehumidification mode: the speed is low and cannot be modified.
• Increase touch icon (18) and decrease touch icon (22): Adjust the target temperature value or timer duration. In dehumidification and fan modes, you cannot select the temperature.
• Timer touch icon (23): Press this touch icon (23). When the timer symbol flashes, select 1–24 hours using (18)/(22), in 1-hour increments to set the timer.
• Oscillation touch icon (24): This touch icon activates or deactivates automatic oscillation of the airflow.
• Display (20): Shows temperature, timer duration, and fault codes.
• Wi-Fi indicator light (25): Shows the status of the Wi-Fi connection.
• Full tank indicator (26): Full water tank warning. When full, the unit stops until it is emptied.
• Sleep mode touch icon (17): Press this touch icon to activate or deactivate sleep mode.

Remote control operation

• Power button (27): Switches the unit on and off.
• Timer button (28): Allows you to set the unit's timer. Select the value using the increase button (31) and decrease button (29).
• Decrease button (29): Reduces the target temperature value or timer duration, depending on what you are setting.
• Mode button (30): Switches between operating modes.
• Increase button (31): Increases the target temperature value or timer duration.
• Speed selection button (32): Selects the fan speed: high or low.
• Sleep mode button (33): Activates the sleep mode.
• Oscillation button (34): Activates automatic oscillation of the deflector up/down.

Protection features

Freeze protection function

- In cooling, dehumidification, or sleep modes, if the exhaust pipe temperature drops too low, the unit automatically enters protection mode. When the pipe temperature rises to a predetermined value, the equipment automatically returns to normal operation.

High water level in the tray

• When the water in the tray exceeds the warning level, the unit emits an audible alarm and the full tank indicator (26) flashes.
• At this point, direct the drainage tube connected to the machine or the water outlet to a drain/sewer to empty the water (refer to Drainage instructions). After emptying, the unit automatically returns to its original state.

Automatic defrost

- The unit features an automatic defrost function.

Compressor protection

- To extend the compressor's service life, after switching off there is a 3-minute delay protection before allowing a new start-up.

5. CONNECTIVITY AND WI-FI SECTION

Scan the following QR code to download the app, access the manual, guides, and technical support.

1. Download the Cecotec app from Google Play or App Store.
2. If this is the first time you are using the app you will need to create an account, otherwise log in.
3. Within the Cecotec App, go to the top right corner and press the "+" icon. Then select the "Add device" option.
4. Now connect the ForceClima to the power supply. The display will turn on and the Wi-Fi indicator light will appear and start flashing.
5. Return to the Cecotec app, and you will notice that the device will appear flashing at the top of the app, indicating it is ready to be paired. Select it to continue with the process and follow the steps shown in the app.

You can also search for and add the product manually. In the app, select the "Add device" option, go to the side menu and select the corresponding range "Air treatment", and locate your product model "ForceClima 7900/9900". Tap on it to start the pairing process and follow the steps indicated in the app. Once correctly linked for the first time, the device will be saved on your phone and you can access it from the app to control all its functions.

Notes:

1. This device is compatible with 2.4 GHz Wi-Fi networks.
2. Ensure your mobile phone is connected to a Wi-Fi network with optimal network speeds.
3. You can unlink the device from the app by accessing the device panel (where all its functions are displayed), entering Settings and selecting "Remove device", where you can also delete recorded data.

6. CLEANING AND MAINTENANCE

• Ensure the unit is switched off and disconnect it from the mains socket.
• Clean the external surface of the equipment with a soft, slightly damp cloth.
• Do not use chemical products such as benzene, alcohol, petrol, etc.; otherwise, the surface or even the complete product could be damaged.
• If the air filter becomes clogged with dust and the air conditioner efficiency is reduced, ensure you clean the filter every two weeks.
• To remove the filter, using a screwdriver, remove the screw securing the filter mesh (10) to the rear housing (4) and extract the filter mesh (10).
• Place the filter mesh (10) in warm water with neutral detergent (approximately 40° C / 104° F). Rinse until the detergent is removed and leave to dry in the shade. Refit the filter (10) once completely dry and secure the screw.

Storage

Drain water before storing

1. Unscrew the drainage cap and remove the plug to empty the water from the tank into a container. You may use the drainage outlet (13); alternatively, tilt the unit body gently to empty the water into another container.
2. If you have a tube connected to the continuous drainage outlet (9), evacuate the water through that conduit.

Internal drying

Switch on the unit and set it to fan mode at low speed. Maintain this operation until the drainage duct is dry, so that the interior remains dry and prevents mould formation.

Final setup

Switch off the unit, unplug the power cable, and wrap it around the cable winding post (if present). Replace the plug and screw on the drainage cap.

Accessory removal

Remove the exhaust hose assembly (14) and store it correctly.

Storage protection

Cover the equipment with a plastic bag. Place it in a dry location, out of children's reach, and take measures to prevent dust accumulation.

Remote control

Remove the batteries from the remote control and store them correctly.

Note: Ensure the unit is placed in a dry location and store all equipment components properly.

7. TROUBLESHOOTING

Do not repair or disassemble the air conditioning by yourself. Unqualified repairs will void the warranty and may cause damage to users or their property.

Problem	Possible cause	Solution
The air conditioning does not work	No power supply.	Connect it to a live socket and switch it on with the Power touch icon (16).
	The full tank indicator (26) shows “FL”.	Drain the water inside through the drainage outlet (13) or continuous drainage outlet (9) and reinstall the plug/cap.
	The room temperature is too low or too high.	Use the unit within 7-35 °C (44-95 °F).
	In cooling mode, the room temperature is lower than the set temperature; in heating mode (if applicable), the room temperature is higher than the set temperature.	Change the temperature setting on the display (20) to 18/22.
	When dehumidifying, the room temperature is low.	Place the unit in a room with a room temperature >17 °C (62 °F).
The cooling effect is not good	There is direct sunlight.	Draw the curtains/blinds.
	Open doors/windows, large crowds, or, in cooling mode, there are other heat sources heat.	Close doors and windows and consider adding another air conditioning unit if the heat load requires it.
	The filter screen is dirty.	Clean or replace the filter: EVA filter (10) / CON filter (12).
	The air inlet or outlet is blocked.	Remove obstructions from the air inlet grille (3), air vent (11) and air outlet (7).
High noise	The appliance is not placed on a flat surface.	Place the equipment on a flat, stable surface (to reduce noise).
Compressor does not work	Overheating protection is activated.	Wait 3 minutes for the temperature to drop, then restart the unit.
The remote control does not work	The distance between the controller and the unit is too great.	Move the control closer to the air conditioner.
	The knob is not pointing towards the receiver of the unit.	Ensure alignment: the knob should point towards the receiver of the equipment.
	The batteries are depleted.	Replace batteries.
“E1” appears on the display (20)	Anomaly of the tube temperature sensor.	Check the tube temperature sensor and associated circuit.
“E2” appears on the display (20)	Room temperature sensor failure.	Check the room temperature sensor and associated circuit.

1. Service information

1.1. Area verification

Before starting work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. Before repairing the cooling system, the following precautions must be observed:

1.2. Work procedure

The work must be carried out in accordance with a controlled procedure to minimise the risk of a flammable vapour or gas being present while the work is being carried out.

1.3. General workspace

All maintenance personnel and others working in the area should be briefed on the nature of the work to be carried out. Work in confined spaces must be avoided. The area around the workspace should be divided into sections. Ensure that conditions within the workspace are safe by keeping flammable material under control.

1.4. Refrigerant verification

The area should be checked with an appropriate refrigerant detector before and during work to ensure that the technician is warned of potentially flammable atmospheres. Ensure that the leak-detection equipment used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed, or intrinsically safe.

1.5. Presence of fire extinguishers

If any high-temperature work is to be carried out on the refrigeration equipment or any associated parts, suitable extinguishing equipment must be available. Always have a dry-powder or CO2 fire extinguisher nearby the load area.

1.6. Absence of ignition sources

No person carrying out work related to a refrigeration system involving the exposure of piping containing or having contained flammable refrigerant should use any source of ignition in such a manner as to create a risk of fire or explosion. All possible sources of ignition, including cigarette smoking, should be kept far enough away from the installation, repair, pick-up, and disposal site, where flammable refrigerant can be released into the surrounding space. Before work starts, the area around the equipment must be thoroughly examined to ensure that no danger or risk of ignition is present. "No Smoking" signs must be displayed.

1.7. Ventilation

Ensure that the area is outdoors or adequately ventilated before intervening in the system or carrying out any work at high temperature. Proper ventilation must be kept at all times during work. Ventilation should safely disperse any refrigerant released and preferably expel it externally to the atmosphere.

1.8. Verification of refrigeration equipment

When electrical components are replaced, they must be fit for purpose and to the correct specification. The manufacturer's maintenance and service guidelines must be followed at all times. In case of doubt, refer to the manufacturer's technical department for assistance.

The following checks must be applied to installations using flammable refrigerants:

• The load size is in accordance with the size of the room where refrigerant-containing parts are installed.
• Ventilation machinery and outlets can be properly operated and are unobstructed.

• If an indirect cooling circuit is used, the secondary circuit must be checked for refrigerant presence.

• Equipment marking remains visible and legible. Illegible markings and symbols should be corrected.

• The components or refrigerant piping are installed in a location where they are not susceptible to exposure to any substance that may corrode the refrigerant containing components, unless the components are constructed of materials that are inherently corrosion resistant or are adequately protected against corrosion.

1.9. Verification of electrical devices

Repair and maintenance of electrical components should include initial safety checks and component-inspection procedures. If there is a fault that may compromise safety, then no power supply should be connected to the circuit until the fault is satisfactorily dealt with. If the fault cannot be corrected immediately, but continued operation is necessary, a suitable temporary solution must be used. This should be reported to the owner of the equipment so as to inform all parties.

During initial safety checks, make sure

• that capacitors are unloaded: this must be done in a safe manner to avoid sparks;
• that no live wiring or electrical components are exposed while loading, recovering, or purging the system;
• that there is continuity in the earth connection.

2. Repair of sealed components

• During the repair of sealed components, all power supplies should be disconnected from the equipment being worked on prior to any removal of sealed covers, etc. If it is absolutely necessary to have a power supply to the equipment during service, then a permanently operating form of leak detection should be placed at the most critical point to warn of a potentially hazardous situation.
• Particular attention must be paid to the following to ensure that, when working on electrical components, the housing is not altered in such a way as to affect safety. This must include damage to cords, an excessive number of connections, terminals not conforming to the initial specification, damage to seals, incorrect fitting of the stuffing box, etc.
• Ensure that the instrumentation is securely mounted.
• Ensure that seals or sealing materials have not degraded until no longer being useful to preventing the penetration of flammable atmospheres. Spare parts must be in accordance with the manufacturer's specifications.

NOTE: the use of silicone sealant may inhibit the effectiveness of some types of leak-detection equipment. Intrinsically safe components do not have to be isolated before work.

3. Repair of intrinsically safe components

- Do not apply any permanent inductive or capacitive load to the circuit without ensuring

that it will not exceed the permissible voltage and current rating for the equipment in use.
- Intrinsically safe components are the only type of components that can be worked on in a flammable atmosphere. The test instrumentation must have the correct assigned features.
- Replace components only with parts specified by the manufacturer. Other parts can ignite the refrigerant in the atmosphere from a leak.

4. Wiring

Verify that the wiring is not subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other environmental effects. The verification should also take into account the effects of ageing or continuous vibration from sources such as compressors or fans.

5. Detection of flammable refrigerants

Under no circumstances should potential ignition sources be used in the search for or detection of refrigerant leaks. Do not use a halide lamp or any other detector using a naked flame.

6. Leak-detection methods

• The following leak-detection methods are considered acceptable for systems containing flammable refrigerants.
• Electronic leak detectors should be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration (the detection equipment should be calibrated in a refrigerant-free area). Ensure that the detector is not a potential ignition source and that it is suitable for the refrigerant used. The leak-detection equipment must be set to a percentage of the lower flammability limit of the refrigerant and calibrated for the refrigerant used with the appropriate percentage of gas (maximum 25%) confirmed.
• Leak-detection fluids are suitable for use with most refrigerants, but the use of detergents containing chlorine must be avoided, as chlorine can react with the refrigerant and corrode copper pipes.
• If a leak is suspected, all naked flames must be eliminated/extinguished.
• If a refrigerant leak is found and requires brazing, all refrigerant must be recovered from the system, or isolated (by means of shut-off valves) in a part of the system far away from the leak. Oxygen-free nitrogen must then be purged through the system both before and during the brazing process.

7. Removal and evacuation

When intervening in the cooling circuit for repairs or any other purpose, conventional procedures must be followed. However, it is important that best practices are followed, as flammability is a matter to be taken seriously. The following procedure is to be followed:

1. Remove the refrigerant.
2. Purge the circuit with inert gas.

3. Evacuate.

4. Purge again with inert gas.

5. Open the circuit by cutting or brazing.

6. The refrigerant charge must be recovered from the correct recovery cylinders. The system must be flushed with oxygen-free nitrogen to render the unit safe. This process may need to be repeated several times. Oxygen or compressed air must not be used for the task.

7. Cleanliness must be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until working pressure is reached, then venting to atmosphere, and finally pushing to a vacuum. This process must be repeated until there is no refrigerant left in the system. When using the oxygen-free nitrogen end-charge, the system must be vented to atmospheric pressure to allow for work. This operation is absolutely vital if brazing operations are to take place on pipes.
8. Ensure that the vacuum pump outlet is not near any source of ignition and that ventilation is available.

8. Loading procedure

In addition to conventional loading procedures, the following requirements must be followed.

• Ensure that no contamination of different refrigerants occurs when using the loading equipment. Hoses or lines should be kept as short as possible to minimise the amount of refrigerant contained in them.
• Cylinders must be kept in an upright position.
• Ensure that the refrigeration system is grounded before loading the system with refrigerant.
• Tag the system when charging is complete (if not already).
• Extreme care must be taken to avoid overfilling the cooling system.

Before recharging the system, it must be pressure tested with oxygen-free nitrogen. The system must be leak tested after charging is complete, but prior to commissioning. A subsequent leakage test must be carried out before leaving the site.

9. Commissioning

Before performing this procedure, it is essential that the technician is thoroughly familiar with the equipment and all its details. It is recommended good practice that all refrigerants are safely recovered. Before the task is carried out, a sample of oil and refrigerant should be taken in case an analysis is required before the recovered refrigerant is reused. It is essential for there to be power before starting with the task.

A. It is important to get familiar with the equipment and its operation.
B. Electrically isolate the system.
C. Before attempting the procedure, ensure that

- the mechanical-handling equipment is available, if required, for the handling of refrigerant cylinders;

• all personal protective equipment is available and correctly used;

• the recovery process is supervised at all times by a competent person;

• cylinders and recovery equipment conform to appropriate standards.
  D. Pump the cooling system, if possible.
  E. If vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
  F. Ensure that the cylinder is positioned on the scale before recovery takes place.
  G. Switch on the recovery machine and operate it according to the manufacturer's instructions.
  H. Do not overfill cylinders (no more than 80% of the liquid charge by volume).
  I. Do not exceed the maximum working pressure of the cylinder, even temporarily.
  J. When the cylinders have been correctly filled and the process is complete, ensure that the cylinders and equipment are promptly removed from the site and that all equipment isolation valves are closed.
  K. Recovered refrigerant must not be charged to another refrigeration system, unless cleaned and checked.

10. Labelling

The equipment must be labelled stating that it has been taken out of service and drained of refrigerant. The labelling must be dated and signed. Ensure that there are labels on the equipment stating that the equipment contains flammable refrigerant.

11. Recovery

• When refrigerant is removed from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant to cylinders, ensure that only suitable refrigerant-recovery cylinders are used. Ensure that the correct number of cylinders is available to support the total load of the system. All cylinders to be used are designated for the refrigerant recovered and labelled for that refrigerant (i.e. special refrigerant-recovery cylinders). Cylinders must be completed with pressure-relief valves and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery takes place.
• Recovery equipment must be in good working order with a set of instructions concerning the equipment at hand and must be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales must be available and in good working order. Hoses must be complete with disconnect couplings free of leakage and in good running order. Before using the recovery machine, check that it is in good running order, properly maintained, and that all associated electrical components are sealed to prevent ignition in the event of refrigerant release. Consult the manufacturer in case of doubt.
• The flammable refrigerant must be returned to the refrigerant supplier in the correct recovery cylinder, and the applicable waste transfer note must be provided. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors and compressor oils are to be removed, ensure that they have been drained to an acceptable level so that no flammable refrigerant remains within the lubricant. The

evacuation process must be carried out before returning the compressor to the suppliers. Only electrical heating of the compressor body should be used to accelerate this process. When oil is drained from a system, it must be done in a safe manner.

8. TECHNICAL SPECIFICATIONS

Product: EU01_123704

Product reference: ForceClima 7900 SmartTouch Connected

Voltage: 220-240 V\~

Frequency: 50 Hz

Cooling power: 7000 Btu/h (2.06 kW)

Refrigerant/charge: R290/150 g

Electrical power consumed: 790 W

Maximum suction pressure: 0.6 MPa

Minimum unload pressure: 1.8 MPa

Maximum pressure allowed: 3.0 MPa

Airflow: 350 m³/h

Transmission frequency (TX): 2412–2472 MHz

Transmission frequency (RX): 2412–2472 MHz

Antenna gain: 3.23 dBi (integrated antenna)

EU01_123704 ForceClima 7900 SmartTouch Connected
Description	Symbol	Value	Unit
Rated cooling capacity	Prated for cooling	2.06	KW
Rated power used for cooling	PEER	0.79	KW
Rated energy-efficiency factor	EERd	2.67	-
Energy consumption in off mode	POFF	-	W
Power consumption in standby mode without Wi-Fi	PSB	0.7	W
Power consumption in standby mode with Wi-Fi	PSB	0.94	W
Electricity consumption of single-duct/ double-duct appliances	DD: QDD	SD: 0.78 cold	DD: kWh/a SD: kWh/h
Sound power level	LWA	64.5	dB(A)

Contact details to obtain more information

Cecotec Innovaciones S.L. Av. Reyes Católicos n°60, 46910, Alfafar (Valencia, Spain)

The power consumption in “off mode” is 0 W, measured according to EN 50564:2011 guidelines and European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The appliance switch/knob was set to the “off” position.

Product: EU01_123705

Product reference: ForceClima 9900 SmartTouch Heating Connected

Voltage: 220-240 V\~

Frequency: 50 Hz

Cooling power: 9000 Btu/h (2.64 kW)

Heating power: 1000 Btu/h (2.05 kW)

Refrigerant/charge: R290/150 g

Electrical power consumed (Cooling): 1020 W

Electrical power consumed (Heating): 820 W

Maximum suction pressure: 0.6 MPa

Minimum unload pressure: 1.8 MPa

Maximum pressure allowed: 3.0 MPa

Airflow: 350 m³/h

Transmission frequency (TX): 2412–2472 MHz

Transmission frequency (RX): 2412–2472 MHz

Antenna gain: 3.23 dBi (integrated antenna)

EU01_123705 ForceClima 9900 SmartTouch Heating Connected
Description	Symbol	Value	Unit
Rated cooling capacity	Prated for cooling	2.66	KW
Rated heating	Prated for heating	1.02	KW
Rated power used for cooling	PEER	2.10	KW
Rated power used for heating	PCOP	0.82	KW
Rated energy-efficiency factor	EERd	2.61	-
Coefficient of nominal performance	COPd	2.58	-
Energy consumption in off mode	POFF	-	W
Power consumption in standby mode without Wi-Fi	PSB	0.41	W
Power consumption in standby mode with Wi-Fi	PSB	0.99
Electricity consumption of single-duct/double-duct appliances	DD: QDD SD: QSD	SD: 1.02 cold SD: 0.82 heat	DD: kWh/a SD: kWh/h
Sound power level	LWA	64.88	dB(A)
Contact details to obtain more information		Cecotec Innovaciones SL. Av. Reyes Católicos n°60, 46910, Alfafar (Valencia, Spain)

The power consumption in "off mode" is 0 W, measured according to EN 50564:2011 guidelines and European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The appliance switch/knob was set to the "off" position.

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

9. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official Technical Support Service at [phone].

11. INFORMATION ON DATA STORED BY CONNECTED PRODUCTS IN ACCORDANCE WITH REGULATION (EU) 2023/2854 (“DATA REGULATION”)

Cecotec's connected products and related services are those that generate different data and information during use. In accordance with the provisions of the Data Regulation, through this document Cecotec provides you with information about your rights concerning the data generated and about how to access such data.

This right allows you to use the data for any lawful purpose, including, among others, product and/or service optimisation or contracting post-sale services with third parties.

As a user, you may exercise your right of access, within the limits provided for by the Data Regulation, through the email address [e-mail]. To protect the generated data—and in order to prevent fraud or identity theft—CECOTEC may require additional information to verify your status as a user.

Data is stored for a determined period of time.

12. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

13. EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this air conditioner, model EU01_123704 - ForceClima 7900 SmartTouch Connected and EU01_123705 - ForceClima 9900 SmartTouch Heating Connected, complies with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

5. CONNESSIONE E WI-FI

https://cecotec.pt/pt/information/declaration-of-conformity

1. ONDERDELEN EN COMPONENTEN

Figuur 1

7. PROBLEEMOPLOSSING

Product: EU01_123704

Product: EU01_123705

https://cecotec.es/es/information/declaration-of-conformity

1. MEPH KAI EΞAPTHMATA

Σχήμα 1

https://cecotec.es/es/information/declaration-of-conformity

1. PECES I COMPONENTS

Figura 1

Producte: EU01_123704

Producte: EU01_123705

: ForceClima 9900 SmartTouch Heating Connected

https://cecotec.es/es/information/declaration-of-conformity

14

15

Fig./Img./Abb./Afb./Rys.1

SWING
24

TIMER
23

LOW
HIGH

COO

FAN

SLEEP
17

POWER FULL
26
16
Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./ Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

www.cecotec.es
