Facecare Mirror Design - Face cleansing CECOTEC - Free user manual and instructions

Product type	LED makeup mirror with night light
Brand	Cecotec
Model	Facecare Mirror Design
Reference	EU01_122544
Power	5 W
Voltage	3.7 V
Input	5 V = 1 A
Battery	Li-ion 3.7 V, 2000 mAh, 7.4 Wh
IP protection rating	IP20
Max rotation	80°
LED light colors	Cool, warm, natural white
Brightness adjustment	Yes, adjustable
Night light	Yes, automatic activation at ~80° angle
Memory mode	Yes, retains last color and intensity
Charging cable	USB Type-C
Charging indicator	Red (charging), blue (full), green (low battery)
Power saving mode	Yes, automatically activated
Box contents	Mirror, USB-C cable, instruction manual
Cleaning	Wipe with damp towel, avoid abrasive products
Safety	Do not look directly into LED light; non-replaceable light source
Domestic use	Indoor and household use only

Frequently Asked Questions - Facecare Mirror Design CECOTEC

How do I turn on the LED light?

Touch the button on the base to turn on the LED light. The ambient light of the button activates automatically.

How do I change the light color?

Press and hold the button for 5 seconds to toggle between cool, warm and natural white.

How do I adjust the brightness?

With the LED light on, press and hold the button to adjust the brightness. The three colors allow the intensity to be modified.

How do I activate the night light?

With the LED light on, raise the mirror to approximately 80°; the night light activates automatically, turning off the LED light. Alternatively, when the LED light is off, raise the mirror to 80° and press the button.

How do I charge the mirror?

Use the USB Type-C cable provided and a suitable adapter (5V/1A or higher). The ambient light glows red while charging and turns blue when fully charged.

What do the charging indicator colors mean?

Red means charging, blue means fully charged, and green indicates low battery. If the battery is low, the green light flashes for 5 seconds and the LED goes out.

Does the mirror have a memory mode?

Yes, the memory mode retains the last selected color and intensity when the light is turned on again.

How should I clean the mirror?

Use a damp towel for general cleaning. For stubborn stains, use a wipe moistened with isopropyl alcohol, avoiding abrasive products.

Is the battery replaceable?

The battery is irreplaceable; however, it must be removed before disposal. Contact official technical support for any battery issues.

What is the IP20 rating?

IP20 means the device is protected against solid objects larger than 12.5 mm (like fingers) but not against water.

USER MANUAL Facecare Mirror Design CECOTEC

FACECARE MIRROR DESIGN

Espejo / Mirror

SAFETY INSTRUCTIONS....5

ESPAÑOL....52

ENGLISH....57

FRANÇAIS....62

DEUTSCH....67

ITALIANO....73

PORTUGUÊS....78

NEDERLANDS....83

POLSKI....88

ČEŠTINA....93

MAGYAR....98

ΕΛΛΗΝΙΚΑ....103

TÜRKÇE....108

العربية....113

CATALÀ....117

FIGURES....122

NOTA

EU01_122544 FaceCare Mirror Design

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the product. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

This symbol means: for indoor use only.

- Do not use the product while bathing or in the shower.

- If the power cord is damaged, it must be replaced with a special cord or assembly to be supplied by the manufacturer or its after-sales service.

- The equipment should only be used with the power supply unit supplied with the appliance.

- Ensure the mirror is not positioned where it can reflect sunlight.

- Ensure that the mirror does not receive direct sunlight when left unattended.

- Keep the appliance and its packaging out of the reach of children and animals when unsupervised.

- Do not use the appliance if it shows visible signs of damage. In case of malfunction or breakdown, please contact Cecotec's Official Technical Support Service.

- Do not try to open, disassemble, or repair the appliance by yourself. There are no serviceable parts inside the appliance.

- Keep the appliance away from heat sources.

- Do not use the appliance outdoors. Do not expose the appliance to extreme temperatures, moisture, wet conditions or direct sunlight.

- Cecotec accepts no liability for damage caused by improper or incorrect use.

- Keep water and other liquids away from the appliance.

- Wide temperature variations could cause

condensation. In this case, allow the appliance to go back to room temperature before use.

• Do not use caustic or abrasive cleaning materials to clean the appliance, this could damage the surface.
• This device contains an LED light source, do not look directly into the light.
• This device contains a non-replaceable light source.
• Close supervision is required when the device is used by or near children.

Battery instructions

• This appliance contains an irreplaceable battery.
• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
  • Non-rechargeable batteries must not be recharged.
• Leaks from the battery or cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

- When the device is stored and not used for long periods of time, ensure that the battery pack is fully charged.

- Keep batteries out of the reach of children when there is a risk of ingestion.

• Battery ingestion can cause burns, soft tissue perforation and death. Severe burns may occur within two hours of ingestion.
• In case of battery ingestion, please seek medical help immediately.
• Avoid contact between the batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• You must remove the battery from the device before disposing of it.
• The device must be disconnected from the power supply when the battery is removed.
• The battery must be removed for safe disposal.
• The supply terminals must not be short-circuited.

https://cecotec.es/es/information/declaration-of-conformity

ENGLISH

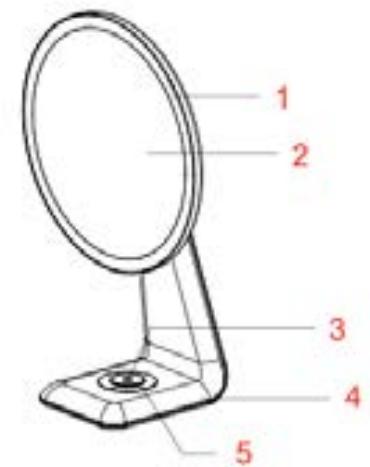

1. Parts and components

Fig. 1

1. LED light
2. Mirror
3. Light on/off button
4. Base unit
5. Charging/low battery ambient light
6. Night light
7. Charging port

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Mirror
  • USB Type-C charging cable
  • Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Operation

Figure 2 shows the measurements of the mirror, which will be useful to determine the appropriate place for its placement.

LED light instructions

1. Remove the LED mirror from the packaging.
2. Touch the button on the base to turn on the LED light. The ambient light of the button will be activated automatically.
3. Press and hold the button for 5 seconds to toggle between light colors: cool,

warm and natural white.

1. Finally, briefly press the button to turn off the LED light.
2. With the LED light on, press and hold the button to adjust the brightness. The three colors allow the intensity of the light to be modified.
3. If the button is not interacted with for more than 5 seconds, a short press will turn it off.
4. Adjust the mirror angle as needed, up to a maximum of 80° .

Night light instructions

1. With the LED light on, raise the mirror to approximately 80° ; the night light will activate automatically, turning off the LED light on the mirror. Press and hold the button for 5 seconds to change the night light color between cool, warm and natural white. Finally, press the button again to turn off the night light. Fig. 3 Alternatively, when lowering the mirror to less than 80° , the LED light on the mirror will automatically turn on, turning off the night light. Then, press the touch button to turn off the makeup light.

Press and hold the button to adjust the brightness of the night light when it is on. The three colors allow the intensity of the light to be modified.

1. When the LED light on the mirror is off, raise the mirror to approximately 80° and press the button to turn on the night light. Press and hold the button for 5 seconds to adjust the night light color between cool, warm and natural white. Finally, press the button again to turn off the night light. Fig. 4 When the night light is on, press and hold the button to adjust its brightness. The three light colors allow the intensity to be modified.

Power saving and memory mode

This mode is automatically activated when the LED or night light is turned on, optimizing the device's energy consumption. The memory mode allows the light to retain the last selected color and intensity when it is turned on again, facilitating continuous use without the need for additional adjustments.

When pressing the button, make sure that your finger is correctly positioned within the icon area to ensure an accurate and efficient response from the device.

LED light fast shut-off

• If the button is not used within 5 seconds, pressing it will turn off the light. When turned on again, it will maintain the last color and intensity.
• During charging, the ambient light acts as an indicator. It glows red while charging and turns blue when fully charged.
• When the battery is low, the ambient light indicates this status in green. The green light flashes for 5 seconds and then the LED goes out.
• With low battery, when the button is pressed, the ambient light flashes green for 5 seconds, indicating that there is not enough power to turn on the LED light. Charge the device with the cable provided.

- It is recommended to use a 5V/1A or higher adapter.

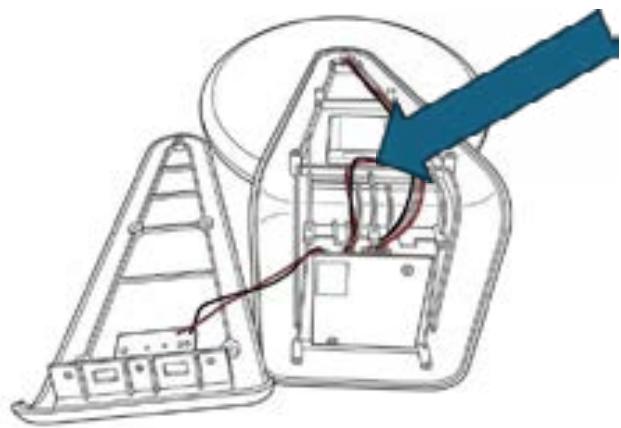

Instructions for battery disposal

1. Before handling the device to remove the battery, make sure that it is completely switched off and disconnected from any power source.
2. Use tweezers or similar tool to carefully remove the back cover of the device. Fig. 5.
3. Then, using a suitable screwdriver, remove the screws to access the internal compartment where the battery is located. Fig. 6.
4. By removing the cover, you will be able to access the battery and its surrounding components for removal. Fig. 7
5. Disconnect the battery carefully, making sure not to damage the cables or surrounding electronic components.
6. Take the battery to an authorised recycling point or electronic waste disposal centre. Do not dispose of the battery in the regular trash, as it may be harmful to the environment.
7. Avoid direct contact with flammable liquids or materials during the extraction process.

4. Cleaning and maintenance

• To keep the mirror free of dust, use a hair dryer or an air gun at low power. This will help remove dust without scratching the surface.
• If the mirror is stained or dirty, wipe gently with a damp towel. For more stubborn stains, you can use a wipe moistened with isopropyl alcohol, making sure not to apply too much pressure to avoid damage.
• Avoid using abrasive products or cleaners with harsh chemicals, as they may damage the mirror finish. Always test any cleaning product on a small inconspicuous area before applying it completely.
• Perform regular cleaning to maintain the clarity of the mirror and prolong its life.
• Inspect the mirror periodically to ensure that all parts are in good condition and functioning properly.
• When not in use, store the mirror in a dry and safe place to avoid damage.
• Charge the device regularly using the cable provided and a suitable adapter. Do not let the battery discharge completely.

• If the mirror is faulty, do not attempt to repair it yourself. Contact Cecotec's Official Technical Support Service for assistance.

• Troubleshooting

Problem	Possible cause	Possible solution
The LED light does not turn on.	Battery discharged.	Charge the device with the cable provided.
The LED light flashes.	Unstable charging connection.	Check the charging cable and adapter.
The button does not work.	Dirty button or bad contact.	Clean the button area and make sure to press it correctly.
The light does not change colour.	Memory mode activated.	Press and hold the button to change the colour.
Blurred reflection.	Dirty mirror.	Wipe the mirror with a damp cloth.

1. Technical specifications

Product	FaceCare Mirror Design
Reference	EU01_122544
Power	5 W
Voltage	3.7 V
Mirror input	5 V=1 A
Battery	Li-ion 3.7 V, 2000 mAh, 7.4 Wh
IP protection rating	IP20
Rotation	80°
Increase	X1
QR code

To recharge the battery, it is recommended to use an adapter with the following characteristics:

Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 1 A

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations,

the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the

batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old electrical and electronic appliances and/or their batteries.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

9. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. Simplified EU Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the

essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

https://storececotec.it/it/information/declaration-of-conformity

PORTUGUÊS

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

https://cecotec.es/es/information/declaration-of-conformity

ČEŠTINA

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

TEGLIMAT BCHUOSU MUPBAH LED

https://cecotec.es/es/information/declaration-of-conformity

FIGURES
FIG 1

FIG 3

FIG 4

FIG 2

FIG 5

FIG 6

FIG 7

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Altafar, Valencia (Spain)
