Thank you for purchasing this LCD TV. When opening the box for the first time, please check whether all the accessories are present. Before connecting parts and power, please carefully read the user manual and always keep these instructions handy and close by your LCD TV.

Remote control X 1

Instruction Manual X 1

Batteries X 2

Power cord X 1

Please check the accessories when open the package. If anything damaged or lacked, consult with your local dealer .

Note:

This handling description is printed prior to product development.

When a part of the product specification must be changed to improve operability or other functions, priority is given to the product specification itself. In such instances, the instruction manual may not entirely match all the functions of the actual product.

Therefore, the actual product and packaging, as well as the name and illustration, may differ from the manual.

The screen shown as an example in this manual may be different from the actual screen display.

If at any time in the future you should need to dispose of this product, please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice (Waste Electrical and Electronic Equipment).

PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CAUTION

TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE OF THE PRODUCT.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

• Do not install the unit in an unstable space.
• Do not exposed the unit to where there are extremes of temperature (below 5^ or exceeding 35^ ) or moisture.
• Do not expose the unit to directly sunlight or heat nearby.
• Do not install this unit in a confined space, such as a bookcase or built-in cabinet. For sufficient ventilation, there should be at least 20~cm distance around the apparatus.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc..
• Do not place this unit in any liquid.
• Do not insert any tiny object into the unit through the ventilation.
• The apparatus shall not be exposed to dropping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Never touch the TV screen or antenna / power cord during thunderstorms. Stop use it during thunderstorms.
• Do not step on the power cord, or twist the power cord wire.
• This product should not be adjusted or repaired by anyone except properly qualified personal when an abnormal condition or trouble happens. Please consult with the qualified service person.
• Always remove the batteries and store in a dry place if the remote control is not to be used for a long time.
• Avoid drop down the remote control and damage it.
• Always power this unit from an outlet with the same rating (voltage and frequency) as indicated on the rating label at the back of this unit.
• When not in use, disconnect the power cord from the outlet. Grasp the plug, not the cord, when disconnecting the unit.
• This CLASS 1 device should be connected to the AC power plug with earthed-protective, and place the AC power plug at the position easy to plug in and out.
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CONTROLS

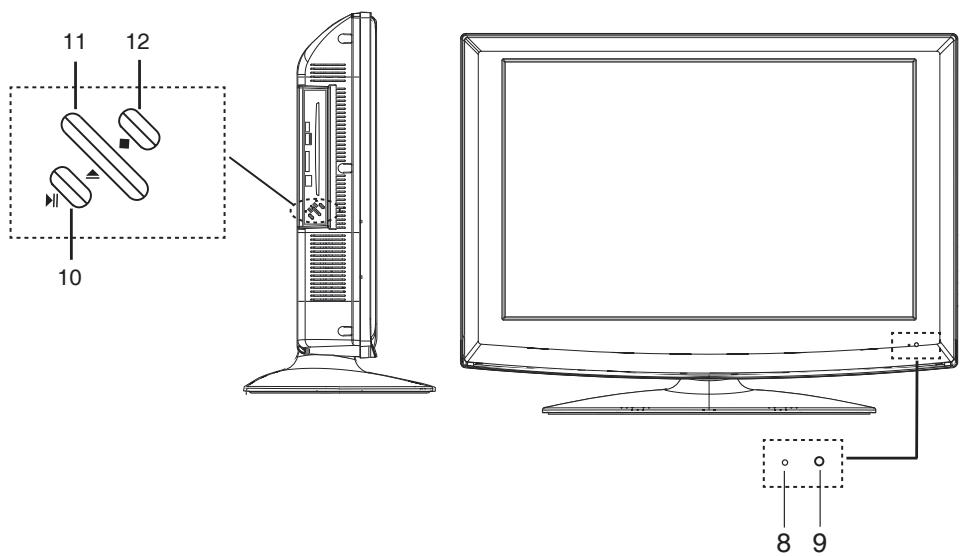

MAIN UNIT

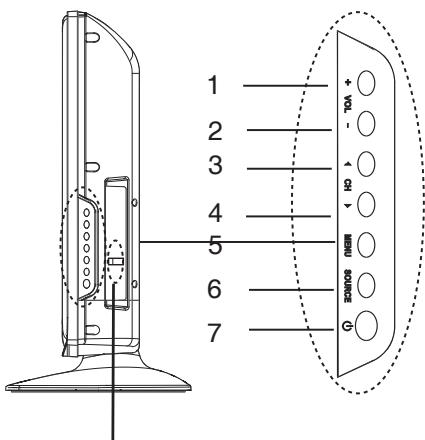

Control buttons

* AC SWITCH: AC power on/off

General control buttons

1.	Volume increase button	(+VOL)
2.	Volume decrease button	(VOL-)
3.	Channel up button	(▲CH)
4.	Channel down button	(CH▼)
5.	Menu button	(MENU)
6.	Input source select button	(SOURCE)
7.	Power/Standby button	(♣)
8.	Power indicator
9.	Remote sensor

For DVD player

10.	Play / Pause button	(▶II)
11.	Eject button (▲)
12.	STOP button (■)

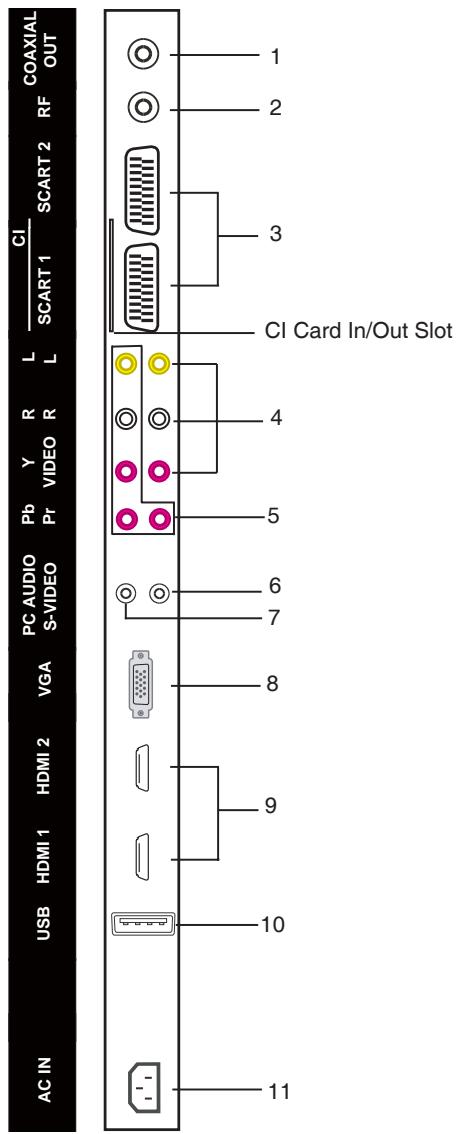

Jacks (Rear Panel)

1. Coaxial output plug (COAXIAL OUT)
2. Antenna/Cable TV input plug (RF 75Ω)
3. SCART input plug (SCART1/2)
4. Composite audio & video input plug (R/L/VIDEO)
5. Component video input plugs (R/L/Y Pb Pr)
6. S-video input plug (S-VIDEO)
7. PC audio input plug (PC AUDIO)
8. VGA interface input plug (VGA)
9. High-Definition Multimedia interface input plug (HDMI1/2)
10. USB input plug (USB)
11. AC power input terminal (AC IN)

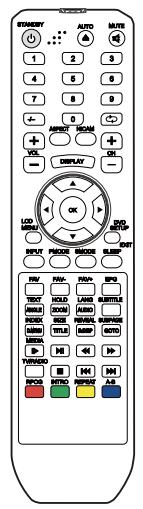

REMOTE CONTROL

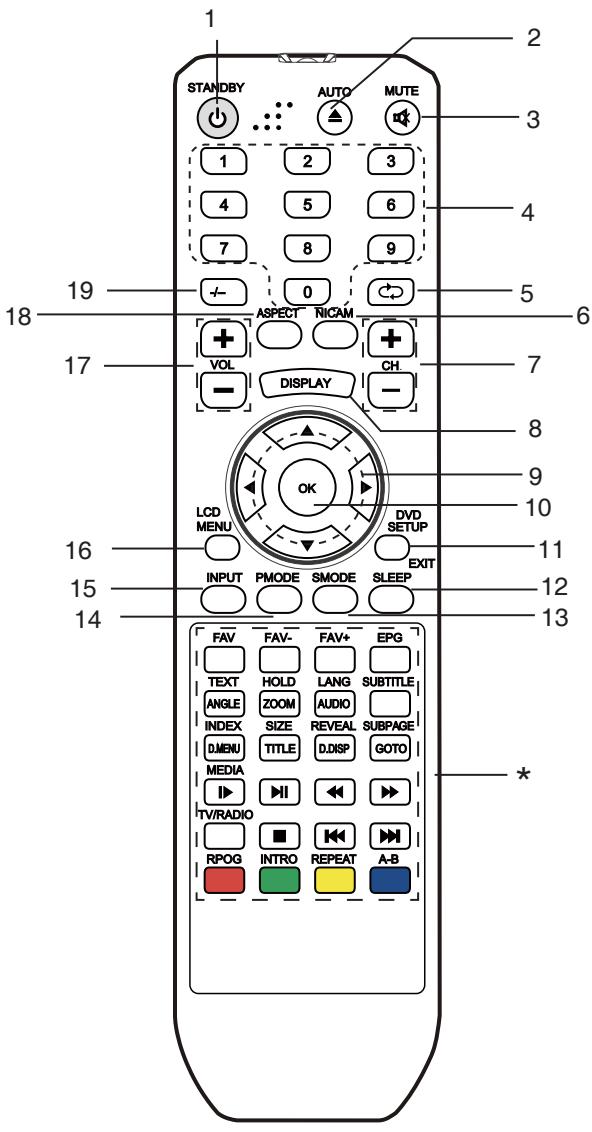

Control buttons

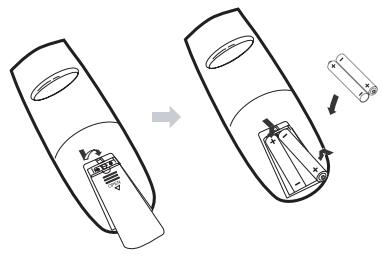

Inserting Batteries

Two "LR03/AAA" batteries

1. Power/Standalone button (
2. Auto button/DVD eject button (AUTO)
3. Mute button (MUTE)
4. Number buttons (0, 1~9)
5. Channel return button (←)
6. NICAM mode select button (NICAM)
7. Channel select buttons (+CH-)
8. Display button (DISPLAY)
9. Navigation keys (, , , )
10. Confirm button (OK)
11. DVD setup menu button / Menu exit button (DVD SETUP/EXIT)
12. Sleep timer button (SLEEP)
13. Sound mode button (SMODE)
14. Picture mode button (PMODE)
15. Input source select button (INPUT)
16. LCD menu button (LCD MENU)
17. Volume control buttons (+ VOL-)
18. Display mode select button (ASPECT)
19. Multi-digits button (一 - 一)

*. Special buttons:

FAV: Favorite program list button

FAV-: Favorite program channel down

FAV+: Favorite program channel up

EPG: Electronic program guide

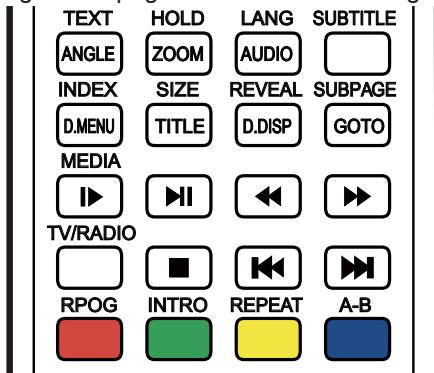

TEXT/ANGLE: Teletext button / DVD angle button

HOLD/ZOOM: Teletext hold button / DVD zoom in/out

LANG/AUDIO: Language select button / Audio language select button

SUBTITLE: DVD subtitle button

INDEX/D.MENU: Teletext index button / Disc menu button

SIZE/TITLE: Teletext size button / Title button

REVEAL/D.DISP: Teletext reveal button / Disc menu display button

SUBPAGE/GOTO: Teletext subpage button / Go to button

MEDIA/▶: Media select button / DVD slow play button

II: DVD Play/pause button

Fast-backward button

Fast-forword button

TV/RADIO: TV / Radio select button

DVD Stop button

Previous button

▶Next button

PROG: Red / DVD program button

INTRO: Cyan / DVD introduction button

REPEAT: Yellow / DVD repeat playback button

A-B: Blue / DVD A-B repeat button

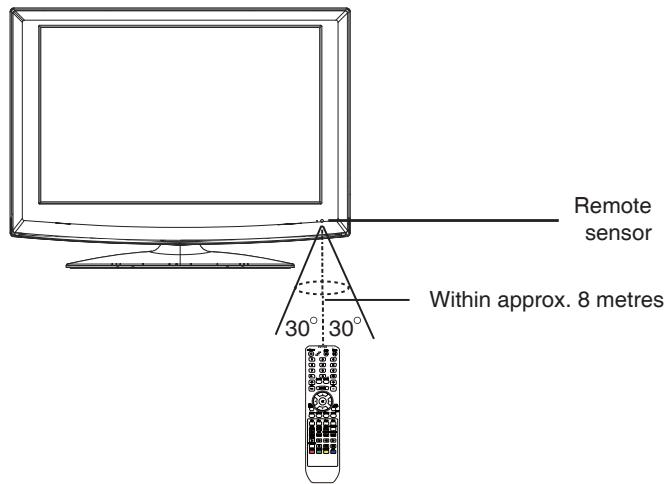

Control Range

Note:

• Bright Sunlight or lighting may cause erratic remote operation.
  Always remove batteries if the remote control is not to be used for more than a month. Batteries left in it may cause damage.
• The buttons on the remote control perform similar function to similarly marked buttons on the main unit.

Teletext Function

TEXT: Press this button to enter teletext state and display teletext page; press this button again, display both image and teletext page at the same time. If you want to exit teletext state, press this button again.

SUBPAGE: It is refer to the subpage of teletext page, i.e subcode page. When it is pressed, the screen display the requirement of subpage code entry. If there is no subpage, it will not be displayed. In most case, there is no subpage.

HOLD: Press this button if you want to keep the displaying of the page and press it again to exit hold state.

SIZE: Press this button if you want to enlarge the content on the upper part of the page, and press the second time to enlarge the content on the lower part of the page, and the third time to resume normal display of all the contents on the page.

REVEAL: Press this button if you want to display the concealed text. Press it again to close the display of concealed text.

INDEX: Press this button if you want to display the index for all the teletext page.

Number buttons 0~9 on the remote control can be used to get to a certain page. "▲▼" button on the remote control can be used to display the content of previous or next page.

Press the RED/GREEN/YELLOW/CYAN button on the remote control, the page of relevant color displayed on the lower part of the screen will be displayed.

FAST TEXT:

The RED, GREEN, YELLOW & CYAN buttons are used for quick access to color coded pages transmitted by FAST TEXT broadcast.

Example:

RED selects CITY INFORMATION,

CYAN selects TRAVEL INFORMATION,

GREEN selects WEATHER INFORMATION,

YELLOW selects TV PROGRAMMING.

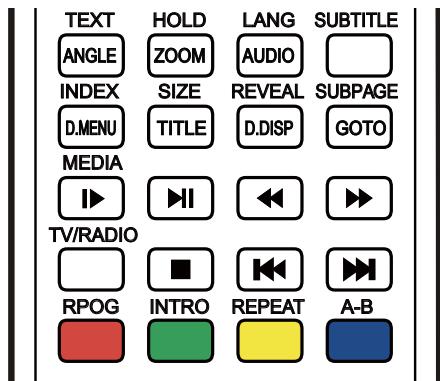

DVD Function

ANGLE: Press to display current playback angle, press again to toggle between different playback angle code in sequent (DVD mode only). Note: Selectable playback angle depends on the availability of the DVD contents.

ZOOM: Press to zoom in the picture. There are 3 zoom modes.

AUDIO: Press to select the sound mode (DVD mode only).

SUBTITLE: Press to display current sub-title.

D MENU: Press to display the menu for disc.

TITLE: Press to display the title (only for DVD mode).

D.DISP: Press to display the DVD disc information (DVD mode only).

GOTO: Press to activate the on screen scroll down menu for edit.

▶: Press this button to play movie slowly in different styles of speed.

Press to play or pause the DVD display (DVD mode only).

Press to move backward. There are 5 speeds for backward (DVD mode only).

Press to move forward. There are 5 speeds for forward (DVD mode only).

Press to stop the DVD display (DVD mode only).

Press to play last Title/Chapter/Track (DVD mode only).

▶▶: Press to play next Title/Chapter/Track (DVD mode only).

PROG: Press to edit the program of the disc (DVD mode only).

INTRO: Press to preview and introduce DVD disc contents (DVD mode only).

REPEAT: To playback the portion automatically, you could select one of OFF/CHAPTER/TRACK/REP ALL mode (DVD mode only).

A-B: To start the repeat portion from A-B (DVD mode only).

USING THE TV FOR THE FIRST TIME

1. Connect the antenna or DTV STB to the RF 75Ω socket.
2. Turn on the TV unit.

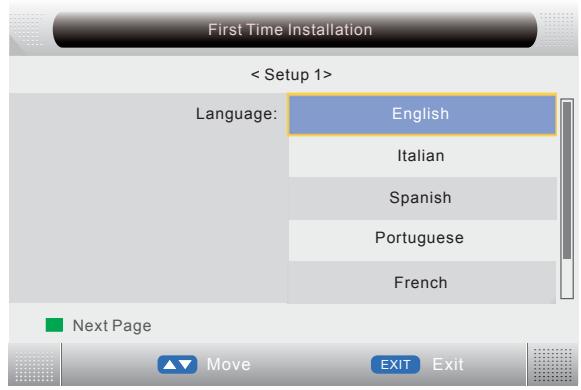

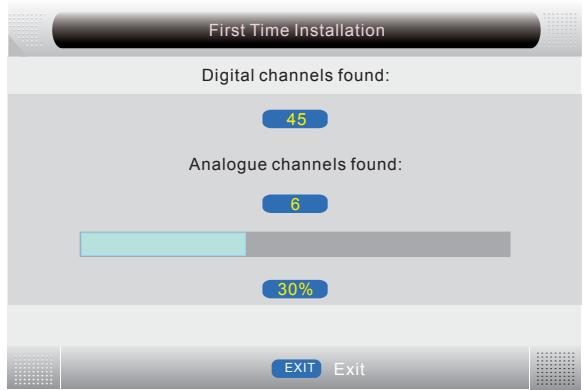

3. The Installing Guide screen appears as below:

1. Press [ / ] to select language, press [OK] or green button to enter Setup 2.
2. Press [ / ] to select country, press [OK] or green button to enter Setup 3.

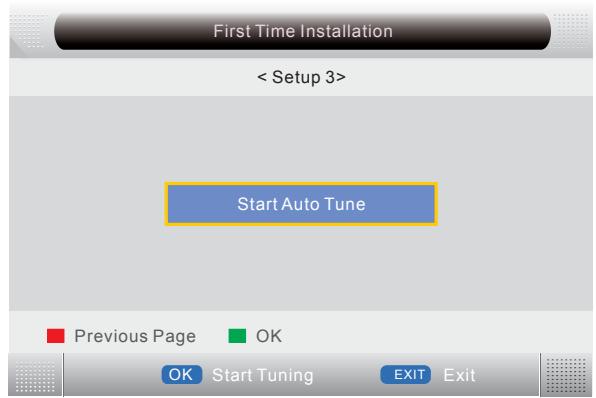

3. Press GREEN button to start auto search, the picture appear as follows:

Note:

The first time installation screen appears again, when the "reset" operation has been done, and then turn off and turn on the main unit.

TV information

Press [DISPLAY] to display the program information.

Channel number

Color system

BASIC OPERATIONS

Make sure all necessary connections are correctly connected before turn on the power.

The power indicator turns red and the unit is in the standby mode.

Turn on the power

Press [] to turn on the main unit.

The power indicator turns blue.

Turn off the power

Press [] again can turn off the main unit.

The unit is automatically set standby mode.

The power indicator turns red.

Using the Sleep Timer

The sleep timer automatically switches off the power after a preset time has elapsed. There are 9 time periods available, press [SLEEP] on the remote control repeatedly to select the desired sleep time:

0 Min 15 Min 30 Min 45 Min

→60 Min 75 Min 90 Min 105 Min 120 Min

(The sleep timer starts when the setting is finished.)

To check the remain sleep time

Press [SLEEP] on the remote control, the remain sleep time appears on the screen for a few seconds.

Select the TV channel

After selected "ATV" or "DTV" as input source, you can do either one of followings to select your channel.

• Press [CH.+] or [CH.-] (or [<CH] or [CH▶] on the main unit).

or

• Press [0, 1~9] to input the channel number directly.
  Press [ ] to go back the previous channel you've watched last time.

Selecting the picture mode

Press [PMODE] repeatedly on the remote control to select the desired picture mode.

Select the input source

Turn on the connected necessary external device. Press [INPUT] to select the proper input source.

The input source menu appears.

1. Press [ / ] to move the high-lighted bar to the desired source item.
2. Press [OK] (or )to confirm.

Information of the selected source name appears on the TV for a few seconds.

Information display

Press [DISPLAY] on the remote control, the related information of current source appears on the screen automatically.

Adjusting the volume

Press [+VOL] to increase the volume.

Press [VOL-] to reduce the volume.

or

NICAM Function

Press [NICAM] on the remote control when input source is "TV". This operation do no effect to the channels without NICAM signal.

Once [NICAM] is pressed, it alternates in the different sound options such as mono, stereo, dual I, dual II.

Selecting the OSD language

The factory setting of OSD (On Screen Display) language is "English". To edit the OSD.

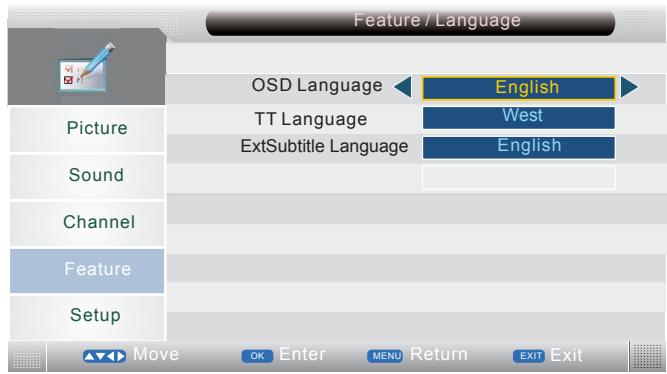

1. Press [LCD MENU], OSD menu appears.
2. Press [V] until "Feature" menu appears.
3. Press [▶] to enter the "Language" menu, and "OSD Language" is high-lighted.
4. Press [←▶] to set the language to your desired language.
5. Press [LCD MENU] to exit the submenu.

Mute function

Press [MUTE] on the remote control to switch off the sound temporarily.

Press this button again (or [+VOL] ), the sound comes back.

Selecting the sound mode

Press [SMODE] repeatedly on the remote control to select the desired sound mode.

OSD MENU SETTING

Navigating through menus

Press [LCD MENU], OSD main menu appears.

Press [] , the main menu displays sequentially:

PICTURE SOUND CHANNEL FEATURE SETUP ...

When some menu option is gray displayed, that means the option is not available in current setting mode.

Common procedure of operation:

• For each menu, press [, ] on the remote control to select the options of the main menu.
• Press [, , ] on the remote control to change or confirm your settings.
  (Follow the tips at the bottom of the related OSD screens.)
  After setting of an option is finished, press [LCD MENU] to exit stage by stage, while press [EXIT] to turn off OSD screen directly.

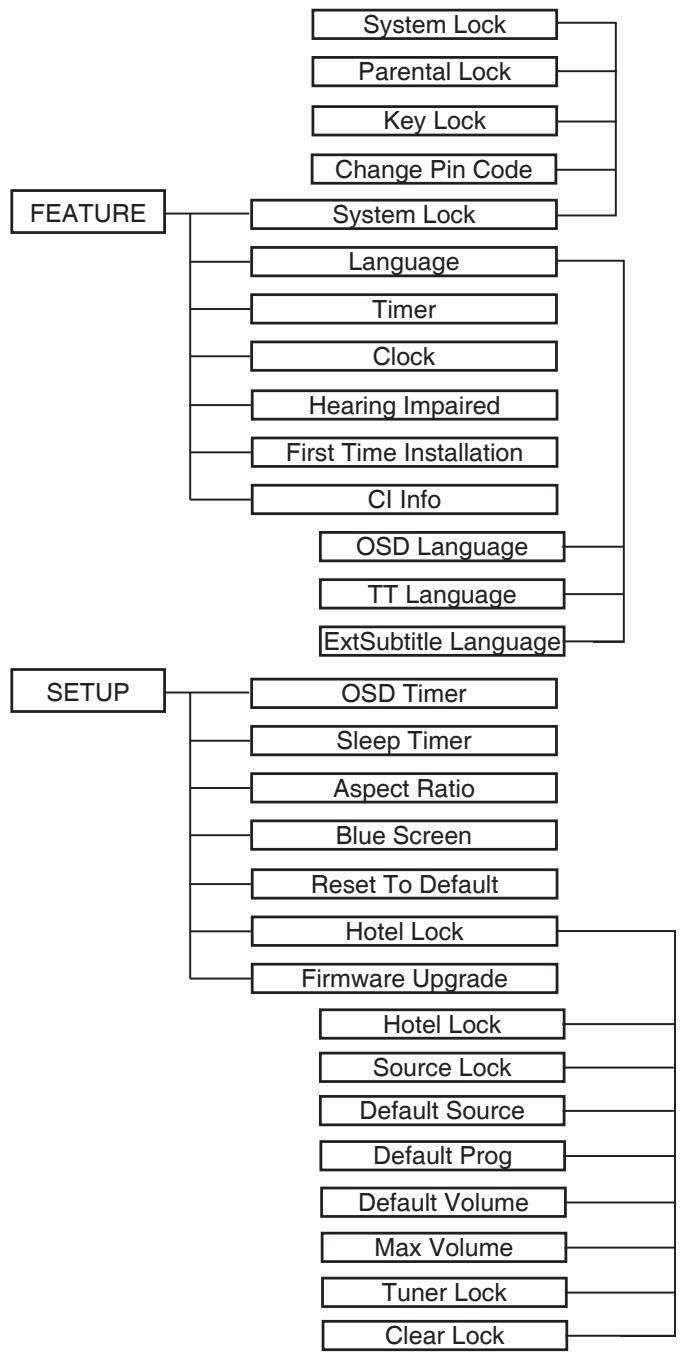

Structure of OSD menu:

Main OSD :

TV mode

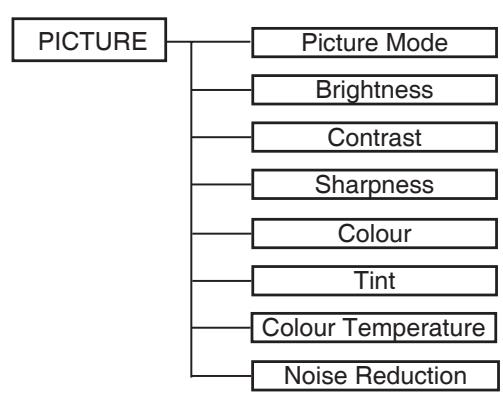

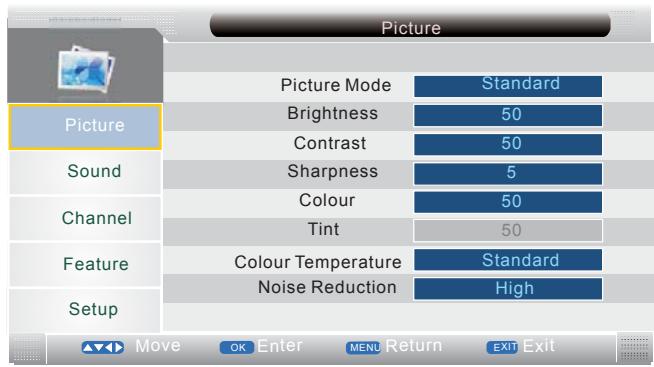

PICTURE MENU

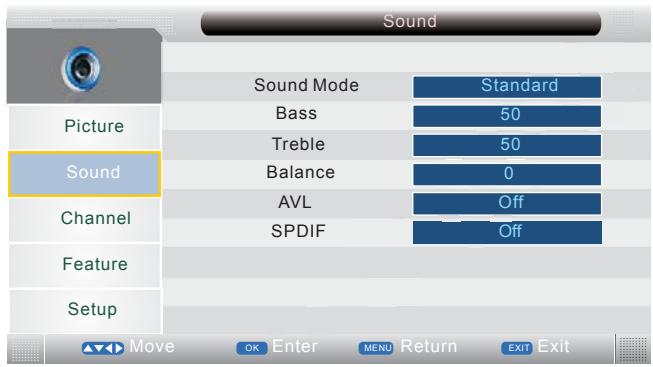

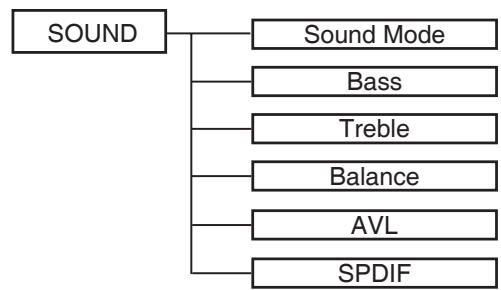

SOUND MENU

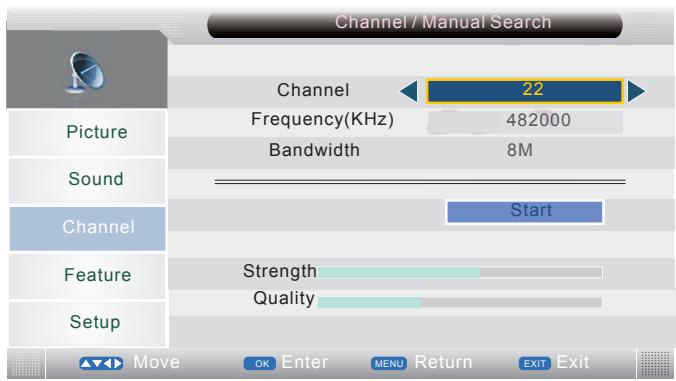

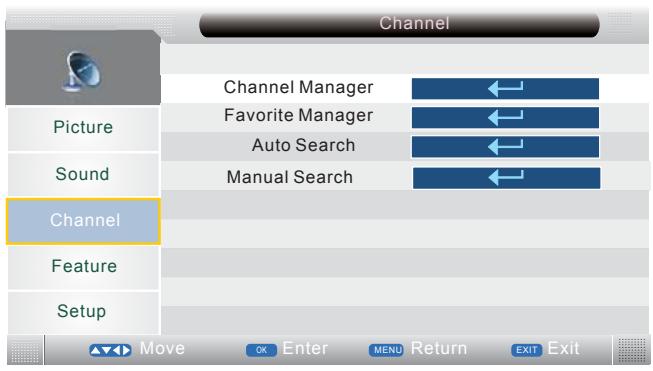

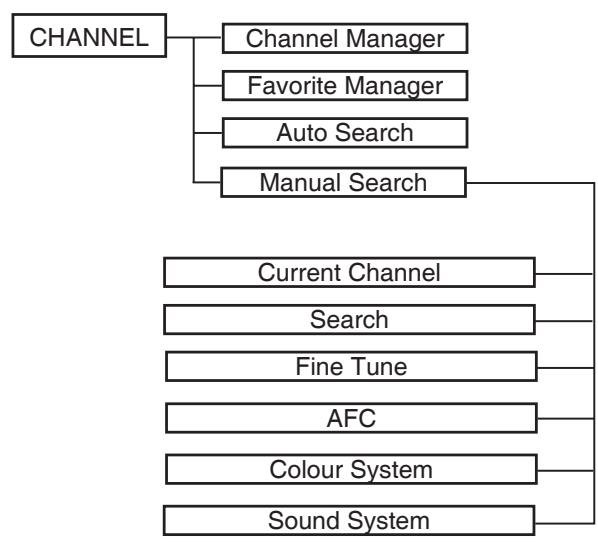

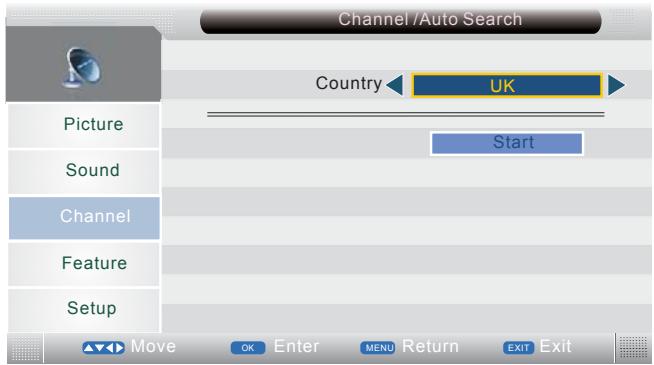

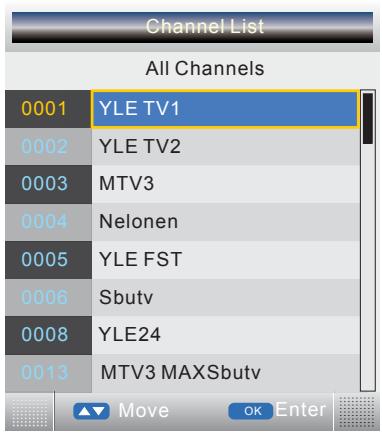

CHANNEL MENU

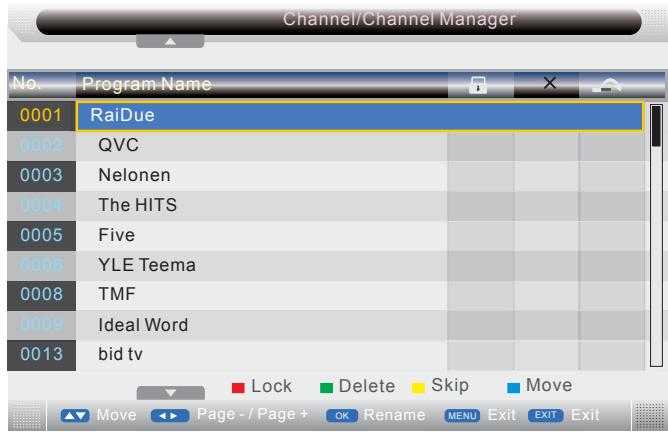

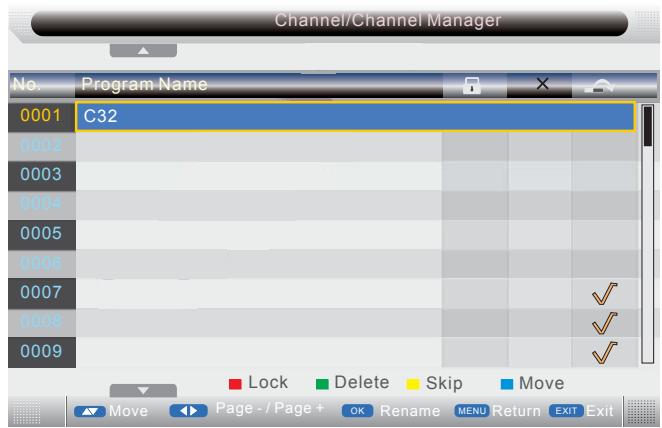

Note: Press red button to set the current channel to lock. If the current channel is already locked, press red button again will unlock.

Press green button to set the current channel to delete. If the current channel already delete, press green button again will cancel delete.

Press yellow button to skip the current channel. Use the cursor buttons to select the channel you wish to skip. Press yellow button and will be shown at the channel selected. To remove the skip function, press the yellow button again.

If one of the stations has been incorrectly placed in the station list, you may move it to the correct position. Use the cursor select the channel to be moved, press blue button, move the station to the new location and press [OK], this will move the station to the new location.

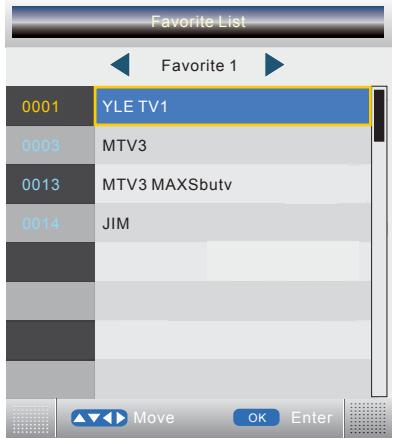

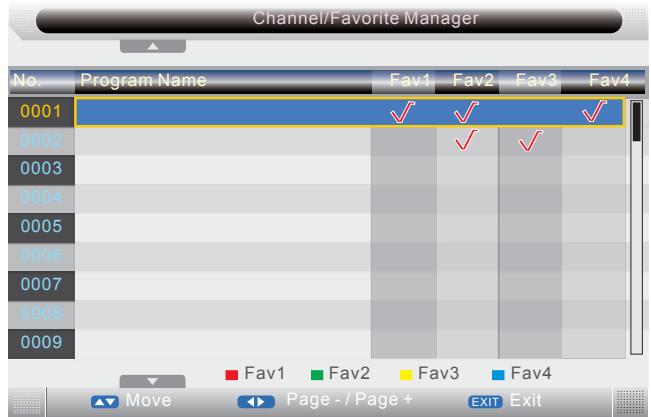

Note: Press [ / ] to select Channel, press red button to set to Fav1.

Press [ / ] to select Channel, press green button to set to Fav2.

Press [ / ] to select Channel, press yellow button to set to Fav3.

Press [A] to select Channel, press blue button to set Fav4.

If the current channel already be one of your favorite channel, press red / green / yellow / blue button again will set it to a normal channel.

Press [LCD MENU] or [EXIT], the successfully updated menu will appear.

FEATURE MENU

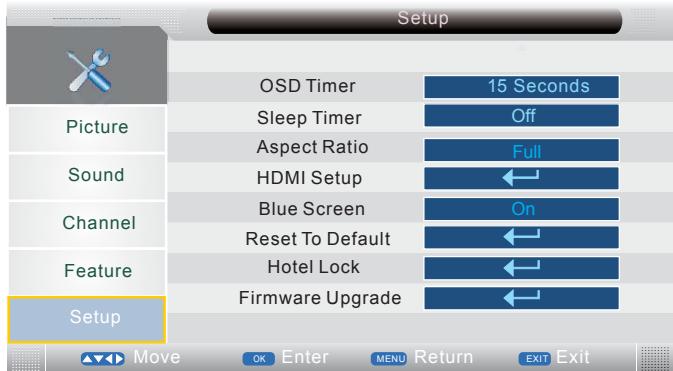

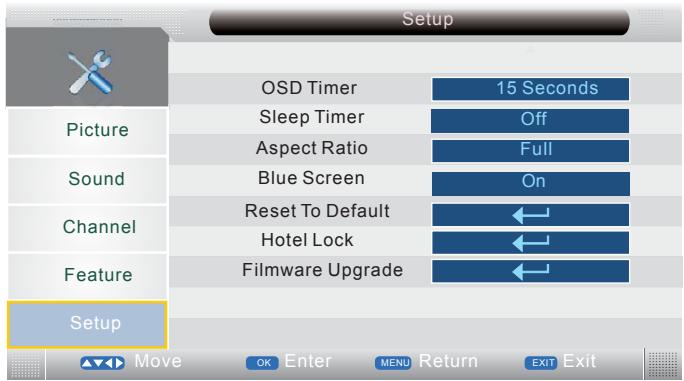

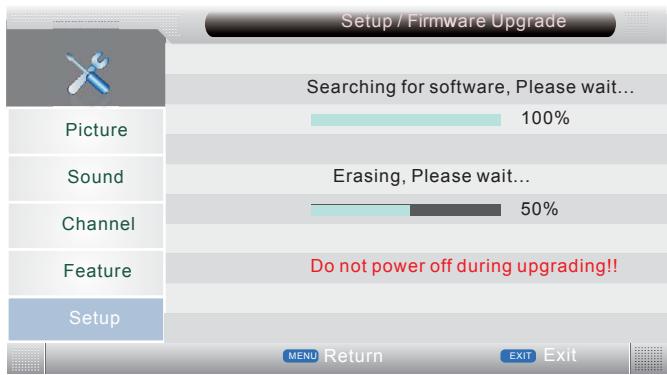

SETUP MENU

DTV mode

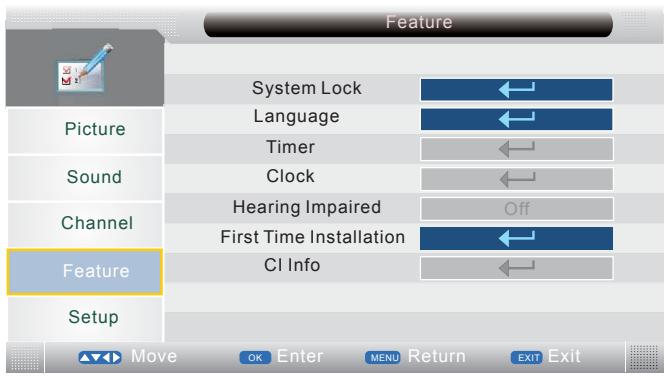

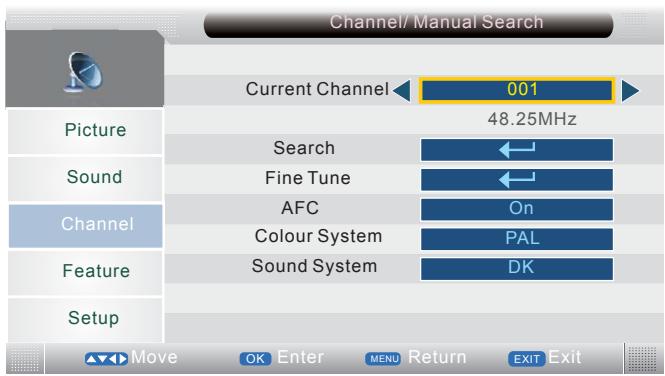

CHANNEL MENU

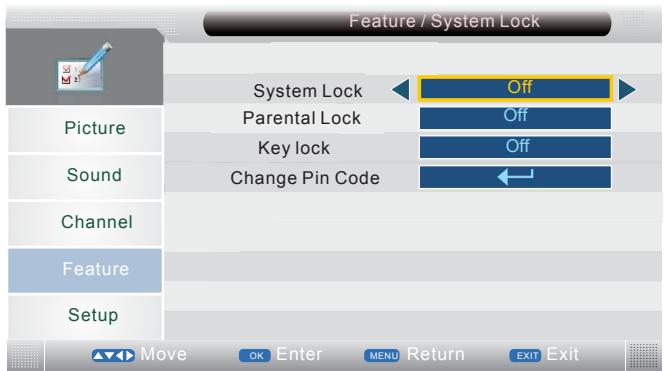

FEATURE MENU

Note: Press [A/V] to select Ch No, then press Red button to delete selected channel.

Press Green button to delete all timers.

PressYellow button to add channel to the timer list.

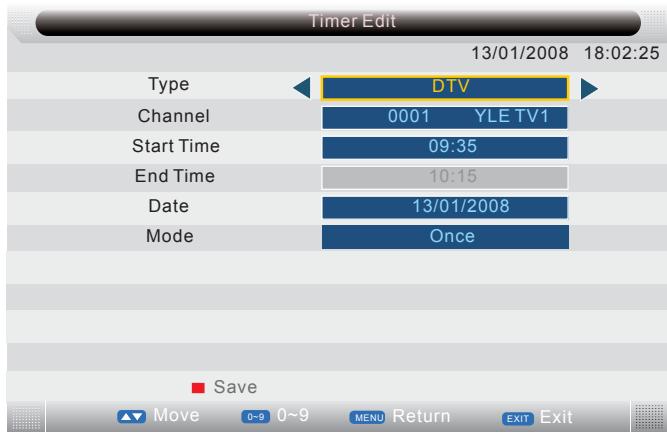

Press Blue button to edit selected channel, the timer edit menu will appear.

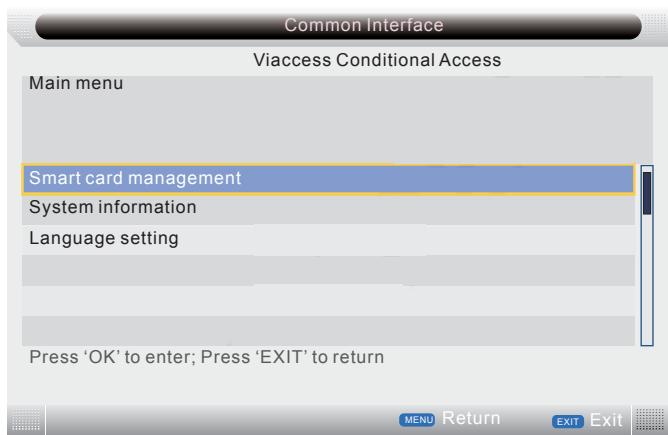

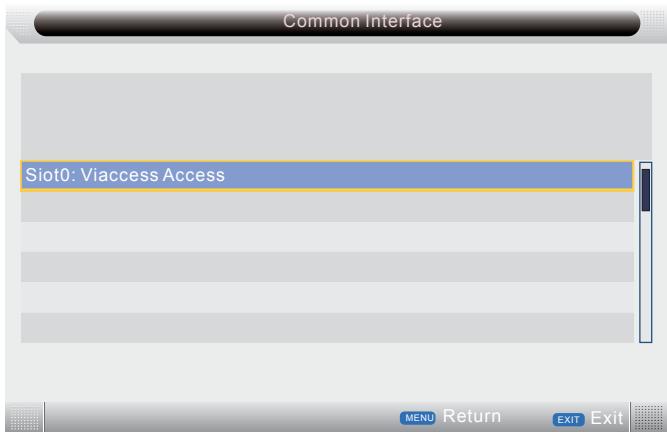

Note: This is just an example for reference, different CI module will have different CI menu.

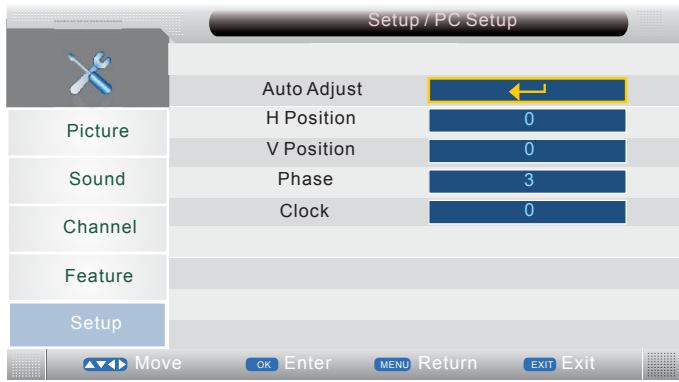

PC mode

SETUP MENU

YPBPR mode

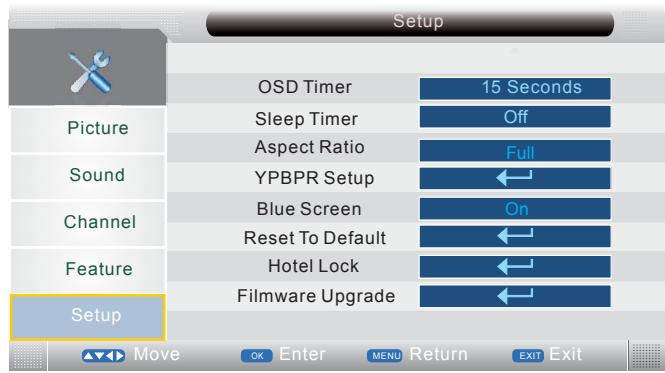

SETUP MENU

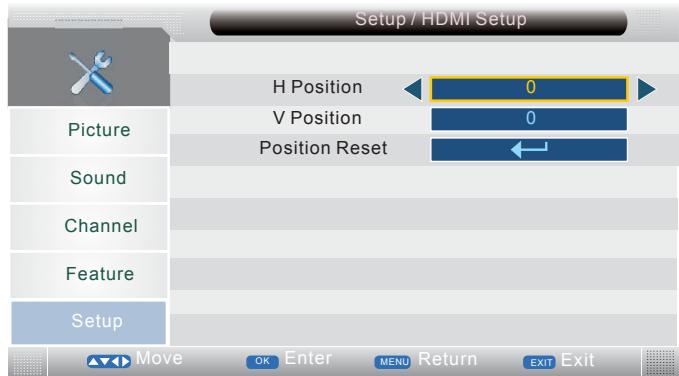

HDMI mode

SETUP MENU

MEDIA mode

Note: Before operating MEDIA menu, plug in USB device or memory card, then press [INPUT] to set the input source to Media.

Press [ / ] to select Media in the source menu. then press [OK] or [> to enter.

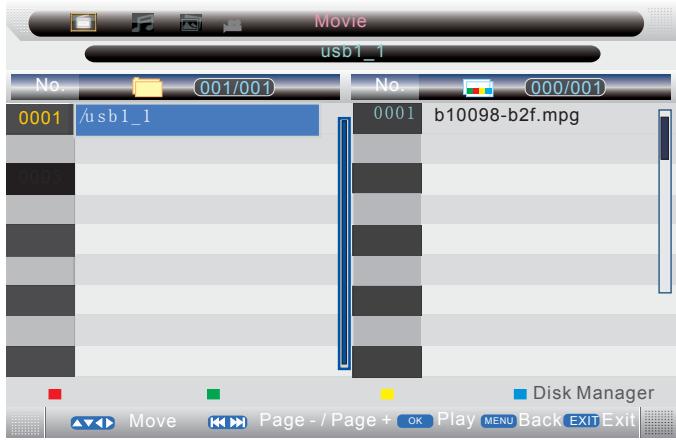

MOVIE MENU

Note: Press [▲▶] to select Movie in the main menu, then press [OK] or [▼] to enter. Press [LCD MENU] to return back to the previous menu.

Press [A/V] to select the folder that you want to view, press [OK] or [▶] button to select the sub folder, press [OK] to play, press the [EXIT] to return back.

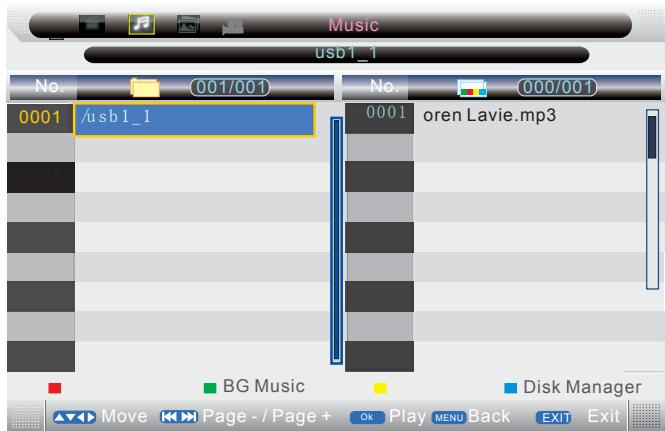

MUSIC MENU

Note: Press [▲▶] to select Music in the main menu, then press [OK] or [▼] to enter. Press [LCD MENU] to return back to the previous menu.

Press [▶] to select the song that you want to listen, then press [OK] to play.

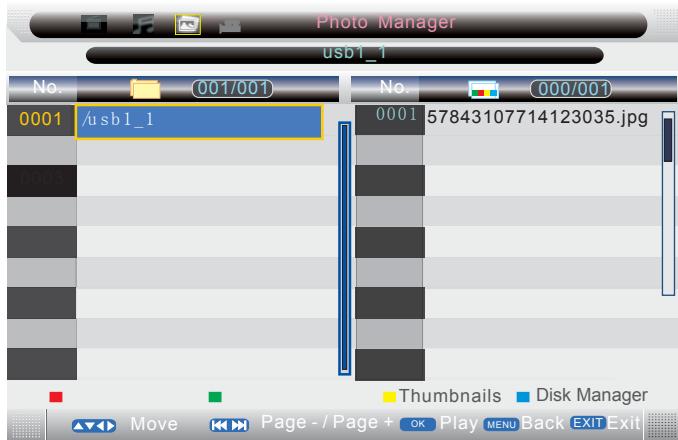

Photo Manager

Note: Press [▶] to select Photo Manager in the main menu, then press [OK] or [▼] to enter. Press [LCD MENU] to return back to the previous menu.

Press GREEN button, then press [ / / ] to skin the photoes, press [OK] to view.

For Digital TV :

Channel List / Favorite List / Subtitle

Note: Press [OK] on the remote control to display the channel list menu.

Note: Press [FAV] on the remote control to display the FAV list menu.

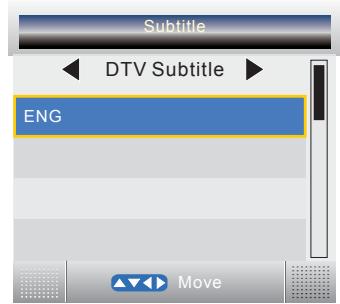

Note: Press [SUBTITLE] on the remote control. Press [ / ] to select OFF, then press [OK] will not display subtitle. Press [ / ] to select ENG, then press [OK] to show the subtitle in English. Press [EXIT] to exit.

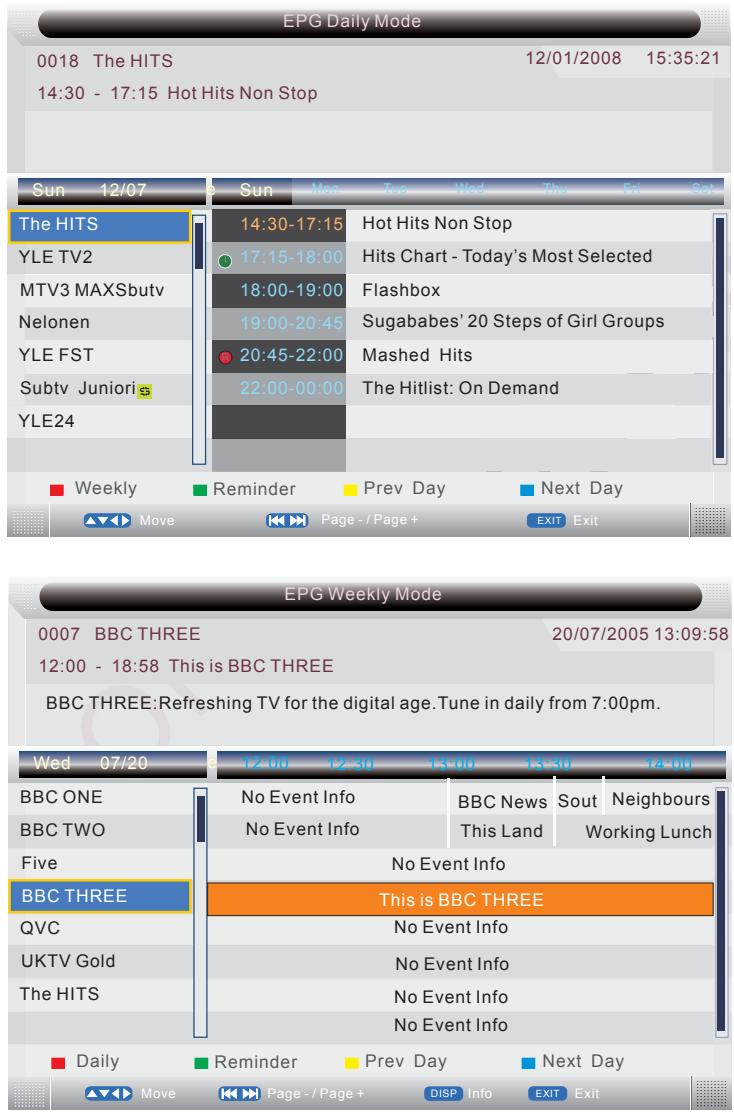

EPG Menu

Note: Press [EPG] on the remote control to display the EPG daily menu.

Press [A] to select the channel or program.

Press [▶] to choose between the channel and program.

Press RED button to switch between EPG weekly mode and EPG daily mode.

To see programmes for the yesterday or further, press the YELLOW button to decrease the date.

To see programmes for the next day or further,press the BLUE button to increment the date.

For more information about a programme, press [DISPLAY].

Press GREEN button to add channel to the reminder list.

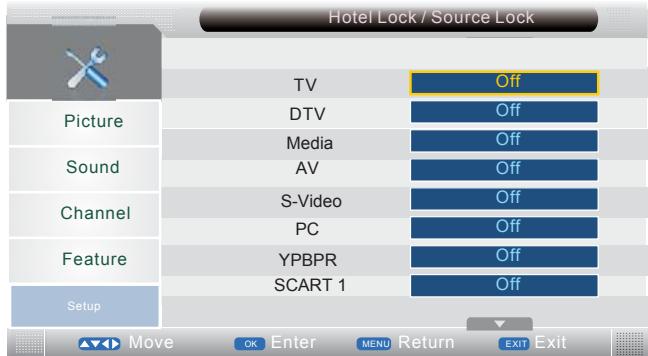

About the Hotel Lock function

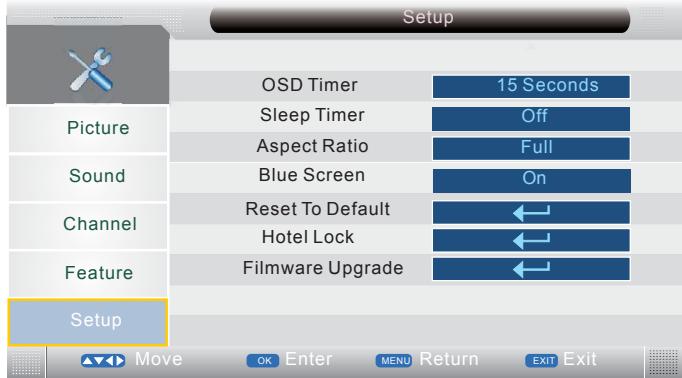

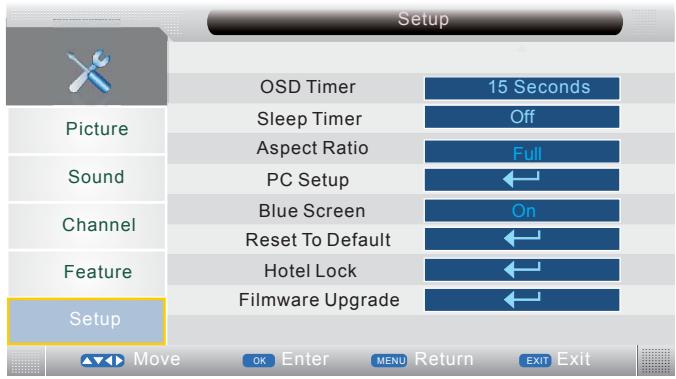

Expand the sub-menu stage by stage in turn:

SETUP Hotel Lock Source Lock ...

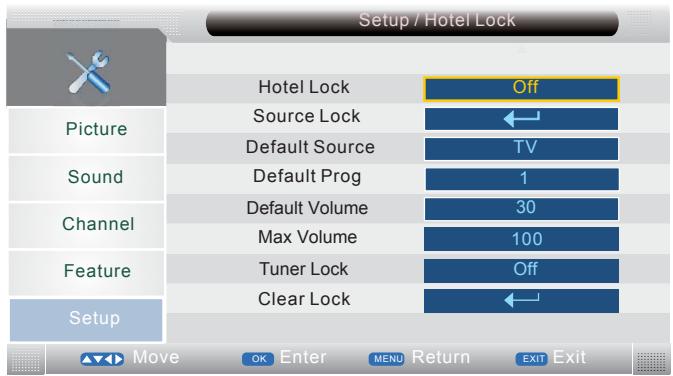

Hotel Lock: Have the priority than other options below. To set below options, this item must be set to "ON" firstly. When it set to "On", all options below it are available.

Source Lock: Set the lock to the input source (E.g.: TV,HDMI...) you want to set.

Default source: Set an input source channel as default while turning on the TV unit.

Default Prog: Set a TV programme number as default while alternate into "DTV" or "ATV".

Default Volume: To set the default volume value.

Max Volume: To set the maximum volume value.

Tuner Lock: The TV source is unavailable.

Clear Lock: Clear the locks.

About the PIN Code:

(The default setting is "0000".)

If you forget the password...

Input "2008" to enter it.

Avoid young kids know this password.

BUILD-IN DVD PLAYER OPERATIONS

The following types of discs can be played on this unit.

Disc type and logo mark
DVD	DVD VIDEO™
CD	COMPACT DISG DIGITAL AUDIO

Region Number

Region number (Regional restriction code) is built-in to the unit and DVD video discs Region number "2" of DVD video discs can be used on this unit.

DVD Video Disc

DVD video discs are divided into titles, and the titles are subdivided into chapters.

There are the marks on some DVD video disc package. Examples:

3	Multiple languages
2	Multi-language subtitles
0	Multi-angle
16:9 LB	Multi-aspect
	Region number
CC	Closed caption

Audio CD Disc

Audio CD discs are divided into tracks.

Track 1

Track 2

Track 3

Track 4

Track 5

CAUTION:

• Only the above types of discs can be played on this unit. DVD-ROM, CD-ROM, CVD, VCD, etc. cannot beplayed.
• This unit can play back the DVD-R that has recorded movie data as well. However, some DVD-Rs cannot be played back depending on the recording conditions.
• The DVD-R that has no movie data cannot be played back.
• The DVD-RW (Video mode) can be played back. However, some DVD-RWs cannot be played back depending on the recording conditions. The DVD-RW (VR mode) cannot be played back.
• The DVD+R/+RW can be played back. However, some DVD+R/+RWs cannot be played back depending on the recording conditions.

Handling, Storing and Cleaning Discs

• Do not touch the disc door while it is moving.
• Never put anything except a 5-inch (12cm) or 3-inch (8cm) DVD (or CD) into the disc in/out slot. Foreign objects can damage the unit.
• Fingersprints and dust should be carefully wiped from the signal surface of the disc (glossy side) with a soft cloth. Wipe in a straight motion from the center to the outside of the disc.
• Never use chemicals such as record cleaning sprays, antistatic sprays or fluids, benzene or thinner to clean the discs. These chemicals will permanently damage the plastic surface of the disc.
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.
• Discs should be returned to their cases after use to protect them from dust and scratches.
• To prevent warping the disc, do not expose it to direct sunlight, high humidity or high temperatures for extended periods of time.
• Do not apply paper or write anything on either side of the disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage the surfaces of the disc.

BasicPlayback

"O" may appear on the TV screen during operation. This icon means that the function is not available on the disc now.

Preparations

1. Turn on the TV and press [INPUT] to select the input source as "DVD",
2. Insert the disc (label facing away from you) to the disc in/ out slot (side panel) until it clicks.

The TV starts to play automatically the first file/track/chapter.

Note:

While in other function, it alternate to "DVD" function and starts playback automatically when insert a playable disc into the disc in/out slot.

StopPlayback

[CD]

Press [▶II] to stop the playing back disc temporarily, press this button again to resume playback.

[DVD]

Press [■] once to stop the playing back disc temporarily.

Press [■] twice to stop the playing back disc completely.

Various disc playing functions

Selecting a DVD menu

Notes:

The operation may differ depending on the disc used.
- Selecting a menu may not be possible on some discs.

1. Press [D.MENU] during playback.
   The main menu screen will appear.
2. Press [▲], [▼], [▼] or [▶] (or the number buttons) to select the desired menu.
3. Press [OK]. The selected menu playback starts.

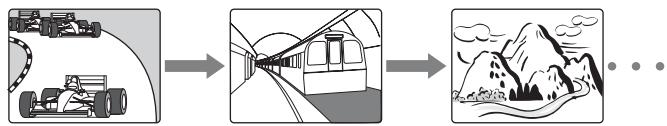

Chapter (Track) Skip

Skipping forward

Press [▶▶] during playback to skip to the next chapter (or track).

Skipping backward

Press [▶] during playback to skip back to the previous chapter (or track).

Note:

You can skip only through the chapters, not over the title on the DVD disc.

Title search [DVD]

Press [GOTO].

Press the number buttons to enter the desired title number.

Example:

T: 01/01 C: 01/15

Repeat playback

Press [REPEAT] during playback to activate repeat mode:

[DVD]

If you want to...	Press [REPEAT] ...
Repeat chapter ( CHAPTER)	Once
Repeat title ( TITLE)	Twice
Repeat all ( ALL)	Three times
Repeat off	Four times

[CD]

If you want to...	Press [REPEAT] ...
Repeat current track	Once
Repeat all tracks	Twice
Repeat off	Three times

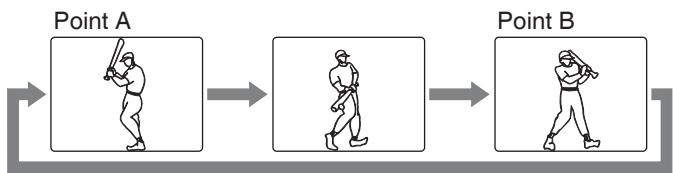

Designated Range RepeatPlayback(A-BRepeat)

1. Press [A-B] during playback at the beginning of the section you want to repeat (Point A).

"CA" appears on the TV screen.

1. Press [A-B] again at the end of the section you want to repeat (Point B).

"AB" appears briefly on the TV screen.

1. To return to normal playback, press [A-B] again.

Selecting Subtitle Language [DVD]

Press [SUBTITLE] repeatedly during playback until the desired subtitle language appears on the TV screen.

Example:

SUBTITLE 01/03 ENG

Note:

Not all disc supports this function.

Selecting Audio Soundtrack Language(Multi-Language) [DVD]

This operation works only with discs on which multiple audiosoundtrack languages are recorded.

Press [AUDIO] repeatedly during playback until the desired language appears on the TV screen.

Notes:

• When the desired language is not selected even if the button is pressed, the language is not available on the disc.
• When the power is turned on or the disc is replaced, select the language again.
• If the language is not recorded on the disc, only the available language on the disc will be heard.

Selecting On-Screen Information

Press [DISPLAY] repeatedly to show the disc information (Title, Chapter, Title elapsed playing time, Language, etc.).

KODAK Picture/JPEG CD Playback

To start the slide show from the thumbnail pictures:

1. Press [▲], [▼], [▼] or [▲] to select the desired picture.
2. To go to the next or previous thumbnail pictures, press[▶▶] or [▶▶].
3. Press [OK] or [▶] (Play) to start the slide show from the selected picture.

During the slide show:

• Press [I] to pause. Press [▶] (Play) to continue.
• Press [▶▶] or [↓←], it skips to the next or previous file.
• If the picture appears upside down or sideways, press [▲],

[>, [▼] or [◁] to flip / rotate the picture.

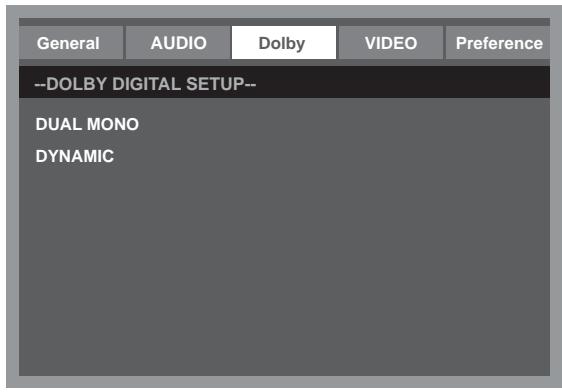

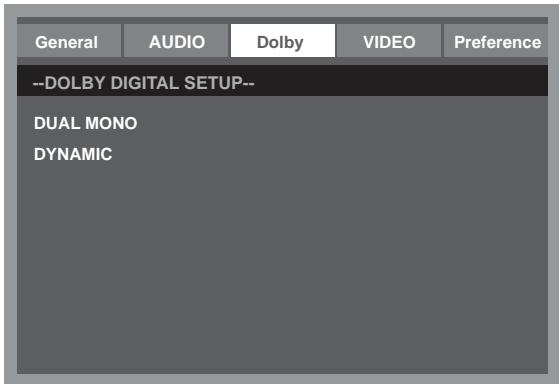

Dolby Digital setup menu

Initial settings

Once the initial settings have been completed, the unit canalways be operated under the same conditions.The settings will be retained in the memory until they are changed,even if the power is turned off.

• Press [DVD SETUP] to activate the DVD player OSD menu.
• Press [▶] or [◁] to move and highlight between different sub-menu.
• Press [] or [] to enter the highlighted sub-menu.
• Press [DVD SETUP] to exit the OSD menu.

General setup menu

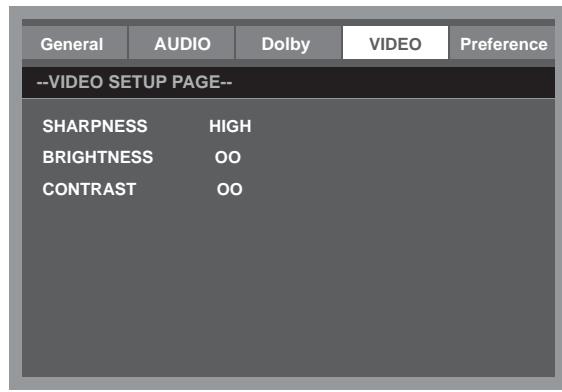

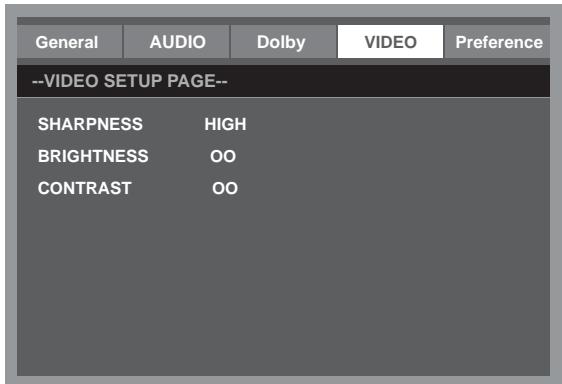

Video setup menu

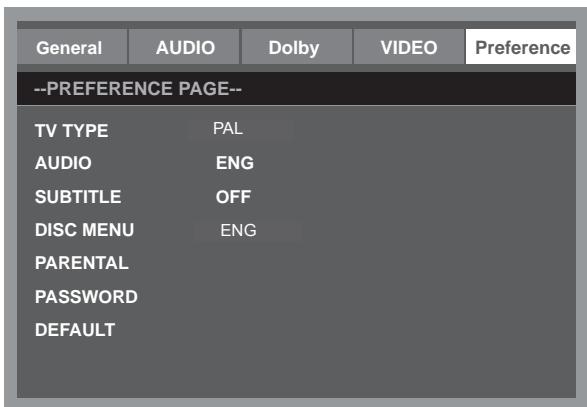

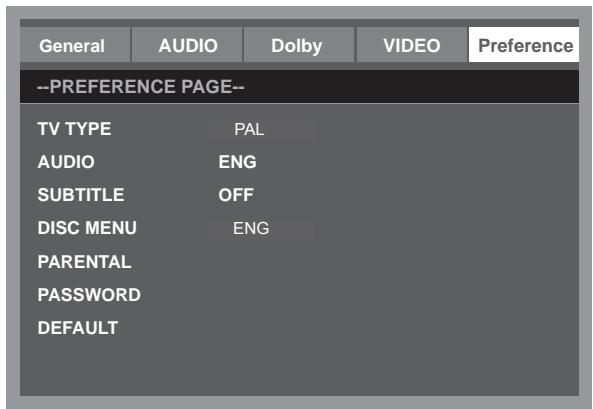

Preference setup menu

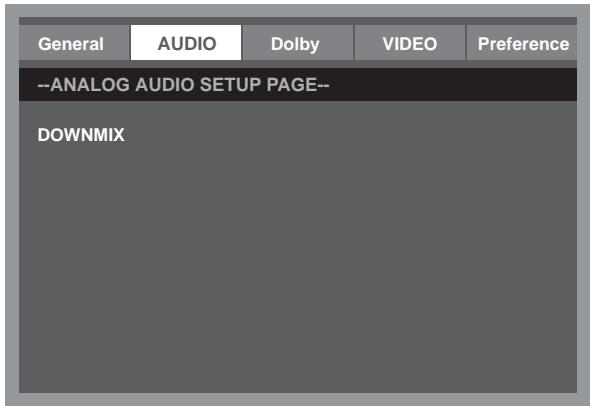

Audio setup menu

IMPORTANT NOTICE

The factory setting of PIN Code is "0000". If you forgot the password you've set, input the initial password "2008".

MAINTENANCE

WARNING: FOR YOUR PERSONAL SAFETY, BE SURE TO DISCONNECT THE AC POWER CORD BEFORE PROCEEDING WITH ANY MAINTENANCE OR CLEANING.

Cleaning the LCD Panel

The LCD panel should not be toughed with sharp objects. If dust and fingerprints is on the LCD panel surface, wipe them off with a clean soft cloth.

Wipe in a straight motion from the center to the outside of the LCD panel.

Never use chemicals such as record cleaning sprays, antistatic sprays or fluids, benzene or thinner to clean the LCD panel.

Cleaning the Main Unit

Clean the outside of the unit with a clean soft cloth moistened with luke-warm water. Do not use benzene, thinner or alcohol since they will mar the finish of the surface.

TROUBLESHOOTING

Symptom

Possible cause

Corrective active

No Picture and sound.

Power cord is not correctly connected with the main unit.

Connected the power cord with the main unit.

Power cord is not plugged into an AC outlet.

Plug the power cord into an AC outlet.

The wrong input source is selected.

Select a correct input source.

The input source is failed to connect with the TV.

Make correct connections.

No sound only.

Volume control is set to minimum.

Press the VOL+ button to increase the volume.

The button on the remote control is pressed.

Press the (or VOL + / - ) button to release the volume.

An incorrect sound system mode is setted.

Set a correct sound system from the main menu to match your TV.

Symptom

Possible cause

Corrective active

No picture only, or monochrome picture.

The color system setting doesn't match the program.

Set the proper color system setting.

The sound system setting doesn't match the program.

Set the proper sound system setting.

Interfered sound or picture.

Some equipment that brings interference is nearby the TV.

Keep these things away from the TV.

Multi devices plug into the same one AC outlet collections.

Plug the power cord into another AC outlet.

An incorrect sound system mode is setted.

Set a correct sound system from the main menu to match your TV.

Note:

A few bright dots and dark dots may appear on the TV screen, that is normal appearance.

SPECIFICATIONS

DVT-2632B

Display Features

Display Type LCD

Screen Size 26 inch

Aspect ratio 16:9

Active Area 575.8 (H) X 323.8 (V)

Panel Resolution 1366 (H) X 768 (V)

Brightness 450 cd/m2

Contrast Ratio 800:1

Dot Pitch 0.1405 (H) X 0.4215 (V) mm

Maximum Color 16.7 M

Response Time 5 ms

Features

HD compatible 480I, 480P, 576I, 576P, 720P, 1080I, 1080P

Wall mounting VESA 100

TV Reception

TV System: PAL/SECAM

Sound System B/G, I, D/K, L/L'

Antenna Impedance: 75 Ohm

Tuner receiving range:

ATV 49MHz - 863MHz

DTV VHF (174MHz - 230MHz)

UHF (474MHz - 862MHz)

Power Requirements

Power Input 100-240V 50/60 Hz

Power Consumption

Maximum < 100W

DVD Features

Laser Wave Length 650 nm / 795 nm

DVD Region Number 2

Connections

Input:

TV Tuner (RF 75Ω) 1

Component Video Input (Y Pb Pr) 1

Video Input (AV) 1

S-Video Input (S-VIDEO) 1

SCART 2

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

HDMI input (HDMI) 2

USB port 1

Output:

Coaxial output jack (COAXIAL OUT) 1

VGA Resolutions Supported

up to 1360 x 768

Dimension(WxHxD)

Unit W/stand/speakers 672 x 514 x 250 mm

Unit W/O stand 672 × 467 × 104 ~mm

Weight(N.W.)

Unit W/stand/speakers 10.5 Kg

Environment

Operating Temperature 0^ - 40^

Operating Humidity 20%-80%

Note:

Specifications subject to change without notice.

DVT-2632W

Display Features

Display Type LCD

Screen Size 26 inch

Aspect ratio 16:9

Active Area 575.8 (H) X 323.8 (V)

Panel Resolution 1366 (H) X 768 (V)

Brightness 450 cd/m²

Contrast Ratio 800:1

Dot Pitch 0.1405 (H) X 0.4215 (V) mm

Maximum Color 16.7 M

Response Time 5 ms

Features

HD compatible 480I, 480P, 576I, 576P, 720P, 1080I, 1080P

Wall mounting VESA 100

TV Reception

TV System: PAL/SECAM

Sound System B/G, I, D/K, L/L

Antenna Impedance: 75 Ohm

Tuner receiving range:

ATV 49MHz - 863MHz

DTV VHF (174MHz - 230MHz)

UHF (474MHz - 862MHz)

Power Requirements

Power Input 100-240V 50/60 Hz

Power Consumption

Maximum < 100W

DVD Features

Laser Wave Length 650 nm / 795 nm

DVD Region Number 2

Connections

Input:

TV Tuner (RF 75Ω) 1

Component Video Input (Y Pb Pr) 1

Video Input (AV) 1

S-Video Input (S-VIDEO) 1

SCART 2

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

HDMI input (HDMI) 2

USB port 1

Output:

Coaxial output jack (COAXIAL OUT) 1

VGA Resolutions Supported

up to 1360 x 768

Dimension(WxHxD)

Unit W/stand/speakers 672 x 514 x 250 mm

Unit W/O stand 672 x 467 x 104 mm

Weight(N.W.)

Unit W/stand/speakers 10.5 Kg

Environment

Operating Temperature 0^ - 40^

Operating Humidity 20%-80%

Note:

Specifications subject to change without notice.

Lenco

DVT-2632B

DVT-2632W

BENUTZER-HANDBUCH

Inhalt

VOORZORGSGMAATREGELEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ROOD selecteert STADSINFORMATIE,

CYAAN selecteert REISINFORMATIE,

GROEN selecteert WEERINFORMATIE,

GEEL selecteert TV PROGRAMMERING.

DVD-Functie

Track 1

Track 2

Track 3

Track 4

Track 5

LET OP:

Dolby Digital setupmenu

Video setupmenu

Voorkeur setupmenu

BELANGRIJKEMDEDELING

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
