USER MANUAL Energysilence 2600 Sunflower Portable M CECOTEC

1. Parts and components 49
2. Before use 49
3. Assembly 50
4. Operation 50
5. Cleaning and maintenance 52
6. Troubleshooting 52
7. Technical specifications 53
8. Disposal of old electrical and electronic appliances 53
9. Technical support and warranty 54
10. Copyright 54

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Never insert fingers, pencils, or other objects through the air outlet when the appliance is running.
• Make sure the appliance is placed on a flat, stable surface when in use.
• Do not use the appliance near a window, as exposure to rain could cause electric shock.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

• Do not touch the blades or remove them during operation.

• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

• Never immerse the appliance in water. Do not touch the water!
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not carry or pull the appliance from the power cable. Do not use the power cable as handle. Do not push the cable against corners or sharp edges. Do not crush the power cable with the full weight of the appliance. Keep the cable away from hot surfaces.
• Do not operate the appliance if its cable, plug, or body show visible damage, do not operate properly, or have been dropped.
• Keep the product away from heat sources.
• Keep hair, clothes, fingers, and other body parts away from openings and moving parts of the product.
• Do not leave the appliance unattended while in use. Unplug it from the power supply when you finish using it and before leaving the room.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service.
• Always turn off and unplug the appliance when not in use, before moving it to a new location, and before assembling or disassembling it. To avoid tripping hazards, wind the cable safely.

• Make sure the fan is not placed close to curtains or other objects it may become entangled with.

• Do not place the cable beneath the carpet or cover it. Place the appliance in a room with no obstacles and where it cannot be tipped over.

• Operate the fan in a wide area. Allow a free space of at least 20 cm between the appliance and the wall to ensure good air circulation when in operation.
• Keep this appliance and its power cable out of reach of children under the age of 8.

This icon means: do not use the power cable if the plug is damaged.

Battery instructions

• Non-rechargeable batteries must not be recharged.
• Do not allow children to replace the battery without adult supervision.
• Do not disassemble, open, or break the battery.
• Keep the battery out of the reach of children. In case of battery ingestion, please seek medical attention immediately.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject the battery to mechanical shock.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves when handling the battery or cells and dispose of it immediately in accordance with local regulations.

• Do not use any charger other than the one supplied specifically for this appliance.

• Observe the positive (+) and negative (-) markings on the cell, battery, and equipment, and ensure their correct use.
• Do not use any batteries or cells that are not designed for use with the appliance.
• Do not use the appliance if powered with batteries that differ in capacity, size, or type.
• Children must be supervised if they handle the battery.
• In case of battery ingestion, please seek medical attention immediately.
• Always purchase the battery recommended by the device manufacturer.
• Keep the battery clean and dry.
• Wipe the battery terminals with a clean, dry cloth if they become dirty.
• The secondary battery must be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
• Do not leave the battery on prolonged charge when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries or cells several times to obtain maximum performance.
• Keep the original instruction manual for future reference.
• Use the battery only for its intended purpose.
• Remove the battery from the device when not in use whenever possible.
• Dispose of the battery properly.

INSTRUCTIONS DE SÉCURITÉ

1. Front grille
2. Main body
3. Digital display
4. Control panel
5. Charging port
6. Handle
7. Tube 1
8. Tube 2
9. Tube 3
10. Tube 4
11. Base
12. Infrared emitter
13. Remote control

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• EnergySilence 2600 Sunflower Portable fan
• Remote control
• Instruction manual

ENGLISH

3. ASSEMBLY

The base serves as a storage box. When the fan is not in use, the tubes and head can be placed inside the base to facilitate storage of the product.

NOTE: only three tubes can be stored inside the fan base.

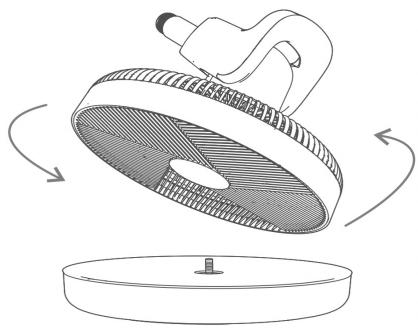

1. Turn the fan head counterclockwise to detach it from the base. Fig. 2
2. Turn the base cover counterclockwise, open it, and remove the 4 tubes; after removing them, turn the base cover clockwise to close it. Fig. 3
3. Align the outer thread of the tube with the hole in the base, insert the tube into the hole, and turn clockwise. The tube 1 with the built-in lithium battery must be installed at the top (if you find it difficult to disassemble the fan, you can turn the base counterclockwise first). Fig. 4
4. Align the thread of the fan head with the thread of tube 1 and turn the tube clockwise. Fig. 5

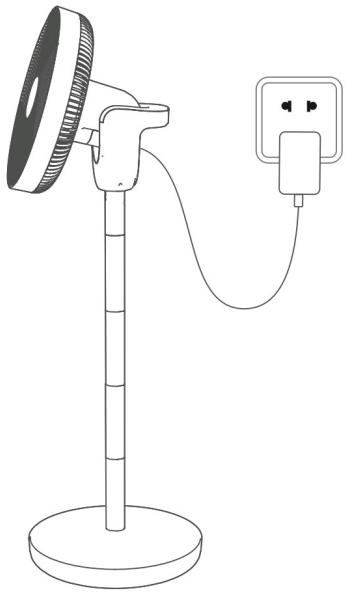

5. Connect the adapter to the socket on the back of the fan head. The device can be used wirelessly or plugged to the mains once fully charged. Fig. 6.

You can use this fan in three different positions:

• Pedestal fan: assemble the four tubes.
• Medium-height fan: assemble two of the tubes.
• Desktop fan: assemble only one tube to the base.

Note: when used as a desktop fan, section 1 of the tube cannot be used to connect the main body to the fan base and must be connected to the mains socket.

4. OPERATION

• The fan-head design consists of 16 double-layered blades for both strong and soft air.
• The fan is powered by a high-capacity lithium battery that allows for wireless use.

Instructions on the control panel

Plug the adapter into a standard electrical outlet. The device will beep when switched on.

Control panel. Fig. 7

1	[KTW]	Power button
2		Left-to-right oscillation button
3		Speed increase/Natural Breeze mode button: press this button to increase wind speed until speed 12. Press once more to return to speed 1. To select Natural Breeze mode, press and hold this button for 2s (LED indicator will show L1)-press again for 2 sec. to return to speed 1.
4		Light On/Off button
5		Speed decrease/Sleep mode button: press this button to decrease the speed to 1. Press and hold for 2 seconds (LED indicator will show L2)-press again for 2 sec. to return to speed 1.
6	[5*40]	Up-and-down oscillation button
7	[5*8F]	Timer button: the timer can be set in a range of 1-8 hours.

Remote. Fig. 8

1	[08KC]	Speed increase button
2	[76C0]	Left-to-right oscillation button
3	[70&0]	Light On/Off button
4		Infrared emitter
5		Speed decrease button
6	[HTCO]	Power button
7		Up-and-down oscillation button
8		Timer button: the timer can be set in a range of 1-8 hours.
9	[25XH]	Natural Breeze mode/Sleep mode button: press this button to select one of these two modes.

When using the remote control, point the infrared emitter towards the front of the fan. Not pointing the emitter towards the front of the fan or obstructing the fan signal will affect or override the control distance of the remote control.

ENGLISH

This remote control has a magnet that allows to attach it to the front of the fan.

Note: press any button on the remote control to turn the display on. If no button is pressed, the display will turn off after 5 seconds.

5. CLEANING AND MAINTENANCE

Before cleaning the fan or carrying out any maintenance on it, unplug it from the mains:

1. Regularly clean the main body of the fan to prevent damage and discolouration.
2. After maintenance and cleaning, put all the parts in the storage base according to the original storage order, and store the base in a dry place.
3. Clean the fan with a soft, clean cloth using a neutral detergent.
4. Do not rinse with water.
5. Avoid cleaning with thinner, toluene, acidic lotion, oil, etc., to prevent discolouration or deterioration of the fan.

6. TROUBLESHOOTING

Problem	Possible causes	Possible solutions
The fan does not switch on	The adapter is not connected or has poor contact.	Plug in the adapter to ensure good contact.
	The power button was not pressed.	Press the power button to turn the fan on.
	The fan is damaged.	Contact the official Cecotec Technical Support Service.
The fan does not switch off	The fan is damaged.	Contact the official Cecotec Technical Support Service.
Code 00	Lithium battery not installed or poor contact.	Install the lithium battery and ensure good contact.
An abnormal sound is heard when the fan is switched on	The front grille is deformed and touches the blades.	Contact the official Cecotec Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product reference: 08243

Product: EnergySilence 2600 Sunflower Portable

Rated power (with battery): 22 W

With adapter: 13 V = 1.8 A

Rechargeable Li-ion battery: 11.1 V, 2600 mAh

Adapter (input): 100-240 V, 50/60 Hz, 0.65 A Max

Charging time: 3-5 h

Description	Symbol	Value	Unit
Fan maximum flow	F	7.1	m3/min
Fan power consumption	P	15.7	W
Service value	SV	0.5	(m3/min)/W
Power consumption on standby mode	PSB	0.7	W
Fan sound power level	LWA	58	dB (A)
Maximum air speed	C	3.8	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60,46910, Alfajar (Valencia) SPAIN

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

ENGLISH

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

6. PROBLEEMOPLOSSING

Product: EnergySilence 2600 Sunflower Portable

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

www.cecotec.es
