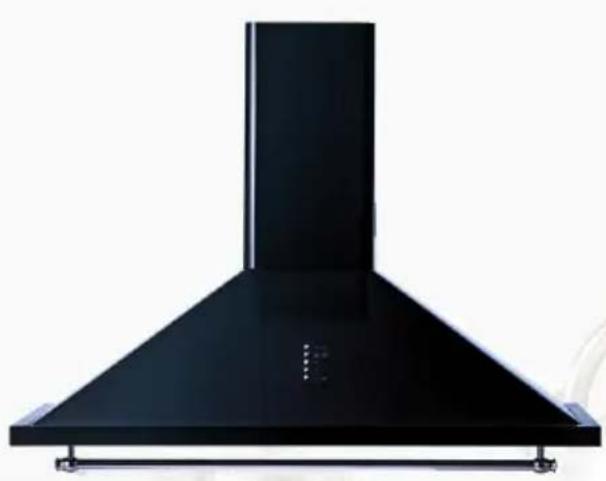

Product Type	Wall-mounted range hood
Installation Type	Chimney, ducted or recirculating
Width	90 cm
Depth	50 cm
Height Range	600 – 1100 mm
Net Weight	15 kg
Power Supply	220 – 240 V, 50 Hz
Motor Power	280 W
Max Airflow	650 m³/h
Number of Speeds	3
Noise Level (max)	65 dB(A)
Lighting	LED, 2 × 3 W
Controls	Electronic touch control
Grease Filter	Aluminum multilayer filter, washable
Charcoal Filter	Optional activated carbon filter for recirculation
Duct Size	150 mm
Recirculation	Possible with charcoal filters
Safety Feature	Thermal overload protection
Maintenance	Washable aluminum filter; clean monthly
Repair	Spare parts available; replaceable filters and LED modules

Frequently Asked Questions - VE–90RSABK VESTFROST

How do I clean the grease filter on my Vestfrost VE–90RSABK hood?

Remove the aluminum grease filter and wash it with warm soapy water or in the dishwasher. Allow it to dry completely before reinstalling. Clean it at least once a month for optimum performance.

How can I replace the LED light?

Disconnect the hood from the power supply. Carefully pry off the LED module cover, unplug the defective module, and insert a compatible replacement. Reattach the cover and restore power.

Can I use my hood in recirculation mode?

Yes, you can install activated charcoal filters to operate the hood in recirculation mode. This eliminates the need for ducting and filters the air before returning it to the kitchen.

Why is my hood making an unusually loud noise?

Check if the grease filter is clogged or improperly installed. Also ensure the ducting is not blocked. A loose motor mount or debris in the impeller can also cause noise.

What duct diameter is required for the VE–90RSABK?

The recommended duct diameter is 150 mm. Using a smaller diameter may reduce airflow and increase noise.

How often should I replace the charcoal filter in recirculation mode?

Charcoal filters should typically be replaced every 3–6 months depending on usage. Replace them when the suction power diminishes or odors return.

How do I set the fan speed?

Press the speed button on the electronic touch panel to choose from 3 speeds. Speed 1 for low cooking, speed 2 for normal, and speed 3 for intensive odor removal.

What is the recommended installation height?

Install the hood at a height of 65–75 cm above an electric cooktop and 75–85 cm above a gas cooktop. Always follow the manual's safety clearances.

Does the hood have a filter saturation indicator?

Yes, the electronic control panel includes an indicator that alerts you when the grease filter needs cleaning. Press and hold the timer button to reset it after cleaning.

Can I install the hood without a chimney?

The VE–90RSABK is a chimney hood; it requires a chimney cover for proper appearance and ventilation. The chimney is adjustable to fit your ceiling height.

USER MANUAL VE–90RSABK VESTFROST

PL Okap kuchenny | Instrukcja obsługi i montażu
EN Cooker hood | Operating and installation instructions
cz Digestoř | Návod k obsluze a instalaci
SK Digestor | Návod na obsluhu a inštaláciu

vestfrosthome.eu

V

MONTAŽ | INSTALLATION | INSTALACE | INŠTALÁCIA

MONTAŽ | INSTALLATION | INSTALACE | INŠTALÁCIA

vestfrost

VE-90RSABG | VE-90RSABR | VE-90RSABK

PL Okap kuchenny | Instrukcja obsługi i montażu 8
EN Cooker hood | Operating and installation instructions ..... 18
CZ Digestoř | Návod k obsluze a instalaci 24
SK Digestor | Návod na obsluhu a inštaláciu .... 30

Szanowni Państwo,

Thank you for the trust you have placed in us by buying the Vestfrost product.

Our retro product line has been created out of the need to let the classic design and bold colors meet modern solutions. We have created a range of easy-to-use products, which nicely fit every kitchen and surprise you with modern technology.

In order to enjoy our product for a long time, please read this instruction manual. We have included all the information needed for proper installation and operation of the appliance, as well as contact data of our service center.

We wish you a pleasant experience.

Below, you will find the definitions of symbols used in this instruction manual:

IconMeaning
	Important information concerning user safety and proper operation
	Information concerning environmental protection
[KBD2]	Cooker hood operating as an extractor
	Cooker hood operating as an absorber
	Cooker hood should be used only after reading through this instruction manual

Appliance installation should be carried out according to the instructions provided in this manual. The manufacturer cannot be held liable for any damage resulting from installation not compliant with the instructions provided in this manual. Cooker hood has been designed for home use exclusively. The actual cooker hood may look different than the one depicted in illustrations in this manual, but all instructions concerning its operation, maintenance and installation remain valid.

You should keep this instruction manual, so that you can refer to it at any time when needed. If the appliance is sold or changes owners due to move, make sure the instruction manual is attached to it.

You should read this instruction manual carefully, as it provides detailed information on installation, use and maintenance of the appliance.

Making any electrical or mechanical changes to the appliance or extraction ducts is prohibited.

Notice: Elements tagged with the “(*)” symbol are included with selected models only, in other cases they must be purchased separately.

Warnings

• Caution! Do not connect the device to the mains power supply before completing the installation.
• Before starting any cleaning or maintenance work, the appliance must be disconnected from the mains electricity supply by unplugging the power cable or switching off the main power switch.
• All installation and maintenance works must be carried out in protective gloves.
• This appliance can be used by children at least 8 years old and by persons with compromised physical or intellectual ability and persons with no experience or knowledge of the appliance, as long as relevant supervision and training in safe use of the appliance are provided, so that all related hazards are fully understood.
  • Children must not play with the appliance.
• Unsupervised children should not clean the equipment or carry out any maintenance works.
• Never use the cooker hood without properly installed filters!
• Cooker hood must NEVER be used as a support surface, unless such possibility is explicitly stated. The room in which the cooker hood is used together with other devices using gas or other types of fuel must have proper ventilation.

• Sucked air should not be ducted into a flue used by other gas-burning or fuel-burning devices. It is strictly prohibited to prepare meals under the hood using open flame (flambé).

• Use of open flame is dangerous to filters and creates the risk of fire, therefore open flame must not be used under any circumstances. Use caution when frying, do not overheat oil, as it may lead to its self-ignition. Device's parts can become extremely hot when used together with cooking devices.

• Any technical and safety measures taken, related to extraction ducting, must be fully compliant with the respective regulations issued by relevant local authorities.
• Cooker hood must be cleaned both outside and inside (AT LEAST ONCE A MONTH, in accordance with maintenance instructions provided in this manual).
• Failure to comply with the rules concerning cleaning the cooker hood and replacing and cleaning the filters causes fire hazard.
• To avoid the risk of electric shock, do not use the cooker hood without properly installed bulbs. The manufacturer accepts no liability for any damage or fire caused by the appliance resulting from failure to observe the instructions contained in this manual.

This appliance is marked in accordance with the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

By ensuring proper scrapping of this device, you contribute to decreasing the risk of negative impact of the product on the environment and human health, which could arise as a result of improper scrapping of the device.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

Operations

The appliance can be used as an extractor (extraction of vapors) or as an absorber (vapors are filtered and directed back into the room). Cooker hood models without engine operate exclusively as an extractor and must be connected to an external engine (not included). Relevant connection instructions are provided with the external engine

Cooker hood operating as an extractor

Vapors are extracted through an extraction pipe mounted on the joint flange.

Extraction pipe's diameter must be equal to joint flange's diameter.

Caution! Extracting pipe is not included with the appliance, it needs to be purchased separately.

In the horizontal section, the pipe must have slight upward inclination (approx. 10° ), to facilitate air outflow. If the cooker hood is equipped with charcoal filters, they must be removed.

Connect the cooker hood to the ventilation duct with an extraction pipe of diameter matching the size of the cooker hood's outlet (joint flange).

Usage of pipes with smaller diameter will decrease suction capacity and significantly increase cooker hood's noise level. Manufacturer cannot be held liable for this condition.

Use the shortest possible ducting.

Use ducting with as few bends as possible (maximum bend radius: 90°).

Avoid ducting with significant changes of diameter.

Use ducting with internal surface as smooth as possible.

Ducting must be made of material compliant with all applicable standards.

Cooker hood operating as an absorber

You must install a charcoal filter in order to use the appliance in this variant. You can buy a charcoal filter from the manufacturer or from an authorized service agent. Sucked air is cleaned of grease and odors and is directed back into the room through grills in the upper part of the hood.

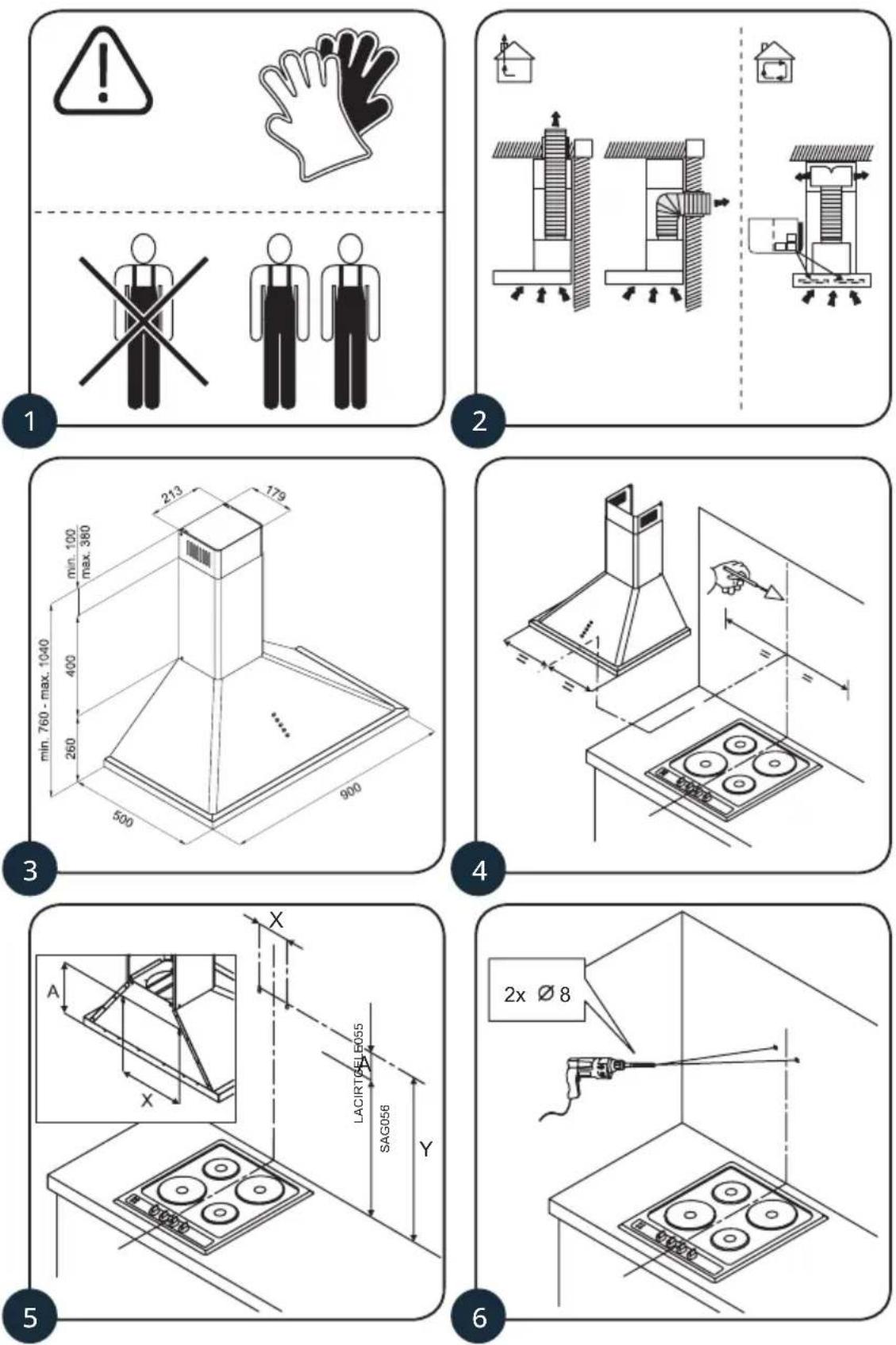

Cooker hood installation

Minimum distance between the surface of the heating device, where the dishes are placed, and the lowest part of the cooker hood must be no less than 55 cm for electric cookers and not less than 65 cm for gas or hybrid cookers.

If gas cooker installation instructions recommend a larger distance, comply with these instructions.

Mains supply connection

Mains supply voltage must match the voltage on the data plate located on the inside of the cooker hood. Cooker hood is equipped with a plug, which needs to be connected to the electrical connection socket compliant with current standards and located in an easily accessible place, also after installation is finished. Caution! Before you reconnect the cooker hood to the mains supply to check if it functions properly, ensure that the power cable is mounted correctly. Cooker hood comes with a special power cable. If the power cable is damaged, it must be replaced at an authorized service agent or at the cooker hood supplier's.

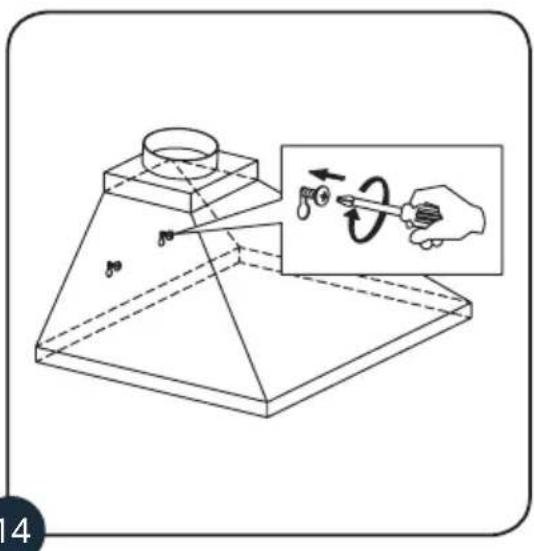

Cooker hood installation

Cooker hood is equipped with fixing anchors appropriate for standard walls and ceilings. It is necessary, however, to seek expert advice from a qualified technician, to make sure that the used materials are suitable for a particular type of wall or ceiling. Wall or ceiling must be strong enough to carry the weight of the cooker hood.

Cooker hood operation

If the air in the kitchen is contaminated, you should use the cooker hood at the highest speed setting. It is recommended to switch on the cooker hood 5 minutes before starting cooking and leave it running for approx. 15 minutes after cooking is finished.

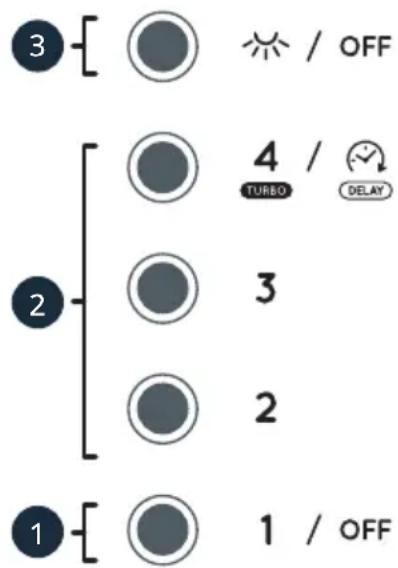

1. On/off switch

Pressing this button when the cooker hood is switched off will put it at speed 1. Pressing this button when the cooker hood is operating will switch off the engine.

2. Speed increase

Pressing this button (when the cooker hood is on) increases the engine's speed from speed 1 to a higher speed level. Available speeds:

Button 2: speed 2

Button 3: speed 3

Button 4: intensive speed. Keeping the button pressed for a few seconds activates switch-off delay (15 minutes delay).

3. Light on/off switch

Pressing this button when the cooker hood is switched off will put it at speed 1. Pressing this button when the cooker hood is operating will switch off the engine.

Maintenance

Caution! Before starting any cleaning or maintenance work, the appliance must be disconnected from the mains electricity supply, by unplugging the power cable or switching off the main power switch.

Cleaning the cooker hood

Cooker hood must be cleaned frequently, both inside and outside (at least with the same frequency as for cleaning grease filters), using a cloth with a mild cleaning agent. Do not use abrasives.

DO NOT CLEAN WITH ALCOHOL!

Caution: Failure to comply with the rules concerning cleaning the appliance and changing filters can cause fire hazard. Therefore it is recommended to follow the instructions. The manufacturer shall not be liable for potential damage to the engine or for fire caused by failure to comply with the maintenance rules and instructions listed above.

Grease filter

Filters grease particles released during cooking.

Must be cleaned at least once a month (or when the filter saturation indicator – if your cooker is equipped with such an indicator – informs about the need to replace it), with a non-aggressive cleaner, by hand or in a dishwasher at a low temperature and in a short washing cycle. When cleaned in a dishwasher, metal grease filter may become discolored, but its functioning will not be affected. In order to remove grease filter, you need to pull the spring handle.

Charcoal filter

Charcoal filter can be used only, when the cooker hood is not connected to ventilation duct. Charcoal filter is capable of absorbing odors until it is fully saturated. It cannot be washed or regenerated and must be replaced at least once every 4 months or more frequently if used intensively.

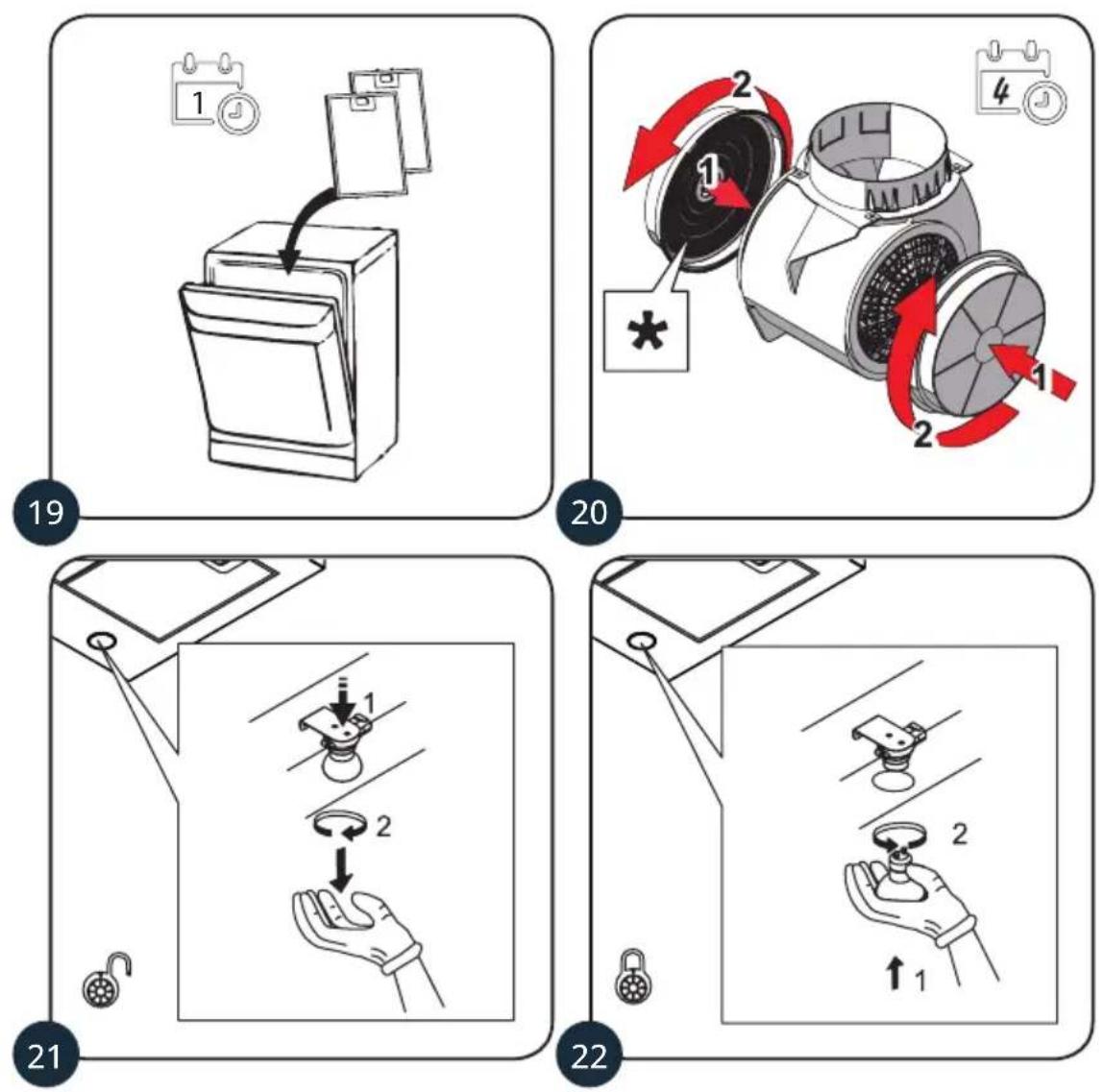

Replacement of charcoal filter has been shown in Figure 18

Lighting replacement

Lighting installation consists of two LED bulbs, 3 W each.

Replacement of lighting has been shown in Fig. 21-22. If the lighting does not work, one has to check first if LEDs have been properly installed. If, after the check, lighting still does not work, contact an authorized service agent.

CAUTION: Do not touch demounted LED bulb with bare hands.
