VE-90BGAWH - Range hood VESTFROST - Free user manual and instructions

Product Type	Range Hood
Brand	Vestfrost
Model	VE-90BGAWH
Width	90 cm
Mounting Type	Wall-mounted
Finish	Stainless Steel & White Glass
Controls	Slider / Touch Control
Number of Speeds	3
Max. Extraction Rate	600 m³/h
Noise Level (max)	62 dB(A)
Lighting	1 x 2W LED
Filter Type	Aluminum Grease Filter
Filter Cleaning	Dishwasher Safe
Ducting Diameter	150 mm
Recirculation Option	Yes (Carbon Filter Sold Separately)
Energy Class	A
Annual Energy Consumption	45 kWh
Voltage	220-240 V
Frequency	50/60 Hz
Motor Power	150 W
Dimensions (W x D x H)	90 x 50 x 60 cm
Net Weight	14 kg

Frequently Asked Questions - VE-90BGAWH VESTFROST

How do I install the Vestfrost VE-90BGAWH range hood?

Installation should be done by a qualified professional. The hood must be mounted at a minimum height of 65 cm above electric hobs and 75 cm above gas hobs. Ensure the wall can support the weight and follow the provided template for drilling.

Can the VE-90BGAWH be used in recirculation mode?

Yes, it can be used as a recirculation hood. You need to purchase and install a carbon filter (activated charcoal) to absorb odors. The carbon filter is not included and must be replaced periodically.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months, or more frequently with heavy use. It is dishwasher safe. Remove the filter and wash it in the dishwasher or by hand with mild detergent.

How do I replace the LED light?

The LED light is integrated and should be replaced by a qualified technician. If the light fails, contact Vestfrost customer service or an authorized service center for assistance.

Why is the range hood noisy?

Noise can be due to improper installation, loose parts, or a clogged filter. Check that the hood is securely mounted and that the grease filter is clean. Operating at maximum speed will also increase noise levels.

Can I use the hood without the carbon filter?

Yes, when venting to the outside (ducting mode), the carbon filter is not required. The hood works efficiently with just the aluminum grease filter. Only use the carbon filter in recirculation mode.

What are the dimensions of the VE-90BGAWH?

The dimensions are approximately 90 cm (width) x 50 cm (depth) x 60 cm (height). The ducting outlet diameter is 150 mm. Always measure your space before installation.

How do I control the fan speed?

The hood has three speed settings controlled by a slider switch. Slide to the desired position: low (1), medium (2), or high (3). Adjust based on cooking intensity.

Does the hood come with a warranty?

Yes, Vestfrost offers a standard 2-year warranty for the VE-90BGAWH. Warranty covers manufacturing defects but does not cover normal wear, misuse, or damage from improper installation. Keep your receipt.

Where can I find the user manual?

The user manual is available for free download in PDF format from notice-facile.com. You can also request a translated version by providing your language preference and email.

USER MANUAL VE-90BGAWH VESTFROST

VE-60 BGABK VE-60 BGAWH

VE-90 BGABK VE-90 BGAWH

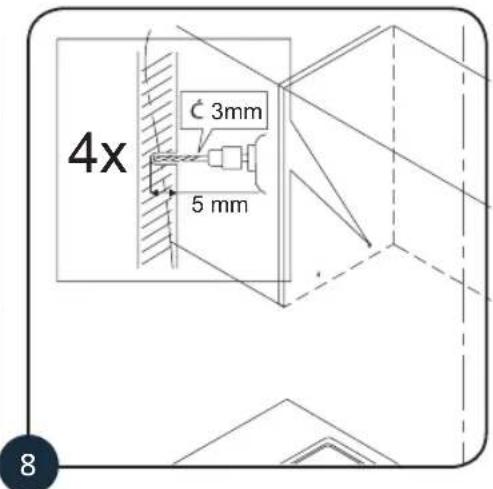

MONTAŻ | INSTALLATION

14

13

图

15
16

17

vestfrost

VE-60 BGABK VE-60 BGAWH

VE-90 BGABK VE-90 BGAWH

EN Cooker hood | Operating and installation instructions .... 6

Thank you for the trust you have placed in us by buying the Vestfrost product.

In order to enjoy our product for a long time, please read this instruction manual. We have included all the information needed for proper installation and operation of the appliance, as well as contact data of our service center.

We wish you a pleasant experience.

Below, you will find the definitions of symbols used in this instruction manual:

SymbolZnaczenie

	Important information concerning user safety and proper operation
	Information concerning environmental protection
[WZBX]	Cooker hood operating as an extractor
[KC07]	Cooker hood operating as an absorber
[SHCA]	Cooker hood should be used only after reading through this instruction manual

PL EN

Appliance installation should be carried out according to the instructions provided in this manual. The manufacturer cannot be held liable for any damage resulting from installation not compliant with the instructions provided in this manual. Cooker hood has been designed for home use exclusively. The actual cooker hood may look different than the one depicted in illustrations in this manual, but all instructions concerning its operation, maintenance and installation remain valid.

You should keep this instruction manual, so that you can refer to it at any time when needed. If the appliance is sold or changes owners due to move, make sure the instruction manual is attached to it.

You should read this instruction manual carefully, as it provides detailed information on installation, use and maintenance of the appliance.

Making any electrical or mechanical changes to the appliance or extraction ducts is prohibited.

Notice: Elements tagged with the “(*)” symbol are included with selected models only, in other cases they must be purchased separately.

Warnings

• Caution! Do not connect the device to the mains power supply before completing the installation.
• Before starting any cleaning or maintenance work, the appliance must be disconnected from the mains electricity supply by unplugging the power cable or switching off the main power switch.
• All installation and maintenance works must be carried out in protective gloves.
• This appliance can be used by children at least 8 years old and by persons with compromised physical or intellectual ability and persons with no experience or knowledge of the appliance, as long as relevant supervision and training in safe use of the appliance are provided, so that all related hazards are fully understood.
  • Children must not play with the appliance.
• Unsupervised children should not clean the equipment or carry out any maintenance works.
• Never use the cooker hood without properly installed filters!
• Cooker hood must NEVER be used as a support surface, unless such possibility is explicitly stated. The room in which the cooker hood is used together with other devices using gas or other types of fuel must have proper ventilation.

• Sucked air should not be ducted into a flue used by other gas-burning or fuel-burning devices. It is strictly prohibited to prepare meals under the hood using open flame (flambé).

• Use of open flame is dangerous to filters and creates the risk of fire, therefore open flame must not be used under any circumstances. Use caution when frying, do not overheat oil, as it may lead to its self-ignition. Device's parts can become extremely hot when used together with cooking devices.

• Any technical and safety measures taken, related to extraction ducting, must be fully compliant with the respective regulations issued by relevant local authorities.
• Cooker hood must be cleaned both outside and inside (AT LEAST ONCE A MONTH, in accordance with maintenance instructions provided in this manual).
• Failure to comply with the rules concerning cleaning the cooker hood and replacing and cleaning the filters causes fire hazard.
  • To avoid the risk of electric shock, do not use the cooker hood without properly installed bulbs. The manufacturer accepts no liability for any damage or fire caused by the appliance resulting from failure to observe the instructions contained in this manual.

This appliance is marked in accordance with the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

By ensuring proper scrapping of this device, you contribute to decreasing the risk of negative impact of the product on the environment and human health, which could arise as a result of improper scrapping of the device.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

PL EN

Operations

The appliance can be used as an extractor (extraction of vapors) or as an absorber (vapors are filtered and directed back into the room). Cooker hood models without engine operate exclusively as an extractor and must be connected to an external engine (not included). Relevant connection instructions are provided with the external engine

Cooker hood operating as an extractor

Vapors are extracted through an extraction pipe mounted on the joint flange.

Extraction pipe's diameter must be equal to joint flange's diameter.

Caution! Extracting pipe is not included with the appliance, it needs to be purchased separately.

In the horizontal section, the pipe must have slight upward inclination (approx. 10° ), to facilitate air outflow. If the cooker hood is equipped with charcoal filters, they must be removed.

Connect the cooker hood to the ventilation duct with an extraction pipe of diameter matching the size of the cooker hood's outlet (joint flange).

Usage of pipes with smaller diameter will decrease suction capacity and significantly increase cooker hood's noise level. Manufacturer cannot be held liable for this condition.

Use the shortest possible ducting.

Use ducting with as few bends as possible (maximum bend radius: 90° ).

Avoid ducting with significant changes of diameter.

Use ducting with internal surface as smooth as possible.

Ducting must be made of material compliant with all applicable standards.

Cooker hood operating as an absorber

You must install a charcoal filter in order to use the appliance in this variant. You can buy a charcoal filter from the manufacturer or from an authorized service agent. Sucked air is cleaned of grease and odors and is directed back into the room through grills in the upper part of the hood.

Cooker hood installation

Minimum distance between the surface of the heating device, where the dishes are placed, and the lowest part of the cooker hood must be no less than 55 cm for electric cookers and not less than 65 cm for gas or hybrid cookers.

If gas cooker installation instructions recommend a larger distance, comply with these instructions.

Cooker hood ceilings. It is necessary, however, to seek expert advice from a qualified technician, to make sure that the used materials are suitable for a particular type of wall or ceiling. is equipped with fixing anchors appropriate for standard walls and Wall or ceiling must be strong enough to carry the weight of the cooker hood.

Mains supply connection

Mains supply voltage must match the voltage on the data plate located on the inside of the cooker hood. Cooker hood is equipped with a plug, which needs to be connected to the electrical connection socket compliant with current standards and located in an easily accessible place, also after installation is finished. Caution! Before you reconnect the cooker hood to the mains supply to check if it functions properly, ensure that the power cable is mounted correctly. Cooker hood comes with a special power cable. If the power cable is damaged, it must be replaced at an authorized service agent or at the cooker hood supplier's.

Cooker hood operation

If the air in the kitchen is contaminated, you should use the cooker hood at the highest speed setting. It is recommended to switch on the cooker hood 5 minutes before starting cooking and leave it running for approx. 15 minutes after cooking is finished.

Controlling

When the air in the kitchen is highly polluted, the hood should be set at the highest speed. It is recommended to switch on the hood 5 minutes before cooking and leave it operating for about 15 minutes after the end of cooking. The innovative system of controlling by gesture enables entirely touch-free gesture control only by hand movements.

To switch the hood on, it is necessary to swipe your hand horizontally from left to right. In the same way, the user changes the speed mode to a higher one. Speed 4 is a boost mode, after 5 minutes of operating in the boost mode, speed will be reduced to gear 3.

To switch the hood off or to change the speed mode to a lower one, swipe your hand from right to left. To switch the light on or off, hold your hand for about 2 seconds under the sensor.

PLEN

1. • Speed decrease
2. • Speed Increase
3. ON/OFF lights
4. Timer

Changing the color of lighting

To adjust the light temperature (warm/cold), press and hold down the button (5) or (6) on the remote control

Gear 1: The diode light is green

Gear 2: The diode light is blue

Gear 3: The diode light is pink

Gear 4: The diode light is red

Speed 4 is a boost mode, after 5 minutes of operating in the boost mode, speed will be reduced to gear 3.

Timer - select speed using arrows 1 or 2 on remote and press Timer (6) button for about 2 seconds. Automatic turning off the hood will take place within 10 minutes.

Maintenance

Caution! Before starting any cleaning or maintenance work, the appliance must be disconnected from the mains electricity supply, by unplugging the power cable or switching of the main power switch.

Cleaning the cooker hood

Cooker hood must be cleaned frequently, both inside and outside (at least with the same frequency as for cleaning grease liters), using a cloth with a mild cleaning agent. Do not use abrasives.

DO NOT CLEAN WITH ALCOHOL!

Caution: Failure to comply with the rules concerning cleaning the appliance and changing liters can cause re hazard. Therefore it is recommended to follow the instructions. The manufacturer shall not be liable for potential damage to the engine or for re caused by failure to comply with the maintenance rules and instructions listed above.

Grease Iter

Filters grease particles released during cooking.

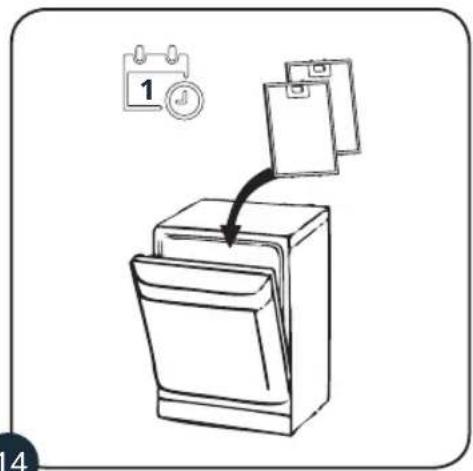

Must be cleaned at least once a month (or when the – liter saturation indicator – if your cooker is equipped with such an indicator – informs about the need to replace it), with a non-aggressive cleaner, by hand or in a dishwasher at a low temperature and in a short washing cycle. When cleaned in a dishwasher, metal grease – liter may become discolored, but its functioning will not be a ‘ected. In order to remove grease – liter, you need to pull the spring handle.

Charcoal lter

Charcoal lter can be used only, when the cooker hood is not connected to ventilation duct. Charcoal lter is capable of absorbing odors until it is fully saturated. It cannot be washed or regenerated and must be replaced at least once every 4 months or more frequently if used intensively.

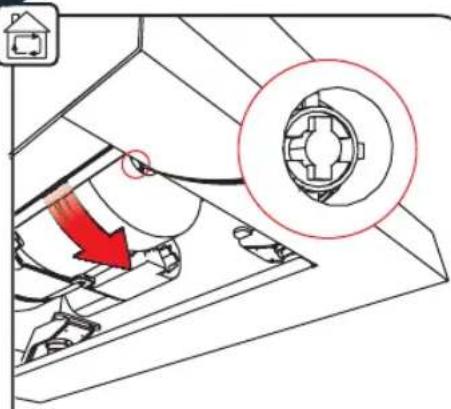

Replacement of charcoal iter has been shown in Figure 16.

Lighting replacement

Lighting installation it's one LED panel. If the lighting does not work, to check first if LEDs have been properly installed. If, after the check, lighting still does not work, contact an authorized service agent.
