USER MANUAL HT-800C HONEYWELL

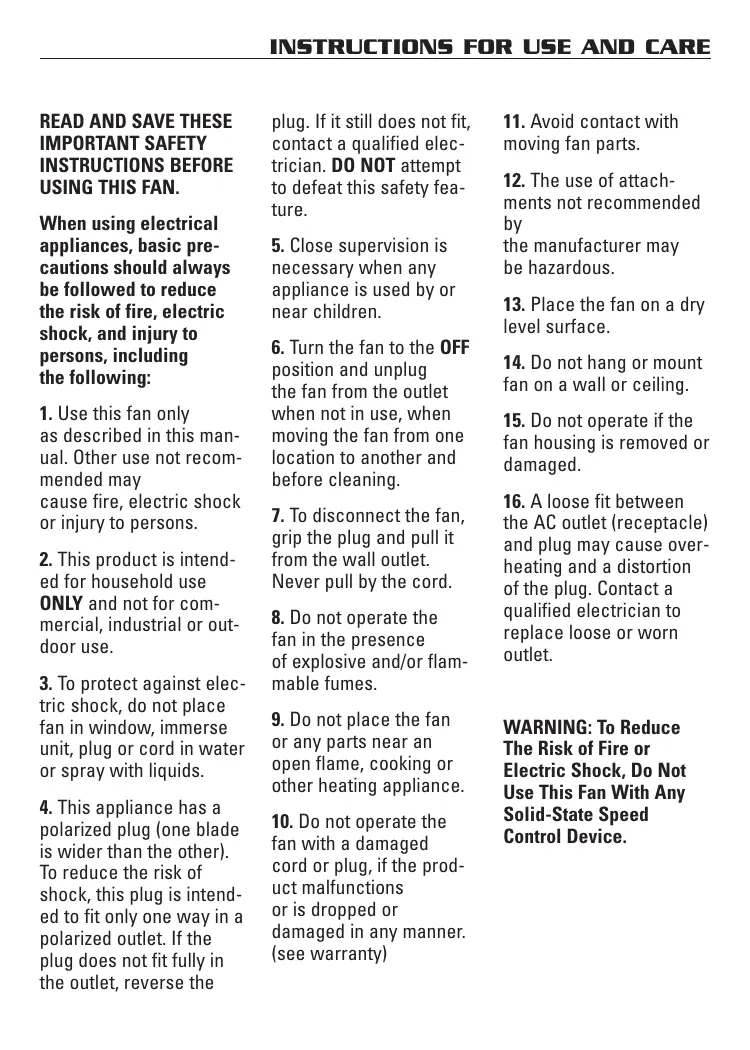

INSTRUCTIONS FOR USE AND CARE

READ AND SAVE THESE

IMPORTANT SAFETY INSTRUCTIONS BEFORE USING THIS FAN. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Use this fan only

as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.

2. This product is intended for household use

ONLY and not for commercial, industrial or outdoor use.

3. To protect against electric shock, do not place

fan in window, immerse unit, plug or cord in water or spray with liquids.

4. This appliance has a

polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

5. Close supervision is

necessary when any appliance is used by or near children.

6. Turn the fan to the OFF

position and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.

7. To disconnect the fan,

grip the plug and pull it from the wall outlet. Never pull by the cord.

8. Do not operate the

fan in the presence of explosive and/or flammable fumes.

9. Do not place the fan

or any parts near an open flame, cooking or other heating appliance.

10. Do not operate the

fan with a damaged cord or plug, if the product malfunctions or is dropped or damaged in any manner. (see warranty)

11. Avoid contact with

12. The use of attachments not recommended

the manufacturer may be hazardous.

13. Place the fan on a dry

14. Do not hang or mount

fan on a wall or ceiling.

15. Do not operate if the

fan housing is removed or damaged.

16. A loose fit between

the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

WARNING: To Reduce

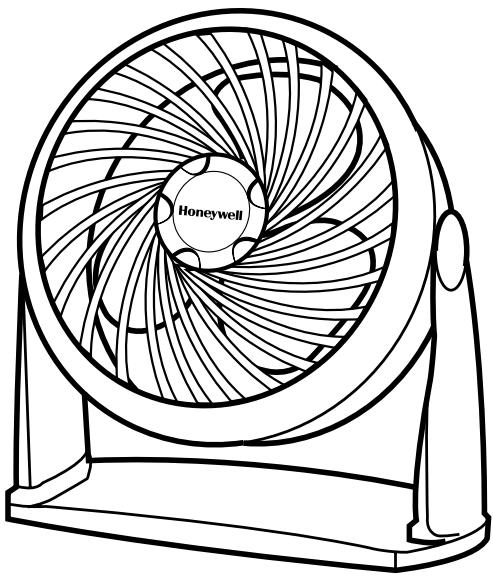

The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device. INTRODUCTION The Super Turbo™ High Performance Fan was aerodynamically designed to give you the versatility of changing this fan's angular direction simply by adjusting the fan to ANY desired angular output (Fig.1). Upon using this fan, you will feel the strong and powerful air stream that will quickly move air in order to cool an area rapidly and efficiently. Fig. 1 Fig. 2 OPERATION

• Place your fan on a level and dry surface.
• Plug the power cord into a polarized 120 volt AC wall outlet.
• To operate your Super Turbo Fan, turn the con- trol knob to the desired fan speed: HIGH (III), MEDIUM (II) or LOW (I).
• Adjust the fan to the desired angular air output direction.

• To move the fan, turn the fan OFF and pick it up by the concealed handle that is located on the outside rim of the fan (Fig. 2). WALL MOUNTING
• Locate and mark the position on the wall where the fan will be mounted (preferably at a wall stud).
• Insert a #8 screw (bolt) into the wall stud. The screw is not included and can be purchased at a hardware store.
• Leave approximately 3/8” of the screw (bolt) exposed.

• Line up the opening on the base of the fan with the screw (bolt) and hang the fan on the wall.

CLEANING AND STORAGE

• Turn off and unplug the fan before cleaning.
• This fan does not disassemble.
• Use only a soft cloth or cotton swab to gently wipe the fan clean.

• DO NOT immerse the fan in water and never allow water to drip into the motor housing.

• For storage, clean the fan carefully as instructed and store your fan in a cool, dry place.

• DO NOT use gasoline, paint thinner or other chemicals to clean the fan. ELECTRICAL RATINGS 120 Volts AC, 0.52 Amps , 60 Hz.

NOTE: IF YOU EXPERIENCE

A PROBLEM, PLEASE

RETURN THE FAN TO THE

ORIGINAL PLACE OF

PURCHASE OR SEE YOUR

WARRANTY. DO NOT

ATTEMPT TO OPEN THE

MOTOR HOUSING YOURSELF. DOING SO MAY VOID

YOUR WARRANTY AND

CAUSE DAMAGE TO THE

FAN OR PERSONAL

INJURY. IF YOU HAVE ANY QUESTIONS REGARDING THIS

FAN, PLEASE CALL OR

WRITE: Mail questions or comments to: Consumer Relations Dept. 250 Turnpike Road Southborough, MA 01772 Please be sure to specify model number. TOLL FREE: 1-800-332-1110 Thank you for purchasing a Honeywell fan. Please visit us at www.honeywell.com

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product. The enclosed Customer Response card should be filled out and returned within 7 days of purchase. A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. HONEYWELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES

OF ANY NATURE. ANY

IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS

PRODUCT IS LIMITED

IN DURATION TO THE

DURATION OF THIS

WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase. B. At its option, Honeywell will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Honeywell. ©1999 All rights reserved. Honeywell Inc. P/N 035-00365-000 Rev.1 artwork 043-50092-000 C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual. D. Return defective product to Honeywell Consumer Products with a brief description of the problem. Include proof of purchase and a $10 US/$14.70 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to: Honeywell Attn: Returns Department 4755 Southpoint Drive Memphis, TN 38118 USA F1053.99 10/99 GUIDE D'UTILISATION ©1999 All rights reserved. Honeywell Inc. P/N 035-00365-000 Rev.1 artwork 043-50092-000 F1053.99 10/99 HONEYWELL CONSUMER PRODUCTS BUSINESS Consumer Relations Dept. 250 Turnpike Road Southborough, MA 01772 USA
