Product type	Electric moped
Brand	Cecotec
Model	Halo (Blue/Orange)
Intended use	Daily urban commuting
Motor	500 W brushless electric motor
Maximum speed	45 km/h depending on driving mode
Range	Up to 45 km under ideal conditions
Battery	Lithium-ion 48 V / 20 Ah, removable
Charging time	Approximately 6 to 8 hours
Display	LCD screen with speed, battery and mode indicators
Driving modes	Mode selection (eco, urban, sport)
Remote control	With intelligent locking function
Safety	Electronic anti-theft device lockable remotely
Lighting	Integrated front, rear lights and turn signals
Tires	Tubeless tires
Brakes	Front and rear disc brakes
Suspension	Front and rear shock absorbers
Maximum load	120 kg (rider and cargo)
Vehicle weight	70 kg with battery
Dimensions (L × W × H)	170 × 70 × 110 cm
Seat height	75 cm
Maintenance	Periodic check of tires, brakes and tightening
Cleaning	Damp cloth, avoid high-pressure cleaners
Spare parts	Available from Cecotec technical support
Warranty	2 years according to applicable legislation

Frequently Asked Questions - Cecotec Halo Azulnaranja CECOTEC

What is the range of the Cecotec Halo?

The range is approximately 45 km under ideal conditions. It depends on your riding style, terrain, and temperature.

How do I charge the battery?

Remove the battery from the compartment, plug the charger into a standard outlet, then connect it to the battery. Charging time is approximately 6 to 8 hours.

Can I use the Cecotec Halo in the rain?

It is not advisable to ride in heavy rain to avoid any electrical risk. Consult the manual for specific precautions.

How does the intelligent locking work?

The remote control allows you to lock and unlock the vehicle remotely and activates the integrated electronic anti-theft system.

What is the maximum speed?

The maximum speed is approximately 45 km/h depending on the selected driving mode and applicable local legislation.

How do I maintain the brakes?

Regularly check brake pad wear and cable tension. For complete maintenance, contact a Cecotec approved workshop.

Is the battery removable?

Yes, the battery is removable. You can remove it to recharge indoors or to make it easier to store the vehicle.

What type of tires is recommended?

Use tires of the size specified in the manual with the recommended pressure. Tubeless tires are generally recommended.

What to do in case of a breakdown?

Consult the troubleshooting section in the manual. If necessary, contact Cecotec technical support for professional assistance.

Is it necessary to wear a helmet?

Yes, wearing a helmet is mandatory for your safety and in accordance with applicable regulations for electric mopeds.

USER MANUAL Cecotec Halo Azulnaranja CECOTEC

CECOTEC HALO (SILVER/GREEN)

CECOTEC HALO (BLUE/ORANGE)

1. Parts and components 43

1.1.General components 43
1.2. Panel (display) 44

1. Vehicle identification 47

2. Safety 48

3.1 General security code 48
3.2.General warnings 49

1. Before use 50
2. Protective equipment and clothing 51
3. Operation 52

6.1. Remote control 52
6.2. Use of the smart lock 53
6.3. Left lever controllers 54
6.4. Riding modes 54
6.5. Right lever controllers 55

1. Lighting 56

2. Seat: opening and closing 56

3. Side kickstand 56

4. Battery 56

10.1. Battery removal 56
10.2. Connector 57
10.3. Charging the battery 59
10.4. Battery storage, maintenance and transport 60
10.5. Battery use, precautions 62

1. Emergencies 64

11.1. First aid and self help 64
11.2. Fire safety measures 64

1. Cleaning and maintenance 65

12.1. Cleaning 65
12.2.User maintenance 65
12.3. Maintenance at repair shop 67
12.4. Troubleshooting 69

1. Technical specifications 70
2. Disposal of old electrical and electronic appliances 72
3. Technical support and warranty 72
4. Copyright 73

ÍNDEX

1. Peces i components 76

1.1.Components generals 76
1.2. Panell d'instruments (Pantalla) 77

EN • The coding in this manual is generic and applies to all code variants of the appliance.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

1. PIEZAS Y COMPONENTES

1.1. Componentes generales

Figura 1. Vista lateral del scooter

Leyenda figura 1

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

4. ANTES DE USAR

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

Figura 6. Control remoto

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

7. ILUMINACIÓN

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ESPAÑOL

Thank you for choosing the Cecotec HALO model for your electric mobility!

Let's explore this instruction manual, designed to familiarise you with your electric vehicle and help you get the most out of its features during your daily commute.

Here you will find not only instructions on how to operate the vehicle, but also useful tips for operation and maintenance, all with the aim of ensuring your safety and preserving the value of your investment. In addition, we provide you with valuable tips for efficient and environmentally friendly riding.

Cecotec wants your experience to be rewarding and every journey to be full of exciting and safe moments. Happy riding!

cecòtec

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

We recommend that you read this manual thoroughly, focusing especially on the safety instructions. Here you will find all relevant information on how to use your vehicle optimally.

It is important to note that the information provided in this manual reflects the most recent version of the HALO model available at the time of publication or printing. Cecotec reserves the right to make changes at any time so we recommend that you always check the most up to date version of this manual which can be found on our website or by scanning the QR code provided in this manual. You can also access this manual in other languages by scanning the QR code. In case of discrepancies between the translated versions and this manual, the information in Spanish shall prevail. No part of this manual may be reproduced in any form without written permission from Cecotec.

The figures in this manual may show optional accessories fitted (which are not included as standard), as well as items that may differ in colour from the actual colour.

ENGLISH

1. PARTS AND COMPONENTS

1.1. General components

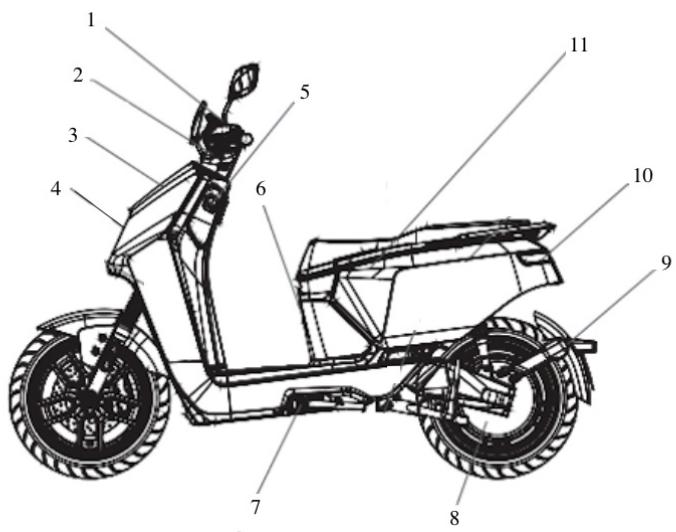

Fig. 1. Side view of the vehicle

Fig. 1 key

1. Panel (display)
2. Front indicators
3. Side protection
4. Headlight
5. USB charger
6. Charging port
7. Side kickstand
8. Motor
9. Number-plate light
10. Tail light
11. Battery

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

1.2. Panel (display)

Fig. 2. Panel (display)

1	Speedometer	Real-time display of current speed
2	Motor consumption	Real-time motor consumption indicator
3	Mileage	Displays the total mileage and the single trip mileage
4	Battery capacity	Real-time display of the remaining autonomy of both batteries
5	Mode	Displays the different riding modes
6	Temperature	Displays the current room temperature
7	Clock	Displays the current time
		Left indicator

ENGLISH

		Right indicator
		Low beam headlights and automatic headlights
		High beam headlights
		Daylight running lights
		Parking status
		Riding status
		Side kickstand
		Open seat
		Low battery
		Charging

ENGLISH

		Motor fault
		Fault codes
		Cruise control
		Location
		OTA update status
		Bluetooth connection
		Networking

ENGLISH

2. VEHICLE IDENTIFICATION

The VIN number is used to identify the vehicle, as well as for ordering spare parts.

Fig. 3. VIN number

In addition, the vehicle also has an information label which includes data such as the maximum permissible mass, the chassis number or the revolutions per minute of the electric motor.

Fig. 4. Information label

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

In addition, on the rear wheel where the electric motor is located, there is the electric motor nameplate.

Fig. 5. Electric motor nameplate

3. SAFETY

3.1 General security code

1. The driver of the vehicle must have the appropriate driving licence to ride this vehicle. The vehicle must not be driven without a driving licence.
2. The correct use of helmets is basic and compulsory for both drivers and passengers. It must be approved, in good condition and correctly fastened.

ENGLISH

1. The use of eye protection, either the helmet shield itself or suitable goggles, is recommended.
2. Do not drink alcohol or take drugs before driving: your reflexes will be reduced and so will your ability to avoid unexpected events. Do not let others drive in this situation either.
3. It is your responsibility to inspect and maintain your vehicle before riding it, following the instructions in this manual (see section 12. "Cleaning and maintenance"). Inadequate or no maintenance implies a risk factor.
4. Please read section 4. "Before use" carefully for detailed instructions. Compliance with these guidelines ensures the safety of you and your passengers while riding the vehicle.
5. Do not exceed the maximum load weight specified for your vehicle (see section 13. "Technical specifications"). Excess load weight can affect vehicle stability and control, increasing the risk of accidents.
6. Distribute the load weight evenly and ensure that it is securely fastened.
7. If you are taking medication that may affect your motor skills or ability to react, avoid riding the vehicle. Consult your doctor about the possible side effects of any medication before driving.

3.2. General warnings

3.2.1. Brakes

• If brake fluid comes into contact with the skin, wash the affected area immediately with water.
• If brake fluid comes into contact with the eyes, flush with water and seek medical attention quickly.
• Brake fluid can damage vehicle paintwork and plastic parts in the event of accidental spillage. Brake fluid can cause damage and injury if not handled properly and safely.
• If you find excessive wobbly movements in the brake lever, but the brake pads are still in good condition, please contact the official Cecotec Technical Support Service as soon as possible to have them checked. Excessive wobbly movements refer to the extra or unusual movement you may feel in the brake lever before the brakes actually start to work.

3.2.2. Using the vehicle

• Regular use shall be defined as use at least once a week for a minimum period of 10 hours. If the vehicle is not to be used in this way, it should be left fully charged if it is to be stationary for a prolonged period of time.
• A full charge should be performed every 30 days to ensure proper battery performance and maintain battery life. Failure to follow this guideline may affect the legal guarantee of the vehicle.
• The instructions given in this instruction manual have been drawn up for strictly urban use. When conditions of use differ, stricter and more frequent maintenance will have to be carried out.

ENGLISH

• If the vehicle is affected by an accident, contact the official Cecotec Technical Support Service. They will carry out the necessary inspection and assessment to determine the condition of the vehicle.
• Always follow the instructions and recommendations provided in the manual, failure to do so could result in a serious accident.
• Make use of the instruction manual at all times and ensure that you understand all the information contained therein.
• As indicated in this instruction manual, to carry out any maintenance, cleaning or repair task on the vehicle, you must ensure that it is switched off and that the keys are removed to avoid an accident caused by any moving part of the vehicle.
• Some of the vehicle's parts such as the motor, brakes and battery can become very hot, so avoid coming into contact with these parts.
• If the battery exceeds 60 °C, the vehicle will stop automatically to prevent damage to its components.

3.2.3. Connector

Do not allow the charger connector to come into contact with any liquid under any circumstances.

3.2.4. Load (weight)

Never exceed the maximum permissible load weight of the vehicle and position it as centered as possible in a balanced way (see section 13. "Technical specifications").

3.2.5. Battery

For warnings related to the use of the battery, please refer to the section: 10.4. "Battery use, precautions".

3.2.6. Spare parts

Original Cecotec parts and spare parts must always be used. The use of spare or replacement parts which are not compatible with the vehicle may affect the safety and service life of the vehicle itself.

4. BEFORE USE

Be sure to check the following items before riding your vehicle, which will ensure your safety on the road. Riders should ensure that the vehicle is in good condition. Any component of the vehicle may be damaged if exposed to long-term storage. If exposed to adverse weather conditions for a long period of time, it may cause rusting of the brake system or a decrease in tyre pressure, which seriously affects the overall performance of the vehicle. In addition to a simple surface inspection, the following checks must be carried out before use:

ENGLISH

1) The power supply circuit, check the battery cable, and the lighting circuit, by checking if all lights switch on.
2) Condition of handlebars, front and rear wheels.
3) Tyre pressure (as indicated in section 13. "Technical specifications"). Riding the vehicle with tyre pressures other than those specified or excessive tyre wear can lead to an accident or damage to the vehicle itself. If necessary, make adjustments.
4) If the reflector is damaged or dirty.
5) Check if the battery needs to be charged.
6) Check the brake operating system, if you feel that the brakes are too soft, you should go to the authorised dealer for an inspection.
7) Check the state of wear of the brake pads and never reach their limit.
8) Check the brake fluid level.
9) Check the operational status of lights, turn signals, indicator lights and horn. If necessary, make adjustments.
10) Check the state of wear of the tyres and that the tread depth is sufficient (greater than 1.6 millimetres).
11) Check if the throttle grip turns smoothly and if the return is normal.
12) Check if the steering rotation is normal.
13) Check whether the kickstand can be opened and retracted without any problems.
14) Respect the maximum load weight of the vehicle (indicated in section 13. "Technical specifications").
15) Ensure that the load weight is correctly and firmly secured and that no loose objects are left behind.

If any of the above mentioned elements are not in a good condition and you cannot repair them, please contact the official Cecotec Technical Support Service.

5. PROTECTIVE EQUIPMENT AND CLOTHING

1. Always wear a helmet: it is essential and compulsory for both the driver and passenger to wear helmets. Ensure that it is in good condition, properly fastened and approved. Wearing a helmet significantly reduces the risk and severity of head injuries. Full-face helmets are preferable to open-face helmets, in light colours or with reflective elements, and which fit properly.
2. Protect your eyes: always wear some form of eye protection, either a helmet shield or suitable goggles.
3. Appropriate clothing: opt for brightly coloured or reflective, close-fitting and appropriately sized clothing to ensure better visibility and safety on the road.
4. Protective gloves: wear suitable gloves to protect your hands from abrasions, cuts and bruises.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

1. Proper footwear: footwear should fit properly, have a low heel and protect the ankles to provide better stability and protection while driving.

6. OPERATION

6.1. Remote control

The vehicle's remote control allows you to manage key functions such as locking and unlocking the vehicle and switching it on and off, all conveniently and safely. By pressing the corresponding buttons, the vehicle can be secured, prepared for riding or the power supply can be switched off without the use of physical keys.

Fig. 6. Remote control

1. Lock: when the vehicle is stationary, press this button, the vehicle's front and rear indicators will flash once, entering the locked state.
2. Unlock: press this button, the vehicle's front and rear indicators will flash once, entering the unlocked state.
3. Ignition: press this button twice in succession within two seconds, the vehicle enters the ignition state.

ENGLISH

ATTENTION: PLEASE DO NOT PRESS ANY OF THESE BUTTONS WHILE RIDING, AS A SUDDEN POWER FAILURE OF THE VEHICLE MAY CAUSE A HAZARD.

6.2. Use of the smart lock

Fig. 7. Smart lock

1. When the vehicle is stationary, turn the handlebars to the far left, push in the smart lock, and turn counterclockwise at the same time from OFF to LOCK. This will lock the handlebars and immobilise the vehicle. Then, push in again and turn clockwise to return to the OFF position, the vehicle is now unlocked.
2. Turn clockwise from the OFF position to the SEAT position. If you hear a "click" sound, it means that the seat is open. Meanwhile, the smart lock will automatically return to the OFF position.
3. Turn the smart lock clockwise from the OFF position, to the 🔒 position, the vehicle will enter the ignition state. Then, turn counterclockwise, to return to the OFF position.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

6.3. Left lever controllers

Fig. 8. Left lever controllers

① High beam headlights/Low beam headlights switch: move up to turn on the high beam headlight, move down to switch to low beam headlights.
② Left/right indicators: move to the left to activate the left indicator, move to the right to activate the right indicator. Return to the middle position to deactivate the indicators.
③ Horn button: press and hold to sound the horn, release to turn it off.
④ Cruise control button: press to activate cruise control at the current speed, press again to deactivate it.

6.4. Riding modes

The HALO model features three riding modes adaptable to different needs:

1. City mode: with a speed limit of 50 km/h and intelligent battery management to optimise range.
2. Road mode: limited to 70 km/h, ideal for intercity journeys.
3. Sport mode: allows the vehicle's maximum speed to be reached for a dynamic and exciting riding experience. These modes ensure optimum performance in any situation.

ENGLISH

6.5. Right lever controllers

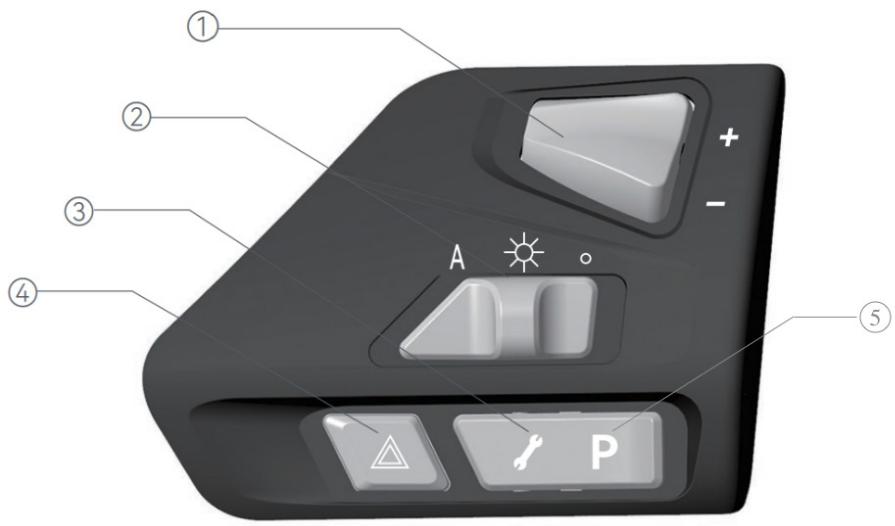

Fig. 9. Right lever controllers

1. Riding mode button: press + or - to change the riding mode
2. Lights selection button: slide right to turn headlights off, return to the middle to turn headlights on, slide left to enter automatic headlights mode.
3. Assistance button: when a malfunction indicator light appears on the display, press and hold this button to ride slowly until the vehicle can be stopped in a safe place.
4. Emergency lights button: press to activate the emergency lights (both left and right indicators flash simultaneously), press again to turn them off.
5. P button. Parking status: press this button to activate the Parking mode. When activated, the vehicle's system will lock the wheels and inhibit the vehicle's ability to accelerate, preventing it from moving. In addition, when activated, the corresponding indicator light on the display will light up. To deactivate this mode, press the button again; the vehicle will return to its normal operating mode.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

7. LIGHTING

LED technology is used for the high beam headlights, low beam headlights, brake lights and indicators.

The headlights include the daylight running lights, high beam headlights and the low beam headlights which may be activated by means of the switch located on the left side of the handlebars, as explained in section 6.3 above. "Left lever controllers."

Like the headlights, the tail lights feature LED technology, both brake lights and rear turn signals. They can be activated by means of the switch located on the left side of the handlebars, as explained in section 6.3 above. "Left lever controllers."

8. SEAT: OPENING AND CLOSING

In the case of the HALO model, there is no storage space inside the seat, as it is occupied by the battery.

To open the seat, follow the steps below:

1. Turn clockwise from the OFF position to the SEAT position. If you hear a "click" sound, it means that the seat is open. Meanwhile, the smart lock will automatically return to the OFF position.
2. To close the seat again, simply perform the previous steps in reverse.

9. SIDE KICKSTAND

The side kickstand is located on the left side of the HALO model. To unfold, simply press down on the kickstand protruding from the left side of the vehicle. The side kickstand is used to park the vehicle.

Please note that when this is unfolded it is impossible to ride the vehicle. The HALO model has a sensor that prevents the vehicle from being switched on for safety reasons.

10. BATTERY

10.1. Battery removal

To remove the battery, carry out the following procedure:

1. Ensure that the vehicle is disconnected from the mains and switched off completely.

ENGLISH

1. Open the seat as described in section 8. "Seat cushion: opening and closing".
2. Pull out the battery vertically and disconnect it from the bottom, you can see the bottom connection of the battery in figure 12.

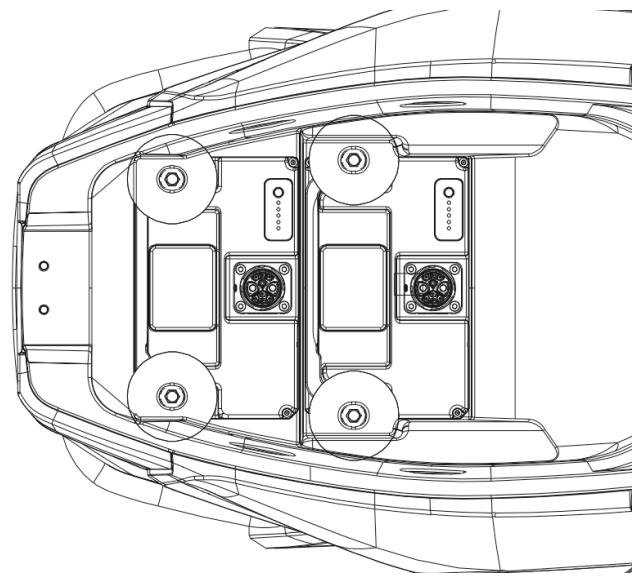

Fig. 10. Batteries location

It is important that once the battery is removed, it is placed in a safe place out of reach of children and pets. In section 10.4. "Battery storage, maintenance and transport" the factors to be taken into account for the correct handling of the battery are explained.

To reinsert the battery or replace it with a new one, follow these steps:

1. Ensure that the vehicle is completely switched off and disconnected from the mains before handling it.

Note: if the vehicle is charging or switched on, DO NOT remove or tamper with the battery.

1. Connect the battery to the bottom making sure that all connectors are securely fastened.
2. Insert the battery into the compartment vertically.
3. Operate the tab that acts as a safety lock to close the battery cover.
4. Close the seat according to the instructions in section 8. "Seat cushion: opening and closing".

10.2. Connector

The connector for charging the HALO model is located under the seat of the vehicle.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

Individual charging connectors are provided on each of the batteries.

In figure 11, you can see the location of the charging connector in the vehicle.

In figure 12, you can see the location of the charging connector on the battery.

The battery charging process is explained below in section 10.3. "Charging the battery."

Fig. 11. Location of the charging connector in the vehicle

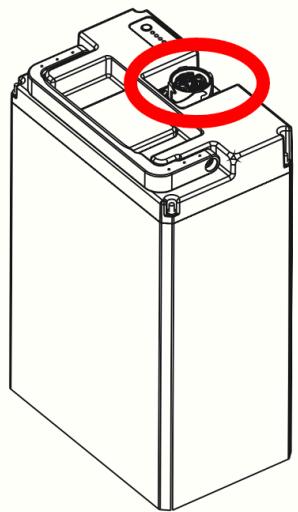

Fig. 12. Location of the charging connector in the battery

ENGLISH

10.3. Charging the battery

There are two options for charging the HALO:

10.3.1. Vehicle charging

1. Open the charging connector cover and insert the charger plug into the vehicle's charging socket. Fig. 11

10.3.2. Off-vehicle charging

1. Open the seat to remove the battery. Insert the charging plug of the charger into the battery charging socket or use a parallel charging cable to charge simultaneously.
2. Connect the charger to the household power outlet using the power cable; when the charger indicator light turns red, the battery is starting to charge.

Fig. 13. Charger and charging port

1. The three holes of the electrical connector, perfectly aligned with the 3PIN of the battery, must be pushed in until a "click" is heard; this indicates that it has been inserted correctly.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

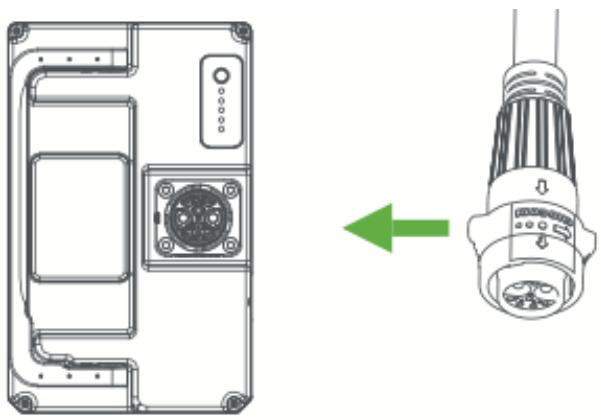

Fig. 14. Detailed plug-in process

1. Following the arrow on the connector, grasp the outer housing of the connector and turn it counterclockwise until it reaches the end. Then, lift it up to remove the plug.

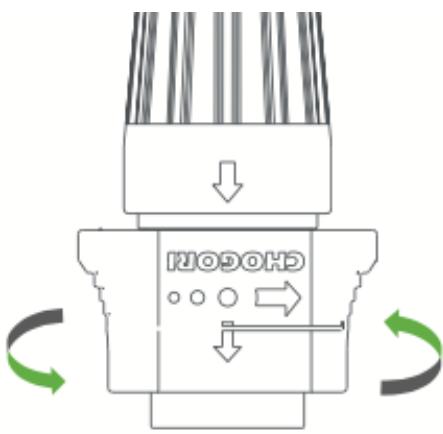

Fig. 15. Unplugging process

10.4. Battery storage, maintenance and transport

• Please charge the battery within a room temperature range of 0 °C\~35 °C.
• Do not exceed 10 hours of charging time, overcharging will shorten battery life.
• It is strictly forbidden to cover the charger and battery box during charging, so as to

ENGLISH

facilitate ventilation and heat dissipation.

• Do not disassemble the charger yourself. If it needs to be replaced, please contact an authorised technician for repair or replacement.
• Store the vehicle in a flat and stable place; store it in a well-ventilated and dry place.
• Store the battery at 30%-50% charge level to ensure battery life.
• Try to avoid exposure to sunlight and rain to reduce damage or ageing of components.
• When storing the battery for a long period of time, charge it fully before use.
• For vehicles equipped with batteries stored indoors, in showrooms, warehouses or transported short distances in charging vehicles, after switching off and removing the key, remove the battery plug to eliminate possible electrical faults.

Long term storage

• When storing for a prolonged period, disconnect the battery plug after switching off and removing the key to interrupt the battery supply circuit (as detailed in section 10.1. "Battery removal"), thus avoiding over-discharging the battery.
• During long-term storage, perform a full charge/discharge cycle of the battery every month and store the battery at a 30%-50% charge level to ensure battery life.
• When using the vehicle after prolonged storage, ensure that the battery is fully charged.
• Before using the vehicle, check the different parts for faults. If you detect any problems, return the vehicle to the dealer for service or repair.

WARNING:

• The battery is not a user serviceable component. If there is a malfunction or the battery is not fully charged after 10 hours of charging, please stop charging and contact the official Cecotec Technical Support Service.
• The charging function is deactivated when the room temperature is below 0 °C. Please charge the battery in an environment above 0 °C.
• Use of a non-original charger may cause battery leakage, heat, smoke, fire or explosion.
• Do not store the battery in an environment above 40° C, as this may cause irreversible capacity degradation.
• At low temperatures, the capacity of the lithium battery will decrease to some extent. The specific benchmark is that the usable capacity at -10°C is 70% , the usable capacity at 0°C is 85% , and the usable capacity at 25°C is 100% .
• The most suitable battery storage capacity is 30% to 50%. If the storage capacity is below 10% for a long time, it will cause an irreversible degradation of the battery capacity. If the battery is stored for a long time, please keep the battery at -10 °C \~30 °C and perform a full cycle of charging and discharging for the battery every two months to minimize the attenuation of battery storage.
• Avoid storing the battery in a location with a risk of falling, which may cause uncontrollable damage inside the battery and may cause leakage, heat, smoke, fire or explosion.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

10.5. Battery use, precautions

ATTENTION

The battery can be a TREMENDOUSLY DANGEROUS (life threatening) item if not handled correctly. Please follow all the instructions in this manual carefully.

• Keep the battery away from children, fire and heat sources. It is strictly forbidden to throw it into the fire. Violent movements, blows and extrusion are prohibited. Avoid storing the battery in a location with a risk of falling, which may cause uncontrollable damage inside the battery and may cause leakage, heating, smoke, fire or explosion.
• Only the specified charger must be used, and the use of other chargers to charge the battery is prohibited. Use of a non-original charger may cause the battery to leak, heat, smoke, catch fire or explode.
• This vehicle has undergone a strict inspection before leaving the factory, and disassembly is strictly prohibited. Contact the official Cecotec Technical Support Service for any questions.
• Do not expose the vehicle to a room environment above 40 °C for a prolonged period of time, as this may cause irreversible degradation of the vehicle's performance.
• Charging temperature: 0 °C - 35 °C. The charging function is deactivated when the room temperature is below 0 °C. Please charge the battery in an environment above 0 °C.
• At low temperatures, the capacity of the lithium battery will decrease to some extent. The specific benchmark is that the usable capacity at -10°C is 70% , the usable capacity at 0°C is 85% , and the usable capacity at 25°C is 100% .
• The most suitable battery storage capacity is 30% to 50%. If the storage capacity is below 10% for a long time, it will cause an irreversible degradation of the battery capacity. If the battery is stored for a long time, please keep the battery at -10 °C \~30 °C and perform a full cycle of charging and discharging for the battery every two months to minimize the attenuation of battery storage.
• Only authorised and qualified personnel may handle or remove the battery from the vehicle. If the battery is to be removed for charging, please follow the instructions mentioned in section 10.1. "Battery removal" and observe the precautions to be followed in that section.
• The battery can be exchanged for an identical battery supplied by Cecotec. Only use original Cecotec batteries or batteries compatible with this model as expressly confirmed

ENGLISH

by Cecotec. Failure to do so may reduce the life of the battery and your vehicle. In the case of battery removal, be sure to handle the battery with care as indicated in this manual.

• The battery should be transported at a low speed in order to avoid strong impacts. Use both hands when transporting the battery and move carefully and slowly.
• Any damage to the battery (impacts, falls, contact with humidity, water or any other liquid, exposure to a heat source, exposure to temperatures above 35 °C) may cause the battery to catch fire.
• If you notice any signs of damage to the battery, avoid connecting the battery and contact the official Cecotec Technical Support Service.
• In the event of a battery fire, it can be extinguished using water or CO2, unless it is connected to the mains or is in the vicinity of other batteries. In such cases, it is necessary to use a CO2 extinguisher to control the fire and move it to an isolated safe area at least 20 metres away from any exposure, such as other vehicles or batteries. Once in a safe place, it is important to contact the emergency services to manage the situation.
• Opening the battery box is strictly forbidden and may represent a considerable risk and invalidate the warranty completely. Only authorised personnel are allowed to work on the battery box.
• Disassembling the battery without permission may cause battery leakage, heating, smoke, fire or explosion. If smoke is observed coming from the battery, it is of the utmost importance to call the firefighters immediately and to remove it urgently from the enclosed space in which it is located.
• The battery is not a user serviceable component. If there is a malfunction or the battery is not fully charged after 10 hours of charging, please stop charging and contact the electric vehicles retailer or the official Cecotec Technical Support Service.

ENGLISH

Fig. 16. Warning signals

11. EMERGENCIES

11.1. First aid and self help

• In situations of battery breakage, smoke or fire, it is essential to prioritise the evacuation of personnel from the affected area and to provide adequate ventilation to disperse gases. It is recommended to seek medical attention immediately.
• On contact with eyes, rinse with plenty of water for at least 10 minutes, holding eyelids open to remove any residue.
• If the skin comes into contact with harmful substances, remove contaminated clothing and wash the affected area with soap and water for at least 20 minutes. It is important to avoid the application of ointments.
• In case of inhalation of fumes, move the person to a well-ventilated area outdoors and administer oxygen or artificial respiration as necessary.
• If there is a brake fluid leakage and it comes into contact with the skin, the affected area must be washed immediately with water. If it comes into contact with the eyes, follow the same procedure and seek medical attention immediately.

11.2. Fire safety measures

• Type D, CO2 and dry chemical extinguishers can be used to extinguish a fire in the battery.
• It is crucial to be aware of specific hazards, such as overheating of the cells due to external sources or incorrect use.

ENGLISH

12. CLEANING AND MAINTENANCE

To extend the life of the vehicle and to ensure a safe and comfortable ride, regular maintenance checks should be carried out. Even during prolonged periods of vehicle inactivity, periodic inspections should be carried out.

Before starting the vehicle each day, it is essential to carry out routine checks. The importance of these checks should never be overlooked. Before riding, be sure to complete all of the following inspection points to ensure optimum performance and safe riding.

12.1. Cleaning

FREQUENCY: DAILY
Regular cleaning	Display	Clean with a soft sponge to remove insects or dirt.
	Seat cushion	Clean with a soft sponge to remove insects or dirt.
FREQUENCY: MONTHLY
Regular cleaning	Painted parts	Clean with brightener.
	Rubber parts	Clean with special rubber protection products.
	Metal parts	Use oil to clean and grease metal parts.
	Display	Wipe off hardened dirt with a soft sponge.
	Lights	Wipe off hardened dirt with a soft sponge.
	Suspensions	Check for leaks at both fork and rear shock absorber.

Note: do not use harsh detergents, dirty cloths, hard cloths or sponges when cleaning the vehicle as these may damage its components.

12.2. User maintenance

User maintenance must be carried out before starting the vehicle.

Parts	Checks
Handlebar	1. Smoothness.
	2. Flexible rotation.
	3. No axial displacement, no movement, no play.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

Brake lever	The brake lever shall have a travel of 10 mm - 20 mm.
Wheels	1. Normal tyre pressure.
	2. Degree of wear.
	3. No cracks or cuts.
Battery	Sufficient charge for the intended travel distance.
Lights	Operate all lights: high beam headlights, low beam headlights, brake light, turn signals, etc., to check for normal operation.
Horn	Check if the horn is working normally.

12.2.1. Brakes

1) Brake lever free play:

The brake lever must have adequate free play. The normal free play should be 10 mm - 20 mm. Free play refers to the distance from when the lever is released until it feels tight when gripped.

2) Brake fluid check:

2.1 Position the handlebars straight and check the brake fluid in the reservoir. It must be kept between the upper and lower limit marks.
2.2 When the fluid level drops to the lower limit mark, check the brake pads for wear.
2.3 Brake fluid used: DOT3 or DOT4.

3) If the brake pads are worn within the specified limits, this usually indicates a leak; have them inspected by a repair shop.

When maintenance or repair of the braking system is required, please contact the nearest authorised repair shop or dealer for inspection. When replacing parts, it is necessary to use original parts from the authorised repair shop or dealer.

12.2.2. Wheels

• Check and adjust the tyre pressure regularly before every journey.
• Tyre pressure should only be checked when the tyres are cold. Normal front and rear tyre pressures are 225 and 300 KPa respectively (3).
• Periodically inspect tyres for punctures, especially if there is any sign of air leakage, immediate repair should be carried out.
• Check for cuts or sharp objects stuck in the tyre tread. Inspect the rim for dents, indentations or deformations. If any damage is found, contact the maintenance shop for inspection.

ENGLISH

Warning:

(1) If the tyre pressure is too high, the tyre may burst while driving, causing accidents. When tyre pressure is too low, the contact area between the tyre and the ground increases, leading to accelerated tyre wear, increased energy consumption and even rim slippage or disengagement of the tyre from the rim.
(2) Using excessively worn tyres is very dangerous as it affects the grip between the tyre and the road surface, leading to driving difficulties and even accidents. When the tread depth on the centre surface of the tyre reaches the specifications, the tyres must be replaced.
(3) The recommended tyre sizes and pressures given in this manual are for guidance only. We recommend that you always check the specific information on your tyre markings or consult the tyre manufacturer to ensure accuracy and suitability for your motorbike. This ensures safety and optimum vehicle performance.

12.2.3. Left and right indicators and tail light

Check that the left and right indicators and the tail light are working properly. If they do not work, they must be replaced immediately.

12.2.4. Horn

Check whether the horn sounds correctly. If it does not sound or the sound is abnormal, it should be adjusted or replaced immediately.

12.2.5. Throttle

Check if the throttle is effective, accelerate gently and return to the idle position automatically.

12.3. Maintenance at repair shop

This regular maintenance will ensure that your vehicle is kept in optimum safety condition, safeguarding both the user and the vehicle.

Maintenance planning

Part to be checked	Period (km or time)
	1000 / 3 months	10000 / 1 year	20000 / 2 years	30000 / 3 years
Electrical elements (display, controller, power button, alarm)	A	A
Battery/charger	A	A
Fuse or overload protection device	A
Wiring		A

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

Braking system (brake lever/brake pads)		A	A
Wheel bearings		A
Side kickstand, main kickstand, seat opening system	B		B
Suspension
Screws	C			C
Duct for liquids		A		A

Key:
A: Check, clean, adjust, lubricate
B: Lubricate and check flexibility
C: Check tightness

Please note:

• Once the maintenance plan is fully completed (>15,000 km) repeat the maintenance plan again from the beginning.
• When riding regularly under harsh conditions, such as uneven road surfaces, it is essential to perform maintenance as often as indicated in the manual to maintain the vehicle's excellent performance.

Warning:

1. If the vehicle is frequently used under full load weight, overloaded, at high speeds, on bumpy roads or on uphill and downhill terrain, carry out user maintenance on a regular basis.
2. The original parts are made of superior quality materials and have undergone rigorous validation, guaranteeing both quality and long life. When carrying out maintenance and repairs, please use original parts to ensure that the vehicle remains in optimum condition, guaranteeing safe riding, and enjoying the normal warranty services.
3. During routine maintenance and repairs, if any anomaly is detected, it is necessary to clean, inspect or replace promptly. You can consult simple repair methods or take the vehicle to the dealer for inspection and repair.

ENGLISH

12.4. Troubleshooting

FAULT	CAUSES	SOLUTIONS
The vehicle has no power, and the READY indicator light does not light up	- The battery is incorrectly connected.- The circuit breaker is not turned on.	- Connect the battery correctly to its main socket.- Turn on the circuit breaker.
When turning the throttle, the motor does not run	- Low battery.- The side kickstand is not retracted.- Brake lever does not reach the correct position.- Failure of the handlebar.The controller plug is loose.- Controller failure.	- Charge the battery.- Remove the side kickstand.- Disable the parking mode.- Place the brake lever in the correct position.- Contact the official Cecotec Technical Support Service.- Contact the official Cecotec Technical Support Service.- Contact the official Cecotec Technical Support Service.
Speed is slow or range is short	- Low battery.- Flat tyre.- Excessive overloading.- Brake pad interference.- Battery ageing or normal scrapping.	- Charge the battery.- Inflate tyres and check tyre pressure before riding.- Change the brake pads and check the brake system before riding.- Contact the official Cecotec Technical Support Service.- Check if the main plug is in the right place.
The battery cannot be charged	- Bad contact of the main plug of the charger. Do not use the wrong charger.- Battery ageing or normal wear and tear.- Low battery voltage protection.	- Check the contact of the main plug again.- Contact the official Cecotec Technical Support Service.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

1. TECHNICAL SPECIFICATIONS

Product reference:	4891/0656
Product:	CECOTEC HALO
Dimensions [mm]
- A.- Wheelbase	1350 mm
- B.- Overall length	1937 mm
- C.- Overall width	725 mm
Seat height	785 mm
Mass [kg]
Mass in running order of the vehicle (1)	101 kg
M.T.P.M. (2)	308 kg
M.T.P.M. Front axle (2)	104 kg
M.T.P.M. Rear axle (2)	204 kg
(1) Taking into account all the elements necessary for riding the vehicle, except the weight of the rider.
(2) Technically permissible maximum mass
Suspension
Front type	Hydraulic
Front dimension [mm]	477.5±2 (stroke: 70 mm)
Rear type	Hydraulic
Rear dimensions [mm]	Max325 (stroke: 90 mm)
Motor

ENGLISH

Brand	QS
Type	Wheel-hub (LN72V200YA)
Rated power [W]	7550 W
Operating voltage [V]	72 V
Serial number	LN72V200YA *XXXXXXXXXXXX*
Lighting [Technology]
Headlight	LED
Tail light	LED
Brake light	LED
Indicators	LED
Wheels
Front axle rim dimensions	120/70-14 M/C 55P
Front axle pressure [bar]	225 kPa
Rear axle rim dimensions	120/70-14 M/C 55P
Rear axle pressure [bar]	300 kPa
Braking system
Front type	CBS linking+disc
Front diameter [mm]	2471 mm 2X2 = 4942 mm2
Rear type	CBS linking+disc
Rear diameter [mm]	1292 mm 2X2 = 2584 mm2
Battery
Voltage [V]	74 V

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

ENGLISH

Model	Lithium ion
Number of cells	18650
Capacity [Ah]	28 Ah
ENERGY EFFICIENCY
Energy consumption (Wh/km)	46 Wh/km
Environmental regulations (e.g. Euro5)	Euro 5
Autonomy [km] (1)	132 Km

(1) Autonomy measured according to EU 2018/285

Technical specifications may change without prior notification to improve product quality.

14. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this vehicle reaches the end of its lifespan, you should remove the batteries/accumulators and take them to a collection point designated by the local authorities. For detailed information on the most appropriate way to dispose of your electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

15. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. Notwithstanding the foregoing, Cecotec shall not be liable to the consumer when the lack of conformity of the product or any part thereof is the result of:

Improper use or maintenance;

A lack of maintenance due to a failure to carry out one of the inspections set out in the product service manual or a repair carried out by an unqualified person;

A modification or alteration of the product or its parts in a manner not authorised or permitted by the manufacturer as described in this manual;

ENGLISH

A use other than that intended by the manufacturer, such as, but not limited to, use on rough terrain or uneven surfaces, in competitions.

Non original Cecotec parts or parts not expressly recognised by Cecotec as compatible with the product have been used.

Parts subject to wear and tear (e.g. batteries, tyres, brake discs, brake pads) may reach the end of their service life before the end of the legal warranty period. Therefore, the replacement or repair of these parts resulting from wear and tear, even if the legal warranty period has not expired, will be at the expense of the user.

Batteries must be charged and maintained as described in this manual. If they are subjected to different charging cycles (in terms of frequency and duration) from those specified here, their service life may be reduced.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

16. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

1. PECES I COMPONENTS

1.1. Components generals

Figura 1. Vista lateral de la motocicleta

Llegenda figura 1:

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

Figura 6. Control remot

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

10. BATERIA

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

11. EMERGÈNCIES

11.1. Primers auxilis i Autoajuda:

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CATALÀ

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

CECOTEC HALO (SILVER/GREEN) + (BLUE/ORANGE)

www.cecotec.es
