Cheesegrill 12000 - Washing machine CECOTEC - Free user manual and instructions

Product type	Cheese raclette grill and griddle
Brand	CECOTEC
Model	Cheese&Grill 12000
Model references	03176, 03177, 03178
Variants	Inox Black, Inox MixGrill, Inox AllStone
Power	2000 W
Voltage and frequency	230 V, 50 Hz
Cooking surfaces	Non-stick cast aluminium plate with grill and griddle surfaces; MixGrill adds natural stone plate; AllStone uses natural stone plate
Included pans	Raclette pans for melting cheese
Preheating time	About 10 minutes at MAX setting
Temperature control	Adjustable knob from MIN to MAX
Indicator light	Operation light stays on until preheating temperature is reached
Recommended utensil	Wooden spatula
Safety distance	Keep at least 15 cm from the nearest wall
First use procedure	Run for 15 minutes without food to remove manufacturing residues
Cleaning instructions	Use a soft, damp cloth; never immerse in water; not dishwasher safe
Surface material	Stainless-steel finish with cast aluminium or natural stone cooking plates
Intended use	Household use only
Storage	Keep in a dry, cool place; do not wind the cord around the device
Repairs and spare parts	Official Cecotec Technical Support Service; replacement only by qualified personnel
Warranty and support	Appliances are covered by applicable regulations; technical support at [phone]
Design and manufacture	Designed in Spain, manufactured in China

Frequently Asked Questions - Cheesegrill 12000 CECOTEC

How do the Cheese&Grill 12000 models differ?

The 03176 Inox Black includes a non-stick cast aluminium plate with grill and griddle surfaces. The 03177 Inox MixGrill adds a natural stone plate, and the 03178 Inox AllStone includes only a natural stone plate. All models use the included raclette pans.

How long does it take to preheat the Cheese&Grill 12000?

Turn the knob to MAX and wait about 10 minutes. The operation indicator light stays lit until the correct temperature is reached, then turns off. Keep at least 15 cm of clearance from the nearest wall.

Can I clean the plates or pans in the dishwasher?

No, the appliance is not dishwasher safe. Wait for it to cool down, then use a soft, damp cloth to clean the surfaces. Never immerse the appliance in water or any other liquid.

Why does the appliance emit smoke during first use?

Smoke may come from residual manufacturing wastes. Run the appliance for about 15 minutes without food, keep the room ventilated, and then clean the surface before normal cooking.

What utensil should I use on the cooking surface?

Use a wooden spatula to turn or remove food. Metal utensils can scratch the non-stick coating or the natural stone plate, so avoid them.

How should I clean the natural stone plate?

Let the plate cool completely, then wipe it with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, and do not immerse the plate in water.

What is the power and voltage of the Cheese&Grill 12000?

The appliance has a power of 2000 W and operates at 230 V, 50 Hz. Check that the mains voltage matches the rating label and that the outlet is grounded.

Can I use other pans with the Cheese&Grill 12000?

The manual instructs not to use pans other than those included. The supplied pans are designed to melt cheese correctly and fit the heating element safely.

How can I protect myself from burns while using this device?

The metallic parts become very hot. Use gloves or protective accessories, do not touch metal surfaces, and keep flammable materials away. Let the device cool completely before cleaning.

What should I do if the power cord is damaged?

Stop using the appliance immediately and contact the official Technical Support Service of Cecotec at [phone]. The cord must be replaced by qualified personnel to avoid danger.

USER MANUAL Cheesegrill 12000 CECOTEC

Cheese raclette, designed with, stainless-steel finish and grill

1. Parts and components 25
2. Before use 25
3. Operation 25
4. Cleaning and maintenance 26
5. Technical specifications 27
6. Disposal of old electrical appliances 27
7. Technical support and warranty 27
8. Copyright 27

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• This product is designed only for household use. Do not use it for industrial or commercial purposes.

- The appliance will be very hot during and immediately after operating. Use gloves or other convenient

protection accessories in order to avoid burns and injuries.

- Never place or use the appliance on or close to a cooking hob or other heat sources.

- Do not twist, bend, pull or damage the power cord. Protect it from sharp edges and heat sources. Do not allow it to touch hot surfaces. Do not let the cord hang over the edge of the working surface or worktop.

- Make sure your hands are dry when touching the appliance, the power cord or the plug.

- Do not immerse the product in water or other liquid. The appliance is no dishwasher safe.

- Let the device cool down after being used. Allow a minimum safety distance on all sides and do not allow any flammable material to come into contact with the device. The appliance must not be covered.

- Do not operate the device near explosive or flammable materials.

- Do not use a scouring pad to clean the appliance. Metal fragments could come loose and touch the device electrical parts and cause a short circuit. Check the metallic parts of

the device regularly.

• Use an extension cord only if it is in good condition.
• Do not switch the appliance off by pulling from the cord.
• If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Any intervention, other than normal cleaning and maintenance, must be performed by the official Technical Support Service of Cecotec.
• Cecotec is not responsible for possible damages caused by an inappropriate or unreasonable use.
• Unplug the device from the outlet when it is not in use or when it is being cleaned.
• Supervise children, as they shall not play with the appliance. This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. The cleaning and maintenance of the appliance should not be carried out by children under 8 without supervision.
• This appliance must not be operated with timers or external remote control system.
• Supervise children, as they shall not play with the appliance.

INSTRUCTIONS DE SÉCURITÉ

• Take the product out of the box.
• Remove all packaging material. Keep the original box.
• Make sure all parts and components are included and in good conditions. If any sign of visible damage is observed, immediately contact with the official Technical Support Service of Cecotec.
• Before using the device for the first time, operate it for 15 minutes without any food on it. This will help remove the scent that the device emits when used for the first time. The device may also emit some smoke. Keep the room ventilated during this process.
• Make sure the appliance is placed on a stable, flat surface when in use.

3. OPERATION

1. Plug the device in.
2. If it is the first time the device is used, it is recommended to apply some oil to the surface and then wipe it with a soft cloth.
3. Turn the knob to the "MAX" position for the device to start preheating. This process will take about 10 minutes. The operation light indicator will remain lit up while the raclette heats up and until it reaches the right temperature, and then it will turn off.
4. It is also suggested to leave a 15-cm distance between the device and the closest wall.

5. Place the pan with food inside under the heating element. Once it has preheated, turn the knob to the desired temperature position. It is recommended to select a high temperature to cook rear or medium rear meat, medium temperature to cook well done meat and low temperature to gratin. Metallic parts will reach high temperatures. Do not touch them.

6. Turn the knob slightly to the left of the "MIN" sign and unplug the device from the power supply when you have finished cooking.

7. Unplug the device from the power supply if it is not going to be used for a long period of time.

Warning

Smoke might be observed during the first use due to residual wastes from manufacture.

1. Use a wooden spatula to turn or remove the food.
2. Do not use pans other than those included with the product.

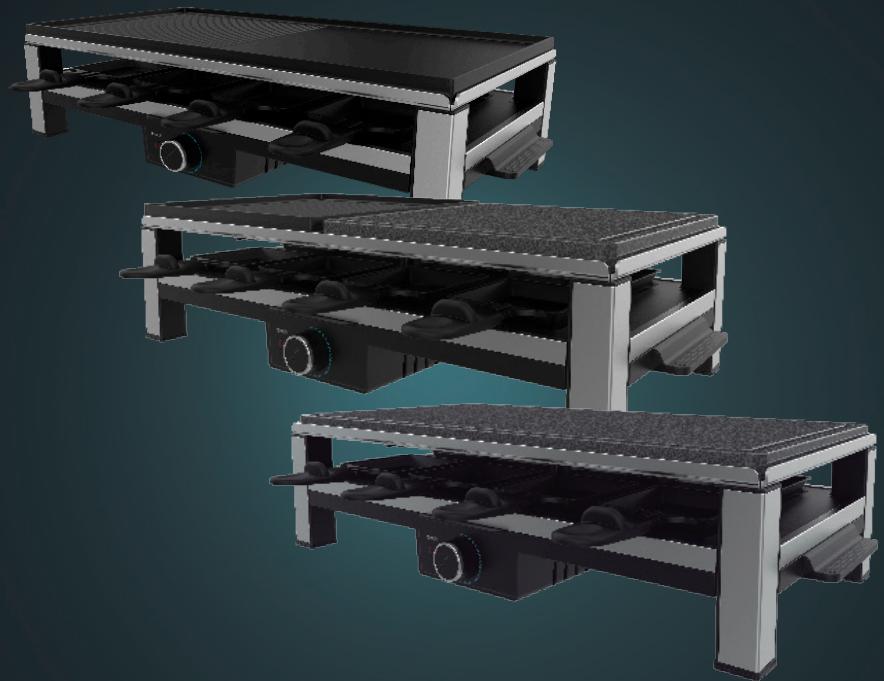

03176 Cheese&Grill 12000 Inox Black

Includes a non-stick plate made from cast aluminium with a mixed surface: grill and griddle, for cooking meat, vegetables, eggs, seafood or fish.

03177 Cheese&Grill 12000 Inox MixGrill

Includes 2 plates: non-stick plate made from cast aluminium and a natural stone plate, both for cooking meat, seafood, fish or vegetables.

03178 Cheese&Grill 12000 Inox AllStone

Includes a natural stone plate for cooking meat, vegetables, seafood or fish.

Warning

The pans can be used to melt cheese.

4. CLEANING AND MAINTENANCE

• Disconnect the appliance from the power supply and allow it to cool down before cleaning it.
• Use a soft, damp cloth to clean the device surface.
• Never immerse the appliance in water or other liquid.
• Do not use abrasive cleaners or scouring pads to clean the product.
• Do not immerse the appliance in water or other liquid.
• Do not wind the cable around the product, this could damage it.
• Store the appliance in a dry and cool place.

5. TECHNICAL SPECIFICATIONS

Model: Cheese&Grill 12000 Inox Black/Cheese&Grill 12000 Inox MixGrill/Cheese&Grill 12000 Inox AllStone

Product reference: 03176/03177/03178

Power: 2000 W

Voltage and frequency: 230 V, 50 Hz

Manufactured in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1
