Safety instructions 9

1. Parts and components 61

2. Before use 61

3. Appliance installation 61

4. Operation 63

5. Cleaning and maintenance 63

6. Troubleshooting 64

7. Technical specifications 66

8. Disposal of old electrical and electronic appliances 68

9. Technical support and warranty 68

10. Copyright 68

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels and offices.
• You must allow the appliance to be disconnected from the power supply after installation.
• The air discharge regulations must be complied with.
• Things you should never do:

I. Do not attempt to use the suspended kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!
II. Do not install the kitchen hood above a cooker with a high level grill.
III. Do not leave pans unattended during use because overheated fats or oils may catch fire.

- Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.

- Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.

- Never leave open flames under the hanging kitchen hood.

• If the hanging kitchen hood is damaged, do not attempt to use it.
• When the suspended kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• Important! Always disconnect the power supply during installation and maintenance.
• The suspended kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.
• All installation work must be carried out by a competent person or a qualified electrician.
• Dispose of the packaging material carefully. Children are vulnerable to it.
• Pay attention to sharp edges inside the suspended kitchen hood, especially during installation and cleaning.
• Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the suspended kitchen hood.
• Warning: Failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards
• WARNING: Before accessing the electrical terminals, all power supply circuits must be disconnected.
• There must be adequate ventilation of the room when the suspended kitchen hood is used at the same time as gas or other fuel burning appliances.

• Caution: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.

• Local air discharge regulations must be complied with.

• For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.
• You should not use a steam cleaner.
• Never try to put out the fire with water. Instead, turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.
• Never use extension leads, multiple socket connections or external timer connection elements.
• If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.
• The appliance must not be operated if the power supply cable is damaged or cut.
• If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.
• There must be adequate ventilation of the room when the suspended kitchen hood is used at the same time as gas or other fuel burning appliances.
• There is a risk of fire if cleaning is not carried out according to the instructions.
• Do not flame under the suspended kitchen hood.
• CAUTION: Accessible parts can become hot when used with cooking appliances.
• Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.

- The minimum distance between the worktop and the lowest part of the suspended kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

• Non-combustible parts of suspended kitchen hoods.
• Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).

- The air discharge regulations must be complied with.

INSTRUCTIONS DE SÉCURITÉ

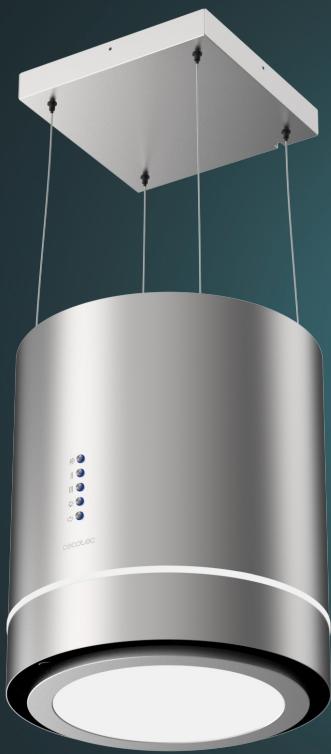

1. Filters
2. Suspended kitchen hood
3. Control panel
4. Ceiling bracket cover
5. Fastening wires

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the machine when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

• Suspended kitchen hood
• Assembly kit
• Carbon filter ∅176
• Instruction manual

3. APPLIANCE INSTALLATION

Before installation

1. Before installing the suspended kitchen hood, make sure that the area is clean to prevent it from sucking in dust or dirt.

2. Please note that the suspended kitchen hood must not share the same ventilation duct with other appliances that use gas or other fuses.

3. To facilitate air outlet, the ventilation duct should have a curvature of ≥120° and should be connected to the outside wall.
4. After installation, ensure that the suspended kitchen hood is levelled to prevent grease build-up on the end. Figure 2

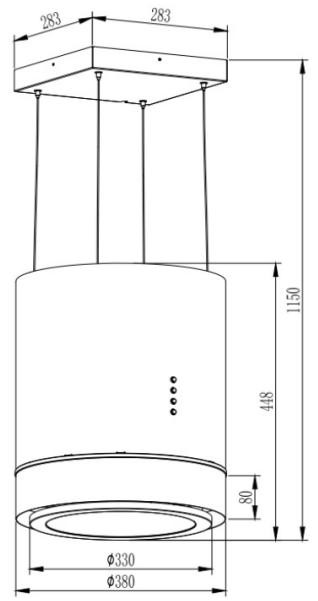

Figure 3 shows the dimensions of the hood, in mm, required for the installation.

Installation

Step 1:

Place the hood mounting piece in the desired position and drill the holes. After drilling the holes, attach the 8 fasteners to the wall. Figure 4

To be considered:

• Hole ∅ 8-10 mm
• Depth: 65 mm.
• Fastening piece ∅ 10 mm

Step 2:

Remove the hood fastening piece and use the washers and screws.

to fix it to the ceiling. Figure 5.

• Washer ∅ 6 mm
• ST6*60 screw

Step 3:

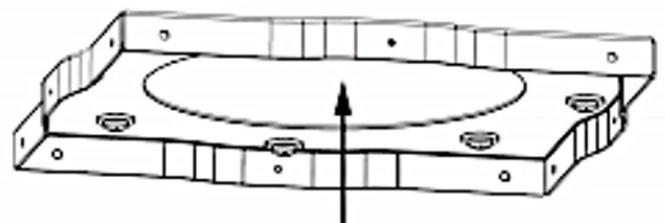

Reserve a space in the centre of the fixing piece for the socket. Figure 6.

- Space reserved for the power outlet

Step 4:

Take out the suspended extractor hood and connect the power cable to the socket. Then place the cover on the clamping piece. Figure 7

Fix it with 4 M4x10 screws.

Figure 7 key

1. Fixing nut
2. Cover
3. M4x10 screw

Step 5:

After hanging the suspended kitchen hood, it may need some balance adjustments.

First, lift the suspended kitchen hood slightly. At this point, another person should press

the cable adjustment piece down to the desired position. Make sure that all four cables are balanced.

Figure 8 key

1. Wire rope adjustment piece
2. Fastening wire

4. OPERATION

The hood has a display with 4 buttons. Figure 9

Button operation

1. If you press the 📄 button, a beep will sound and the hood will operate at low speed. If you press it again, it will stop.
2. If you press the II button, a beep will sound and the hood will operate at medium speed. If you press it again, it will stop.
3. If you press the III button, a beep will sound and the hood will operate at low speed. Pressing it again will activate the Booster function for 5 minutes. After this time, the hood will return to high speed operation. When you want to turn it off, press the button again.
4. Pressing the ⚙ button will turn on both lights. If you press it again, lights will switch off.

5. CLEANING AND MAINTENANCE

NOTE: To clean the suspended kitchen hood, always switch off the power supply before cleaning or performing any maintenance task on the hood.

• To prevent the outer surface of the kitchen hood from deteriorating over time, it is recommended that it be cleaned with hot water and a non-corrosive detergent every two months.
• Do not use abrasive detergents. Otherwise, the surface of the kitchen hood may be damaged.
• Keep the motor and other parts away from water, as water may damage the appliance.

Cleaning aluminium filters

• Do not use corrosive detergents to clean grease from the aluminium filters.
• Regular cleaning of the aluminium filters will prolong the life of the appliance and keep it in good working order.

Follow the instructions below:

Cleaning method 1:

• Immerse the aluminium filters in hot water (40-50 °C), add neutral detergent and let them soak for 2 to 3 minutes.
• Protect yourself with gloves and clean the filters with a soft brush or scouring pad.
• Do not apply too much force, as filters are very delicate and can be easily damaged.

Cleaning method 2:

- If you wish, you can also wash the filters in the dishwasher at a temperature of approx. 60 °C.

Figure 10 shows the procedure to remove the filter for cleaning.

Carbon filter (included)

This type of filter has activated carbon and purifies air and absorbs cooking odours. The activated carbon becomes saturated after a period of time, which will reduce the adsorption capacity of the filter. The carbon filter cannot be washed nor cleaned in any way.

When the kitchen hood is used regularly, the activated carbon filter should be replaced every

2-3 months. If frying more frequently, shorten this interval.

1. Remove the aluminium filters.

2. To replace the carbon filters, proceed in reverse order.

3. The carbon filters are located on both sides of the motor. Turn the filters, until they are firmly in place. Figure 11

6. TROUBLESHOOTING

Problem	Cause	Solution
The light is on, but the motor does not work	The kitchen hood is obstructed	Remove what is obstructing the hood
	The condenser is damaged	Replace the condenser
	Motor is jammed or bearing damaged	Replace the motor
	Motor is burnt or gives off a bad smell	Replace the motor
Neither the light bulb nor the motor work	In addition to the above, check the following:
	The light bulb has blown	Replace the light bulb
	Power cable is loose	Connect the cables according to the wiring diagram
The oil filter is leaking	The filters are very dirty	Clean or replace the aluminium filters immediately
The kitchen hood vibrates	The fan is damaged, causing the kitchen hood to vibrate when extracting air.	Replace the fan
	The motor is not securely fastened	Fix the engine correctly
	The kitchen hood is not securely fastened	Fix the kitchen hood correctly
The kitchen hood is not sufficiently extracting	The distance between the suspended kitchen hood and the cooking surface is too large.	Readjust the distance
	There is too much ventilation in the room due to open doors or windows	Relocate and reinstall the kitchen hood
The kitchen hood is tilted	Fastening screws are not tightened properly	Reposition the kitchen hood horizontally and tighten the screws.
	The clamping piece is not fixed	Reposition the hood horizontally and fasten the clamping piece correctly.

7. TECHNICAL SPECIFICATIONS

Product reference: 02915/02918

Product:

Bolero Flux CRE 448000 Inox A++ Hood

Bolero Flux CRE 448000 White A++ Hood

All technical information is available on the public website of the European Product Register for Energy Labelling (EPREL):

eprel.ec.europa.eu/screen/home

Regulation (EU) 65/2014

EU Directive 2010/30/EU

Rated voltage: 220-240 V

Rated frequency: 50 Hz

Total power: 217 W

Motor: 210 W

712 m³/h air flow

Lamp:

Lamp power: 1x5 W + 1x2 W

Light type:

Round LED light

Bulb dimensions:

330 × 330 mm

ILCOS D Code:

DBL-5-S-330/330

	Symbol	Value	Quantity
Model reference		02915/02918
Annual energy consumption	AECHood	35.7	kWh/a
Time increment factor	f	0.6
Fluid dynamic efficiency	FDEHood	39.4
Energy Efficiency Index (EEIW)	EEIHood	36.0
Measured air flow at the maximum efficiency point	QBEP	338.7	m3/h
Air pressure measured at maximum efficiency point	PBEP	620	Pa
Maximum airflow	Qmax	Maximum adjustment: 502.1Maximum adjustment: 223.7	m3/h
Airflow (Booster)	QBooster	712.4	m3/h
Electrical input power measured at maximum efficiency point filter	WBEP	148.1	W
Nominal power of the lighting system	WL	4.5	W
Measured illuminance of the illumination system on the cooking surface	Emed	89	lux
Power consumption in off mode	Po	0.36	W
Noise level (Highest setting)	LWA	64	dB
Noise level (Lowest setting)	LWA	44	dB
Noise level (Booster setting)	LWA	70	dB

This appliance features a light source with an energy efficiency grade A++.

The appliance power consumption when off is 0.36 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/knob of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

3. INSTALLATION DU PRODUIT

Directive 2010/30/UE

3. INSTALLATIE VAN HET APPARAAT

Voor de installatie

• Podktadka ∅ 6 mm
• Śruba ST6*60

Krok 3:

Moc lampy: 1x5 W + 1x2 W

Typ lampy:

Okrągłe światło LED

Wymiary lampy:

330 x 330 mm

Kod ILCOS D:

DBL-5-S-330/330

• Poδέλα 4- M4 ∅ 6 mm
• Bíðα ST6*60

Βήμα 3:

OK

NO OK
