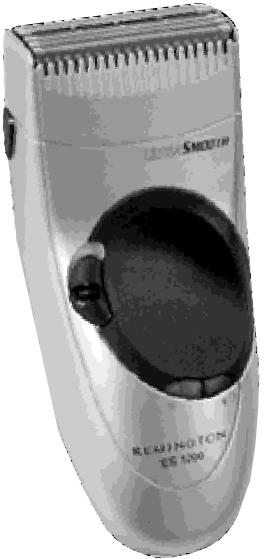

USER MANUAL ES-1000 REMINGTON

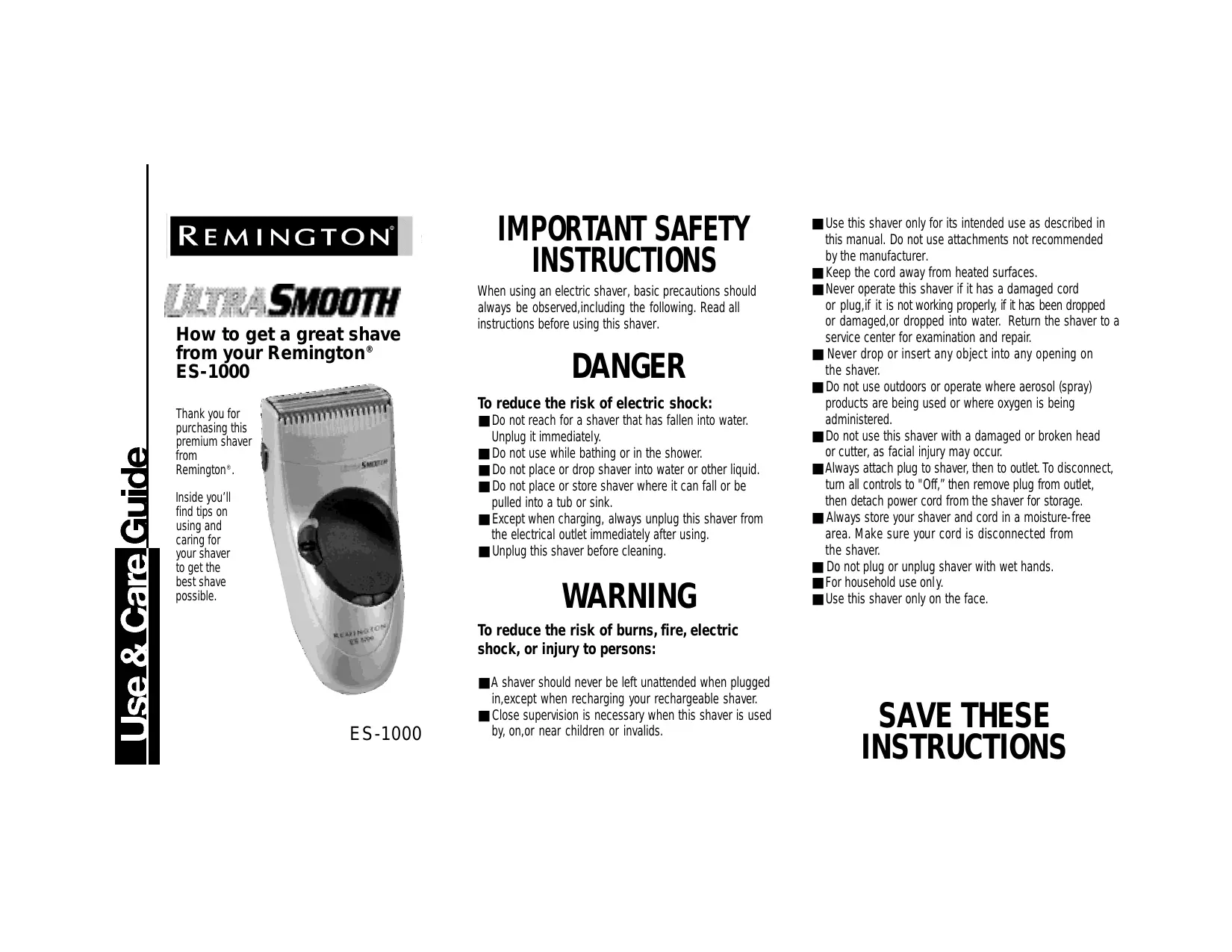

IMPORTANT SAFETY INSTRUCTIONS How to get a great shave from your Remington ® ES-1000 When using an electric shaver, basic precautions should always be observed,including the following. Read all instructions before using this shaver. DANGER To reduce the risk of electric shock: Thank you for purchasing this premium shaver from Remington®. ■ Do not reach for a shaver that has fallen into water. Unplug it immediately. ■ Do not use while bathing or in the shower. ■ Do not place or drop shaver into water or other liquid. ■ Do not place or store shaver where it can fall or be pulled into a tub or sink. ■ Except when charging, always unplug this shaver from the electrical outlet immediately after using. ■ Unplug this shaver before cleaning. Inside you’ll find tips on using and caring for your shaver to get the best shave possible. WARNING ■ Use this shaver only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer. ■ Keep the cord away from heated surfaces. ■ Never operate this shaver if it has a damaged cord or plug,if it is not working properly, if it has been dropped or damaged,or dropped into water. Return the shaver to a service center for examination and repair. ■ Never drop or insert any object into any opening on the shaver. ■ Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered. ■ Do not use this shaver with a damaged or broken head or cutter, as facial injury may occur. ■ Always attach plug to shaver, then to outlet. To disconnect, turn all controls to "Off,” then remove plug from outlet, then detach power cord from the shaver for storage. ■ Always store your shaver and cord in a moisture-free area. Make sure your cord is disconnected from the shaver. ■ Do not plug or unplug shaver with wet hands. ■ For household use only. ■ Use this shaver only on the face. To reduce the risk of burns, fire, electric shock, or injury to persons: ES-1000 ■ A shaver should never be left unattended when plugged in,except when recharging your rechargeable shaver. ■ Close supervision is necessary when this shaver is used by, on,or near children or invalids. SAVE THESE INSTRUCTIONS Getting a Close, Comfortable Shave Always use a clean,dry shaver. In the neck area and directly under the chin,stretch the skin taut, allowing flat curly hairs access to the inner moving blades. Try a circular motion if your beard tends to grow in different directions. Congratulations on your purchase of a premium Remington® shaver. As with every shaver, your shave will improve over time. So allow about three weeks to develop an effective shaving style and for your beard to adjust to the new shaver. The adaptation period may take a little longer if your skin is sensitive, or if you alternate between shaving methods.

Wait at least 15 minutes after getting up before shaving, to ensure the face is free of puffiness that may be present from sleeping. Special Instructions Note: The following instructions should be followed for at least 10 days of shaving.

• Wash face with warm water and soap and towel dry thoroughly.
• Using a gentle pressure,shave against the grain with short up-and-down strokes.
• After shaving,wash face again and towel dry.
• It is important to shave daily with light pressure,carefully cutting all your beard,and to keep your face clean. Caution: If you use a depilatory or are a blade user with sensitive skin, your face may become irritated by heavy shaving pressure or use of the beard lifter. Some people have skin conditions that make shaving by any means inadvisable.If you are in doubt, please consult your doctor. Never press hard. Pressing hard only flattens your whiskers, which makes it harder for them to enter the cutting chamber. It may also cause damage to the shaver heads. Make sure your face is clean and dry before starting. To start, use the Beard Lifter comb on a daily basis,even if you don’t shave every day, to lift flat curly hairs and set up your beard for shaving. Rub the Beard Lifter over your beard area, across the grain in short back-andforth strokes, applying as much pressure as is comfortable. When you shave, hold the shaver as shown, using short,gentle, up-anddown strokes against the grain of your beard. For a Better Shave… To help maximize your shaver’s performance,consider using the Remington® Pre-Shave Powder Stick (SP-5) or the Remington® Pre-Shave Lotion with Aloe (SP-6).Just rub either product over your beard. Both products absorb moisture and facial oils, helping set up the hairs so they enter the cutting chamber more easily. They make shaving quicker and more comfortable.These products may be purchased at your local retailer, on our website, or by calling 800-736-4648. Cleaning Your Shaver

TO ASSURE SMOOTH,EFFICIENT PERFORMANCE,IT

IS IMPORTANT TO CLEAN YOUR SHAVER. DISCONNECT POWER CORD IF ATTACHED. After each shave,turn the shaver OFF and remove the Hairpocket by pressing on the Hairpocket Release buttons.With the Head Assembly already exposed, brush and blow out the hair clippings from the heads and cutters.For a more thorough cleaning,remove the cutter located inside of each of the heads (see “To Remove Cutters”section),and brush thoroughly. After cleaning,reattach the Hairpocket to the shaver. Important: Because the shaver has two types of head configurations (closed and open),and because the heads and cutters tend to wear and conform to each other over time,it is important to keep them as a matched set. To prevent mixing parts during cleaning, it is recommended to remove,clean,and replace one cutter at a time. Attention: Never put the shaver partially or completely into water. ■ Daily cleaning of the cutting system is recommended to ensure optimum shaving performance. To clean and lubricate your shaver's cutters and head assembly, apply Remington ® Shaver Saver® Lubricant (SP-4).The lubricant helps remove hair clippings while reducing wear. A quick spray after each shave keeps your shaver operating at peak performance. Do not use an aggressive cleansing agent as this may destroy the shaver coatings. Caution: Do not remove or replace the head assembly while shaver is running,as it may damage the cutting system. ■ Worn or damaged parts should be replaced with Remington® replacement parts only. To Remove Cutters 1.Remove the Head Assembly by pulling it away from the shaver body (see Fig.1).

2. Turn Head Assembly upside down,and

place on top of a flat surface. 3.Insert the tip of a screwdriver (or other narrow tip object) into the center bend of the cutter, press down lightly, and gently push sideways to slide the cutter outside the Head (see Fig.2).

4. To reinsert the cutter, align one of its ends

with one of the side openings in the head, compress the cutter spring lightly, and gently slide cutter back into place. Fig. 1 Fig. 2 Shaver Operation ■ To switch the shaver ON,press down on the Switch Lock feature,and slide the On/Off Button toward the top of the shaver. ■ To switch the shaver OFF, simply slide the On/Of f Button towards the bottom of the shaver. (There is no need to press on the Switch Lock feature.) Charging Before using your shaver for the first time, put it on charge for 24 hours. To charge your shaver: ■ Slide the power button downward to the "Off" position. ■ Connect the AC power cord to the shaver and then to the electric outlet. A green indicator light will come on. ■ Your shaver cannot be overcharged,so you can leave it plugged in and charging between shaves. ■ Use only the AC line cord supplied with the shaver. ■ The ES-1000 comes with a special feature that allows you to shave when the battery charge is low. Just follow the steps above to connect the AC power cord and turn on the shaver. Your shaver will not charge while you are shaving,so after shaving, turn off the shaver and leave it plugged in so it can recharge. Note: Your ES-1000 cord/cordless shaver should not be used strictly as a cord-operated shaver, as continued cord-only use will shorten the life of the battery. Indicator Lights ■ Green - Lights up when the shaver is charging. ■ Red - Lights up if the battery is low. When it first comes on,you have approximately 5 to 6 minutes of shaving time left before the shaver must be recharged. Note: To preserve the life of the batteries,they should be fully discharged every six months and then fully charged for 24 hours. Worldwide Voltage You can take your ES-1000 shaver with you when you travel just about anywhere in the world.The shaver features worldwide automatic voltage conversion. ■ Cut or break the metal tabs that connect the batteries to the electrical board (see Fig.4). Battery Removal When your rechargeable shaver reaches the end of its useful life, the batteries must be removed from the shaver and be recycled or disposed of properly in accordance with your state and local requirements. ■ Turn the shaver OFF, and unplug power cord from electric outlet to avoid possible electric shock hazard. ■ Remove Hairpocket and Head assembl y. Fig. 4a Fig. 1 ■ Remove plate from top of the shaver (see Fig. 2). ■ Squeeze the front housing and pull it away from the rear housing to expose the electrical board and batteries (see Fig.3). Fig. 4 ■ Dispose batteries properly (see below). ■ Unfasten the two screws located along the top of the rear housing (see Fig.1). ■ Lift the batteries off (see Fig.4a). Fig. 2 Fig. 3 CAUTION:DO NOT PUT BATTERIES IN FIRE OR MUTILATE THEM WHEN DISPOSING AS THEY MAY BURST OR RELEASE TOXIC MATERIALS.DO NOT SHORT CIRCUIT AS IT MAY CAUSE BURNS. DISPOSE PROPERLY IN ACCORDANCE WITH YOUR LOCAL AND STATE REQUIREMENTS. The EPA-certified RBRC® Battery Recycling Seal on the nickelcadmium (Ni-Cd) battery indicates Remington Products Company, L.L.C.is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life,when taken out of service in the United States or Canada.The RBRC® program provides a convenient alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream, which may be illegal in your area. Please call 800-8-BATTERYS M for information on Ni-Cd battery recycling and disposal bans/restriction in your area.Remington Products Company, L.L.C.’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources. Headguard Beard LifterComb Designed for combing the beard before shaving.Lifts whiskers and curly hairs prior to shaving. Hairpocket Head Assembly Closed Head Open Head Closed Head Power Cord Hairpocket Release Button (one on each side) Cleaning Brush On/Off button Switch Lock Charging Indicator (green light) Low-Charge Indicator (red light)

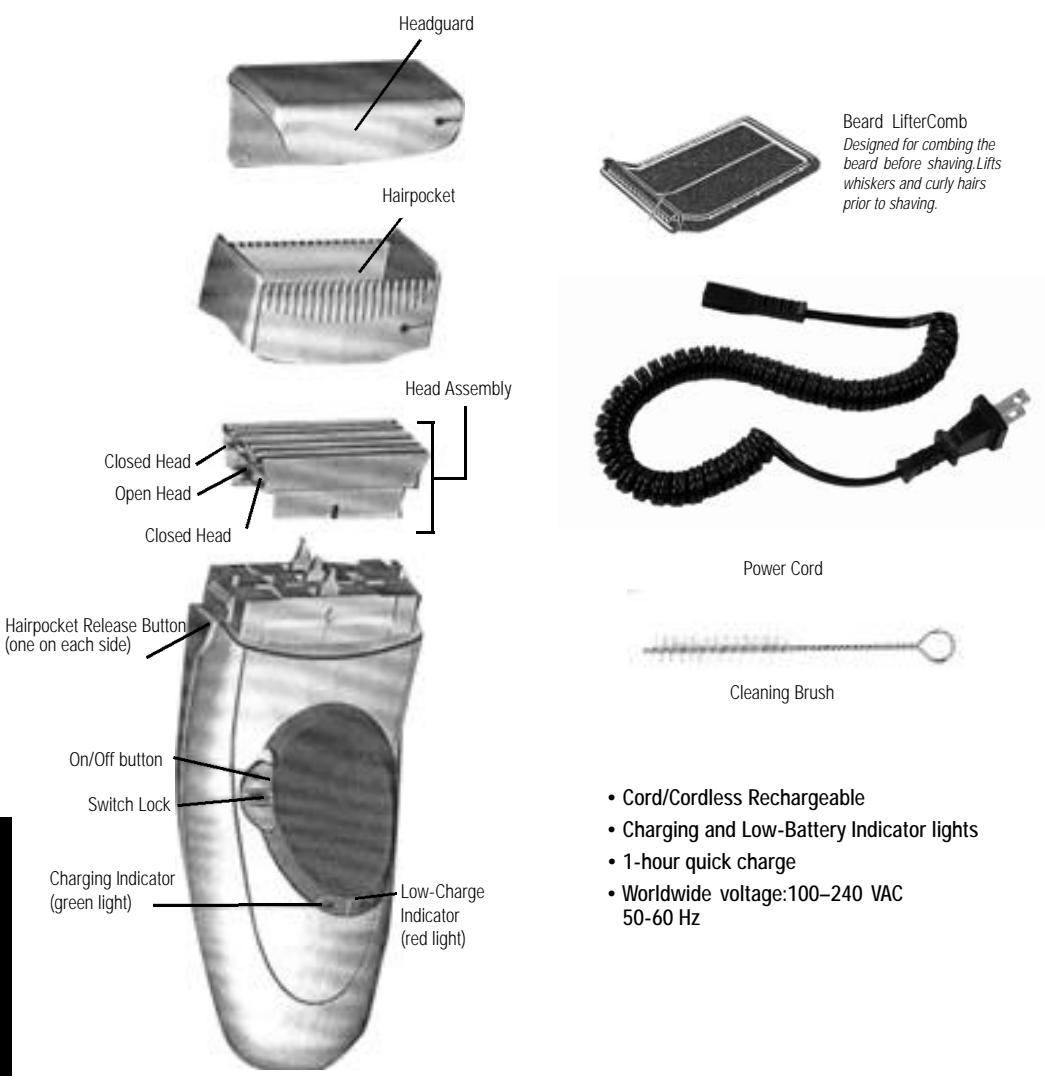

• Cord/Cordless Rechargeable
• Charging and Low-Battery Indicator lights
• Worldwide voltage:100–240 VAC 50-60 Hz U.S. Warranty Service Remington® Money-Back Offer In the United States,service is provided by our Companyowned Service Centers and more than 300 Authorized Service Dealers. Authorized Service Center Dealers may be found in the yellow pages of your directory. If you wish,you may mail the product,postpaid,to Remington Products Company, L.L.C., 60 Main Street, Bridgeport, CT 06604 Attention:Service Department. If within 30 days after you have purchased your Remington® ES-1000 Shaver, you are not satisfied with your shaver and would like a refund, just return your shaver, together with the sales receipt, to the retailer from whom the shaver was purchased. Remington will reimburse all retailers who accept shavers within 30 days from date of purchase. Warranty service must be performed by a Remington Company-owned Service Center or Authorized Service Dealer and damage or loss of any kind resulting from servicing by any other person is not covered under warranty. If you have any questions regarding this money-back guarantee, please call 800-736-4648 in the U.S. International Warranty Service Service under the Remington warranty can be obtained outside the United States by Remington-Authorized Distributors and Service Dealers. Please consult your local telephone directory for the nearest location. For questions or comments, please write: Remington Products Company, L.L.C. 50 Commerce Drive Trumbull, CT 06611-5403 Attention: Consumer Affairs us at www.remington-products.com Z Visit Questions or Comments: Please call 800-736-4648 in the U.S. Remington and Shaver Saver are trademarks of Remington Corporation L.L.C. © 2002 R.P.C,L.L.C. Job # S02-086 11/02 P/N 11880 Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604

MADE IN CHINA

Full Two-Year Warranty Remington warrants that your product, except as noted below, is, on date of purchase, free from defect in material and workmanship. Remington will correct any such defect without charge if you return the complete product either in person or by mail,postage paid, to a Remington Company-owned Service Center or Authorized Service Dealer within two years after date of purchase. Do not return the product to the retailer from whom the product was purchased. This warranty does not cover damage by accident, misuse, abuse or by affixing an unauthorized accessory or alteration to the product, or by connection of the product to any but the specific current and voltage indicated in an accompanying instruction booklet, or by any other conditions beyond our control. REMINGTON SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES. IN ADDITION, THIS WARRANTY DOES NOT COVER THE HEADASSEMBLY ON OUR SHAVER. ALL IMPLIED WARRANTIES INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE LIMITED IN DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Some states do not allow the exclusion limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so that the above limitations and exclusions may not apply to you. No responsibility, obligation, or liability is assumed for the installation or maintenance of this product. Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604

HECHO EN CHINA
