HR 2603 - Shaver CLATRONIC - Free user manual and instructions

Product type	Rechargeable electric shaver for men
Brand	CLATRONIC
Model	HR 2603
Cutting system	Dual head with double cutting system, integrated long hair trimmer
Power supply	230 V, 50 Hz mains adapter; integrated rechargeable battery
Charging time	Approximately 14 to 16 hours (first charge: 16 hours)
Battery life	Not specified, estimated at about 30 minutes per charge
Corded use	Possible even with empty battery, thanks to the mains adapter
Display	Digital display
Material	Plastic with non-slip surface
Dimensions (approx.)	Approximately 15 x 5 x 4 cm
Weight (approx.)	Approximately 200 g
Color	Not specified, usually black or gray
Included accessories	Travel case, cleaning brush, mains adapter
Maintenance and cleaning	Clean with the provided brush; do not touch blades with fingers; unplug before cleaning
Safety	Unplug before any handling; do not use outdoors or with wet hands; do not immerse in water
Warranty	24 months from date of purchase
Spare parts and repairability	Shaver head and replacement blades available; repair by authorized specialist

Frequently Asked Questions - HR 2603 CLATRONIC

How to charge the CLATRONIC HR 2603 shaver?

Plug the mains adapter into the shaver's socket and the plug into a 230 V, 50 Hz outlet. The green indicator lights up. The first charge must last at least 16 hours; subsequent charges about 14 to 16 hours.

Can I use the shaver while charging?

Yes, the shaver can operate on mains power even if the battery is empty, by connecting it with the mains adapter.

How to clean the HR 2603 shaver?

Turn off and unplug the device. Press the unlock switch to remove the blade unit. Use the provided brush to remove hair residues. Do not touch the blades with your fingers. Replace the blade unit after cleaning.

How to use the long hair trimmer?

Push the unlock button upward until the long hair cutter flips forward. Apply the entire surface of the cutter to remove long hairs. After use, close the cutter by pushing the button back.

How long does the battery last on a full charge?

The battery life is not specified in the manual, but for this type of shaver, it is generally about 30 to 45 minutes of continuous shaving.

What to do if the shaver does not turn on?

Check that the battery is charged. If the problem persists, try plugging in the mains adapter. If the shaver works on mains but not on battery, the battery may be defective. Contact customer service.

Is the shaver waterproof or can it be used in the shower?

No, the manual states not to immerse the device in water or use it with wet hands. It is intended for dry shaving only.

How to replace the shaver head or blades?

Press the unlock switch to remove the old head. Replace with a compatible CLATRONIC replacement head. The blades are integrated into the head and are changed with it. Spare parts are available from the manufacturer.

What is the warranty period for the CLATRONIC HR 2603?

The warranty is 24 months from the date of purchase against any manufacturing or material defects. Keep the receipt as proof.

What to do in case of breakdown during the warranty period?

Return the complete device in its original packaging with the receipt to your dealer. The warranty covers free repair or replacement. Wear parts (blades, head) are not covered.

USER MANUAL HR 2603 CLATRONIC

Rasoio 2603 · Men's razor HR 2603

Máquina de barbear para homens 2603 • Maszynka do golenia dla是我的czyzn

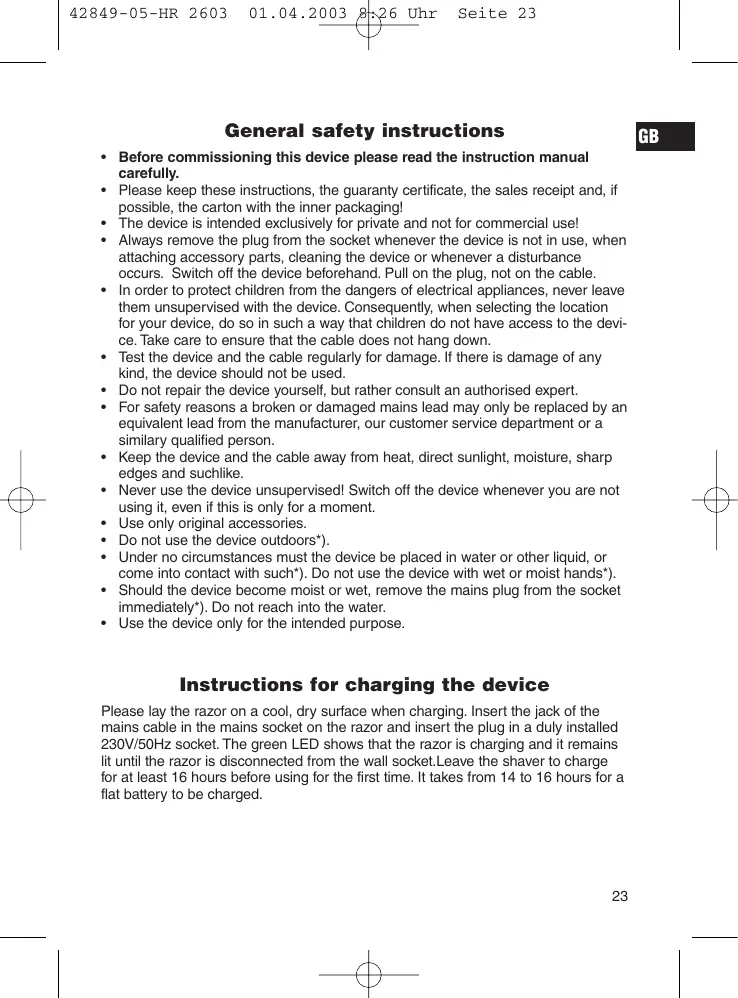

General safety instructions

GB

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors*.
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such). Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately*). Do not reach into the water.
• Use the device only for the intended purpose.

Instructions for charging the device

Please lay the razor on a cool, dry surface when charging. Insert the jack of the mains cable in the mains socket on the razor and insert the plug in a duly installed 230V/50Hz socket. The green LED shows that the razor is charging and it remains lit until the razor is disconnected from the wall socket. Leave the shaver to charge for at least 16 hours before using for the first time. It takes from 14 to 16 hours for a flat battery to be charged.

GB

Control element overview

1 Battery/AC adapter;
2 2 level shaving system;
3 Hair cutter;
4 LED display;
5 Removable double shaving head for the cleaning of the blades;
6 Skid-proof handle area;
7 Travel case.

Use

Take the protection cap off the device before use. Shift the on/off switch up (towards the shearing head) to switch on the device. Use the trimmer on the back of the device to cut long hair. Push the release button upwards until the trimmer comes off. Run the shearing blade across the surface to be cut with the blade lying flat against it to remove the remaining hair.

After use switch the device off with the on/off switch and push the release button in until the trimmer fits back into place.

Should the incorporated accumulator be flat, the razor can be used anyway by connecting the mains cable.

Cleaning and care

Switch the device off with the on/off switch and pull out the plug. Press the release button to remove the blade. Clean the razor with the supplied cleaning brush.

Attention: do not touch the blades of the razor with your fingers! In order to remove hair in the gaps of the blade, use the supplied brush. Put the shearing blade back on after cleaning.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice!

Warranty

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

Within the guarantee period we rectify faults to the machine free of charge which result from material or manufacturing faults, either by repairing the machine or, or our discretion, by replacement. Any such repair or replacement associated with the guarantee shall not cause the guarantee period to be extended, nor be deemed to be the start of a new guarantee period!

Proof for the warranty is provided by the purchase document. The replacement and

repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

Defects to the accessories do not entitle to the change of the appliance. These will be replaced free of charge. In this case do not send back the appliance. Just order the faulty accessory! Broken glass parts are replaced at the expense of the owner!

Faults to consumption accessories or wearing parts (e.g. engine graphite, saw blades, kneading hooks, drive belts etc), as well as cleaning, maintenance or the replacement of wearing parts, do not fall under the guarantee and are therefore subject to a charge!

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
