Product type	Compact 2-way bass-reflex speaker
Brand	Focal
Model	SIB XL JET BLACK
Category	Passive speaker (requires amplifier)
Drivers	1 shielded 125 mm woofer-midrange + 1 shielded 19 mm tweeter
Frequency response	75 Hz - 20 kHz (+/- 3 dB)
Sensitivity	90 dB (2.8V/1m)
Nominal impedance	6 ohms
Crossover frequency	3 kHz
Recommended amplifier	15 - 75 W
Dimensions (H x W x D)	247 mm x 142 mm x 164 mm
Weight	2.1 kg
Use	Hi-Fi, Home Theater, wall-mountable
Power	Passive (connection to an amplifier)
Connectors	Screw terminals (red + / black -)
Maintenance and cleaning	Soft dry cloth; do not use chemicals
Safety	Do not expose to water, do not open the speaker
Spare parts and repairability	Drivers not user-replaceable; contact customer service
Warranty	2 years (France); conditions vary by country
Additional specifications	Magnetic shielding to avoid interference with TVs

Frequently Asked Questions - SIB XL JET BLACK FOCAL

How to install the SIB XL speaker on a cabinet?

Place the speaker at equal distance from the listening point, at a minimum height of 80 cm for a coherent sound image. Use the supplied base and secure it if necessary.

Can I mount the speaker on the wall?

Yes, use the supplied hex key to separate the base from the speaker, fix the base to the wall with the supplied plugs and screws, then replace the speaker and screw it back. Make sure not to drill into electrical cables.

How to wire the speaker to the amplifier?

Use a hi-fi cable of pure copper with a minimum diameter of 1.5 mm. Connect the red (+) terminal of the amplifier to the red (+) terminal of the speaker, and the black (-) terminal to the black (-) terminal. Respect polarity.

What amplifier is recommended for the SIB XL speaker?

An amplifier delivering between 15 and 75 W is recommended. The nominal impedance is 6 ohms.

Can I use the speaker as a center speaker for home theater?

Yes, the drivers are shielded, so the speaker can be placed near a TV safely. Set your amplifier to 'SMALL' or 'NARROW' mode.

Which subwoofer to use with the SIB XL speaker?

The Focal Cub subwoofer is specially designed to accompany the Sib speakers. Consult its manual for more information.

How to clean the speaker?

Use a soft, dry cloth. Do not use chemicals, alcohol, or abrasives that could damage the finish.

What to do in case of failure?

First contact your Focal dealer. If the speaker is under warranty, it will be repaired or replaced free of charge. Otherwise, a repair quote will be provided.

What is the warranty period?

In France, the warranty is 2 years from the date of purchase. It is not transferable in case of resale. For other countries, consult the local official Focal distributor.

Can I register my product online?

Yes, you can register your product on the website www.focal.com/warranty to facilitate warranty procedures.

USER MANUAL SIB XL JET BLACK FOCAL

Thank you for choosing Focal loudspeakers. We are pleased to share with you our philosophy :

the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

D

Place the loudspeakers equally spaced either side of the listening position. It is advisable to place Sib at least 80cm from the floor for a better sound stage.

B-Wallfixing

1. Before drilling any holes, check carefully that there are no electrical cables or pipes in the wall.

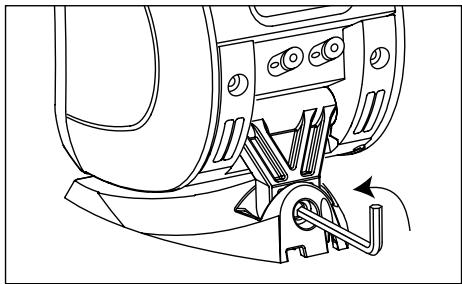

2. Use the hexagonal key supplied in the base of the Sib to unscrew the bolt that holds the base to the support bracket
3. Connecting Sib : see section "connections" page 4.

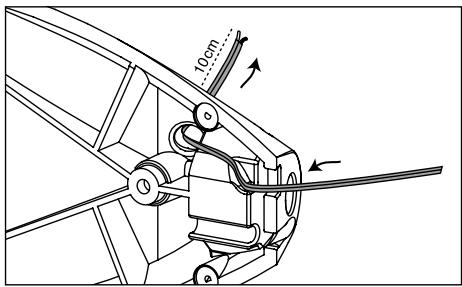

Feed the cable through the base piece as indicated in the diagram.

Leave around 10cm of free cable to facilitate connection.

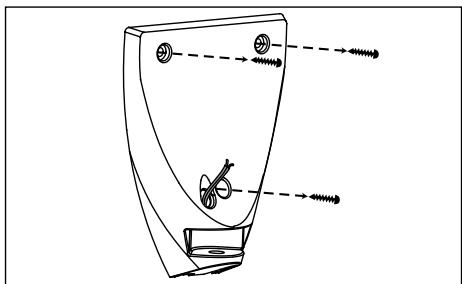

1. Use the base as a template to mark the

position of the three fixing screws on the wall. The three fixing holes should be drilled with a 6mm masonry bit and the plastic wall plugs firmly inserted until they are flush with the wall surface.

Fix the base with the three screws supplied.

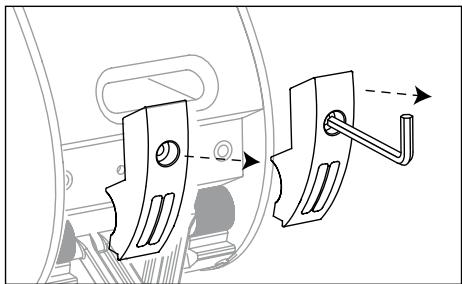

1. Unscrew the two fixing clamps.

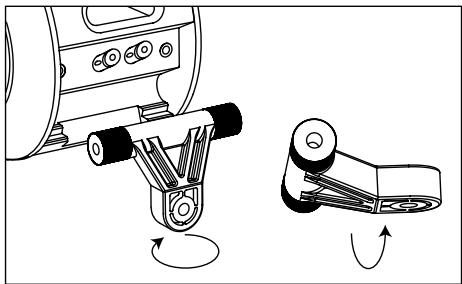

2. Remove the silver support piece, turn it 180^ , and reposition the support so that it will fit horizontally with the wall mounted base.

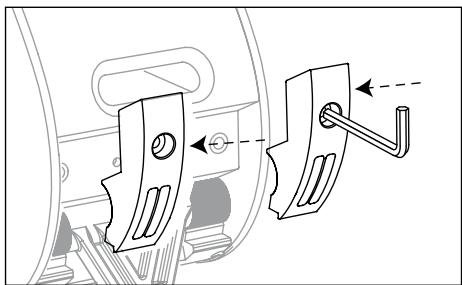

3. Re-mount the two clamps and screw them firmly in place.

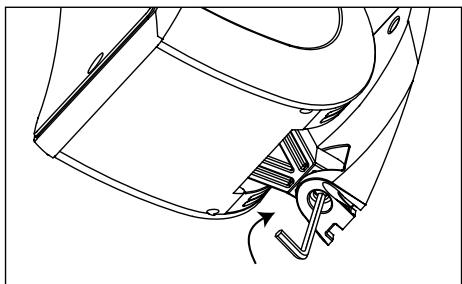

4. Connect up the loudspeaker cables and re-fix the Sib onto its wall mounted base.

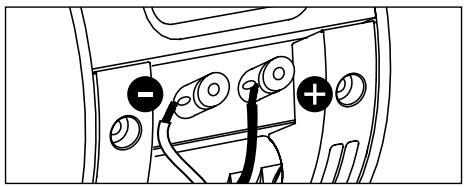

Connexion

As with any performance product, Sib should be connected to the amplifier using a high quality pure copper cable of at least 0.15mm .

Connect the "+" from the amplifier to the "+" on the Sib (red) and the "-" from the amplifier to the "-" of the Sib (black).

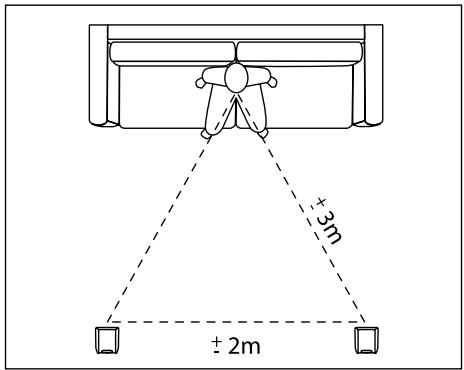

Stereo configuration

Place the loudspeakers equally spaced either side of the listening position.

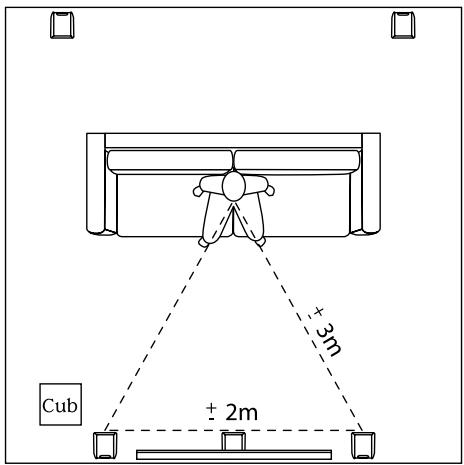

Home theater configuration

Sib is magnetically screened, so can be placed can be placed close, on or below a television without distorting the picture.

The "SMALL" or "NARROW" setting should be used on your AV amplifier for the Sib.

For the LFE or subwoofer channel we recommend that you use the Focal Cub active subwoofer which was designed to acoustically match the Sib. See Cub instruction manual.

Specifications

Description	2-way bass reflex multi-purpose loudspeaker
Drivers	One 125mm woofer midrange
L.F. (-6dB point)	One 19mm shielded tweeter
Frequency response (+/- 3dB)	75Hz - 20kHz
Efficiency (2.8V/1m)	90 dB
Nominal impedance (EN 60065)	6 ohms
Crossover frequencies	3kHz
Recommended amplifier	15 - 75W
Total dimensions (HxWxD)	247mm x 142mm x 164mm
Net weight	2.1kg

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Placement

International Guarantee

The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address:

Your complete address:

Your email address:

Details of your installation (brand, model):

• iPod, iPad, iPhone®:

Other music players:

Your decision for purchasing this Focal model was made according to:

Dealer's advice
□ Friend's advice
□ Visit to an exhibition, show
Press article
Listening in auditorium
□ Already own Focal products
□ Reliability / Quality
□ Documentation
Reputation
French produce
Guarantee
Quality / Price ratio
Design/Finishes
□ Other
Sound

In case of purchase of new equipment, what were your former speakers?

Explain in a few words why you choose Focal...

Further comments:

Now it's possible to register on line: www.focal.com/warranty
