| Product Type | Compact LCR bass-reflex "On wall" 2-way audio speaker |
| Brand | FOCAL |
| Model | SIB XL |
| Tweeter | 19 mm OAL aluminum dome |
| Woofer/Midrange | 2 x 13 cm Polyflex cones |
| Frequency Response (±3 dB) | 67 Hz - 35 kHz |
| Sensitivity (2.83 V/1 m) | 91 dB |
| Maximum Power | 100 W |
| Nominal/Minimum Impedance | 8 ohms / 3.6 ohms @ 250 Hz |
| Crossover | OPC 12 dB/octave, 3.5 kHz |
| Dimensions (W x H x D) | 505 x 142 x 108 mm |
| Weight | 4.0 kg |
| Usage | Vertical, horizontal or on stands (optional Hop/Bop stands) |
| Wall Mounting | Yes, with included Polyfix plate |
| "On wall / Freestanding" Mode | Switch to optimize response according to position |
| Magnetic Shielding | Yes, for placement near a TV |
| Water Resistance | Resistant to water splashes (bathroom, kitchen) |
| Construction | Rigid ABS, resonance-free |
| Dual bass-reflex vents | Powerful bass without distortion |
| Connectors | Screw terminals (cable min 1.5 mm²) |
| Maintenance | Dust with a dry cloth, damp cloth for stains, no solvents |
| Warranty (France) | 10 years, non-transferable |
| Included Accessories | Polyfix wall mounting kit, manual |
| Options | Hop (tall) or Bop (short) stands |
Frequently Asked Questions - SIB XL FOCAL
User questions about SIB XL FOCAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speaker in PDF format for free! Find your manual SIB XL - FOCAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SIB XL by FOCAL.

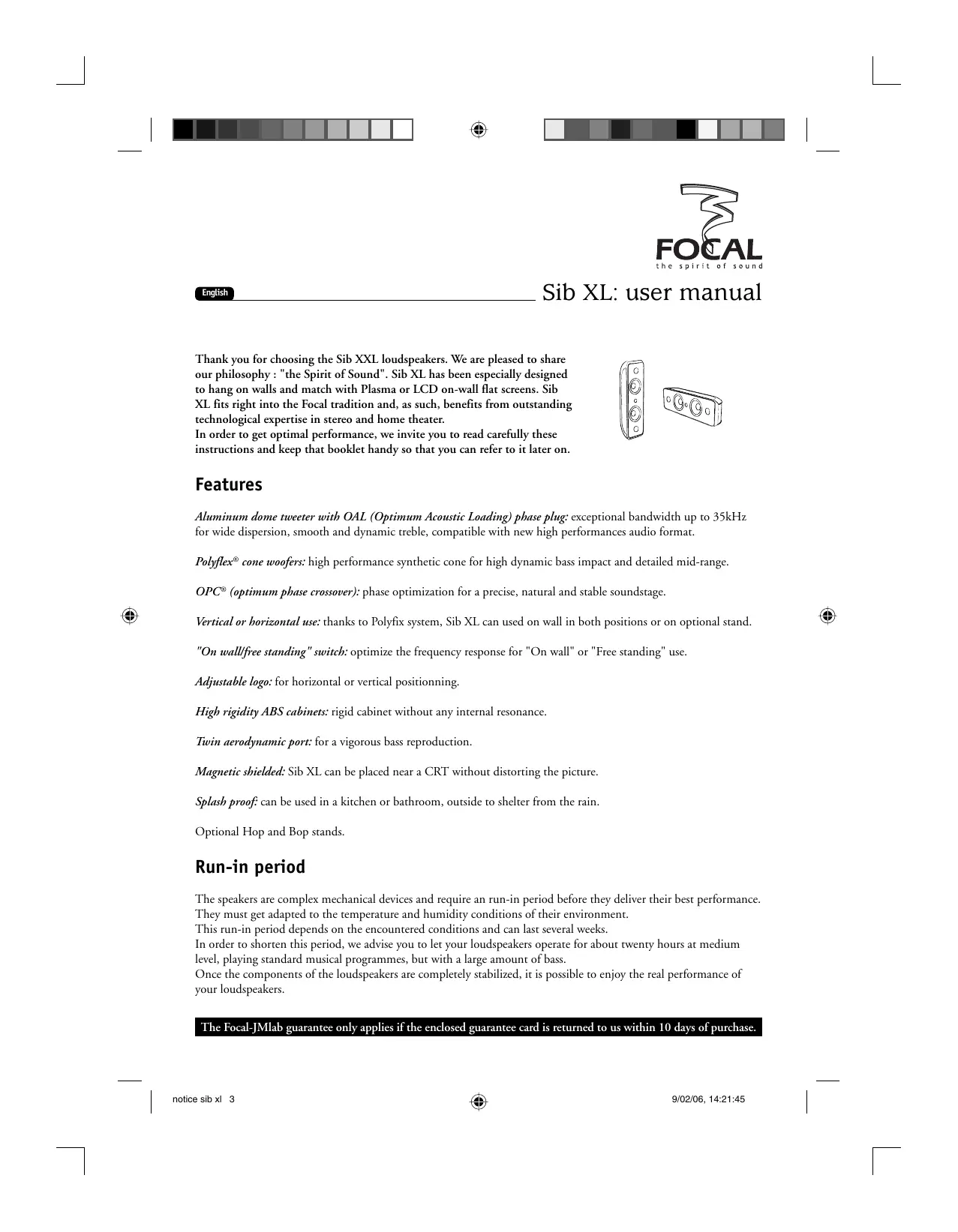

USER MANUAL SIB XL FOCAL
Thank you for choosing the Sib XXL loudspeakers. We are pleased to share our philosophy : "the Spirit of Sound". Sib XL has been especially designed to hang on walls and match with Plasma or LCD on-wall flat screens. Sib XL fits right into the Focal tradition and, as such, benefits from outstanding technological expertise in stereo and home theater.
In order to get optimal performance, we invite you to read carefully these instructions and keep that booklet handy so that you can refer to it later on.
Features
Aluminum dome tweeter with OAL (Optimum Acoustic Loading) phase plug: exceptional bandwidth up to 35kHz for wide dispersion, smooth and dynamic treble, compatible with new high performances audio format.
Polyflex cone woofers: high performance synthetic cone for high dynamic bass impact and detailed mid-range.
O P C^® (optimum phase crossover): phase optimization for a precise, natural and stable soundstage.
Vertical or horizontal use: thanks to Polyfix system, Sib XL can used on wall in both positions or on optional stand.
"On wall/free standing" switch: optimize the frequency response for "On wall" or "Free standing" use.
Adjustable logo: for horizontal or vertical positionning.
High rigidity ABS cabinets: rigid cabinet without any internal resonance.
Twin aerodynamic port: for a vigorous bass reproduction.
Magnetic shielded: Sib XL can be placed near a CRT without distorting the picture.
Splash proof: can be used in a kitchen or bathroom, outside to shelter from the rain.
Optional Hop and Bop stands.
Run-in period
The speakers are complex mechanical devices and require an run-in period before they deliver their best performance.
They must get adapted to the temperature and humidity conditions of their environment.
This run-in period depends on the encountered conditions and can last several weeks.
In order to shorten this period, we advise you to let your loudspeakers operate for about twenty hours at medium level, playing standard musical programmes, but with a large amount of bass.
Once the components of the loudspeakers are completely stabilized, it is possible to enjoy the real performance of your loudspeakers.
4
Sib XL: user manual
Connection
As with any performance product, this speaker should be connected to the amplifier using a high quality pure copper cable of at least 0.15mm .
It is imperative to respect the connector polarity.

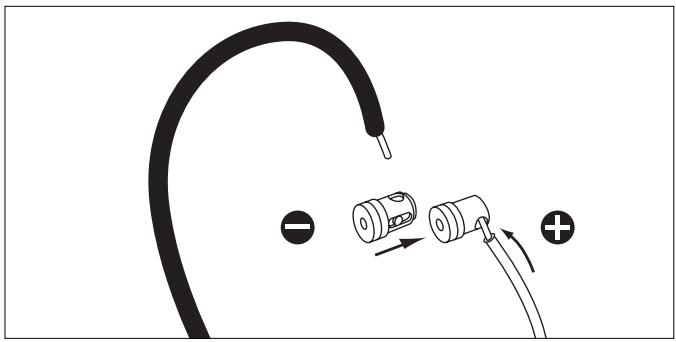

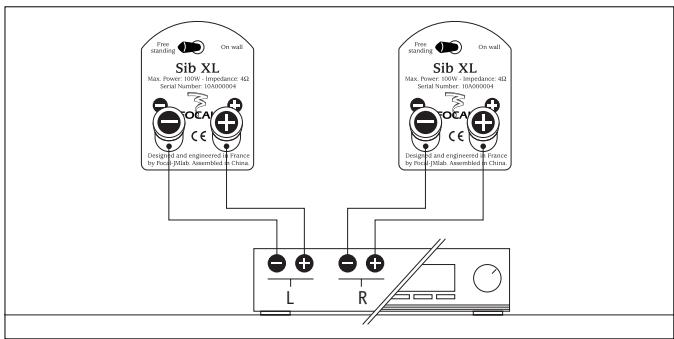

The positive terminal " + " (red) must be connected to the corresponding (matching) amplifier's terminal and the negative terminal " - " (black) to the negative terminal.
Stereo image, soundstaging and bass perception would be seriously compromised if these conditions were not respected.
"On wall: freestanding" switch
By default, Sib XL is set on "On wall" mode. In that setting, Sib XL takes into consideration the supporting wall's influence which always tends to artificially boost the bass level.
If you use Sib XL on an optional stand away from the wall, prefer the "Freestanding" mode which will insure better bass reproduction. The "On wall/Freestanding" switch is located under the Polyfix plate and has to be configured properly before binding the loudspeaker.
5
Sib XL: user manual
Sib XL is provided with a wall binding kit which allows both vertical and horizontal positioning. The Polyfix plate allows as well Sib XL to be fixed upon optional Hop long stands and Bop short stands. Check with your dealer for more details.
Horizontal installation Sib XL

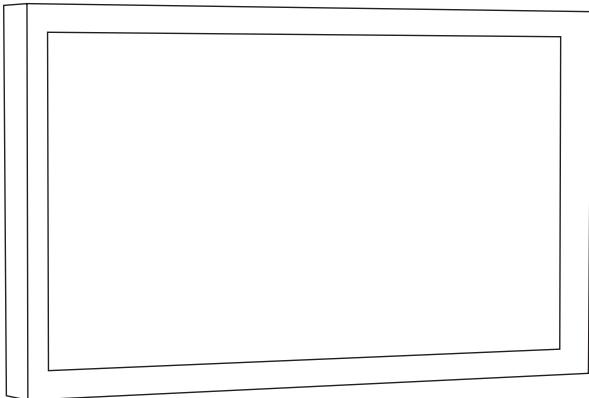

- Locate and mark Sib XL wall position making sure that the tweeter be leveled with the ear of a normally seated listener.
- Place the wall rest on to the wall and drill. Use only plugs fitting your wall material.

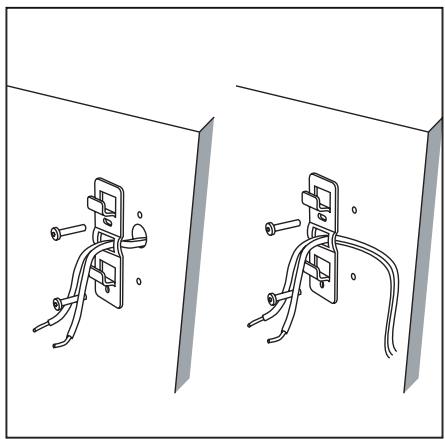

- If the loudspeaker cable is embedded in the wall, guide it through the wall mounted bracket's opening as indicated.
- If the loudspeaker cable is fixed to the wall slide it under the wall mounted bracket as indicated.
- Guide the loudspeaker cable through the Polyfix plate as indicated.

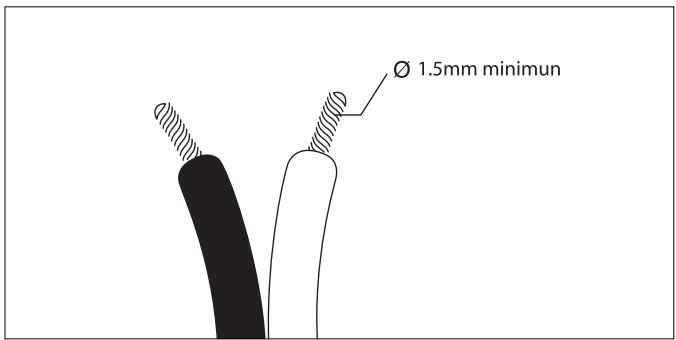

- Connect the loudspeakers cables to the rapid push-button binding posts (pure copper wire at least 1.5mm in diameter).

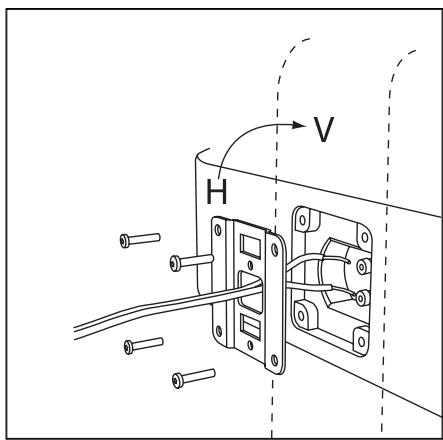

- Attach the Polyfix plate to the loudspeaker with 4 screws as indicated. The hollow side of the plate must be directed to the loudspeaker's inside.

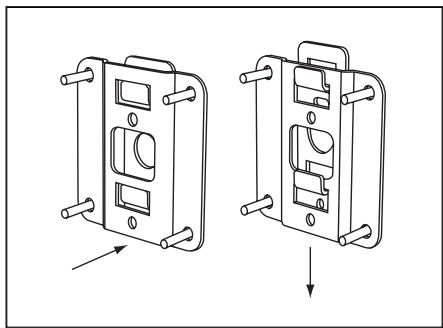

- Clip the plate on the loudspeaker to the wall mounted bracket as indicated.
Vertical installation Sib XL
- Rotate the Polyfix plate to the right angle for proper vertical positioning.
- Follow general mounting procedures as stated above.
6
Sib XL: user manual
Specifications
| Description | 2-way "On wall" LCR bass reflex loudspeaker |
| Woofer | two 5" Polyflex cone |
| Tweeter | 3/4" OAL aluminum dome |
| Frequency response (+/-3dB) | 67Hz - 35kHz |
| Sensitivity (2.83 V/1 m) | 91dB |
| Power handling | 100W |
| Crossover | OPC 12dB/oct, 3.5kHz |
| Nominate/minimum impedance | 8ohms/3.6ohms @ 250Hz |
| Dimensions (HxWxD) | 19-7/8x5-1/2x4-1/4" (505x142x108mm) |
| Net weight | 8.8lbs (4.0kg) |
User precautions
Maintenance is easy and consists only in cleaning the covering with a dry cloth. If the enclosure is stained, we simply recommend the use of a damp cloth.
Never use any solvents, detergents, alcohol or corrosive products, scrapers or scouring powder to clean the surface of the loudspeaker.
Avoid placing the loudspeakers near a heat source.
Conditions of guarantee
All Focal loudspeakers are covered by guarantee drawn up by the official Focal-JMlab distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.
Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.
Sib XL
Manuel Utilisateur
C E
the spirit of sound
Mode "On wall / Freestanding"

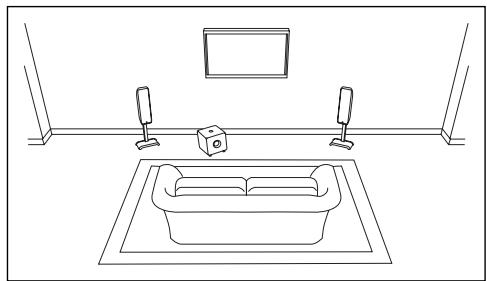

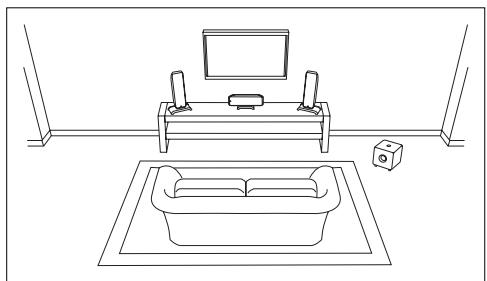

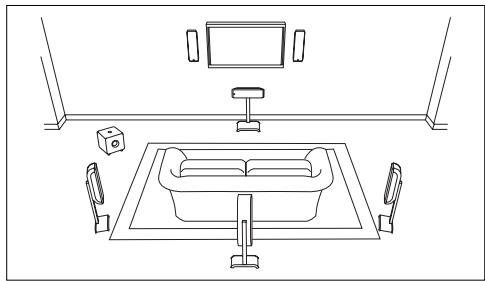

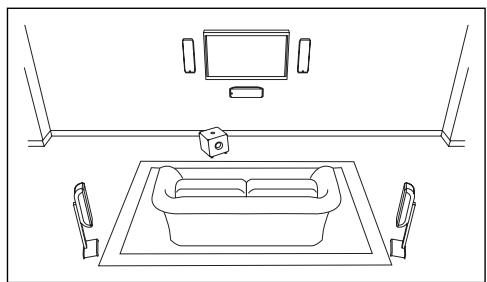

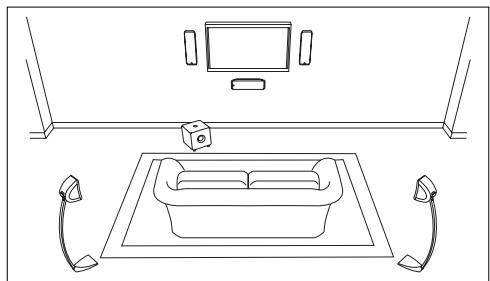

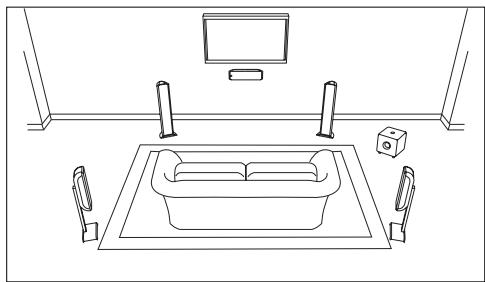

Sib & Co is a complete loudspeakers product line, including Sib XXL floor standing speakers, Sib XL on wall speakers (sold by 2 or 3 units), Hop and Bop optional stands, Sib compact speakers and Cub 2 amplified subwoofer.
Pack 2.1: Sib XL + Hop + Cub 2
Pack 3.1: Sib XL 3.0 + Bop + Cub 2
Pack 5.1: Sib XL 3.0 + Sib XL 2.0 + Cub 2
Pack 5.1: Sib XXL + Sib XL 3.0 + Cub 2
Pack 5.1: Sib XL 3.0 + Sib + Cub 2
Pack 6.1: Sib XL 3.0 + Sib XL 3.0 + Cub 2 + Hop
International Guarantee
