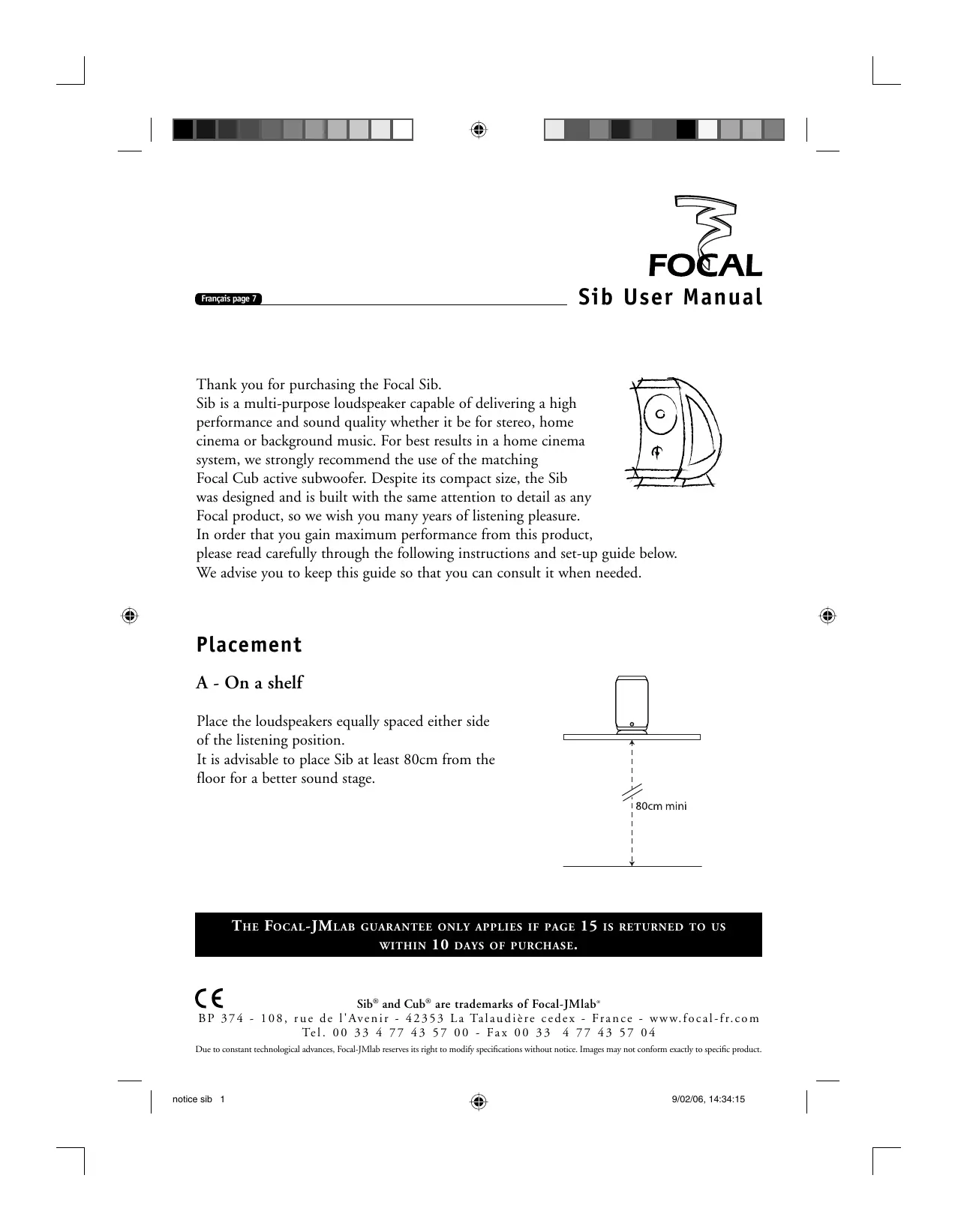

Sib User Manual Français page 7 Thank you for purchasing the Focal Sib. Sib is a multi-purpose loudspeaker capable of delivering a high performance and sound quality whether it be for stereo, home cinema or background music. For best results in a home cinema system, we strongly recommend the use of the matching Focal Cub active subwoofer. Despite its compact size, the Sib was designed and is built with the same attention to detail as any Focal product, so we wish you many years of listening pleasure. In order that you gain maximum performance from this product, please read carefully through the following instructions and set-up guide below. We advise you to keep this guide so that you can consult it when needed. Placement A - On a shelf Place the loudspeakers equally spaced either side of the listening position. It is advisable to place Sib at least 80cm from the floor for a better sound stage.

Due to constant technological advances, Focal-JMlab reserves its right to modify specifications without notice. Images may not conform exactly to specific product. notice sib 1 9/02/06, 14:34:15

1. Before drilling any holes, check carefully that there are no electrical cables or pipes in

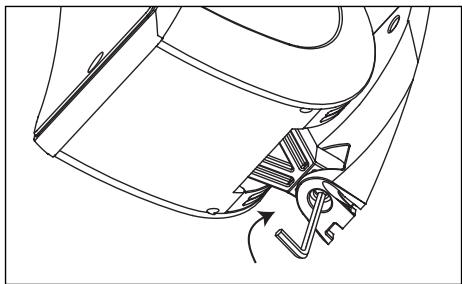

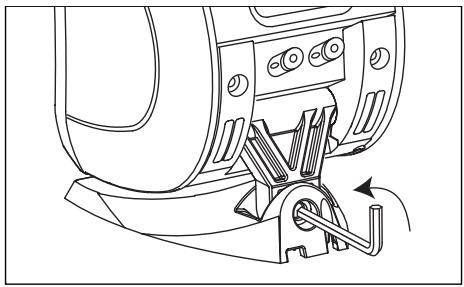

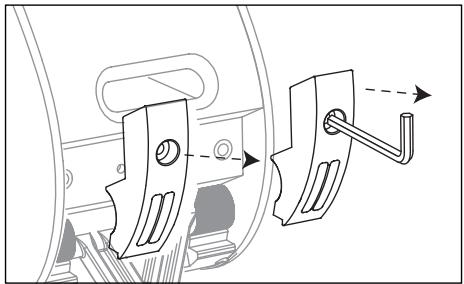

2. Use the hexagonal key supplied in the base

of the Sib to unscrew the bolt that holds the base to the support bracket

3. Connecting Sib : see section “connections”

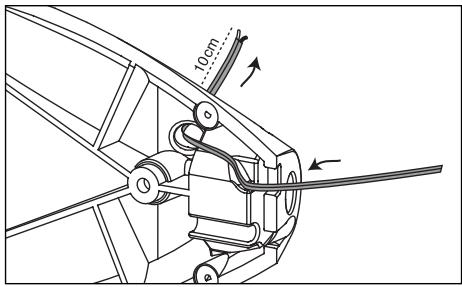

page 4. Feed the cable through the base piece as indicated in the diagram. Leave around 10cm of free cable to facilitate connection.

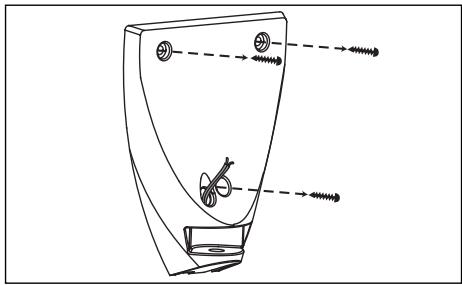

4. Use the base as a template to mark the

position of the three fixing screws on the wall. The three fixing holes should be drilled with a 6mm masonry bit and the plastic wall plugs firmly inserted until they are flush with the wall surface. Fix the base with the three screws supplied. notice sib 2 9/02/06, 14:34:16

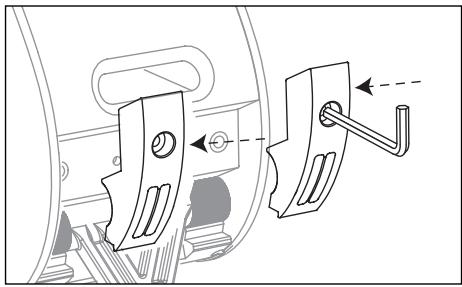

5. Unscrew the two fixing clamps.

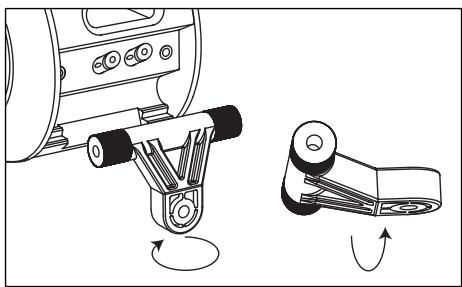

6. Remove the silver support piece, turn it 180°,

and reposition the support so that it will fit horizontally with the wall mounted base.

7. Re-mount the two clamps and screw them

8. Connect up the loudspeaker cables and re-fix

the Sib onto its wall mounted base. notice sib 3 9/02/06, 14:34:16

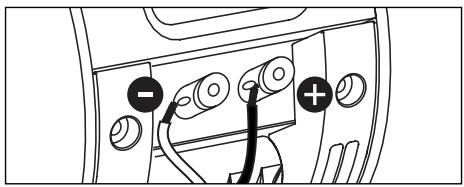

Sib User Manual Connexion As with any performance product, Sib should be connected to the amplifier using a high quality pure copper cable of at least Ø 1.5mm. Connect the “+” from the amplifier to the “+” on the Sib (red) and the “-” from the amplifier to the “-” of the Sib (black). notice sib 4 9/02/06, 14:34:16

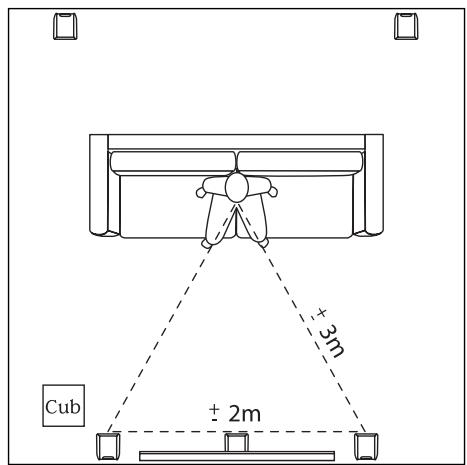

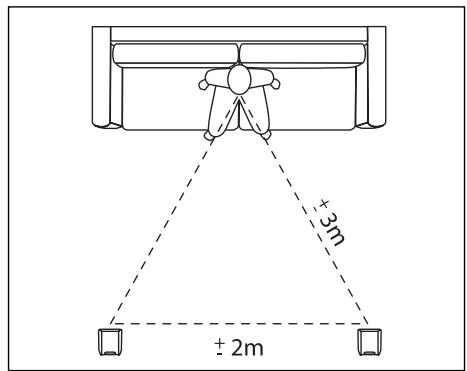

Sib User Manual Stereo configuration Place the loudspeakers equally spaced either side of the listening position. Home theater configuration Sib is magnetically screened, so can be placed can be placed close, on or below a television without distorting the picture. The “SMALL” or “NARROW” setting should be used on your AV amplifier for the Sib. For the LFE or subwoofer channel we recommend that you use the Focal Cub active subwoofer which was designed to acoustically match the Sib. See Cub instruction manual. notice sib 5 9/02/06, 14:34:16 Sib User Manual

Specifications Description Drivers L.F. (-6dB point) Frequency response (+/- 3dB) Efficiency (2.8V/1m) Nominal impedance (EN 60065) Crossover frequencies Maximal power handling with musical program Recommended amplifier Total dimensions (HxWxD) Net weight 2-way bass reflex multi-purpose loudspeaker One 125mm woofer midrange One 19mm shielded tweeter 65Hz 75Hz - 20kHz 90dB 6 ohms 3kHz 75W

247mm x 142mm x 164mm 2.1kg Guarantee In the unlikely event of any problem, please contact your Focal retailer. For export, all Focal speakers are covered by the guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guaranted in force in the country where the original purchase invoice was issued. Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live. notice sib 6 9/02/06, 14:34:16 Manuel Utilisateur Sib
