SIB PEARL - Speaker FOCAL - Free user manual and instructions

Product Type	Compact two-way bass-reflex audio speaker
Brand	Focal
Model	Sib Pearl
Dimensions (H x W x D)	247 x 142 x 164 mm
Weight	2.1 kg
Speakers	1 shielded 125 mm woofer-midrange, 1 shielded 19 mm tweeter
Frequency response	75 Hz - 20 kHz (±3 dB)
Sensitivity	90 dB (2.8 V/1 m)
Nominal impedance	6 ohms
Filter cutoff frequency	3 kHz
Recommended amplifier	15 - 75 W
Power type	Passive (unamplified)
Connectivity	Screw terminals
Magnetic shielding	Yes, for proximity to TV
Wall mounting	Yes, bracket supplied with hex key
Recommended use	Home theater (front, rear, center) or hi-fi
Positioning	At equal distance from listening point, minimum height 80 cm
Recommended amp mode	Small or Narrow
Recommended subwoofer	Focal Cub
Supplied accessories	Wall bracket, hex key, 3 screws, 3 wall plugs
Recommended wiring	Pure copper hi-fi cable 1.5 mm² minimum, respect polarity
Maintenance	Clean with a soft dry cloth
Warranty (France)	2 years from date of purchase
Warranty conditions	Does not cover damage due to misuse or incorrect connection

Frequently Asked Questions - SIB PEARL FOCAL

How to mount the Sib Pearl speaker on the wall?

Use the supplied hex key under the base to unscrew the bracket. Fix the bracket to the wall with the three screws and wall plugs supplied (drill with a 6 mm bit). Pass the speaker cable, then screw the speaker back onto the bracket.

What type of cable to use for connection?

Use a pure copper hi-fi cable of at least 1.5 mm². Respect polarities: red terminal (+) from amplifier to red terminal (+) of speaker, and black terminal (-) to black terminal (-).

Can I place the speaker near a TV?

Yes, the speakers are magnetically shielded. You can use Sib Pearl as a center speaker or near a TV without risk.

What setting to choose on my home theater amplifier?

In your amplifier menu, set the Sib Pearl speakers to Small or Narrow mode for optimal frequency reproduction.

Which subwoofer is recommended with Sib Pearl?

We recommend the Focal Cub subwoofer, specially designed to accompany Sib Pearl in home theater.

What is the speaker's sensitivity?

Sensitivity is 90 dB (measured at 2.8 V/1 m). This allows good efficiency with moderate power amplifiers.

What is the speaker's impedance?

Nominal impedance is 6 ohms (according to EN 60065 standard). Check compatibility with your amplifier.

How to clean the Sib Pearl speakers?

Use a soft dry cloth to dust. Avoid chemical or abrasive products.

What is the recommended amplifier power?

An amplifier of 15 to 75 W per channel is recommended to fully exploit the speaker's performance.

What to do in case of a problem with the speaker?

Contact your Focal dealer. In France, the warranty is 2 years from date of purchase. For any repair, ship the speaker in its original packaging to the dealer.

USER MANUAL SIB PEARL FOCAL

Thank you for choosing Focal loudspeakers. We are pleased to share with you our philosophy :

the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

D

Place the loudspeakers equally spaced either side of the listening position. It is advisable to place Sib at least 80cm from the floor for a better sound stage.

B-Wallfixing

1. Before drilling any holes, check carefully that there are no electrical cables or pipes in the wall.

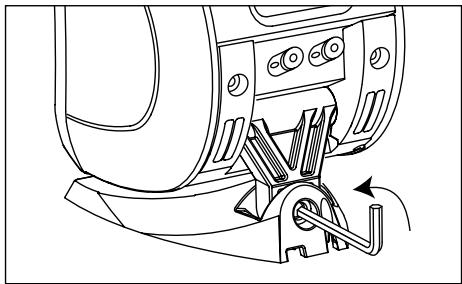

2. Use the hexagonal key supplied in the base of the Sib to unscrew the bolt that holds the base to the support bracket
3. Connecting Sib : see section "connections" page 4.

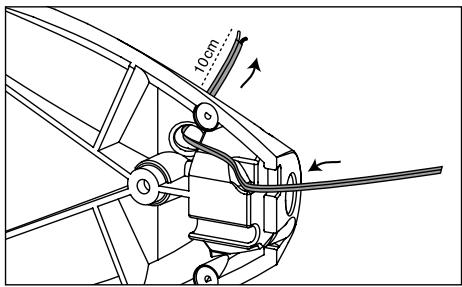

Feed the cable through the base piece as indicated in the diagram.

Leave around 10cm of free cable to facilitate connection.

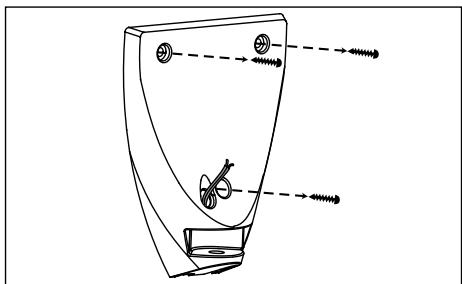

1. Use the base as a template to mark the

position of the three fixing screws on the wall. The three fixing holes should be drilled with a 6mm masonry bit and the plastic wall plugs firmly inserted until they are flush with the wall surface.

Fix the base with the three screws supplied.

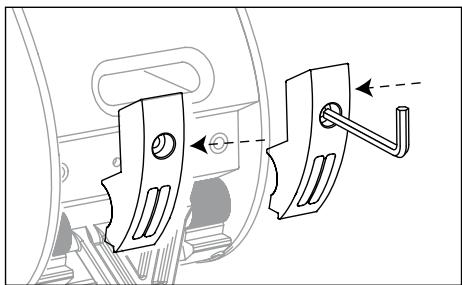

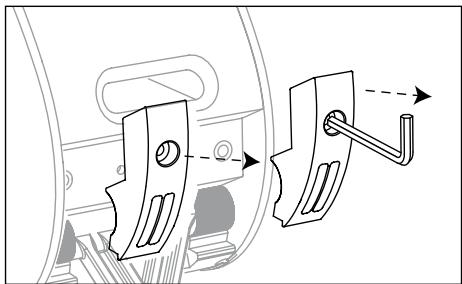

1. Unscrew the two fixing clamps.

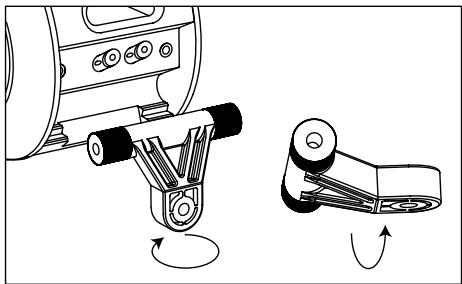

2. Remove the silver support piece, turn it 180^ , and reposition the support so that it will fit horizontally with the wall mounted base.
3. Re-mount the two clamps and screw them firmly in place.

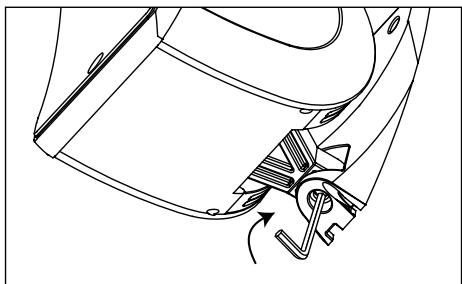

4. Connect up the loudspeaker cables and re-fix the Sib onto its wall mounted base.

Connexion

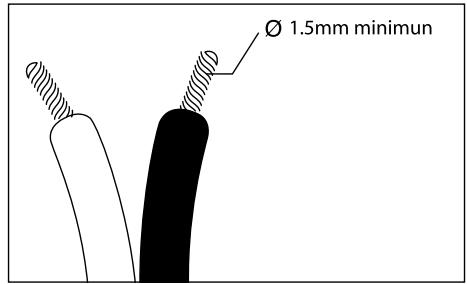

As with any performance product, Sib should be connected to the amplifier using a high quality pure copper cable of at least 0.15mm .

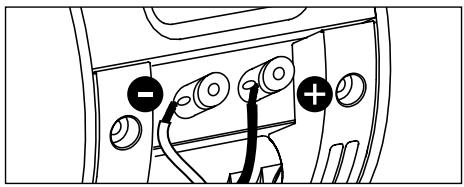

Connect the "+" from the amplifier to the "+" on the Sib (red) and the "-" from the amplifier to the "-" of the Sib (black).

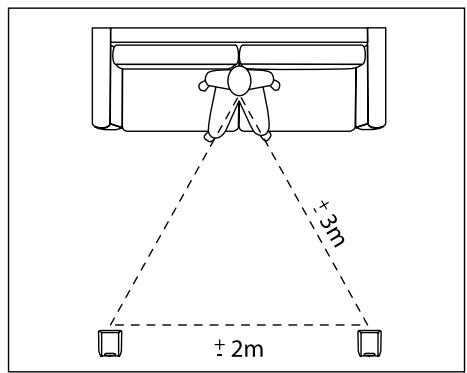

Stereo configuration

Place the loudspeakers equally spaced either side of the listening position.

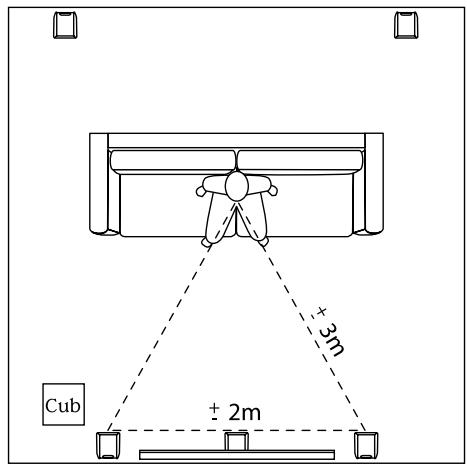

Home theater configuration

Sib is magnetically screened, so can be placed can be placed close, on or below a television without distorting the picture.

The "SMALL" or "NARROW" setting should be used on your AV amplifier for the Sib.

For the LFE or subwoofer channel we recommend that you use the Focal Cub active subwoofer which was designed to acoustically match the Sib. See Cub instruction manual.

Specifications

Description	2-way bass reflex multi-purpose loudspeaker
Drivers	One 125mm woofer midrange
L.F. (-6dB point)	One 19mm shielded tweeter
Frequency response (+/- 3dB)	75Hz - 20kHz
Efficiency (2.8V/1m)	90 dB
Nominal impedance (EN 60065)	6 ohms
Crossover frequencies	3kHz
Recommended amplifier	15 - 75W
Total dimensions (HxWxD)	247mm x 142mm x 164mm
Net weight	2.1kg

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Placement

International Guarantee

The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address:

Name of dealer: Town:

Date of purchase: Purchase price:

Your name: _，Age: _，Occupation: __

Your complete address:

Your email address:

Details of your installation (brand, model):

• iPod, iPad, iPhone®: _. Other music players: _.
  ■Tuner/Web Radio: DVD:
  ■Blu Ray: CD/SACD:
  Satellite/TNT: Flat screen:
  ■ Amplifier: Others:

Your decision for purchasing this Focal model was made according to:

□ Dealer's advice □ Friend's advice
□ Visit to an exhibition, show □ Press article
□ Listening in auditorium □ Already own Focal products
□ Reliability / Quality □ Documentation
□ Reputation □ French produce
Guarantee Quality/Price ratio
Design/Finishes Other
Sound

In case of purchase of new equipment, what were your former speakers?

Explain in a few words why you choose Focal...

Further comments:

Now it's possible to register on line: www.focal.com/warranty
