USER MANUAL ESPRIMO EDITION P2511 FUJITSU SIEMENS

...any technical problems or other questions you need clarified?

Please contact:

• your sales partner or your sales outlet
• our hotline via the contact form at "www.fujitsu-siemens.com/support/contact/contact.html", or for customers who have purchased an individual mainboard: [phone]

The latest information and updates (e.g. BIOS update) on our mainboards can be found on the Internet at: "www.fujitsu-siemens.com/mainboards"

Copyright © Fujitsu Siemens Computers GmbH 2007

Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.

Microsoft, MS, MS-Dos and Windows are registered trademarks of Microsoft Corporation.

PS/2 and OS/2 Warp are registered trademarks of International Business machines, Inc.

All other trademarks referenced are trademarks of their respective owners, whose protected rights are acknowledged.

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability.

Right of technical modification reserved.

Silent Fan LT	Independent temperature related processor and fan supervision and control
System Guard	View and adjust Silent Fan LT
Silent Drives	Noise reduction for optical and hard disk drives
Recovery BIOS	Restores a corrupted BIOS
Desk Update	Simple driver update with DU CD
Multi Boot	Comfortable boot from any boot device
HDD Password	Access protection for ATA5/ATAPI5 disk drives

Power Supply Requirements - for onboard components (worst case)
Source	Voltage	Maximal variation	Mainboard current Typical (Maximal)
Main Power Supply	+ 12 V	+ / - 5 %	5.0 A (12.0 A)
	- 12 V	+ / - 10%	0.01 A (0.01 A)
	+ 5 V	+ / - 5 %	4.0 (8.0 A)
	+ 3.3 V	+ / - 5 %	0.5 A (1.0 A)
Aux. Power Supply	+ 5 V	+ / - 5 %	0.5 A (0.5 A)

Information about boards

Be sure to observe the following for boards with ESD:

• You must always discharge static build up (e.g. by touching a grounded object) before working.
  The equipment and tools you use must be free of static charges.
• Remove the power plug from the mains supply before inserting or removing boards.
  Always hold boards by their edges.
• Never touch pins or conductors on boards.

An overview of the features is provided in the data sheet.

Special features

Your mainboard is available in different configuration levels. Your mainboard is equipped with or supports particular features depending on the configuration.

This manual describes the most important properties of this mainboard.

Additional information on mainboards can be found in the "Basic information on mainboard" manual on the "User Documentation" or "OEM Mainboard" CD or on the website.

Interfaces and connectors

The location of the interfaces and connectors of your mainboard is specified at the beginning of the manual.

The components and connectors marked are not necessarily present on the mainboard.

External ports

The location of the external connections of your mainboard is specified at the beginning of the manual.

PS/2 keyboard port, violet (optional)	PS/2 mouse port, green (optional)
LAN port (RJ-45)	Microphone jack (mono), pink
Audio input (Line in), light blue	USB - Universal Serial Bus, black
Audio output (Line out), light green	VGA, blue
Serial interface, turquoise

Installing/removing the processor

Disconnect the system from the mains voltage before performing any of the tasks described below. Details are contained in the operating manual of your system.

Technical data

Intel Core Duo with 800 or 1066 MHz front side bus in the LGA775 format
Intel Pentium 4 / Intel Pentium D with 533/800 MHz front side bus (FMB05A, max. 95 W) in the LGA775 format
Intel Celeron D with 533 MHz Front Side Bus in the LGA775 format
- A current list of the processors supported by this mainboard is available on the Internet at: "www.fujitsu-siemens.com/mainboards".

Never touch the underside of the processor. Even minor soiling such as grease from the skin can impair the processor's operation or destroy the processor. Place the processor in the socket with extreme care, as the spring contacts of the socket are very delicate and must not be bent.

If one or more spring contacts are bent, on no account insert the processor as it may be damaged by doing so. Please contact the responsible vendor.

Procedure

The processor socket is covered with a protective cap to protect the spring contacts. In the event of a warranty claim, the mainboard can only be taken back by Fujitsu Siemens Computers with the protective cap secured!

Remove the heat sink.
Press down the lever and unhook it.
Fold up the frame.

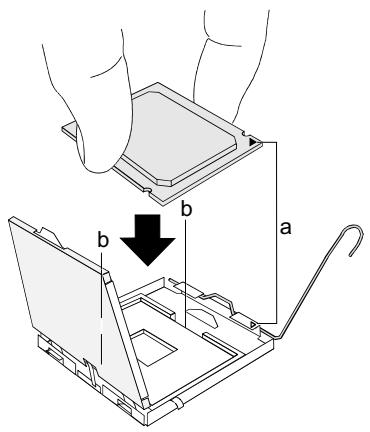

Hold the processor between your thumb and index finger and insert it into the socket (b) so that the marking of the processor is aligned with the marking on the socket (a).
Press the lever downward until it is hooked in again.
Remove the protective cap and keep it.

Please note that, depending on the heat sink used, different heat sink mounts are required on the mainboard.

Depending on the configuration variant, you must pull a protective foil off the heat sink or coat the heat sink with heat conducting paste before fitting it.
- Secure the heat sink - depending on the model - with four screws or push it into the mounts.

Installing/removing main memory

Technical data

Technology	DDR2 533 / DDR2 667 unbuffered DIMM modules 240-pin; 1.8 V; 64 bit, no ECC
Total Size	256 MB to 4 GB
Granularity	256, 512, 1024 or 2048 MB for one socket

A current list of the memory modules recommended for this mainboard is available on the Internet at: "www.fujitsu-siemens.com/mainboards".

At least one memory module must be installed. Memory modules with different memory capacities can be combined.

You may use only unbuffered 1.8V memory modules without ECC.

DDR2-memory modules must meet the PC2-4200U or PC2-5300U specification.

With a memory configuration of 4 GB the visible and usable main memory can be reduced to 3 GB (depending on the system configuration).

The installation/removal is described in the "Basic information on mainboard" manual.

PCI bus interrupts - Selecting correct PCI slot

Extensive information on this section is contained in the manual "Basic information on mainboard".

To achieve optimum stability, performance and compatibility, avoid the multiple use of ISA IRQs or PCI IRQ Lines (IRQ sharing). Should IRQ sharing be unavoidable, then all involved devices and their drivers must support IRQ sharing.

Which ISA IRQs are assigned to the PCI IRQ Lines is normally automatically specified by the BIOS (see "BIOS Setup" description).

Monofunctional expansion cards

PCI/PCI Express expansion cards require a maximum of one interrupt, which is called the PCI interrupt INT A. Expansion cards that do not require an interrupt can be installed in any desired slot.

Multifunctional expansion cards or expansion cards with integrated PCI-PCI bridge

These expansion cards require up to four PCI interrupts: INT A, INT B, INT C, INT D. How many and which of these interrupts are used is specified in the documentation provided with the card.

The assignment of the PCI interrupts to the IRQ Lines is shown in the following table:

On board controller

PCI INT LINE	1 (A)	2 (B)	3 (C)	4 (D)	5 (E)	6 (F)	7 (G)	8 (H)
USB 1.1
1 st	-	-	-	-	-	-	-	X
2 nd	-	-	-	-	-	-	X	-
3 rd	-	-	-	-	-	X	-	-
4 th	-	-	-	-	X	-	-	-
USB 2.0	-	-	-	-	-	-	-	X
SMBus	-	-	-	X	-	-	-	-
HD Audio	-	-	X	-	-	-	-	X
LAN	-	-	-	X	-	-	-	-

Mechanical slot

PCI INT LINE	1 (A)	2 (B)	3 (C)	4 (D)	5 (E)	6 (F)	7 (G)	8 (H)
PCIe x16	A	B	-	-	-	-	-	-
PCI 1	-	-	D	C	-	B	A	-
PCI 2	-	-	C	D	-	A	B	-

First use PCI/PCI Express slots that have a single PCI IRQ Line (no IRQ sharing). If you must use another PCI/PCI Express slot with IRQ sharing, check whether the expansion card properly supports IRQ sharing with the other devices on this PCI IRQ Line. The drivers of all cards and components on this PCI IRQ Line must also support IRQ sharing.

BIOS Update

When should a BIOS update be carried out?

Fujitsu Siemens Computers makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can also be integrated.

A BIOS update should also always be carried out when a problem exists that cannot be solved with new drivers or new software.

Where can I obtain BIOS updates?

The BIOS updates are available on the Internet at "www.fujitsu-siemens.com/mainboards".

BIOS update under DOS with bootable BIOSupdate floppy disk - brief description

Download the update file from our website to your PC.
Insert an empty floppy disk (1.44 Mbyte).
Run the update file (e.g. 2461103.EXE).
A bootable update floppy disk is created. Leave this floppy disk in the drive.
Restart the PC.
Follow the instructions on screen.

Detailed information on the BIOS update under DOS is provided in the "BIOS Setup" manual ("Drivers & Utilities" CD).

BIOS update under Windows with DeskFlash utility

A BIOS update can also be carried out directly under Windows with the DeskFlash utility. DeskFlash can be found on the "Drivers & Utilities" CD (under DeskUpdate).

KpaTKoe OINscAHne MaTePNHcKoI PJIaTbI

Yka3aHnI NO MOyJAM

Дя моун e EGB o6aTeNbH O yuTbIaIe TcneDyUouee:

Ipeed pa6otoi c MoDyIaMn Tpe6yeTcra StaHueckn pa3pIaNb CBOe TeNo (Hapnpimep nocpeidCTBOM KacaHna KaKOro-ImIo 3a3emJIeHHoro npedMeta).
- ICKIIOHTb BO3MOXHOCTb CtaTnueCKOro 3apraJa IcIIOJIb3yEmbIX yCTpoiCTB INHCTpyMeHToB.
- Ipeed yctaHOBkoI INI CHrTHeM MOyJeN BbIHbTe BnIKy CeTeBOrO Ka6eJIa n3 po3eTKn.
KacaTecb TOnbKO KpOMOK MOnyne.
He npikacaiTecb K UItbIpbKOBbIM BblBODaM INI NeaTHbIM IpOBOHnKAM MOyJIA.

O630p npo13BODCTBeHHbIX nokaateJe Bbl HaIeTe B texHueckom nacnopte.

OTnHHTeJIbHbIe OcO6eHHoCTn

BbMOxTe npno6peCTn MaTePNHckyI pIaTy B pa3JIuHbIX KOHpIpyaIIOHHbIX IcIIOHeHnx.BaIa MaTePNHcKa IPiata B 3aBICMocTn OT CBOeI KOHpIpyaIIN ObIaNaeT ONpeIeHNbIMn Pnp3HaKaAMn IJN IOndepKJNaBaET IX.

B 3TOM PykoBoDCTBe NO 3KcNJIyatauIN BbI HauDeTe OINcaHne BaXHeiux CBOIcTB 3ToI MaTePHNCHKO IIaTbI.

PnKoHpyaunn pamTn pa3mepom 4 6aTaNbIMoe nncnoJb3yEmoe O3y moKeT 6bTb cokpaueho do 3 6aTOB (B 3aBNCMOCTN OT KOHpyaunn CnCTembl)
