USER MANUAL SIGNATURE PRO NEATO

Congratulations on your new home robot! Neato can’t wait to start vacuuming – so you don’t have to. This guide introduces you to Neato’s features and gives you some important pointers to set up and maintain your robot.

And don't forget to register your Neato at www.neatorobotics.com to activate your Warranty and get product updates and special offers.

Leave the vacuuming to Neato. What will you do with your free time?

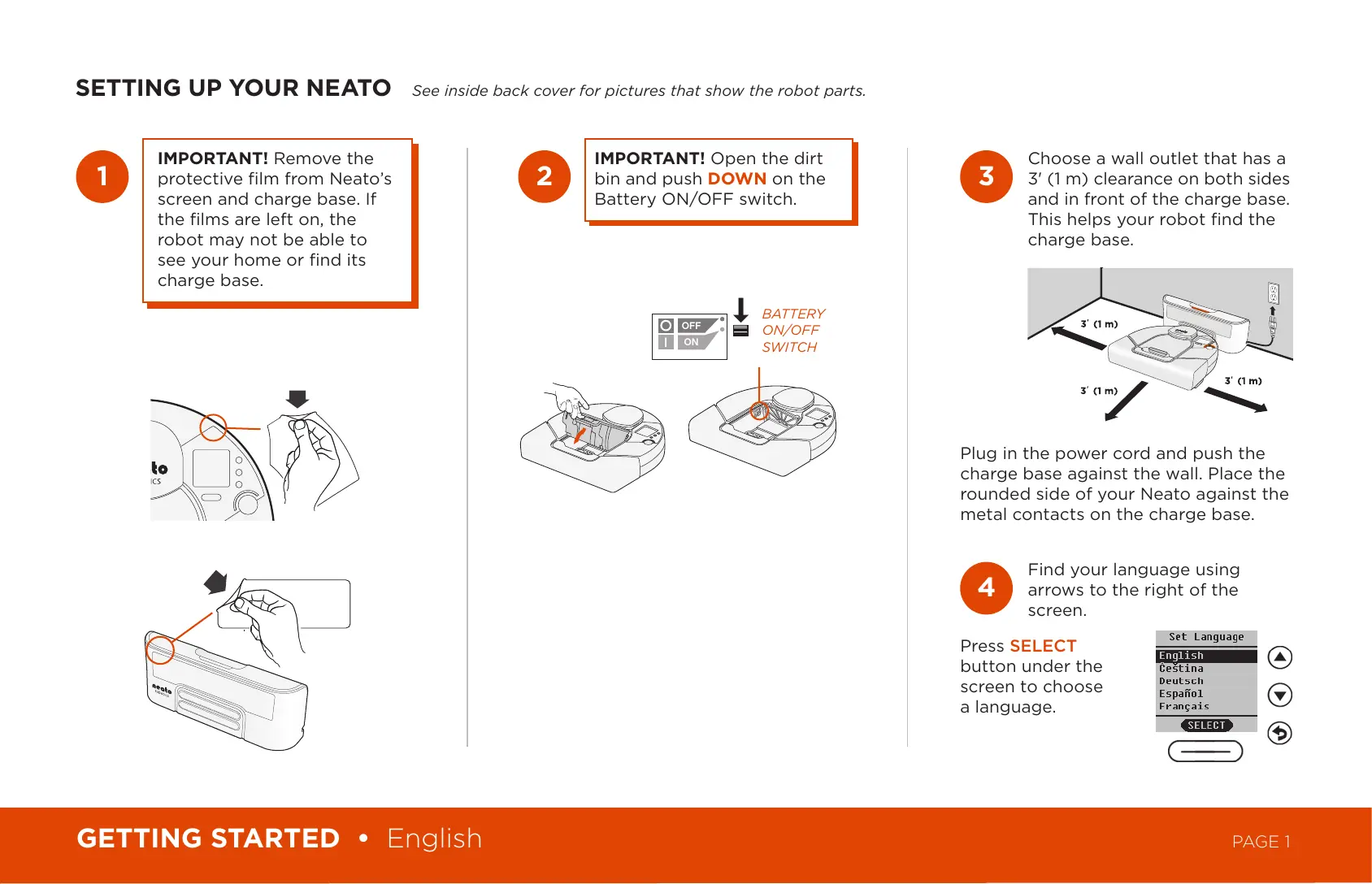

SETTING UP YOUR NEATO

See inside back cover for pictures that show the robot parts.

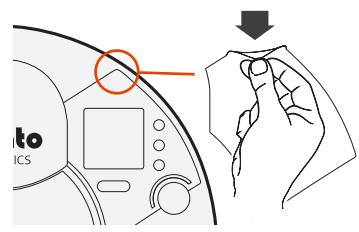

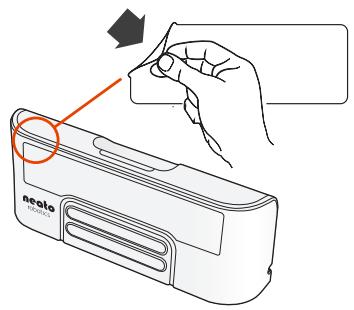

IMPORTANT! Remove the protective film from Neato’s screen and charge base. If the films are left on, the robot may not be able to see your home or find its charge base.

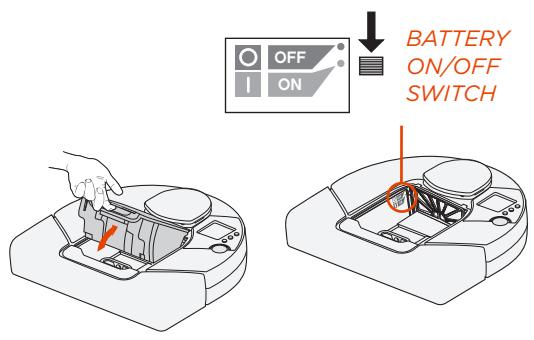

IMPORTANT! Open the dirt bin and push DOWN on the

Battery ON/OFF switch.

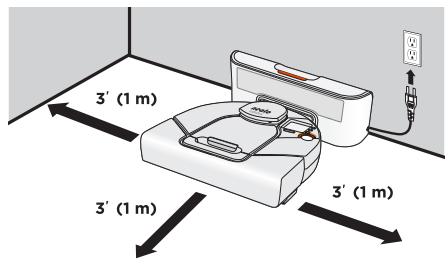

Choose a wall outlet that has a

3' (1 m) clearance on both sides and in front of the charge base. This helps your robot find the charge base.

BATTERY OFF ON/OFF ON SWITCH Plug in the power cord and push the charge base against the wall. Place the rounded side of your Neato against the metal contacts on the charge base.

Find your language using arrows to the right of the screen.

Press SELECT button under the screen to choose a language.

GETTING STARTED • English

Before using, charge your Neato overnight – about 12 hours.

IMPORTANT! To get the most from your battery, charge it and discharge it completely two to three times.

Always put your Neato back on its charge base when you are finished cleaning.

Wake up Neato by pressing the button. It may take a few seconds to wake up.

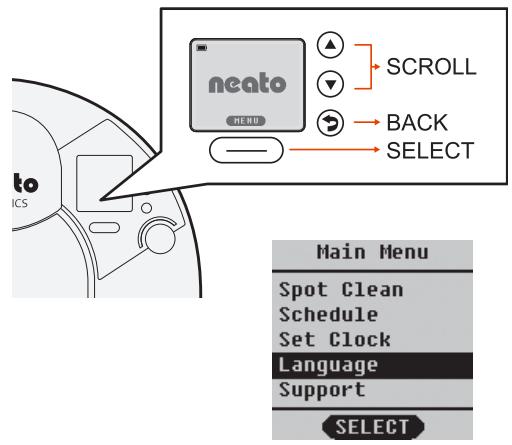

From the home screen, press the

SELECT button to get to the MENU.

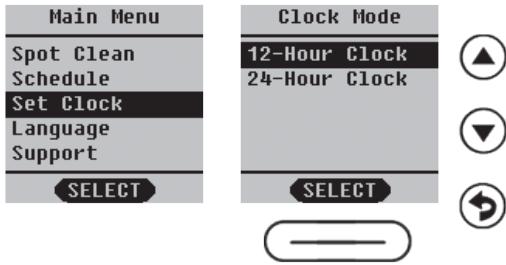

Select Set Clock and follow screens to set the time.

SOLID GREEN Fully charged and ready to clean.

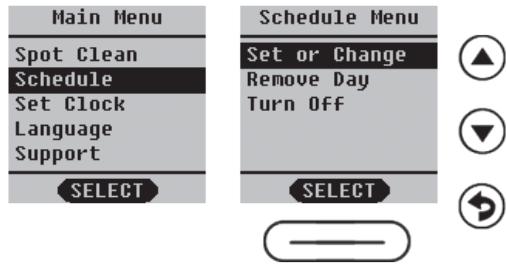

Choose Set or Change and follow the screens to schedule cleaning.

BLINKING GREEN Charging, battery not fully charged, can clean.

BLINKING AMBER Charging, can’t clean yet. SOLID AMBER Error, see message on screen.

GETTING STARTED • English

Clear the area of small items like toys and clothing–furniture is OK.

Tie up wires, curtains and other low-hanging items. To keep your robot out of places you don't want it to go, set down boundary markers included in the package. You can cut them to fit. IMPORTANT! Keep your robot away from liquids and wet areas. Move or cover pet bowls and plant trays.

CLEAN House Press the button to clean your house.

Select Spot Clean from MAIN menu to clean a 4’ (1.2m) x 6’ (1.8m) square in front of your Neato.

Press the arrows to highlight Stop

Press SELECT using button under the screen on the

PAUSE Menu or RESUME Menu.

Hold the button down for 5 seconds to put your Neato to "sleep".

GETTING STARTED • English

Keep your Neato inside the house.

It was not designed for outdoor cleaning or freezing temperatures. Be aware that shiny surfaces and black floors might confuse your robot.

MAINTAINING YOUR NEATO IMPORTANT! Your robot needs regular maintenance to operate reliably.

Clean the top of the robot and the area around the laser top with a damp cotton cloth.

Dirt Bin and Filters

After each use, empty the dirt bin and clean the filter and airways/ openings.

Replace the filter in the dirt bin every one to two months.

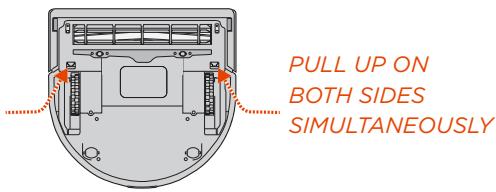

Remove the guard over the brush by pulling up on both sides.

Use a dry cotton swab to clean the two drop sensor windows on the bottom of the robot.

GETTING STARTED • English

Remove hair and dirt from the brush and brush ends (remove the end caps and clean them, being careful not to lose the bearings.)

Replace the brush and the guard over the brush.

Register your Neato to stay up to date on software releases and special offers.

Find more helpful information, including frequently asked questions, and tips and tricks for optimal operation.

WARRANTY Visit www.neatorobotics.com for warranty information.

KONFIGURIEREN IHRES NEATO

ENGLISH - 7) Brush Guard Tab 8) Brush 9) Drop Sensor Window

10) Battery Door 11) Serial Number Label 12) Charging Contacts 13) Wheel
