Product Type	Robot vacuum
Brand	NEATO
Model	D303 / BOTVAC D3 Connected
Dimensions (approx.)	33 cm diameter, 10 cm height
Weight (approx.)	3.5 kg
Power Supply	Rechargeable lithium-ion battery, charging station included
Initial charging time	Approximately 12 hours for full charge
Typical runtime	Approximately 60 minutes (depending on surface)
Cleaning modes	House cleaning (whole house) and spot cleaning (1.2 m x 1.8 m)
Programming	Programmable clock with weekly scheduling
Navigation	Navigation laser (laser pointer)
Sensors	Obstacle sensors (lower windows), dark floor detection
Box contents	Robot, charging station, power cable, boundary markers, extra filter
Regular maintenance	Empty dust bin after each use, clean filters monthly, replace filter every 1-2 months
Brush cleaning	Remove guard, remove hair and dirt, replace if necessary
Sensor cleaning	Use a dry cotton swab for obstacle windows, damp cloth for top and laser pointer
Usage precautions	Keep away from liquids, do not use outdoors or in freezing temperatures, secure wires and hanging objects
Warranty	Register at www.neatorobotics.com to activate warranty
Supported languages	French, English, Spanish and others (via translation available)

Frequently Asked Questions - D303 / BOTVAC D3 CONNECTE NEATO

How to charge the robot for the first time?

For the first use, charge the robot for about 12 hours (overnight). To optimize the battery, perform two to three full charge and discharge cycles. Always place the robot on its charging station after cleaning.

How to set the robot clock?

Press the wake-up button, then press SELECT to access the menu. Select Set clock and follow the on-screen instructions. You can choose between 12h or 24h clock mode.

How to schedule automatic cleaning?

In the main menu, select Schedule, then Set/edit. Follow the steps to configure the desired cleaning days and times.

What to do if the robot displays an error?

If a flashing orange light appears, the robot is charging but cannot clean yet. A red light indicates an error; check the message on the screen. Refer to the help section in the menu or the manual for error codes.

How to clean the dust bin and filters?

Empty the dust bin after each use. Clean the filter and openings. Replace the filter every month or two months. Use a dry cotton swab for the obstacle detection windows.

How to remove hair wrapped around the brush?

Remove the brush guard by pulling on both sides. Remove hair and dirt from the brush and ends. Put the guard back in place.

How to use spot cleaning mode?

Press the Spot Cleaning button. The robot cleans a 1.2 m x 1.8 m area in front of it. Ideal for localized areas.

The robot cannot find its charging station, what to do?

Make sure the station is against a wall with 1 m of free space on each side and in front. Remove any protective film from the screen and the station. Clean the metal contacts of the robot and the station.

How to put the robot to sleep?

Press and hold the power button for 5 seconds to put the robot to sleep. To wake it up, briefly press the same button.

Where can I find spare parts or register my robot?

Register your robot at www.neatorobotics.com to activate warranty and receive updates. For spare parts (filters, brushes), check the website or contact customer service.

USER MANUAL D303 / BOTVAC D3 CONNECTE NEATO

Congratulations on your new home robot! Neato can't wait to start vacuuming - so you don't have to. This guide introduces you to Neato's features and gives you some important pointers to set up and maintain your robot.

And don't forget to register your Neato at www.neatorobotics.com to activate your Warranty and get product updates and special offers.

Leave the vacuuming to Neato. What will you do with your free time?

PRÉSENTATION DE NEATO

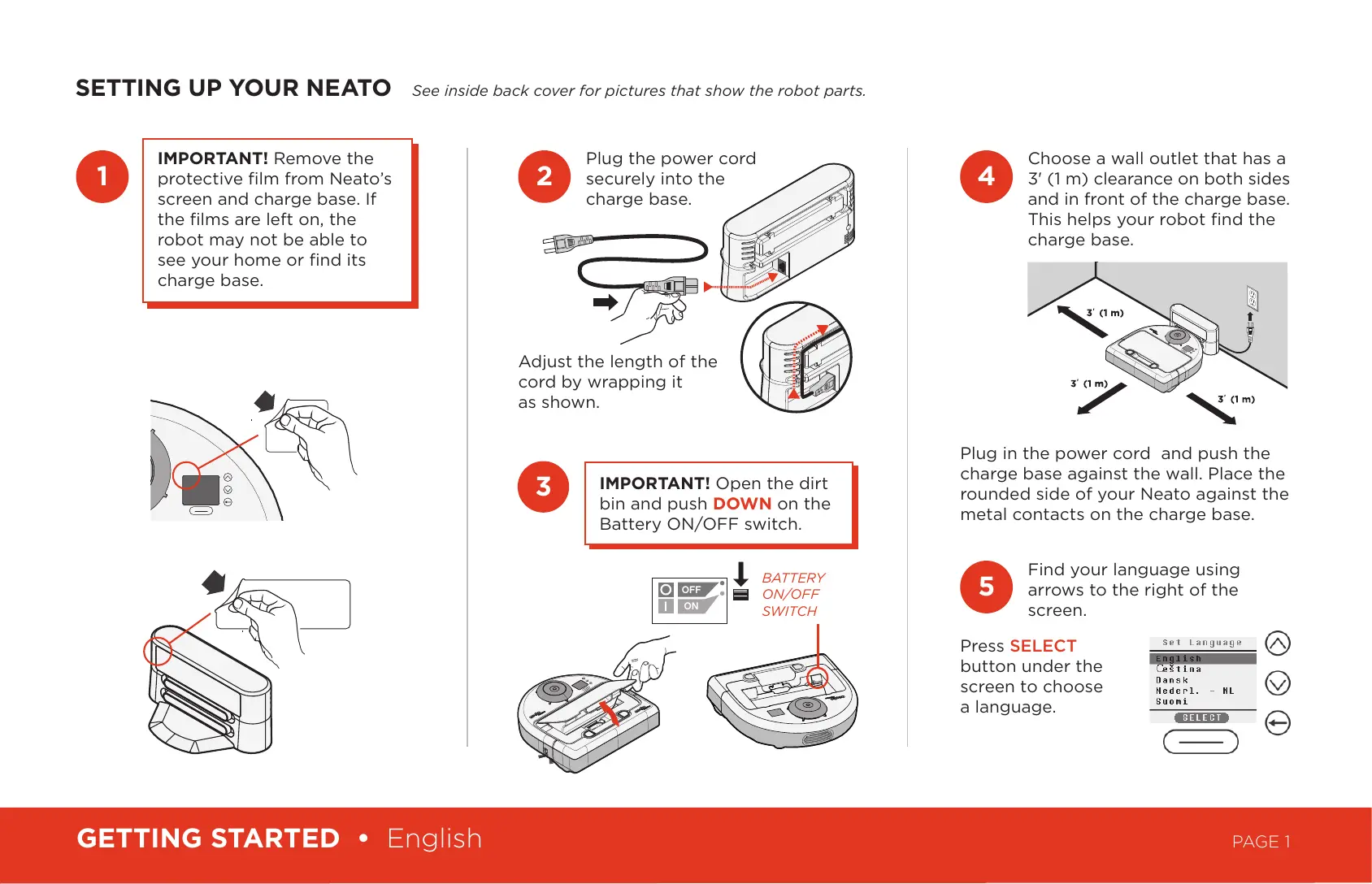

SETTING UP YOUR NEATO

See inside back cover for pictures that show the robot parts.

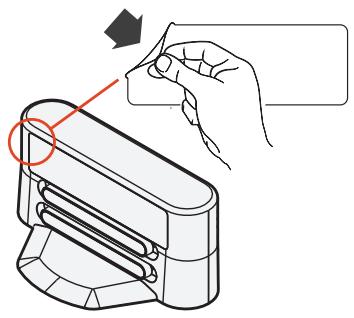

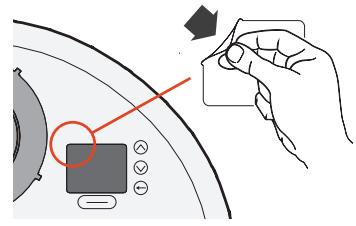

IMPORTANT! Remove the protective film from Neato's screen and charge base. If the films are left on, the robot may not be able to see your home or find its charge base.

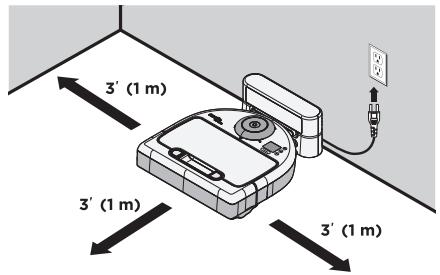

Choose a wall outlet that has a 3^ (1 m) clearance on both sides and in front of the charge base. This helps your robot find the charge base.

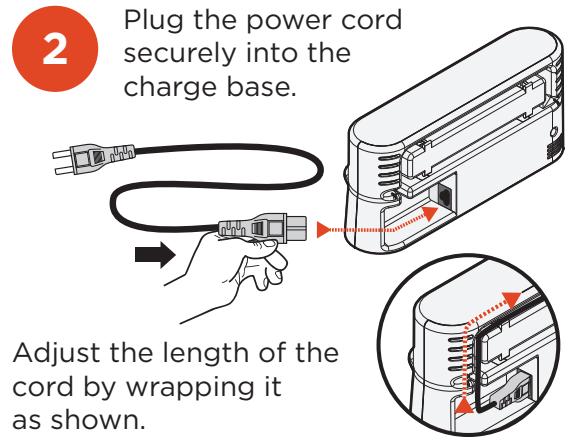

Plug in the power cord and push the charge base against the wall. Place the rounded side of your Neato against the metal contacts on the charge base.

Find your language using arrows to the right of the screen.

Press SELECT

button under the screen to choose a language.

CHARGING AND OPTIMIZING THE BATTERY

• Before using, charge your Neato overnight - about 12 hours.
  IMPORTANT! To get the most from your battery, charge it and discharge it completely two to three times.
  Always put your Neato back on its charge base when you are finished cleaning.

Status Lights

SOLID GREEN

Fully charged and ready to clean.

BLINKING GREEN

Charging, battery not fully charged, can clean.

BLINKING AMBER

Charging, can't clean yet.

SOLID AMBER

Error, see message on screen.

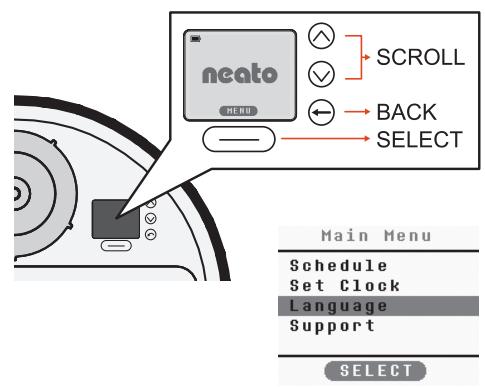

• Wake up Neato by pressing the button. It may take a few seconds to wake up.
  From the home screen, press the SELECT button to get to the MENU.

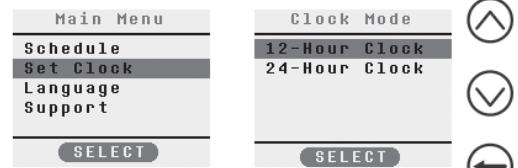

Clock

• Select Set Clock and follow screens to set the time.

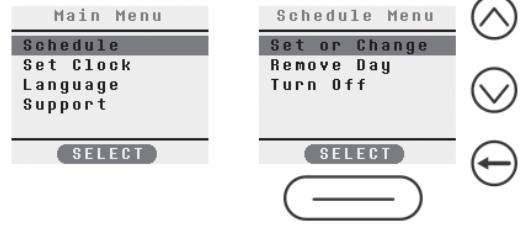

Schedule

• Select Schedule.
• Choose Set or Change and follow the screens to schedule cleaning.

MAKING YOUR HOME NEATO FRIENDLY

• Clear the area of small items like toys and clothing-furniture is OK. Tie up wires, curtains and other low-hanging items.
• To keep your robot out of places you don't want it to go, set down boundary markers included in the package. You can cut them to fit.
• IMPORTANT! Keep your robot away from liquids and wet areas. Move or cover pet bowls and plant trays.
• Keep your Neato inside the house. It was not designed for outdoor cleaning or freezing temperatures.
• Be aware that shiny surfaces and black floors might confuse your robot.

USING YOUR NEATO

Wake Up

• Press the button to "wake up" your Neato.

Start Cleaning

• CLEAN House -

Press the button to clean your house.

• CLEAN Spot -

Press the button to clean a 4^ (1.2m)× 6^ (1.8m) square in front of your Neato.

Pause Cleaning

Press or button.

Stop Cleaning

Press or button.
- Press the arrows to highlight Stop Cleaning.
- Press SELECT using button under the screen on the PAUSE Menu or RESUME Menu.

Sleep

Hold the button down for 5 seconds to put your Neato to "sleep".

MAINTAINING YOUR NEATO

IMPORTANT! Your robot needs regular maintenance to operate reliably.

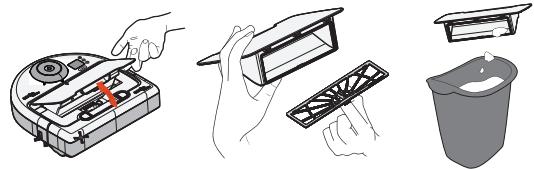

Dirt Bin and Filters

After each use, empty the dirt bin and clean the filter and airways/ openings.

• Replace the filter in the dirt bin every one to two months.

Sensors

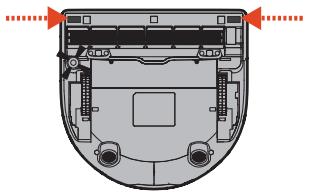

• Use a dry cotton swab to clean the two drop sensor windows on the bottom of the robot.

Clean the top of the robot and the area around the laser top with a damp cotton cloth.

Brushes

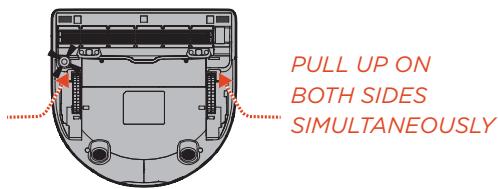

• Remove the guard over the brush by pulling up on both sides.

• Remove hair and dirt from the brush and brush ends.
• Replace the brush and the guard over the brush.

REGISTERING YOUR ROBOT AND GETTING HELP

Visit www.neatorobotics.com

• Register your Neato to stay up to date on software releases and special offers.
  Find more helpful information, including frequently asked questions, and tips and tricks for optimal operation.

WARRANTY

Visit www.neatorobotics.com

for warranty information.
