USER MANUAL ATTIX 8 GALLON NILFISK

Operating instructions. 3

Total Cleaning Confidence™

Contents

Symbols used to mark instructions 4

1 Important safety instructions 4
2 Description 2.1 Purpose
2.2 Operating elements 6
3 Before starting the vacuum 3.1 Assembling the vacuum cleaner 6
4 Operation 4.1 Connections 7
4.1.1 Connecting the suction hose 7
4.1.2 Electrical connection 7
4.1.3 Connecting power tools 7
4.2 Switching on the vacuum cleaner 8
4.2.1 Switch position "I" 8
4.2.2 Switch position "auto" 8
4.2.3 Suction power control 8
4.3 Acoustic warning 8
4.4 Cleaning the filter element 9
5 Applications and 5.1 Techniques 9
techniques 5.1.1 Picking up dry substances 10
5.1.2 Picking up liquids 10
6 After finishing work 6.1 Switching off the vacuum cleaner 10
7 Maintenance 7.1 Maintenance plan 11
7.2 Maintenance work 11
7.2.1 Emptying the dirt tank 11
7.2.2 Replacing the filter bag 11
7.2.3 Replacing the filter element 12
8 Troubleshooting 13
9 Further information 9.1 Recycling the vacuum cleaner 14
9.2 Guarantee 14
9.3 Tests and approvals 14
9.4 Technical data 15
9.5 Accessories 15

Symbols used to mark instructions

Safety instructions marked with this symbol must be observed to prevent danger to persons.

This symbol is used to mark safety instructions that must be observed to prevent damage to the vacuum cleaner and its performance.

This indicates tips and instructions to simplify work and to ensure safe operation.

1 Important safety instructions

For your own safety

Before using the vacuum cleaner, always read the operating instructions and keep them readily available.

Only allow the vacuum cleaner to be used by persons who have been trained in its use and who have been explicitly authorized to use it.

General

The use of the vacuum cleaner is subject to valid national regulations.

The vacuum cleaner is suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices and rental businesses.

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognized regulations for safety and proper use.

Do not use any unsafe work techniques.

Hazardous dust

This vacuum cleaner is not suitable for removing hazardous dust.

Risk of fire and explosion

The following materials should not be sucked into the vacuum cleaner:

hot materials (burning cigarettes, hot ashes, etc.)

flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)

flammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

Appliance socket

Use the socket on the vacuum cleaner for the purpose defined in the operating instructions only.

Before plugging an appliance into the appliance socket:

1. Switch off the vacuum cleaner

2. Switch off the appliance to be connected.

CAUTION!

Follow the operating instructions and safety instructions for appliances connected to the appliance socket.

Before starting the vacuum cleaner

Before starting the vacuum cleaner, check that it is in proper condition. Plugs and couplings in power cords must at least have splash protection.

Regularly check whether the power cord is damaged or shows signs of aging. Use the vacuum cleaner only if the power cord is intact (risk of electrocution in case of damage).

Never use the vacuum cleaner if the filter element is damaged.

During use

Do not damage the power cord (e.g. by moving over it or pulling or squeezing it).

Disconnect the power cord by pulling the plug only (do not pull or tug the power cord).

CAUTION!

Before sucking in liquids, remove the filter bag and check the performance of the floater (see section 7.2.3).

When sucking in liquids, always use a filter element or filter screen (for order number see section 9.5 "Accessories"). If foam appears, stop work immediately and empty the tank.

Maintenance and repair

CAUTION!

Always pull out the mains plug before cleaning and servicing the vacuum cleaner.

Only carry out maintenance work described in the operating instructions.

CAUTION!

Use original Alto accessories and parts only. The use of other parts can adversely affect safety.

CAUTION!

Do not make technical modifications to the vacuum cleaner. They could endanger your safety.

For further maintenance or repair work and the replacement of a faulty power cord please contact the Alto service department or an authorized Alto workshop.

Electrical connections

Check the rated voltage of the vacuum cleaner before connecting it to the mains supply system. Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.

If you are using an extension cord, use only those specified by the manufacturer or higher quality ones (see section 9.4 "Technical data").

english

It is recommended that the vacuum cleaner is connected via a residual current circuit breaker. This device stops the supply of electricity if the leakage current to earth exceeds 30mA for 30ms or it has an earth tester circuit.

When using an extension cord, check the minimum cross-sections of the cable:

Cable length m	Cross section mm2
up to 20	1.5
20 to 50	2.5

Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension cord so that protection class is maintained.

CAUTION!

Never spray water on to the upper section of the vacuum cleaner: danger for persons, risk of short-circuiting.

Observe the latest edition of the IEC regulations.

2 Description

2.1 Purpose

When used properly, the industrial vacuum cleaners described in these instructions are suitable

for sucking up dry, non-flammable dusts and liquids.

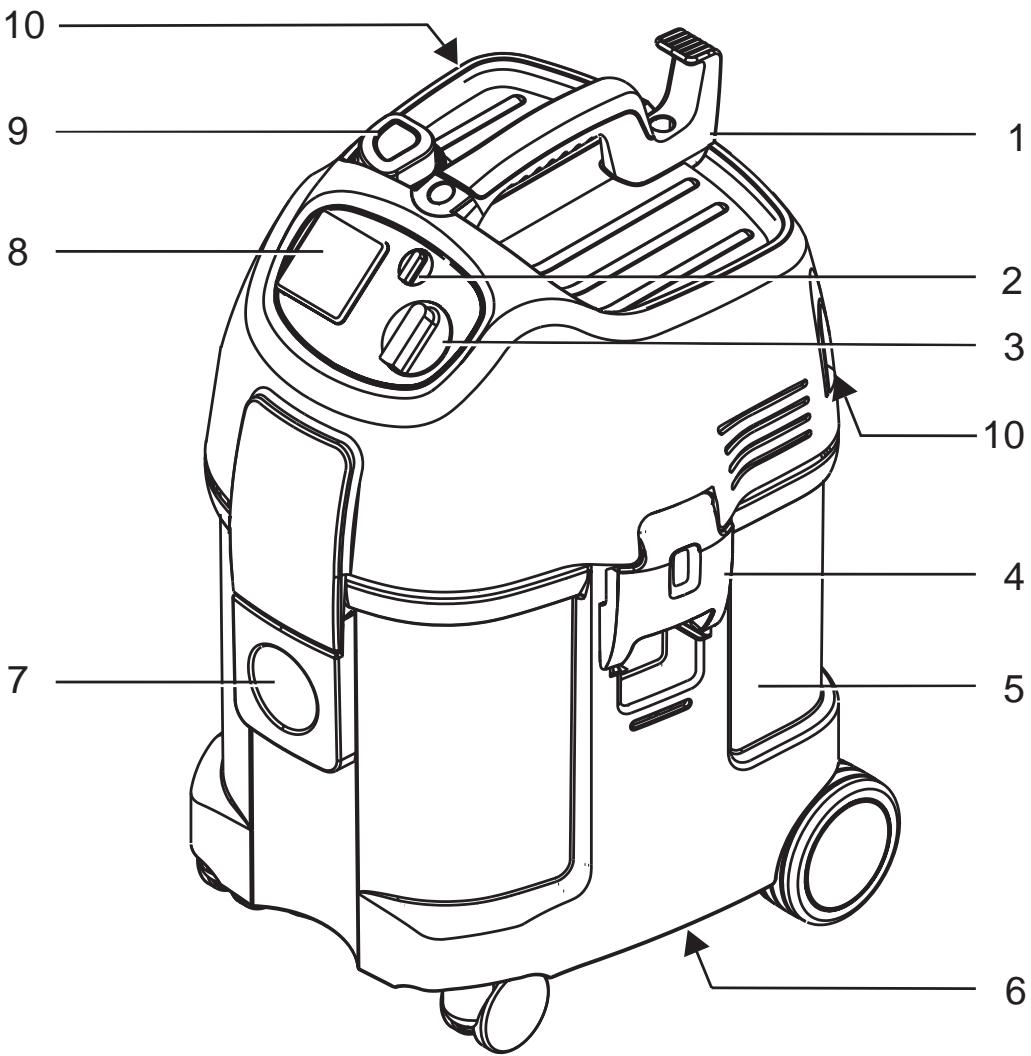

2.2 Operating elements

See fold-out page at front of these operating instructions.

1 Handle with cable hook
2 Suction hose diameter setting ^1)
3 Appliance switch with suction power control ^1)
4 Retaining clamp
5 Dirt tank
6 Grip to empty tank
7 Inlet fitting
8 Appliance socket
9 Operating knob for filter cleaning ^1)
10 Mounting for accessories

3 Before starting

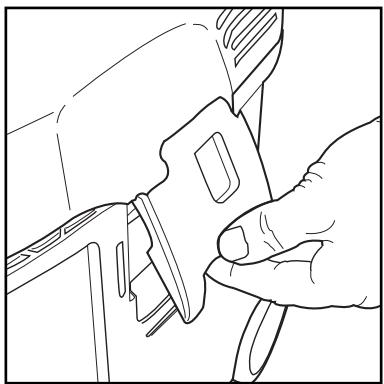

3.1 Assembling the vacuum cleaner

1. Open the retaining clamps (4) and lift off the upper section of the cleaner.
2. Take the accessories out of the dirt tank and the packaging.
3. Place a filter bag into the tank as described in the instructions (printed on the filter bag).

CAUTION!

On delivery, the some of the accessories are lying in the tank and must be removed before the cleaner is used for the first time.

Remove the upper section of the cleaner:

The mains plug should not yet be inserted into a socket.

IMPORTANT!

Press the filter bag connection firmly on to the inlet fitting.

1. Fit the upper section of the cleaner and close the retaining clamps.

NOTE!

Ensure that the retaining clamps fit properly.

(continued --->)

1) Option depending on model

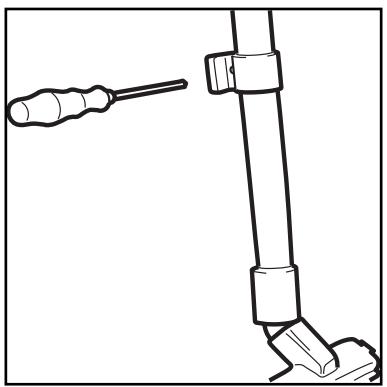

1. Fit the suction tube fastener about 20~cm from the edge of the lower extension tube as shown in the figure.

english

4 Operation

4.1 Connections

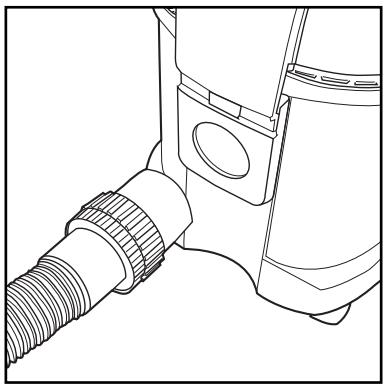

4.1.1 Connecting the suction hose

1. Connect the suction hose.

4.1.2 Electrical connection

The operating voltage shown on the rating plate must correspond to the voltage of the mains power supply.

1. Ensure that the cleaner is switched off.

2. Insert the power cord into a properly installed and fused socket with earthing contact.

4.1.3 Connecting power tools ^1)

To comply with regulations, only approved dust producing tools should be connected.

The maximum power consumption of the connected power tool is stated in section 9.4 "Technical data".

1. Ensure that the power tool is switched off.
2. Connect the power tool to the appliance socket¹⁾ on the control panel.

1) Option depending on model

english

4.2 Switching on the vacuum cleaner

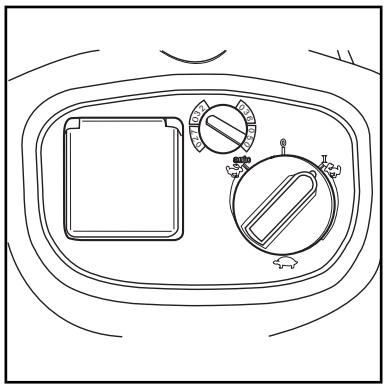

4.2.1 Switch position "I"

1. Turn the switch to position "I".

The vacuum cleaner motor starts.

Only ATTIX 8 GALLON AS/E:

The suction hose diameter must correspond to the suction hose diameter setting:

Before switching the switch to position "auto"1), ensure that the power tool connected to the appliance socket is switched off.

1. Turn the switch to position "auto".

The vacuum cleaner motor starts when the connected power tool is switched on.

1. When the power tool is switched off, the vacuum cleaner continues to run for a short moment so that any dust in the suction hose is conveyed to the filter bag.

Only ATTIX 8 GALLON AS/E:

The suction hose diameter must correspond to the suction hose diameter setting:

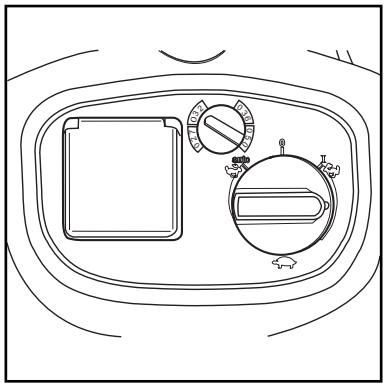

4.2.3 Suction power control

The motor speed and the suction power can be varied with the suction power control¹⁾. This allows precise adaptation of the suction power for different cleaning tasks.

4.3 Acoustic warning1)

If the air speed in the suction hose drops to below 20m / s , an acoustic warning is emitted for

safety reasons. See section 8 "Troubleshooting".

1) Option depending on model

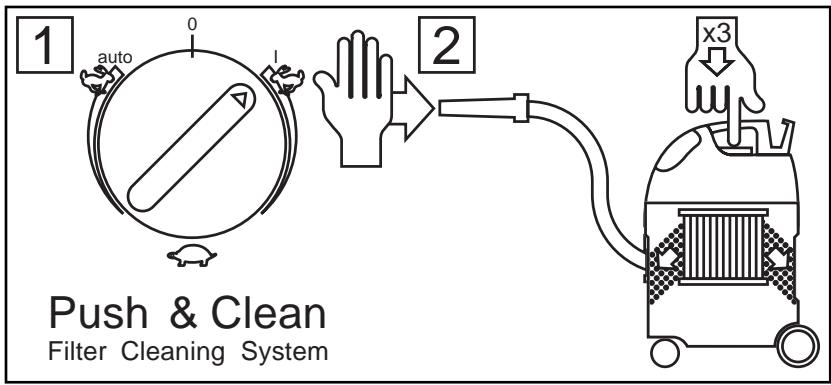

4.4 Cleaning the filter element1)

english

Only after sucking up dusts without a filter bag.

If suction performance drops:

1. Close the nozzle or suction hose opening with the palm of your hand.
2. Press (3x) the operating knob for filter cleaning¹⁾. The resulting stream of air removes deposited dust from the slats of the filter elements.

5 Applications and techniques

5.1 Techniques

If used correctly, additional accessories (pictures and order nos., on fold-out page at front of these operating instructions), suction nozzles and suction hoses can enhance the cleaning action and reduce the cleaning effort.

Effective cleaning is achieved if you follow just a few guidelines in combination with your own practical experience in special fields.

Here are some basic tips.

1) Option depending on model

5.1.1 Picking up dry substances

CAUTION! Do not pick up flammable substances.

Before picking up dry substances with max. workplace concentrations, always ensure that a filter bag is inserted in the tank (see section 9.5 "Accessories" for order number). Disposal of the picked up material is then simple and hygienic.

After picking up liquids, the filter element is wet. A damp filter element clogs more quickly when dry substances are picked up. For this reason the filter element should be washed and dried or replaced by a dry element before dry substances are picked up.

5.1.2 Picking up liquids

CAUTION! Do not pick up flammable liquids.

Always remove the filter bag and check the floater before picking up liquids (see section 7.2.3 "Replacing the filter element").

The use of a separate filter element or filter screen is recommended.

If foam appears, stop work immediately and empty the tank.

To reduce the amount of foam, use foam killer Alto Foam Stop (see section 9.5 "Accessories" for order number).

6 After finishing work

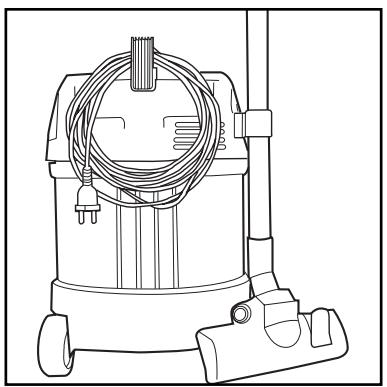

6.1 Switching the vacuum cleaner off and storage

1. Switch off the vacuum cleaner and pull the mains plug out of the socket.

2. Wind up the power cord and hang it on the handle.

3. Empty the tank and clean the vacuum cleaner.
4. After picking up liquids: Store the upper section of the cleaner separately so that the filter element can dry.
5. Store the cleaner in a dry room where it is protected from unauthorized use.

7 Maintenance

7.1 Maintenance plan

	After work	As required
7.2.1 Emptying the dirt tank	●
7.2.2 Replacing the filter bag		●
7.2.3 Replacing the filter element		●
7.2.4 Check suction hose and accessories for clogging, clean if necessary		●

7.2 Maintenance work

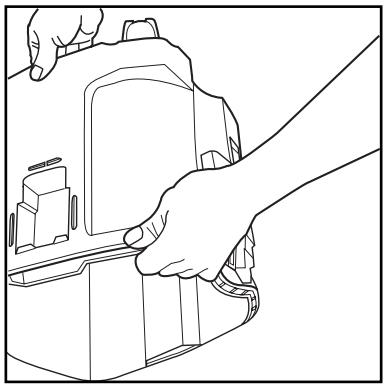

7.2.1 Emptying the dirt tank

1. Remove the upper section of the cleaner from the dirt tank.

1. Hold the dirt tank at the grip underneath the tank and tip out the dirt.
2. Dispose of the dirt in accordance with legal regulations.
3. Clean the rim of the tank before fitting the upper section of cleaner.

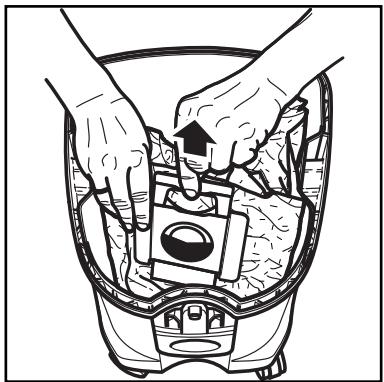

7.2.2 Replacing the filter bag

1. Remove the upper section of cleaner from the dirt tank.

Before reinserting the suction hose:
5. Clean the inlet fitting and hose collar.
2. Carefully remove the filter bag connection from the inlet fitting.
3. Close the filter bag connection with the slide.
4. Dispose of the filter bag in accordance with legal regulations.
5. Place a new filter bag into the clean tank as described in the instructions (printed on the filter bag).

IMPORTANT!

Press the filter bag connection firmly on to the inlet fitting.

english

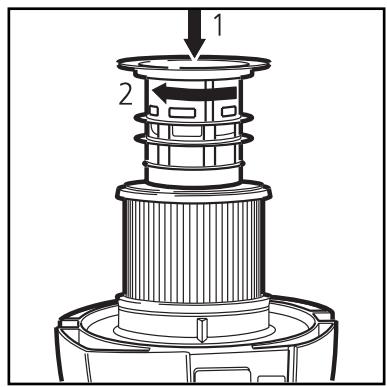

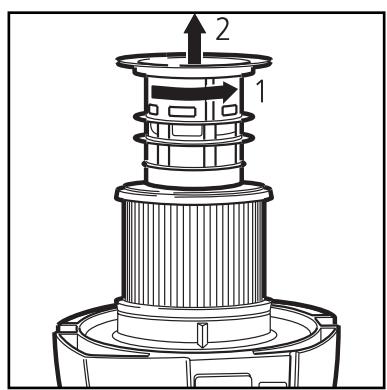

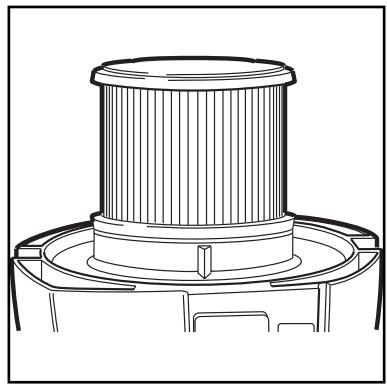

7.2.3 Replacing the filter element

1. Remove the upper section of cleaner from the dirt tank and deposit with the filter element facing upwards.
2. Turn the filter holder anticlockwise and remove it.
3. Carefully remove the filter element.
4. Fit a new filter element.

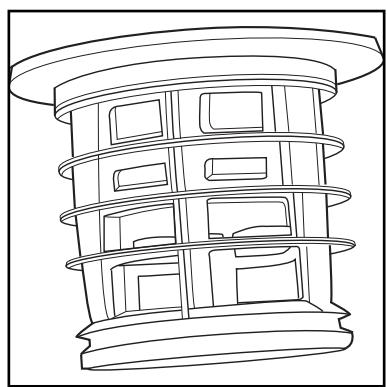

5. Check the floater (1) for proper operation: When turning the filter holder, the floater should move back and forth easily.

6. Fit the filter holder and turn it clockwise to secure it.

7. Dispose of the used filter element in accordance with legal regulations.

CAUTION!

Never use the vacuum cleaner without a filter.

8 Troubleshooting

Fault		Cause	Remedy
‡ Motor does not start		> Fuse in mains plug has blown.	Reset the fuse.
		> Overload protection switch has tripped.	Switch off the vacuum cleaner and allow it to cool for approx. 5 minutes. If it can not be started again, contact the Alto service department.
‡ Motor does not run in automatic mode1)		> Power tool is defective or not connected properly.	Check that the power tool works or that the plug is inserted correctly.
‡ Acoustic warning1) is heard (reduced suction power)		> Suction power selected with suction power control1) is too low.	Set suction power in accordance with section 4.2.3. "Suction power control".
		> Hose diameter does not correspond to suction hose diameter setting.	Set suction hose diameter setting1) to correspond to hose diameter.
		> Clogged suction hose/nozzle.	Clean suction hose/nozzle.
		> Seal/tank rim between the upper section of the cleaner and the dirt tank is dirty/defective.	Clean/replace seal.
		> Filter bag is full.	See section 7.2.2 "Replacing the filter bag".
		> Filter element is clogged.	See section 4.4 "Cleaning the filter element" and 7.2.3 "Replacing the filter element".
‡ No suction power during wet cleaning		> Tank is full (floater closes the suction opening).	Switch off the cleaner. Empty the tank.
‡ Voltage fluctuations		> Impedance of power supply is too high.	Connect the cleaner to another socket closer to the fuse box. Voltage fluctuations over 7 % should not occur if the impedance at the transfer point is ≤0.15 Ω.
			1) Option depending on model

9 Further information

9.1 Recycling the vacuum cleaner

Make the old cleaner unusable immediately.

1. Unplug the cleaner and cut the power cord.

The cleaner contains valuable materials that should be recycled. Therefore, make use of your local waste disposal site. Contact your local authorities or your nearest dealer for further information.

9.2 Guarantee

Our general conditions of business are applicable with regard to the guarantee. Subject to change as a result of technical advances.

9.3 Tests and approvals

The vacuum cleaner has been approved to Canadian Standards CAN/CSA-E 335-1/3E-94 and CAN/CSA-E 335-2-69-94.

9.4 Technical data

		US	CDN
Voltage	Volt	120	120
Mains frequency	Hz	60	60
Power consumption	Watt	1000	1000
		ATTIX 8 GALLON	ATTIX 8 GALLON AS/E
Connected load for appliance socket	Watt	600	800
Total connected load/fuse	Watt/amp	1600/13	1800/15
Volume flow (air)	ft³/min	120	120
Static water lift	max. in	90	90
Sound pressure level	dB(A)	57	57
Power cord length	ft	22	22
Protection class		I	I
Type of protection (splash water protected)		IP X4	IP X4
Radio interference suppression level		EN 50081	EN 50081
Tank volume	gal	8	8
Width	in	15	15
Depth	in	15	15
Height	in	22	22
Weight	lb	22	22

9.5 Accessories

Name	Order No.
Filter bags (pack of 5)	302 000 449
Filter element	302 000 490
Filter screen	15475
Alto Foam STOP (6 x 11)	8469

Sommaire

Incentive International A/S

Kongens Nytorv 28

P.O.Box 2064

1013 Copenhagen K

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

SUBSIDIARIES

AUSTRALIA

ALTO Overseas Inc.

1B/8 Resolution Drive

P.O.Box 797

Caringbah, N.S.W.2229

Tel.: [phone]

Fax: [phone]

AUSTRIA

ALTOÖsterreich GmbH

Metzgerstr.68

5101 Bergheim/Salzburg

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

BRAZIL

Wap do Brasil Ltda.

24 Constellation Road

Rexdale

Ontario M9W 1K1

Tel.: [phone]

Fax: [phone]

CROATIA

Wap ALTO Strojevi za cišćenje, d.o.o.

Siget 18a

10020 Zagreb

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

CZECH REPUBLIC

ALTO Cleaning Systems

(UK) Ltd.

Bowerbank Way

Gilwilly Industrial Estate, Penrith

Cumbria CA11 9BN

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

JAPAN

Representative Office

5-2, Sakyo 1-Chome

631-0801 Nara City

Bowling Green, Ohio 43402

Tel.: [phone]
