USER MANUAL TV FOR MAC REMOTE PINNACLE
Pinnacle TV for Mac Remote Control Powered by innacl evetv lite tete (GB) pinnacle ETS g (GB)
Pinnacle TV for Mac Remote Control GB 07/2007 © 2003 - 2007 Pinnacle Systems, Inc. All rights reserved. No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems, Inc. All brand or product names are trademarks or registered trademarks of their respective holders. Pinnacle Systems, Inc. has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfill the users” intended applications. No warranty is made as to the specifications of features. Pinnacle Systems, Inc. retains the right to make alterations to the content of the manual without obligation to inform third parties. All quotes, sales, supply and manufacturing contracts from Pinnacle Systems, Inc., including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems, Inc. Disposal and Recycling Do not dispose of electric components in the garbage. Either return defective or unwanted devices to the retailer or take them to an appropriate recycling station!

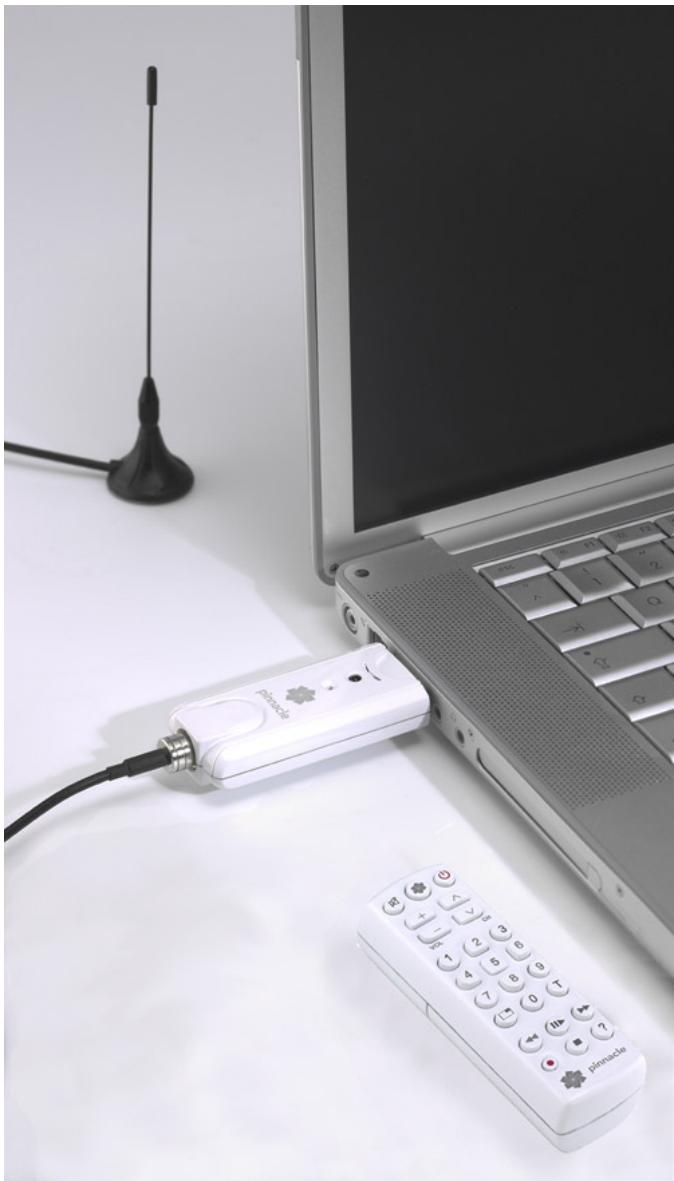

Installation "Please insert the batteries into the remote control. "Please ensure that you are pointing the remote control directly towards the stick housing. illustrations are samples

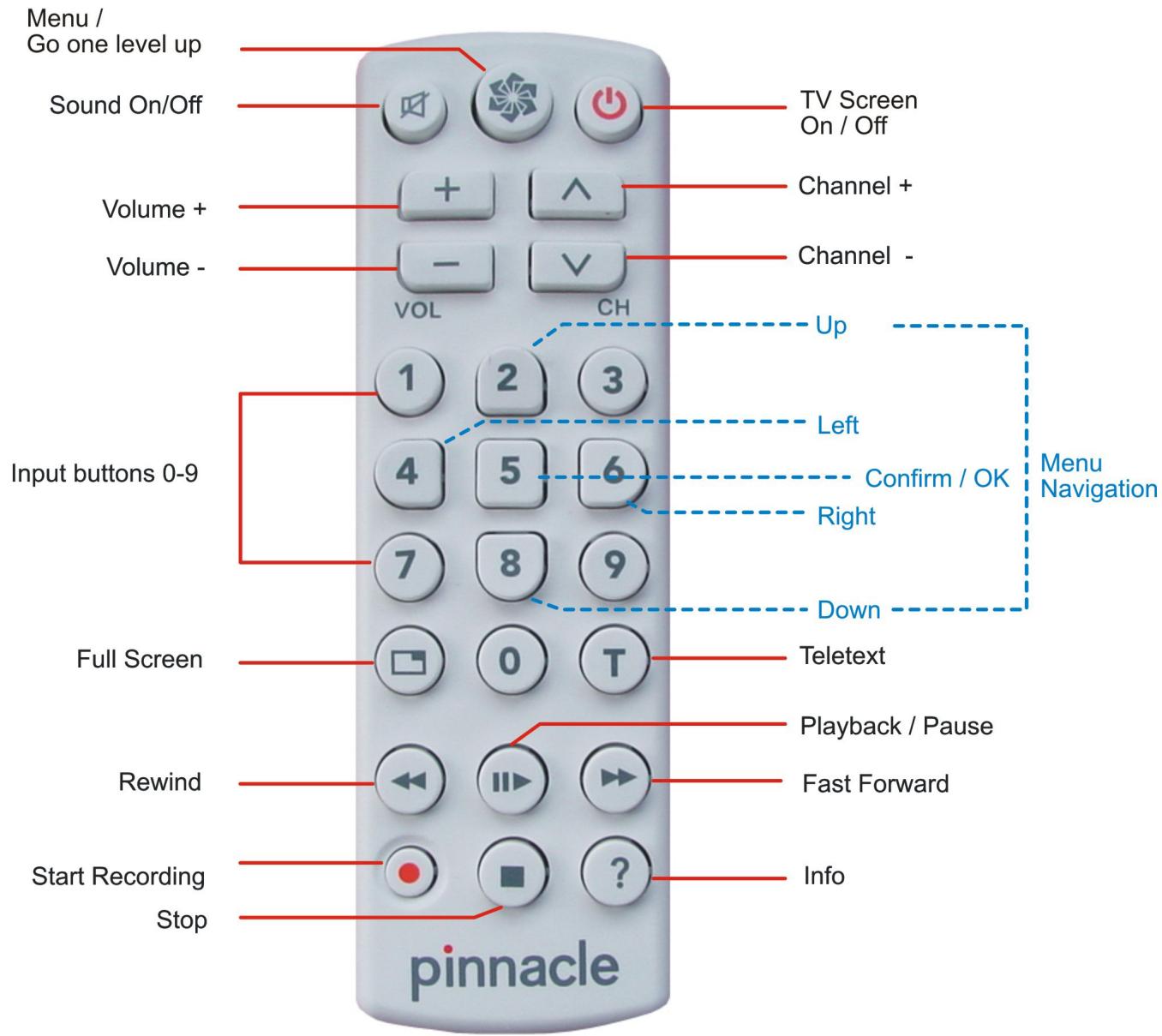

Remote Control Button Assignments The following diagram shows you an overview of the individual functions for the remote control: Menu / Go one level up — si Sound On Of — ÉE TV Screen LEZ (CN On / Off Vol Channel + olume + Los) Volume - nn —

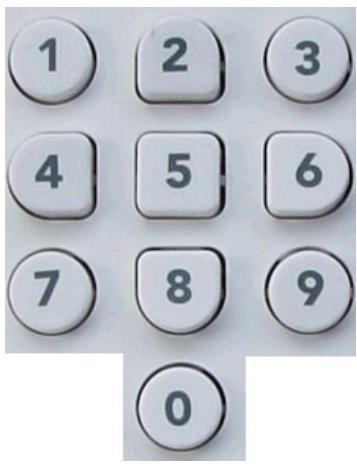

Start Recording Stop Info pinnacle (9 For details on how to use the input buttons and navigate the menu, please see the next page.

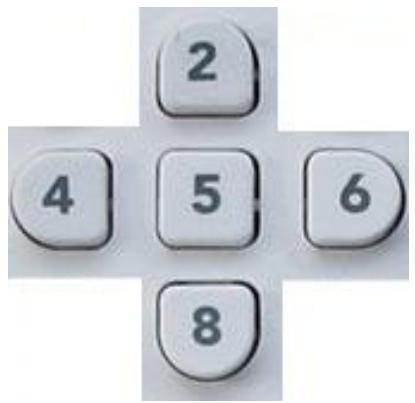

Menu navigation When you have opened a menu, you can use the buttons 2, 4, 6 and 8 as arrow keys (similar to cursor control keys) in order to navigate the menu. The currently selected menu item is highlighted in colour. To start the selected function, press button 5. GED (a)
