USER MANUAL PCTV 60E PINNACLE
All rights reserved.
No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.
All brand or product names are trademarks or registered trademarks of their respective holders.
This manual is printed on chlorine-free, bleached paper using solvent-free ink.
Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfill the users' intended applications.
No warranty is made as to the specifications of features.
Pinnacle Systems GmbH retains the right to make alterations to the content of the manual without obligation to inform third parties.
All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.
Table of Contents
Introduction. 1
Box Contents 2
System Requirements 3
Computer Hardware 3
Computer Software 3
Connecting the Antenna 4
Connecting to the Computer 5
Positioning Tips for the Rod Antenna 6
Using the Remote Control 7
LED Display 8
Technical Data 9
Bus System 9
TV Tuner 9
DVB-T Demodulator 9
Antenna Input (Optional) 9
Notes

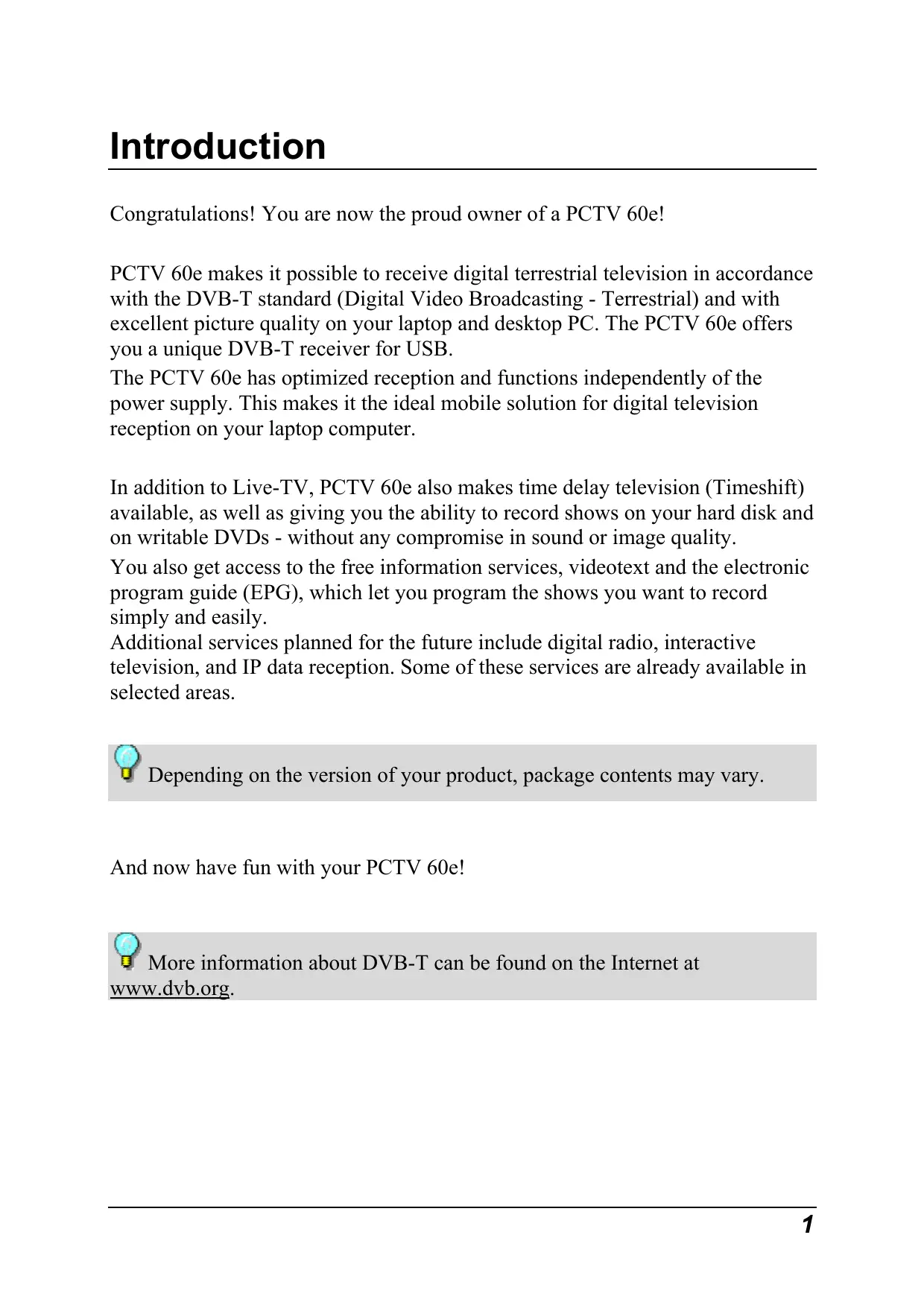

Congratulations! You are now the proud owner of a PCTV 60e!
PCTV 60e makes it possible to receive digital terrestrial television in accordance with the DVB-T standard (Digital Video Broadcasting - Terrestrial) and with excellent picture quality on your laptop and desktop PC. The PCTV 60e offers you a unique DVB-T receiver for USB.
The PCTV 60e has optimized reception and functions independently of the power supply. This makes it the ideal mobile solution for digital television reception on your laptop computer.
In addition to Live-TV, PCTV 60e also makes time delay television (Timeshift) available, as well as giving you the ability to record shows on your hard disk and on writable DVDs - without any compromise in sound or image quality.
You also get access to the free information services, videotext and the electronic program guide (EPG), which let you program the shows you want to record simply and easily.
Additional services planned for the future include digital radio, interactive television, and IP data reception. Some of these services are already available in selected areas.
Depending on the version of your product, package contents may vary.
And now have fun with your PCTV 60e!
More information about DVB-T can be found on the Internet at
www.dvb.org.
PCTV 60e
Rod antenna
(Figure is an example)
Antenna adapter
USB cable
Remote control with batteries (Figure is an example)
Installation CD
On CD-ROM:
User manual, Hardware instructions
Remote control instructions
Quick Start instructions
Depending on the version of your product, package contents may vary.
In order for the PCTV 60e to function smoothly, your system must meet the following requirements:
Computer Hardware
Processor
Minimum: Pentium III 1.0 GHz or equivalent AMD Athlon XP processor (SD only)
Recommended: Pentium IV 2.0 GHz, Pentium M 1.3 GHz or equivalent AMD Athlon 64 processor (SD and HD)
Working memory
Minimum: 256 MB RAM
Recommended: 512 MB RAM
Hard disk
Minimum: IDE hard disk with master mode drivers and 5 GB free disk space
Recommended: U-DMA hard disk with 20 GB free disk space
Graphics controller
Minimum: DirectX 8 compatible graphics card
Recommended: DirectX 9 (or higher) compatible graphics controller
Sound controller
Minimum: DirectX 9 compatible sound controller
USB port
USB (full-speed or high-speed) port
CD-ROM / DVD-ROM drive or recorder
Minimum: CD-ROM or DVD-ROM drive Recommended: CD or DVD recorder
Computer Software
Windows XP (Home Edition, Professional Edition or Media Center Edition 2005) with the latest Service Pack

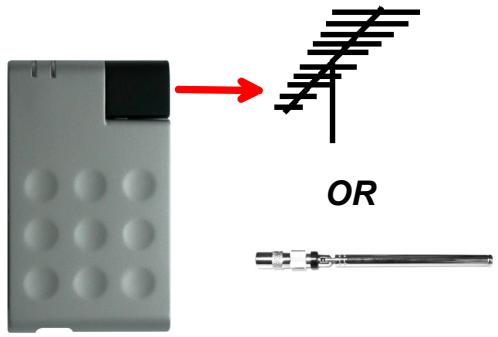

If your PCTV 60e does not include an antenna or you live in an area that is not suited for receiving signals with indoor antennas, connect the PCTV 60e to another antenna (e.g., your building antenna) using the antenna adapter:

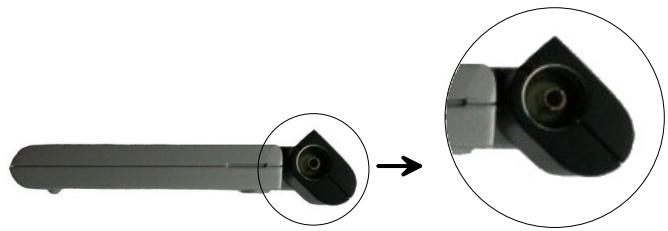

- Insert the antenna adapter into the antenna input socket of the PCTV 60e from the side.
- When doing this, make sure that the plastic knob on the PCTV 60e casing fits into the round groove of the adapter.
- Now turn the adapter until it snaps into the PCTV 60e casing and both line up properly.
- Now attach the antenna adapter either to the antenna on your building, a room antenna or the rod antenna that is optionally included in the box.
To connect an antenna, you need the corresponding cable. Note that the quality of the cable has a great influence on the quality of the reception.

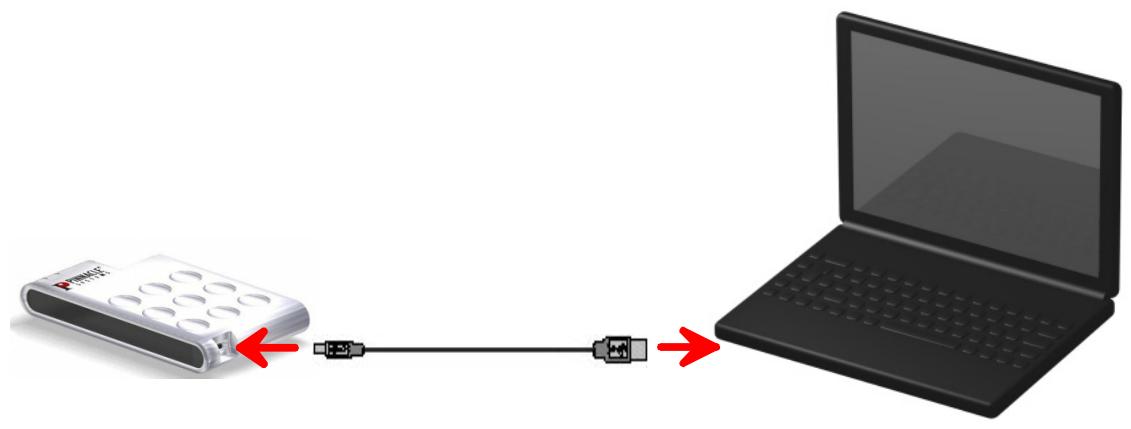

Connecting to the Computer
- Connect your PCTV 60e with your computer via the USB port.
Use only the USB cable included in the box.
Positioning Tips for the Rod Antenna
If you would like to use the rod antenna (optional) included in your box to get television reception, note following instructions (these instructions do not apply to other antennas):
If possible, place the PCTV 60e near a window.
- In addition, place the PCTV 60e as high as possible.
- The PCTV 60e should not be placed near a cathode ray tube monitor or a television or similar equipment.
Note that you will possibly not get the best DVB-T reception inside buildings. In this case, place your PCTV 60e as high and as near to a window as possible or attach the adapter (included in the box) to your roof antenna.

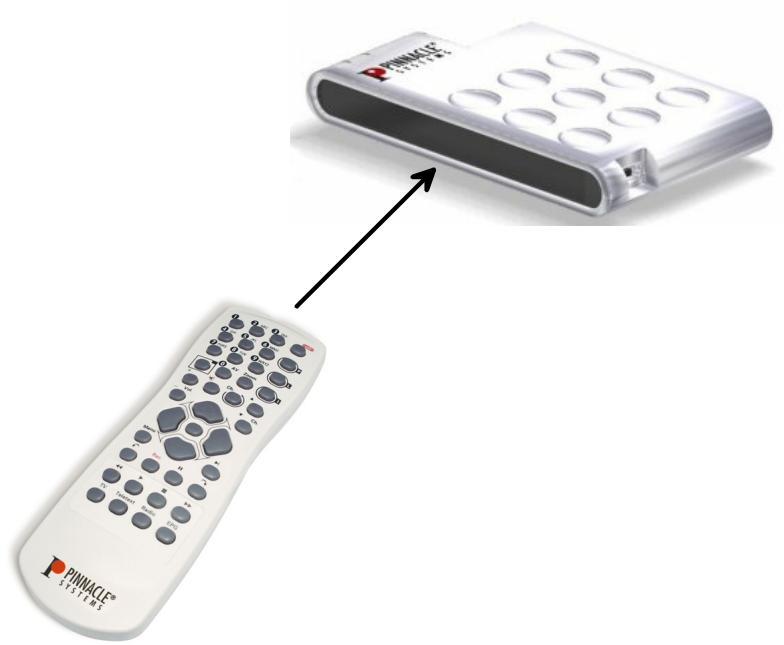

Using the Remote Control
If your PCTV 60e box includes a remote control, when you use it, make sure that it is aimed directly at the reception area of the PCTV 60e casing.

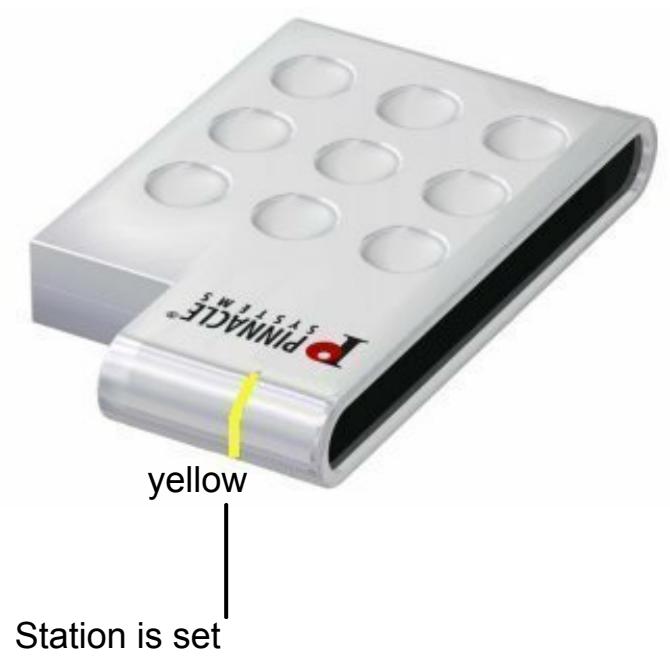

The LED display on the PCTV 60e indicates the operational status of the device:
- The yellow LED indicates that the station is set correctly.
Bus System
USB (full-speed or high-speed)
TV Tuner
Microtune MT2060
The frequency range is 45.75 to 863.25MHz (VHF and UHF).
DVB-T Demodulator
Zarlink MT352
16.64 QAM, QPSK
6,7,8 MHz bandwidth
UHF, VHF
Antenna Input (Optional)
75 Ohm via IEC adapter
Note the following when using the Pinnacle Studio QuickStart: If you want to edit DVB-T shows, first record them to your hard disk using the Pinnacle MediaCenter. After this, you can edit the saved video files with Studio QuickStart.
CE
Declaration of conformity in accordance with ISO/IEC Guide 22
Nr. / No 1.00
Anbieter / Supplier : Pinnacle Systems GmbH
Anschrift / Address : Frankfurter Strasse 3c 38122 Braunschweig, Germany
Produkt / Product : PCTV 60e
The product described above is in conformity with:
This certification is based on: Test report(s) generated by EMI-test laboratory
Braunschweig, 14. Juli 2005 / July 14th, 2005
Mirko Schwarz
Hardware Engineering
Mathias Pfeiderer
Director Material Management
