Product type	Satellite TV tuner card (DVB-S)
Brand	PINNACLE
Model	PCTV SAT PRO PCI
System bus	PCI 2.3
LNB input	75 ohms, F connector
Tuner	Zarlink ZL10036
Demodulator	Zarlink ZL10313
TV format	DVB-S
DiSEqC	DiSEqC 1.1
LNB power supply	13 V / 18 V, max. 350 mW
Required operating system	Windows XP (Home, Pro, Media Center Edition 2005)
Minimum processor	Pentium IV 1.8 GHz or equivalent AMD Athlon XP
Minimum RAM	256 MB RAM
Minimum hard disk space	5 GB free
Required graphics card	DirectX 9 compatible
Required sound card	DirectX 9 compatible
Main functions	Satellite TV and radio reception, timeshift, recording on hard disk or DVD, teletext, electronic program guide (EPG)
Included accessories	Remote control with batteries, infrared receiver, installation CD, quick installation guide
Maintenance and cleaning	Avoid dust and electrostatic discharge during handling. Clean with a dry, soft cloth.
Safety	Disconnect the power before any intervention. Discharge static electricity before touching the card.
Spare parts and repairability	Spare parts not available individually. For any repairs, contact customer service.

Frequently Asked Questions - PCTV SAT PRO PCI PINNACLE

How to install the PCTV SAT PRO PCI card?

Turn off the computer and unplug it. Open the case, choose a free PCI slot, insert the card by pressing evenly at both ends, then secure it with the screw. Close the case, reconnect and turn on. The system will detect the new hardware.

What are the system requirements to use the card?

Windows XP with Service Pack, Pentium IV 1.8 GHz processor minimum, 256 MB RAM, 5 GB hard disk space, DirectX 9 compatible graphics and sound cards, one free PCI slot.

Can I receive HD television with this card?

The card supports DVB-S format, but HD is not guaranteed. The manual mentions SD and HD reception, but recommends a Pentium IV 2.8 GHz processor for HD.

How to connect the satellite cable?

Connect the cable from the satellite dish (with F connector) to the LNB input (75 ohms) on the card. Make sure the LNB is DiSEqC 1.1 compatible.

What to do if the card is not recognized by Windows?

Check that the card is properly inserted in the PCI slot. Try another slot. Make sure the operating system is up to date (Service Pack). Reinstall the drivers from the provided CD.

What software can I use with this card?

The card comes with Pinnacle software (probably PCTV Vision). It is also compatible with other DVB-S applications like DVBViewer, but check the manual for details.

Can I record TV shows to DVD?

Yes, the Pinnacle software allows recording TV programs to the hard drive, and you can then burn them to DVD if you have a DVD burner. The manual mentions the DVD recording function.

How to use the remote control?

Insert the batteries into the remote control. Connect the infrared receiver to the card (or to a USB port depending on configuration). The software should automatically detect the remote control. You can then control TV functions remotely.

What to do if the picture is jerky or the sound is out of sync?

Check that your processor and memory are sufficient (at least 512 MB recommended). Update your graphics card drivers. Try reducing the video quality in the software settings.

Where can I find the complete manual in French?

The user manual is available in PDF format on the website notice-facile.com. You can download it for free or request a translation in your language via the form on the page.

USER MANUAL PCTV SAT PRO PCI PINNACLE

PCTV Sat Pro PCI Hardware

PCTV Sat Pro PCI Hardware

GB February 2006

© Pinnacle Systems GmbH 2006

All rights reserved.

No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.

All brand or product names are trademarks or registered trademarks of their respective holders.

Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfill the users' intended applications.

The feature descriptions are not to be understood as a warranty.

Pinnacle Systems GmbH retains the right to make alterations to the contents of this manual without obligation to inform third parties.

All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.

Disposal and Recycling

Do not dispose of electric components in the garbage. Either return defective or unwanted devices to the retailer or take them to an appropriate recycling station for environmentally friendly disposal!

Table of Contents

Introduction 1

Package Contents 2

System Requirements 3

Operating System 3

Processor 3

Working Memory 3

Hard Disk 3

Graphics Card 3

Sound Card. 3

Expansion Slot 3

CD-ROM / DVD-ROM Drive or Recorder 3

For Your Own Safety 4

Hardware Installation 5

Preparing for Installation 5

PCTV Sat Pro PCI Hardware Installation 6

After Installation 6

Connections 7

Technical Data. 8

Bus System. 8

LNB Input 8

Tuner 8

Demodulator 8

TV Format. 8

DiSEqC 8

LNB Feed. 8

Declaration of conformity in accordance with ISO/IEC Guide 2............9

Congratulations on your purchase of PCTV Sat Pro PCI!

From your PC you can receive TV, radio and data signals via satellite (DVB-S) with your PCTV Sat Pro PCI:

Because PCTV Sat Pro PCI has a digital satellite tuner which allows reception via a digital satellite system (satellite dish and universal LNB) of any decoded TV and radio stations using the DVB-S standard.

Depending on the selected software, PCTV Sat Pro PCI not only offers you live TV and radio but also timeshift TV and radio, as well as quality program recording to your hard disk and DVD recorder.

You also get access to the free information services, teletext and the electronic program guide (EPG). These services allow simple and easy access to the desired information at any time, as well as scheduling of the shows you wish to record.

And now have fun with your PCTV Sat Pro PCI!

PCTV Sat Pro PCI

Installation CD

Remote control with batteries and receiver (images are samples)
Quick Install Guide

PDF files on the CD: user manual, ware operating instructions, control operating instructions

Depending on the version of your product, package contents may vary.

Your system must fulfill the following requirements if you want to guarantee proper PCTV Sat Pro PCI function:

Operating System

Windows XP (Home, Professional or Media Center Edition 2005) with the latest service pack

Processor

Minimum: Pentium IV 1.8 GHz or equivalent AMD Athlon XP

Recommended: Pentium IV 2.8 GHz or equivalent AMD Athlon 64

(SD and HD)

Working Memory

Minimum: 256 MB RAM

Recommended: 512 MB RAM

Hard Disk

Minimum: IDE hard disk with master mode drivers and 5 GB free disk space

Recommended: U-DMA hard disk with 20 GB free disk space

Graphics Card

Minimum: DirectX 9-compatible graphics card

Sound Card

Minimum: DirectX 9-compatible sound card

Expansion Slot

PCI 2.3-compatible expansion slot

CD-ROM / DVD-ROM Drive or Recorder

Minimum: CD-ROM or DVD-ROM drive

Recommended: CD or DVD recorder

If you purchased your PCTV Sat Pro PCI together with a PC and it is already installed, skip the following sections and continue with the section "Connecting the Equipment".

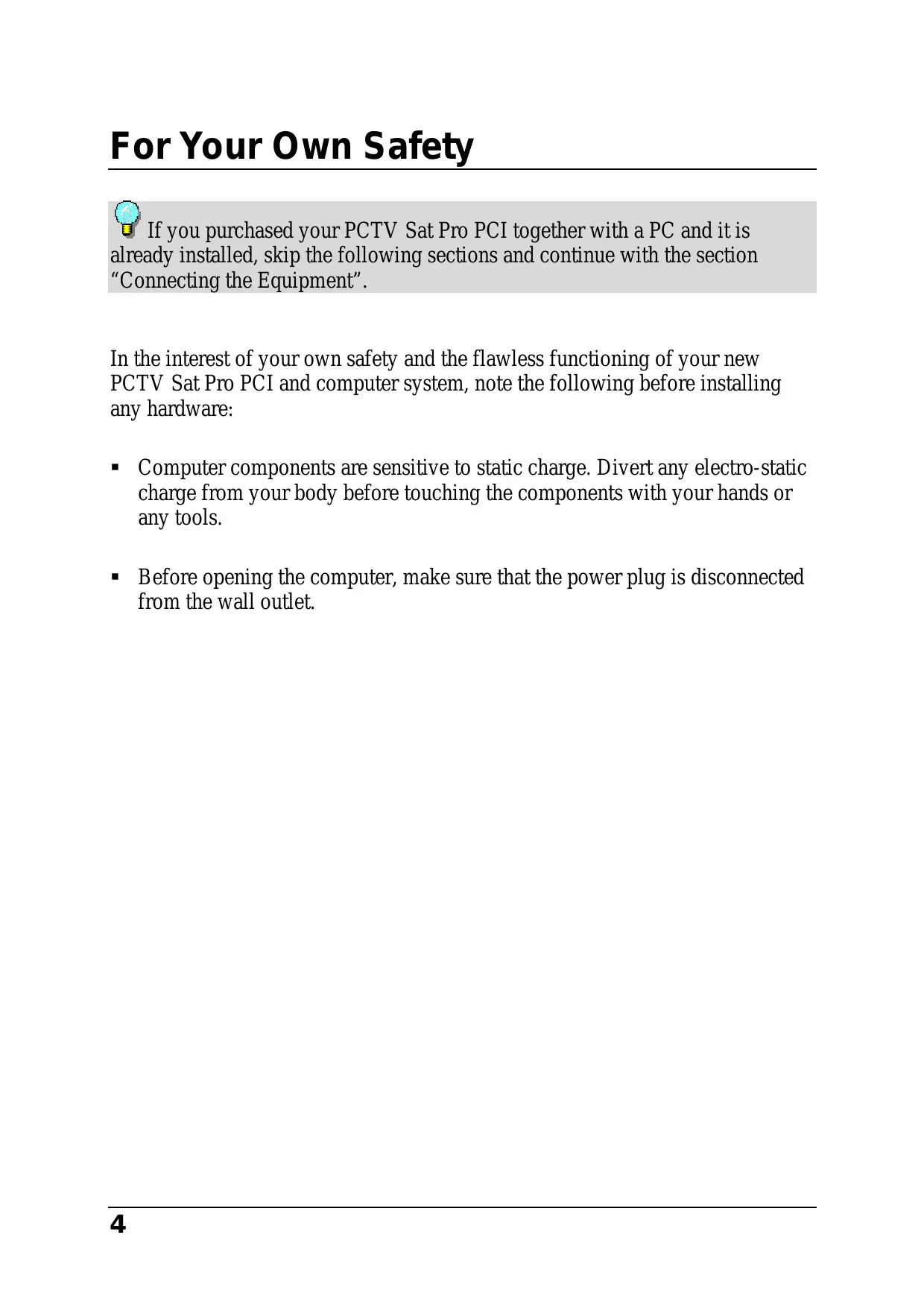

In the interest of your own safety and the flawless functioning of your new PCTV Sat Pro PCI and computer system, note the following before installing any hardware:

• Computer components are sensitive to static charge. Divert any electro-static charge from your body before touching the components with your hands or any tools.
• Before opening the computer, make sure that the power plug is disconnected from the wall outlet.

Preparing for Installation

You will need a screwdriver to install your hardware.

• Divert any possible electro-static charge from your body by touching the casing of your PC.
• Turn off your computer and all peripheral devices. Disconnect computer from the power supply and all necessary components.
• Loosen the computer cover screws and remove the cover.
• Select a free PCI (busmaster) slot. Remove the slot cover at the back of the computer. Be sure to keep the screws in a safe place.

PCTV Sat Pro PCI Hardware Installation

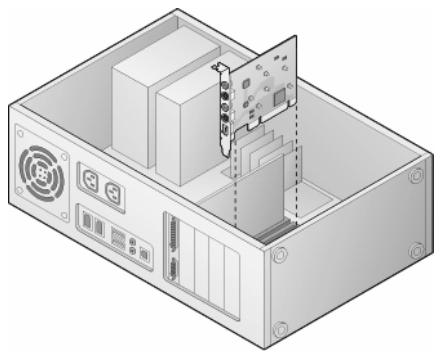

Plug the card into the selected PCI slot. To do so, hold the card at the top and push it down into the slot while applying even pressure at both ends. Press down on the upper edge so that the card fits firmly in the slot.

• If you cannot easily insert the card into the slot, do not use force since this may bend the contact springs on the socket connector. Instead, remove the card and try to insert it again.

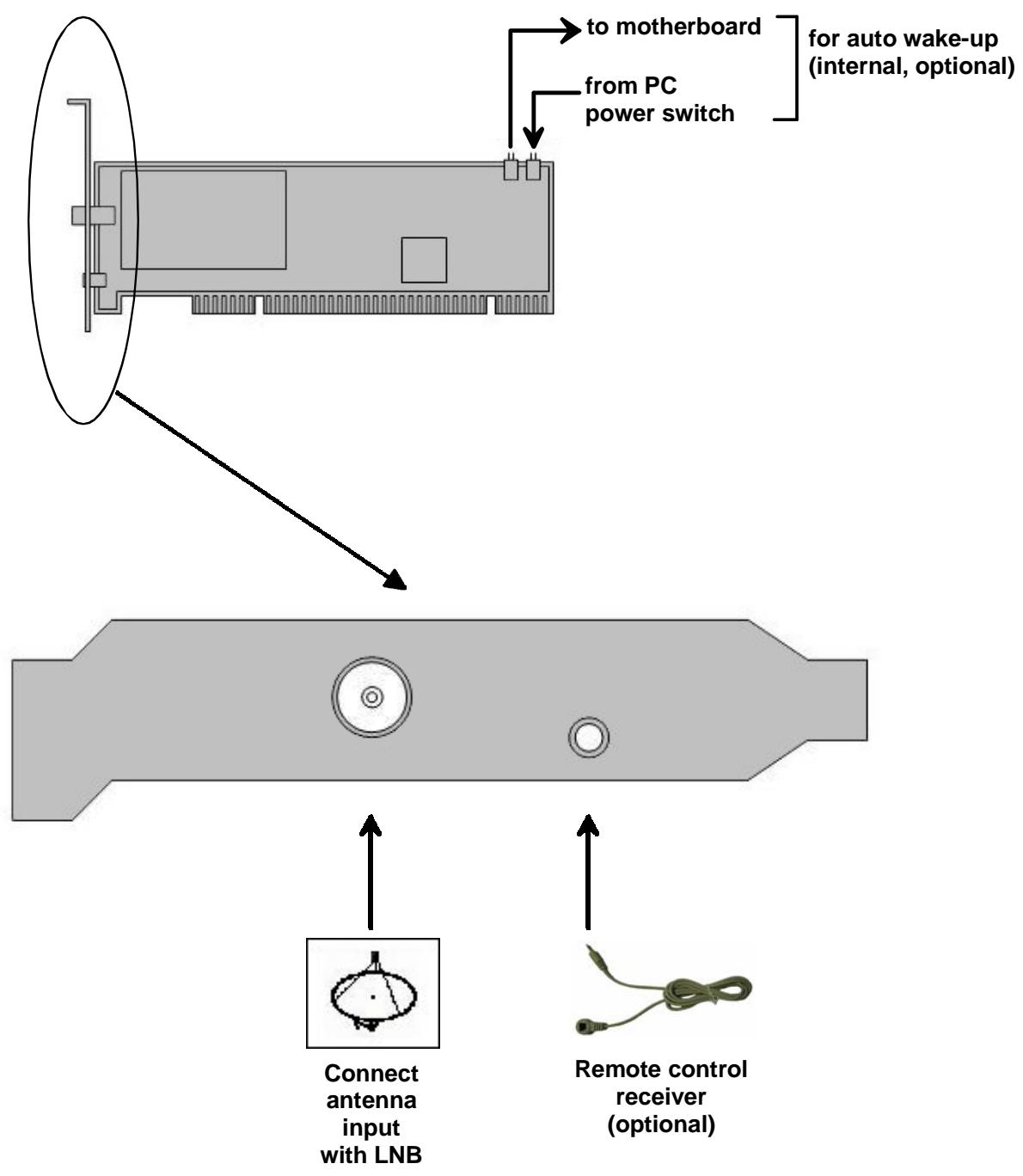

After Installation

• After you have inserted the hardware, firmly tighten the card retaining bracket on the back of the computer.
• Now place the cover back onto your computer and reconnect the peripherals and the power supply.

Bus System

PCI 2.3

LNB Input

75 Ohm, F connector

Tuner

Zarlink ZL10036

Demodulator

Zarlink ZL10313

TV Format

DVB-S

DiSEqC

DiSEqC 1.1

LNB Feed

13V / 18V, maximum 350 mW

Declaration of conformity in accordance with ISO/IEC 17050-1
Nr. / No 1.00

Anbieter / Supplier :

Anschrift / Address :

Pinnacle Systems GmbH

Frankfurter Strasse 3c
38122 Braunschweig, Germany

Produkt / Product :

PCTV 4000i

Director Hardware Engineering

VP Engineering
