Product type	Internal TV card
Brand	PINNACLE
Model	PCTV 100i
System bus	PCI Rev. 2.3
Video decoder	Philips SAA7134
TV tuner	Microtune MT2050
Supported TV standards	PAL B/G/D/K/I, SECAM, NTSC M/N (depending on configuration)
Frequency range	45.75 - 863.25 MHz
Video inputs	S-Video (Mini-DIN), Composite (RCA)
Antenna input	75 ohms, IEC or F connector
Audio output	Internal (4-pin connector, 2.8 mm pitch) and optional external 3.5 mm jack
Remote control input	Yes (via optional receiver, RS232 port)
Power supply	Via PCI bus (3.3 V / 5 V)
Minimum configuration - Processor	Pentium III 1 GHz or equivalent AMD
Minimum configuration - Memory	256 MB RAM
Minimum configuration - Hard drive	5 GB free space
Minimum configuration - Graphics card	DirectX 8 compatible
Minimum configuration - Sound card	DirectX 9 compatible
Minimum configuration - Operating system	Windows XP (Home, Pro or Media Center Edition 2005) with latest Service Pack
Included software	PCTV MediaCenter
Safety	Discharge electrostatic before handling; unplug power before opening PC
Maintenance	No special maintenance required
Repairability	Not specified; soldered components
Certifications	CE (EN 55022, EN 55024, EN 60950, etc.)

Frequently Asked Questions - PCTV 100I PINNACLE

What are the system requirements for the PCTV 100i?

Your PC must have a Pentium III 1 GHz or equivalent processor, 256 MB of RAM, 5 GB of free disk space, a DirectX 8 compatible graphics card, a DirectX 9 compatible sound card, and a free PCI slot. The operating system must be Windows XP (Home, Pro or Media Center Edition 2005) with the latest Service Pack.

How to physically install the PCTV 100i card?

Discharge static electricity, turn off the PC and unplug it. Open the case, remove the bracket for a free PCI slot, insert the card by pressing evenly, then secure it with the screw. Reconnect the internal audio cable (optional) and the antenna. Close the case.

Can I use the PCTV 100i on Windows 10?

Official drivers are only provided for Windows XP. On Windows 10, generic or modified drivers may work, but this is not guaranteed by the manufacturer.Use is not recommended.

How to connect the TV antenna?

Connect the antenna cable (75 ohms) to the IEC or F connector on the card. Use an adapter if necessary.

What TV standards are supported by the tuner?

Depending on configuration, the Microtune MT2050 tuner supports PAL B/G/D/K/I, SECAM, NTSC M/N. The frequency range is from 45.75 to 863.25 MHz.

How to connect the remote control?

The remote control requires an optional receiver. Connect the receiver cable to the dedicated input on the card or, if absent, to a free serial port (RS232) on the PC.

Can I record TV programs with this card?

Yes, using the included PCTV MediaCenter software, you can watch and record television on your hard drive.

What to do if the card is not detected by the system?

Check that the card is properly inserted in the PCI slot, that the PC is turned on, and that drivers are installed. Try another PCI slot. If the problem persists, test the card on another PC.

How to connect the card's audio to my sound card?

Use the included internal audio cable: connect one end to the 4-pin connector on the PCTV 100i and the other to the internal audio input on your sound card. If your card does not have this connector, use the external 3.5 mm jack audio output (depending on model).

Where to find drivers and the manual?

The manual is available for free on notice-facile.com. The drivers were provided on the installation CD-ROM. They can be downloaded from driver archive websites, but be careful about compatibility.

USER MANUAL PCTV 100I PINNACLE

All rights reserved.

No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.

All brand or product names are trademarks or registered trademarks of their respective holders.

This manual is printed on chlorine-free, bleached paper using solvent-free ink.

Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfill the users' intended applications.

No warranty is made as to the specifications of features.

Pinnacle Systems GmbH retains the right to make alterations to the content of the manual without obligation to inform third parties.

All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.

Table of Contents

System requirements 1

Computer hardware 1
Computer software 1

For your own safety. 2

Hardware Installation 3

Preparing installation 3
Using PCTV MediaCenter 100i hardware. 4
After installation 4

Connecting the Equipment 5

Technical Data 6

Bus system 6
Video decoder 6
TVtuner 6
Video inputs 6
Antenna input 6
Remote control input. 7
Audio output 7

Your system must satisfy the following requirements in order for your PCTV MediaCenter 100i to function without problems:

Computer hardware

Processor

Minimum: Pentium III 1 GHz or equivalent AMD processor

Recommended: Pentium IV 2 GHz or AMD Athlon XP 2200+

Memory

Minimum: 256 MB RAM

Recommended: 512 MB RAM

Hard disk

Minimum: IDE hard disk with master mode drivers and with 5 GB free disk space

Recommended: U-DMA hard disk with 20 GB free disk space

Graphics card

Minimum: DirectX 8-compatible graphics card

Recommended: DirectX 9-compatible (or higher) graphics card

Sound card

Minimum: DirectX 9-compatible sound card

Expansion slot

PCI 2.3-compatible expansion slot

CD-ROM / DVD-ROM drive or recorder

Minimum: CD-ROM or DVD-ROM drive

Recommended: CD or DVD recorder

Computer software

Windows XP (Home Edition, Professional Edition or Media Center Edition 2005) with the latest Service Pack

If you purchased your PCTV MediaCenter 100i together with a PC and thus it is already installed, then please skip the following chapters in this manual and continue reading with the chapter "Connecting the Equipment".

In the interest of your own safety and the flawless functioning of your new PCTV MediaCenter 100i and computer system please note the following:

• Computer components are sensitive to static charge. Divert any electrostatic charge from your person before touching the components with your hands or any tools.
• Before opening the computer make sure that the power plug is disconnected from the wall outlet.

Preparing installation

The only tool you need for the installation is a screwdriver.

• Discharge yourself of static charge by touching the power unit casing.
• Turn off your computer and all peripheral devices. Disconnect the computer from the power supply and all necessary components.
• Loosen the computer's cover screws and remove the cover.

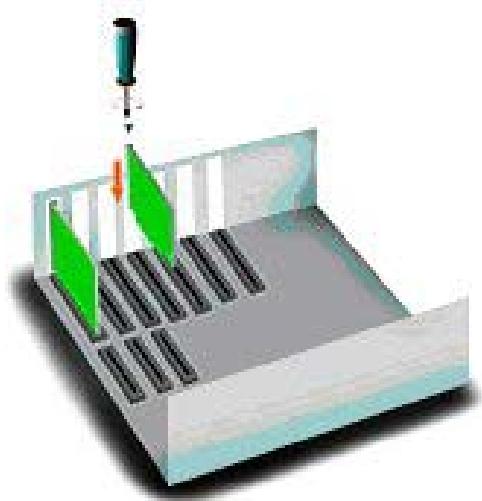

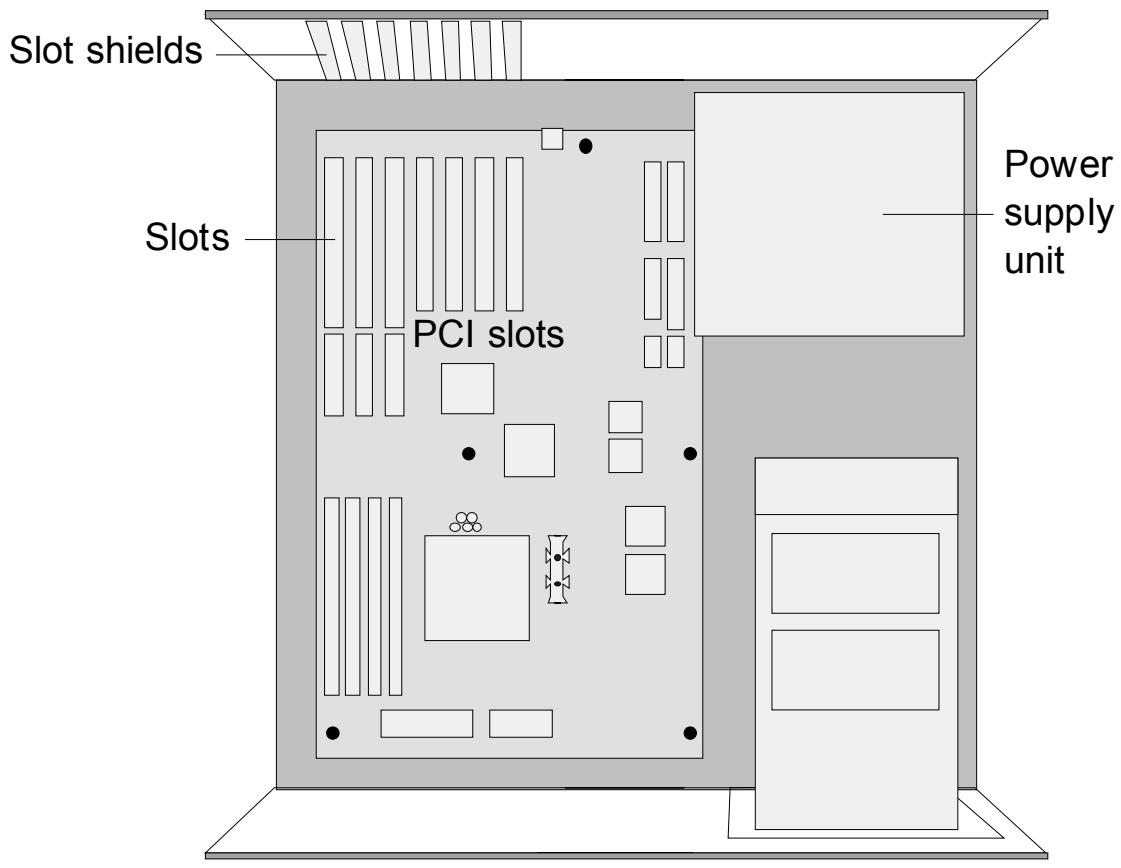

• Select a free PCI (busmaster) slot. Remove the slot's cover at the back of the computer and keep the screws.

Using PCTV MediaCenter 100i hardware

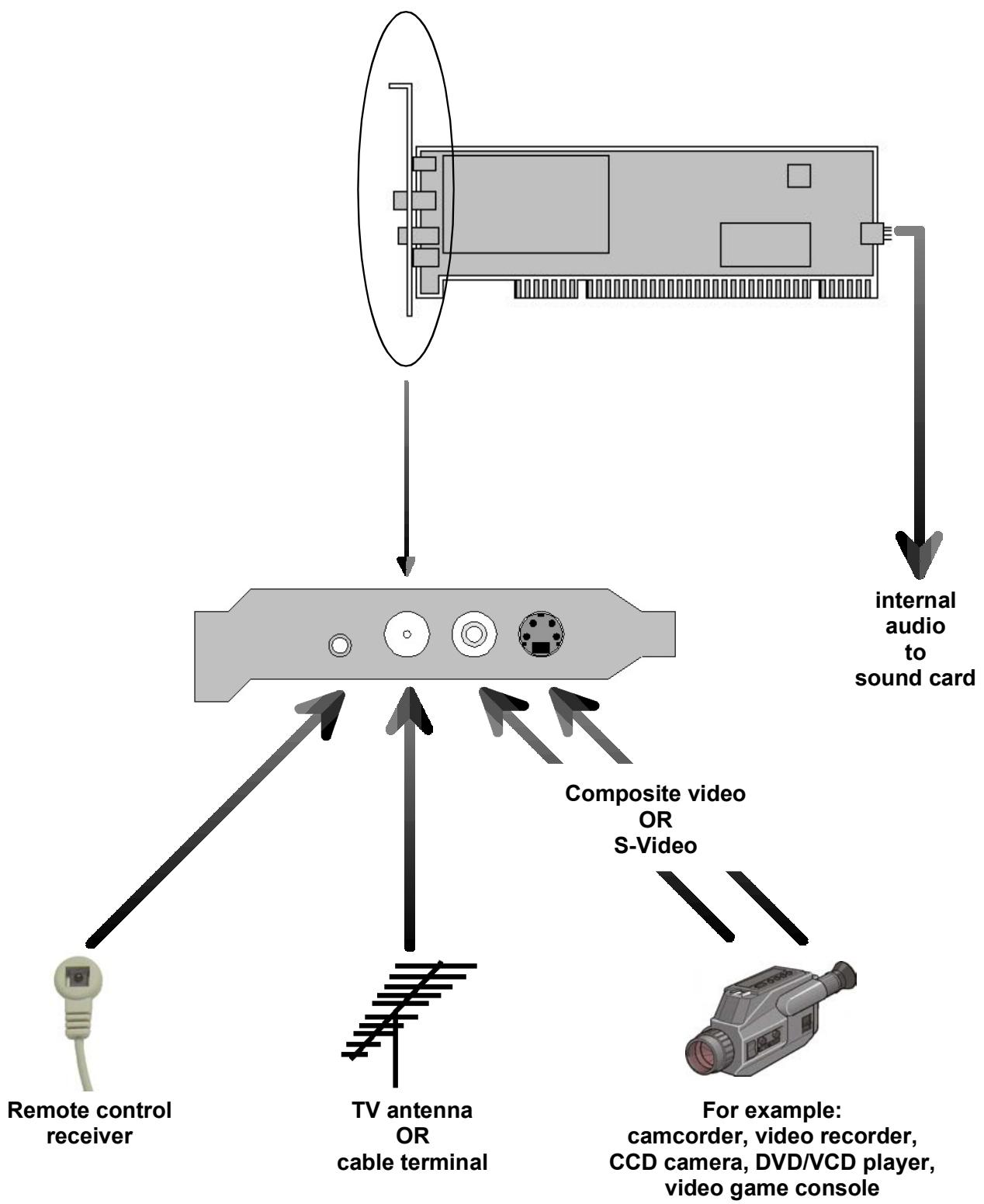

• Please connect an internal audio cable plug to the internal audio output of the board and the other plug to the internal audio input of your soundcard.
  Plug the board into the previously selected PCI slot. To do so hold the board at the top and push it down into the slot applying even pressure at both ends. Press down on the upper edge so that the board fits firmly in the slot.

• If the board is not easily inserted into the slot, then please do not use force as this may bend the contact springs on the socket connector. Instead, remove the board and try to insert it once again.

After installation

• After you have inserted the hardware, firmly tighten the retaining bracket of the board on the back of the computer.
• Now place the cover onto your computer and connect the peripheral devices.

Bus system

PCI Rev. 2.3

Video decoder

Philips SAA7134

TV tuner

Microtune MT2050

The tuner supports the following depending on its circuit configuration:

PAL B/G/D/K/I

or

PAL B/G/D/K/I/SECAM

or

NTSC, PAL M/N

The frequency range is 45.75 to 863.25MHz .

Video inputs

S-Video input (Mini-DIN), Composite video input (chinch)

Antenna input

75 Ohm IEC adapter or F-connector

Remote control input

Remote control input for connecting optionally supplied receiver cable

Depending on the model, your board may not have a separate remote control input terminal. In this case, connect the receiver cable to any available serial port (RS2323) on your PC.

Audio output

Internal audio output (for the sound card) via 4-pole connector, 2.8mm pitch Depending on the model, an optional external 3.5mm jack plug is available for audio output.

CE

Declaration of conformity in accordance with ISO/IEC Guide 22

Nr. / No 1.00

Anbieter / Supplier : Pinnacle Systems GmbH

Anschrift / Address : Frankfurter Strasse 3c

38122 Braunschweig, Germany

Produkt / Product : PCTV STEREO

This certification is based on: Test report(s) generated by EMI-test laboratory

Braunschweig, 8. September 2003 / September 8th, 2003

Bernd Riemann

Director Hardware Engineering

Oliver Hellmold

Finanzdirektor / Director Finance

With this is confirmed, that the TV Tuner boards

PCTV Stereo

PCTV Stereo XE

PCTV 100i

Braunschweig, 20. August 2004
Braunschweig, August 20th, 200

Pinnacle Systems GmbH

Bernd Riemann

Director Hardware-Entwicklung
Director Hardware Engineering

Oliver Hellmold

Finanzdirektor Director Finance
