Product Type	Combined Refrigerator
Brand	Cecotec
Model	Bolero Coolmarket Combi 377 A
Dimensions (H x W x D)	185 cm x 60 cm x 65 cm
Net Weight	63 kg
Total Net Volume	377 L
Refrigerator Volume	250 L
Freezer Volume	127 L
Number of Doors	2
Defrost Type	Automatic (refrigerator), Manual (freezer)
Energy Class	A+
Annual Energy Consumption	270 kWh
Power Supply	220-240 V ~ 50 Hz
Electrical Power	100 W
Refrigerant	R600a
Main Features	LED lighting, adjustable glass shelves, vegetable drawer, butter compartment, door balconies, open door alarm
Maintenance and Cleaning	Clean the interior with warm water and mild detergent. Dust the condenser. Do not use solvents or abrasives.
Safety	Do not immerse the appliance in water. Do not use a steam cleaner. Keep out of reach of children.
Spare Parts	Door seals, shelves, bins, door balconies, bulb
Repairability	Parts accessible from the rear and interior. Repairability index: 7.6/10
General Information	Warranty: 2 years. Recommended ambient temperature: 16°C to 38°C.

Frequently Asked Questions - Bolero Coolmarket Combi 377 A CECOTEC

What are the dimensions of the Cecotec Bolero Coolmarket Combi 377 A refrigerator?

The dimensions are 185 cm in height, 60 cm in width, and 65 cm in depth. Make sure to leave extra space for ventilation.

How to adjust the temperature of the refrigerator and freezer?

Use the adjustment buttons located inside the refrigerator or on the front. The ideal temperature is 4°C for the refrigerator and -18°C for the freezer. Turn the knob to increase or decrease cooling.

The refrigerator is making noise, is this normal?

Yes, a slight hum from the compressor and refrigerant circulation sounds are normal. If the noise becomes unusually loud, check that the appliance is level and not touching a wall or cabinet.

How to clean the interior of the refrigerator?

Unplug the appliance. Clean with a soft cloth soaked in warm water and mild detergent. Rinse with clean water and dry. Never use abrasive products or chemical cleaners.

Why does the refrigerator door not close properly?

Check the door alignment and the condition of the gasket. If the gasket is dirty, clean it with soapy water. If it is warped or damaged, replace the gasket. Make sure the appliance is level.

Do I need to defrost the freezer manually?

Yes, the freezer is manual defrost. When the frost layer exceeds 3-5 mm, unplug the appliance, remove the food, and let the frost melt. Do not use sharp tools.

What is the energy class of this refrigerator?

The Bolero Coolmarket Combi 377 A is rated A+ (old label) or equivalent. Its annual consumption is about 270 kWh, making it an energy-efficient appliance.

Can I reverse the door opening direction?

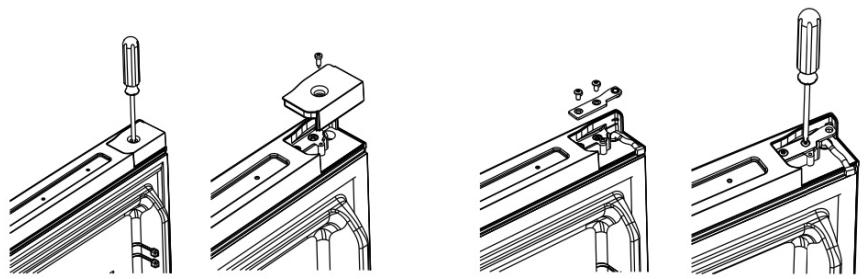

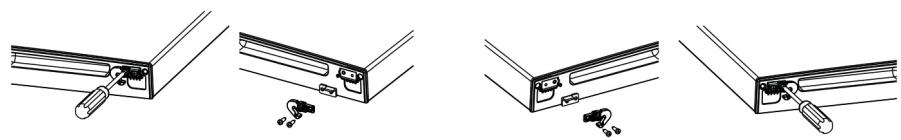

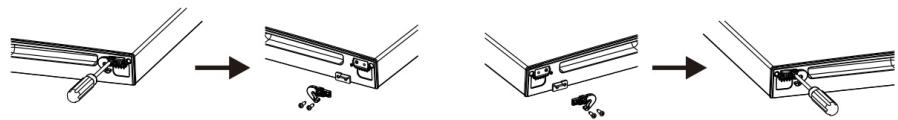

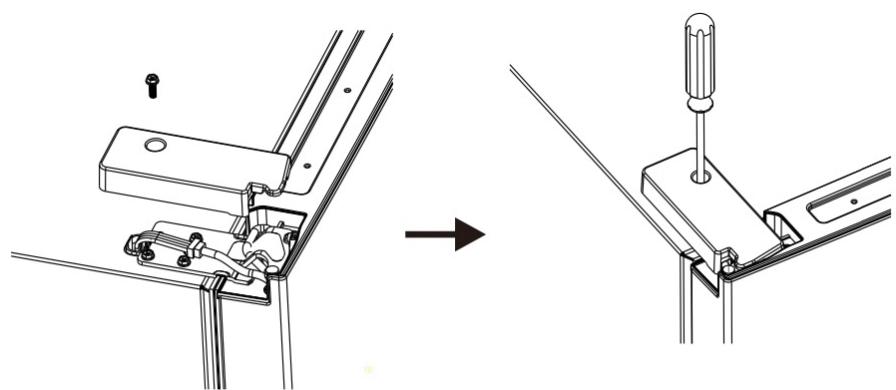

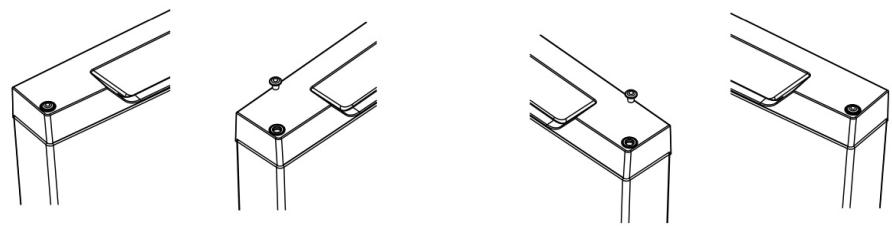

Yes, the door can be reversed. Consult the manual for the detailed procedure. You will need a screwdriver and follow the steps to disassemble and reassemble the hinges.

Where can I find spare parts for this model?

Spare parts such as seals, shelves, bins, and door balconies are available from authorized Cecotec dealers or on their website. Use the model reference to order.

What to do in case of a power outage?

Do not open the doors. Food stays cold for several hours. If the outage lasts more than 4 hours, check the condition of the food. Do not refreeze thawed products.

USER MANUAL Bolero Coolmarket Combi 377 A CECOTEC

Safety instructions 15

1. Parts and components 100

2. Before use 100

3. Installation 101

4. Operation 104

5. Cleaning and maintenance 114

6. Troubleshooting 116

7. Technical specifications 119

8. Disposal of old electrical and electronic appliances 120

9. Technical support and warranty 120

10. Copyright 121

11. Simplified EU Declaration of Conformity 121

SOMMAIRE

EU01_125516 - Bolero CoolMarket Combi 377 Inox A

ES • La codificación de este manual es genérica y se aplica a todas las variantes de códigos del aparato.
EN • The coding in this manual is generic and applies to all code variants of the appliance.
FR • Le codage figurant dans ce manuel est générique et s'applique à toutes les variantes de code de l'appareil.
DE • Die Codierung in dieser Bedienungsanleitung ist allgemein und gilt für alle Codevarianten des Geräts.
IT • La codifica riportata nel presente manuale è generica e si applica a tutte le varianti di codici dell'apparecchio.
PT • A codificação apresentada neste manual é genérica e aplica-se a todas as variantes de código do aparelho.
CAT • La codificació del manual és genèrica i s'aplica a totes les variants de codis de l'aparell.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

Icon	Type	Meaning
	WARNING	Risk of serious injury or death
	RISK OF ELECTRIC SHOCK	Risk of dangerous voltage
	FIRE	Warning: Risk of fire/flammable materials
	CAUTION	Risk of injury or damage to property
	IMPORTANT/NOTE	Correct system use

- NOTE: Pay particular attention to the phrases contained in these icons, as they warn of a potential hazard that can cause serious injury to you and others. The instructions will tell you how to reduce the risk of injury and what can happen if you do not follow them.

• Read these instructions carefully before installing or using the appliance, as they contain important information that will help you achieve optimal performance from your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• WARNING: These instructions for use are generic. This means that certain functions or components are valid for your refrigerator, while others are not.
• When a malfunction occurs, it can seriously damage the figorificator or result in death or injury to the user, or create electrical or fire hazards.
• CAUTION: check the appliance and its packaging for damage. Do not use the appliance if it is damaged, contact Cecotec's Official Technical Support Service immediately.
• Check that the mains voltage in your home is the same as the voltage indicated on the rating label of this product.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.
• Keep packaging material out of the reach of children as there is a risk of suffocation.

• WARNING: If the interior lighting is damaged, please contact Cecotec's Official Technical Support Service. Do not try to repair it yourself.

• ⚠️ WARNING: When positioning the appliance, make sure that the power cord is not trapped or damaged. A crushed or damaged plug may heat up and cause a fire.

• This refrigerator is not designed for built-in or integrated installation.
• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Keep the ventilation openings clear from obstructions.
• Do not place carbonated or soft drinks in the freezer compartment, as this creates pressure in the can, which could explode and damage the appliance.
• WARNING: Do not use mechanical devices or other means to speed up the defrosting process other than those recommended by Cecotec.
• ⚠️ WARNING: do not damage the cooling circuit.
• ⚠️ WARNING: Do not use electrical appliances inside the refrigerator.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified persons, to avoid any hazard.
• Do not use the appliance if the cord, plug or housing is damaged or malfunctioning, if it is partially disassembled or if components are missing or damaged.
• ⚠️ If any abnormal phenomenon occurs, such as burning smell, it is necessary to stop operation and cut off the power supply.

• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.

• Do not use this appliance with an extension cord or multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply. The plug must be inserted into a suitable power socket, which must be properly installed and earthed in accordance with local Standards and Regulations. If an electric shock occurs, grounding can provide a path of minimum current resistance, thus reducing the risk of electric shock.

• Do not modify the plug supplied with the refrigerator.
• ⚠️ ⚠️ Improper connection of the equipment grounding wires may result in a risk of electric shock. If you are in doubt as to whether the equipment is properly grounded, consult a qualified electrician.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on the refrigerator and do not wet it.
• Do not store flammable, explosive, volatile or highly corrosive substances such as aerosol cans with flammable propellant in this appliance, as they may cause damage, accidents or fire.
• ⚠️ Do not place flammable items near the refrigerator to prevent fire.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Do not install the appliance outdoors.

• Avoid direct sunlight exposure.

• Do not install the appliance near heat sources such as heaters, ovens, etc.

• WARNING: keep the ventilation grilles of the appliance enclosure or the cabinet where the appliance is located clear.
• ⚠️ WARNING: To avoid any risk due to the instability of the appliance, install it following the instructions.
• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• ⚠️ This appliance is not designed to operate through external timers or remote control systems.
• Always handle the appliance carefully to avoid damaging it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• ⚠️ WARNING: Do not place multi-socket adaptors with multiple plug or power supplies on the back of the appliance.
• To avoid food contamination, please follow the instructions below:

- Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.

• Regularly clean the surfaces that come into contact with food and with the accessible draining systems.
• Clean the water tank if it has not been used for 48 hours.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not suitable for freezing fresh food*.
• For appliances without a 4-star compartment: not suitable for freezing food*.

*Please verify the applicability based on your products compartment type. This feature varies according to the model purchased.

"4-star" symbol: Freezer compartment at -18°C or below, capable of fast-freezing a specified quantity of food.

"3-star" symbol: Freezer compartment at -18°C or below.

"2-star" symbol: Freezer compartment at -12^ or below.

"1-star" symbol: Freezer compartment with target temperature and storage conditions of -6^ .

- If the appliance is not going to be used or be empty for a long period of time, switch it off, allow it to defrost, clean it, dry it, and leave the doors open to prevent interior mould growth.

• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the plug is accessible after installation of the appliance.
  WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or airs involving the removal of covers. To prevent the tric shock risk do not attempt to repair the appliance self.
  In case of malfunctioning, repairs must be carried out by Cecotec's Technical Support Service; otherwise the warranty will be void.
  To unplug the appliance, pull from the socket, never from the cord.
• Ice-cream “popsicles” can cause freezer burns. This can happen if they are ingested after removal from the freezer.
  Do not remove items from the freezer with wet hands as this may cause skin abrasions or freezer burns. Les and cans should not be placed in the freezer, as they burst when their contents freeze.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the refrigerator. The refrigerator is a heavy household appliance.

Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.

• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.
• In the event of a gas leak, do not unplug the refrigerator or other electrical appliances, as sparks may cause a fire.

- Use the appliance only for the purposes described in this manual. Improper or incorrect use may pose a hazard to both the appliance and the user.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16°C to +43°C

Notes:

- Taking into account the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room

temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.

• If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired indoor temperatures.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.
• Cecotec shall not be held liable for any damage, accident, or incident resulting from the misuse of this appliance. It is the responsibility of the user to operate and maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.
• We are constantly working on the development and improvement of our appliance models and ranges. Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and ranges without prior notice.

Freon free refrigerant

- This appliance uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In case of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and sources of

ignition and open the windows to ventilate the room where the appliance is located as soon as possible.

• ⚠️ WARNING: The refrigerant and insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• ⚠️ WARNING: The appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.
  This symbol means: warning, risk of fire/flammable materials.

• If the refrigeration circuit is damaged:

• Avoid open flames and sources of ignition.

• Fully ventilate the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

1. LED light
2. Bottle rack
3. Refrigerator compartment shelves
4. Drawer cover
5. Variable temperature convertible drawer (FreshnessFlex HUB)
6. Humidity-controlled fruit and vegetable drawer (HumidityFlex HUB)
7. Freezer compartment drawers
8. Levelling foot
9. Refrigerator compartment shelves

NOTE:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To improve quality, our products are constantly updated, and their appearance and specifications may change.
• To make the most out of the freezer in terms of energy, place all the shelves and drawers in their original position, that is, as shown in Figure 1.
• Accessories may vary depending on the refrigerator model.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Refrigerator
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

IMPORTANT: Leave the refrigerator in an upright position for at least 4 hours before switching it on for the first time to allow the compressor oil to settle.
IMPORTANT: It is recommended that the refrigerator be handled, transported and/or assembled by at least two people.
- Once connected, if you switch off the appliance, wait at least 30 minutes before switching it back on.

Initial cleaning

• Before using the refrigerator, remove all packing materials, including the base cushion, foam cushion inside the refrigerator, adhesive tape, etc., and remove the protective film if present.
• Clean the appliance's interior with a soft, clean cloth slightly dampened with warm water and a neutral detergent. Dry the interior and all accessories thoroughly with a soft, clean cloth. Do not fit the accessories until they are completely dry.
• Use a dry cloth to clean the outside of the appliance.
• Do not use corrosive cleaners or metallic or abrasive scouring pads.
• Do not spray or clean the refrigerator with water, and do not place it in a damp location where water is likely to splash, as this may affect the electrical insulation performance of the refrigerator's components.

Preparing for use

• The location you choose for the refrigerator must be properly ventilated and away from heat sources. Do not place the refrigerator near heat sources, such as hobs, radiators, etc., and avoid direct sunlight to ensure the cooling effect and save on energy consumption. It is not recommended to place the refrigerator in a wet place, as it may rust and cause electrical leakage.
• Ensure the refrigerator is protected from weather conditions such as rain or wind.
• Placing the refrigerator in locations such as verandas or patios, even if they are covered, can lead to condensation.
• During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 30 mm of free space at the top, and more than 50 mm on both sides and at the rear of the appliance. In addition, you must leave a minimum distance in front of the appliance to ensure that the door opens properly.

Stable surface

• Position the appliance on a smooth, firm, and level surface (without tilting) to keep it stable; otherwise, vibration and noise will occur.
• Do not place the appliance on soft surfaces such as carpets, etc.
• Ensure a ventilation free of obstacles around the refrigerator.

Comments

• This refrigerator must be installed free-standing and cannot be used as a built-in appliance, otherwise it will lead to problems such as inability to fit in cabinets, reduced product life and inability to obtain the basic product warranty provided by the manufacturer.
• After transport, wait for at least 4 hours before connecting the refrigerator to the power supply, otherwise it may cause degradation of product performance or damage. The refrigerator must be in an upright position.
  Before placing fresh or frozen food inside, allow the refrigerator to run for 2-3 hours. If the room temperature is high, the refrigerator should run for more than 4 hours before use.
• In the event of a power failure or cleaning, the plug must be unplugged and held for at least five minutes at intervals before the power can be turned back on, to prevent damage to the compressor due to continuous starts.

Reversing the door opening direction

To reverse the door, you will need the following tools which are not included: Phillips screwdriver, flat screwdriver, adjustable wrench and hex wrench.

The procedure to be followed to reverse the door is described below, we recommend that you pay special attention to the figures.

Fig. 2

1.- Assisted closing mechanism (damper) left (x2)
2.- Door locking device left (x2)
3.- Left intermediate hinge (x1)
4.- Top left stop (x1)
5.- Upper right door trim (x1)
6.- Upper left hinge (x1)
7.- Left door hinge trim (x1)

Step 1

Unscrew the upper hinge trim, unscrew the upper hinge and disconnect the connectors (figure 3).

Step 2

Remove the top door, unscrew and remove the top right stop. Then bend the cable and install the top right door trim with the screw on the right side (Figure 4).

Step 3

Unscrew the left door trim, unfold the cable and install the left top stop with the screw on the left side (figure 5).

Step 4

Remove the right-hand power lock mechanism and right-hand door stop. Then install the left-hand power lock mechanism and left-hand door stop with the screw on the left-hand side of the door (Figure 6).

Step 5

Unscrew and remove the right-hand middle hinge. Then remove the freezer door (Figure 7).

Step 6

Replace the handle hole plug to the left handle position (Figure 8).

Step 7

Remove the right-hand power assist mechanism and right-hand door stop from the lower door. Then fit the left-hand power assist mechanism and left-hand door stop with the screw on the left-hand side (Figure 9).

Step 8

Remove the legs on both sides: unscrew the lower hinge on the right side (Figure 10).

Step 9

Unscrew and remove the pin bolt from the lower hinge. Then turn the bracket and reassemble it (Figure 11).

Step 10

Install the lower hinge on the left side and replace both legs (Figure 12).

Step 11

Remove the intermediate trim, unscrew the frame from the intermediate trim and install both parts on the right side (Figure 13).

Step 12

Unscrew and remove the wiring trim on the left side. Then install the trim on the right side (Figure 14).

Step 13

Install the bottom door. Then install the left middle hinge and secure it with the screw (Figure 15).

Step 14

Install the top door. Then secure the top left hinge with the screw and connect the cable(s) (Figure 16).

Step 15

Position the left door hinge trim and screw it on (Figure 17).

IMPORTANT: The figures in this section are for reference only and may vary from the actual configuration depending on the refrigerator model.

Installing the exterior door handle*

*Only on selected models

Fig. 18

Installation space requirements

• Allow at least 50 mm clearance on both sides and at the rear.
• Figure 19 shows the product and installation dimensions.

Figure 19 only illustrates the space required by the refrigerator.

Levelling the refrigerator*

• Ensure you level the refrigerator with the front levelling feet. If it is not level, the refrigerator's performance will be affected, or it may even malfunction. In addition, the door may not close properly if it is not fully aligned with the appliance itself.
  *Availability depends on refrigerator model.

1.- Turn the lower levelling feet clockwise to lower the refrigerator.
2.- Turn the lower levelling feet anticlockwise to raise the refrigerator.

4. OPERATION

Control panel\* (Figure 20)

Touch control icons

A. Refrigerator compartment temperature control touch icon
B. Freezer compartment temperature control touch icon
C. Operating mode touch icon / "Lock/Unlock" touch icon

Indicator lights (Display)

1. Refrigerator-compartment temperature indicator
2. Freezer-compartment temperature indicator
3. "ECO" mode indicator light
4. "Holiday" mode indicator light
5. "Fast Freezing" mode indicator light
6. "Lock/Unlock" indicator light

*The control panel may vary depending on the refrigerator model.

4.1 Touch icons

A. Refrigerator compartment temperature control touch icon

This touch icon is available in user-defined modes and in Fast Freezing mode. Not available in "ECO" and "Holiday" modes. Briefly press this icon to select the refrigerator temperature.

B. Freezer compartment temperature control touch icon

This touch icon is available in user-defined modes and in "Holiday" mode. Not available in "Fast Freezing" or "ECO" mode. Briefly press this icon to select the freezer temperature.

C. Operating mode touch icon / "Lock/Unlock" touch icon

Press and hold this icon for 3 seconds to lock or unlock the control panel. In the "Unlocked" state, briefly press this key to select the operating mode ("ECO" mode / "Holiday" mode / "Fast Freezing" mode / user-defined mode).

4.2 Display

1. Refrigerator compartment temperature indicator light: The display will show the selected refrigerator compartment temperature. If error codes E0, E1, E2, E3 or E5 are displayed, please contact Cecotec's Official Technical Support Service.

2. Freezer compartment temperature indicator light: The display will show the selected freezer compartment temperature.

4.3 Indicator lights

1. "ECO" mode indicator light: The icon lights up when the "ECO" mode is selected.

2. "Holiday" mode indicator light: The icon lights up when the "Holiday" mode is selected.

3. "Fast Freezing" mode indicator light: The icon lights up when the "Fast Freezing" mode is selected.

4. "Lock/Unlock" indicator light: The icon lights up when the control panel is locked.

4.4 Operation and display

• The control panel will illuminate at 100% for 3 s and will maintain the exact pre-shutdown settings. After that time, operations will be available.
• Before operating, make sure that the control panel is unlocked.
• In lock status, the lock indicator light will flash for 3 seconds if you briefly press any touch icon, but no action will be allowed.
• The control panel will automatically lock 25 seconds after the last operation.
• The control panel will shut down completely 2 minutes after the last operation.
• The control panel will light up when the refrigerator compartment door is opened.
• The control panel will light up when briefly touching any touch icon.
• A warning beep will sound for any operation with a touch icon.

4.5 Setting the refrigerator compartment temperature

• Briefly press the touch icon (A) consecutively. The temperature of the refrigerator compartment will change from 2^ C to 8^ C.
• The temperature will be confirmed after 5 seconds of flashing of the indicator light.
• You can also adjust the temperature of the refrigerator compartment while in "Fast Freezing" mode.

4.6 Setting the freezer compartment temperature

• Briefly press the touch icon (B) consecutively. The temperature of the freezer compartment will change from -14^ to -22^ .
• The temperature will be confirmed after 5 seconds of flashing of the indicator light.

4.7 Recommendations for temperature setting\*

Refrigerator compartment	Freezer compartment
4°C	-18°C

*Recommended data may vary depending on many factors.

4.8 "ECO" mode

Activating the "ECO" mode

• Briefly press the operating mode touch icon (C) MODE LOCK 3'S repeatedly. When the "ECO" indicator light illuminates, the mode will be activated.
• After 5 seconds with the "ECO" indicator light flashing, the mode is in operation.
• With the "ECO" mode active, the refrigerator and freezer temperatures are automatically set according to the ambient temperature.
• In "ECO" mode, any attempt to manually adjust the temperature of the refrigerator or freezer will be ineffective. The "ECO" indicator light will flash for 3 seconds.

Deactivating the "ECO" mode

- Briefly press the operating mode touch icon (C) MODE LOCK 3.5. When the "ECO" indicator light turns off, the mode has been deactivated.

4.9 "Holiday" mode

Activating the "Holiday" mode

• Briefly press the operating touch icon (C) MODE LOCK 3.5 repeatedly. When the "Holiday" indicator light illuminates, the mode will be activated.
• After 5 seconds with the "Holiday" indicator light flashing, the mode becomes operational.
• With "Holiday" mode activated, the refrigerator temperature is automatically set to 17°C. The freezer temperature setting will remain enabled.
• In "Holiday" mode, any attempt to manually adjust the refrigerator temperature will be ineffective. The "Holiday" indicator light will flash for 3 seconds.

Deactivating the "ECO" mode

- Briefly press the operating mode touch icon (C) MODE LOCK 3's. When the "Holiday" indicator light turns off, the mode has been deactivated.

4.10 "Fast Freezing" mode

It is recommended to activate the “Fast Freezing” mode 24 hours in advance if many foods are to be frozen at one time.

Activating the "Fast Freezing" mode

• Briefly press the operating mode touch icon (C) MODE LOCK 3'S repeatedly. When the "Fast Freezing" indicator light illuminates 🧑, the mode will be activated.
• After 5 seconds with the "Fast Freezing" indicator light flashing, the mode is in operation.
• With the "Fast Freezing" mode active, the freezer temperature is automatically set to -25^ . The refrigerator temperature setting will remain enabled.
• In "Fast Freezing" mode, any attempt to manually adjust the freezer temperature will be ineffective. The "Fast Freezing" indicator light will flash for 3 seconds.

Deactivating the "Fast Freezing" mode

- Briefly press the operating mode touch icon (C) MODE LOCK 3.8. When the "Fast Freezing" indicator light turns off, the mode has been deactivated.

In "Fast Freezing" mode, the appliance will continue to operate at full power. The noise level will be slightly higher than normal.

4.11 Manual temperature adjustment

• Briefly press the operating mode touch icon (C) LOOK 3'S until the "ECO", "Holiday" and "Fast Freezing" indicator lights are off. The manual temperature adjustment mode will then be activated.
• The user can manually adjust the refrigerator and freezer temperature.

If the refrigerator door is not closed properly or remains open for more than approximately 60 seconds, an audible warning will sound. The warning will stop when the door is closed.

4.13 Adjusting the temperature in the convertible drawer (Freshness Flex Hub)

• The temperature of the convertible drawer can be adjusted according to the type of food to be stored.
• Slide the knob from right to left to gradually decrease the temperature of the convertible zone.
• With the control on the far right, the fresh zone functions as a vegetable drawer (Green HUB) and maintains the right temperature and humidity for fruits and vegetables.
• With the knob on the far left, it is suitable for short-term storage of fish or other fresh food. Food stays fresh but does not freeze. This is the best option for preserving fresh food.

If you select the fruit and vegetable drawer function (Green HUB), it is recommended to set the refrigerator temperature below 4 °C and limit the storage time to no more than 3 days to maintain maximum freshness.

4.14 Adjusting the humidity in the fruit and vegetable drawer (HumidityFlex HUB)

If the humidity adjustment knob is as shown in Figure 21:

– Low humidity: move the controller to the left.
– High humidity: move the controller to the right.

If the humidity adjustment knob is as shown in Figure 22:

– Low humidity: move the controller to the right.
– High humidity: move the controller to the left.

4.15 Power failure memory function\*

If there is a power failure, the instantaneous operating state of the power supply is locked and when the power returns, the device continues to operate according to the settings prior to the power failure.

*Depending on the model of refrigerator

4.16 Removable shelves

The sides of the refrigerator have a series of guides where the trays can be positioned as desired.

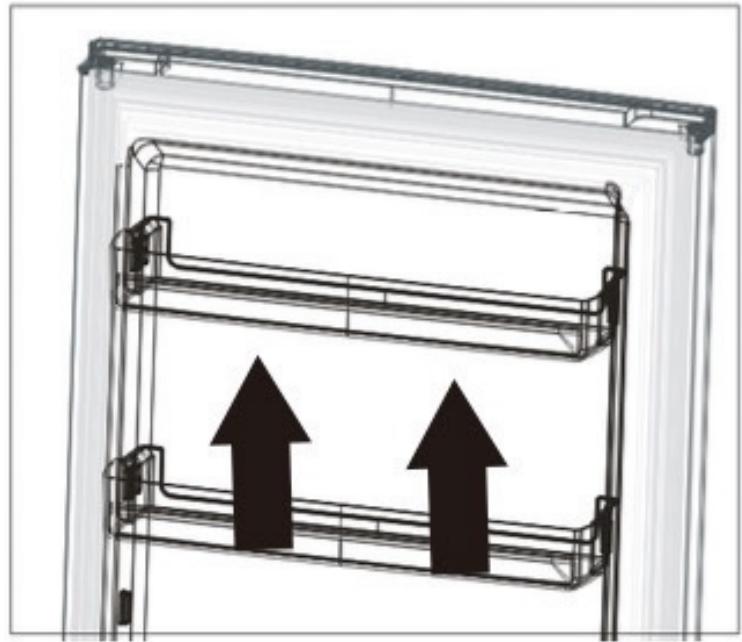

4.17 Door shelves

The door shelves can be removed for cleaning. To remove them, pull them slowly following the direction of the arrows until they are released and, once clean, replace them (Figure 23).

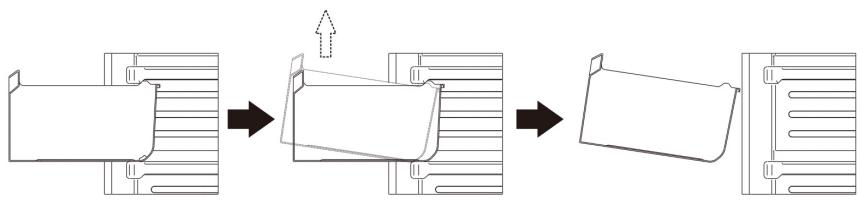

4.18 Disassembling the bottom drawer

– Pull out the bottom drawer to the stop position.
- Lift the front of the drawer.
– Pull out the bottom drawer completely.

4.19 Food storage instructions

Use precautions

• The freezer may not operate consistently (there may be some defrosting of the contents, or the temperature may become too hot) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the freezer, room temperature, and door opening frequency, etc., and you should take these factors

into account if you decide to use any temperature-control devices.

- Do not store effervescent or carbonated drinks inside the device when the freezer mode is active.

Food storage

• Refrigerator mode: it is suitable to store food that does not need to be frozen, cooked food, soft drinks, eggs, milk, juice, etc.
• Freezer mode: suitable for storing ice cream, ice cubes, frozen foods and foods you wish to preserve for longer periods.
• Drawers: pull the drawer to access food.
• Always check that the door closes properly.

Storing fruits and vegetables

- It is recommended not to store fruits and vegetables in freezer mode, as these are fresh products that are very sensitive to cold.

Care for food storage

• Clean and dry food completely before storing it in the device. Before introducing food in the device, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the rear wall of the appliance when the refrigerator mode is activated, to prevent them from freezing on the inside wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Please note that some foods are sensitive to cold and are therefore not suitable for storage in the appliance.

Use of the freezer

• The freezer compartment is designed for low temperature freezing of food, long-term storage of frozen food and ice cubes.
• Pay attention to the ratings according to the number of stars in the freezer compartment and the resulting storage periods for frozen foods.
• Do not store fresh and frozen foods side by side. Frozen foods may thaw.
• When freezing large quantities of fresh foods, such as meat or fish, divide them into several small pieces before storing so that they can be quickly frozen and easily removed.
• Do not store poisonous or dangerous substances in the freezer compartment. Your freezer is designed to store only edible products.

• There should always be some space between the food inside to allow air to circulate.

• Food should be kept in airtight containers to avoid drying out or giving off odours.

• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Reducing the frequency of door opening can reduce electricity consumption.
• Do not open the door frequently or leave it open longer than necessary.
• If the room temperature is high, the selected temperature is also low and the freezer compartment is full, the compressor may run continuously, causing frost or ice formation on the evaporator. If this happens, increase the freezer temperature.
• Ensure good ventilation.
• Before freezing, wrap and seal fresh food with aluminium foil, film, freezer bags, airtight containers, etc.
• It is advisable to label and date all frozen foods. This will help to identify foods and to know when they should be used before they spoil.
• Observe the storage times recommended by food suppliers.
• Food must be fresh when you freeze it (especially fruit and vegetables).
• Do not freeze bottles or cans containing liquids, particularly carbonated drinks, as they may explode during freezing.
• Do not put hot food in the freezer compartment. Cool them to room temperature before placing them.
• Do not use ice cubes or eat ice cream or popsicles immediately after removing them from the freezer.
• Do not refreeze thawed food. If the food has thawed, cook it, allow it to cool and then freeze it.
• Consume thawed food immediately.
• Too low a temperature setting may shorten the service life of the freezer compartment.
• The entire freezer compartment is suitable for the storage of frozen food products.
• Leave enough space around the food to allow air to circulate freely.
• For proper storage, refer to the label on the food package.
• It is important to wrap the food in such a way as to prevent water from entering.
• Before storing food, make sure that the packaging is not damaged as the food may deteriorate. If the container is swollen or damp, it may not have been stored under optimal conditions.
• To limit the defrosting process, place frozen food immediately in the freezer after purchase.
• If food has thawed, even partially, do not refreeze it. Consume them as soon as possible.
• In the event of a prolonged power failure or equipment breakdown, remove stored frozen foods and check if they are still edible. Then store them in a sufficiently cool place or in another freezer.
• To thaw foods, remove them from the freezer and let them thaw at room temperature or in the refrigerator compartment. For quick defrosting, you can use the microwave defrost function.

• If you only want to thaw part of a package, remove the portion you need and immediately close the rest. This will prevent freezer burn and reduce icing of the remaining food.

• ATTENTION: Storing too much food during operation after initial connection may adversely affect the freezing effect.

• IMPORTANT: Prolonged storage at inadequate freezing temperatures can cause loss of quality or spoilage of food and may even cause food poisoning.
• Observe the expiry date and the storage instructions on the package. The following table shows approximate storage time (Note: these times depend on many factors):

Food item	Storage time (months)
Bread	3
Fruit (except citrus)	6-12
Vegetables	8-10
Meatless leftovers	1-2
Daily food
Butter	6-9
Mild cheese (e.g. mozzarella)	3-4
Strong cheese (e.g. parmesan, cheddar)	6
Fish and seafood
Oily fish (e.g. salmon, mackerel)	2-3
White fish (e.g. cod, sole)	4-6
Shrimps	12
Shelled clams and mussels	3-4
Cooked fish	1-2
Meat
Poultry	9-12
Beef	6-12
Pork	4-6
Lamb	6-9
Sausages	1-2
Ham	1-2
Leftovers with meat	2-3

• The following foods are suitable for freezing: cakes, pastries, fish, seafood, meat, game, poultry, vegetables, fruit, aromatic herbs, shelled eggs, dairy products such as cheese and butter, prepared dishes and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
• The following foods are not suitable for freezing: vegetables that are usually eaten raw, such as lettuce or radishes, shell eggs, grapes, apples, whole apples, pears and peaches, hard-boiled eggs, yoghurt, sour milk, sour cream and mayonnaise.

Using the refrigerator

• The refrigerator compartment is to be used primarily for storing food that will be consumed within a short time.
• Do not store poisonous or dangerous substances in the refrigerator compartment. Your refrigerator has been designed to store only edible products.
• To reduce moisture and subsequent ice buildup, never put liquids in an unsealed container. The scales tend to concentrate in the cooler areas of the evaporator. Storing liquids uncapped means more frequent thawing.
• Never place hot food in the refrigerator compartment. They should first be cooled to room temperature and then placed in such a way as to ensure adequate air circulation inside.
• Food and containers should not touch the rear wall of the refrigerator compartment, as they may freeze.
• Do not open the door too often.
• Dairy products and eggs: Store them in the refrigerator compartment and consume them before their expiration date.
• Butter can be spoiled by other strong-smelling foods, so it is best to store it in an airtight container.
• Red meat: Place fresh red meat in a dish and cover it loosely with cling film or aluminium foil. Store cooked and raw meat in separate dishes, this will prevent the juice from the raw meat from contaminating the cooked product.
• Chicken and poultry: Fresh whole poultry should be rinsed inside and out with cold clean water, dried and placed on a plate. Cover lightly with cling film or aluminium foil. Poultry pieces should also be stored in this manner. Whole poultry should never be stuffed until just before cooking, as food poisoning may occur.

• Fish and seafood: Whole fish should be consumed the same day they are purchased. Until use, refrigerate in a dish lightly covered with cling film or aluminium foil. If storing overnight or longer, take special care to select very fresh fish. Whole fish should be rinsed with cold water to remove loose scales and dirt and then dried with paper towels. Place whole fish in an airtight plastic bag. Keep seafood always refrigerated. Consume in 1 or 2 days.

• Pre-cooked foods and leftovers: Store them in suitable containers with lids so that they do not dry out. Keep for 1 to 2 days only. Reheat leftovers only once and until they are heated through.

• Crisper drawer: It is the most optimal place to store fresh fruits and vegetables. Be careful not to store the following foods at temperatures below 6°C for prolonged periods: citrus fruits, melons, pineapple, papaya, curry, passion fruit, cucumber, peppers and tomatoes. At low temperatures, undesirable changes will occur, such as pulp softening and browning or accelerated decomposition. Do not store avocados (until ripe), bananas or mangoes.

Food item	Storage place in the refrigerator compartment*
Eggs, products of daily consumption	Intermediate tray
Foods that do not need to be cooked, ready-to-eat, cold cuts, charcuterie, etc.	Upper basket
Fruits, vegetables, salads	Crisper drawer
Meat, sauces, milk, cheese	Lower basket
Dairy products, canned foods	Upper area or door shelf
Drinks, bottles, juices	Door shelf

*Location may change depending on refrigerator model.

Avoid direct contact of stored food, especially greasy food, with the interior wall covering. If the interior shows oil or grease stains, clean it immediately to avoid prolonged contact with the coating, as this can lead to corrosion and cracking.

Tips on energy saving

• Locate the unit in the coolest part of the room, away from heat sources and direct sunlight.
• Allow hot food to cool to room temperature before placing it in the appliance.
• Do not open the door repeatedly or leave it open for long periods of time.
• Ensure the door closes properly.
• Arrange the food inside in an optimal way to ensure cold air circulation.
• Store food in suitable containers to prevent moisture build-up.
• Do not overstock food. Do not place aluminium foil or absorbent paper on the shelves.

5. CLEANING AND MAINTENANCE

WARNING: When cleaning and defrosting the refrigerator, unplug the power cord first.

Cleaning the interior and exterior

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended in this instruction manual.
• Food residues can produce unpleasant odours, so you should clean the interior of the appliance on a regular basis.
• Use a soft cloth or sponge to clean the product's interior. You can use two tablespoons of baking soda and one litter of warm water. Then rinse with clean water and dry thoroughly. After cleaning, open the door and allow it to air dry before turning it on.

- For hard-to-reach areas, such as corners, a soft-bristled cloth or brush is recommended to ensure that contaminants and bacteria do not accumulate.

- Clean the dust that accumulates on the rear panel frequently to avoid fire hazards as well as increased power consumption. It is recommended at least once a year.

- If you have used mild soap, be sure to rinse it with clean water. Next, dry it with a dry cloth.

- Do not use any abrasive materials or corrosive products to clean the unit, hard or wire brushes, organic solvents (alcohol, acetone, benzene, isoamyl acetate, etc.), boiling water, acidic or alkaline products, as they may damage the surface or the interior and deform or damage plastic parts.

- Clean the exterior surface with a soft cloth dampened with soapy water, neutral detergent, etc., and then wipe dry.

- Check the door gasket regularly to ensure that there is no debris. Clean the gasket with a soft cloth lightly dampened with soapy water or diluted mild soap. Carefully dry the door seal.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affecting the electrical insulation.

- Do not spray or sprinkle water on the outside or inside of the device.

- Do not use mechanical means, such as dryers, to dry the interior.

- It is recommended that the refrigerator be operated continuously after start-up. Generally, its operation should not be interrupted; otherwise, its service life may be affected.

When cleaning, do not use hard brushes, steel wool, wire brushes, abrasives (such as toothpaste), organic solvents (such as alcohol, benzene, lacquer thinner, etc.), boiling water, acid and alkaline substances to clean the refrigerator. This can damage the surface and coating of the refrigerator.

Do not use water for cleaning, so as not to affect the performance of the electrical insulation. Use a dry cloth when cleaning electrical components such as lamps.

• In case of power failure: The door opening frequency should be reduced as much as possible when the power is cut off.
• When the refrigerator will not be used for a long time: disconnect the refrigerator from the power outlet to avoid electric shock or fire due to the aging of the power cord. Clean the refrigerator's interior, then open the refrigerator door for a while and close it after the refrigerator is completely dry.
• When moving the refrigerator: Remove all interior items before moving, secure the glass partition and the fruit and vegetable box with tape, and tighten the levelling feet. Close the refrigerator door tightly and secure it with tape to prevent it from opening during shipment. Do not place it upside down or horizontally during transportation and do not vibrate the refrigerator, and the angle of inclination during handling should not exceed 45 degrees. Do not grip the door or hinge when transporting.

Once the refrigerator is in operation, it is best to use it continuously. Under normal circumstances, do not stop the refrigerator so as not to affect its service life.

Defrosting

This refrigerator has a total refrigeration system with automatic defrost function without the need for manual operation.

LED light replacement\*

The refrigerator has a LED light with low consumption and a long shelf life. In case of malfunction, contact the official Cecotec Technical Support Service. Only qualified personnel may replace the light.

*LED light only available on certain models.

6. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service

Fault	Possible causes	Possible solutions
The appliance does not work	The appliance is not plugged into the mains.	Unplug the cable and plug it in again.
	Circuit breakers or fuses are damaged.There is no electricity.	Check the electrical panel of your electrical installation.
The light does not work	The appliance is not connected to the mains.	Plug in the appliance.
	The light bulb is blown.	The lamp must be replaced by Cecotec's Official Technical Support Service or a qualified technician.
Fruits and vegetables are frozen	Are they placed at the rear of the refrigerator compartment? The area near the rear wall is where the temperature is lowest.	Do not place food that can easily freeze in the back of the refrigerator compartment.Store fruits and vegetables in their corresponding drawer.
Refrigerator/freezer cools down too much	The temperature control is not set correctly.	Set a higher temperature.
The appliance makes noise	The appliance is not stable.	Place the appliance on a level surface.
	The appliance touches the wall.	Move the appliance away from the wall.
The appliance has low cooling efficiency	The food inside is hot or there is too much food.	Introduce food in the appliance when it is at room temperature.
	You open the door too often.	Keep the door closed.
	Something is caught in the door gasket.	Remove the object obstructing the door gasket.
	The appliance receives direct sunlight or is close to a heat source.	Remove the appliance from the heat source.
	The place where the appliance is placed is not well ventilated.	Ventilate the room.
	The selected temperature is too high.	Adjust the temperature.
The appliance gives off unpleasant odours	There is spoiled food inside.	Dispose of food which is spoiled.Clean the interior of the appliance.
	There is food with a strong odour inside.	Pack the strong-smelling foods.

Compressor runs for a long time	High ambient temperature results in long operating time.	This is normal.
	Too many foods are introduced at the same time.	Do not put in too much food at the same time.
	Food is introduced while still hot.	Wait for the food to cool before putting it in the freezer.
	The door is opened too often.	Open the door only when it is absolutely necessary.
	The layer of frost on the inside is too thick.	Needs defrosting.
The door does not close properly	Some object jams the door.	There is too much food, or it is not placed in the correct way.
	There is too much food in storage.	Do not overload the refrigerator with food.
	Door seal is deformed.	Heat the gasket with an electric dryer or hot water, then let it cool and replace it. If the problem persists, contact Cecotec's Official Technical Support Service.
The external part is hot	When the unit is in operation, the heat is dissipated to the outside through the metal tubes inside the unit.	It is normal for the outside temperature to be higher.
	Higher ambient temperature in summer causes an increase in the outside temperature.	Increase the heat dissipation space or place the unit in a cooler, more ventilated location.
Condensation forms on the outside	Condensation may form when the humidity in the room is high or during the rainy season.	This is normal. Wipe off condensation with a dry cloth.
Condensation forms inside the refrigerator compartment	Refrigerator compartment maintains high humidity to keep vegetables and other foods fresh.	Wipe off condensation with a dry cloth.
	The humidity in the room is too high, and the appliance doors have been opened frequently.	Do not open the doors too often or keep them open for too long.
	The door gasket is not maintaining airtightness.	Check door seal.
It is difficult to open the door	The difference in air pressure between the inside and outside of the freezer can sometimes make it difficult to open the door.	Wait a few moments and then try to open the door slowly.
Frost around the ventilation louvers	The door is not closed properly.	Make sure that food does not block the door.
	Door gasket not tightened correctly.	Check the door gasket.
Actual temperature differs from set temperature	When hot foods are introduced, the temperature will temporarily rise.	This is normal.
	After setting a new temperature, it will take some time to reach the new temperature.	Wait for some time before checking the actual temperature.
	After temperature stabilization, the actual temperatures at the different points in the compartments vary, with an approximate deviation of +/- 3°C.

Note: If none of these situations match your problem, do not attempt to disassemble or repair the appliance yourself. All repairs must be carried out by qualified personnel. Contact Cecotec's Official Technical Support Service. Repairs must be carried out by an authorised technician, and only original spare parts must be used.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

• Certain sounds during normal operation are expected and do not affect proper operation.

• Avoidable sounds:

• Noise from unlevelled appliance: adjust position using front adjustable feet (not available on all models).
  – Noise from contact with adjacent furniture or cabinet: move appliance away.

– Creaking from drawers or shelves: remove and reinsert.
- Clinking container sounds: separate them.

• Normal operating sounds are primarily due to compressor operation (start-up) and the cooling system (thermal expansion and contraction caused by refrigerant flow).
• When operating the appliance for the first time, the compressor noise may seem louder. When the internal temperature drops below a certain level, the noise will decrease.
• When starting or stopping compressor operation, when various parts expand or contract, when various control devices operate, or when the temperature changes inside the appliance, normal sounds will be heard.
• During operation, the compressor's external temperature exceeds 80°C. Do not touch it, as this could cause serious injury.

• If room temperature is too high, compressor start-up time may be extended. This is a normal phenomenon.

• TECHNICAL SPECIFICATIONS

Product	EU01_125516
Reference	Bolero CoolMarket Combi 377 Inox A
QR code
Rated voltage	220-240 V~
Rated frequency	50 Hz
Rated current	1.3 A
Climate class*	SN, N, ST, T
Energy efficiency class**	A
Refrigerant	R600a (49 g)
Insulator	Cyclopentane

(*) Refrigerator intended for use at room temperatures between 10 °C and 43 °C.
(**) Energy Efficiency Class ranging from "A" (most efficient) to "G" (least efficient).
This appliance features an G rating energy efficient light source.

Information related to energy efficiency can be found in the European Commission's public database EPREL:

1. Open the EPREL database homepage
   https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

2. Search by model reference.

You can find more information on this model and access its database by scanning the QR code (also found on the energy label).

IMPORTANT: Technical specifications may change without prior notice to improve product quality.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and use of the refrigerator.

ATTENTION: These data is subject to regulatory changes.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic

equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any incident with the product or have any query, please contact Cecotec's Official Technical Support Service on [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed,

manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019

Compartment frigorífic	Compartment congelador
4°C	-18°C

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./ Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./ Rys. 14

Fig./Img./Abb./Afb./Rys. 17

Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./Rys. 18

A	595
B	678
C	2005
D	min=50
E	min=50
F	min=50
G	838
H	1241
I	115°

Fig./Img./Abb./Afb./Rys. 19

Fig./Img./Abb./Afb./Rys. 20

Fig./Img./Abb./Afb./Rys. 21

Fig./Img./Abb./Afb./Rys. 22

Fig./Img./Abb./Afb./Rys. 23

Fig./Img./Abb./Afb./Rys. 24

www.cecotec.es
