Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 5330 Jelly Dark
Blade diameter	132 cm
Number of blades	3
Color	Frosted black (Jelly Dark)
Blade material	Resistant ABS
Motor material	Steel and copper
Motor type	Quiet and efficient DC motor
Power	55 W
Supply voltage	220-240 V ~ 50/60 Hz
Speeds	6 speeds
Summer/winter reverse function	Yes, via remote control
Remote control	Included, with timer
Integrated lighting	LED 18 W, adjustable color temperature
Maximum noise level	35 dB(A)
Maximum airflow	4500 m³/h
Net weight	5.2 kg
Minimum ceiling height	2.3 m
Protection rating	IP20 (indoor use)
Maintenance and cleaning	Dust with a soft, dry cloth; do not use abrasive products
Safety	Blades secured with safety screws; automatic shut-off in case of imbalance
Spare parts	Available on the official Cecotec website
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 5330 Jelly Dark CECOTEC

How to install the Cecotec Energysilence Aero 5330 ceiling fan?

Installation must be carried out by a qualified electrician. Fix the mounting plate to the ceiling, connect the wires (phase, neutral, ground), then hang the motor and attach the blades. Refer to the manual for detailed diagrams.

What to do if the remote control does not work?

Check the remote control batteries (AAA type, included). Ensure the receiver is properly connected. If the problem persists, reset the device by cutting off power for 10 seconds.

How to use the summer/winter reverse function?

Press the reverse button on the remote control. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, clockwise rotation redistributes heat from the ceiling without direct draft.

What regular maintenance is required?

Dust the blades and motor with a soft, dry cloth every month. Check the fastenings every 6 months. Do not use liquid or abrasive products.

The fan is making noise, what to do?

Check that the blades are well balanced and tightened. Clean the blades. Ensure the fan is securely fixed to the ceiling. If the noise persists, contact customer service.

Can I install this fan on a sloped ceiling?

Yes, but you will need a special mounting kit for sloped ceiling (sold separately). The angle must not exceed 30 degrees.

How to adjust the speed?

Use the remote control: press the '+' or '-' buttons to increase or decrease speed among the 6 available levels. An audible signal confirms the change.

Is the LED light dimmable?

Yes, the integrated light is dimmable. Use the remote control to adjust light intensity and color temperature (warm white to cool white).

What is the recommended minimum ceiling height?

The minimum height is 2.3 meters between the floor and the blades to ensure optimal airflow and safety.

Where to find spare parts or after-sales service?

Go to the official Cecotec website (www.cecotec.com) or contact their customer service by phone or email. Parts such as blades, remote control and receiver are available.

USER MANUAL Energysilence Aero 5330 Jelly Dark CECOTEC

30 W 52" ceiling fan with DC motor and LED light

Safety instructions 8

1. Parts and components 63

2. Before use 63

3. Installation 64

4. Operation 67

5. Cleaning and maintenance 67

6. Troubleshooting 68

7. Technical specifications 69

8. Recycling of electrical and electronic equipment 70

9. Technical support and warranty 70

10. Copyright 71

11. Simplified EU Declaration of Conformity 71

SOMMAIRE

EU01_123452 - EnergySilence Aero 5330 Jelly dark

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars,

restaurants, farms, hotels, motels, and offices.

• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.
• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.

• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.

• Make sure the fan is not placed close to curtains or other objects it may become entangled with.

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear

gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Mounting bracket
2. Canopy
3. Downrod
4. Support
5. Fan motor assembly
6. Light kit
7. Inner lampshade
8. Lampshade
9. Screws (x3)
10. Receiver and remote control
11. Assembly instructions

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• Remote control
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Figure 2:

1. Cotter pin
2. Bolt
3. Mounting bracket
4. Locking screw
5. Downrod
6. Canopy
7. Motor cover
8. Cotter pin
9. Bolt
10. Locking screw

11. Motor

12. Remove the cotter pin and bolt from the downrod.

13. Loosen the locking screw until it is flush with the inner surface.
14. Remove the downrod, canopy and support cover.
15. Place the downrod inside the canopy and support cover.
16. Thread the cables extending from the motor through the support cover, canopy and downrod.
17. Insert the bolt through the shaft and downrod holes. Take care not to damage or cut the fan cables.
18. Tighten the bolt. Secure with the cotter pin through the hole at the end of the bolt.
19. Secure the downrod in position by tightening the locking screws. Slide the support cover down until it sits flush with the motor housing.

NOTE: The fan includes three rubber stops (optional on some models) on the motor for transport only. Remove the stops before starting the motor or installing the blades on the motor.

1. Motor
2. Blades

3. Screw

4. Remove the screws from the motor assembly.

5. Secure the blade bracket to the motor with the screws as shown.
6. Turn the blade slightly after installation and repeat the same procedure for the remaining blades.
7. Ensure that all screws are firmly tightened.

Installing the mounting bracket

Fig. 4.

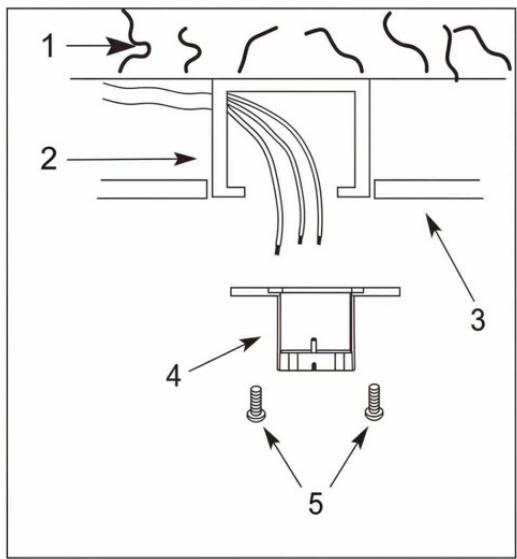

1. Wooden beam
2. Junction box
3. Ceiling
4. Mounting bracket
5. Junction box screws
6. Canopy

- Secure the mounting bracket to the metal ceiling box (junction box).

Electrical connection

NOTE: Once the earth cables are connected, carefully insert all cables and connectors (terminal blocks/wire nuts) inside the metal box. Ensure that the cables remain clear of the canopy ball and downrod when positioned on the mounting bracket.

A. (Figure 5)

• Insert the controller connection cable terminals correctly.
• Insert the light kit terminals into the receiver terminals.
• Insert the motor terminals into the receiver terminals.
• Insert the mounting bracket terminals.

B.

Fig. 6.

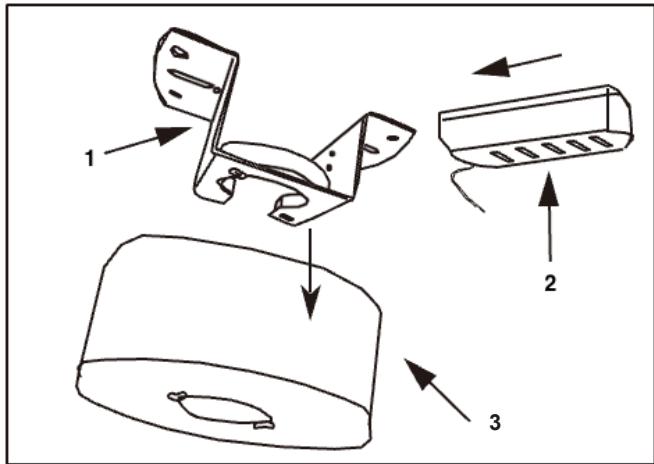

1. Mounting bracket
2. Receiver

3. Canopy

4. Push all connected cables inside the ceiling box.

5. Position the receiver on the mounting bracket as indicated.
6. When installing the canopy, ensure that it does not compress the aerial.
7. Ensure that all earth cables are connected.

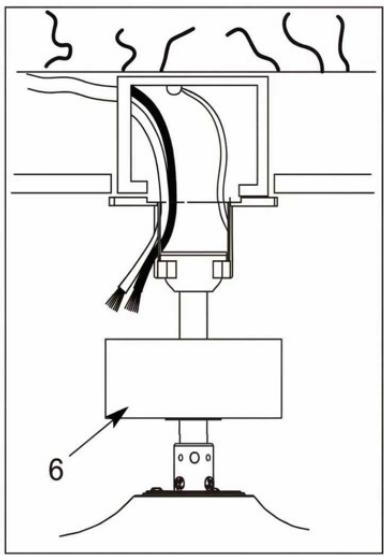

Mounting the fan assembly

• Place two screws and washers in the mounting bracket (marked as B in the diagram) that correspond with the canopy slots. Thread them in two turns.
• Position the canopy on the mounting bracket by aligning the slots with the screws (B) and rotate to lock.
• Install and tighten the two screws and washers (A), then tighten the two screws (B).

ENGLISH

Fitting the canopy ball

Fig. 7

1. Canopy ball
2. Slot
3. Mounting bracket
4. Tab
5. Slot
6. Canopy ball
7. Downrod

8. Canopy screws

9. Carefully rotate the fan assembly until the canopy ball slot fits over the tab on the mounting bracket assembly.

10. Loosen (do not remove) the two mounting bracket screws. Slide the canopy up to the mounting bracket and position the «keyhole» opening of the canopy over the bracket screw. Then rotate the canopy until it locks into the narrow part of the opening.
11. Align the canopy holes with the mounting bracket and secure with the two sets of screws until tight.

NOTE: When installing the fan on a sloped ceiling, ensure that the hanging bracket tab faces towards the high side of the slope. Depending on the slope angle, a longer downrod may be required to prevent the blades from striking the ceiling.

WARNING: If the tab is not properly seated in the slot, electrical wiring may be damaged and there may be risk of electric shock or fire.

Installing the light kit

Figure 8:

Cable connectors

1. Light kit
2. Light kit screws
3. Inner lampshade

4. Lampshade

5. Connect the cable terminals from the motor assembly to the corresponding LED bulb connector.

6. Install the light kit to the fan motor assembly by tightening 3 screws.
7. Carefully attempt to feed the electrical wiring back into the motor assembly.
8. Place the inner lampshade inside the outer lampshade.
9. Screw the lampshade to the light kit.

WARNING: Ensure that all connections, set screws and screws are firmly tightened before the next step.

4. OPERATION

Code learning and pairing mode instructions

The remote control buttons function as follows (Figure 9):

1. Power / Pairing button
2. Fan speed
3. Light ON/OFF
4. Sleep timer
5. Comfortable breeze
6. Fan ON/OFF
7. Forward / reverse rotation
8. 5-minute timer
9. Anti-theft mode

10. Silent mode

11. LED indicator light

12. If the ceiling fan does not respond to the transmitter: press and hold this power button for 3–5 seconds to pair the remote control within 15 seconds of connecting the power supply. When pairing is successful, the buzzer will emit three short beeps.

13. If the transmitter cannot control the receiver, check that the batteries make good contact, the polarity (positive/negative) and the charge level (high or low).
14. If the transmitter cannot control the receiver, check whether there is another similar transmitter nearby controlling nearby products, sharing the same frequency may cause interference.
15. Remove the batteries from the transmitter if it is not to be used for an extended period.
16. When installing the fan, the ceiling cover must not compress the aerial (or other cable), as this could damage it and cause a short circuit.
17. Remove the battery compartment cover from the transmitter.
18. Install two 1.5 V AAA batteries in the transmitter.
19. Replace the battery compartment cover.

5. CLEANING AND MAINTENANCE

1. The natural movements of the fan can loosen some connections. A clicking or rattling noise is a clear sign of loose screws. Check the supplied connections, brackets and blade fixings twice a year and tighten screws as necessary. Ensure that the screws holding the glass to the light kit bracket are hand-tight. Do not use a screwdriver or pliers to tighten the glass screws.

ENGLISH

1. Clean the fan periodically. Use only a cloth moistened with a mild detergent solution. Never use solvents. Remove dust with a soft cloth or brush. Metal finishes have a lacquer coating to prevent tarnishing.
2. The fan does not require lubrication. Its permanently sealed bearings will provide silent, trouble-free operation for many years.
3. Ensure that the power supply is disconnected at the main fuse or consumer unit before attempting any repairs.

6. TROUBLESHOOTING

If you have difficulty operating your new ceiling fan, it may be due to incorrect assembly, installation or wiring. In some cases, these errors may be mistaken for defects. If you detect faults, review this troubleshooting guide. If the problem cannot be resolved or you have installation difficulties, contact Cecotec's Official Technical Support Service.

A. The fan does not work

Possible solutions:

1. Check the fuses or circuit breakers on the main and branch circuits.
2. Check the line cable connections to the fan and the switch cable connections in the switch housing.

CAUTION: Ensure that the main power supply is disconnected.

1. Ensure that the forward/reverse switch is firmly in the up or down position. The fan will not operate if the switch is in the intermediate position.
2. Ensure that the wall controller is in the «ON» position.

B. The fan makes noise

Possible solutions:

1. Ensure that all motor housing screws are tight (without over-tightening).
2. Ensure that the screws fixing the blade bracket to the motor are tight.
3. Ensure that the cable connectors (terminal blocks/wire nuts) in the switch housing do not vibrate against each other or against the inner wall of the housing.

CAUTION: Switch off the main power before accessing the switch housing.

1. If using an optional light kit, check that the screws holding the glass are hand-tight. Check that the bulb is properly seated and not touching the glass lampshade(s). If glass vibration persists, remove the glass and install a 1/4» wide rubber band around the glass neck as insulation. Replace the glass and tighten the screws against the rubber band.

2. Some motors are sensitive to signals from solid-state variable speed controls. DO NOT USE a solid-state variable speed control.

3. Allow a 24-hour «running-in» period. Most noises associated with a new fan will disappear after this period.

C. The fan wobbles

All blades are weighted and grouped by weight. Natural woods vary in density, which may cause wobbling even when blades are matched by weight. The following procedures should eliminate most wobbling. Check for wobbling after each step.

1. Check that all blades are firmly screwed to the blade brackets.
2. Check that the blade brackets are firmly attached to the motor.
3. Ensure that the canopy and mounting bracket are firmly fixed to the ceiling junction box, and that the box is firmly mounted to the ceiling beam.
4. Most wobbling problems are due to blades not being at the same height. Check the level by selecting a point on the ceiling above the tip of one blade. Keep the measurement within 1/8» and rotate the fan to position the next blade for measurement; repeat for each blade. If heights are not equal, adjust as follows:

- To lower a blade tip, insert a washer (not included) between the blade and blade bracket at the screw.

- To raise a blade tip, insert a washer (not included) between the blade and blade bracket at the two screws furthest from the motor.

1. If wobbling remains noticeable, swapping two adjacent blades (one next to the other) may redistribute the weight and provide smoother operation.

D. The light does not work

1. Check the blue cable from the fan and ensure it is connected to the live («phase») cable of the dwelling.
2. Check for loose or disconnected cables in the fan switch housing.
3. Check for loose or disconnected cables in the light kit.
4. Check whether the bulbs are defective.

CAUTION: Switch off the main power before accessing the switch housing.

7. TECHNICAL SPECIFICATIONS

Product: EU01_123452

Product reference: EnergySilence Aero 5330 Jelly dark

Voltage: 230 V\~

Frequency: 50 Hz

Motor power: 24 W

Power light: 18 W LED

Description	Symbol	Value	Unit
Maximum fan airflow	F	127	m^3/min
Fan input power	P	25	W
Service value	SV	5.08	(m^3/min)/W
Power consumption on standby mode	PSB	0.43	W
Fan sound power level	LWA	43	dB (A)
Maximum air speed	C	11	m/sec
Seasonal electricity consumption	Q		kWh/a
Service value measurement standard	IEC 60879
Contact details for further information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910Alfafar, Valencia (Spain)

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities. For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their

local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

Product: EU01_123452

Productreferentie: EnergySilence Aero 5330 Jelly dark

Spanning: 230 V \~

Frequentie: 50 Hz

Motorvermogen: 24 W

Producte: EU01_123452

1.

2.

3.

4.

1.

1.
   Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

www.cecotec.es
