USER MANUAL DVR4400SSCFR AKAI

Important Safety Instructions = The lightning flash with an arrowhead symbol, within the VARNN equisteral triangle, is intended to alert the user to the FSROSEIRICENOSR presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude DONNE to cause an electric shock AVIS RISQUE DE CHOC ELECTRIQUE NE The exclamation point within the equilateral triangle is PAS OUVRIR intended to alert the user to the presence of important operating and maintenance (servicing) instructions in

WARNING: TO REDUCE THE RISK OF ELECTRIC this owner manual.

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO SERVICING TO QUALIFIED SERVICE PERSONNEL. NOTEXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Read Instructions - All the safety and operating instructions should be read before the product is operated. Retain Instructions - The safety and operating instructions should be retained for future reference. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. Follow Instructions - All operating and use instructions should be followed. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dampl cloth for cleaning. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. Waterand Moisture - The appliance should notbe used nearwater-forexample, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. A Product and Cart Combination Should Be Moved with Care - Quick stops, excessive forece and uneven surfaces may cause the product and cart combination to everturn. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation, such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions have been adhered to Power Sources - This product should be operated only from the type of power source indicated on the DAMPLE OF ARE GROUNDING marking label. If you are notsure ofthe type of power ÉDRDNENeS supply to your home, consult your product dealer or local power company. for products intended to operate from battery power, or other sources, refer to the operating instructions. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (à plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature: If you are unable to insertthe plug fully into the outlet, try reversing the plug. Ifthe plug should fail to fit, contact your electrican to replace your obsolete outlet. Do notdefeatthe safety ou ec unonx arcmon con ROVER SERIE GROUNENG purpose of the polarized plug. NEC ART 250, PART H} Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. Nonuse periods - The power cord of the product should be unplugged from the outlet when left unused for long periods of time. ANTENNA

Important Safety Instructions

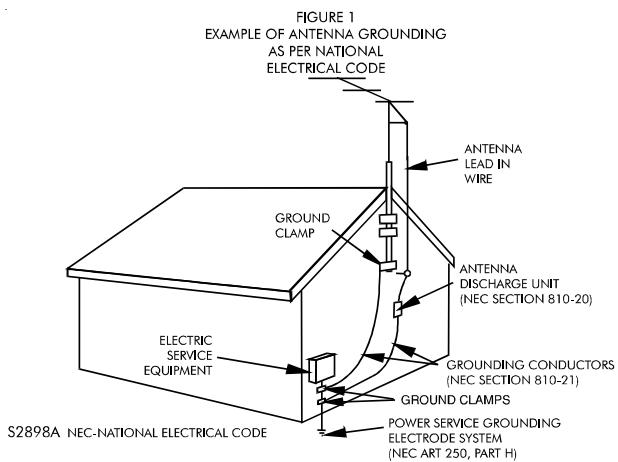

14. OutdoorAntennaGrounding-Ifan outside antenna orcable systemis connected to the product, be surethe antenna

or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding ofthe mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1. Lightening - For added protection for this product during a lightening storm, or when itis left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or calbe system. This will present damage to the product due to lightening and power-line surges.

16. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines orother

electric light or power circuit, or where it can fall into such power lines or other electric light or power circuits, or where it can dall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

18. Objectand Liquid Entry - Never push objects of any kind into this prodcutthrough openings as they may touch

dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. A. When the power-supply cord or plug is damaged. B. If liquid has beeen spilled, or objects have fallen into the product. C.Ifthe product has been expose to rain or water. D. Ifthe product does not operate normally by following the operating instructions. Adjust only those controls that are covered by operating instructions as an improver adjustment of other controls may result in damge and will often require extensive work by a qualified technician to restore the product to its normal operation. E. When the product exhibits a distinct change in performance - this indicates a need for service

21. Replacement Parts - When replacement parts are required, be sure the service technican has used

replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Safety Check - Upon completion of any service or repair to this product, ask the service technician to perform

safety checks to determine that the product is in proper operating condition.

23. Heat-The productshould be situated away from heatsources such as radiators, heatregisters, stoves or other

products (including amplifiers) that produce heat.

This symbol means that the unit CAUTION ASS à LASER PRODUCT complies with European safely and INVISIBLE LASER RADIATION CLASS 2 LASER PRODUIT electrical interference directives. WHENOPENANDINTERLOCKS

PRODUCTO LASER DE CLASE 1

DEFEATED This product PRODUTO LASER CLASSE 1 AVOIDEXPOSURE TO BEAM contains à low power laser device. Thesymbol forClass Il (Double Insulation) Notes on Copyright Itis forbidden by law to copy, broadcast, show, broadcast on cable, play in public, rent copyrighted material without permission. Apparatus Claims of U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098 and 4,907,093 licensed for limited viewing uses only. DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. E-2

Important Safety Instructions Precaution for Unit Security + Before operation, check if the voltage of the unit is in line with the local voltage. + Hold the plug of the unit to disconnect it from the mains outlet. Do not pull the power cord + When the plug of the unit is connected to the mains outlet, the unit will be still connected to AC even of the power is turned off. + Disconnectthe plug as soon as liquid or objects enter the unit. The unitcannot be used until being checked by esperts. + Donotopenthe cabinet. Laserrays employed by the unit may damage eyes. Any servicing should be done by qualified service personnel. Placement + Plug the unit where ventilation is good enough to prevent overheating. + Never put the unit in direct sunlight or near heat sources. + Putthe unit horizontally, never put anyu heavy object on the unit. + To protectthe pickup, do not put the unit where there is much dust. If there is dust on the pickup, use a cleaning disc to clean it. + Refer to the operation instructions of the cleaning disc you bought. Condensation Moisture will appear on the pickup lens in the following case: + The unitis suddenly moved from a cold place to a warm place. + The unitis put in a room with a heater, or in cold air from an air - conditioner. + Use the unit in a humid place. In these cases, the unit cannot work. Unload the disc and leave the unit on for about one hour evaporates the water. Cleaning + Use softcloth with a little neutral detergentto wipe the cabinet, panel and controls. Never use abrasive paper, polishing powder or solvent like alcohol and gasoline Precaution for Discs Handling Disc + To keep the disc clean, do not touch the play sides of the side. + Do not attach paper or ape to the disc. + Keep the disc away from direct sunlight or heat sources. + Store the disc in a disc case after playback. Cleaning Disc + Before playback, wipe the disc outwards from the center with clean cloth. + Do not use any type of solvent such as thinner, benzine, commercially available cleaners or anti-static spray.

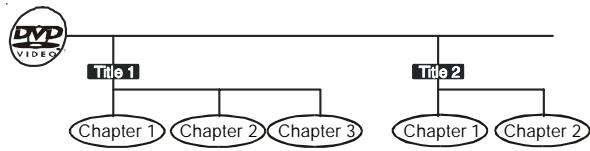

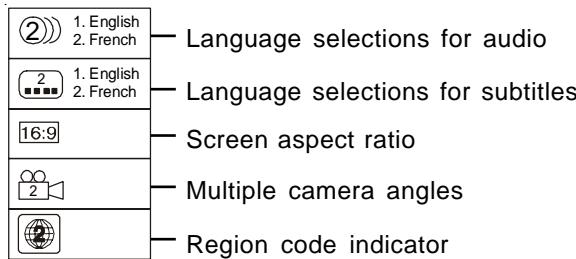

Disc Formats The unit can playback discs bearing any of the following marks: DVD DVDs N CD-R = (cm(3)/12cm(5") disc] NM Compatible COMPACT Audio CDs diemmeaune [8cm(3")12cm(5") disc] VIEWER Video CDs VIDEOCD [8cm(3")12cm(5") disc] Region Management Information Region Managementinformation: This unitis designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. Ifthe Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc The region number of this unit is 2. Disc Function or Operation that is Not Available When the [I symbol appears on the TV screen, it indicates that the function or operation attempted is not available at that time. This occurs because the DVD disc manufacturer determines the specific functions. Certain functions may not be available on some discs. Be sure to read the documentation provided with the disc Icons Used on DVDs LEgER | . Sample Icons @ 3 rene — Language selections for audio LEngish 2.Frenh F- Language selections for subtitles F Screen aspect ratio Multiple camera angles fr Region code indicator Notes: + This unit supports 2-channel (L/R) audio and 5.1ch (Multi-channel) MPEG Audio 1/2 (only when the DIGITAL AUDIO OUT coaxial jack is used for connection). It does not support 7.1 channel MPEG Audio Version 2.0. + When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic images will not be shown Title, Chapter and Tracks + DVDs are divided into “titles” and “chapters”. Ifthe disc has more than one movie on it, each movie would KE? Em “e be a separate “title”. “Chapters” are sections oftitles. + Video and Audio CDs are divided into “tracks”. À

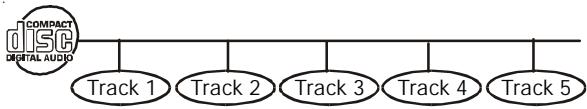

“track” is usually one song on an Audio CD + Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on them, but some do not. Notes on Unauthorized Discs You may not be able to play back some DVD discs on this unit if they were purchased from outside your geographic area or made for business purposes.

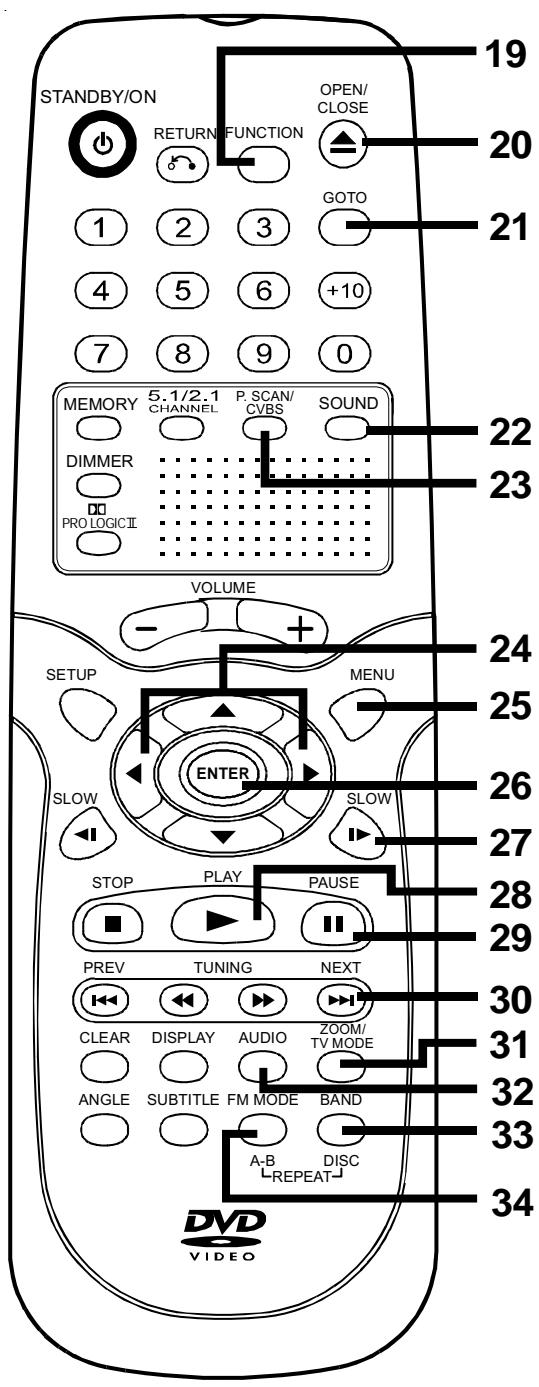

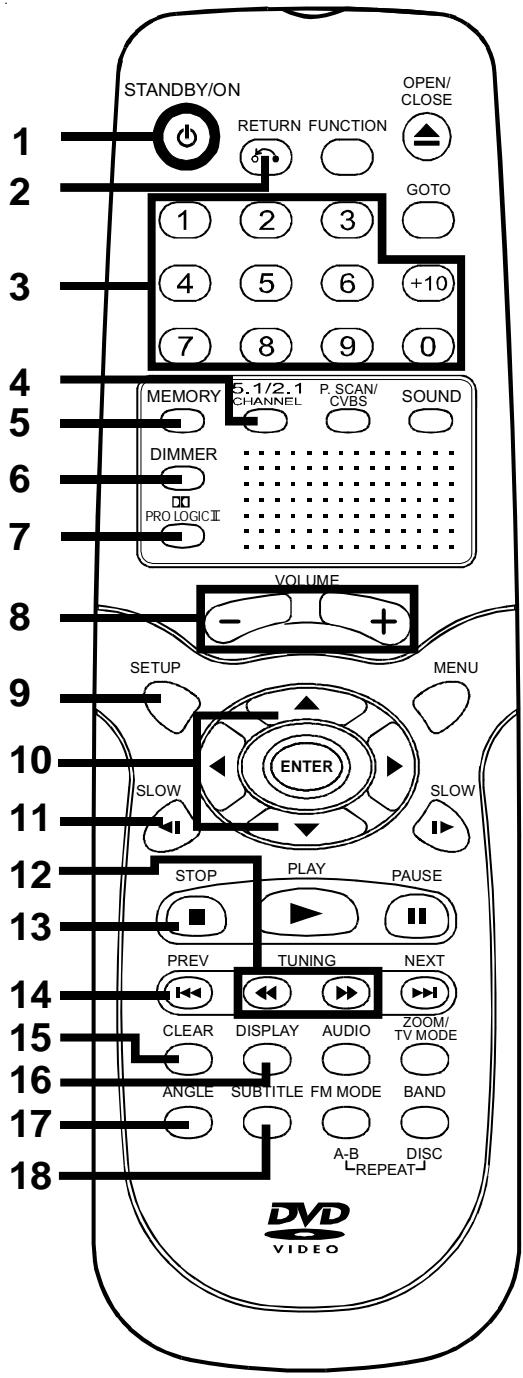

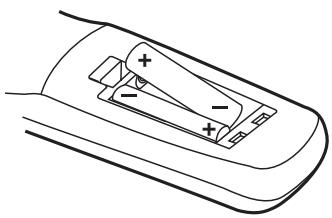

Using the Remote Control

• Point the Remote Control atthe REMOTE SENSOR located on the Unit. + When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation + The recommended effective distance for remote operation is about 16 feet (5 meters). To install Batteries L.Open the battery door. 2.Insert two "AA" or UM-3 size batteries. Battery Replacement When batteries become weak, the operating distance of the Remote Control is greatly reduced and you will need to replace the batteries. Notes: + Ifthe Remote Control is not going to be used for a long time, remove the batteries to avoid damage caused by battery leakage corrosion + Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteries

15 GLEAR DISPLAY AUDIO raQue O © O © AB. DISC LREPEATS

1) STANDBY (D / ON button

Turns the Unit on and puts it in standby mode

Return to the normal operation after using the SETUP menu

3) Number (0 - 9) and (+10) buttons

Use when creating programs, and entering a parental level password. To select numbers over 9, press +10 button and then the second no.forexample, to enter 18, press +10 and then 8

Switch speaker output to 5.1 channel mode. (All speakers + subwoofer) Switch speaker outputs to 2.1 channel. (Front left/right speakers + subwoofer)

Enter the number of a selected chapter or track Enter the number of a selected station.

Turns the display backlight ON and OFF.

7) DUPRO LOGIC Il button

In AV_IN mode, switches to Dolby Pro Logic mode for VHS tapes encoded with Dolby Pro Logic

Selects the SET UP menu screen.

10) A / w CURSOR buttons

Use to highlight selections on à menu screen and adjust certain settings.

Perform slow reverse playback of DVDs

Move reverse through titles, chapters or tracks on a disc. Tune to the presetted stations

Clear input selections and cancel certain playback functions.

Change disc status information displayed on the TV.

Switch the camera angle of the video presentation when scenes with multiple camera angles are recorded on a DVD.

18) SUBTITLE button (..)

Select one of the subtitle languages programmed on a DVD E-7 (Continued on next page)

Display the FUNCTION screen where you can check or change various setting.

20) OPEN/CLOSE button

Use to open or close the disc tray.

Skip directly to a specific location on a DVD disc.

Selects sound balance and tone controls for adjustment with the cursor buttons.

23) P. SCAN / CVBS button

Changing YUV output to Progressive Scan Video mode or back to CVBS mode.

24) 4/»> CURSOR buttons

Use to highlight selections on a menu screen and make adjust certain settings

Confirm selections on a menu screen.

Perform slow forward playback of DVDs.

Pause playback, frame advance.

Move forward through titles, chapters or tracks on a disc. Tune to the presetted stations.

Zoom into an image. NTSC /PAL button In stop mode, selectwhether to outputthe video signal. TV shows "AUTO" which means output signal depends on CT DVD disc (either NTSC or PAL). TV shows "PAL" or = 34 "NTSC"which means output signal fixed to PAL or NTSC. DVD 32) AUDIO button vipeo Select one of the audio soundtracks programmed on a DVD or selects the audio output mode on a AUDIO CD.

33) BAND/REPEAT-DISC button

Switch between AM(MW) or FM. Repeat chapter or title of a DVD. Repeat single track or whole CD.

34) FM MODE/REPEAT A -B button

SetFM MODE to FM STEREO for FM stereo sound or to FM MONO for mono sound. Perform point-to-point repeat playback on a DVD or CD. E-8 (Continued on next page)

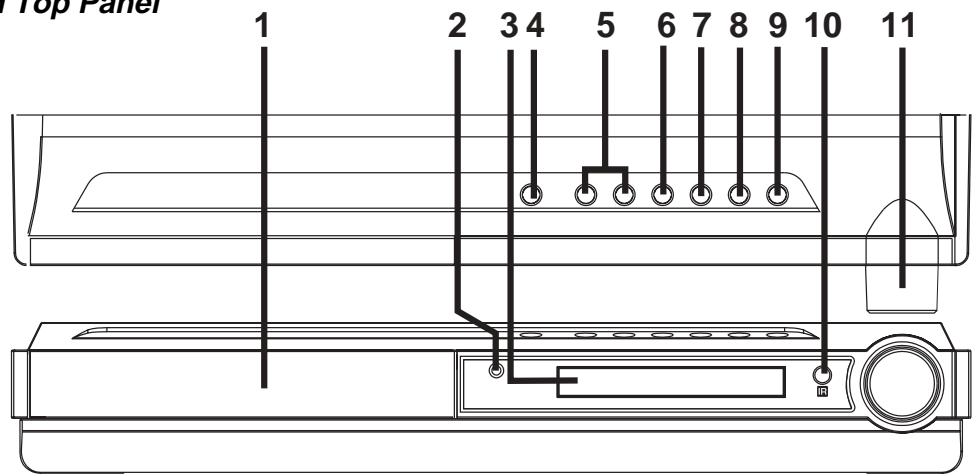

OpenorclosetraybypushingOPEN/CLOSE button. Place a disc on the disc tray, label side up.

2) STANDBY indicator

When the Unit is turned on by pressing the STANDBY/ON button. Ifyou pressthe STANDBY &/ ON button on the remote control, the Unit will tu offand go into standby mode. The light will continue to illuminate.

Use to open and close the disc tray.

5) H44 SKIP >» buttons

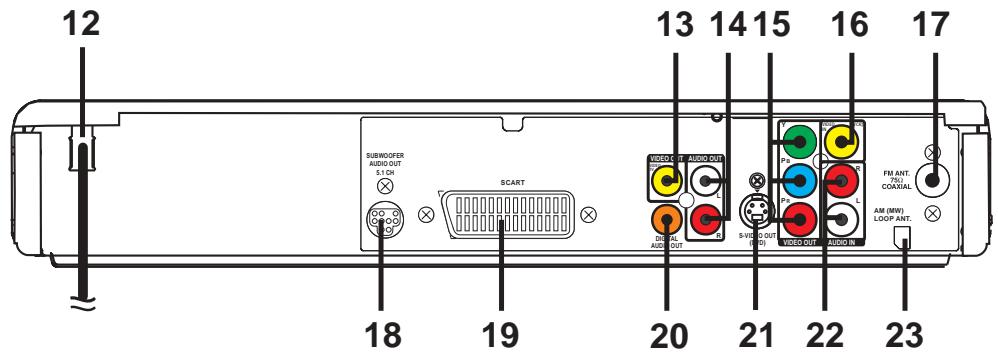

PressSKIP 1#4buttonto go backto previous chapters/ tracks. Press SKIP »m button to advance to chapters / tracks. Press and hold 14 SKIP »» button to begin fast scan. Four speeds are available. Scan all available radio stations. Rear Panel

Press to start or resume playback

Stop playing a disc.

Tum the power on or off.

Receive the remote control unit signals.

Change the loudness ofthe sound from the speakers connected to the Unit. Note: Screen saver - If no button is pressed within 2 minutes, the function will active, If you want to return the normal screen, press any button.

DISPLAY Front Panel Display MEMORY indicator ANGLE indicator REPEAT 1 and A-B Displayed during Appears when multiple camera playback indicators programmed angles are recorded in the Displayed during playback. section of the DVD that is repeat playback. currently playing. DOLBY DIGITAL — indicator Displays while Dolby Sat seure| PT 1 A A NU A FEPENT O] processing is being ANT EZIAE SAND ENT DZAT EANNI-LZNT (NI performed orwhenthe ares VA VN WN VA VN WIN VA VN kHz MHz loaded disc contains L | Dolby Digital sound | PRO LOGIC Il indicator = OPERATION indicator STEREO indicator When PRO LOGIC sound is Indicates the operation Tune into a station. selected in AV-IN mode, the status of the disc and Unit. "((ST))" will appear light will illuminate. when an FM broadcast is in stereo. Display Information The DVD displays the information shown below on the TV screen and on the Units DVD display depending on the operation status. Display Examples TV Screen Unit Display Remarks Ifno disc is loaded "AD DIS "appears when the tray is closed and: ra nuit No Disc no JISC De due bpe ce Mnayable in this Unit. 3)The disc is not loaded correctiy (upside-down, etc.) Tray open A OPEN Tray closed A Close CLOSE Loading © Loading... LORI Stopped Stop mn The display changes to show Playing Play» other indicators (total time, etc.) Paused Pause Il Freezes the image on the screen or pauses audio playback. Fast forward »»x2 The display changes to show other indicators (total Fast reverse 4x2 time, etc.) Slow 4/1 x 12 Does not function for Audio CDs Repeat À -B Rep A- Rep A-B A-B Repeat a specific section. Q) qe operation is not permitted by the DVD Unit or the Region (Local) Number Error Indicator Ifthe region (local) number ofthe disc that you attemptto play differs from the region number ofthe Unit. "Invalid Region" appears on the TV screen. (The disc cannot be played). E-10

For better reception

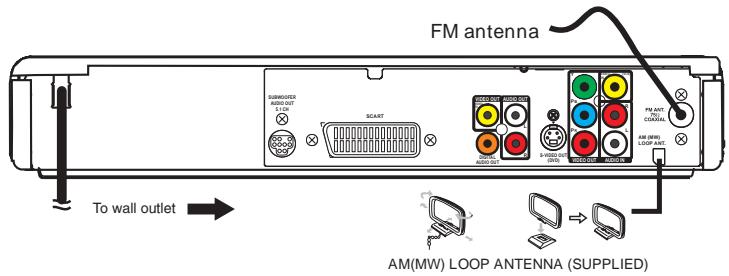

Connect FM antenna (included) to the FM ANTENNA jacks AM(MW) Connect the loop antenna (included) to the AM(MW) LOOP ANTENNA terminals A.Connecting your TV The unit can be connected to your TV in several different ways, depending on the design of your TV SCART cable Use the SCART cable (not supplied), connect the SCART cable from the unit to your TV.

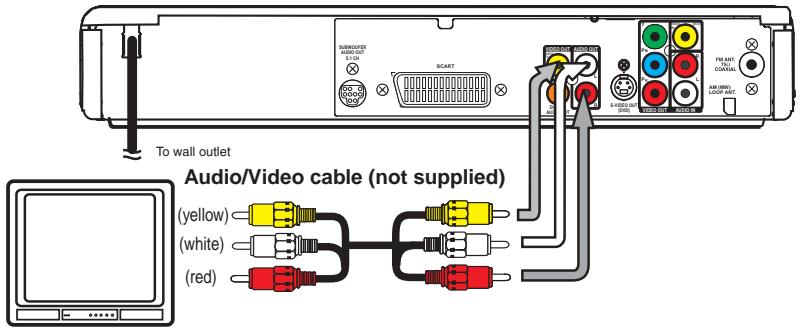

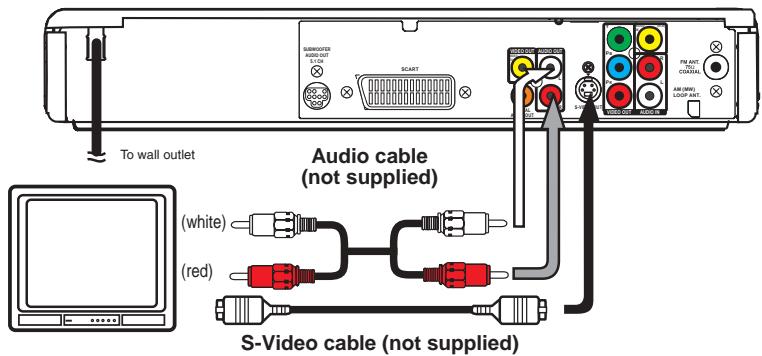

2. Next, use the Audio cable to connect the

leftright AUDIO OUT jacks on the unit to the left/right AUDIO IN jack on your TV.

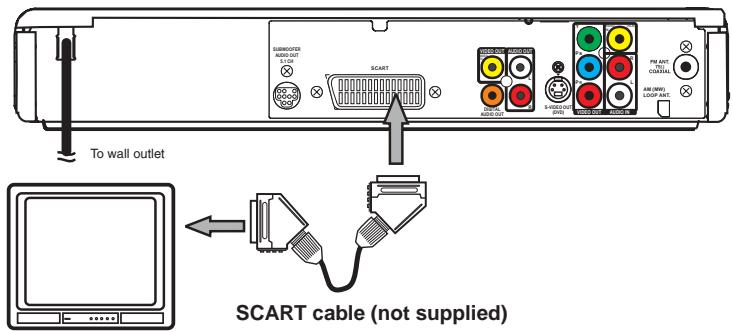

SCART cable (not supplied) ll Ë > EMA» AudioWVideo cable (not supplied) (yellow {uhite) À (red)

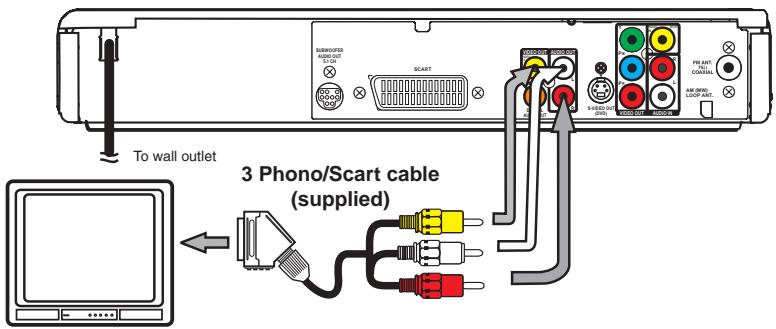

3 Phono/Scart cable (supplied) E-11 (continued to next page)

Componentvideo outputs (DVD) Some TVs or monitors are equipped with component video inputs. Using the Audio cable (notsupplied), connectthe left/right AUDIO OUT jacks on your Unitto the left/right AUDIO IN jacks on your TV and the Component video cable (not supplied), connect the Green plug Y VIDEO OUT jack on your Unit to Y VIDEO IN jack on your TV, the Blue plug PB/CB VIDEO OUT jack on your Unitto P8/CB VIDEO IN jack on your TV and the Red plug PR/CR VIDEO OUT jack on your Unitto PR/CR VIDEO IN jack on your TV to view the higher quality picture playback. Progressive outputs (DVD) Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video signal. Using the Audio cable (notsupplied), connectthe left/right AUDIO OUT jacks on your Unitto the left/right AUDIO IN jacks on your TV and the Component video cable (not supplied), connect the Green plug Y VIDEO OUT jack on your Unit to Y VIDEO IN jack on your TV, the Blue plug P8/C8 VIDEO OUT jack on your Unit to P8/CB VIDEO IN jack on your TV and the Red plug PR/CR VIDEO OUT jack on your Unitto PR/CR VIDEO IN jack on your TV to enjoy highest quality picture with less flicker. = Tvaloutet Press the SETUP button andselectVideo : : Output to YUV (see page 28). Connect Audio cable (not supplied) the component video cable to TV, press (white) the P. SCAN button repeatedly on the (red) remote control when DVD is stopped."P. SCAN"display. You can selectthe output signal for better picture quality. Attention: ToY VIDEO IN “2e + When progressive output is ctivated, To Pe/C8 VIDEO IN > = no video signal output from S-video [==œ=—#) 7 PrPr VIDEO IN con a bIe and RCA (CVBS) video jacks. + Make sure your TV supports progressive scan component video signal, press the P. SCAN button repeatedly until "CVBS" display for going back CVBS video signal. Notes : + Connectthe Unit to your TV directly. If you connect the Unit through a VCR, the playback picture will be distorted because DVD discs are copy protected. + When you connectthe Unit to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connection + Refer to the instruction manual of the connected equipment as well B.Connecting another source C Analogue connection Using the Audio cable (not supplied), connectthe left/right AUDIO OUT jack on your Unitto the AUDIO IN jack. Digital connection Using the Coaxial Digital Audio cable {not supplied), connect the DIGITAL AUDIO OUT on your Unit to the Caaxlal digital audlo cable DIGITAL AUDIO IN jack on your another {not supplied)

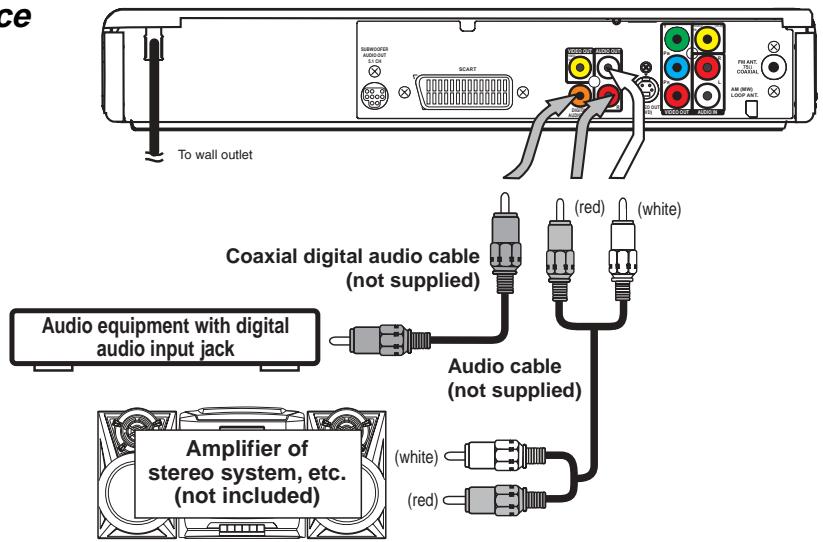

Eva equipment Audio equipment with digital cnng to another audio audio input jack Audio cable {not supplied)

1. Turn on the Unit. RAI RAY

2. Turn on your audio equipment and (£ Amplifier of À unie)

follow the instructions included with it | stereo system, etc. ||" to selectthe AUDIO IN or DIGITAL IN : {not included) (red) function. DEEE | E-12 (continued to next page)

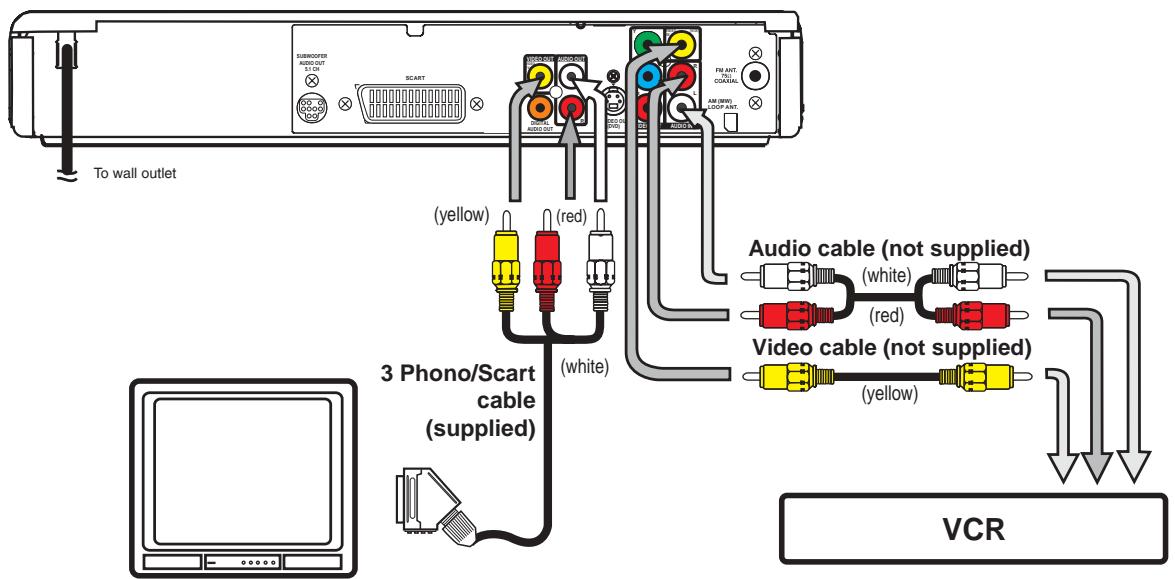

SETUP C. Connecting a VCR 1. Using the supplied 3 P hono/scartcable, connectthe yellow plug from VIDEO OUT jack on your Unit to VIDEO IN jack on your TV, connectthe left and right AUDIO OUT jacks on your Unitto AUDIO IN jacks on your TV. If you wantthe sound come from the speakers ofthe Main Unit, you need notto connectthese leftand right Audio cable from the Main Unitto your TV.

2. Using the Video cable (notsupplied), connectthe VIDEO IN (VCR) jack on your Unitto VIDEO OUT jack on your VCR

3. Using the Audio cable (notsupplied), connectthe leftright AUDIO IN jacks on your Unit to the AUDIO OUT jacks on yourVCR + An adaptor can be bought locally to connectthe round RCA:-style plugs to a scartsocket. Forthe TV get a scartINPUT adaptor. Forthe VCR get a scartOUTPUT adaptor. L ro va out Audio cable (not supplied (uite) 3 Phono/Scart cable (supplied) (yellow) VCR

1. Turn on the Unit, use the FUNCTION button on the remote control or the front panel to select "DVD".

2. Turn on your TV and follow the instructions included with itto selectVIDE O function which is correspond to the VIDEO IN jack you need connected with the Main Unit. Watching a Videotape

1. Turn on the Unit, use the FUNCTION button on the remote control orthe front panel to select"AV_IN".

2. Turn on yourTV and follow the instructions included with itto selectVIDEO function which corresponds to the VIDEO IN jack thatis connected with the Main Unit.

3. Turn on the VCR and follow the instructions included with itto play the videotape.

Notes: +_lfyou wantsound from the Unitand sound from equipment connected to it (see next page) to come only from the speakers of the Unit, do notconnectthe leftand right audio plugs fromthe Unitto your TV. + SoundfromtheVCR orother external equipment will notbe heard from the television if you connectthe television with a scartto scartcable.This is because the scart connector on the DVD amplifier Unit only caries output from the DVD player part. +_IfVCR Audio is mono, surround speakers sound level will be low or absent. To hear the sound from television programmes through the Unit Sound from the television does not go to the speakers ofthe DVD amplifier Unitwith the suggested connections. To hear sound from television programmes through the DVD amplifier loudspeakers you need to use your video recorder as a television tuner. To do this follow these steps: 1. Connectup the VCR as above in "Connecting a VCR". If your television does nothave the round (RCA-style) connectors you can getan RCA to scartinputadapter.

2. Press the FUNCTION button on the DVD Amplifier Unitto get AV_IN mode, shown on the front panel display.

3. Onthe television, selectthe AV or scart input channel for the DVD amplifier Unit.

4.Onthe VCR, selectthe television programme you wantto watch.

5. Onthe DVD amplifier Unitselectnormal stereo or P ro Logic decoder modes according to your preference.

+ Please refer to the AV_IN rows ofthe table on page 16 describing which speakers the sound will come outof.

• When using the VCR as a television tuner, you cannot watch one programme while recording another. E-13

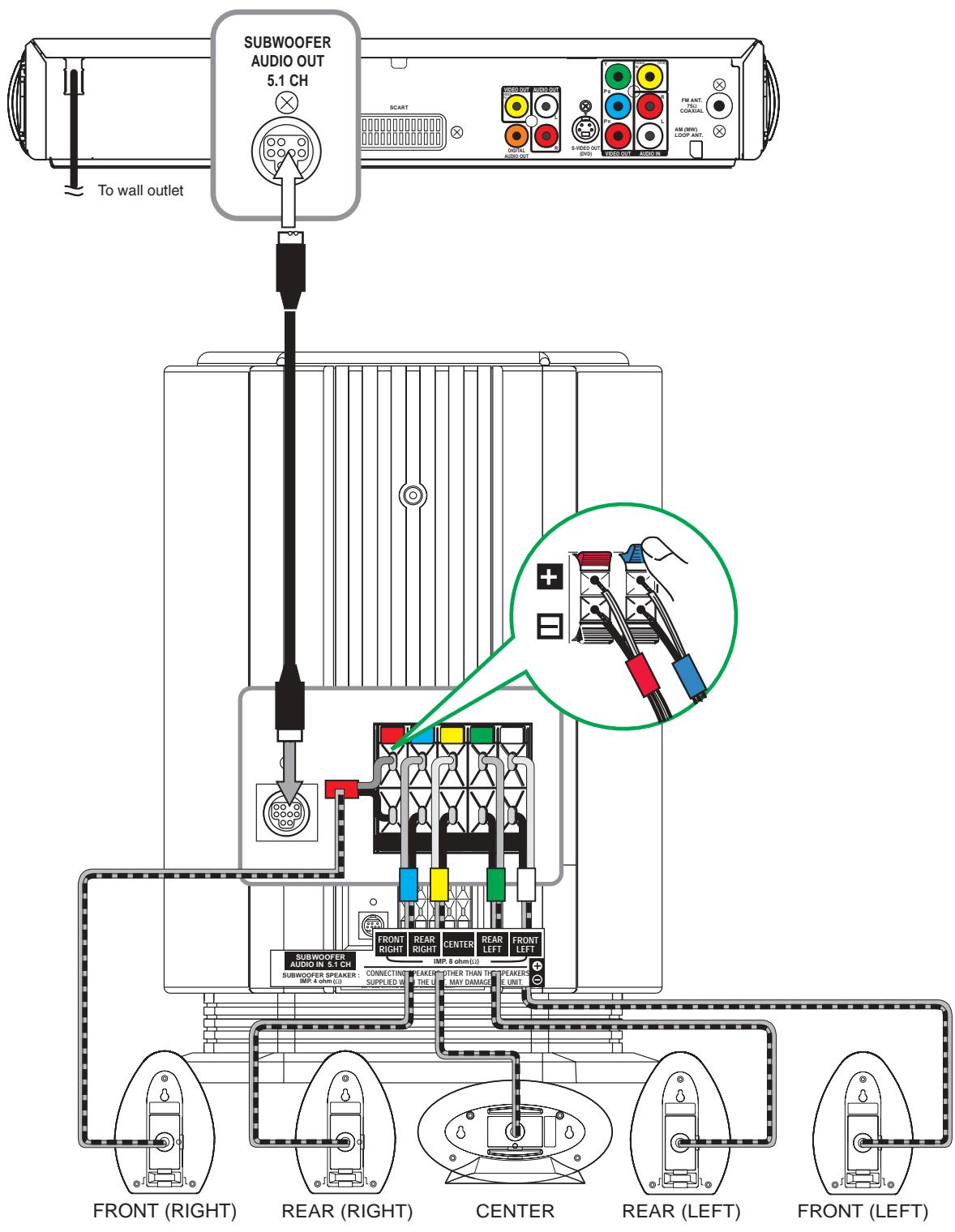

SETUP D. Connecting the speakers & subwoofer The speaker cords have been color-coded to simplify connection. J ust plug the POSITIVE (+) and NEGATIVE (-) ends of each speaker wire into the corresponding jacks on the rear of the Unit, matching the color tube on the end of the speaker wire to the color-coded connector. SUBWOOFER AUDIO OUT 51CH 2 To wall outiet DU N FRONT (RIGHT) REAR (RIGHT) CENTER REAR (LEFT) FRONT (LEFT)

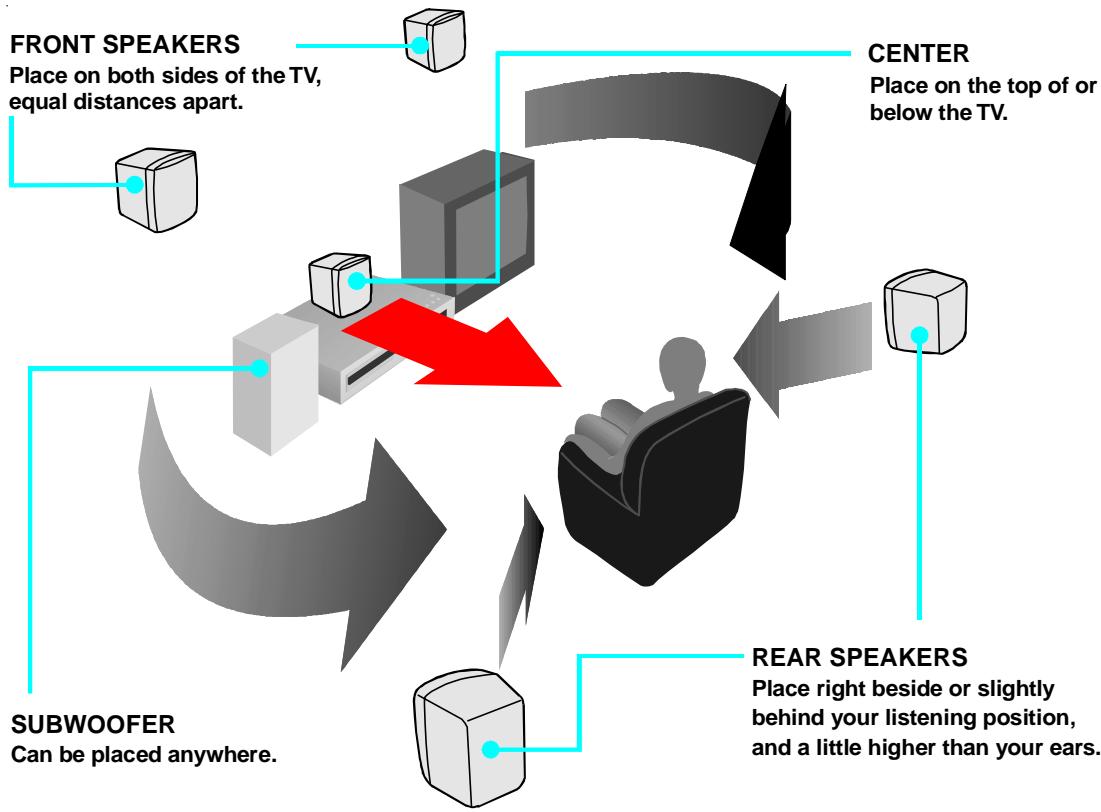

SETUP E. Positioning the speakers and subwoofer FRONT SPEAKERS _—_(f CENTER Place on both sides ofthe TV, Place on the top ofor equal distances apart. below the TV.

REAR SPEAKERS Place right beside or slightly SUBWOOFER behind your listening position, Can be placed anywhere. and a little higher than your ears.

SETUP Mounting rear surround speakers

1) Mark the correct mounting position on the wall.

2) Insert a fixing screw(s) at the marked position on the wall.

3) Align the slot hole(s) of the speaker over the screw and pull the speaker downward until it is firmly hooked.

Turning on the Unit and TV 1)Press the STANDBY/ON button to turn the Unit ON, or 2}Press the STANDBY/ON button on the remote control or the FUNCTION button or the » PLAY button to turn on the Unit while the Unit is in standby mode. 3)Turn on the TV by pressing its POWER button. 4)Select the channel on your TV corresponding to the VIDEO IN jack that the Unit is connected to. See TV User guide for more information. + If you have connected the Unit successfully, the DVD logo (start-up picture) will appear on your TV screen Notes : + Whenever no disc or disc stop for 60 minutes, the system will be turned to POWER standby mode automatically. + The LED of Standby will be turned on while the unit is at standby mode. Power cord connection + Make sure that all the components and speakers are connected correctly. + Be sure the AC power cord is disconnected and all functions are off before making connections. + When you are not going to use the Unit for a long period of time, disconnect the power cord.

To adjustthe surround sound balance while Dolby Digital and Pro Logic ll decoding is in effect Use the remote control to make the following changes to speaker balance: Front speaker (left) + Press the SOUND button repeatedly to display LEFT 5, then press the w or À CURSOR button to adjust the sound level. It will show on the display of the Unit. Front speaker (right)

• Press the SOUND button repeatedly to display R/5HT G,then press the w or À CURSOR button toadjust the sound level. It will show on the display of the Unit. Center speaker + Press the SOUND button repeatedly to display CENT ![, then press the w or a CURSOR button to adjust the sound level. It will show on the display of the Unit. Rear speaker (left) + Press the SOUND button repeatedly to display FEAR L 18, then press the v or À CURSOR button to adjust the sound level. It will show on the display of the Unit. Rear speaker (right) + Press the SOUND button repeatedly to display FEAR F1, then press the v or À CURSOR button to adjust the sound level. It will show on the display of the Unit. Subwoofer + Press the SOUND button repeatedly to display SLR !Ü, then press the v or À CURSOR button to adjust the sound level. It will show on the display of the Unit. Note : + If you do not press any button within a few seconds, the display will return to normal. To adjust the sound quality Press the SOUND button repeatedly to select an equalization mode (BASS and TREBLE). Press the w or 4 CURSOR button to adjust the sound level. BASS : the low range of sounds TREBLE : the high range of sounds Bass and treble control the sound from the front left and right speakers. Dolby Digital Dolby Digital is a sound system developed by Dolby Laboratories Inc. that gives movie theatre ambience to audio output when the Unit is connected to a Dolby Digital 5.1 channel processor QU or amplifier. DIGITAL This Unit automatically recognizes DVDs that have been recorded with Dolby Digital. Not all Dolby Digital sources are recorded with 6 channels. Some sources marked Dolby Digital may be recorded in Dolby Surround, a 2 channel system. Look for this logo on your DVD Unit. Dolby Pro Logic Il creates five full-bandwidth output channels from two-channel sources. This € is done using an advanced, high-purity matrix surround decoder that extracts the spatial DIGITAL properties of the original recording without adding any new sounds or tonal colorations. “DTS” and “DTS Digital Surround” is a sound sytem which give movie theatre ambience to audio output whenthe Unitis connected to a DTS Digital Surround processor or amplifier. This Unitcan recognizes DVDs DIGITAL thathave been recorded with DTS Digital Surround. Look for this logo on your DVD Unit. "DTS", and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. SURROUND Movie Mode The Movie mode in Pro Logic Il is very similar to that of the original P ro Logic decoder. The main difference is thatithas stereo surround channels and no surround filter, unlike Pro Logic which has a mono surround channel and à 7 kHz surround filter. Movie mode is the standard required for all A/V systems. When an autosound unit has a video screen, itis also considered an A/V system. It can be called simply "Pro Logic Il". Music Mode The Music mode offers users some flexibility to control the end results to their own taste. Music mode should not be used with THX audio processing mode. Music mode is recommended as the standard mode for autosound music systems (without video), and is optional for A/V systems. Itis recommended that Music mode be identified as the "Music" version of Pro Logic Il, to distinguish it from the Movie mode. E-17 {continued to next page)

Pro Logic Emulation Mode The Pro Logic emulation mode offers users the same robustsurround processing as original P ro Logic, in case the source content is not of optimum quality, or ifthere is a desire to hear the program more ‘as it used to be". When this mode is used, itis called Pro Logic, as before. There is no "Pro Logic |" mode. The Pro Logic emulation mode is optional. Dolby does notrequire P Lil products to use the original P ro Logic decoding algorithm. However, ifthe DSP contains the original Pro Logic code, and if the product maker would like to use it, this is quite acceptable and even encouraged. À product must not offer both original Pro Logic and the Pro Logic emulation mode. Matrix Mode The Matrix mode is the same as the Music mode except that the directional enhancement logic is turned off. It may be used to enhance mono signals by making them seem "larger", The Matrix mode may also find use in auto systems, where the fluctuations from poor FM stereo reception can otherwise cause disturbing surround signals from a logic decoder. The ultimate "cure" for poor FM stereo reception may be simply to force the audio to mono. DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc. This Unit does not decode DTS Digital Surround signal. To enjoy DTS Digital Surround”" playback, an external 5.1 channel DTS Digital Surround'" decoder system must be connected to the DIGITAL AUDIO OUT jack of the Main Unit. Manufactured under license from Dolby Laboratories. "Dolby", ‘Pro Logic Il' and the double-D symbol DU are trademarks of Dolby Laboratories. "DTS" and "DTS Digtial Out" are trademarks of Digital Theater Systems, Inc. To select the listening channel 1.When the disc is stopped, you can press the 5.1/2.1 CH button on the remote control to select different speakers output status shown on below table. 2.At AV IN function mode, you also can press the OÙ PRO LOGIC Il button repeatedly on the remote control to select DU PRO LOGIC Il (indicator on the front panel of display will illuminate). 3.You can active or off subwoofer output by setup menu. Notes: + The wording "2.1 CH" will be corresponded to the audio/sound output from Front Left and Front Right speakers plus the Subwoofer. + 5.1/2.1 CH button is no response to JPG CD-ROM orJPG/MP3 CD-ROM. Please select 5.1/2.1 CH output before putting such CD-ROM. + Dolby Digital 5.1 CH will not be activated on Pro Logic II. The following table show which speakers are working in the various modes. LR à 3 52/22 | sPeAkeR sus- Dolby Pro Logic Il Selection FUNCTION | Discs WOOFER DS ee ON/OFF | EMU | MATRIX | MUSIC | MOVIE | BY PASS LARGE) SMALL ON EI EX] EX] EX] ETor2t 51H LARGE où EI EN] ER] 51 51072 ovo/ — OFF G 5 5 5 Sor2 co SMALL ON 21 21 21 21 21 21 CH LARGE où 2 2 z z z LL LOL IL LL 2 Lt DVDMODE — — 51 51 51 1 (l 1j" ON 21 21 21 1 27 I SE an 1 51H où 51 51 51 51 51 applied on | 1 Pom — OFF E 5 5 5 E Tuner, MPS | DVD SMALL où 21 21 21 21 21 and PCM [ 24 CH LARGE où 2 2 2 2 2 ovo. | (l OFF 2 2 2 2 2 il 21 22 21 21 21 (l AE 2 ES RS À AS RE in LARGE où EI EI EI EI = OFF 5 5 5 5.1- Represents FRONT LEFT/RIGHT, REAR LEFT/RIGHT, CENTER speakers and SUBWOOFER 2.1-Represents FRONT LEFT/RIGHT speakers and SUBWOOFER 5 -Represents FRONT LEFT/RIGHT, REAR LEFT/RIGHT and CENTER speakers 2 -Represents FRONT LEFT/RIGHT speakers E-18

Basic playback Playing a Disc This owners manual explains the basic instructions of this DVD Unit. Some DVD discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD Unit may notrespond to all operating commands.This is nota defectin the DVD Unit.Refer to the instruction notes of discs. “ ” may appear on the TV screen during operation. À “ (©! ” means that the desired operation is not permitted by the DVD Unit or the disc. Playing a Disc LPress the STANDBY/ON button on the front panel or press the POWER button on the remote control to turn on the Unit while the Unit is in standby mode, press the FUNCTION button to select DVD mode. See CUSTOMIZING THE FUNCTION SETTINGS (page 29-36) before proceeding to step 2. 2.Press the « OPEN / CLOSE button. The disc tray opens. 3.Place the disc on the disc tray with the label side up. 4.Press the « OPEN / CLOSE button. The disc tray closes. Ittakes a short while for your Unit to load the disc. After loading, for some discs, the Unit will automatically start playback of the disc. 5.Press the > PLAY button. Notes: Use the À OPEN / CLOSE button on the front panel to open or close the disc tray. Do not push the disc tray or you may damage the Unit. + Letthe disc tray open completely before removing the disc. Press the a OPEN/CLOSE button to close the disc tray after you remove the disc. + Some Video CD are recorded with PBC (Playback Control), a menu with recorded contents may appear on the TV if you have turned the PBC on. You can make your selection according to its PBC menu. Press the MENU button on the remote control to turn PBC on and off anytime during you are playing back a Video CD. Pausing playback (still mode) Press the 11 PAUSE button. To resume normal playback, press the m PLAY button. Stopping playback Press the I STOP button at the location where you want to interrupt playback. To resume playback at the position where the disc was stopped, press the m PLAY button. If you press the M STOP button twice, the Units memory will be cleared and pressing the > PLAY button will reset the disc to the beginning. To skip to a different track + Press the 4 SKIP button once to skip to the start of the previous track. + Press the 1 SKIP button to skip to the next track + For audio CD disc, use the number buttons (remote control only) to jump straight to that track number. E-19 (continued on next page)

Playing a Disc Fast Forward/Fast Reverse PvD ei Cù D 1.Press the TUNING >> or € TUNING button when a disc is playing. The speed of fast scan + The disc begins fast scan at x2 speed. ] + Four speeds are available. Each time TUNING >> or {TUNING CA button is pressed, the speed of fast scan changes in the following sequence: DX2—DDPXA —>D>»X8 —> »> x 20 2.Press the æ PLAY button when you reach the desired point to resume playback at normal speed Slow-motion play CÀ D L.Press the SLOW 1» or «1 SLOW button in the play mode. + Two speeds are available. Each time SLOW 1» or «1 SLOW button is pressed, the speed of slow-motion playback changes in the following sequence: 1» 1/2 —> 1» 1/4 or 4112 —> 414

2.Press the æ PLAY button to return to the normal playback speed. SKIP (Forward / Reverse) (CPYD ci er: While you are playing a disc, press the >» NEXT button of the remote to move to the beginning ofthe next chapter or track. Press the H« PREV button of the remote to move to the previous chapter or track and automatically start playing it. Zooming into an image While a disc is playing, press tie ZOOM/TV MODE button. + While an image is zoomed, you can use À, y, « and » button to shift the view and display the part you want. + To return to the normal view, press the ZOOM/TV MODE button until the “ Q off “ symbol shows. The screen will return to normal. Press the ZOOM button

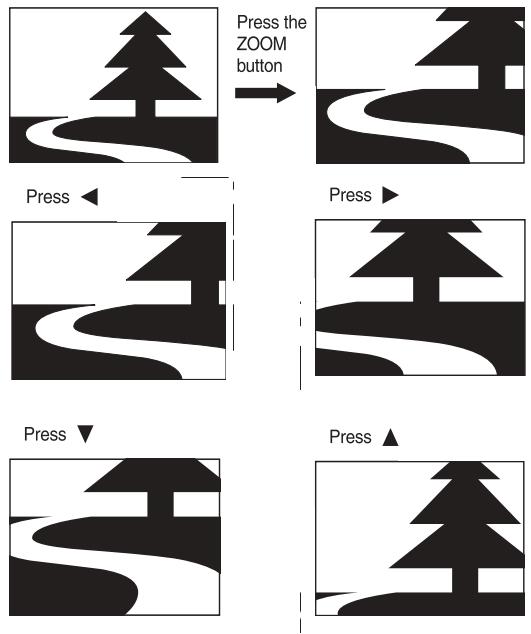

Press Press D Press W Press À + When you reach the edge of the image, the display will not shift anymore in that direction. E-20 (continued on next page)

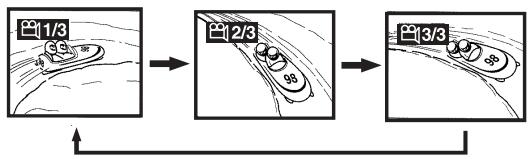

Cv Playing a Disc Angle selection Some DVDs contain scenes which have been shot from a number of different angles. Forthese discs, the same scene can be viewed from each of these different angles | 1.While you are playing a DVD with different angles recorded, Number changes to show the number of he current press the ANGLE button to view the number of the current angle. (The maximum number of possible angles is 9) angle. 2.Press the ANGLE button repeatedly to change the scene to the next angle in those recorded. + Abouttwo seconds later, playback continues from the new angle you selected + If no button is pressed within 10 seconds, playback continues without changing the current angle Sequence of angle shots (Example) Notes: This function can only be used for discs on which scenes shot from multiple angles have been recorded *Ifonly one angle is recorded, “ Pq11 "is displayed. Audio selection On some discs, the sound is recorded in two or more formats. Follow the directions below to select the type of playback. : : : 3 Fre DU D6 C 1.While a disc is playing, press the AUDIO button to show the current audio format number. | 2.Press the AUDIO button repeatedly to select the desired Recorded audio format number changes sequentially. audio format. {The maximum number of possible audio formats is 8) Notes : +Ifonly one audio format is recorded, the number does not change. + About two seconds later, playback continues in the new audio format. Subtitle selection 1LWhile a DVD is playing, press the SUBTITLE button to display the current language setting, as shown in the example below. 2.Press the SUBTITLE button repeatedly to selectthe desired subtitle language. | O18 Eng > CD218 Spa —> CD 3/8 Fre —> Dot Recorded language changes sequentially. Notes : + Ifonly one language is recorded, the language does not change. + About two seconds later, playback continues with the new subtitle you selected + The number of languages recorded differs depending on the disc. + Ifno button is pressed within a few seconds, playback continues without changing the current subtitle. + This function can only be used for discs on which subtitles have been recorded in multiple languages + On some DVDs, subtitles are activated from the main menu of the DVD. Press the MENU button to activate the main menu.

Basic playback Special Functions DISPLAY function Using DIS P LAY, you can check and change the current settings ofthe following items: ANGLE, AUDIO and SUBTITLE. + While the disc is playing, press the DISPLAY button to display the screen shown below. Elapsed time: Elapsed time from the beginning of the chapter which is currently playing. Remaining time: Remaining time of the title which is currently playing. ElapsedTime Remaining Time

• Press the DISPLAY button twice to display the screen shown as below. + Press the ANGLE, AUDIO and SUBTITLE button to change the selected item. Chapter Time | l Î Ï ! Title Angle settini Audio setting == 9 9 Subtitle setting —1"# Title skip + The number of the title currently playing and total titles of disc. + Press the GOTO button to set your desired title, then press the ENTER button to confirm. Chapter skip + The number of the chapter currently playing and total chapters of the currently played title + Press the GOTO button to set your desired chapter, then press the ENTER button to confirm. Time skip + Elapsed time from the beginning of the currently playing chapter and the remaining time from the beginning ofthe currently playing title + Press the GOTO button to set your desired point to start playback, then press the ENTER button to confirm. Angle setting + The current angle is displayed. When a disc with only one angle is played back, “angle 11” is displayed. + Press the ANGLE button to select the desired angle. Audio setting + The type of audio currently selected is displayed. + Press the AUDIO button to select your desired type of audio. Subtitle setting + The subtile number and language currently selected is displayed. When a disc with only one subtitle is played back, “©1111 Eng”is displayed. + Press the SUBTITLE button to select your desired language. GOTO function This function allows you to skip directly to any part of the disc while a disc is playing. Note : + After settings, press the DISPLAY button again to return to the normal screen. E-22 {continued on next page)

Basic playback Spec jal Functions Locating a specific title C D Ifa DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. Lin stop mode, press the GOTO button. 2.Press v, « or » button to highlight a specific field and press the corresponding number button(s) for the title you want. 3.Press the ENTER button to confirm. The Unit will start playback about 3 seconds later. Search Time … Title / Chapter |-- Note : + Pressing the CLEAR button resets the title number. Locating a specific title / chapter / track a D ss CÈ ù If you know the title / chapter / track number you want to play, you can locate a specifc title / chapter / track by directly selecting a title / chapter / track number. 1.Press the GOTO button to search your desired title / chapter / track. 2.Press w, « or » button to highlight a title / chapter / track and press the corresponding number button(s) for the chapter you want. 3.Press the ENTER button to confirm. The Unit will start playback about 3 seconds later. Search Time = Title / Chapter -- DvD Audio CD Video CD Note : + Pressing the CLEAR button resets the title / chapter / track number. E-23 (continued on next page)

Basic playback Special Functions Locating a specific time ai D a) Œ D You can move to a specific location by entering its corresponding time (hours, minutes, seconds) 1.Press the GOTO button. 2.Press a or w button to highlight time. Time pvp | 7 = Audio CD Video CD 3.Press the corresponding number buttons for the setting point you want. The first two numbers you entered represent hours. *The second two numbers you entered represent minutes. The third two numbers you entered represent seconds. 4.Press the ENTER button to confirm. The Unit will start playback about 3 seconds later. Notes : + Some discs may not respond to this process. + Some scenes may not be located as precisely as you specified. + This method for accessing specific locations is available only within the current title of the DVD disc. + You can move through the menu by pressing the a and w buttons. + Pressing the CLEAR button resets the time. Angle setting CA D 1.Press the DISPLAY button twice. The FUNCTION menu is displayed on the screen and you can see how many angles are recorded on the disc. 2.Press the ANGLE button repeatedly to select your desired angle. 3.The Unit will change to your desired angle about 3 seconds later. Audio EliRFremn6Ch Subtitle C2 Spa PA Angie 113 => PA Angie 2 —> PU Angle 23 cs | DvD 00:09:29 01:25:27 Title 110 Chapter 3/15 PM Angle 1/3 Audio setting (PYD 1.Press the DISPLAY button twice. The FUNCTION menu is LiwsFrre mDéch ->[128SpamD6ch>[133mD6 displayed on the screen and you can see how many audio formats # are recorded on the disc. 2.Press the AUDIO button repeatedly to select your desired type of pvp 00:09:29 01:25: 27 audio. Title 1/10 Chapter 3/15 PY Angle 13 3.The Unit will change to your desired type audio about 3 seconds Audio D2 1/3 Fre O0 D 6 Ch later. Subtite CJ23Spa BitRate 7.1 Mbps Subtitle setting CÀ D 1.Press the DISPLAY button twice. The FUNCTION menu is CD18Fre — C)28 Spa —> (3/3 Eng displayed on the screen and you can see how many subtitle # formats are recorded on the disc. 2.Press the SUBTITLE button repeatedly to select your desired DVD 00:09:29 01:25:27 language. Title 110 Chapter 3/15 PA Angle 1/3 3.The Unit will change to your desired language about 3 seconds Audio 171 2/8 Spa 00 6 Ch later. Subtitle CD13Fre

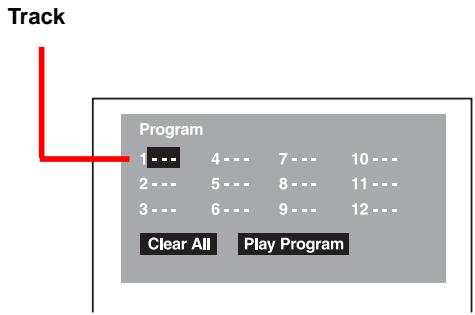

Advanced playback CD / DVD programmable memory Programmable memory C D The two types of programmed playback provided by this Unitare title programmed playback and chapter programmed playback. Title / Chapter programmed playback 1.Press the MEMORY button while the disc is stopped. 2.Enter the title numbers in M. Use « or > button to move the highlight to chapter and enter the chapter numbers ne. Title Chapter Clear All MN Play Program 3.Use <«, », 4 or 'v button to move to the other field. 4.Repeat steps 2 to 3. 5.Press the > PLAY button to start the programmed playback. Notes : + If you press the STOP & button, the programmed selections will be cleared. + If you press the CLEAR button while you are entering a title or chapter, the currently entered numbers will be erased and you can reset the numbers again. Programmable memory es Track programmed playback 1.Press the MEMORY button while the disc is stopped. 2.Enter the track numbers in EE. Track Lciear au JA Pry Program 3.Use «, », À or'v button to other field. 4.Repeat steps 2 to 3 5.Press the > PLAY button to start the programmed playback. Notes : + Ifyou press the CLEAR button while you are entering a track, the currently entered numbers are erased and you can reset the numbers again. + When the unit is playing at program memory mode, the “MEMORY” will display on display window.

ut Repeat Playback You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) Repeating a title C2"? You can play the same title repeatedly.

1. While the disc is playing, press the REPEAT DISC button untilthe “CASE”

indicator displays on the screen. The current title is played repeatedly. Repeating a chapter You can play the same chapter repeatedly. 2.While the disc is playing, press the REPEAT DISC button until the “RE indicator displays on the screen. The current chapter is played repeatedly. To resume normal playback 3.While the disc is playing, press the REPEAT DISC button until the “EX” Lon | indicator displays on the screen. You can play a single track and whole disc repeatedly. Repeating a single track Ca You can play the same track repeatedly. 1.While the disc is playing, press the REPEAT DISC button until the EE “RE indicator displays on the screen. The current track is played repeatedly. Repeating a whole disc 2.While the disc is playing, press the REPEAT DISC button untithe GE" | FEI indicator displays on the screen. The whole disc is played repeatedly. To resume normal playback 3.Press the REPEAT DISC button until the “EX indicator displays on the Cor | screen. Repeating a specific section C D You can play a specific section repeatedly. 1.While the disc is playing, press the REPEAT A-B button at the beginning of EX the section (EEÆM) is displayed you want to play repeatedly. 2.Press the REPEAT A-B button again atthe end ofthe section (EX) is displayed. 3.The Unit will immediately begin replaying your selection. To resume normal playback 4.While the disc is playing, press the REPEAT A-B button until the “[J" Cor ] indicator displays on the screen. Notes : + A-B repeat can only be used within the same title. Ifthe startand end ofthe section to be repeated are in differenttitles, A-B repeat is cancelled. The A-B repeat function does not operate in scenes where different camera angles are recorded. E-26

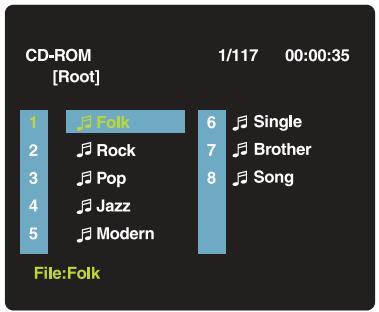

PLAYING MP3 AND PICTURE FILE DISC

This Unit will play MP3 and Picture files recorded on CD-R disc. Playing a MP3 file disc

1. Press the OPEN /CLOSE button, the disc tray opens. CD-ROM 117

2. Insert a MP3 file disc on the disc tray with the label side up. [Root]

3. Press the AOPEN/CLOSE button, the disc tray closes.

4. The Unit will take a short while to load the disc and BRock

automatically begin playback. APop Avez Modem To pause playback + Press the I PAUSE button. To resume playback again, press the æPLAY button. To stop playback + Pressthe M STOP button. To skip to the next or previous file + Press the ##1 NEXT button on the remote control briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next file is located and played back. + Press the #4 PREV button on the remote control briefly while playing, to skip back to the beginning ofthe previous file. Each time you press the button consecutivelythe beginning of the previous files is located and played back. + You also can press the GOTO button, set the track number you want and then press the ENTER button. Note: + You can not play in Fast reverse or Fast forward during MP3 playback. On-screen display Turn on your TV to view the on-screen display of MP3 files. + Pressthe &, w, «or CURSOR button on the remote control to selectthe file you want to listen to, then press ENTER button and this selected file is located and played back. Notes: The ability of this Unit to read MP3 discs is dependent on the following: + The BitRate must be within 64 - 256 kbps. The total number of files on the disc should not exceed 254. The maximum number of directories should not exceed 32 The maximum depth level of directories should not exceed 4. File names should be named using 12 or fewer letters and/or numbers, and must incorporate the “MP 3” file extension. EXAMP LE: *####kkkk MP3 where each * is a letter or number. + Use only letters and / or numbers in file names. If you use special characters, the file and/or folder names may not be displayed correctly on the on-screen display. + When recording on CD-R discs, use 74-minute (650MB) discs. The CD-R disc should be “finalized” in computer by “single session format”. See your CD/MP3 creation software for details. E-27 (continued to next page)

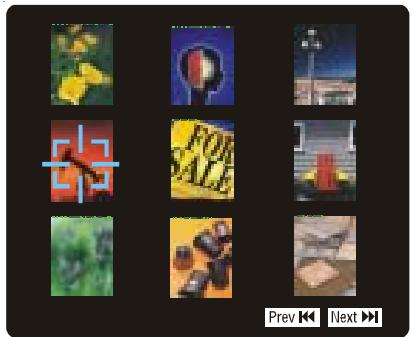

Playing a Picture file disc

1. Press the ÆOPEN/CLOSE button, the disc tray opens.

2. Insert a Picture CD on the disc tray with the label side up.

3. Press the SOPEN/CLOSE button, the disc tray closes.

4. The unit will take a short while to load the disc

5. Press the PLAY button. The next picture will automatically display after 6 seconds.

Full-Screen Thumbnail Review = Review ZE] Br.

Notes: +_lf you press the MENU button on the remote control in full-screen review, the Unit will display a menu of 9 thumbnail images. + Use the cursor to highlight the H#ÆPREV or æ#INEXT in thumbnail screen and then press ENTER to review other images. 1f you want to review one image in full-screen, you can use the CURSOR 4, k,aor buttons to highlight the image and then press the ENTER button to confirm. The image you selected will show on TV in Full-Screen and automatically display one by one again in about 6 seconds intervals. + You can press the PAUSE button to interrupt playback, and press the PLAY button to resume playback. + You also can use GOTO function or use the numbered buttons to enter the number to quickly select any image. + You can press the ZOOM button to enlarge the picture in 3 levels. + Press the ANGLE button on the remote control to rotate the picture orientation by 90° Playing a MP3/Picture file disc

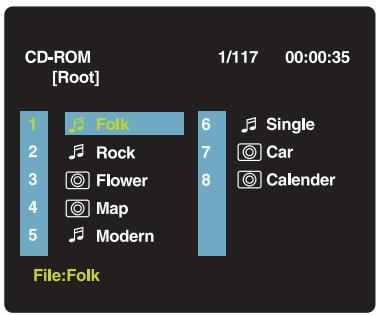

1. Press the ÆOPEN/CLOSE button, the disc tray opens. CD-ROM 11H17 00:00:35

2. Insert a MP3 files/Picture CD on the disc tray with the label side up (Fe

3. Press the ÆOPEN/CLOSE button, the disc tray closes. ingle

4. The unit will take a short while to load the disc EE E

ENTER button Notes: + The SETUP button does not work during MP3 or Picture Disc playback or stop.

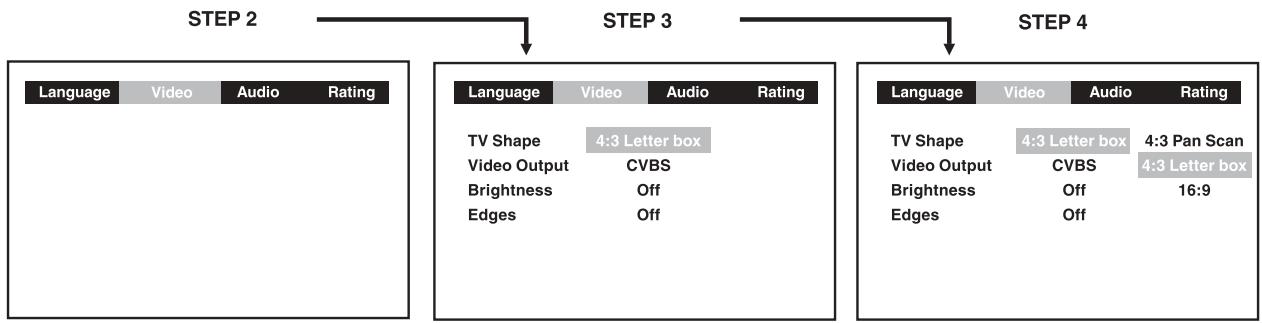

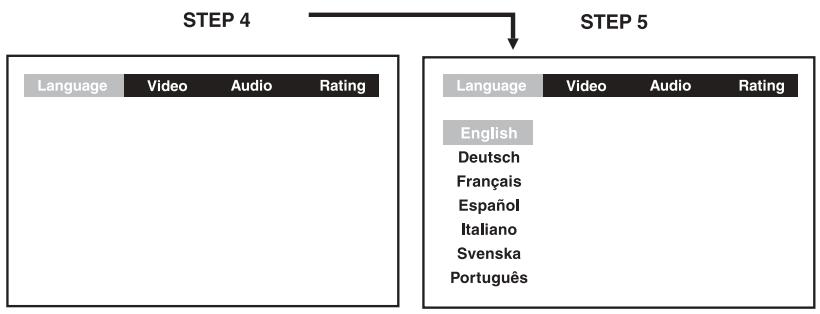

Cut off when a wide-screen video image is played H 4:3 Pan Scan | + When wide-screen video material is played, this mode clips the right and left Li sides of the image so that it can be viewed on a conventional TV screen. l + Some wide-screen DVDs that do not permit Pan Scan mode playback are — automatically played in letterbox mode (black bands top and bottom).

4:3 Letter Box + When wide-screen video material is played in this mode on a conventional TV screen , black bands appear at the top and bottom of the screen 16:9 Wide-screen 7 + This is the correct mode for playing wide-screen videos on a wide-screen TV. + You must also set the screen mode on your wide-screen TV to "FULL". The actual appearance of the image depends on the screen mode setting of your wide-screen TV. Notes : + The displayable picture size is preset on the DVD disc. Therefore the playback picture of some DVD discs may not conform to the picture size you select. + When you play DVD discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV shape setting. + If you select 16:9 wide-screen mode and you own a 4:3 TV set, the DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Always be sure that your TV shape conforms to the actual TV in use. Video Output 1.Press the SETUP button. 2.Use 4 or » button to select Video, then press the ENTER button 3.Use À or w button to select Video Output, then press the ENTER button. 4.Use À or w button to shift and select the signal, then press the ENTER button. 5.To exitthe FUNCTION SETUP MENU and return to the normal screen, press the RETURN button. STEP 2

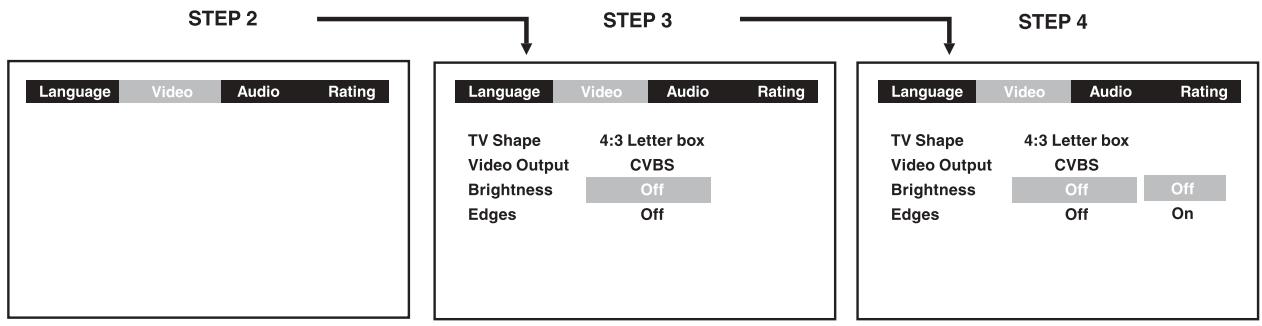

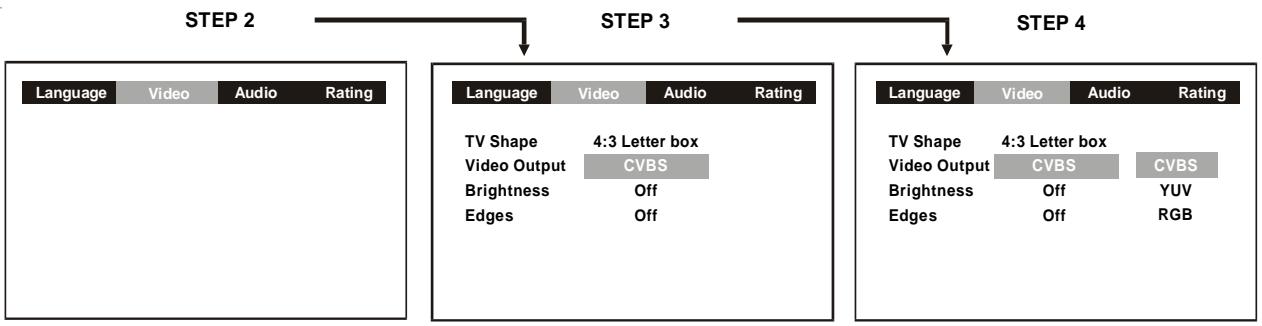

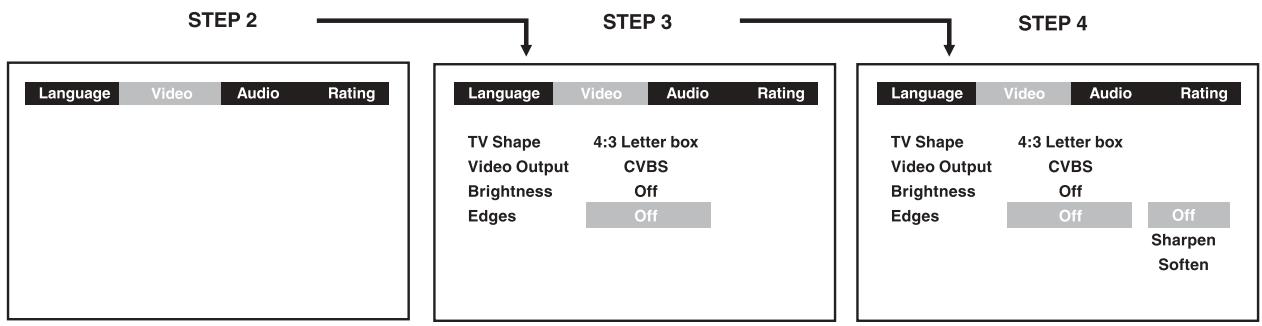

STEP 4 rushape aa Letarbon rvshape a Letr box idee Gutput des Gutput Baghimest FE enr vu dons of Edges of RGB CVBS : Corresponding to your TV which has a Video or S-Video input. YUV: Corresponding to your TV which has a YUV input. S-Video may not have video ifYUV selectec instead of CVBS. RGB: ONLY useful for use in Europe Attention : Always setVideo Outputin CVBS, otherwise, the picture on the TV may be distorted. If this occurs, and you cannot see the screen, press the P.SCAN button repeatedly until the "CVBS" display. Display may failed to show "CVBS" in case there is no disc or tray opened. (continued on next page)

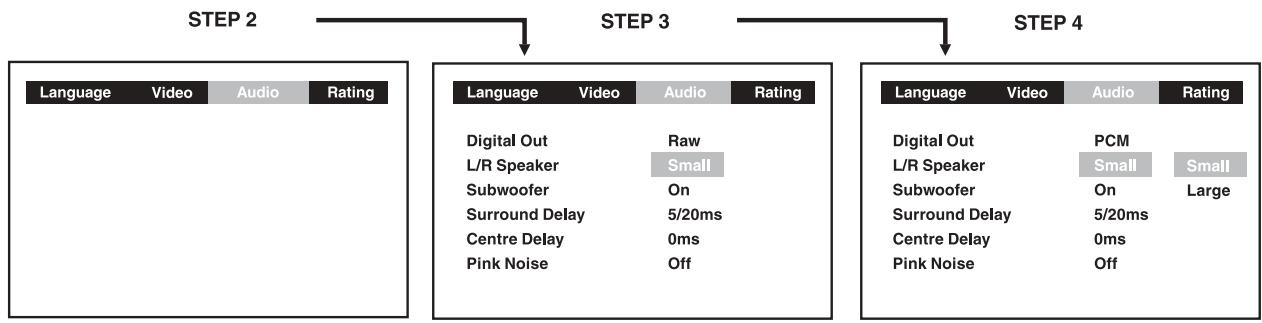

rare | Caine Caine LR Speaker LR Spenter Subumoter on Subwootr on Lame Surauné Dany Sôme Suroundoey S0me ane Den ps Sante Delsy pe L/R Speaker Small : Small size of Speaker. Large : Large size of Speaker (speaker diameter normally larger than 4 inch or 10 cm) Note : + You can adjust the channel balance on your Unit. Please see "ADJ USTING THE SOUND" on page 18. E- 32 (continued on next page)

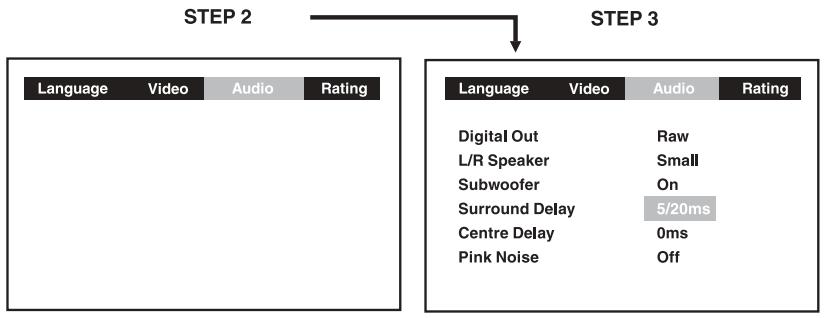

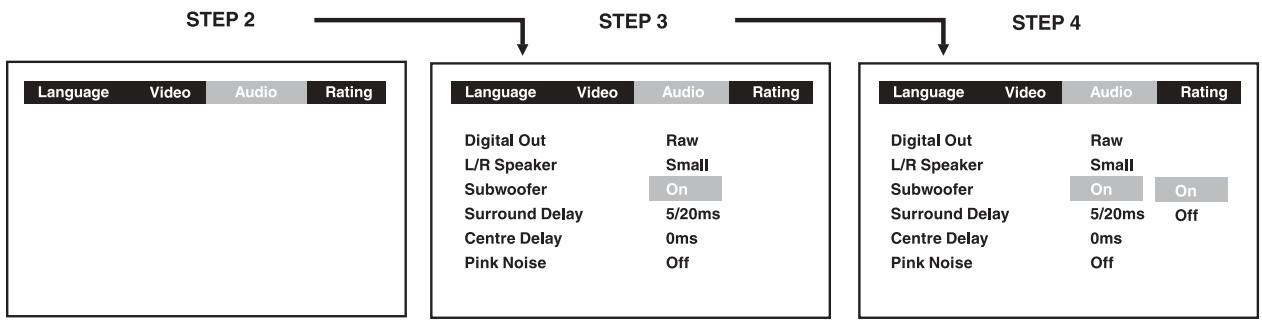

Caine Caine Caine | Dig Out a Digi Out au LR Speaker Sat LR Speaker So aumoctr sumatr Su Delay s/20ms Surround Delay S20ms ot ce Lay. ms Centre Delay ms Pink Noise of Pink Noise of Subwoofer “On" should be selected if your subwoofer is connected. If "Off" is selected, no sound will be emitted by subwoofer. Note : + You can adjust the channel balance on your Unit. Please see "ADJ USTING THE SOUND" on page 18. Surround Delay 1.Press the SETUP button. 2.Use 4 or > button to select the Audio, press the ENTER button. 3.Use À or w button to Surround Delay, then repeatedly press the ENTER button to select the desired Surround Delay type. 0/15ms, 5/20ms, 10/25ms or 15/30ms appears. 4,To exit the FUNCTION SETUP MENU and return to the normal screen, press the RETURN button. STEP 2 | STEP 3 Caine | Craine | Digital Out Rav LR Speaker Sal Subwoster on Surround Day Gant Date om Notes: + The first number represents the Dolby Digital and the second number represents the Pro Logic. + The delay adjustment depends on the location of your surround speakers and the front speakers. If the location of the surround speakers is closer than the front speakers, the delay adjustment can compensate the distance difference. E-33 {continued on next page)

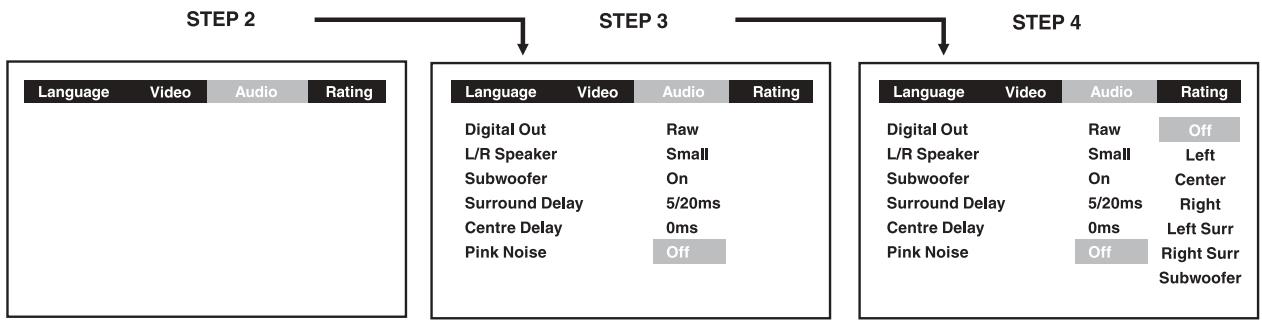

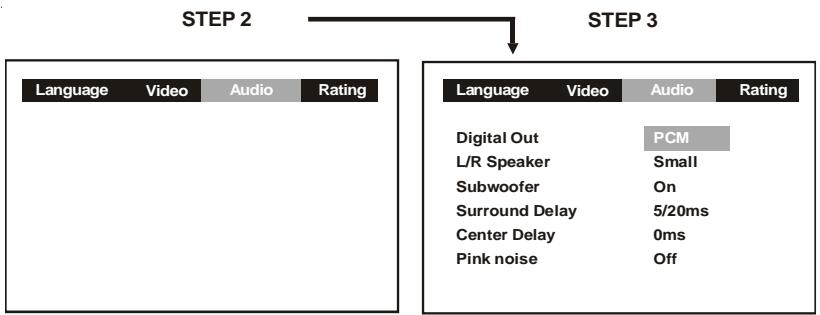

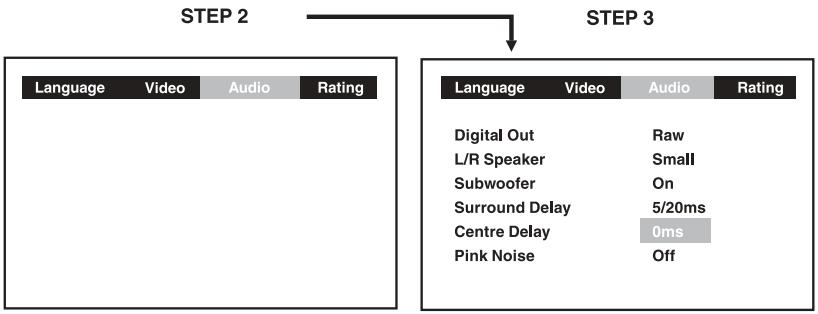

Digital Out Raw Digital Out Raw LR Speaker Small LIR Speaker Small Left Subwoofer On Subwooter on Center Surround Delay 5/20ms Surround Delay S/20ms Right Centre Delay 0ms Centre Delay Oms __ LeftSurr Pink Noise Pink Noise Right Sur Subwoofer Pink noise Off : Pink noise test mode should always be switched off, unless you are testing your speakers. Left : Pink noise comes out from front left speaker for testing. Center : Pink noise comes out from center speaker for testing. Right : Pink noise comes out from front right speaker for testing. Left sur: Pink noise comes out from rear surround left speaker for testing. Right sur : Pink noise comes out from rear surround right speaker for testing Subwoofer : Pink noise comes out from subwoofer for testing. Note : + When using the pink noise generator to test your speakers, you can press the SOUND button on the remote control to adjust the channel balance. Please "Adjusting the Sound" on page 18. (continued on next page)

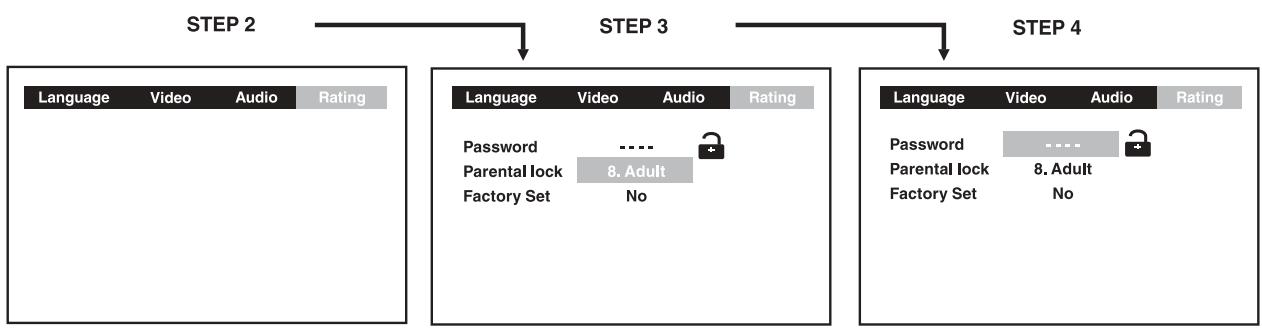

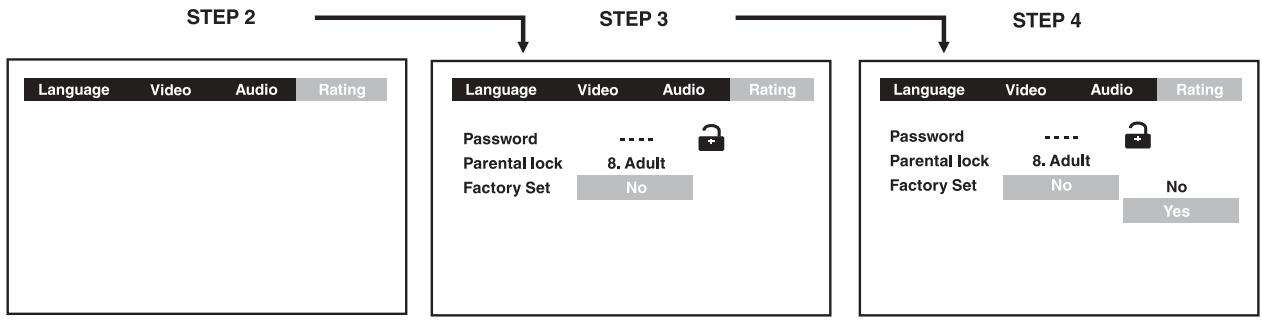

RATING setting Password/Parental lock DVD discs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc. For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out playback of the disc altogether. 1.Press the SETUP button. 2.Use 4 or » button to select Rating, press the ENTER button. 3.Use À or w button to select Parental lock and then press the ENTER button repeatedly to set the parental lock level. 4.Use A or w button to shift and select Password, enter your 4-digit security code and then press the ENTER button. If you make a mistake before pressing the ENTER button, press the CLEAR button and enter your 4-digit security code again. You cannot play DVD discs rated higher than the level you selected unless you cancel the parental lock function. The parental lock level is equivalent to the following ratings Level 1 : Kid Safe Level5 :PG_R Level 2 :G Level6:R Level 3: PG Level 7 : NC_17 Level 4: PG_13 Level 8 : Adult 5.To exitthe FUNCTION SETUP MENU and return to the normal screen, press the RETURN button.

fe The Parental lock is active. Indicates Parental lock is NOT active. STEP 2 7 __1 STEP 3 7 __1 STEP 4 Language so Audio Pasemord … à Parental lock Factory Set No Language Password Parental lock Factory Set

PASSWORD :8888 If you forgetthe password, you can erase your current password by pressing number button 8 on the remote four times, then press the ENTER button to confirm the setting. {continued on next page)

RADIO OPERATION Tuning into a station manually 1.Press the FUNCTION button until the frequency band appears on the display.

2. Press the BAND button on the remote remote or M L M [

STOP button on the front panel to select the desired band. 3.Press the «« TUNING >» button to tune in the desired station. FM Stereo

• Press the FM MODE button on the remote until " U Ql Du STERES “ appears on the display. _l l DIET «er Weak FM stations + Press the FM MODE button on the remote until the " MONO “ word appears on the display. Background À / "1 \ Il 1 noise will be reduced but the signal reproduced will be ll (l LI \ LI mono. To restore stereo reception, press the FM MODE button on the remote to select STEREO. Note: + The left / right front speakers and subwoofer are activated only. To search for a station automatically + Hold down the «€ TUNING »> buttons on the remote, and a station is searched for automatically. After tuning in a station, the search stops. + The search may not stop at a station with a very weak signal Presetting stations You can tune into a stored station directly by entering the preset number. 20 stations on FM band can be preset. 20 stations on AM(MW) band can be preset. 1.Press the FUNCTION button until the frequency band appears on the display.

2. Press the BAND button on the remote to select the desired band

3.Use the « TUNING »x button to find your desired station. 4.Press the MEMORY button on the remote. 5.Press the »»1 NEXT or PREV I4< button to selectthe preset number and press the MEMORY button on the remote to store the station. 6.Repeat steps 2-5 to store other stations. Tuning into a preset station 1.Press the FUNCTION button on the front panel until the frequency band appears on the display.

2. Press the BAND button on the remote to select the desired band

+ Press the » PLAY button and >»1 NEXT or PREV I4« button to select the presetted station or use the numbered buttons to enter the number to select the presetted station. Example: To select preset number 15, press the +10 and 5 buttons. To select preset number 10, press the +10 and 0 buttons. E-37 (continued on next page)

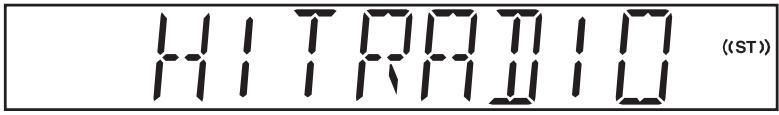

Today many stations transmit so-called RDS (Radio Data System) codes that contain a variety of additional information along with regular sound signals through FM broadcasting. If the stereo is currently receiving an RDS station, it displays the station name. Example:

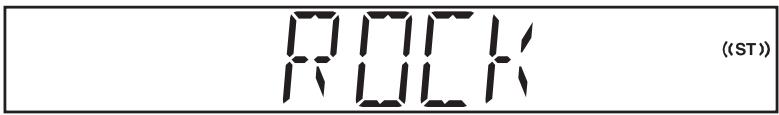

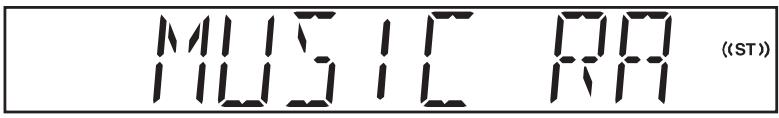

PROGRAMTYPES (PTY) The currently program type is displayed briefly. Example: DIT 14 «en

RADIOTEXT Some RDS stations transmit information known as Radiotext. This is additional information about the station and its programmes. R adiotext appears as ticker text in the display. As this information is transmitted character by character, it may take some time before the text is received in full. 1.Selectthe desired RDS station with the 144 SKIP »»1 buttons on the remote control, or select RDS station directly with the numbered button on the remote control 2.To call up Radiotext keep pressing the DISPLAY button on the remote control, until "RT” displayed. Notes: + IfRadiotext is not provided by the selected station, only the station frequency will be shown in the display. + Itis required about 2 minutes to receive all radiotext character, please wait if the station is just tuned or signal received is weak. 3.Deactive Radiotext by pressing the DISPLAY button. Example: [1 [1 (sn)

MAINTENANCE Cleaning Disc A defective or soiled disc inserted into the Unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges + Do NOT touch the surface of the unlabeled side of the disc. + Do NOT stick paper or tape on the surface. + Do NOT expose the disc to direct sunlight or excessive heat. es + Clean the disc before playback. Wipe the disc from the centre outwards with a cleaning cloth. + NEVER use solvents such as benzine or alcohol to clean the disc. + Do NOT use irregular shape discs (example : heart shaped, octagonal, etc.). They may cause malfunctions. Cleaning the Unit + Be sure to turn the Unit off and disconnect the AC power cord before maintaining the Unit. + Wipe the Unit with a dry soft cloth. Ifthe surfaces are extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-and-water solution and wrung out thoroughly, then wipe with a dry cloth. + Never use alcohol, benzine, thinner, cleaning fluid or other chemicals. And do NOT use compressed air to remove dust. Important Note Before transporting the Unit, remove disc from the CD tray.

TROUBLE SHOOTING GUIDE

SYMPTOM CAUSE (AND REMEDY) No power. * Check that the AC power cord is connected. No picture. + The region number of the disc doesn't match the region number of this Unit. + The TV is notset to receive DVD signal output. + The video cable is not connected.

• The TV is notturned on. The picture is not + Clean the disc. clear. + Ifvideo from your system has to go through your VCR to getto your TV, the copy-protection applied to some DVD programs could affect picture quality. If you still experience problems after checking your connections, please try connecting your Unit directly to your TV through the S-Video-input, if your TV is equipped with this input.
• The disc is scratched + The DVD unit may be setto progressive scan, moreover TV does not support Progressive Scan component video signal. Press the P.SCAN button repeatedly until the "CVBS" display. E-40 (continued to next page)

CAUSE (AND REMEDY) No sound or only a very low-level sound is heard. Severe hum or noise is heard The remote does not function The disc does not play. The DVD door cannot open The location and orientation of the antenna are incorrect. If you use an indoor antenna, change to an outdoor antenna. TheTV antenna wire is too close to the Unit. Separate the antenna wire ofthe TV setfrom the Unit. Check that the speakers and equipment are connected securely. Make sure that you've selected the corrected equipment on the system. The system is in pause mode or in Slow-motion Play mode. Press the > PLAY button to return to normal play mode. Fast forward or fast reverse is performed. Press the » PLAY button to return to normal play mode. Check the speaker settings Make sure that AUDIO output and AV IN input connections correct. Adjust the speakers volume. The DTS DVD disc cannot be decoded to have speaker output. This Unit is too hot, shut off half 30 minutes for cool down. You can use the Pink Noise setting to test that the speaker output is present (Please see Customizing the Function Settings) Check that the speakers and equipment are connected securely. Check that the connecting cords are away from a transformer or motor, and at least 10 feet (3 meters) away from a TV set or fluorescent light. Move your TV away from the audio equipment. The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol. Clean the disc. Vibrations from the speakers are affecting the Unit. Remove any obstacles between the remote and the Unit. Use the remote near the Unit. Point the remote at the remote sensor on the Unit. Replace all the batteries in the remote with new ones. There is no disc inside ("No Disc" appears on the TV screen). Insert the disc correctly with the playback side facing down on the disc tray. Clean the disc. À non-NTSC or non-PAL disc has been inserted. The Unit and disc region numbers are incompatible. Press the NTSC/PAL button on the remote to output the video signal. Condensation may have formed inside the Unit due to a sudden change in temperature. Wait about an hour for it to clear and try again. Reset the Unit, press the STANDBY/ON button to turn off the Unit, wait for a few seconds, then restart the Unit again.

Main Unit FM Section Tuning Usable sens. (30dB S/N) Antenna AM(MW) Section Tuning Usable sens. (20dB S/N) Antenna Amplifier Power output (at 10% THD) Max. output power DVD/CD Section Laser Signal-to-noise Audio dynamic range Harmonic distortion Operating temperature Operating humidity Video Output/Input Output level Input level Jack Audio Output/Input Output level Input level Jack SPECIFICATIONS FM 87.5 - 108 MHz 25 dB/M FM antenna wire AM(MW) 531 - 1602 KHz 64 dB/M AM(MW loop antenna) 30W 37W Semiconductor laser, wave length 650/780nm More than 55dB More than 85dB Less than 1% 41°F to 95°F (45°C to 35°C) 5% to 85% (no condensation) 1 Vp-p (750) 750mV input RCA jack

1.80 + 0.2 Vrms (1 kHz, OdB)

750mV input RCA jack Speakers Section (Front/Center/Rear) Speaker system Speaker unit Rated impedance Dimension Subwoofer Section Speaker system Speaker unit Rated impedance Dimension Remote Control Power requirement General Power requirement Max. power consumption Signal system Dimension of main unit Weight of main unit Bass reflex 76 mm dia. cone type 8 ohms 30W x5 Front & Rear : 100 (W) x 101 (D) x 143 (H}mm Center : 192 (W) x 104 (D) x 102 (H}mm Bass reflex 165 mm dia. cone type 4 ohms 50W 250 (W) x 322 (D) x 370 (H}mm DC :3V (2 x 1.5V "AA" size cells) AC 230V - 50Hz 116W Standard PAL 350 (W) x 375 (D) x 60 (H) mm 8 kg approx. Design and specifications are subject to change without notice. E-42
