Product type	DVD player with integrated DTT receiver (Set-Top-Box)
Brand	AKAI
Model	STD 1990
Weight	2.0 kg
Power supply	110-230 V, 50/60 Hz
Power consumption	20 W
Compatible disc formats	DVD Zone 2, DVD±R/RW, VCD, CD, CD-R/RW, MP3, JPEG, MPEG-4 (AVI)
Video outputs	HDMI, S-Video, Composite, Component (Y, Pb, Pr), SCART (RGB)
Audio outputs	Stereo L/R (RCA), Digital coaxial, Digital optical
Main functions	Progressive Scan, Multi-angle, Parental control, DTT recording (PVR) on USB, CD to MP3 encoder function, Built-in games
Connectors	USB 2.0 (front), Memory card reader (front), RF input/output, SCART
Supplied accessories	Remote control (batteries not included), Audio/video cable, User manual
Laser class	Class 1
DVD region	Region 2
Maintenance and cleaning	Clean with a damp cloth. Do not use solvents or aerosol sprays.
Safety	Do not open the device. Risk of electric shock. Unplug before cleaning. Use only recommended parts.
Spare parts and repairability	Call a qualified technician. Use parts identical to original specifications.
Video standards	NTSC / PAL / Auto

Frequently Asked Questions - STD 1990 AKAI

How to connect the DVD player to a TV?

Use an HDMI, SCART, S-Video, or composite cable according to your TV's inputs. Connect the corresponding audio cables. Then select the corresponding AV input on the TV.

Why is there no sound but the image is displayed?

Check that the audio cables are properly connected, the volume is on (not in MUTE mode), and the audio settings of the player (SETUP menu) are correct (e.g., SPDIF/PCM).

How to play files from a USB stick?

Insert the USB stick into the front port. Make sure no disc is in the player. MP3, JPEG and MPEG-4 (AVI) files will be played automatically. Navigate with the remote control buttons.

How to record a DTT program on a USB stick?

Connect a USB stick formatted in FAT32 to the front port. Press the REC button on the remote control to start live recording. Press REC again to stop. For scheduling, use the SETUP menu > Book list.

The remote control no longer works, what should I do?

Check that the device is powered on. Replace the batteries (2 x AAA) respecting polarity. Point the remote directly at the infrared sensor and remove any obstacles.

The message 'Wrong disc' or 'No disc' appears, why?

Check that the disc is inserted correctly (label up), that it is not scratched, dirty or warped. Make sure the format is compatible (DVD Region 2, CD, etc.).

How to change the menu language (OSD)?

Press SETUP, go to Language settings (DTT section) or Language settings (DVD section). Select the desired language (French, English, etc.) with the direction buttons and confirm.

How to activate parental control?

In the SETUP menu (DVD section), go to Parental control. Enter the default password (0000) to modify or block channels. You can change the password afterwards.

How to use the Zoom function during DVD playback?

Press the ZOOM button on the remote control during playback. The image zooms in progressively (x2, x3, x4). Press multiple times to change the zoom factor. To cancel, press until normal mode.

What to do in case of condensation on the reading lens?

If the device has been moved from a cold place to a warm place, wait about 1 hour before using it. The condensation evaporates naturally. Do not force playback.

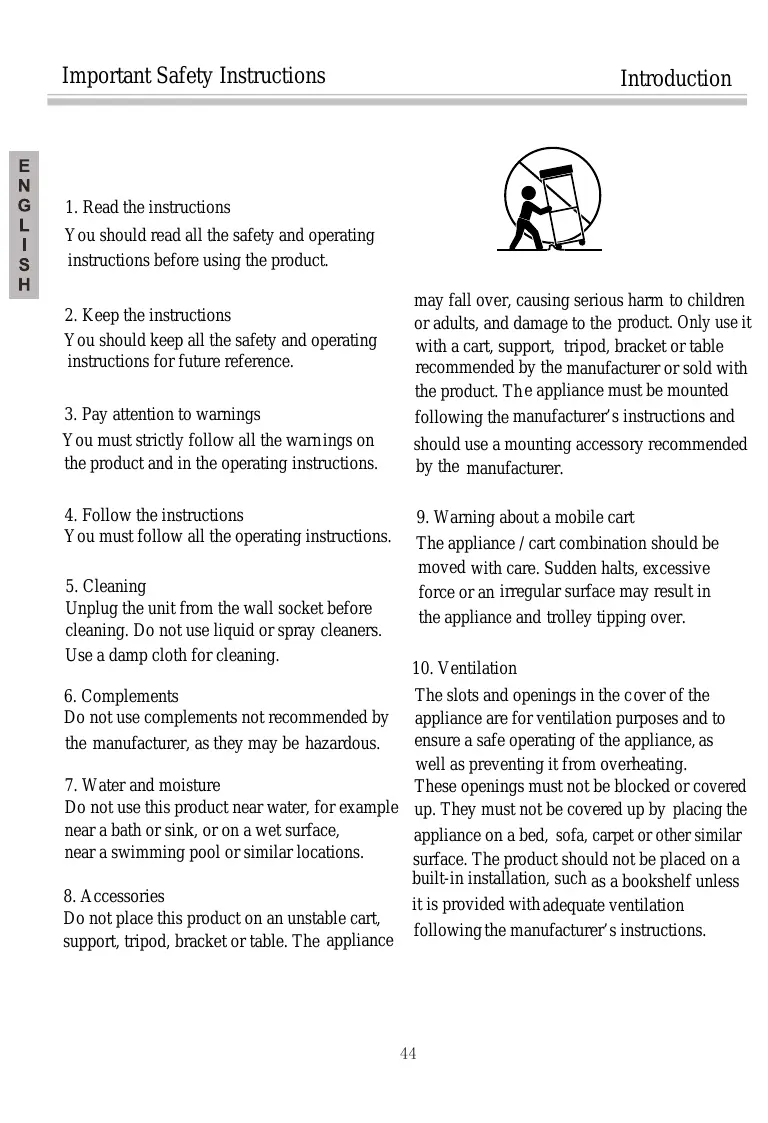

USER MANUAL STD 1990 AKAI

Lecture/Pause (PLAY/PAUSE)
