Product type	Dishwasher
Brand	Cecotec
Model	Bolero Aguazero 7000 Matt Glass Connected
Dimensions (W x D x H)	60 x 60 x 85 cm
Weight	45 kg
Power supply	220-240 V, 50 Hz, 10 A
Capacity	14 place settings
Water consumption	10 L per cycle
Energy consumption	0.92 kWh per cycle
Noise level	44 dB(A)
Wash programs	Eco, Intensive, Quick, Glass, Auto Clean
Special functions	Wi-Fi connectivity, Delay start, Aguazero system, Turbo drying
Maintenance and cleaning	Filter cleaning every month, descaling every 3 months
Safety	Anti-leak system, Child safety, Key lock
Spare parts and repairability	Filters, wash arms, seals available online
General information	Glass window, matte finish, compatible with Cecotec app

Frequently Asked Questions - Bolero Aguazero 7000 Matt Glass Connected CECOTEC

What is the capacity of the Bolero Aguazero 7000 dishwasher?

This model can hold up to 14 place settings, ideal for large families.

How to connect the dishwasher to the Cecotec app?

Download the Cecotec app, create an account, then follow the Wi-Fi connection instructions in the manual. Make sure the 2.4 GHz network is enabled.

What wash programs are available?

The programs include Eco, Intensive, Quick, Glass and Auto Clean.

What does Aguazero technology mean?

The Aguazero system optimizes water consumption by reusing rinse water, reducing consumption to up to 10 liters per cycle.

How to clean the dishwasher filters?

Remove the lower basket, unscrew the cylindrical filter, clean it under running water and replace it. Repeat this operation every month.

Can I use all-in-one tablets?

Yes, this model is compatible with all-in-one tablets. Select the corresponding program if your machine offers it.

How to activate child lock?

Press the Program and Delay start buttons simultaneously for 3 seconds. A light indicator confirms activation.

What to do if the dishwasher displays an error code?

Refer to the manual to identify the code. Common codes include E1 (drain problem) and E4 (water inlet). Reset the appliance by unplugging for 10 seconds.

How to maintain the glass window?

Clean the window with a soft cloth and a non-abrasive cleaner. Avoid rough sponges to not scratch the matte finish.

Where to find spare parts for this model?

Parts such as filters, wash arms and seals are available on the official Cecotec website or from authorized dealers.

USER MANUAL Bolero Aguazero 7000 Matt Glass Connected CECOTEC

SAFETY INSTRUCTIONS....6

ESPAÑOL....61

ENGLISH....86

FRANÇAIS....110

DEUTSCH....136

ITALIANO....163

PORTUGUÊS....188

NEDERLANDS....214

POLSKI....239

ČEŠTINA....265

MAGYAR....288

ΕΛΛΗΝΙΚΑ 314

TÜRKÇE....340

العربية 364

CATALÀ....383

FIGURES....409

NOTA

EU01_112754 Bolero Aguazero 7000 Matt White Glass Connected EU01_112755 Bolero Aguazero 7000 Matt Black Glass Connected

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- Read these instructions carefully before installing or using the appliance, as they contain important information that will help you achieve optimal performance from your equipment. It is your responsibility to make sure every user is informed

about the warnings and precautions stated in this instruction manual.

• Warning: Knives and other utensils with sharp points should be loaded in the basket with the points facing downwards or placed in a horizontal position.
• The maximum number of cutlery to be washed is 16.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Check the power cable regularly for visible damage. If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children must not play with the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- After using the dishwasher, there may be remains in the interior. Keep children away from the appliance when it is open.

- CAUTION: Check the dishwasher and its packaging for any damage and keep children away from the area.

- Never use the dishwasher if it is damaged, contact

Cecotec's Official Technical Support Service immediately.

- Packaging material may be dangerous to children. Remove it and place it out of their reach.

- Choose a suitable and safe place to install the dishwasher.

- Never use an extension cord or a multi-socket connection.

- The socket must be accessible after the dishwasher installation.

- After the installation, the first time you run the dishwasher, do it while it is empty.

- Always use the plug provided with the dishwasher. Do not modify the plug provided with the appliance if it does not match the power socket.

- Do not operate the appliance if its cable, plug, or structure show visible damage, do not operate properly, or have been dropped.

- In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void. Before repairing the dishwasher, you must disconnect it from the power supply and close the stopcock.

- To unplug the dishwasher, pull from the socket, never from the cord.

- During use, the dishwasher uses less energy and water than washing dishes by hand, provided that the household dishwasher is used according to these instructions.

• Do not misuse it, do not stand, sit or place any heavy object on the door or baskets of the dishwasher.
• Do not use the dishwasher if all interior elements are not correctly placed.
• Only use detergents and rinse aids specific for dishwashers.
• Some dishwasher detergents are very alkaline. They may be extremely dangerous if you ingest them. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
• Due to the danger of explosion, do not place chemical solvents in the interior of the machine.
• Do not place tableware which is not dishwasher safe in the appliance.
• Do not fill the baskets over their capacity.
• Cecotec shall not be held liable for any deformation that may occur inside the dishwasher due to misuse.
• Do not open the door while the dishwasher is running, as it could spill hot water.
• Do not leave the door open, as it could cause accidents.
• To avoid electric shock, do not disconnect the dishwasher with your hands wet.
• Cecotec shall not be held liable for any damage, accident, or incident resulting from the misuse of this dishwasher. It is the user's responsibility to operate and maintain the dishwasher according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in

personal injury, property damage, or loss of product warranty.

https://cecotec.es/es/information/declaration-of-conformity

1. Parts and components

Figure 1:

1. Cutlery basket
2. Upper basket
3. Lower basket
4. Upper spray arm
5. Bottom spray arm
6. Salt tank
7. Dispenser

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

● This appliance comes in a packaging designed to protect it during transport.
Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
- Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Dishwasher
• Lower basket
• Upper basket
• Cutlery basket
• Drain hose
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Installation

● The dishwasher can be built under the worktop according to your requirements.

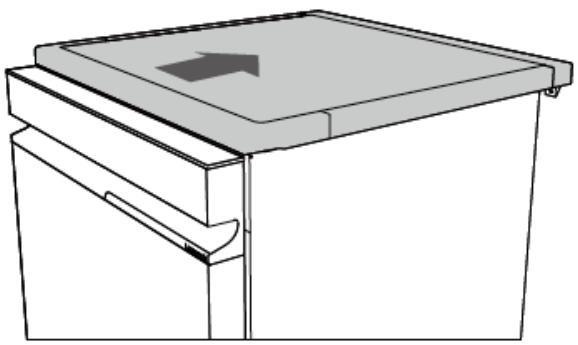

● To do this, remove the dishwasher's top cover by loosening the two screws

ENGLISH

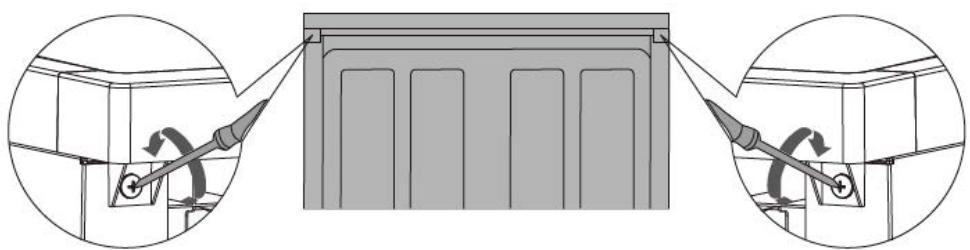

located at the rear. Remove both rear screws (Fig. 2) and slide the cover backwards to detach it (Fig. 3).

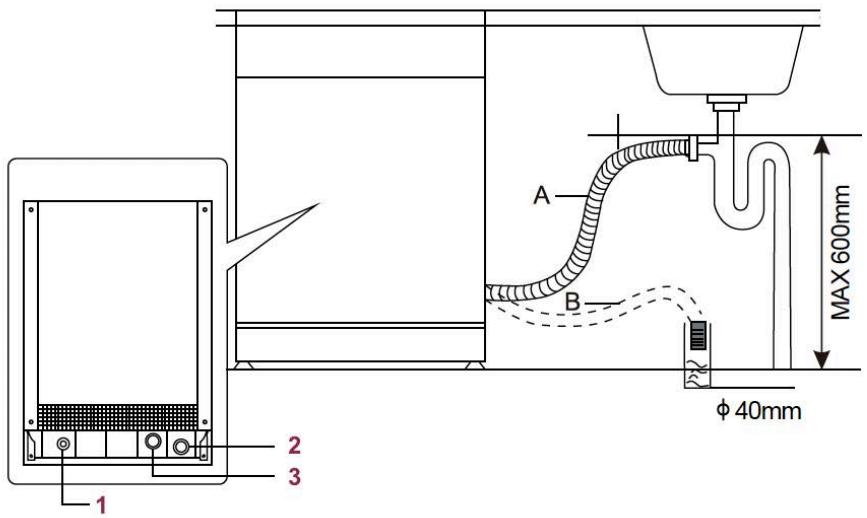

Drain hose connection

• Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crushing it.
  ● The drain pipe height must not exceed 600 mm.
  ● The free end of the hose must not be immersed in water to prevent backflow.
  ● Securely fasten the drain hose in either position A or position B. Fig. 4

Fig. 4 key:

1. Main cable
2. Water inlet
3. Drain pipe

How to drain excess water from hoses

• If the drain pipe connection is positioned higher than 600 mm, excess water may remain in the drain hose.
• It will be necessary to empty any excess water from the hose into a suitable bowl or container, positioned externally and at a lower height than the sink.

Water outlet

• Connect the drain hose. The hose must be properly installed to prevent water leakage.
  ● Make sure the drain hose is not bent or crushed.

Extension hose

• If a drain hose extension is required, use a hose with similar specifications.
• The extension must not exceed 4 metres in length; otherwise, the dishwasher's cleaning efficiency may be reduced.

Siphon connection

- The drainage connection must be at a height less than 600 mm (maximum) from the base of the dishwasher.

Positioning the appliance

- Place the appliance in the desired location. The rear of the appliance should rest against the back wall, with the sides aligned with adjacent cabinets or walls.

ENGLISH

- The dishwasher is equipped with inlet and drain hoses that can be positioned on either the right or left side to facilitate proper installation.

Caution:

● Place the dishwasher on a firm, flat floor.
- Do not install the dishwasher on an elevated surface.

Before first use:

A. Adjust the water softener level according to your area's water hardness.
B. Add salt to the salt tank and then fill it with water up to the rim.
C. Fill the rinse aid dispenser.

A. Water softener

Water hardness varies by location. If hard water is used in the dishwasher, limescale deposits will form on the dishes. The dishwasher is designed to adjust salt consumption based on the water hardness level used. This optimises salt consumption. To adjust the salt consumption, follow these steps:

1. Switch on the dishwasher.
2. Within 60 seconds, press and hold the Start/Pause touch icon for 5 seconds while the dishwasher is in standby mode. This will enter the setting mode and display the default water softener level: "H3".
3. Press the Start/Pause touch icon to select the appropriate setting for your local environment; the settings will change in the following sequence:
   H1→H2→H3→H4→H5→H6. Then switch off the dishwasher to save the settings.

It is recommended to adjust settings according to the following table:

Water softener adjustment table

Setting	Water hardness			Salt consumption (g/cycle)
	dH	dF	dE
H1	0-5	0-9	0-6	0
H2	6-11	10-20	7-14	20
H3	12-17	21-30	15-21	30
H4	18-22	31-40	22-28	40
H5	23-34	41-60	29-42	50
H6	35-55	61-98	43-69	60

Contact your local water supplier for information about your water supply hardness.

ENGLISH

B. Loading salt into the water softener

Fig. 5.

The salt container is located under the lower basket and must be filled as follows:

Caution: Only use salt specifically designed for dishwasher use. Any other type of salt may damage the salt softener. In case of damage caused by the use of unsuitable salt, Cecotec offers no warranty nor accepts responsibility for any damage caused.

Only fill with salt just before starting one of the complete washing programmes. This will prevent salt grains or salt water that may have spilled from remaining at the bottom of the dishwasher for any length of time, which could cause corrosion.

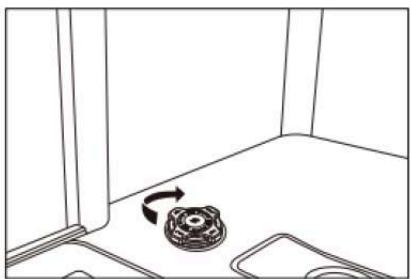

1. Remove the lower basket, then unscrew and remove the salt container cap.

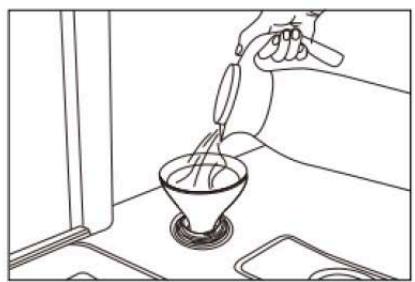

2. Place the funnel into the opening and pour in the salt. It is normal for a small amount of water to come out of the salt compartment.
3. For first-time filling, completely fill the compartment with water.
4. Carefully screw the cap back on.
5. Typically, the salt warning light will switch off after the salt compartment has been filled.

NOTE:

• The salt tank must be refilled when the salt warning light illuminates on the control panel. Even when the container is filled, the indicator light may remain lit until the salt has fully dissolved.

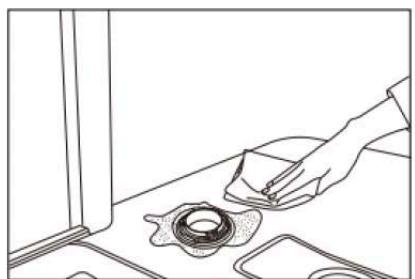

  ● Take care not to overfill the salt tank and ensure any spillage is cleaned up.

C. Detergent usage

• All dishwasher cycles require detergent. Use only detergents specifically designed for dishwashers. Store detergent in a cool, dry place. Do not put powder detergent into the dispenser until you are ready to wash dishes.
• Never use soap, laundry detergent or hand washing-up liquid in your dishwasher.
• Do not ingest dishwasher detergent. Avoid inhaling the vapours.
• Dishwasher detergent contains irritants and caustic chemicals that can cause respiratory problems. If dishwasher detergent has been ingested or vapours inhaled, seek medical attention immediately.

- Keep dishwasher detergent out of children's reach.

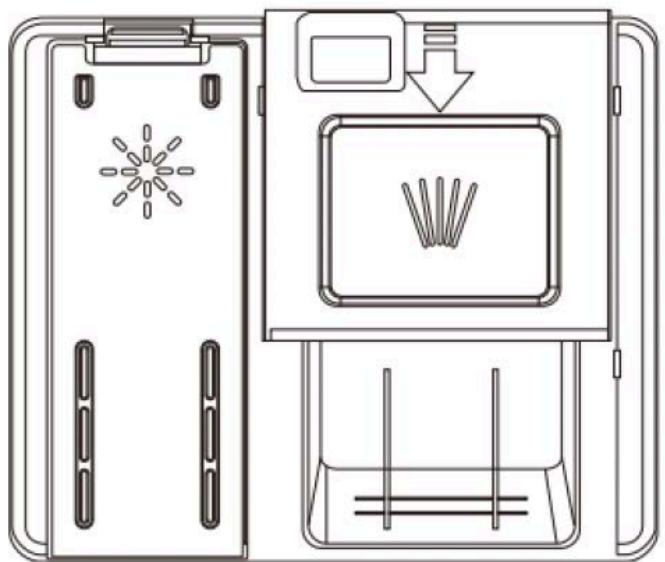

1. Open the detergent compartment by pressing the button.
2. Add the recommended amount of detergent to the main compartment. The main compartment features measurement lines for specific amounts of detergent, marked at 15 ml or 25 ml, depending on dish soiling levels. For dishes requiring intensive washing, add 5 ml of detergent to the pre-wash section of the compartment.
3. Close the detergent compartment by sliding the lid in the direction of the arrow as shown in figure 6.

ENGLISH

NOTE: Follow the manufacturer's recommendations on the detergent packaging.

D. Rinse aid usage

The rinse aid helps ensure better washing results and improved drying performance.

To fill the rinse aid compartment, open the compartment lid. Fill the compartment with rinse aid to the MAX level, then close the lid. Take care not to overfill the rinse aid compartment and be sure to clean up any spillage.

Close the lid to lock the rinse aid compartment. Fig. 7

Rinse aid is automatically added during the final rinse, ensuring thorough rinsing and streak-free drying.

Attention! Use only rinse aid specifically designed for dishwashers. Never fill the rinse aid dispenser with other substances (e.g., dishwasher cleaning agent, liquid detergent). This would damage the appliance.

To change the rinse aid level, follow these steps before switching on the dishwasher:

1. Press the power touch icon to switch on the dishwasher.
2. Within the next 60 seconds, press and hold the DELAY START touch icon for 5 seconds to enter setting mode. The digital display will show the default rinse aid level as "R3".
3. To adjust the rinse aid level, press the Delay Start touch icon. The display will show the level and with each touch icon press, the level will cycle through R1→R2→R3→R4→R5.
4. After selecting the appropriate level, press the power touch icon to save the settings.

Sound On/Off

By default, the sound is enabled. To modify this setting, follow these steps:

1. Switch on the appliance.
2. Press the ECO and Start/Pause touch icons simultaneously for 3 seconds; the sound will be disabled and the interior light will not illuminate when opening the door.
3. Press the ECO and Start/Pause touch icons simultaneously for 3 seconds again to enable the sound.

Note: This function can only be configured in standby mode. After disconnecting and reconnecting the appliance, the sound will be enabled by default.

4. Operation

Fig. 8:

1. Power touch icon: use this icon to switch the appliance on/off.

2. Programme touch icon: Select the appropriate washing programme; the programme indicator will light up.

A. ECO programme: Ecological mode, saves energy and water, suitable for general

ENGLISH

cleaning needs.

B. INTENSIVE programme: Powerful cleaning mode, suitable for heavily soiled dishes, pots and pans.

C. RAPID programme: Suitable for dishes with light and recent soiling.

D. UNIVERSAL programme: Daily cleaning mode, suitable for moderately soiled dishes.

E. HYGIENE programme: Suitable for heavily soiled dishes requiring hygienic washing.

F. BABYCARE programme: High-temperature sterilisation, suitable for cleaning baby products.

G. GLASS programme: Suitable for washing delicate glassware.

H. SMART programme: Automatic soil level detection; suitable for mixed loads of different types of tableware.

I. PRE WASH programme: Rinse with cold water to remove dirt before running another programme.

J. STEAMWASH programme: Suitable for dishes with ingrained, stubborn and dried-on stains.

1. Extra Functions touch icon: Select the appropriate extra wash function; the programme indicator will light up. While the dishwasher is switched on, the available extra functions will flash; the indicator will remain lit once selected.

K. DELAY START: You can delay the cycle start time between 0 and 24 hours. Press the Delay Start touch icon to change the time and press the Start/Pause touch icon.

Note: To change the delay time once the dishwasher has started, press the Power touch icon and restart the dishwasher.

L. HALF LOAD: This function reduces water and electricity consumption by allowing you to wash dishes from a single tray. You can select three washing states: upper wash, lower wash, and simultaneous upper and lower wash.

M. EXTRA RAPID: Shortens the washing cycle time by increasing the washing temperature to perform a quick wash. Method implementation: The washing time in the main wash stage is reduced by 10 minutes, the rinse temperature is increased by 3°C, the drying time is shortened by 15 minutes and the total time is reduced by 25 minutes.

N. AUTOCLEAN: designed to clean the dishwasher's interior, not the dishes. Press and hold the HALF WASH touch icon and the EXTRA RAPID touch icon simultaneously for 3 seconds to start the self-cleaning programme; the digital display shows a 90-minute countdown.

1. SUPER DRY: Adds additional drying time to the main washing cycle for enhanced drying results. Method implementation: turn on the hot air for 20 minutes and the cold air for 10 minutes in the drying stage, increase the total time by 30 minutes, increase the hot wash temperature by 3°C above the original maximum rinse temperature, and if the maximum temperature is 75°C, the temperature will remain unchanged.

P. EXTRA HYGIENE: A temperature increase time is added for thorough sterilisation

ENGLISH

during the washing process. Method implementation: The hot wash temperature is increased by 3^ C above the original maximum rinse temperature, and if the maximum temperature is 75^ C, the temperature remains unchanged. Heats and maintains the temperature during the rinsing phase, increasing the total time by 30 minutes.

Q. SILENT WASH: Reduces the motor speed by increasing the washing time during the process, reducing noise. Method implementation method: the main washing time is extended by 45 minutes and the speed is reduced by 100 rpm during operation, but the motor speed must not fall below 2600 rpm.*

R. SAVE+: Saves energy by reducing time and temperature during the drying phase. Recommended for a capacity of 8 place settings or less. Method implementation: 10 minutes in the main washing stage, 15 minutes in the drying stage and 25 minutes in the total time. After selecting this function, it cannot be superimposed to improve drying (Super Dry), strengthen sterilization (Extra Hygiene) or accelerate time saving (Extra Rapid).

1. Start/Pause (touch icon): Press this touch icon to Start/Pause a programme. Reset button: Press and hold for 3 seconds to cancel the current programme and select a new one.

*Please note: These times are approximate and may vary depending on the type of dishes, level of soiling and other factors.

Warning indicator lights

S. Salt: If the indicator light is lit, it means the dishwasher is low on salt and requires refilling.

T. Rinse aid: If the indicator light is lit, it means the dishwasher is low on rinse aid and requires refilling.

U. Water inlet: If the indicator light is lit, it means that the water inlet is closed or blocked.

Smart Voice Control function

This dishwasher has an integrated voice assistant. For it to work correctly, you must take into account that it only recognises and responds to the following commands in Spanish. The process is very simple and always follows two steps: activate the assistant and give it a command.

1. Activate the voice assistant:

In order for the dishwasher to listen to you, you must first say the activation word: "Ev, Lumina"

On hearing it, the dishwasher will go into listening mode for 15 seconds, waiting for your command.

1. Next, you must give it a command:

- Within that 15-second time, speak the command you wish to execute.

- If the dishwasher is turned off: Say: "Enciende el lavavajillas".

ENGLISH

- If the dishwasher is already switched on: You can give it direct commands, such as: "Inicia el programa ECO" or "Abre la puerta", depending on the function you want it to run.

Smart Knock Dual Control function (smart opening/closing by touch) Knock to open the door: This model is equipped with a slam-opening system. Please double-tap on the specific area to open or close the door. (Fig. 9).

Wi-Fi connectivity and mobile App

1. Download the app: scan the QR code to download and install the application:

1. Once the Cecotec app is installed, open it, go to the top right corner and press the '+' icon. Then select the option "Add device".
2. Switch on the dishwasher and press and hold the Delay Start + Super Dry buttons on the control panel for 5 seconds; the Wi-Fi icon will start flashing. The device will appear flashing at the top corner of the app, indicating that it is ready to be paired. Select it to continue with the process and follow the steps shown in the App.

You can also search and add the product manually. Go to the side menu and select the corresponding range and locate the model of your product. Tap on it to start the pairing process and follow the steps indicated in the App. Once successfully paired for the first time, the device will be saved on your phone and you will be able to access it from the application to control all its functions.

Note: To be able to connect the device via the App on your phone, it must be connected to a Wi-Fi network with 2.4 GHz frequency band.

1. With the door closed, you can operate the dishwasher from your device. In the app, tap the on/off touch icon, select the corresponding programme and tap start to launch it. If you require a delayed start, after selecting the programme, press the clock icon next to the start/pause and settings icons to access the time selection and, once selected, press start.

Loading the dishwasher baskets

For best dishwasher performance, follow these loading guidelines.

Attention! Tableware not suitable for dishwashing:

1. Temperature-sensitive plastic items, copper and tin-coated items, aluminium and silver cutlery.
2. Delicate glassware, hand-painted decorative porcelain; items with crystal elements, etc.
3. Items with absorbent properties (sponges, household cloths).

- Scrape off large amounts of food debris. It is not necessary to rinse dishes under running water. For dishes or utensils with baked-on, burnt-on or stubborn food particles that are difficult to remove, soaking before washing is recommended. Place the tableware as follows:

1. Items such as cups, glasses, pots/pans, etc. should be placed upside down.
2. Curved items or those with recesses should be positioned at an angle to allow water to drain properly.
3. All items must be stacked securely and cannot tip over.
4. They must not prevent the spray arms from rotating during washing.

ENGLISH

1. Place cutlery, chopsticks, and small items in the cutlery basket. Very small items should not be washed in the dishwasher as they could easily fall from the baskets.

Removing dishes

To prevent water from dripping from the upper basket to the lower basket, we recommend emptying the lower basket first, then the upper basket.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter tableware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too soiled). Position dishes and cookware so they do not move under the water spray. Always place glasses, cups and bowls upside down.

Figure 10:

1. Mug
2. Saucer
3. Cup
4. Dessert bowl
5. Glass
6. Serving spoon
7. Fork
8. Table knife
9. Serving fork
10. Teaspoon
11. Sauce ladle
12. Soup spoon
13. Dessert spoon

Adjusting the upper basket

Fig. 11

You can adjust the position of the basket up and down by holding it on both sides.

CAUTION: We recommend adjusting the upper basket height before loading dishes into the basket. If you adjust the basket after loading the dishes, you may damage the dishes.

Loading the lower basket

We recommend placing larger items which are more difficult to clean in the lower basket: pots, pans, lids, serving dishes and bowls, as shown in figure 12.

It is preferable to place serving dishes and lids at the sides of the baskets to avoid blocking the rotation of the upper spray arm. Pots, serving bowls, etc., must always be placed upside down. Deep pots should be tilted to allow water flow.

The lower basket features fold-down tine rows to accommodate more large pots and pans.

ENGLISH

Figure 12:

1. Soup plate
2. Oven pot
3. Glass bowl
4. Small pot
5. Melamine bowl
6. Long plate
7. Oval tray
8. Dessert plate
9. Melamine dessert plate

Upper cutlery basket

The cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars of the basket. Fig. 13

Includes three separate trays, which can be used as movable parts. The free space enabled by any rack allows large items to be loaded in the upper basket. Fig. 14

Dishwasher startup instructions

1. Pull out both the upper and lower baskets, load the dishes and push them back in. It is recommended to load the lower basket first, then the upper one.
2. Add detergent.
3. Insert the plug into the mains socket.
4. Ensure the water supply is completely turned on. Close the door, press the power touch icon, then press the programme touch icon to select the desired washing programme. Apply slight force to ensure the door is properly closed.

NOTE: A click can be heard when the door closes correctly.

Changing the programme

A cycle in progress can only be modified if it has been running for a short time. Otherwise, the detergent may have already been released and the appliance may have already drained the washing water. If so, the detergent dispenser must be refilled.

1. During the washing process, press the power touch icon to switch off the appliance.
2. Press the on/off touch icon again to turn the dishwasher on, then select the programme to the desired cycle.

NOTE: If you open the door during washing, the machine will pause and the status light will flash. When closing the door, the dishwasher will continue to run after 10 seconds.

Adding a dish during washing

A forgotten dish can be added any time before the detergent dispenser opens.

1. Press the Start/Pause touch icon to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.

ENGLISH

1. Close the door and the dishwasher will start running after ten seconds.

WARNING! It is dangerous to open the door during washing, as hot water could cause burns. If the door is opened whilst the dishwasher is operating, the machine will stop automatically.

At the end of the washing programme

When the programme ends, the display will show "00" and emit three short beeps, after that the digital display will show "END". If there are no further operations, it will automatically shut down after 3 minutes.

Open the door carefully. Hot steam may escape when opening the door!

Hot dishes are sensitive to knocks. Dishes should therefore be allowed to cool for about 15 minutes before being removed from the appliance.

Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. This way, they will be cooler and drying will improve.

Automatic opening and closing of the door

The dishwasher door opens and closes automatically, which improves drying results. Wait until the dishwasher indicates that the programme has finished and the dishes have cooled down before unloading the dishwasher. The drying time for the automatic opening option varies between programmes.

For the ECO programme, the door will automatically open when the wash cycle time has 30 minutes left and will automatically close 5 minutes later when the wash cycle is finished. For other programmes, except the fast programme, the door will open automatically at the end of the wash cycle and close 3 minutes later.

NOTE: For best drying results, do not close the door before the drying phase has been completed and the machine has turned off automatically.

When the door opens automatically, do not attempt to close the door to avoid damaging the automatic door mechanism.

The automatic opening function can be deactivated.

Press and hold the SUPER DRY touch icon and the EXTRA HYGIENE touch icon simultaneously for 3 seconds; the digital display will show 'OFF' and flash 3 times. To activate the function, press and hold the SUPER DRY touch icon and the EXTRA HYGIENE touch icon simultaneously for 3 seconds; the digital display will show 'ON' and flash 3 times. (All these operations must be performed before selecting the washing programme).

ENGLISH

5. Cleaning and maintenance

Before starting any care or maintenance, you must always disconnect the appliance from the power supply and also close the water supply.

Filtration system

Fig. 15

The filtration system consists of a coarse filter, flat filter and microfilter.

1. Flat filter: Food and debris will be trapped by a special jet in the lower spray arm.
2. Coarse filter: Large debris, such as bone pieces or glass that could clog the drain, will be trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs on top of the filter and pull it out.
3. Microfilter: This filter retains dirt and food debris in the drain area and prevents it from being deposited back into the dishes during a cycle.

Check the filters for blockages every time the dishwasher is used.

By unscrewing the coarse filter, you can remove the filtration system. Remove any food debris and clean the filters under running water.

The filter effectively prevents food residue from the dishes from falling into the washing system. However, food residue can sometimes clog the filter, affecting washing performance. It is recommended to check the flat filter for food debris immediately after the washing programme has finished and clean it if necessary.

Additionally, it is advisable to disassemble and clean the filter at least once a week. The steps to clean the filter are as follows:

Fig. 16

1. Remove the coarse filter from the microfilter.
2. Turn the microfilter counterclockwise.
3. Remove the microfilter and flat filter assembly from the dishwasher compartment.
4. Clean the filters under running water.

The filters should be thoroughly cleaned and rinsed before replacing all sections in reverse order to that indicated above.

Consider:

Never run a programme without the filters in place.

Improper installation of filters can reduce wash performance and potentially damage your dishwasher.

When cleaning the filters, do not knock them. Otherwise, the filters could become deformed and the dishwasher performance could decrease.

ENGLISH

Cleaning the spray arms

Regular cleaning of the spray arms is necessary, as hard water chemicals will block the nozzles and spray arm bearings.

Fig. 17

1. Pull the lower spray arm upwards to remove it.
2. To remove the upper spray arm, first remove the upper spray arm clamp by rotating it.
3. The spray arms must be cleaned and rinsed thoroughly before replacing them. Make sure the upper spray arm clamp is securely tightened when reassembling the upper spray arm.

Dishwasher care

To clean the control panel, use a slightly damp cloth and then dry thoroughly. To clean the exterior, use a specific polish for household appliances. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the door

To clean the edge around the door, you must use only a soft, warm, damp cloth. To avoid water from entering the door gasket and the electrical components, do not use any type of spray cleaning agent. Also, never use abrasive cleaners or scouring pads on outer surfaces as they will scratch the finish. Some paper towels can also scratch or leave marks on the surface.

WARNING: Never use a spray cleaner to clean the door panel, as this may damage the door lock and electrical components. The use of abrasive agents or paper towels is not permitted due to the risk of scratching or leaving marks on the stainless steel surface.

Protection against freezing

If your dishwasher is left in an unheated location during winter, ask a service technician to:

1. Disconnect the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (You can use a tray to collect the water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter in the basin and the bottom and use a sponge to soak up the water in the sump.

How to maintain your dishwasher

ENGLISH

After every wash

After each wash, turn off the water supply to the appliance and leave the door slightly ajar so moisture and odours are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always unplug the appliance from the mains socket. Do not take risks.

Without solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth with warm soapy water. To remove spots or stains from the interior surface, use a cloth dampened with water and a little white vinegar, or a cleaning product specifically made for dishwashers.

When going on holiday

When going on holiday, it is recommended to run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the appliance door slightly ajar. This will help the seals last longer and prevent odours from forming in the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

Gaskets

One of the factors that cause odours to form in the dishwasher is food trapped in the gaskets. Regular cleaning with a damp sponge will prevent this from happening.

6. Troubleshooting

Before contacting service, reviewing the following tables may help you avoid having to call for service.

Problem	Possible cause	Possible solution
The dishwasher does not work	Fuse blown or circuit breaker tripped.	Replace the fuse or reset the circuit breaker. Disconnect other appliances sharing the same circuit as the dishwasher.
	No electrical supply.	Ensure the dishwasher is switched on and the door is properly closed. Check that the power cord is correctly plugged into the mains socket.

ENGLISH

	Low water pressure or power failure.	Check that the water supply is properly connected and that the stopcock is open. In case of water supply interruption, switch off the dishwasher until supply is restored, then restart both the appliance and washing programme.
The drain pump does not stop	Overflow	The system features overflow detection; if triggered, it automatically stops the circulation pump and activates the drain pump.
Noise	Some audible noises are normal.	It is normal to hear the dispenser opening sound during the cycle.
	Utensils are not properly secured in the baskets, or a small item has fallen into the basket.	Properly secure all utensils and remove any loose objects inside the dishwasher.
	Motor humming.	The dishwasher has not been used regularly. If not used often, perform a fill and drain cycle once a week to help keep the gaskets moist.
Foam in the tank	Unsuitable detergent.	Use only specific dishwasher detergent to prevent foam formation. If it occurs, open the door and allow the foam to dissipate. Add approx. 3.8 liters of cold water to the tank. Close and lock the door and run the "prewash" cycle to evacuate the water. Repeat if necessary.
	Rinse aid spill.	Wipe up any rinse aid spillage immediately.
Stains on the inside of the tank	A detergent with dyes has been used.	Ensure you use colour-free detergent.
Dirty crockery and cutlery	Incorrect programme selection; improper rack loading.	Select a more intense programme. Ensure the dispenser operation and spray arm movement are not obstructed by large dishes.
Stains and veils on glasses and cutlery	Extremely hard water.Low inlet water temperature.Dishwasher overloading.Improper loading.Old or damp powder detergent.Rinse aid dispenser empty.Incorrect detergent dosage.	Remove all metal utensils from the dishwasher.Do not add detergent.Select the longest cycle.Start the programme and let it run for about 18-22 minutes, until it is in the main wash phase.Open the door carefully and pour 2 cups (approx. 480 ml) of white vinegar into the bottom of the dishwasher.Close the door and let the dishwasher finish the cycle. If vinegar does not work: repeat the above procedure, but use 1/4 cup (60ml) of citric acid crystals instead of vinegar.
Cloudiness on glassware.	Soft water combined with excess detergent.	Use less detergent if you have soft water and select a shorter cycle to wash and clean glassware.
Yellow or brown film on interior surfaces.	Tea or coffee stains.	Prepare a solution with 1/2 cup (120 ml) of bleach and 3 cups (720 ml) of warm water and remove stains by hand. Warning: Wait 20 minutes after a cycle finishes to allow the heating elements to cool before cleaning the interior; otherwise, you may get burned.
	Iron deposits in the water causing a generalized film.	Contact a decalcification company to install a specific filter.
White film on the interior surface	Hard water minerals.	To clean the interior, use a damp sponge with specific dishwasher detergent and wear rubber gloves.Do not use cleaners other than dishwasher detergent because of the risk of foaming.
The dispenser lid is not closing properly.	Detergent residue blocking the latch.	Clean detergent residues from the latch.
Detergent residue remains in dispenser compartments.	Dishes are blocking the dispenser compartments.	Rearrange the load correctly to prevent blocking the dispenser opening.
Steam	Normal phenomenon.	It is normal for some steam to escape through the vent next to the door closure during drying and draining.
Black or grey marks on tableware	Aluminium items have brushed against the tableware.	Use a mildly abrasive cleaner to remove these marks.

ENGLISH

Water accumulated at the bottom of the tank	Water cut-off during water intake.	A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated. However, if you see a lot of residual water, it could be due to a water cut-off during the filling process. Once water supply is restored, restart the dishwasher and washing programme; drainage will occur automatically.
Dishwasher leaks	Excessive rinse aid or rinse aid spills.	Take care not to overfill the rinse aid dispenser. Spilled rinse aid could cause excessive foam and lead to overflowing. Wipe any spills with a damp cloth.
	Dishwasher is not level.	Ensure the dishwasher is level.

NOTE: Olive pits or similar objects can pass through the filter system and reach the drain pump area. In this case, the drain pump becomes blocked and needs cleaning. Remove the pump cover by pushing outwards, then you can clean the pump impeller yourself. After that, put the cover back in position. Fig. 18

Improper machine maintenance may endanger users' safety. Any repairs must be carried out by professionals.

Error codes

After starting the wash cycle, if there is a malfunction, the dishwasher will display an error code. The following table shows possible error codes and the faults they represent; the error indicator will flash and the appliance will beep.

Error code	Problem
E1	Overflow/leakage
E2	Water inlet malfunction
E4	Water distribution valve malfunction
E5	Fan malfunction
E6	Abnormal heating
E7	Thermistor open/short circuit
EA	Abnormal communication

Caution:

For E2, first check the troubleshooting table before contacting Cecotec's Official Technical Support Service.

For E1, turn off the main water supply before contacting Cecotec's Official Technical Support Service.

For E4, E5, E6, E7, EA, please contact Cecotec's Official Technical Support Service.

7. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

8. Information on data stored by connected products in accordance with Regulation (EU) 2023/2854 (“Data Regulation”)

Cecotec's connected products and related services are those that generate different data and information during use. In accordance with the provisions of the Data Regulation, through this document Cecotec provides you with information about your rights concerning the data generated and about how to access such data.

This right allows you to use the data for any lawful purpose, including, among others, product and/or service optimisation or contracting post-sale services with third parties.

As a user, you may exercise your right of access, within the limits provided for by the Data Regulation, through the email address [e-mail]. To protect the generated data—and in order to prevent fraud or identity theft—CECOTEC may require additional information to verify your status as a user.

Data is stored for a determined period of time.

9. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. Simplified EU Declaration of Conformity

ENGLISH

CE

Cecotec Innovations hereby declares that these dishwashers, models

EU01_112754 - Bolero Aguazero 7000 Matt White Glass Connected and EU01_112755 - Bolero

Aguazero 7000 Matt Black Glass Connected, are in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

11. Technical specifications

You can consult the technical information by scanning the attached QR code.

Reference	EU01_112754	EU01_112755
Model	Bolero Aguazero 6750 Matt White Glass Connected	Bolero Aguazero 6750 Matt Black Glass Connected
QR code
Rated voltage	220-240 V~	220-240 V~
Rated frequency	50 Hz	50 Hz
Total power	1800 - 2200 W	1800 - 2200 W
Supply pressure	0.04 - 1.00 Mpa	0.04 - 1.00 Mpa
Protection rating	IPX1	IPX1
Energy efficiency class*	B	B
Capacity	16 place settings	16 place settings

*A (highest efficiency) to G (lowest efficiency)

Wi-Fi network type: 802.11b/g/n(HT20)

Frequency band: 2412-2472MHz

Maximum emission power: 17.0 dBm

Technical data sheet

Manufacturer	Cecotec Innovaciones, S.L.
Models	EU01_112754 - Bolero Aguazero 7000Matt White Glass Connected / EU01_112755 - Bolero Aguazero 7000Matt Black Glass Connected
Number of place settings	16 place settings
Energy efficiency class	B
SETTING	UNIT	VALUE
Energy consumption of the ECO programme (EPEC) rounded to the third decimal place	kWh/cycle	0.659

ENGLISH

Standard programme energy consumption (SPEC) rounded to the third decimal place	kWh/cycle	1.750
Energy Efficiency Index (EEI)	-	37.7
Water consumption of the Eco programme (EPWC) rounded to one decimal place	L/cycle	10.9
Cleaning performance index ( I_c )	-	1.13
Drying performance index ( I_D )	-	1.07
ECO programme duration ( T_t ) rounded to the nearest minute	(h:min)	4:05
Power consumption in off mode ( P_o ) rounded to two decimal places	W	N/A
Power consumption in standby mode ( P_sm ) rounded to two decimal places	W	0.50
Is information displayed in standby mode?	-	Yes
Power consumption in standby mode ( P_ns ) in networked standby conditions (if applicable), rounded to two decimal places	W	-
Power consumption in “Delay start” ( P_ds ) (if applicable) rounded to two decimal places	W	4.00
Noise emission class	dB(A) re 1 pW	42
Installation	Free-standing
Built-in	No
Height*	85 cm
Width*	60 cm
Depth*	59 cm

*Approximate measurements, may vary depending on the model.

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

12. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official Technical Support Service at [phone].

FRANÇAIS

https://cecotec.es/es/information/declaration-of-conformity

https://cecotec.es/es/information/declaration-of-conformity

11. Technische specificaties

https://cecotec.es/es/information/declaration-of-conformity

https://cecotec.es/es/information/declaration-of-conformity

Referans	EU01_112754	EU01_112755
Model	Bolero Aguazero 7000 Matt White Glass Connected	Bolero Aguazero 7000 Matt Black Glass Connected
QR Kodu

TÜRKÇE

https://cecotec.es/es/information/declaration-of-conformity

https://cecotec.es/ca/information/declaration-of-conformity

FIG 2:

FIG 3:

FIG 4:

FIG 5:

1

2

3

4

5

FIG 6:

FIG 7:

FIG 8:

FIG 9:

FIG 10:

FIG 11:

FIG 12:

FIG 13:

FIG 14:

FIG 15:

FIG 16:

1

2

3

4

FIG 17:

FIG 18:

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
