USER MANUAL Energysilence Aero 452 Quicksnap CECOTEC

SAFETY INSTRUCTIONS....5

ESPAÑOL....61

ENGLISH....69

FRANÇAIS....77

DEUTSCH....85

ITALIANO....93

PORTUGUÊS....101

NEDERLANDS....109

POLSKI....117

ČEŠTINA....125

MAGYAR....133

ΕΛΛΗΝΙΚΑ....141

TÜRKÇE....149

العربية....157

CATALÀ....164

FIGURES....172

NOTA

EU01_123469 EnergySilence Aero 452 QuickSnap White EU01_123470 EnergySilence Aero 452 QuickSnap Black

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

- Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.

- If the power cord is damaged, it must be replaced by

the official Cecotec Technical Support Service to avoid any type of danger.

- Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

- The appliance must be installed in accordance with national wiring regulations.

- Never insert objects or body parts between the rotating fan blades.

- To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.

- Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.

- The electrical wiring must be in accordance with local regulations.

- The cable must be properly earthed to avoid possible accidents.

- The appliance must be installed in accordance with national wiring regulations.

- Never install the fan in a damp or wet room.

- Be careful when near the rotating fan blades.

- To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

- Do not bend the blade-attachment system during the installation or cleaning process.

- Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the

appliance before cleaning it.

• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

- Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.

- In case of battery ingestion, please seek medical attention immediately.

- Do not allow children to replace batteries without adult supervision.

- Do not disassemble, open, or damage the batteries.

- Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

- Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

- Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

- Both batteries and cells can leak under extreme

conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity or size. Children should be allowed to handle the batteries only under adult supervision.
  • Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

1. Parts and components

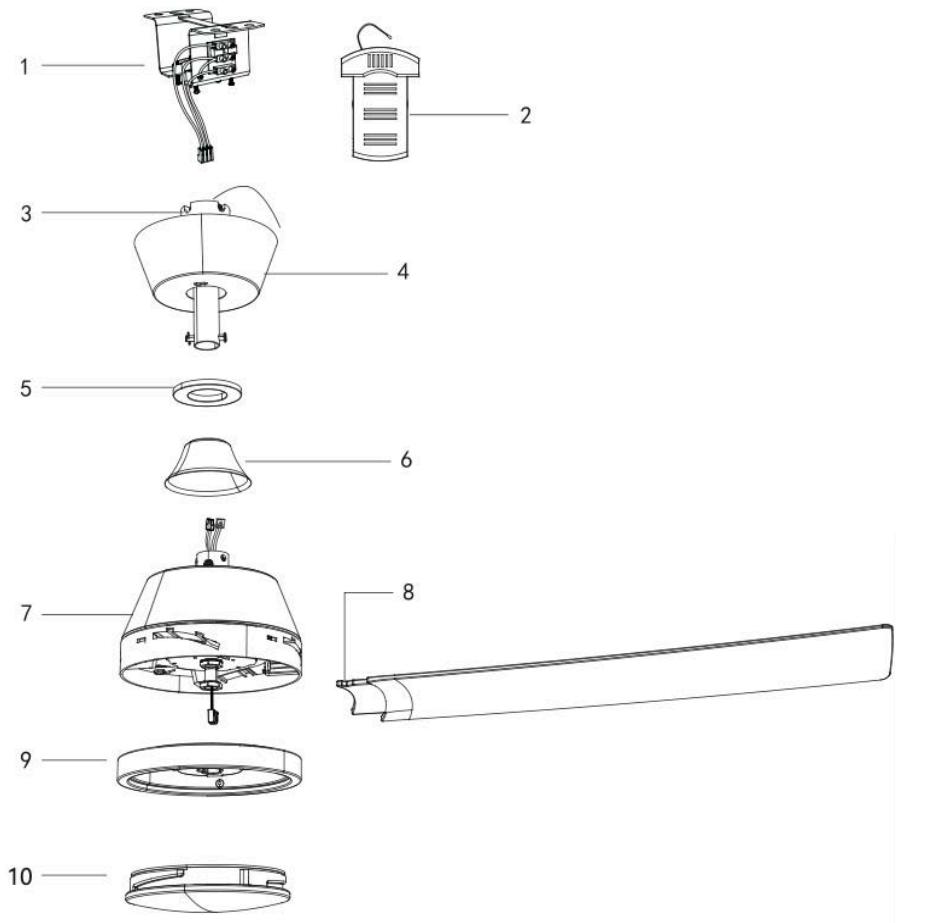

Fig. 1

1. Mounting bracket
2. Receiver
3. Downrod assembly
4. Canopy
5. Decorative cover
6. Coupling cover
7. Fan motor assembly
8. Blades
9. Light plate
10. Light shade

11. Remote control

12. Mounting bracket accessory pack

13. Remote control accessory bag

14. Canopy screws (2 pieces pre-installed in mounting bracket)

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

Product
- Remote control
- Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Installation

Below are the steps required for the correct installation of the ceiling fan. Ensure you follow the specific instructions according to the type of ceiling where installation will be carried out.

Wooden ceiling

For a wooden ceiling, install 4 self-tapping screws to secure the mounting bracket to the ceiling. Fig. 2

Note: Use the mounting bracket accessory pack.

Concrete ceiling

For a concrete ceiling, install 2 expansion screws to secure the mounting bracket to the ceiling. Fig. 3

Note: Use the mounting bracket accessory pack.

Once the mounting bracket is firmly installed, proceed with fan assembly following these steps:

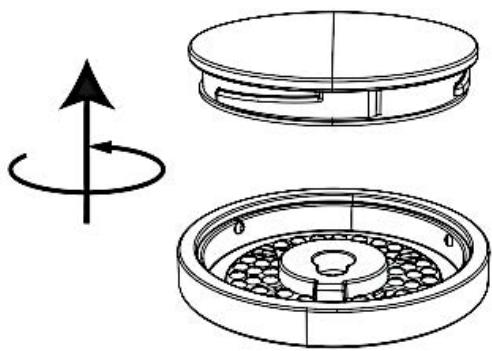

1. Remove the light shade. Fig. 4
2. Remove the three pre-installed screws from the motor. Fig. 5.
3. Use the three screws to install the light plate to the motor and connect the wire terminals. Fig. 6.

4. Insert the 3 fan blades into the motor slots. Fig. 7

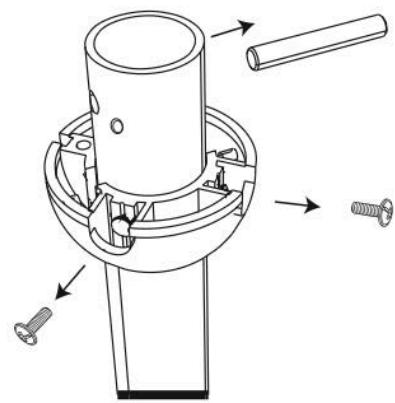

5. Remove and store the pin and clip from the downrod. Remove the two screws and pin from the downrod ball.

Fig. 8

1. Clip

2. Pin

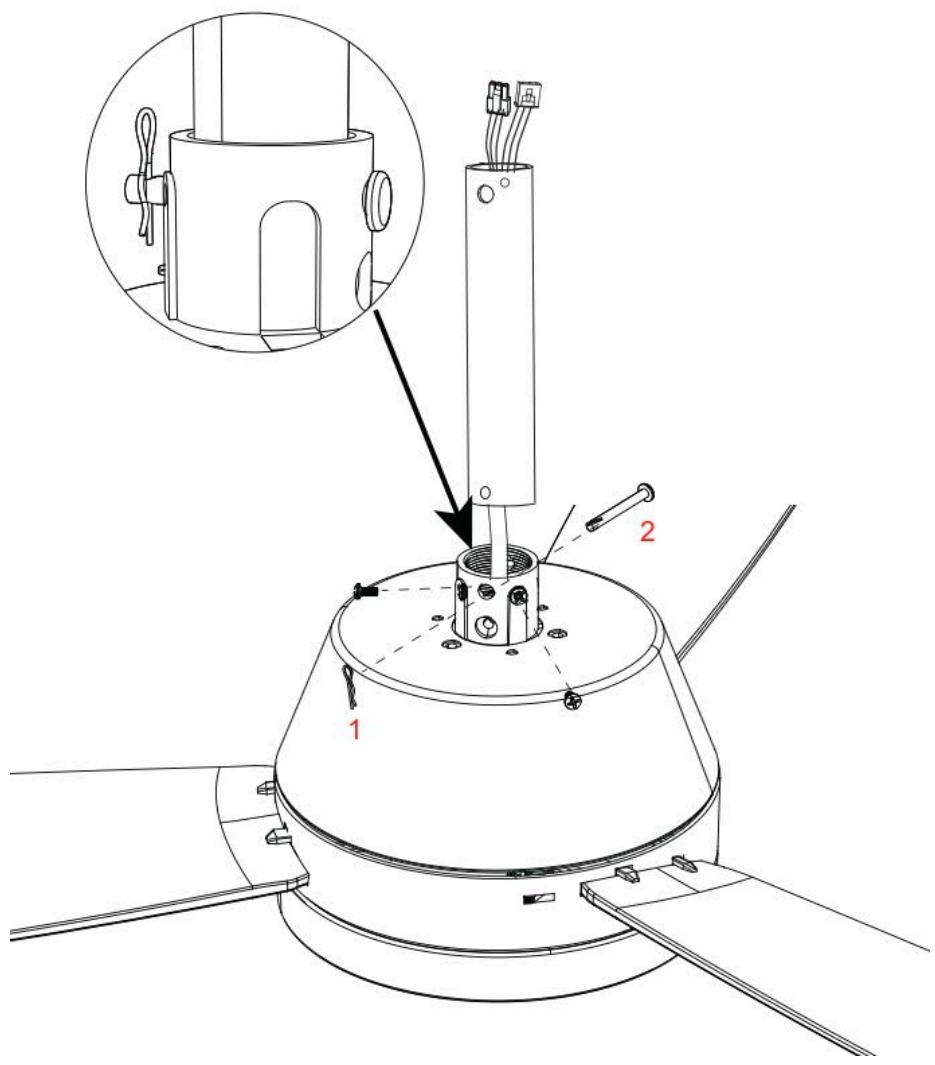

3. Loosen two screws in the downrod bracket. Pass the electrical wires from the bottom of the downrod up through the downrod, then place the downrod into the downrod bracket.

Fig. 9

Fig. 9

1. Clip

2. Pin

3. Align the hole in the downrod with the hole in the downrod bracket. Pass the pin through the hole. Then secure the pin with the clip. Ensure you push the straight leg of the clip through the hole in the pin until it reaches the centre of the clip. Ensure it will not fall out. Finally, retighten the two screws.

ENGLISH

Warning: It is crucial that the screws in the downrod bracket are correctly installed and properly tightened. Failure to secure the screws, pin and clip could result in the fan falling.

1. Slide the coupling cover over the downrod. Then slide the decorative cover and canopy, both facing upwards, over the downrod. Fig. 10
2. Secure the downrod ball firmly again with the two screws and pin. Fig. 11
3. Carefully lift the fan and place the downrod ball assembly into the mounting bracket that is fixed to the ceiling. Ensure that the slot in the ball is correctly aligned with the ridge in the mounting bracket.

Fig. 12

1. Ridge
2. Slot
3. Mounting bracket

! Warnings:

● Failure to align the slot in the ball with the ridge may result in serious injury.
● The fan must be hung with at least 230 cm clearance from floor to blades.

• Wiring
• Switch off the electricity at the main fuse box before installation.

- Connect the motor power cable, LED power cable and receiver power cable to the socket in the controller. Ensure they are connected correctly after hearing a click.

- Use a screwdriver to loosen the screws of the power cable plug. Connect the cables to the terminal according to the corresponding colours.

Fig. 13

Electrical supply

1. Power cable (3 wires)
2. LED power cable (3 wires)
3. Receiver power cable (3 wires)
4. Earth (1 wire)

Warning: To avoid possible electric shock, switch off the electricity at the main fuse box or circuit panel before beginning fan installation or carrying out fan maintenance or installing accessories.

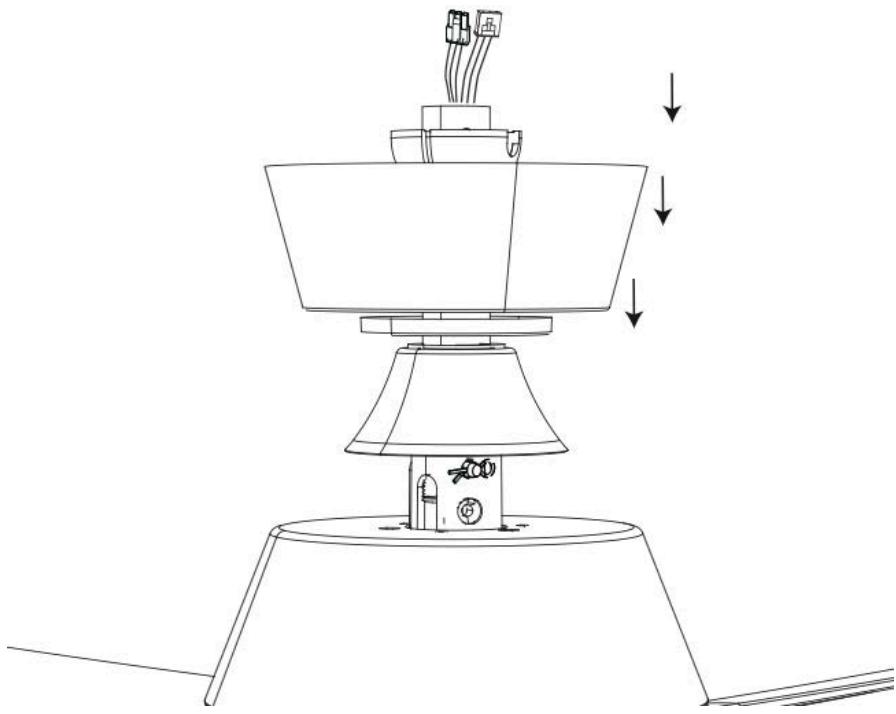

1. Install the canopy and decorative cover. Fig. 14

2. Loosen the 2 screws in the mounting bracket.

3. Rotate the canopy 45° anticlockwise to lock it with the 2 aforementioned screws.
4. Tighten the screws.

ENGLISH

- Push the decorative cover towards the canopy.

1. Install the light shade. Fig. 15
2. Installation completed.

4. Operation

Remote control

Remote control bracket installation

Fig. 16

To mount the remote control bracket to the wall, follow these steps:

1. Place the bracket in the desired position.
2. Insert the wall plugs into the pre-drilled holes.
3. Align the bracket holes with the wall plugs.
4. Secure the bracket using screws, ensuring it is firmly attached.

Note: Use the remote control accessory pack.

Using the remote control

1. Insert 2 AAA batteries (not included) into the remote control to operate the fan. Ensure the polarities are correct.
2. If you will not be using the remote control for an extended period, remove the batteries to prevent possible damage.
3. Store the remote control in a dry place, away from extreme temperatures and humidity.
4. The LED indicator will flash each time a button is pressed, confirming the action.
5. Maintain the desired state of lights and fan for at least 15 seconds to activate the memory function and save your preferences.

Figure 17

1. Speed indicator
2. Light button
3. Brightness adjustment button (down)
4. Speed selection buttons
5. Reverse rotation button
6. Natural mode button
7. Timer button
8. Fan on/off button
9. Colour temperature button
10. Brightness adjustment button (up)
11. Sound on/off button

Buttons description

Speed indicator	Displays the selected fan speed level.
Light button	Turns the light on or off, remembering the last colour temperature and brightness setting.Press and hold for 3 seconds to pair the code, the light will flash and the appliance will emit a sound when paired correctly.
Brightness adjustment button (down)	Reduces brightness by one level, with a minimum of level 1.
Speed selection buttons	Allows you to select between 6 speed levels.
Reverse rotation button	Toggles between forward and reverse mode to change the airflow direction.
Natural mode button	Simulates a natural breeze by alternating between different speed levels.
Timer button	Sets the timer in 1-hour increments, up to a maximum of 6 hours. The indicator lights show the selected duration.
Fan on/off button	Controls fan operation with a single touch.
Colour temperature button	Changes the light colour temperature between 2700K and 6500K.
Brightness adjustment button (up)	Increases brightness by one level, up to a maximum of 6 levels.
Sound on/off button	Enables or disables the remote control buzzer.

5. Cleaning and maintenance

1. Clean the fan regularly
2. When cleaning, use only a soft brush or lint-free cloth to avoid scratching the finish.
3. Do not use abrasive cleaning agents as they could damage the appliance.

Warning: Do not use solvents to clean the fan. Doing so could damage the motor and may result in a risk of electric shock.

RECOMMENDATION: Periodically check that the blades are securely fastened to the motor with the screws.

6. Troubleshooting

Wobble

Note that not all ceiling fans are the same (not even those that are the same model), some move more than others. The fact that the fan moves a couple of centimetres does not indicate that it will fall over.

ENGLISH

Even if all blades are ballasted and grouped by weight, it is impossible to completely avoid wobble. This is not a problem. Ceiling fans tend to move during operation.

To reduce wobble try the following:

1. Check that all of the blade mounting screws are tightened and secure.
2. Fan wobble may be caused by the unevenness of the fan blades. To check the blade level, measure the distance from each blade tip to the ceiling.

If measurements are irregular:

• Be sure the blade mount screws are not too tight or too loose, which may cause wobbling due to an unleveled blade tip.

• A deformed blade can cause wobbling. Check by removing the blade and placing on a flat surface.

• Blade tracking may be checked simply by use of a household ruler. Place the ruler vertically against the ceiling and even with the outside leading edge of a blade. Note the distance of the edge of a blade compared to the others. Turn the blade slowly by hand to check the remaining blades.

If a blade is not in alignment, the blade is either out of shape, warped or the blade screws are not evenly tightened or either loose.

7. Technical specifications

Product:

EnergySilence Aero 452 QuickSnap White

EnergySilence Aero 452 QuickSnap Black

Product reference: EU01_123469/ EU01_123470

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Motor power: 30 W

Light power: 24 W LED

Description	Symbol	Value	Unit
Fan maximum airflow	F	132.35	m3/min
Fan power consumption	P	30.5	W
Service value	SV	4.34	(m3/min)/W
Power consumption on standby mode	PSB	0.4	W
Fan noise power level	LWA	45	dB (A)
Maximum air speed	c	12.46	m/sec
Seasonal electricity consumption	Q	8.25	kWh/a
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar, Valencia, Spain

The power consumption in standby mode is 0,4 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

This product features a light source with an energy efficiency grade E.

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

8. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities. Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

9. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. Simplified EU Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

https://cecotec.es/es/information/declaration-of-conformity

PORTUGUÊS

Se as medidas forem irregulares:

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

https://cecotec.es/es/information/declaration-of-conformity

ČEŠTINA

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

ΕΛΛΗΝΙΚΑ

https://cecotec.es/es/information/declaration-of-conformity

FIGURES
FIG 1

FIG 2

FIG 3

FIG 4

FIG 5

FIG 6

FIG 7

FIG 8

FIG 9

FIG 10

FIG 11

FIG 12

FIG 13

FIG 14

FIG 15

FIG 16

FIG 17

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
