Product type	Mobile air conditioner
Brand	Cecotec
Model	Energysilence 3500 Cool Compact
Cooling capacity	3500 BTU/h (approx. 1 kW)
Dimensions (W x D x H)	Approx. 35 x 35 x 70 cm
Net weight	Approx. 25 kg
Power supply	220-240 V, 50 Hz
Power consumption	Approx. 1000 W
Main functions	Cooling, ventilation, dehumidification, oscillation, timer
Noise level	Silent (night mode, < 50 dB)
Compressor type	Silent rotary
Refrigerant	R290 (environmentally friendly)
Water tank capacity	Approx. 1 L
Control	Remote control and touch panel
Air filter	Washable, anti-dust
Maintenance and cleaning	Clean filter every 2 weeks, empty tank regularly
Safety	Overheat protection, automatic shutdown, child safety
Spare parts and repairability	Remote control, filter, parts available on request
Included accessories	Exhaust hose, window kit, remote control
Warranty	2 years

Frequently Asked Questions - Energysilence 3500 Cool Compact CECOTEC

How to install the Cecotec Energysilence 3500 Cool Compact air conditioner?

Place the unit near a window, attach the exhaust hose to the provided window kit, then plug in the power. Ensure hot air is exhausted outside.

What is the cooling power of this model?

The cooling capacity is 3500 BTU/h, about 1 kW, suitable for a room up to 25 m².

How to clean the air filter?

Turn off and unplug the unit. Remove the filter from the back, wash it with warm water, dry it completely before reinstalling. Do this every 2 weeks.

Can I use the air conditioner in fan mode without cooling?

Yes, you can select fan-only mode. The unit will operate without the compressor to circulate air.

What to do if the water tank is full?

The tank full indicator lights up. Empty the tank by removing the drain plug and draining the water. Some models allow continuous drainage with a hose.

How to set the timer?

Press the Timer button on the remote or panel. Set the operating time (1 to 24 hours). The unit will automatically turn off after the set time.

Is the compressor noisy?

This model is designed to be quiet, with a noise level below 50 dB in night mode. The rotary compressor is soundproofed.

Can I use a longer exhaust hose?

It is not recommended to extend the hose beyond 2 meters as it reduces efficiency. Use only the provided hose or a compatible model.

How to switch to dehumidification mode?

Press the Mode button until the drop symbol appears. The unit will run at low speed to extract moisture from the air.

What to do if the unit does not turn on?

Check the power outlet, circuit breaker, and ensure the water tank is not full. Make sure the remote control has batteries. If the problem persists, contact customer service.

USER MANUAL Energysilence 3500 Cool Compact CECOTEC

1. Parts and components 28
2. Before use 28
3. Operation 29
4. Cleaning and maintenance 30
5. Technical specifications 31
6. Disposal of old electrical and electronic appliances 32
7. Technical support and warranty 32
8. Copyright 32

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Cleaning and maintenance tasks should not be carried out by unsupervised children.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service in order to avoid any type of danger.

• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

• If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!

• Do not operate the device if any fault or unusual sign is detected.
• Do not operate the product next to combustible or explosive gas.
• The appliance must not be placed immediately below a socket.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.
• Make sure the appliance is placed on a flat and stable surface and do not move it during operation.
• Do not use the appliance near a window or places where it could get wet (at least 2 metres away), as water could cause an electric shock.
• Do not operate the product under or next to curtains.
• Do not cover the air inlet and outlet and do not place the product's cord under carpets or other objects during operation. Keep the front, back, and sides of appliance at a minimum safety distance from walls and other objects.
• Do not leave the appliance unattended while in use.
• It is not recommended to use the product with an extension cord.
• Always turn off and unplug the device when not in use and before assembling, disassembling, or moving it. Pull from the plug, not the cable, to disconnect it from the outlet.
• Cleaning and maintenance tasks should be carried out according to this manual to ensure the correct operation of the device.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

INSTRUCTIONS DE SÉCURITÉ

1. Control panel
2. Housing
3. Air outlet
4. Water level control viewing window
5. Wheels
6. Water tank

Control panel

Fig. 2

1. Oscillation button
2. Off button
3. Speed mode I
4. Speed mode II
5. Speed mode III
6. Cool function button

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Cooler
• Cold packs
• Wheels
• Instruction manual

3. OPERATION

Switch-on

To switch on the cooler, press any of the speed mode buttons. The cooler will operate at the selected speed.

Speed

To adjust the speed, press any of the speed buttons. Each press will adjust the speed as follows:

• |① : low speed/ECO
• ||: medium speed
• ||| : high speed

Oscillation

Press the ⬇ button to activate the oscillation function. The cooler will start to oscillate.

Press the button again to stop oscillation.

Cool function

• When the cooler is in operation, press the ✿ button to activate the cool function.
• Press the button again to turn off the function.

Note: when the water tank level is low, the Cool function will not work. You will need to add more water to the tank.

Adding water to the water tank

• Remove the water tank, located at the back of the cooler, and fill it with clean water.
• When refilling the water tank, please observe the water level marks.
• Make sure that the water level is below the "Max" mark.
• For the cooler to cool, the water level must be above the "Min" mark.
• If you want to make it even cooler, you can put cold packs or ice cubes in the water tank.

WARNING:

• The water level in the tank must be below the "Max" mark, even if cold packs or ice cubes have been added.
• Do not add water while the appliance is running.

Using cold packs

In addition to cooling, cold packs absorb heat from the water. Therefore, if you use them, the air coming out of the cooler will be colder.

1. Put the cold packs in the freezer. When frozen, take them out.
2. Remove the water tank and put the cold packs.
3. Two cold packs are included with the cooler.

ENGLISH

NOTE: put the cold packs carefully so as not to damage the cooling system. NOTE: do not ingest ice from cold packs and do not let children play with them.

4. CLEANING AND MAINTENANCE

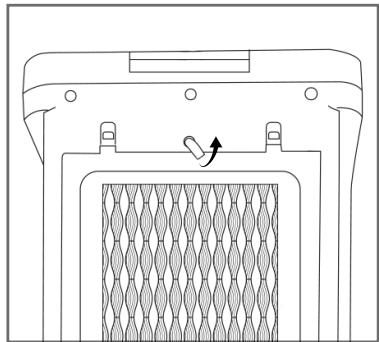

Cleaning the dust filter

Fig. 3

1. Unplug the cooler.
2. Remove the dust filter from its bracket manually.
3. Clean it with a neutral soap and a soft brush.
4. Rinse with clean water.
5. When it is clean, dry it and put it back in the cooler.

Cleaning the cooling pad

1. The cooling pad can be seen by removing the dust filter.
2. Remove it.
3. Clean it with a neutral soap and a soft brush and then rinse it with clean water.
4. When it is clean, dry it and put it back in the cooler.

NOTE:

Place the cooling pad carefully to avoid any leakage.

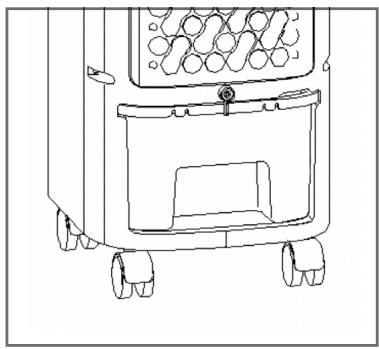

Cleaning the water tank

Fig. 4

1. Unplug the device.
2. Remove the water tank and clean it with neutral soap.
3. Rinse well with clean water. After drying, place it back in the cooler.

Cleaning mineral deposits

To reduce/remove mineral deposit build-up in the water tank, you can follow the recommendations below:

• Use demineralised or distilled water.
• Follow the following procedure on both water tanks at least once a month:
  o Make sure the cooler is unplugged.
• Use specific descaling liquid for cleaning coolers and follow the instructions on the liquid.
• Make sure that the inside of the tank is clean and dry before reassembly.
• Replace the water tank and store the cooler in a safe and dry place.

Cleaning the housing

Clean the housing with neutral soap and a soft cloth.

NOTE:

To clean the cooler, disconnect it from the power supply and make sure that no part of the control panel comes into contact with water.

5. TECHNICAL SPECIFICATIONS

Product reference: 08303

Product: EnergySilence 3500 Cool Compact cooler

Power: 65 W

Voltage: 220-240 V\~

Frequency: 50-60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	6.7	m^3/min
Fan power consumption	P	59.4	W
Service value	SV	0.11	(m^3/min)/W
Power consumption on standby mode	P_SB	0	W
Fan sound power level	L_WA	62.1	dB (A)
Maximum air speed	C	3.7	m/seg
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910, Alfafar(Valencia, Spain)

The appliance power consumption when off is 0 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/controller of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4
