Energysilence 2000 Cool Tower - Air Conditioning CECOTEC - Free user manual and instructions

Product type	Air conditioning tower / fan
Brand	Cecotec
Model	Energysilence 2000 Cool Tower
Dimensions (H x W x D)	Approximately 120 x 30 x 30 cm
Net weight	Approximately 6.5 kg
Power supply	220-240 V ~ 50 Hz
Rated power	55 W
Maximum airflow	Up to 12 m³/min
Noise level	45 dB (silent mode)
Number of speeds	3 (low, medium, high)
Oscillation	Yes, 80°
Timer	Yes, from 1 to 9 hours
Remote control	Yes, included
Water tank	No (fan only)
Main functions	Ventilation, oscillation, timer, remote control
Maintenance and cleaning	Clean the front grille with a damp cloth; dust regularly
Safety instructions	Do not immerse in water; automatic shut-off if tipped over
Spare parts	Grille, remote control, motor (not available separately)
Repairability	Repairability index not disclosed; contact Cecotec after-sales service

Frequently Asked Questions - Energysilence 2000 Cool Tower CECOTEC

How to turn the Energysilence 2000 Cool Tower on and off?

Press the On/Off button on the control panel or on the remote control. An audible signal confirms power on.

How to adjust the fan speed?

Use the Speed button on the device or remote control to cycle through 3 levels: low, medium, and high.

How to activate oscillation?

Press the Oscillation button to make the fan swing left and right. Press again to stop.

How to use the timer?

Press the Timer button to select a duration from 1 to 9 hours. The device will turn off automatically after the set time.

The remote control does not work, what to do?

Check the battery (CR2025) and its orientation. Replace if necessary. Point the remote towards the infrared receiver on the fan.

The fan is making an abnormal noise, is this normal?

A slight noise is normal, but a loud noise may come from a loose part or the grille. Make sure the device is placed on a flat surface.

How to clean the fan?

Unplug the device. Use a soft, damp cloth to clean the front grille. Do not use harsh chemicals.

Can I use the device continuously at night?

Yes, thanks to the silent mode, it is suitable for nighttime use. You can set the timer to turn it off after a few hours.

The device turns off by itself, why?

The automatic shut-off may come from a tip-over protection. Place the fan on a stable surface. Also check the timer.

Where to find the complete user manual?

Download the free PDF manual on the website notice-facile.com by selecting your language.

USER MANUAL Energysilence 2000 Cool Tower CECOTEC

Safety instructions 9

1. Parts and components 59

2. Before use 60

3. Assembly 60

4. Operation 61

5. Cleaning and maintenance 62

6. Troubleshooting 64

7. Technical specifications 65

8. Disposal of old electrical appliances 66

9. Technical support and warranty 66

10. Copyright 66

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Do not immerse the cord, plug or any non-removable part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• If the appliance falls accidentally into water, unplug it immediately. Do not reach into the water!
• Do not operate the device if any fault or unusual sign is detected.
• Do not operate the product next to combustible or explosive gas.
• The appliance must not be placed immediately below a socket.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the appliance.
• Make sure the appliance is placed on a flat and stable surface and do not move it during operation.
• Do not use the appliance near windows or places where there is risk of getting wet (at least 2 meters away), as water could cause an electric shock.

• Do not operate the product below or next to curtains.

• Do not cover the air inlet and outlet and do not place the product's cord under carpets or other objects during operating. Keep a minimum safety distance on each side, front and back of the product.

• Do not leave the appliance unattended while in use.
• It is not recommended to use the product with an extension cord.
• Always turn off and unplug the appliance when not in use and before assembling, disassembling or moving it. Pull from the plug, not the cord, to disconnect it from the outlet.
• This product is designed only for household use. It is not suitable for commercial or industrial use. Do not operate it outdoors.
• Cleaning and maintenance tasks should be carried out according to this manual to ensure correct operation of the device.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Do not try to repair the device by yourself. This product can only be assembled, disassembled and repaired by qualified personnel.
• Do not touch the device with wet hands.
• Turn off the appliance when you do not plan to use it again.
• Do not operate the device on an unstable surface. Do not use the device outdoors.
• The water amount inside the water tank should not exceed the "Max" mark. When you wish to add moisture to the air,

the water amount must be filled in the water tank until the "Min" mark.

• Do not lean the water tank to avoid any spills.
• Do not turn the device upside down. If the device falls on the floor with water inside, unplug it from the mains and have it repaired.
• The appliance must not be covered.
• Do not shake the device while it is working, as it could cause it to stop working.
• Replace the water inside the water tank frequently.
• Do not use the device in the bath, shower, swimming pool, above a sink with water or areas with extremely high humidity levels.
• Do not use the device with an exterior timer or any other device which can turn it on automatically, as it could cause a fire if is covered.
• This product has undergone a quality control previous to its commercialisation with the aim of ensuring its correct operating. After the quality control testing, the appliance is cleaned thoroughly, therefore, although it is unlikely to occur, there could be rests of water drops inside it.

Battery instructions

• The remote control includes a battery. Do not burn or expose the battery to high temperatures, as it may explode.
• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water.
• If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention.

- Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

INSTRUCTIONS DE SÉCURITÉ

1. Control panel
2. Air outlet
3. Front part
4. Water level control window
5. Maintenance
6. Power cord
7. Back
8. Handle
9. Water tank screw
10. Rack/filter
11. Rotating element
12. Water tank
13. Pump
14. Coolers

Fig. 2

1. Oscillation function
2. Off button
3. Low speed
4. Medium speed
5. High speed
6. Cold mode

(*) The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• Take the product out of the box. Remove all packaging material.
• Save the original box.
• Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact the Cecotec official Technical Support Service immediately.

3. PRODUCT ASSEMBLY

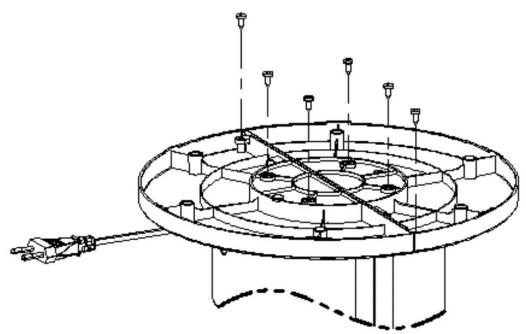

1. The air cooler is divided into 2 parts. Put them together making sure that they match properly and ensure they are tightly fixed. Fig. 3
2. Fix the base to the lower part of the air cooler main body.
3. Use the 4 screws provided to screw the base to the air cooler main body. Fig. 4
4. Fix it with two side screws.

4. OPERATION

1. Place the device on a stable surface and connect it to the mains.
2. Fill it and place the water tank in position. Fig. 6
3. Turn the rotating element to set the speed from High, Medium, Low or Off.
4. Press the Oscillation mode button to start the oscillation movement in a wide turning angle. Press it again to cancel the activation of this function.
5. Press the Cold mode button to activate the humidification and cooling function. To improve the Cold mode, insert the coolers. Press the button again to cancel the function.

Warning

Make sure the water level is above the minimum level, marked as "Min" to prevent the device from running out of water.

5. CLEANING AND MAINTENANCE

• Unplug the device before cleaning and filling the water tank.
• Use a soft, damp cloth to clean the device surface. Do not use abrasive or corrosive products.
• Do not immerse any part of the air cooler in water or other liquids.
• After cleaning, carefully dry the appliance and make sure that all the electrical parts are completely dry.
• Make sure the air inlet and outlet are clean and protected from dust and dirt.
• If the product is not going to be used for a long period, unplug it and store it in a dry and safe place.
• You should clean the device once every week.
• Make sure the air cooler is unplugged from the mains before removing the rack.
• To remove the rack, press both superior tabs and pull gently.
• Do not clean the rack by hand, as it could deform, use a soft cloth and clean it with extreme care.

• Clean the filter with a soft cloth, careful not to deform it. Place it back in place.

• Cover the device with a clean cloth or a plastic bag before storing it to protect it from dust and scratches.

• Wind the cord properly to avoid possible falls.

Cleaning and maintenance of the water tank

• Turn off and disconnect the device from the mains supply before cleaning the tank.

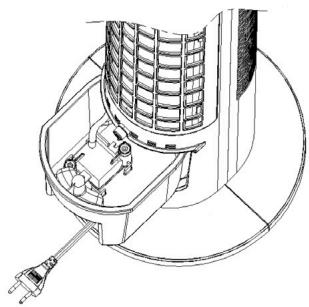

• Loosen the screw on the water tank, turn the plastic tab and remove the tank.
• Clean the water tank and place it again in place.
• Tighten it with the screw in place.
• Use fresh water to clean and dry it completely. Refill the tank up to the "Max" mark with fresh water.
• Use a dampen cloth to clean the dirt and dust on the surface of the device. Do not use abrasive or corrosive detergents to clean the product.

6. TECHNICAL SPECIFICATIONS

Reference: 05288

Model: EnergySilence 2000 Cool Tower

Power: 60 W, 220-230 V\~, 50/60 Hz

Manufactured in China | Designed in Spain

Description	Symbol	Value	Unit
Air cooler maximum flow	F	13.5	m^3/min
Air cooler power consumption	P	44.3	W
Service value	SV	0.3	(m^3/min)/W
Power consumption on standby mode	PSB	0.4	W
Air cooler sound power level	LWA	59	dB (A)
Maximum air speed	C	2.7	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

(*) Technical specifications may change without prior notification to improve product quality.

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1 (*)

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6
