USER MANUAL GFX-5 ZOOM

USAGE AND SAFETY PRECAUTIONS

SAFETY PRECAUTIONS In this manual, symbols are used to highlight wamings and cautions for you to read so that accidents can be prevented The meanings of these symbols are as follows This symbol indicates explanations about extremely dangerous matters. If users ignore this symbol and handle the device the wrong way, serious injury or death could result. This symbol indicates explanations about À dangerous matters. If users ignore this M0 symbol and handle the device the wrong way, bodily injury and damage to the equipment could result. Warning Please observe the following safety tips and precautions to ensure hazard-free use of the GFX-S Power requirements AL, Since poser consumption of suis igh we recommend the use of an AC adapter whenever possible. When powering the unit from batteries, use only alkaline types. [AC adapter operation] + Be sure to use only an AC adapter which supplies 9 V. DC, 300 mA and is equipped with a "center minus” plug (Zoom AD-0006). The use of an adapter other than 1he ified 1ype may damage the unit and pose à safety + Connect the AC adapter only 10 an AC outlet that suprlies the rated voltage required by the adapter. + When disconnecting the AC adapter from the AC outlet always grasp the adapter itself and do not pull at the cable. + When not using the unit for an extended period. disconnect the AC adapter from the AC outlet. [Battery operation] + Use four conventional IEC R6 (size AA) batteries alkaline) + The GFX-S cannot be used for recharging. Pay close attention to the labelling of the battery 10 make sure you choose the correct type. + When not using the unit for an extended period, remove the batteries from the unit. + If battery leakage has occurred, wipe the battery compartiment and the battery terminals carefully 10 remove all remnants of battery fluid. + While using the unit, the battery compartment cover should be closed. Environment Avid using your GEX-S in environments where it will be exposed 0: + Extreme temperature

• High bumidity or moisture ssive dust or sand ssive vibration or shock Handling À Since the GFX-$ is a precision electronic device, avoid applying excessive force 10 the Switches and buttons. AÏso take care not to drop the unit, and do not subject it to shock or excessive pressure Alterations Éstn Never open the case of the GFX-S or attempt to modify the product in any way since this can result in damage to the unit Connecting cables and input and output & ts You should always turn off the power to the GFX-S and all other equipment before connecting or disconnecting any cables. Also make sure to disconnect all cables and the AC adapter before moving the GFX-S Usage Precautions + Electrical interference For safety considerations, the GFX-5 has been designed to provide maximum protection against the emission of electromagnetic radiation from inside the device, and protection from external interference. However, equipment that is very susceptible to interference or that emits powerful electromagnetic waves should not be placed near the GFX-5, as the possibility of interference cannot be ruled out entirely. With any type of digital control device, the GFX-S included, electromagnetic interference can cause malfunctioning and can corrupt or destroy data. Care should be taken to minimize the risk of damage + Cleaning Use a soft, dry cloth to clean the GFX-S. If necessary, Slightly moisten the cloth, Do not use abrasive cleanser, wax, or solvents (such as paint thinner or cleaning alcohol), since these may dull the finish or damage the surface. Please keep this manual in a convenient place for future reference. ZOOM GFX-5 Introduction Thank you for selecting the ZOOM GFX-5. This product is a sophisticated Guitar Effects Processor with the following features © Versatile array of effects The Variable Architecture Modeling System (VAMS) developed by ZOOM adapts the internal configuration of the unit to achieve exactly the desired sound. The GFX-S provides 74 choices, ranging from distortion and modulation effects 10 booster functions and a cabinet simulator that duplicates the sound of various guitar amps. © Full complement of distortion effects 33 distortion type effects not only recreate the characteristics of famous vintage amps but also duplicate the sound and operation of renowned compact effects and pedals. The [TURBO] key lets you boost the sound pressure in an instant, and the IEDGE] key creates a bright treble edge. À wide variety of drive sounds are only a keypress away. © 120 ready-to-use patches Effect module setting combinations can be stored as patches. The GFX-5 offers 60 user patches which can be freely modified, plus 60 preset patches. Together, these 120 settings let you make great music straight away © _ intuitive operation and key layout The knobs and keys on the panel of the unit are designed for maximum usability. Choose distortion types or adjust equalizer settings in a flash. The expression pedal is great for controlling effect parameters in real time. The GFX-5 practically comes alive during a performance. © _Newly developed ARRM feature ARRM (Auto-Repeat Real-time Modulation) is a fascinating concept. Using built-in control waveforms, it lets you rhythmically shape the signal in many ways. Create totally novel sounds that will captivate listeners. You can even use the expression pedal to adjust the modulation depth of the ARRM feature. © Integrated drum machine 60 built-in rhythm patterns using natural-sounding PCM sources are available, which is great for practice or a quick jam session. ARRM cycles can be synchronized to the rhythm tempo, letting you alter effects in sync with the flow of the music. The creative possibilities are limitless. © 6-second sampling feature A guitar phrase or the signal from an input source such as a CD player can be sampled for up to 6 seconds and stored in the internal memory. The recorded sample can be played back at a slower speed without altering the pitch. This is a great 100! for enhancing a live performance or for copying a lick or fast-playing phrase. © Energize creates dynamic sound The Energize is another innovation with immense appeal. Simply by tuning a knob, you can optimize to match the playback system. Enjoy powerful, dynamic sound even with a small guitar amp or an audio system with flat response. the sound characteristics © Designed for use on stage The GFX-$ can be powered either from an AC adapter or from batteries. With one set of alkaline batteries, the unit will operate continuously for up to 10 hours. À special mode lets you switch major effects on or off with your foot or specify the rhythm tempo during a performance. Operate the unit like compact effects, while accessing a vast array of functions. ZOOM GFX-5

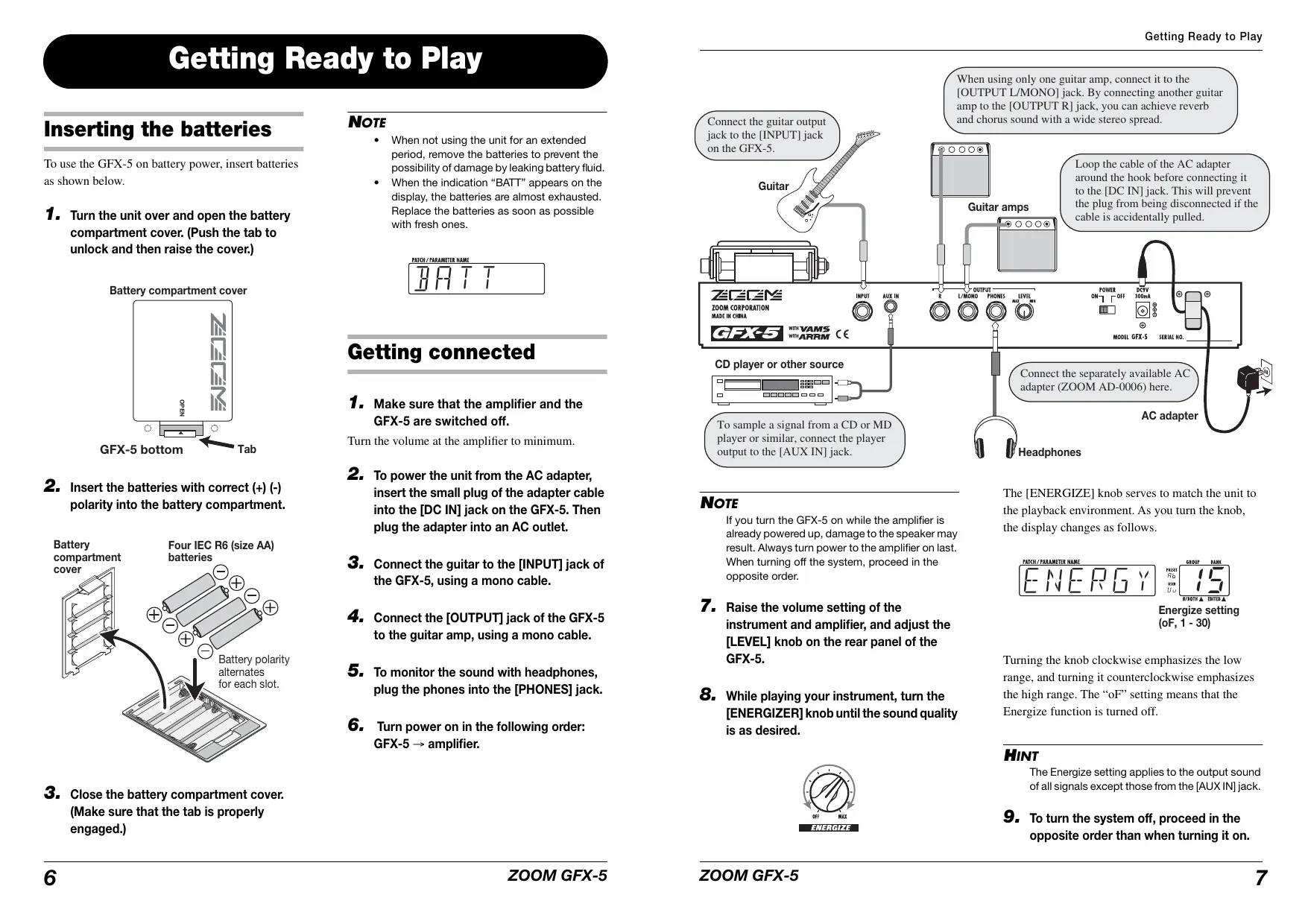

Getting Ready to Play Inserting the batteries To use the GFX-5 on battery power, insert batteries as shown below.

1. Turn the unit over and open the battery

compartment cover. (Push the tab to unlock and then raise the cover) Battery compartment cover

polarity into the battery compartment. Battery Four IEC RG (size AA) compartment batteries cover

(©) Battery polarity aitemates for each slot. S. Close the battery compartment cover. (Make sure that the tab is properiy engaged) + When not using the unit for an extended period, remove the batteries to prevent the possibility of damage by leaking battery fluid + When the indication “BATT” appears on the display, the batteries are almost exhausted. Replace the batteries as soon as possible with fresh ones. Getting connected

1. Make sure that the amplifier and the

GFX-5 are switched off. Turn the volume at the amplifier to minimum.

2. To power the unit from the AC adapter,

sert the small plug of the adapter cable into the [DC IN] jack on the GFX-5. Then plug the adapter into an AC outlet. 3 Connect the guitar to the [INPUT] jack of the GFX-5, using a mono cable. 4: Connect the [OUTPUT] jack of the GFX-5 to the guitar amp, using a mono cable.

5. To monitor the sound with headphones,

plug the phones into the [PHONES] jack.

6. Turn power on in the following order:

GFX-5 —> amplifier. ZOOM GFX-5 Getting Ready to Play Connect the guitar output jack to the [INPUT] jack on the GFX-S. When using only one guitar amp, connect it to the [OUTPUT L/MONO] jack. By connecting another guitar amp to the [OUTPUT R] jack, you can achieve reverb and chorus sound with a wide stereo spread. CE EI Guitar amps Loop the cable of the AC adapter around the hook before connecting it to the [DC IN] jack. This will prevent the plug from being disconnected if the ess \ cible is accidentally pulled.

ZEN we nu Vues me a [opae ESS 60° 6000 nm (Qi GFEx-S RÉIG | À mue ae | CD player or other source To sample a signal from a CD or MD player or similar, connect the player output to the [AUX IN] jack. Connect the separately available AC adapter (ZOOM AD-0006) here. AC adapter Headphones NOTE If you turn the GFX-5 on while the amplifier is. already powered up, damage to the speaker may The [ENERGIZE] knob serves to match the unit to the playback environment. As you turn the knob, the display changes as follows. result. Always turn power to the amplifier on last. When tuning off the system, proceed in the opposite order.

7. Raïse the volume setting of the

instrument and amplifier, and adjust the ILEVEL] knob on the rear panel of the GFX-5.

8. While playing your instrument, tum the

IENERGIZER] knob until the sound quality is as desired. Energize setting (0F, 1 - 30) s the low Tuning the knob clockwise emphas range, and turning it counterclockwise emphasizes the high range. The “OF” setting means that the Energize function is turned off. HINT The Energize setting applies to the output sound of all signals except those from the [AUX IN] jack.

9. To turn the system off, proceed in the

opposite order than when turning it on. ZOOM GFX-5

Changing the sound of a patch in play mode While playing your instrument, operate the following knobs and keys. When you turn on the GEX-$, it is in play mode. This section explains the basic steps in this mode, allowing you [Drive section] TURBO) key Seting this key to ON will increase the sound pressure of the patch. [VARIATION key/IDRIVE] knob Serve to select the distortion type. GAIN] knob Adjusts the distortion depth. ñ PARAIT un amas CA to use the unit right away. Selecting a patch © 7° select a patch, press one of the foot switches [1] - [8] whose LED is not li. ner 24% ms mu mme nm Qu 0 DD: — © E ORALE a Pere [EDGE] key Setting this key 10 ON will emphasize the high rare The single effects (effect modules) in the GFX-5 can be combined, and parameter settings for each effect frequency content of the patch can be changed 10 achieve a desired sound. Such à combination of effects with certain parameter [Equalizer section ] settings is called a patch. Patches are always called — RE The knobs adjust boost/cut for each frequency range. onto the panel in banks of three, and the foot =] 58680666 6 à ne an switches [1] - [3] are used to select the patch. Ann) a COM GEX-S rs \ ; TS TT TS Lisolyi play mode] D @| san LP BL 3 ZEN 1] we 20% © \- e © AMPIRT) AU) e | _ À [BASS] knob [TREBLE] knob Patch name Group (@) (@) © (@) © (© [MIDDLE] knob [PRESENCE] knob Bank number =] = =— = | For a detailed explanation of how to edit effects, see page 17. @ To switch to a patch in another group or bank, | use the BANK [AJ/[V] foot switches and then the foot switches [1] - [3]. Altering an effect Storing effects Patches are organized in user groups (U, u) which can be modified and preset groups (A, b) which are read-only. Each group comprises ten banks numbered from © to 9, and each bank has three patches The BANK [AJ/IW] foot switches select groul and banks in the order AO — A9, bO — b9, UO — U with the pedal © Move the expression pedal up or down while playing your instrument. @ 7 switch the effect module on or off, push the expression pedal fully down. © Press the [STORE] key. The GFX-$ goes into store standby mode The effect depth or volume or another parameter of the effect will change in real time as you move the expression pedal (Which parameter changes depends on the patch.) uo —u? The expression pedal also incorporates a push-down switch that allows on/off control of a specific effect module. If necessary, use the BANK [AJ] foot switches and the foot switches [1] - [3] to select the bank and patch number in which to store the current effect settings.

• You can also use the PARAMETER [A J/[W] keys to directly switch groups. For a detailed explanation of patch switching, see . . page 10 * If a patch from a preset group was selected, the patch number 1 of

• For some patches, the pedal has no effect "U0" (user group) will be selected as the default store target. User groups Preset groups For an explanation of how to EX Enre) Enr nrre) For an explanation of effect control with select the module to be @ © carry out the store process, press the [STORE] key once the pedal, see page 20. operated with the pedal, see more. ; = ; = ; = ; = page 20. BANK 0 [BANK o| [BANK 0| BANK 0 To cancel the operation, press the [EDIT/EXIT] key. een rc en IL |Pc5b) Parc BEA Parce] Pro A 0 rer ere) na) re Vel Move back push down For a detailed explanation of the store procedure, see page 19. and forth À authe we For information on how to return the user group patches to the Group U Group u Group À Group b Y factory default condition, see page 27

8 ZOOM GFX-5 ZOOM GFX-5 9

Playing Patches (Play Mode) The condition where you call up patches stored in the memory of the GFX-S and use them for playing your instrument is called play mode. When you turn the GFX-S on, it is initially always in this mode. The various operations possible in play mode are described in this Panel display in play mode ion. In play mode, the panel shows the following information. Patch name Group (A/b/U/u) | [ Bank number (0 - 9) me ji When a dot (.) is shown hei PMP TRI] AL Moon t When a dot (.) is shown here, patches can Keys for effect modules that are ON in the currently selected patch are lit. an effect be selected from a user up or preset group. Selecting a patch

1. Toselect a patch in play mode, press one

of the foot switches [1] - [3] whose LED is not lit. The LED of the foot switch for the patch that is cted is lit. currently s NOTE If you press the foot switch whose LED is lit, the unit goes into bypass/mute mode (- p. 11).

2. To select a patch in another group or bank,

use the BANK [A JV] foot switches and then the foot switches [1] - [3] to select the group and bank. For example, if you repeatedly press the BANK LA] foot switch, the group/bank is switched as follows. User groups WE (L1..(U9- LL Preset groups ET-{# 2. -(60..(69-

8. To directly switch groups, use the

PARAMETER [A J/[V] keys. Pressing the PARAMETER [A] key moves to the next higher group and pressing the PARAMETER LY] key moves to the next lower group.

4. if you want to select only patches from a

user group or preset group, press both PARAMETERI[A] /[V] keys together. Each time you press both PARAMETER [AY] keys together, the group type changes. User groups Preset groups Both group only only Do Tr Li) a L an an

ZOOM GFX-5 Playing Patches (Play Mode) Using the internal tuner (bypass/mute function) The GFX-S has a built-in auto-chromatic tuner for guitars. To use the tuner function, the built-in effects must be bypassed (temporarily turned off) or the unit must be muted (original sound and effect sound turned off)

1. To set the GFX-5 to the bypass (mute)

condition, press the foot switch of the currently selected patch (the switch whose LED is lit) in play mode. Pressing and immediately releasing the foot switch sets the GFX-5 to the bypass condition. The expression pedal is automatically switched to function as a volume pedal. Bypass Release imme FPS) Pressing and holding the foot switch for more than one second sets the GFX-S to the mute condition. Mute Press and release after more than 1 second

2. Play the open string you want to tune.

The [GROUP/BANK] indicator shows the note st to the current pitch. Adjust the pitch so that the indicator shows the desired note. which is clos The note is shown on the left part of the indicator. A=A Az 9 B=-b c=i ‘The more the pitch is of, the faster the rotation of the indicator

38. To change the reference pitch of the

tuner, use the [VALUE] dial. The current reference pitch is briefly shown on the display. The default setting after power-on is center A = 440 Hz. HUUH2 Reference pitch value While the reference pitch is shown, you can change the pitch by turning the [VALUE] dial. The setting range is 435 - 445 Hz in 1-Hz steps. When the GEX-$ is turned off and on again, be reset to 440 Hz. will

4. To return to the play mode, press one of

the foot switches [1] - [3]. The patch of that foot switch becomes active again. NOTE If you switch the bank/group while using the tuner, the tuner function will be temporarily disabled. When you return to the original bank/ group, the tuner function becomes active again. ZOOM GFX-5

Playing Patches (Play Mode) Adjusting the sound of a patch After selecting a patch in play mode, you can use the knobs and keys on the panel to adjust parameters such as distortion type and depth, equalizer settings, etc.

1. In play mode, select the patch you wantto

2. To change the distortion type, use the

IDRIVE] knob and [VARIATION] key in the drive section. The distortion type used for the DRIVE module can be switched with the [DRIVE] knob and [VARIATION] key. Turn the [DRIVE] knob to select a general distortion category (amp or effect pedal type), and use the [VARIATION] key to select a variation within that category. Each push of the [VARIATION] key cycles through the CLASSIC -> STANDARD > MODERN > OFF (DRIVE module off) settings, and the corresponding LED lights up. For details on category and variation characteristics, see page 29. (1) Select general distortion category with [DRIVE] knob. aux Lit "a Sn ‘ Sum Out w (DRIVE module is off)

2) Select variation in selected

category with [VARIATION] key NOTE If you turn the [DRIVE] knob or push the [VARIATION] key while a patch is selected for which the DRIVE module is off (effect module IDRIVE] key not li, the DRIVE module is automatically tumed on ([DRIVE] key lights up).

3. To adjust the gain (distortion depth) of the

DRIVE module, turn the [GAIN] knob in the drive section. When you turn the knob, the current gain setting appears on the [GROUP/BANK] indicator, and the “EDITED” dot appears. When you return the gain to the original setting, the dot disappears. GAIN SE) When a dot is shown here, an effect parameter was edited NOTE If you turn the [GAIN] knob while a patch is selected for which the DRIVE module is off, the indication “-OFF-" appears on the display and the knob has no effect. ETF) ©

4. if necessary, use the [TURBO] key or

[EDGE] key to adjust the overall sound of the patch. The [TURBO] key and [EDGE] key let you touch up the sound of each patch. The [TURBO] key increases the overall sound pressure (intensity) of the patch, and the [EDGE] key enhances the treble. You can also set both keys to ON together.

5. To provide EQ adjustment, use the knobs

in the equalizer section. The knobs in the equalizer provide boost or cut in the following ranges.

ZOOM GFX-5 Playing Patches (Play Mode) Mid range Very high range Low range | High range |

D D © À While you operate a knob, the display shows the name of the current range, and the [GROUP/ BANK] indicator shows the current setting (-12 — 0 — 12). NOTE If you turn a knob in the equalizer section while a patch is selected for which the EQUALIZER module is off (effect module [EQUALIZER] key not li, the indication “-OFF-" appears on the display and the knob has no effect. Press the IEQUALIZER] key to tum it on first.

6. To switch an effect module on or off,

press the effect module key for that module. The light of the effect module key comes on or goes out, and the module is toggled between on and of. 7: To adjust the overall volume level of the patch (patch level), turn the [VALUE] dial. The patch level is a parameter that controls the combined original sound and effect sound level. It can be set in the range of 1 - 30. During adjustment, the [GROUP/BANK] indicator shows the actual setting. HINT Any changes you have made in play mode will be lost when you switch the patch. If necessary, store the patch to retain the changes (— p. 19). ZOOM GFX-5

Using the Rhythm Function The GFX-$ incorporates 60 rhythm patterns which can be selected for playback. This is convenient for practice or a quick jam session T. To activate the rhythm function, press the IRHYTHM] key in play mode. The key lights up and rhythm pattern playback starts. The [TEMPO/TAP] key flashes in sync with the current tempo. CT LE 10 EE CA Pattern name Pattern number

2. To change the rhythm pattern, turn the

IVALUE] dial while the rhythm pattem name is shown on the display. S&. To change the tempo, press the [TEMPO/ TAP] key and then turn the [VALUE] dial. ‘When you press the [TEMPO/TAP] key, the current tempo setting (BPM) appears on the display. While thi shown, turning the [VALUE] dial will change the tempo. IPN IC Rhythm pattern tempo If you tap the [TEMPO/TAP] key repeatediy, the interval of the last bwo taps is automatically detected and taken as the new tempo (tap tempo setting function). CLS 14 Tap repeatedly HINT The tempo set in this way can be synchronized to the control waveform cycle for the ARRM function (— p. 20). It can also be linked to the DELAY TIME parameter ofthe REV module (> p. 84)

4. To change the volume of the rhythm

sound, press the PARAMETER [A]/[V] keys during rhythm pattern playback to bring up the indication “LVL xx” (where xx is a number) on the display, and then turn the [VALUE] dial. The rhythm pattern playback volume changes. NA [x] LVL vf Rhythm pattern playback volume HINT By pressing one of the PARAMETER [AJ/[] keys repeatedly, you can cycle through the rhythm pattern name, tempo, and playback volume indication.

5. To stop rhythm pattern playback, press

the [RHYTHM] key once more. HINT +_ When the GFX-5 is in manual mode (- p. 16), you can use the BANK [W] switch to bring up the tempo indication on the display or to set the tap tempo. +_ fa rhythm pattern is played while editing a patch, only the tempo can be changed.

urning Effects On and Off With Your Feet (Manual Mode) Manual mode is a special mode in which you can use the foot switches to turn effect modules on and off or to change the rhythm pattern tempo. This is useful for example if you want to turn only certain effect modules on and off during a performance.

1. To switch the GFX-5 to manual mode,

hold the BANK [A] switch depressed while the unit is in play mode. The indication “MANUAL" appears on the display, showing that the GFX-5 has switched to manual mode.

2. To switcheffect modules on and off, press

one of the foot switches [1] - [3]. When the GEX-$ is in manual mode, the modules DRIVE, MOD, and REV can be turned on and off with foot switches [1] - [3]. The modules are assigned as follows. Lit module is on Ben Out: module is off DRIVE module MOD module REV module

8. To change the tempo of the rhythm

pattern, tap the BANK [W] switch repeatediy in the desired interval. The interval of the last two taps is automatically detected and taken as the new tempo. Hinr By programming a patch beforehand to link the ARRM control waveform (— p. 20) or the DELAY TIME parameter of the REV module (> p. 34) to the pattern tempo, you can control these parameters manually during a performance.

ZOOM GFX-5 Changing the Sound of a Patch {ait Mode) The edit mode allows you to freely alter the parameters that make up a patch, so that you can create your own patches. This section describes how to do this. inpur BOOST Lisorcomr DRIVE L EQUALIZER el ZNR el CABINET el non REV Éœoureur Patch configuration Each patch of the GFX-5 consists of several effects effect modules), as shown in the illustration above. A paich is a stored combination of modules, each with their distinct parameter settings. Within each module, there are several different but related effects which are called effect types. For example, the MOD (modulation) module comprises effect types such as CHORUS, PHASER, and WAH, of which one can be selected The elements that determine the sound of a patch are called effect parameters. Each module has certain effect parameters, whose value can be adjusted with the effect module keys, PARAMETER [A J/{W] keys, [VALUE] dial, etc NOTE Also within the same module, different effect types will have different parameters. Basic edit mode steps This section describes the basic procedure for editing patches in edit mode. For information on effect types and parameters in the various modules, see the section “Effect Types and Parameters” on pages 28 — 34.

1. In play mode, select the patch you wantto

edit. Patches for editing can be selected from either a user group (U/u) or a preset group (A, b). However, patches from a preset group are read-only. When you have altered such a patch and you want to store it, you must select a user group patch as store target (patch number 1 in the user group bank “UO” is automatically preselected).

2. To activate the edit mode, press the

[EDIT/EXIT] key. The first time you switch to edit mode after the unit was turned on, the parameter PATLVL (patch level) of the TOTAL module will be selected. S. Press the effect module key for the module that you want to edit. The effect type currently selected for that module is shown on the display. CT MODULE Effect type HINT If a module is selected that is currently off, the key flashes more slowly.

4. To toggle the on/off status of the selected

module, press the same key again while the effect type is being shown. The effect type display changes to “-OFF- To return the effect module to “on” status, press the Key again. ZOOM GFX-5

Changing the Sound of a Patch (Edit Mode)

5. To change the effect type for the selected

of the PARAMETER [A J/[V] keys. When you press the key, the parameters of the currently selected effect type are called up on the display one by one. The [GROUP/BANK] indicator shows the parameter value. 20) When a dot is shown here, the patch was edited I you return the parameter to the original value, the dot will disappear. 7 Turn the [VALUE] dial to change the parameter value. For some modules such as DRIVE and EQUALIZER, effect types and parameters can be changed directly with the knobs and keys on the panel.

8. Repeat steps 3 - 7 to edit other modules.

9. When editing is completed, press the

IEDIT/EXIT] key. The unit returns to the play mode. If any element of the patch has been changed, the “EDITED” dot is shown on the [GROUP/BANK] indicator. NOTE If you wish to keep the patch, be sure to perform the store operation (— p. 19). Otherwise all changes will be permanently lost as soon as you switch to another patch. Changing a patch name If you wish, you can assign a new name 10 an edited patch. Proceed as follows.

1. In edit mode, press the [TOTAL] key.

2. Use the PARAMETER [A J/[Y] keys to

bring up the patch name on the display. The flashing character is the one that can be changed. ee PONER 3: Use the PARAMETER [A J/[Y] keys to selectthe character, and turnthe [VALUE] dial to change the character. Available characters are listed on page 34.

4. Repeat step 8 untilthe name is as desired.

Then press the [EDIT/EXIT] key to return to the play mode. Do not forget to store the patch (> p. 19) to retain the edited name.

ZOOM GFX-5 Storing and Swapping Patches This section describes how to store an edited patch in memory, and how to swap patches in a user group.

1. inplay mode, manual mode, or edit mode,

press the [STORE] key. The GFX-$ enters the store standby condition. The patch name and the indications “STORE” or “SWAP” are shown alternately on the display. The [GROUP/BANK] indicator shows the current group and bank number, and the LED of the respective foot switch lights up.

HINT To change the name of a patch before storing, see page 18.

2. Turn the [VALUE] dial to select either

“STORE” or “SWAP”. When “STORE” is selected, you can save the current patch in any user group patch slot. When “SWAP” is s current user group patch with any other user group patch. This is convenient for example if you want 10 change the order of patches for use during a performance. cted, you can exchange the NOTE I the original patch is from a preset group, the “SWAP” option is not displayed.

3. Use the PARAMETER [A J/[Y] keys and

the BANK [AJ/[V] foot switches to select the group and bank for the store/swap target.

4. Use the foot switches [1]- [3] to select the

patch number of the store/swap target. The LED of the respective foot switch lights up. NOTE À preset group cannot be selected as store target. If you press the [STORE] key while a patch from a preset group is selected, the patch number 1 of "U0" (user group) will be automatically selected as the default store target.

5. Press the [STORE] key once more.

The store or swap operation is performed and the unit returns to the original mode. If the patch in step 1 was being edited, the editing changes are stored and the “EDITED” dot disappears. If you press the [EDIT/EXIT] key instead of the ISTORE] key, the store/swap operation is canceled and the unit returns to the original mode Bank8 Curreniy selected patch Patch Patch Patch ! Swap Bank Patch specified a swap destination Patch Patch Patch ZOOM GFX-5 19

Other Functions This section explains special functions such as varying a particular effect parameter in real time, using the hold delay and sampler functions, and returning the patches to the factory default condition. Pedal calibration is also explained. Changing effects in real time The GFX-$ allows you to vary a particular eff parameter in real time. For example, you could use the expression pedal as control source and the effect type P-WAH of the MOD module as control target Operating the pedal then will change the filter frequency, resulting in a pedal wah effect.

The newly developed ARRM feature lets you use an internally generated control waveform instead of the expression pedal. This makes it possible to easily create cyclic variations of an effect parameter. If yo «the control waveform {triangle wave) as control source and the effect type P-WAH of the MOD module as control target, you get a cyclic wah sound even without operating the pedal. Wah frequency Wah frequency [Re Control source: pedal Control source: ARRM You can go even further. It is possible to control the ARRM modulation depth with the expression pedal, and to link the control waveform cycle to the rhythm pattern The procedure for using the expression pedal and ARRM feature to alter parameters in real time is described below. HE Selecting the control source and control target First, select the element (expression pedal, ARRM, or a combination of both) to be used as control source.

1. in play mode, select the patch.

2. Press the [CONTROL] key repeatedly to

select the control source. With each push of the key, the source cycles through the following settings, and the corresponding [CONTROL] LED lights up: PEDAL — ARRM — ARRM + PEDAL. The meaning of each selection is explained below. © PEDAL The expression pedal serves as control source, to vary an effect parameter or the volume with your foot. © ARRM The ARRM (Auto-Repeat Real-time Modulation) active. The effect parameter is varied cyclically, using an internally generated control waveform. © ARRM + PEDAL The ARRM feature is à depth can be adjusted with the expression pedal. feature tive, but its modulation

3. Repeatedly press the [ASSIGN] key to

select the module to be used as control target. With each push of the key, the target cycles through the following settings, and the corresponding LASSIGN] LED lights up: WAH — PITCH —

MOD —> GAIN — REV -> VOLUME —

SAMPLER. The meaning of each selection is explained below.

ZOOM GFX-5 Other Functions © WAH The effect type P-WAH (pedal wa) of the MOD module is selected as control target, and the wah frequency (FREQ parameter) can be adjusted with the pedal or the ARRM function. Also if another effect type is selected for the MOD module, it will be switched to P-WAH while this LED is lit. © PITCH The effect type P-PIT (pedal pitch) of the MOD module is selected as control target, and the effect sound pitch can be adjusted with the pedal or the ARRM function (resulting in a pitch shift effect) Also if another effect type is selected for the MOD module, it will be switched to P-PIT while this LED is lit e mon The currently selected effect type of the MOD module is selected as control target and can be adjusted with the pedal or the ARRM function. The actual parameter that is adjusted depends on the effect type. © GAIN The GAIN parameter (for some effect types the RESONANCE/TOP parameter) of the DRIVE module is selected as control target and can be adjusted with the pedal or the ARRM function Gesulting in a change in distortion intensity). © REV The currently selected effect type of the REV module is selected as control target and can be adjusted with the pedal or the ARRM function. The actual parameter that is adjusted depends on the effect type. © VOLUME The master volume can be adjusted with the pedal or the ARRM function. © SAMPLER The built-in sampler playback volume can be adjusted with the pedal or the ARRM function. The sampler function can be switched on and off by fully depressing the expression pedal HINT +_ For information on the controlled parameter when MOD, GAIN, or REV is selected, see pages 31 - 34. Ifthe module that was selected as control target is currently of, it will be switched temporarily to on. +_ The control source and control target settings are stored individually for each patch. If you want to retain your settings, store the patch (p.19). E Controlling the ARRM operation When “ARRM” or “ARRM + PEDAL" is selected form type and frequency can be set in edit mode. as control source, the control w:

4. Press the [EDIT/EXIT] key to activate edit

mode, and select the TOTAL module. The ARRM function settings are part of the TOTAL module.

5. Use the PARAMETER [A J/[Y] keys to

bring up the indication “R-WAVE” on the display, and turn the [VALUE] dial to select a control waveform from the following options. The following waveform settings are available.

6. Tosetthe control waveform cycle, use the

Other Functions and turn the [VALUE] dial to select a setting. The control waveform cycle is based on the rhythm pattern tempo and can be set in measures and beats. The following settings are available. 0.5: eighth note bl: 1 measure 1: quarter note b2: 2 measures 2 halfnot b3: 3 measures 3 dottedhalfnote b4: 4 measures HE Setting the expression pedal action range When “ARRM” or “ARRM + PEDAL" is selected as control source, the action range of the pedal (the amount by which the parameter changes in response to moving the pedal) can be set. 7: With the TOTAL module selected as editing target, use the PARAMETER [A J/ LY1 keys to bring up the indication “R- MODE” on the display. When you turn the [VALUE] dial in this condition, you can select one of the following settings for parameter change direction and range. e UP When the control source is *PEDAL”, the parameter is minimum when the pedal is fully raised and maximum when the pedal is fully pushed down. When the control source is “ARRM + PEDAL”, the parameter change caused by ARRM (the waveform amplitude) will increase from minimum to maximum as the pedal is pushed down. “yp" PEDAL 227 Maximum | ARR PEDAL Minimum EE —

With this setting, pedal action is opposite to that with the “UP” setting. In the raised condition, the parameter is maximum and it decreas. the pedal is pushed down. s gradually as san" {PEDAL “Maximum | ARANEPÉDAL Minimum eHi When the control source is “PEDAL”, the current patch setting for the parameter applies when the pedal is fully raised and the setting increases to maximum as the pedal is pushed down. When the control source is “ARRM + PEDAL”, the parameter change caused by ARRM (the waveform amplitude) will increase from the current patch setting to maximum as the pedal is pushed down. "pi Maximum | ARAN:PEDAL Stored patch setting Æ——e Æ———ea e Lo When the control source is *PEDAL”, the parameter is minimum when the pedal is fully raised and gradually increases up to the current patch setting as the pedal is pushed down. When the control source is “ARRM + PEDAL”, the parameter change caused by ARRM (the waveform amplitude) will increase from minimum to the current patch setting as the pedal is pushed down. “Lo Stored patch setting

8. When you have completed the setting

procedure, press the [EDIT/EXIT] key to return to the play mode. If necessary, store the patch to retain any changes (p.19). H Checking the effect

9. Play your instrument to try out the settings.

‘When the control source is “PEDAL”, the effect parameter of the control target should change according to how you operate the pedal. ‘When the control source is “ARRM"”, the effect parameter should change cyclically according to the selected waveform. ‘When the control source is “ARRM + PEDAL”", the control waveform should change according to how you operate the pedal. HINT Regardiess of which control source is selected, pushing the expression pedal all the way down switches the control target effect module (or the sampler function) on and off. Using the hold delay function The REV module comprises a hold delay CHLDDLY) effect that allows recording and playing à guitar phrase of up to two seconds. You can also play the phrase in reverse or perform loop playback 0 create interesting “sound-on-sound” layers.

1. In play mode, select the patch to use with

mode, and select “HLDDLY” as effect type for the REV module.

3. To set the recording time, use the

PARAMETER [A J/[V] keys to bring up the indication “TIME” on the display, and then turn the [VALUE] dial. The hold delay effect has three parameters: TIME, MODE, and MIX. The TIME parameter determines the hold delay recording interval. The setting range is as follows. + 1-99: 10 - 990 milliseconds (10-ms units) + 1.0-2.0: 1.0 - 2.0 seconds (100-ms units) + Mn (Manual): Recording is controlled manually (max. 2 seconds).

4. To setthe phrase playback mode, use the

PARAMETER [A J/[V] keys to bring up the indication “MODE” on the display, and then turn the [VALUE] dial. The MODE parameter determines the way the recorded phrase is played back. The following settings are available. + nL (Normal): Normal direction playback + So (Sound-on-sound): Recorded contents are played back repeatedly to create an overlay. By repeating the recording procedure after the previous pass is finished, multiple layers can be created. + _rS (Reverse}: Reverse direction playback

5. To set the mixing balance between

iginal sound and delay sound, use the PARAMETER [A J/[V] keys to bring up the indication “MIX” on the display, and then turn the [VALUE] dial. The MIX parameter controls the mixing ratio of the delayed sound. A setting of 30 results in equal levels of original sound and delayed sound.

6. Use the [CONTROL] key and [ASSIGN]

key to select “PEDAL” as control source and “REV” as control target. 7: Store the patch and return to play mode. ‘When a patch in which hold delay can be used is selected in play mode, the [REV] key LED and the TASSIGN] key LED are flashing. ZOOM GFX-5

8. Toturnhold delay on, pushthe expression

pedal all the way down. The [ASSIGN] key LED stops flashing and stays constantly lit, indicating that the unit is in the recording standby condition. The display shows “STOP”.

9. While playing your guitar, press the foot

switch [3] to start recording. The indication “REC” is shown on the display. The actual operation depends on the TIME parameter and MODE parameter. +__ TIME parameter set to a numeric value Recording starts as soon as you push the foot switch [3] and continues for the duration set with the TIME parameter. After recording ends, loop playback starts automatically. i<— Loop playback —; si JNMINN Ogre AT SIM © parameter

Foot switch [3] Foot switch [2] + _ TIME parameter set to “Mn” Recording starts as soon as you push the foot switch [3] and continues until you press the foot switch Effect \ sound ! a AN Mi F9 5) 5) M) once more, or until two seconds have elapsed. After recording ends 1oop playback starts automatically. ; ÿ<— Loop playback —, Eten | DnRINMN| o ! ! und JJ 31: Fa switch } Foot switch [2] +" TIME parameter set to “Mn” and MODE parameter set to “So” (See below) Everything you play between one press of foot switch [3] until the next time you press the foot switch is recorded in overdub mode. During this time, the display shows “OVRREC”. NOTE + While you are using the hold delay function, the patch cannot be switched. To switch to another patch, you must first turn hold delay off by pushing the expression pedal all the way down. While the GFX-5 is in manual mode, the hold delay function cannot be used. If you try to turn hold delay on in this mode, the manual mode is canceled. (The reverse also applies.)

10. To stop playback, press the foot switch

l21. When playback stops, the recorded contents are automatically erased.

Foot switch [3] Overdub recording

ZOOM GFX-5 Other Functions 11, To turn hold delay off, push the expression pedal once more all the way down. The unit returns to play mode. Using the sampler function The GFX-$ incorporates a sampler function that allows recording the input signal in the internal memory. This can be used to record a phrase from a guitar connected to the [INPUT] jack or the sound from an external source such as a CD or MD player connected to the [AUX IN] jack. The maximum recording duration is six seconds. À recorded phrase can also be played back at a slower speed without changing the pitch. This is convenient for example to copy an up-tempo phrase from a CD.

1. Connect the input source to the [INPUT]

jack or [AUX IN] jack (-> p. 7).

2. Turn power to the GFX-5 on and press the

ISAMPLER] key in play mode. The GFX-5 switches to sampler mode and the indication “GT” appears on the display. Rewind Play/Stop Record NOTE In sampler mode, the foot switches [1] - [3] operate as shown above. Therefore the patch cannot be changed until the unit returns to the play mode. HINT For patches where SAMPLER is selected as control target, the sampler function can be turmed on and off by fully depressing the expression pedal (> p. 21).

To select the input source for sampling, use the PARAMETER [A J/[V] keys to bring up the indication “GT” or “AUX” on the display. GT/AUX is the parameter for selecting the sampling input source. By turning the [VALUE] dial, you can toggle between the two settings. ecT Signal at [INPUT] jack is sampled. e aux Signal at [AUX IN] jack is sampled. HINT + When “GT” is selected, the signal is always sampled after effect processing. When “AUX'" is selected, the signal is always sampled before effect processing. + When recording from the [AUX IN] jack, you can minimize noise and distortion by tuming the [LEVEL] knob on the rear panel up past the midway point and adjusting the output level of the external source so that the volume is about equal to that of a guitar. + __ In sampler mode, the MOD module and REV module cannot be used. (These modules are automatically tumed off)

4. To start sampling, press the foot switch

[8] and play the phrase you want to record {or start playback at the external source component). During sampling, the effect module keys light up in sequence to show the elapsed sampling time. The LED of foot switch [3] is also lit.

E21. Sampling stops and playback immediately starts from the beginning. If you do not stop sampling manually, it will end automatically when the maximum sampling time is up (6 seconds), and playback will begin.

6. Use the PARAMETER [A J/[V] keys to

bring up the indication “SPMODE” on the display. SPMODE is a parameter that determines how the sample is played back. Turn the [VALUE] dial to select one of the following settings. recordel ent Normal speed playback

Half tempo, half pitch playback eP2 Half tempo, normal pitch playback

Quarter tempo, quarter pitch playback eP4 Quarter tempo, normal pitch playback SPNODE Sample play mode 7: Use the foot switches [1]/[2] to control sample playback (start/stop/rewind). When using the sampler function for the first time, the recorded sample is played back only once (one- shot playback). During playback, the LED of foot switch [2] lights up. The current playback position is indicated by the lit/out status of the effect module keys.

8. To repeatediy play the sample, use the

PARAMETER [A J/[V] keys to bring up the indication “SPPLAY” on the display, and tu the [VALUE] dial to select “rP”. The recorded sample is now played back repeatediy. By changing the setting to “1”, you can return to one-shot playback.

9. To adjust the playback volume, use the

PARAMETER [A J/[V] keys to bring up the indication “SP LVL” on the display, and turn the [VALUE] dial. The playback volume can be changed over the range of 0 - 30. Choose a value that gives the best results in your system. SP Li ai Playback volume HINT While the sampler function is active, you can also use the expression pedal to adjust the playback level.

10. To return to play mode, press the

ISAMPLER] key while playback is stopped. NOTE +_ When you return to play mode, the recorded contents are lost. +_ The sampler function cannot be used together with the rhythm function. Calibrating the expression pedal The expression pedal is adjusted for optimum operation at the factory, but sometimes, readjustment may be necessary. If pushing the pedal fully down does not have a strong effect, or if the volume or sound changes excessively even when the pedal is only lightly pushed, calibrate the pedal as follows.

1. Turn power to the GFX-5 on while keeping

the [ASSIGN] key depressed. The indication “MIN” is shown on the display.

2. With the expression pedal fully raised,

press the [STORE] key. The display indication changes to “MAX”. Î ) À

3. Push the expression pedal fully down and

then lift your foot off the pedal. ET > ET ) Push strongly, so that When foot is lifted, pedal touches here pedal returns slightly

4. Press the [STORE] key.

The adjustment is complete, and the unit returns 10 the play mode. HINT +__ The position of the pedal in step 3 determines the module on/off switching point. f you want the pedal to perform on/off Switching with alighter touch, set the pedal in step 3 to a somewhat higher position. + _Ifthe display shows “ERROR", repeat the procedure from step 2. Resetting the GFX-5 to the factory default condition The patches in the user groups can be returned to their original condition at any time, even if you have changed them.

1. Tum power to the GFX-5 on while keeping

the [STORE] key depressed. The indication “ALINIT” is shown on the display.

2. Press the [STORE] key once more.

All patches are reset to the factory default condition, and the unit automatically switches to play mode. By pressing the [EDIT/EXIT] key before carrying out step 2, you can cancel the operation and go directly to play mode. ZOOM GFX-5

Effect Types and Parameters In this section, all effect types and parameters of the modules in the GFX-S are explained. As shown in the illustration, the GFX-5 has eight effect modules which can be thought of as being connected in series. It is possible to use all effect modules together, or to switch individual modules on and off. Nearly all modules incorporate several effect types, of which one can be selected at a time. Effect modules 1] souauze |] ZNR [1 CABINET [ soosr |} IS0/COMP h DRIVE COMP FDR ZNR Box CHORUS P-PIT HALL ISOLATOR Ms D GATE ZBOX V-CHO RING-M| | ROOM

Adjusts ow-range mix Parameter 5 FREQH Parameter 6 LEVEL AParameter 4 5-8.0,0.0 (5=50HE, 8.0: Adjusts crossover Frequency for low and mid range. 5-8.0,0.0 (S=S0Hz, 8.0-8kHz, 0.0=10kHz) Adjusts crossover frequency for mid and high range. 1-8 Adjusts signal level afier passing module. ZOOM GFX-5 28 + DRIVE module + DRIVE module ‘This module comprises 30 types of distortion and acoustic simulator effects. Normal, efe te [VARIATION] key, but the [VALUE] dial can also be used. TYPE 1ÂFFDR

Old-siyle sound of à BHsR tube stack amp TYPE 3AFBG CLASSIC Old-siyle sound of a tube combo amp with gutsy midrange TYPE 4: CLEAN GLASS EXC TYPE 5: HI-GAIN CLASSIC MP1 High-gain tube preamp sound CLASSIC

CCE vo | Dry overdrive sound TYPE 8: DIST (Distortion) STANDARD types are chosen with the [DRIVE] knob and

Drive sound of a built-in tube amp MODERN Crunch sound of à British tube stack amp

Drive sound of a British tube stack amp

Warm and powerful combo amp sound MODERN Tube stack amp sound For heavy metal TYPE 6: ZOOM (ZOOM original effects) STANDARD ZLEAD Warm and modern tube stack amp sound MODERN ZPWR ZOOM' original 9002 type sound ZOOMS traditional rich lead sound STANDARD oD ZOOMS original powerful amp type sound MODERN Overdrive sound with cabinet character Overdrive sound with wide application range, from booster 10 hard distortion

CLASSIC STANDARD MODERN HP DST

Characteristic dry distortion sound Distortion sound with extreme signal boost | Extreme distortion sound

-D= Adjusts boosteut in high range (center frequency 8 kHz). Adjusts boosteut in mid-high range (center frequency 3.125 kHz). Adjusts boosteut in midrange (Center frequency 800 Hz). Parameter 4 BASSF Parameter 5 BASS G Parameter & LEVEL 1-8 enter frequency for low range. 3 Hz, 2 = 125 Hz. Adjusts boosteur for low range selected with BASS F. Adjusts signal level after passing equalizer module. + ZNR (ZOOM Noise Reduction) module This module serves for cutting noise during play pauses. I offers a choice of noise reduction and noise gate which euts the sound off completely during play pauses. TYPE 1: ZNR (ZOOM Noise Reduction) The original noise reduction developed by ZOOM euts noise during performance pauses without impairing the sound quality Vintage type noise gale with distinctive culoif char F Parameters for TYPE 1 and 2 are the same. Parameter 1 1-8 Adjusts sensitivity. Set the value for maximum noise reduction without producing an unnatural eutoff + CABINET module Simulates the sound of a speaker cabinet. TYPE 1: BOX TYPE 2: Z BOX (ZOOM Box) TYPE 8: BR CMB (Bright Combo) TYPE 4: CMB (Combo) Simulates a conventional combo amp cabinet. | TYPE 5: CMB+EV (Combo + EV) Simulates a small amp cabinet. Simulates an EV speaker in a combo amp cabinet | TYPE GAFSTK (Stack) Simulates a cabinet with ZOOM'* original sound character. Simulates a stack amp cabinet. | TYPE 7: STK+EV (Stack + EV) Simulates à bright combo amp cabinet. Simulates an EV speaker in a stack amp cabinet. 7 AI paramelers for (his module are {he same. Parameter 1 DEPTH 0-10 Adjusts the intensity of the caPinet effect.

ZOOM GFX-5 + MOD (Modulation) module + MOD (Modulation) module ‘This module contains modulation type effects such as chorus and flanger, effects that drastically change the sound such as wah, filter, and ring modulator, and pitch altering effects such as pitch shifl and vibrato. TYPE 1: CHORUS ‘Add pulsation and spaciousness Lo the sound Parameteni] — DEPTH Parameter2 | RATE Parameters | mx 0-30 0-10 1-30 Adjusts mixing balance of original sound and effect sound TYPE 2: V-CHO (Vintage Chorus) Simulates the warm sound of à vintage chorus. Parametenins] DEPIH Parameter2 | RATE Parameter3 | mix 0-10 1-30 0-30 Adjusts mixing balance of original sound and effect sound. TYPE 3: FLANGE (Flanger) Produces a unique, undulating sound. Parameteni] — DEPTH Parameter2 | RATE 0-10 1-30 Adjusts modulation intensity Adjusts modulation speed Adjusts modulation intensity Adjusts modulation speed ParameterS | F5 “10-10 Adjusts feedback ratio, Higher values in positive or negative direction result in Stronger characteristics. TYPE 4: PHASE (Phaser) Produces à sWOoshing sound. Parameter1 | POST Parameter2 | RATE Parameter3 | AF,bF 1-30 4 Selecis connection point of MOD module. A: after CABINET module bF: before DRIVE module TYPE 5: TREMOL (Tremolo) Periodically varies te level of he sound Parameteni] DEPTH Parameter2 | RATE Parameters | CUP 0-10 1-3 0-10 Adjusts modulation waveform chip. Larger values result in more intense modulation. TYPE 6: A-PAN (Auto-Pan) This stereo panning effect periodically moves the sound back and fon between right and left when two amplifiers are used, When one amplifier is used, the effect causes a tremolo sound. Parameter1 | WIDTH Parameter2 | RATE Parameter3 | CUP 0-10 1-30 0-10 Adjusts effect width. Adjusts modulation waveform chip. TYPE 7: A-WAH (Auto Wah) This effect gives a varying wah sound that depends on the picking intensity Parameter1 | POSI Parameter 2 AFF 1-10 Adjusts modulation intensity Adjusts modulation speed COLOR Adjusts modulation speed Selects sound character. Adjusts modulation intensity Adjusts modulation speed Adjusis modulation speed RESO Parameter3 | SENS æ-10--1,1-10 Adjusts sensitivity. Negative values result in downward wah. Selects connection point of MOD module. _ | Adjusts wah effect intensity ZOOM GFX-5 31

+ MOD (Modulation) module TYPE 8: P-WAH (Pedal Wah) This pedal wah effect lets you control wah wi h the expression pedal Parameter1 | POSI Parameter2 _] FREQ ParameterSj] — DIRMX AF,bF 1-10 0-10 Selects connection point of MOD module. Adjusis wah effect center frequency TYPE 9: STEP This is a special effect with step-Hike filter characteristics. Adjusts original sound mix Parameter1 | DEPTH Parameter2 | RATE Parameter3 | RESO 0-10 1-30 0-10 Adjusts modufation intensity Adjusis modulation speed. Adjusts effect character intensity “This is a pitch shifler with a range of 1 octave TYPE 10: PITCH (Pitch Shifter) up and 2 octaves down. Parameter1 _| SHIFT Parameter2 | TONE Parameter 3 BAL -2--L dt 2,24 0-10 0-30 Sets ihe pitch Shift amount, The "di seting results in a detune effect Adjusts effect tone. Adjusts balance between original sound and effect sound. TYPE 11: P-PIT (Pedal Pitch) This effect lets you vary the pitch in real time, using the expression pedal. Parameter1 | TYPE Parameter 2 TONE 1-16 0-10 Selects the pedal phieh type. The pich change for each type is Shown in the table at right Adjusts effect tone. + REV (Delay/Reverb) module TYPE 15: DELAY Delay effect with a delay time of up to 500 mi illiseconds. Parameteri | TIME Parameter2 | F5 ParameterS | mx

ZOOM GFX-5 Adjusts effect depth. Adjusts effect speed. Adjusts balance between original sound and effect sound. + REV (Delay/Reverb) module This module comprises various spatial effects TYPE 1: HALL (Hall Reverb) including lelay and reverb. This is a reverb effect which simulates the acoustics of a concert Hall. TYPE 2: ROOM (Room Reverb) This is a reverb effect which simulates the acoustics of a room. TYPE 3: SPRING (Spring Reverb} “This is a reverb effect which simulates a spring Lype reverb machine. Parameters for TYPE 1 - 3 are the same. Parameter1 | TIME Parameter2 | TONE Parameter3 | mix 1-30 0-10 0-30 Adjusts reverb duration (reverb He) Adjusts effect 1one. Adjusts reverb sound level. ZOOM GFX-5

+ TOTAL module TYPE 4: MN-DLY (Mono delay) “This is a monaural delay with a duration of up to 1.3 seconds. TYPE 5: PP-DLY (Ping-Pong Delay) When two amplifier are used, his serves as a ping-pong delay effect with a duration of up to 1.5 seconds. When one amplifier is used, the effect is a mono delay. 7 Parameters for TYPE 4 and 3 are the same. Parameter1 | TIME Parameter2 | FE 1-99, 10-1510 0-10 Adjusts delay me from 10 ms 10 990 ms in 10-ms steps (1 - 99), and over 1 second in 100-ms steps (1.0 1.5). £1 - 19 select a particular note using the rhythm pattern tempo as reference (see table below). Adjusts number of repeat cycles (feedback) for delay sound. Adjusts delay sound level LTIME parameter ] [IT Ralnote D: doned quarer note | De quaner note ane [En 16: cighi note Hidonedsixeenhnor | 18: quaner wipler note 1: sixteenih note TYPE 6: DLYHAL (Delay + Hall Reve: rb) This is a combined delay and hall reverb effect. TYPE 7: DLYROM (Delay + Room Reverb) This is a combined delay and room reverb elec 7 Parameters for TYPE 6 and 7 are the same. pattern tempo as reference (sec table above) Parameec DLYTIM Parameter23] DLYMX Parameter Sn REVMX

Adjusts delay me in 10-ms steps. LI = select a particular note using the rhythm | Adjusts delay sound mix. Adjusts reverb sound mix. repeatedly. (For details, see page 23.) TYPE 8: HLDDLY (Hold Delay) ‘This is a hold delay effect that lets you record a phrase of up to 2 seconds during a performai ice and play it back Parameter 1 TIME Parameter 2 MODE Parameter3 _ | mix 1-00, Mn nL, So, rs Adjusts recording time. (For settings, see

ZOOM GFX-5 Troubleshooting 1 No sound, or very low volume + Is the power switch set to ON? + Are [INPUT] jack and [OUTPUT] jack connected correctiy to instrument and amplifier? + Is the shielded cable defective? + Is GFX-5 set to mute condition? + Is LEVEL] knob turned down? + Is expression pedal raised? For some patches, the expression pedal controls the volume. Se it 10 à suitable position. M Cannot record from [AUX IN] jack + Is input source set to "GT"? Set it to "AUX". M Sound is unnaturally distorted + Adjust level and gain parameters of effect modules. + Set [TURBO] key and [EDGE] key to OFF. + Set BOOSTER or ISO/COMP module to OFF. When a guitar with high output is used with the above effects, unwanted distortion may oceur dependi DRIVE module effect type. g on the + Adjust ZNR parameter. If problem persists, try reducing GAIN. If BOOSTER or ISO/COMP module is used, try decreasing GAIN parameter of DRIVE module. M Cannot play rhythm pattern or volume is very low + Is rhythm volume set to low value? Increase LVL parameter Lo suitable setting. M Expression pedal on/off switching does not work properly. + Ty the procedure described in "Calibrating the Expression Pedal” on page 26. M Bypassed sound is unnatural + The Energize works also in the bypass condition. Set the Energize 10 "OF." Specifications Effect Programs 74 types Effect Modules Patch Memory 8 modules USER: 60 patches PRESET: 60 patches Total 120 patches Sampler 16-bit linear recording/playback Maximum recording time 6 seconds Sampling Frequency 31.25 kHz AD Conversion 20-bit, 64-limes oversampling D/A Conversion bit, 8-times oversampling Inputs Guitar input Standard mono phone jack Rated input level -20 dBm Input impedance_ 470 kilohms Miniature stereo phone jack Rated input level -20 dBm Input impedance_ 20 kilohms AUX input Outputs Line output 2 x standard mono phone jacks Maximum output level +3 dBm Output load impedance 10 kilohms or higher Headphone output Standard stereo phone jack 50 mW into 32 ohms load Display 6-digit alphanumerie LED display 2-digit 7-segment LED display Power Requirements AC adaptor 9 V DC, center minus, 300 mA {ZOOM AD-0006) Batteries 4 x IEC RG (size AA) Continuous operation: approx. 10 hours (with alkaline batteries) External Dimensions 390 (W) x 220 (D) x 75 (H) mm Weight 2.8 kg (without batteries)

• Design and sp ions are subject 10 change without notice. ZOOM GFX-5

GFX-5 Patch List Demonstration Modelling [erouP/ GROUP/ Dane | NC. NAME COMMENTS Ban | N°] NAME COMMENTS vo [1 [AMPORV | Natural amp sound us [1 [MSOLD | Vintage MS sound ao [2 INUANCE | Overdrie sound for fingerpictine as [2 IMSML fn sound for hard rock 3 JALLCLN | Versatile, quality clean sound 3 [USBLUS | US. blues sound ut [1 [MSS000 | Majestic stack drive sound us [1 [MARK | Mark series combo amp sound ai [2 PVPUR | US. hard rock sound a6 [2 [SIDN | Heavy rock amp sound 3 [FD MN [ULS. clean combo amp sound 3 MACORV | Modern, clean crunch sound u2 [LT [LD-DIST | Smooth distortion for lead ur LT M1 high-gain pre-amp sound a2 [2 [PEDNAR | Wild pedai wa a [ZE se wah ke Cry E 3 |BEATS | Reborn Mersey beat style 3 |D-COMP | Pedal compressor us [1 [POWER | Poerful distonion us LT IPDT _[Z00MPD-r a3 [2 IMT7TH | Heavy metal sound for 7-suing guitar ag [2 IFFACE | Vinugetuz 3 J'ARMWAR | Pedal wah with ARRM 3 | MIZONE | Effect pedal sound for metal mi 1 [MLr-OD | Multi-use smooth overdrive yo [1 [SD4CE | Combination of vintage overdrive and chorus pa [2 ÎTECHM | AnfulSFX sound go [2 |DIST+ | Vintage pedal distortion 3 [FLANGE | Decpiy flanging sound 3 [OLDVE [Nostalgie VIB tone Sound Variation Artist/Line Sound [GRoUP/ GROUP/ me | NO. NAME COMMENTS De | N°] NAME COMMENTS uw T | ARMPHA | Periodically changes the phase with ARRM 5 T [VHALEN | Heavy lead and backing bo 2 |BOOTS | Pedal octaver b5, 2 |VAIPT | Vai style pitch shifier 3 [WAVE [ ARRM sound for arpeggio and chord playing 3 [PATM | Meiheney sound T [AER0 | The ulimate lead T_ | GARYED | Gary style ballad solo DT LZLLONAR [Crea van De CZERC frreuvy bles sound 3 [TS | 12-siring acoustic guitar 3 [CAS | Rockabilly crunch sound w LUZ [700N comprettuzz ur LEON fPumEuse drorion TANCHO | Combinatfon of tremolo and chorus DFEEL [Overdnive Îine sound 2 S-HNGECT [SFX sound wi various colour DT gp Hp-e Tine sound us LE ARNIPIT Pod pren sifier vit ARRM ag [AUTO l'Auto ah Time sound 8 2 |ATWAH_ | Pedal touch-sensitive wah bé 2 [EDGE Crisp distortion 3 [VOUN | Violin playing 3 [JCCHO | Bright combo line sound m T STEP ZOOM original step sound uw 7 [80x Line sound with cabinet resonance bé 2 |JET Standard jet sound re 2 |TURBO | Smooth overdrive line sound 3 [TAK {Make the midrange talk 3 [FUNK | Funky phaser
