Product type	Robotic vacuum cleaner
Brand	Cecotec
Model	Conga M100 X Treme
Dimensions	32 cm (diameter) × 8 cm (height)
Weight	2.5 kg
Power supply	Li-ion battery, 14.4 V, 2600 mAh
Battery life	Approximately 100 minutes
Charging time	Approximately 4-5 hours
Suction power	2000 Pa
Noise level	65 dB
Dustbin capacity	400 mL
Filtration	Washable HEPA filter
Main functions	Automatic vacuuming, obstacle detection, return to base, scheduled programming
Cleaning modes	Auto, edge, spot, schedule
Sensors	Drop detection, obstacle sensors
Maintenance	Empty the dustbin, clean the brushes and filter regularly
Safety	Automatic shutdown if lifted or dropped
Spare parts available	HEPA filter, side brushes, battery, motor unit
Repairability	Repairability score: 6.5/10 (estimated)
General information	Control via Cecotec app, compatible with Alexa and Google Home

Frequently Asked Questions - Conga M100 X Treme CECOTEC

How to start the Conga M100 X Treme robot vacuum?

Make sure the battery is charged. Press the Start/Pause button on the robot or use the Cecotec app.

How to schedule a cleaning?

Use the Cecotec app to set the schedule. Tap the Schedule icon and set the days and times.

How to clean the HEPA filter?

Remove the filter, tap it to remove dust, and rinse it with cold water. Let it dry for 24 hours before reinstalling.

What to do if the robot does not connect to the app?

Check that Wi-Fi is enabled and you are on a 2.4 GHz network. Reset the robot by holding the Home button for 5 seconds.

What is the battery life?

The battery life is approximately 100 minutes in standard mode. It may vary depending on floor type and suction intensity.

How to replace the side brushes?

Unclip the worn brushes by pulling them downward, then snap the new ones into place until they click.

Does the robot vacuum thick carpets?

Yes, but for fringed rugs, it is advisable to lift them. The robot may have difficulty with carpets thicker than 2 cm.

How to know when the dustbin is full?

The robot will alert you via the app or with an indicator light. It may also slow down cleaning if the bin is obstructed.

Is a docking station required?

No, the Conga M100 X Treme is not compatible with a docking station. You must empty the dustbin manually.

What to do if the robot does not return to its base?

Make sure the base is clear and plugged in. Clean the charging contacts on the robot and base. Restart the robot.

USER MANUAL Conga M100 X Treme CECOTEC

cecòtec

Safety instructions 9

1. Parts and components 69

2. Before use 70

3. Installation 70

4. Operation 71

5. Cleaning and maintenance 73

6. Troubleshooting 74

7. Recycling of electrical and electronic equipment 76

8. Copyright 76

9. Simplified EU Declaration of Conformity 76

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance must be used in accordance with these operating instructions. Cecotec will not be held liable or responsible for any damages or injuries caused by improper use.

- Ensure that the mains voltage matches the voltage stated on the product's rating label and that the socket is properly earthed.

- Inspect the power cord regularly for visible damage, especially the charger cable, plug, and housing. If the cord is damaged, it must be repaired by Cecotec's Official Technical Support Service to avoid any hazard.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Do not attempt to repair the appliance yourself. Contact Cecotec's Official Technical Support Service for any query or repair.

- Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.

- Do not use this appliance on concrete, asphalt, or other rough surfaces.

- Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.

- Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.

- Turn off and unplug the appliance from the mains supply when it is not going to be used for a long period of time,

before cleaning or repairing, before attaching components, and before removing the battery. To unplug the appliance, pull the plug, not the cord.

• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not touch the power cord or socket with wet hands.
• Do not expose the appliance to direct sunlight, fire, water, or moisture.
• Do not sit or place sharp or heavy objects on top of the appliance.
• Before operating the robot vacuum cleaner, prepare the room and supervise it. To do so, remove any objects and cables that may affect its operation.
• Keep the appliance away from clothing, curtains, and similar materials.
• Always place the appliance on a flat and stable surface. Avoid placing it on unstable surfaces it could fall from (such as tables or chairs).
• Before operation, make sure all the robot vacuum cleaner

and charging base connections are in good condition.

• Avoid operating the robot vacuum cleaner under extremely high or low temperatures.
• The appliance must only be used with the battery and charging base supplied with the appliance or with compatible charging units approved by Cecotec.
• Make sure the appliance is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Make sure the charging base is not plugged to a power outlet before cleaning it.

Battery instructions

• The appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Batteries may leak under extreme conditions. Should that be the case, do not touch the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves when handling the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Never modify the battery in any way.
• Batteries must be removed from the appliance for safe disposal.
• Keep batteries out of the reach of children if they can be swallowed.
• Battery ingestion can cause burns, perforation of soft tissue, and death. It can cause severe burns within two hours of the ingestion.

• In case of battery ingestion, please seek medical help immediately.

• WARNING: to recharge the battery, use only the charging base supplied with the appliance, reference KA12H-1900600EU.

• Non-rechargeable batteries must not be recharged.
• The batteries' supply terminals must not be short-circuited.
• If the appliance is to be stored for a long period of time, it is recommended to remove the battery.

INSTRUCTIONS DE SÉCURITÉ

https://cecotec.es/es/information/declaration-of-conformity

1. PARTS AND COMPONENTS

Top view of the robot

Fig. 1

1. Laser
2. Top lid
3. Power button
4. Back Home button
5. Object recognition sensor
6. Bumper
7. Wall sensor

Bottom view of the robot

Fig. 2

1. Main brush
2. Side brush
3. Ultrasonic sensor
4. Anti-collision sensors
5. Omnidirectional wheel
6. Drive wheels
7. Main brush cover latch
8. Tank
9. Spinning mops

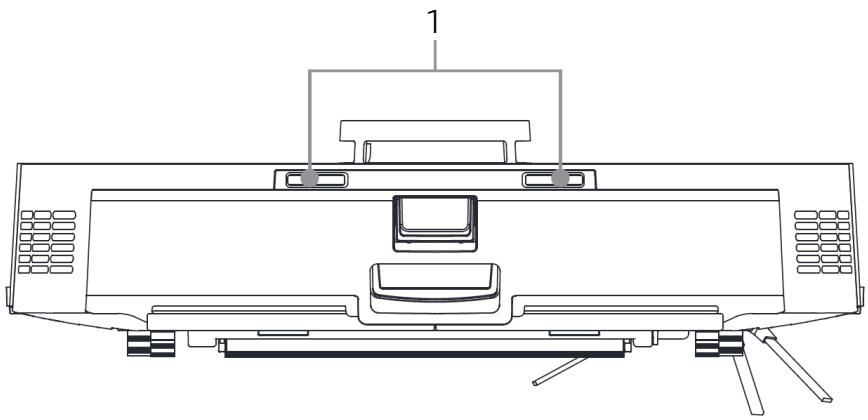

Other components

Fig. 3

1. Charging contacts

Tank components

Fig. 4

1. Tank cover
2. Filter
3. Water inlet
4. Suction outlet

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

ENGLISH

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content: (Fig. 5)

1. Robot
2. Charging base
3. Mops
4. Side brush
5. Tank
6. Instruction manual
7. Self-cleaning brush
8. Filter

Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. ASSEMBLY

Installing the spinning mops

1. Place the mop on the holder ensuring it fits securely.
2. Align and install the mop shafts into the robot until you hear a click.

Installing the tank

• Open the silicone cover of the water tank and fill it with water, ensuring it does not overflow. Make sure to properly close the silicone tab to prevent water leakage. Do not immerse the tank in water or any other liquids.
• To install the tank in the robot vacuum cleaner, push it until it fits into position. You will hear a click indicating it is properly installed.

Recommendations:

• It is not recommended to use the mopping function during first use.
• Do not use the mopping function when the robot vacuum cleaner is unsupervised.
• Do not use excessive cleaning products as they may block the water outlets.

Charging base installation

• Leave at least 0.6 m of clearance on both sides and 1.5 m in front. Make sure the location has good Wi-Fi access to enhance the mobile app experience. Fig. 6.
• Place the base against a wall on a hard, level surface (wood, tile, etc.). Connect the base and verify the status indicator light is on.
• Make sure you pick up cables, hard or sharp objects (such as nails and glass), and loose items from the floor. Move any unstable, fragile, valuable or hazardous items that could block or slow down the robot vacuum cleaner's operation.
• When using the robot in an elevated area, always use a physical safety barrier to prevent accidental falls that could result in personal injury or property damage.

Note:

To ensure all functions operate correctly and achieve the best cleaning results:

• Fully charge the robot before first use.
• Fill the tank with clean water before initial operation.

4. OPERATION

Power On/Off

Press and hold this button to turn the robot on or off. The power indicator light will illuminate when the robot is on.

Wi-Fi reset

Press and hold the Back Home button simultaneously for 5 seconds.

Pause

When the robot is operating, press any button to pause it and press the power button to resume cleaning. Press the Back Home button to send the robot back to the base.

Note: Manually place the paused robot on the base.

Charging

After cleaning, the robot will automatically return to the base to charge. In Pause mode, press the Back Home button to send the robot back to the base.

Start cleaning

Press the power button to begin cleaning. The robot will plan its cleaning path by scanning the room. It divides the room into zones, first drawing the zone edges and then cleaning in a zigzag pattern. Thus, the robot cleans all zones one by one, cleaning the house efficiently.

Notes:

- To allow the robot to vacuum automatically and return to the base, start operation from the base. Do not move the base during cleaning.

ENGLISH

• Cleaning cannot begin if the battery level is too low. Allow the robot to charge before starting cleaning.
• Before cleaning, pick up cables (including the base power cord) and valuable objects from the floor. Loose objects may be dragged by the robot, causing electrical devices to disconnect or property damage.
• If the battery runs low during cleaning, the robot will automatically return to the base. After charging, the robot will resume where it left off.
• The robot will retract the mop holders when cleaning carpets. You can also set the carpet as a restricted zone in the app to avoid it.
• Before starting cleaning, ensure the mops are properly installed.

Suction power and mopping flow:

To customise the suction power and water volume for mopping, activate the 'Custom mode' button in the app. Then select from the five suction power levels and three water flow levels to adjust operation according to your needs.

Manual mode

The robot vacuum cleaner can be moved manually by selecting manual mode in the app and using the arrow keys.

Restricted Area mode

Mark specific areas on the map that you do not want the robot vacuum cleaner to clean.

Selected area cleaning

Mark specific areas on the map that you want the robot vacuum cleaner to clean.

Sleep mode

If no operation is performed for more than 10 minutes, the robot will automatically enter sleep mode and the power indicator light will turn off.

In Sleep mode, users can press any button to wake the robot.

If no operation is performed for more than 13 hours, the robot will automatically power off.

Do Not Disturb mode

It can be modified or cancelled from the app. When this mode is activated, the robot will not automatically resume cleaning, and the power indicator light and sound will be off.

5. CLEANING AND MAINTENANCE

Side brush

1. Pull the side brush upward to remove it.

2. Clean any dirt or debris from both the brush and its housing.

3. Reinstall the side brush.

Main brush

1. Gently press inward on the two main brush cover latches to remove it.
2. Remove the main brushes and clear any dirt or debris tangled in the brush or at the fixed end of the main brush.
3. Reinstall the main brush and its cover.

Tank and filter

1. Remove the tank.
2. Open the tank and empty its contents.
3. Use the self-cleaning brush to clean the interior.
4. Remove the filter and gently tap it to remove as much dirt as possible, then reinstall it.
5. Reinstall the tank in the robot vacuum cleaner.

Note: Do not touch the filter surface with hands, brushes or hard objects to avoid possible damage.

Sensors

Use a soft, dry cloth to clean all sensors.

Note: Do not apply force or insert objects into the sensors, they are sensitive parts.

Front wheel

1. Use a flat-head screwdriver as a lever, firmly hold the wheel and pull.
2. Clean the wheel and all its components, including the wheel assembly and housing.
3. Replace the wheel by pushing down to lock it in place.

Spinning mops

1. Empty any remaining water inside the tank.
2. Remove the mop attachment.
3. Shake out any residue that may have accumulated inside the attachment.
4. Wash the mop cloth. Air dry all parts after replacing them.

Note: The tank must be emptied after use to prevent possible water damage.

Battery charging and replacement

1. Use a Phillips head screwdriver to open the battery compartment.
2. Unplug the old battery and connect the new one, then reattach the battery cover.

Note:

To extend battery life, leave the robot vacuum cleaner charging on the base whenever not in use.

ENGLISH

Remove the battery and store it in a safe, dry place if the robot vacuum cleaner will not be used for an extended period.

Part	Maintenance frequency	Replacement frequency
Tank	Daily
Filter	Weekly	Every 3-6 months
Side brush	Weekly	Every 3-6 months
Main brush	Weekly	Every 3-6 months
Sensors	Weekly
Front wheel	Weekly
Battery	-	Every 12-24 months

6. TROUBLESHOOTING

Problem	Solution
The robot does not switch on.	Low battery. Place the robot on the base and wait for it to charge before use.
	The battery temperature is too low or too high. Use the robot only within 0-40°C range.
Unable to charge battery.	Low battery. Place the robot on the charging base and wait for it to charge before use.
	The battery temperature is too low or too high. Use the robot only within 0-40°C range.
Does not return to the charging base	Too many obstacles near the base. Move it to an open area.
	The robot is too far from the charging base. Place it closer and try again.
	The base locator may be dirty. Clean it with a dry cloth.
Unable to connect to Wi-Fi.	Wi-Fi disabled. Reset the Wi-Fi and try again.
	Weak Wi-Fi signal. Move the robot to an area with good Wi-Fi reception.
	Abnormal Wi-Fi connection. Reset the Wi-Fi, download the latest mobile app and try again.
	The Wi-Fi connection is unstable. Reset the router, check for app updates and try again.
Noise during cleaning.	The main brush, side brush, drive wheels or front wheel may be stuck. Switch off the robot and clean them.
Cleaning does not resume after recharging.	Make sure the Do Not Disturb mode is not activated.
	Check the settings in the app.
The robot does not follow the schedule.	Make sure the Do Not Disturb mode is not activated.
	The robot can only follow the programmed schedules if the battery is above 20%.
Wet mopping is not effective.	Check the flow rate settings in the app.
	Make sure there is water in the tank.
	The mopping function is disabled. Check the settings in the app.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste.

When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that the robot vacuum cleaner model EU01_115944 - Conga M100 Spin AI is in conformity with the Radio Equipment Directive 2014/53/EU. The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

https://storececotec.de/de/information/declaration-of-conformity

1. PARTI E COMPONENTI

https://storececotec.it/it/information/declaration-of-conformity

PORTUGUÊS

1. PEÇAS E COMPONENTES

https://cecotec.pt/pt/information/declaration-of-conformity

NEDERLANDS

1. ONDERDELEN EN COMPONENTEN

https://cecotec.es/es/information/declaration-of-conformity

POLSKI

1. CZĘŚCI I KOMPONENTY

Widok robota z góry

Rys. 1

https://cecotec.es/es/information/declaration-of-conformity

1. PARÇALAR VE BILEŞENLER

https://cecotec.es/es/information/declaration-of-conformity

1. MEPH KAI E≡APTHMATA

Κάτοψη του ρομπότ

Σχήμα 1

https://cecotec.es/es/information/declaration-of-conformity

CATALÀ

1. PECES I COMPONENTS

Vista superior del robot

Fig. 1

https://cecotec.es/ca/information/declaration-of-conformity

https://cecotec.es/es/information/declaration-of-conformity

تانوکملاو عازجألا

توبورلی پولع رظنم

1 للكشل

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

1

2

3

4

5

6

7

8

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

www.cecotec.es
