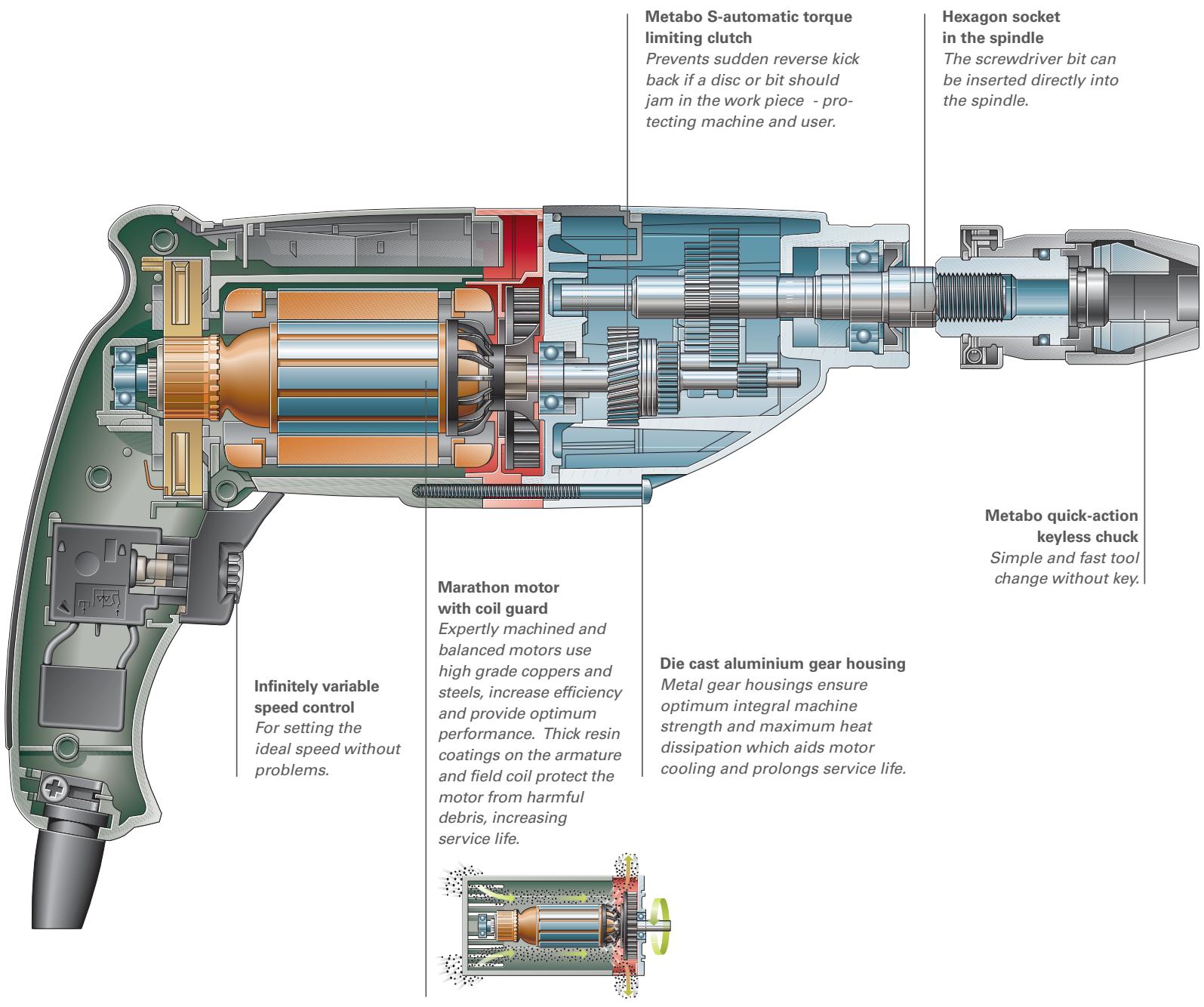

ENGINEERING RESULTS FOR INDUSTRIAL NEEDS.

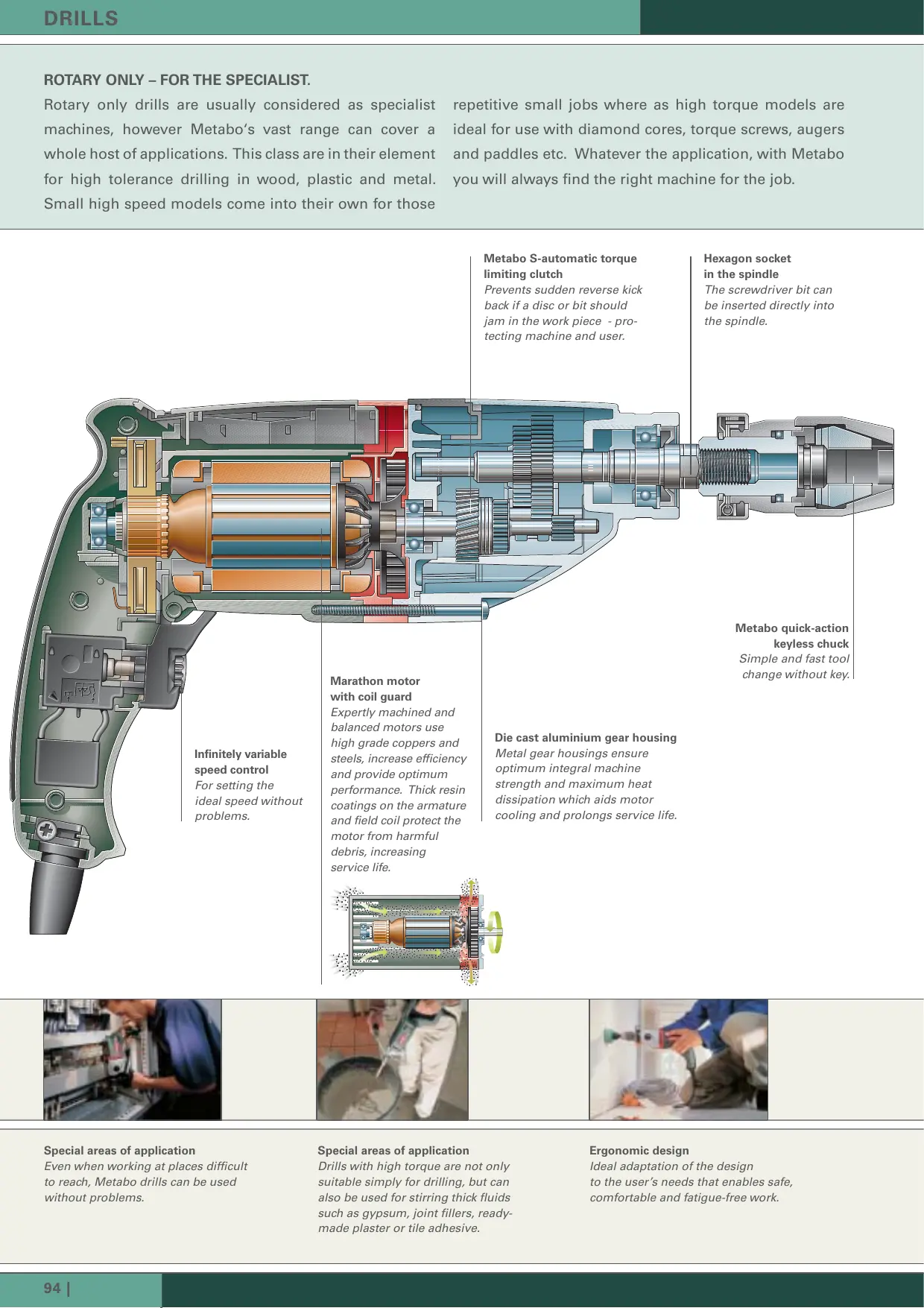

The Metabo rotary drill range is designed and built to meet the needs of the industrial world. Be it for applications in wood, metal, plastic, liquids, ceramic or masonry Metabo has a drill in the range to suit. This versatility results from the use of quality components, high manufacturing tolerances and high quality standards throughout the manufacturing process. With a Metabo you can be sure it will deliver engineering results demanded by industry. Metabo. Work. Don't play.

Rotary only drills are usually considered as specialist machines, however Metabo's vast range can cover a whole host of applications. This class are in their element for high tolerance drilling in wood, plastic and metal. Small high speed models come into their own for those

repetitive small jobs where as high torque models are ideal for use with diamond cores, torque screws, augers and paddles etc. Whatever the application, with Metabo you will always find the right machine for the job.

Special areas of application

Even when working at places difficult to reach, Metabo drills can be used without problems.

Special areas of application

Drills with high torque are not only suitable simply for drilling, but can also be used for stirring thick fluids such as gypsum, joint fillers, ready-made plaster or tile adhesive.

Ergonomic design

Ideal adaptation of the design to the user's needs that enables safe, comfortable and fatigue-free work.

Which drill for which application?

	Drilling	Inserting screws, stirring	Type and output	Page
	Pilot drilling of riveted joints, aluminium and thin sheet metal, pilot drilling of wood, kitchen installation Nail holes in strips		BE 4006 400 Watts	96
	Wood - small diameter Vehicle body manufacture Steel and cast iron Inox profiles, pipes and sheets	Light screwing applications	BE 4010 400 Watts	96
	Wood - smaller diameter Vehicle body manufacture Steel and cast iron Sheet metal, switch cabinet manufacture		B 561 560 Watts	96
	Wood - smaller diameter Vehicle body manufacture Steel and cast iron Sheet metal, switch cabinet manufacture	Light screwing applications	BE 561 560 Watts	96
	Drilling of stainless steel installations (counter construction) Drilling with auger bits and forstner pattern bits	Screwing applications Stirring of paint (painters) Stirring of viscous fluids	BE 622 S-R+L 620 Watts	97
	Steel (mechanical engineering, scaffolding manufacture, locks)	Screwing applications Stirring of paint	BE 710 710 Watts	97
	Wood (carpenters, joiners, interior decorators) Ceramic, tiles (building services, plumbers) Application with drill stand Service and assembly applications	Screwing applications Stirring of paint Application as driving unit	BE 1020 1.020 Watts	97
	Steel - large diameter Wood - extremely large diameter	Stirring of paint Stirring of viscous fluids Diamond Core drilling	BDE 1100 1.100 Watts	98
	Kitchen installation Mechanical engineering Assembly work (furniture, locksmiths, fitters)		WBE 700 705 Watts	98
		Stirring of viscous fluids: Gypsum, filler compound, tile adhesive, joint filler, mortar, ready-made plaster (painters, plasterers, bricklayers)	RWE 1100 1.100 Watts	99
	Steel - large diameter Wood -large diameter Form work drill bit	Screws (long screws with large drilling diameter, e.g. frames and facade pegs) Stirring of viscous fluids	B 32/3 1.800 Watts	100
	Drilling and hollow milling in steel substructures (mechanical engineering) Drilling of steel carriers		MAG 832 800 Watts	101

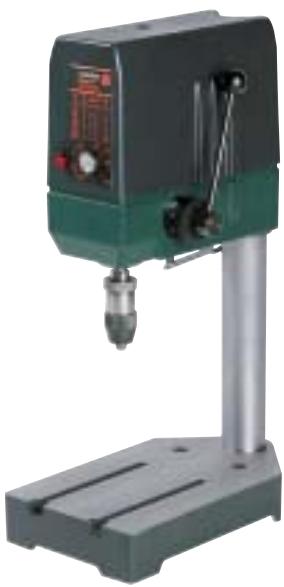

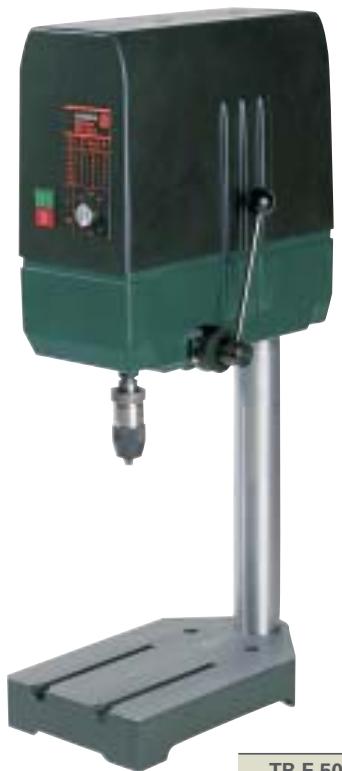

	Stationary drilling in wood, wood-like materials, plastic and metal		TB E 4512 700 Watts TB E 5014 800 Watts	102

COMMON FEATURES

• Compact, lightweight machine with special cup housing design
  Small, handy bench machine
  Ergonomic housing design with large trigger button
• User-friendly guidance of machine exhaust in all working situations
• Variospeed (V) electronics
  Long-life motor
  Clockwise and anticlockwise rotation

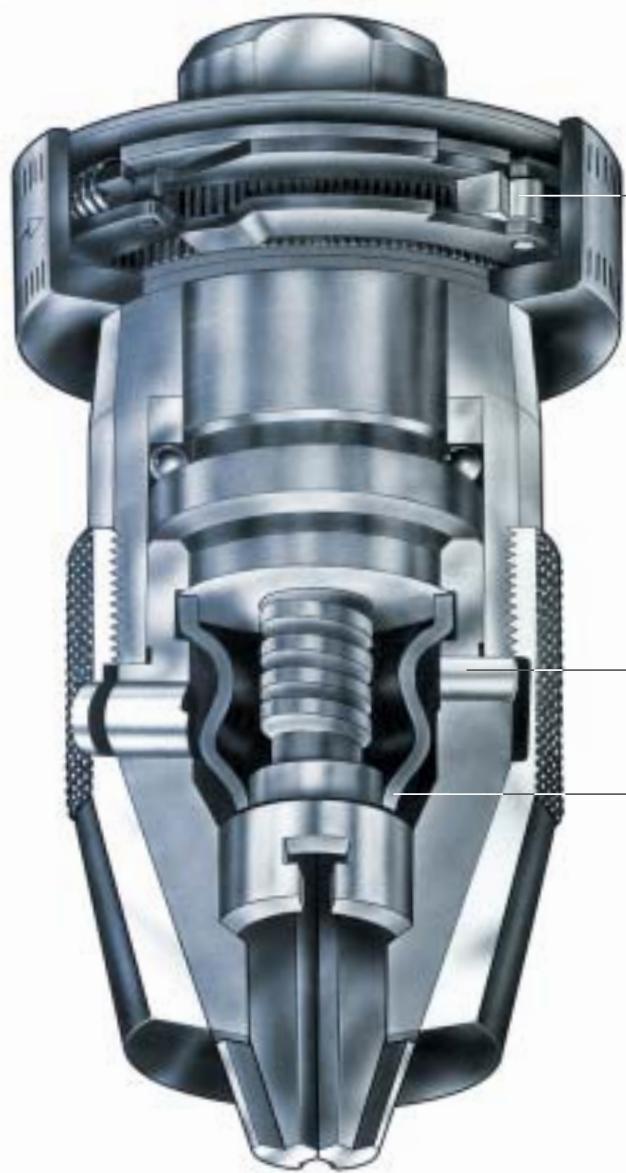

  Quick-action keyless chuck Futuro Plus
  Spindle with hexagon recess for screwdriver bits

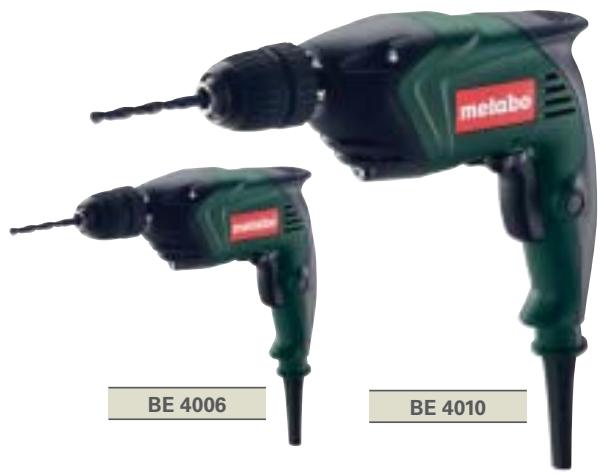

BE 4006

400 Watt Electronic Drill BE 4006

400 Watt Electronic Drill BE 4010

Comparative
device characteristics

Torque	6 Nm	8 Nm
Drilling capacity in
- Steel	6 mm	10 mm
- Softwood	12 mm	20 mm
No load speed	0 - 4.000 /min	0 - 2.850 /min
Rated input power	400 W	400 W
Output power	220 W	220 W
Rated load speed	2.400 /min	1.800 /min
Collar diameter
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1 - 10 mm	1 - 10 mm
Drilling spindle with hexagon recess	1/4" (6,35 mm)	1/4" (6,35 mm)
Weight (without mains cable)	1,2 kg	1,2 kg
Standard equipment	Quick-actionkeyless chuckFuturo Plus	Quick-actionkeyless chuckFuturo Plus

Type Order no.

BE 4006 6.00554

BE 4010 6.00555

COMMON FEATURES

Small, handy bench machine
Sturdy double-shell housing
Ergonomic housing design with large trigger button
Long-life motor
Spindle with hexagon recess for screwdriver bits
Rubber-coated handle

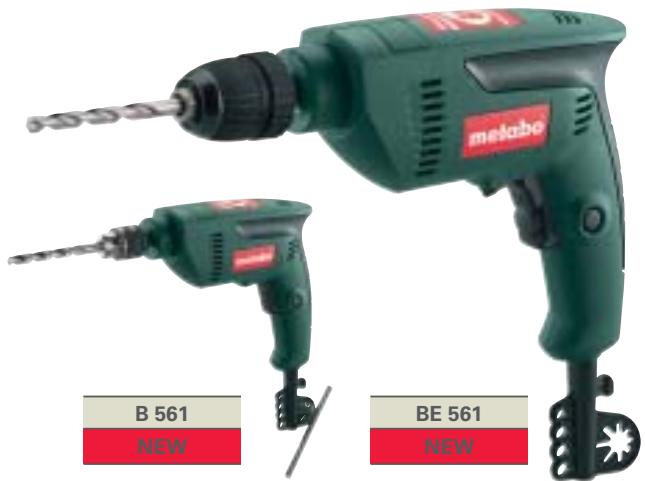

	560 Watt Drill B 561	560 Watt Electronic Drill BE 561
Special advantages
■ Variospeed (V) electronics		●
■ Thumbwheel for preselection of speed		●
■ Clockwise and anticlockwise rotation		●
Comparative device characteristics
Torque	5 Nm	5 Nm
Drilling capacity in
- Steel	10 mm	10 mm
- Softwood	20 mm	20 mm
No load speed	2.800 /min	0 - 2.800 /min
Rated input power	560 W	560 W
Output power	320 W	320 W
Rated load speed	1.700 /min	1.700 /min
Collar diameter	43 mm	43 mm
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1 - 10 mm	1 - 10 mm
Drilling spindle with hexagon recess		1/4" (6,35 mm)
Weight (without mains cable)	1,7 kg	1,7 kg
Type Order no. Machine with	B 561	BE 561
- Quick-action keyless chuck Futuro Plus	-	6.01162.82
- Geared chuck and chuck key	6.01161	6.01162.00

EQUIPMENT FEATURES

Die cast aluminium gear housing
- Variospeed (V) electronics
Metabo S-automatic torque limiting clutch
Clockwise and anticlockwise rotation
Geared chuck
Spindle with hexagon recess for screwdriver bits
- Suitable for drilling with drill bits with large diameter (e.g. formwork drill bits) and for stirring thick liquid-like materials
High torque
Long side handle for work with high torque
Auto-stop carbon brushes

COMMON FEATURES

Die cast aluminium gear housing
Optimal cooling by axial/radial fan
Ergonomic housing design with large trigger button
- Thumbwheel for preselection of speed
Two-speed gear unit
Robust Metabo Marathon motor
Metabo S-automatic torque limiting clutch
Metabo winding protection grid
Clockwise and anticlockwise rotation
Spindle with hexagon recess for screwdriver bits
Auto-stop carbon brushes

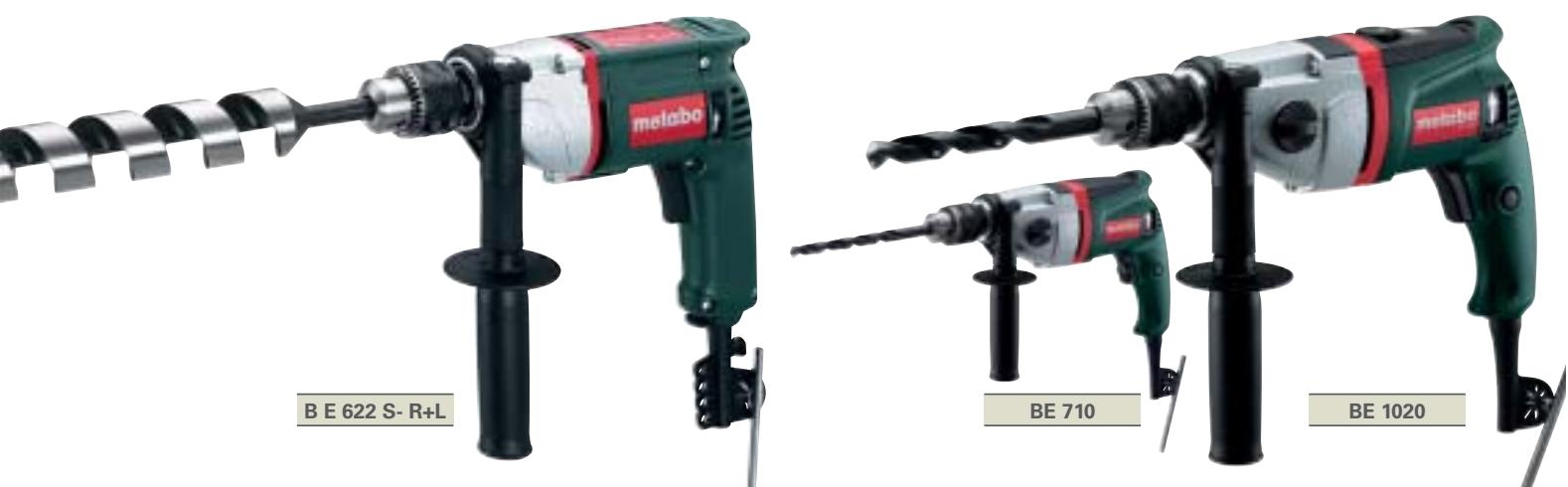

	620 Watt Electronic Drill B E 622 S- R+L
Comparative device characteristics
Torque	35 Nm
Drilling capacity in
- Steel	16 mm
- Softwood	40 mm
No load speed	0 - 550 /min
Rated input power	620 W
Output power	360 W
Rated load speed	330 /min
Collar diameter	43 mm
Drilling spindle thread	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm
Drilling spindle with hexagon recess	1/4" (6,35 mm)
Weight (without mains cable)	2,1 kg
Standard equipment	Geared chuck, chuck key, long side handle
	B E 622 S- R+L 6.00626■
Type Order no.

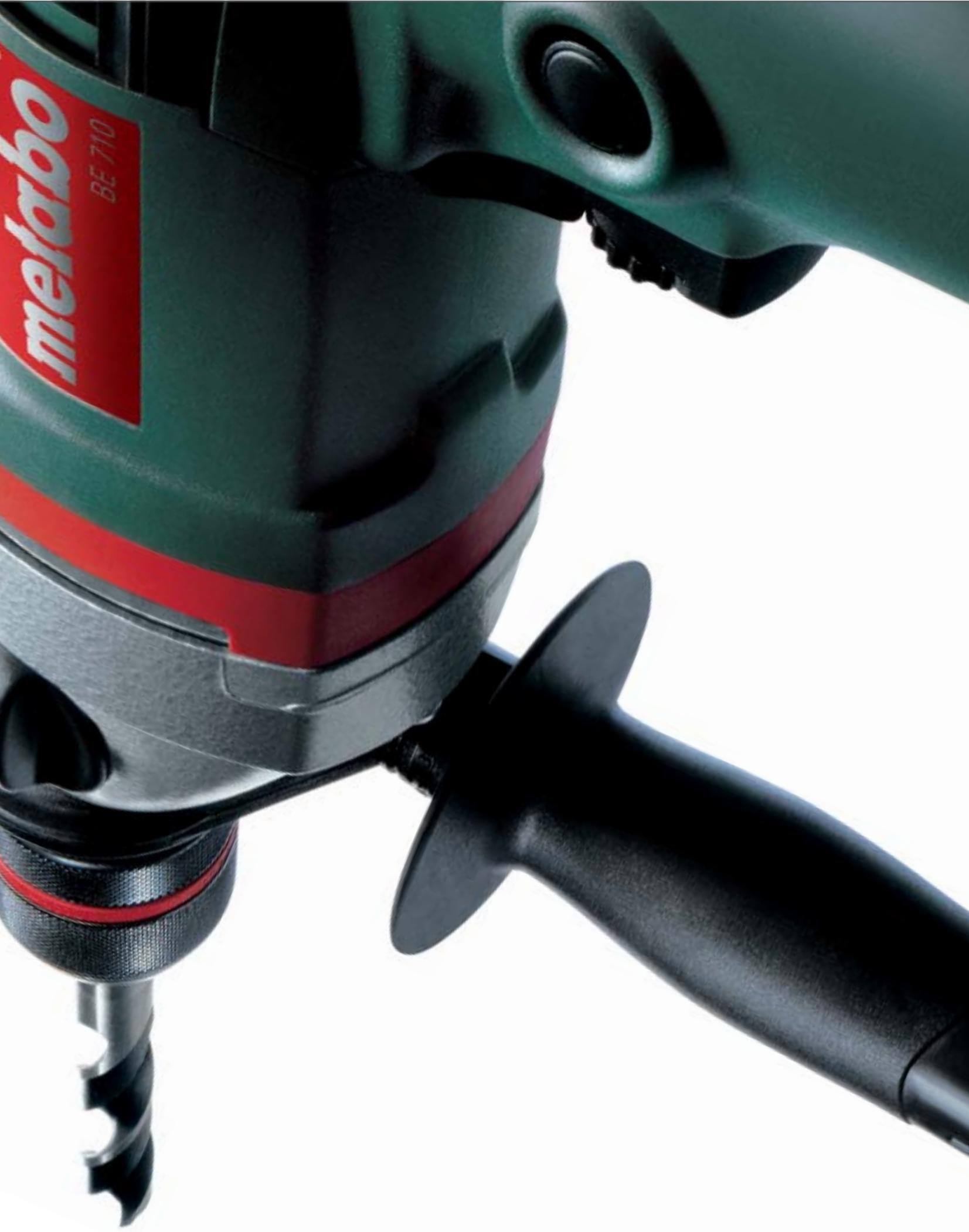

	710 Watt Electronic Two-Speed Drill BE 710	1020 Watt Electronic Two-Speed Drill BE 1020
Special advantages
■ Variospeed (V) electronics	●
■ Vario Tacho Constamatic (VTC) full-wave electronics		●
■ High torque		●
■ Overload protection		●
■ No-volt release switch		●
■ Brush wear indicator		●
Comparative device characteristics
Torque	16 Nm/6 Nm	28 Nm/10 Nm
Drilling capacity in
- Steel	13 mm/8 mm	16 mm/8 mm
- Softwood	40 mm/25 mm	40 mm/25 mm
No load speed	0 - 1.000 /	0 - 900 /
	0 - 3.000 /min	0 - 2.600 /min
Rated input power	710 W	1.020 W
Output power	420 W	620 W
Rated load speed	560/1.700 /min	900/2.600 /min
Collar diameter	43 mm	43 mm
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	1,5 - 13 mm	1,5 - 13 mm
Drilling spindle with hexagon recess	1/4"	1/4"
Weight (without mains cable)	(6,35 mm)	(6,35 mm)
	2,2 kg	2,3 kg
Standard equipment	Side handle	Long side handle
Type Order no. Machine with	BE 710	BE 1020
- Quick-action keyless chuck Futuro Plus	6.00830.91	-
- Geared chuck and chuck key	6.00830.00	6.00831.00

EQUIPMENT FEATURES

Die cast aluminium gear housing
Variospeed (V) electronics
Two-speed gear unit
Metabo S-automatic torque limiting clutch
Clockwise and anticlockwise rotation
Geared chuck
- Suitable for drilling with drill bits with large diameter (e.g. formwork drill bits) and for stirring thick liquid-like materials
High torque
- Comfortable operation and safety through auxiliary handle
Auto-stop carbon brushes

EQUIPMENT FEATURES

Die cast aluminium gear housing
Vario Constamatic (VC) full-wave electronics
- Thumbwheel for preselection of speed
Geared chuck
Especially suitable for working in places difficult to reach
Auto-stop carbon brushes

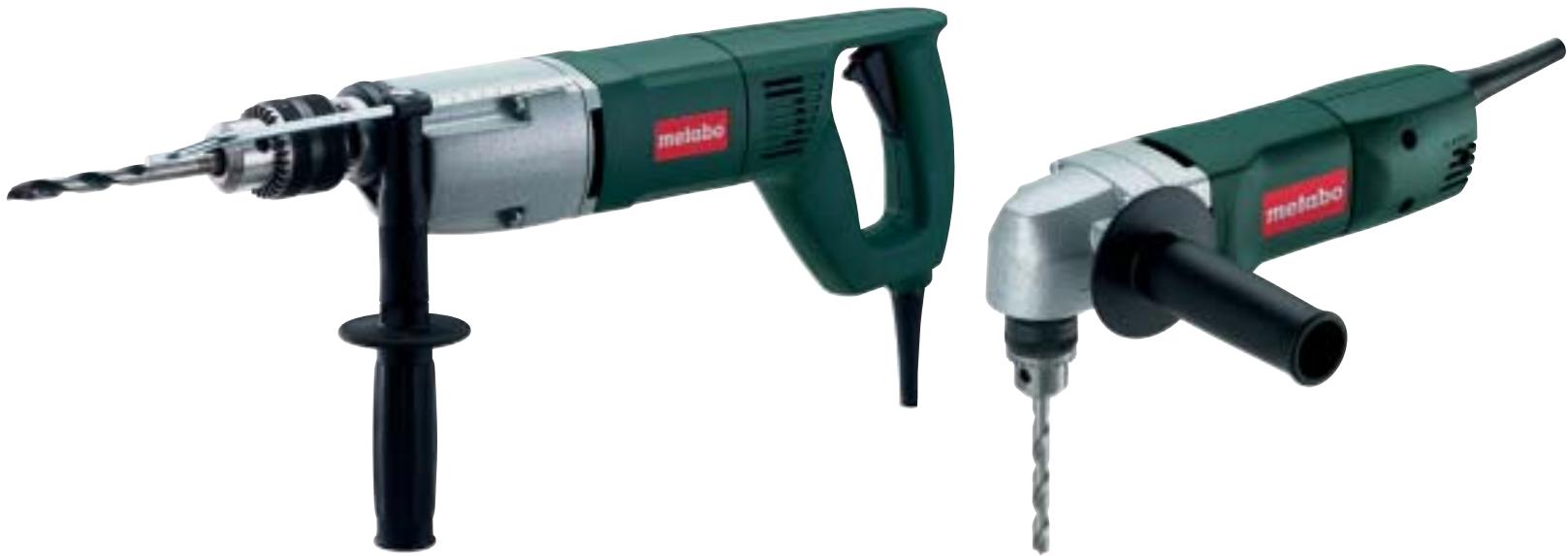

BDE 1100
WBE700

	1100 Watt Electronic Two-Speed Drill BDE 1100
Comparative
device characteristics
Torque	55 Nm/22 Nm
Drilling capacity in
- Steel	16 mm/10 mm
- Softwood	40 mm/25 mm
No load speed	0 - 640 / 0 - 1.200 /min
Rated input power	1.100 W
Output power	620 W
Rated load speed	430/800 /min
Collar diameter	43 mm
Drilling spindle thread	5/8" - 16 UN
Chuck capacity	3 - 16 mm
Weight (without mains cable)	3,8 kg
Standard equipment	Geared chuck, chuck key, long side handle, drilling depth guide
Type	BDE 1100
Order no.	6.00806■

	705 Watt Electronic Angle Drill WBE 700
Comparative device characteristics
Torque	8 Nm
Drilling capacity in
- Steel	10 mm
- Softwood	25 mm
No load speed	850 - 2,050 /min
Rated input power	705 W
Output power	430 W
Rated load speed	1,500 /min
Drilling spindle thread	1/2" - 20 UNF
Chuck capacity	1 - 10 mm
Weight (without mains cable)	1,8 kg
Standard equipment	Geared chuck, chuck key, side handle
	WBE 700 6.00512
Type Order no.

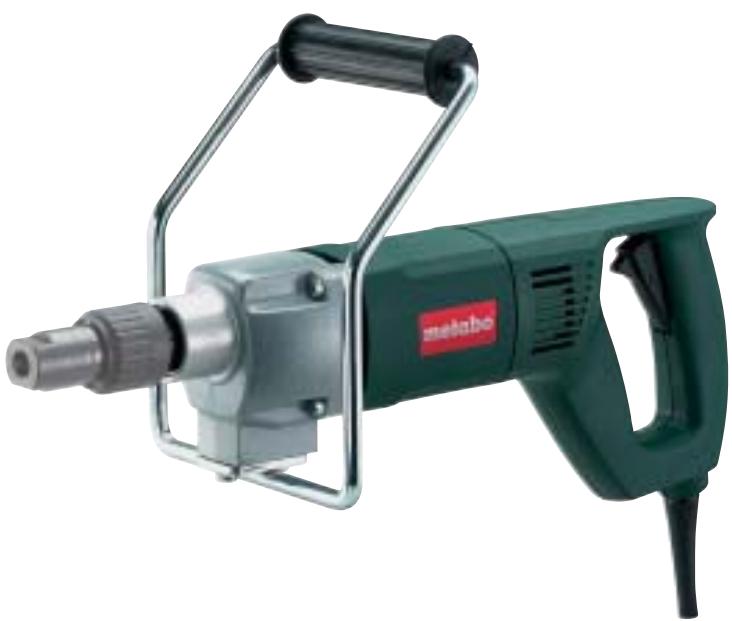

EQUIPMENT FEATURES

• Ideal stirring and mixing device for tough permanent use for plastering, painting and brickwork
• Suitable for stirring thick liquid-like materials
  Die cast aluminium gear housing
  Comfortable operation and safety through auxiliary handle
• Variospeed (V) electronics
  Soft start
  Quick change adapter (accessory)

RWE 1100

	1100 Watt Electronic Stirrer RWE 1100
Comparative device characteristics
Torque	45 Nm
Maximum stirring basket diameter	160 mm
No load speed	0 - 700 /min
Rated input power	1.100 W
Output power	660 W
Rated load speed	480 /min
Collar diameter	43 mm
Bit retainer	M 14 female thread
Weight (without mains cable)	3,4 kg
Standard equipment	Side handle, without adapter
	RWE 1100 6.01111
Type	RWE 1100
Order no.	6.01111

ACCESSORIES FOR THE STIRRERS

Agitator paddles with M14 MThr
Diameter mm	Length mm	Maximum material quantity kg	Maximum speed /min	Order no.
Type RS 2, mixing effect from top to bottom Paint, Varnish, Cement slurry/finished mortar
110	600	15 - 40	500 - 700	6.31950
140	600	30 - 60	500 - 700	6.31951
Type RS 3, mixing effect from top to bottom Plaster, Mortar, Filler compound, Thermal insulation materials
100	600	10 - 25	500 - 700	6.31952
130	600	20 - 50	500 - 700	6.31953
160	600	30 - 150	500 - 700	6.31954
Type RS 3, mixing effect from bottom to top Plaster, Mortar, Filler compound, Thermal insulation materials
100	600	10 - 25	500 - 700	6.31963
130	600	20 - 50	500 - 700	6.31964
160	600	30 - 150	500 - 700	6.31965
Type RS 4, mixing effect from bottom to top 2-component materials
100	600	10 - 20	500 - 700	6.31955
130	600	20 - 30	500 - 700	6.31956
160	600	30 - 150	500 - 700	6.31957
Type RS 8 Liquids, Granules, Float finish
120	600	35 - 70	500 - 700	6.31958

Connectors with M14 FThr For machines with other spindle holders
		Order no.
	Holder: 1/2" -20 UNF, M 14 female thread	6.31959
	Holder: 5/8" - 16 UN, M 14 female thread	6.31960
	Holder: M 14 male thread, M 14 female thread	6.31961
	Holder: M 18 male thread, M 14 female thread	6.31962
	Holder: B 16 male thread, M 14 female thread	6.31969

Quick change adapter
	Order no.
for easily removing or fitting the agitator paddle for cleaning or replacement purposes	6.31966

EQUIPMENT FEATURES

• Powerful three-speed drill with extra high torque for difficult drilling work, including into steel
• Robust mechanical gearbox with oil bath lubrication
  Die cast aluminium gear housing
  Torque limiting clutch
• Suitable for drilling with drill bits with large diameter (e.g. formwork drill bits), for stirring thick liquid-like materials and for screwing in long screws with large diameter (e.g. in frame and facade pegs)
  High torque
• Long side handle for work with high torque

B 32/3

NEW

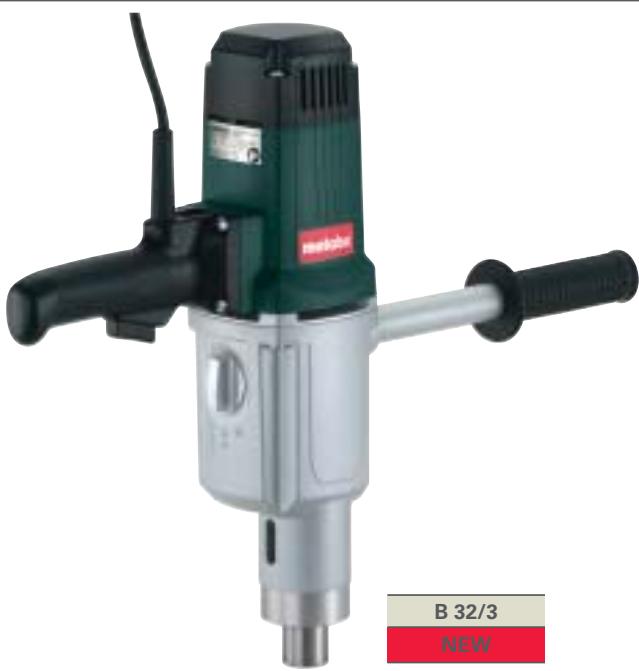

	1800 Watt Three-Speed Drill B 32/3
Comparative device characteristics
Torque	190 Nm/120 Nm/90 Nm
Drilling capacity in
- Steel	32 mm
- Softwood	70 mm
No load speed	170/320/470 /min
Rated input power	1.800 W
Output power	1.200 W
Rated load speed	110/190/280 /min
Collar diameter	65 mm
Drilling spindle with taper socket	MK 3
Weight (without mains cable)	7,5 kg
Standard equipment	Chuck key, long side handle
	B 32/3
Order no.	6.00323

ACCESSORIES FOR THE B 32/3 DRILL

Taper arbors for chucks

Hardened and ground
For chuck with taper socket
According to DIN 238

Outer Morse taperø	Chuck taper	Overall taper arbor length mm	Weight kg	Order no.
MK 3	B 16	134	0,31	6.35125
MK 3	B 18	141	0,32	6.35126
MK 3	B 22	147	0,39	6.35128
MK 3	J 3	135	0,31	6.35129
MK 3	J 33	129	0,31	6.35130
MK 3	J 6	129	0,31	6.35131

Reducing sleeves for tools with Morse taper

Standard type
Similar to DIN 2185
Ground external taper

Outer Morse taper Ø	Inner Morse taper Ø	Overall length mm	Weight kg	Order no.
MK 3	MK 1	99	0,25	6.35140
MK 3	MK 2	112	0,19	6.35143

Drift key

Suitable for machine with Morse taper	Overall length mm	Weight kg	Order no.
MK 3	190	0,15	6.42396

EQUIPMENT FEATURES

Magnet base with high holding power for safe operation
- Also suitable for working overhead on vertical and inclined surfaces using the safety belt provided
- Enables precise and clean drilling. Motor and carriage form a unit
- Height adjustment of carraige with pinion and toothed rack
The motor can only be turned on after turning on the magnet base
Fatigue-free work by hollow milling
Two speeds
- Holder bit for chuck (accessory) for working with spiral drill bits

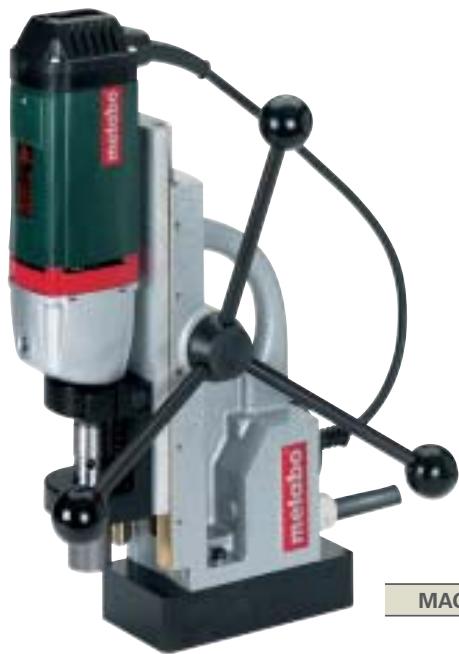

MAG 832

	Electromagnetic Hole Cutting and Drilling Unit MAG 832
Comparative device characteristics
Torque	50 Nm/19 Nm
Maximum cutting edge	32 mm
tool diameter
Magnet stand:
- Max. stroke	130 mm
- Power consumption	50 W
- Max. adhesive power	8.000 N
- Dimensions of the magnet base	90 x 170 mm
Motor:
Rated input power	800 W
Output power	450 W
No-load speeds	530/1.400 /min
Rated load speeds	320/850 /min
Collar diameter	43 mm
Spindle thread	5/8" - 16 UNF
Hole cutting and drilling unit:
Height (including motor) at
- Bottommost carriage position	405 mm
- Topmost carriage position	525 mm
Weight	14 kg
Standard equipment	Tool holder (internal diameter 19 mm), 2 hexagon spanners, safety belt
Type	MAG 832
Order no.	6.00832■

ACCESSORIES FOR THE ELECTROMAGNETIC HOLE CUTTING AND DRILLING UNIT MAG 832

Cutters

HPHSS

Weldon shank 19 mm

A centring pin is required for working with the cutters.

Diameter mm	Cutting depth mm	Order no.
14	25	6.30025
15	25	6.30026
16	25	6.30027
17	25	6.30028
18	25	6.30029
19	25	6.30030
20	25	6.30031
21	25	6.30032
22	25	6.30033
23	25	6.30034
24	25	6.30035
25	25	6.30036
26	25	6.30037
27	25	6.30038
28	25	6.30039
29	25	6.30040
30	25	6.30041
31	25	6.30042
32	25	6.30043
14	50	6.30075
15	50	6.30076
16	50	6.30077
17	50	6.30078
18	50	6.30079
19	50	6.30080
20	50	6.30081
21	50	6.30082
22	50	6.30083
23	50	6.30084
24	50	6.30085
25	50	6.30086
26	50	6.30087
27	50	6.30088
28	50	6.30089
29	50	6.30090
30	50	6.30091
31	50	6.30092
32	50	6.30093

Centring pins

For working with the cutters

Suitable for cutting depth up to mm	Order no.
25	6.30054
50	6.30055

Chuck holder

	Order no.
For chuck with female thread 1/2"-20 UNF	6.30051

COMMON FEATURES

For drilling in wood, wood-like materials, plastics and metals
Vario Tacho Constamatic (VTC) full-wave electronics
- Thumbwheel for preselection of speed
Reduced speed for reduced noise during no load
Powerful universal motor with high capacity reserve
Sturdy steel column

Easy setting of upper part of the machine to the desired height
Solid base plate
Precise preselection of drilling depth
Thermal overload protection
- Undervoltage protection

TB E 4512

TB E 5014

	Bench Drilling Machine Magnum TB E 4512	Bench Drilling Machine Magnum TB E 5014
Comparative device characteristics
Drilling capacity in
- Steel	12 mm	14 mm
- Aluminium	20 mm	25 mm
- Softwood	40 mm	40 mm
Rated input power	700 W	800 W
Output power	450 W	500 W
No load speed	500 - 3.000 /min	400 - 4.500 /min
Rated load speed	3.000 /min	4.500 /min
Distance, bit centre to column	200 mm	205 mm
Depth of feed	60 mm	60 mm
Column Ø	60 mm	60 mm
Spindle cone	B 16	B 16
Chuck capacity	1 - 13 mm	1 - 13 mm
Height to top edge of upper section	675 mm	855 mm
Base plate
- Dimensions	220 x 380 mm	220 x 380 mm
- Clamping surface	220 x 280 mm	220 x 280 mm
- Clearance of the T-grooves	100 mm	100 mm
Maximum distance
Base plate chuck	210 mm	285 mm
Weight	28 kg	50 kg
Standard equipment	Quick-action keyless chuck Futuro Top	Quick-action keyless chuck Futuro Top
Type	TB E 4512	TB E 5014
Order no.	6.04512	6.05014

QUALITY WITHOUT COMPromise

Metabo chucks are available for all common drilling machines- also stationary ones- and impact drilling machines for any job. Precision up to the smallest

details, easy handling and long cycle all common are life characteristics of the Metabo drill-chucks.

Metabo quick-action keyless chuck Futuro Top

Spring-loaded safety feature

for a strong grip of the drill bit - also under hardest and continuous operating conditions of 62.000 impacts/min.

Dual dust protection

Any dust that may pass between the jaw guide and the rubber bellow is ejected through the openings in the chuck sleeve.

A hard-wearing, oil-resistant rubber bellow protects the carrier-thread and the precision fit against dust and dirt.

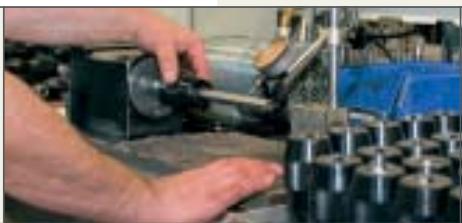

Precise fitting parts and a long service life

All parts of the chuck subjected to severe loads, are hardened. The clamping jaws, the guide sleeves and the chuck body have a ground finish.

Easy to handle

The chuck can be reopened easily and conveniently even after it has been used on tough drilling or impact drilling jobs.

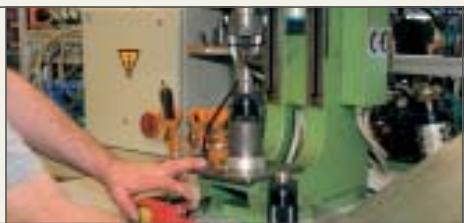

Guarantee for optimal quality

More than 30 quality control checks monitor the manufacture of the individual components; and after assembly

every drill chuck is re-checked again on concentric running and functional safety.

QUICK-ACTION KEYLESS CHUCK, IMPACT-PROOF, FOR CLOCKWISE ROTATION

Quick-action keyless chucks Futuro Top, for clockwise rotation

The first impact-proof quick-action keyless chuck, with built-in spring-loaded bit clamping mechanism and dual dust protection
Keyless for quick tool change
Firmer grip of clamped tools even with toughest load
A hard-wearing, oil-resistant rubber bellows system protects the thread and the precision press fit against dust and dirt
For clockwise rotating drills only

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8"-24 UNF	42,8	77	0,35	6.36215
1 - 10	1/2"-20 UNF	42,8	77	0,35	6.36216
1 - 10	B12	42,8	77	0,35	6.36217
1 - 13	3/8"-24 UNF	42,8	89	0,5	6.36225
1 - 13	1/2"-20 UNF	42,8	89	0,5	6.36226
1 - 13	B16	42,8	103	0,6	6.36227
1 - 13	5/8" - 16 UN	50	111	0,8	6.36231
1 - 13	J6	50	111	0,8	6.36233
3 - 16	5/8" - 16 UN	50	113	1	6.36241
3 - 16	B16	50	113	1	6.36242
3 - 16	B18	50	113	1	6.36243
Self-service packaging
1 - 10	1/2"-20 UNF	42,8	77	0,35	6.36601
1 - 13	1/2"-20 UNF	42,8	89	0,5	6.36602

QUICK-ACTION KEYLESS CHUCK, IMPACT-PROOF, FOR CLOCKWISE AND ANTI-CLOCKWISE ROTATION

Quick-action keyless chucks Futuro Plus S2 M, for clockwise and anticlockwise rotation

Specially developed for impact drills
Sturdy design with metal sleeve
Double sleeve with radial locking for secure tool clamping
Keyless for quick tool change
- Impact-proof design
Drills through with locking screw for clockwise and anticlockwise operating machines
- With key surface for assembly and disassembly

Clamping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1,5 - 13	1/2"-20 UNF	42,9	72,4	0,3	6.36620

Quick-action keyless chucks Futuro Plus S2, for clockwise and anticlockwise rotation

• Specially developed for lightweight impact drills
  Plastic sleeve
  Double sleeve with radial locking for secure tool clamping
  Keyless for quick tool change
  Impact-proof design
  Drills through with locking screw for clockwise and anticlockwise operating machines
• With key surface for assembly and disassembly

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8"-24 UNF	42,8	61	0,2	6.36612
1 - 10	1/2"-20 UNF	42,8	61	0,2	6.36613
1,5 - 13	1/2"-20 UNF	42,8	72,4	0,2	6.36614

Quick-action keyless chucks Futuro Plus S1 M, for clockwise and anticlockwise rotation

Special design for impact drills with spindle stop
Sturdy design with metal sleeve
1-sleeve (without supporting ring)
Keyless for quick tool change
Impact-proof design
Drills through with locking screw for clockwise and anticlockwise operating machines
- With key surface for assembly and disassembly

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1,5 - 13	1/2"-20 UNF	42,9	72,4	0,3	6.36621

Quick-action keyless chucks Futuro Plus S1, for clockwise and anticlockwise rotation

• Specially developed for light impact drills with spindle stop
  Plastic sleeve
  1-sleeve (without supporting ring)
  Keyless for quick tool change
  Impact-proof design
  Drills through with locking screw for clockwise and anticlockwise operating machines
• With key surface for assembly and disassembly

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8"-24 UNF	42,7	61	0,2	6.36615
1 - 10	1/2"-20 UNF	42,7	61	0,2	6.36616
1,5 - 13	1/2"-20 UNF	42,7	72,4	0,2	6.36617

QUICK-ACTION KEYLESS CHUCK, NOT IMPACT-PROOF, FOR CLOCKWISE ROTATION

Quick-action keyless chucks Futuro, for clockwise rotation

• Clamping bits and accessories on hand-held and stationary drilling machines without spanner
  The chuck adjusts its grip automatically to match the force applied by the bit's cutting edges
  The chuck can be reopened easily by hand even after it has been used on tough drilling jobs
  For maximum load
  For clockwise rotating drills only
  Not impact-proof

Clamping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8''-24 UNF	37,5	77	0,35	6.36321
1 - 10	1/2''-20 UNF	37,5	77	0,35	6.36322
1 - 10	B12	37,5	77	0,35	6.36323
1 - 10	B16	40,5	103	0,6	6.36333
1 - 13	3/8''-24 UNF	40,5	89	0,6	6.36341
1 - 13	1/2''-20 UNF	40,5	89	0,6	6.36342
1 - 13	B16	40,5	103	0,6	6.36343
1 - 13	1/2''-20 UNF	47,5	111	0,8	6.36351
1 - 13	5/8'' - 16 UN	47,5	111	0,8	6.36352
1 - 13	B16	47,5	111	0,8	6.36353
1 - 13	J6	47,5	111	0,8	6.36356
3 - 16	5/8'' - 16 UN	50	113	1	6.36361
3 - 16	B16	50	113	1	6.36362
3 - 16	B18	50	113	1	6.36363
3 - 16	J6	50	113	1	6.36364

Quick-action keyless chucks Futuro Plus H2, for clockwise rotation

Special development for cordless drills and light drills
Plastic sleeve
2-sleeve with supporting ring for firm grip of tools
Keyless for quick tool change
Not impact-proof
For clockwise rotating drills only
- With key surface for assembly and disassembly

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8"-24 UNF	42,7	61	0,2	6.36512
1 - 10	1/2"-20 UNF	42,7	61	0,2	6.36513
1,5 - 13	1/2"-20 UNF	42,7	72,5	0,2	6.36514

QUICK-ACTION KEYLESS CHUCK, NOT IMPACT-PROOF, FOR CLOCKWISE AND ANTI-CLOCKWISE ROTATION

Quick-action keyless chucks Futuro Plus H1 M, for clockwise and anticlockwise rotation

Special design for drills with spindle stop
Sturdy design with metal sleeve
- 1-sleeve (without supporting ring)
Keyless for quick tool change
Not impact-proof
- With key surface for assembly and disassembly

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
0,8 - 6,5	1/2"-20 UNF	34	57	0,14	6.36623

Quick-action keyless chucks Futuro Plus H1, for clockwise and anticlockwise rotation

Special design for drills with spindle stop
Plastic sleeve
1-sleeve without supporting ring
Keyless for quick tool change
Not impact-proof
Drills through with locking screw for clockwise and anticlockwise operating machines
- With key surface for assembly and disassembly

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8"-24 UNF	42,7	61	0,2	6.36515
1 - 10	1/2"-20 UNF	42,7	61	0,2	6.36516
1,5 - 13	1/2"-20 UNF	42,7	72,4	0,2	6.36517

Quick-action keyless chucks Futuro Plus H2, for clockwise and anticlockwise rotation

Special development for cordless drills and light drills
Plastic sleeve
2-sleeve with supporting ring for firm grip of tools
Keyless for quick tool change
Not impact-proof
Drills through with locking screw for clockwise and anticlockwise operating machines
- With key surface for assembly and disassembly

Clamping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8''-24 UNF	42,7	61	0,2	6.36518
1 - 10	1/2''-20 UNF	42,7	61	0,2	6.36519
1,5 - 13	1/2''-20 UNF	42,7	72,4	0,2	6.36520

GEARED CHUCK, IMPACT-PROOF, FOR CLOCKWISE ROTATION

Geared chucks with key, for clockwise rotation

Tried and tested 1000 times
The chuck for every type of job
- With FThr or taper socket for stationary or hand-held drills and for hand-held impact drills
The clamping force constant during drilling and impact drilling
For clockwise rotating drills only

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
0,5 - 6,5	3/8"-24 UNF	30	53	0,17	6.35008
0,5 - 6,5	1/2"-20 UNF	30	55,5	0,13	6.35010
0,5 - 6,5	B10	30	53	0,19	6.35003
0,5 - 6,5	B12	30	58	0,15	6.35004
0,5 - 6,5	J1	30	53	0,19	6.35006
1 - 10	3/8"-24 UNF	33,3	61	0,21	6.35019
1 - 10	1/2"-20 UNF	33,3	61	0,2	6.35072
1 - 10	B12	33,3	61	0,24	6.35069
1,5 - 13	3/8"-24 UNF	42,5	74	0,32	6.35033
1,5 - 13	1/2"-20 UNF	42,5	74	0,31	6.35035
1,5 - 13	B16	42,5	78	0,35	6.35036
1,5 - 13	J6	42,5	81	0,63	6.35038
3 - 16	1/2"-20 UNF	50	87,5	0,6	6.35054
3 - 16	5/8" - 16 UN	50	87,5	0,59	6.35056
3 - 16	B16	50	86	0,64	6.35050
3 - 16	B18	50	94,5	0,63	6.35049
3 - 16	J6	50	86	0,62	6.35052
5 - 20	B22	65	113	0,75	6.35058
Self-service packaging
1 - 10	1/2"-20 UNF	33,3	61	0,17	6.35305
1,5 - 13	1/2"-20 UNF	42,5	74	0,31	6.35302

GEARED CHUCK, IMPACT-PROOF

FOR CLOCKWISE AND

ANTI-CLOCKWISE ROTATION

Geared chucks with key, for clockwise and anticlockwise rotation

Tried and tested 1000 times
The chuck for every type of job
- With FThr or taper socket for stationary or hand-held drills and for hand-held impact drills
The clamping force constant during drilling and impact drilling
Drills through with locking screw for clockwise and anticlockwise operating machines

Clam- ping width mm	Female thread	Outside Ø mm	Length (closed) mm	Weight kg	Order no.
1 - 10	3/8"-24 UNF	33,3	61	0,17	6.35254
1 - 10	1/2"-20 UNF	33,3	61	0,17	6.35252
1,5 - 13	3/8"-24 UNF	42,5	74	0,31	6.35255
1,5 - 13	1/2"-20 UNF	42,5	74	0,31	6.35250
3 - 16	5/8" - 16 UN	50	87,5	0,6	6.35253
Self-service packaging
1 - 10	1/2"-20 UNF	33,3	61	0,15	6.35306
1,5 - 13	1/2"-20 UNF	42,5	74	0,32	6.35304

Spare chuck key

Gears according to DIN
For all geared chucks

Key size	Spigot Ø D mm	Shaft length L mm	Order no.
1	4	30	6.35165
2	6	52	6.35177
3	8	50	6.35168
4	9	75	6.35169
Self-service packaging
2	6	52	6.35167

Taper arbors for chucks

Hardened and ground
For chuck with taper socket
According to DIN 238

Outer Morse taper Ø	Chuck taper	Overall taper arbor length mm	Weight kg	Order no.
MK 1	B 10	86	0,055	6.35103
MK 1	B 12	89	0,065	6.35104
MK 1	B 16	97	0,09	6.35105
MK 1	B 18	106	0,11	6.35106
MK 2	B 10	103,5	0,13	6.35113
MK 2	B 12	106,5	0,135	6.35114
MK 2	B 16	110,5	0,16	6.35115
MK 2	B 18	117,5	0,18	6.35116
MK 2	J 3	115	0,18	6.35120
MK 2	J 33	109,5	0,16	6.35119
MK 2	J 6	109,5	0,165	6.35121
MK 3	B 16	134	0,31	6.35125
MK 3	B 18	141	0,32	6.35126
MK 3	B 22	147	0,39	6.35128
MK 3	J 3	135	0,31	6.35129
MK 3	J 33	129	0,31	6.35130
MK 3	J 6	129	0,31	6.35131
MK 4	B 16	159	0,625	6.35132
MK 4	B 18	168	0,66	6.35133

Reducing sleeves for tools with Morse taper

Standard type
Similar to DIN 2185
Ground external taper

Outer Morse taper Ø	Inner Morse taper Ø	Overall length mm	Weight kg	Order no.
MK 2	MK 1	92	0,095	6.35139
MK 3	MK 1	99	0,25	6.35140
MK 3	MK 2	112	0,19	6.35143
MK 4	MK 2	124	0,48	6.35144
MK 4	MK 3	140	0,36	6.35146

Drift key

Suitable for machine with Morse taper	Overall length mm	Weight kg	Order no.
MK 1, MK 2	140	0,07	6.42395
MK 3	190	0,15	6.42396

Drill bits for metall Page 110-115

Metal drill bits, HSS-R, DIN 338, roll-milled

Precision spiral drill made of top grade high-speed steel according to DIN 338, roll-milled, cylindrical, right-hand cutting, Type N (black surface).

Application:

Suitable for drill jobs on the commonly used metallic materials such as steel, NE-metals, alloyed and unalloyed cast steel up to 900 N/mm² tensile strength.

Metal drill bits, HSS-G, DIN 338, ground

precision spiral drill made of high grade quick steel according to DIN 338, cylindrical, right-hand cutting, type N, crosswise ground 135^ (from 3 mm upwards) to DIN 1412 C, bare surface finish.

Application:

For highest demands and precision in industry and craft.
For drilling in steel and cast steel, alloyed and non-alloyed,
grey cast iron, sintered iron, nickel silver, graphite, etc.
Up to 900N/mm² tensile strength.

Metal drill bits, HSS-Co, DIN 338, ground finish

Precision spiral drills made of cobalt-alloy top-grade high-speed steel according to DIN 338, precision ground, cylindrical, type N, reinforced core thickness, crosswise ground 135^ (from 2 mm upwards) to DIN 1412 C, bronze finish.

Application:

For exceptional demands in craft and industry. For drilling hard-to-machine materials such as heat, corrosion and acid resistant steels, VA steel, special alloys, welded seams, CrNi-steels. up to 1,100 N/mm² tensile strength.

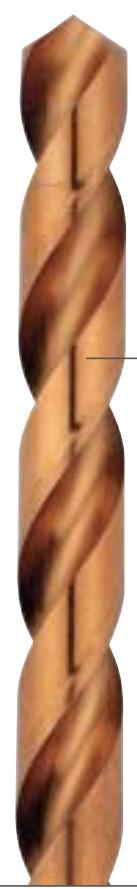

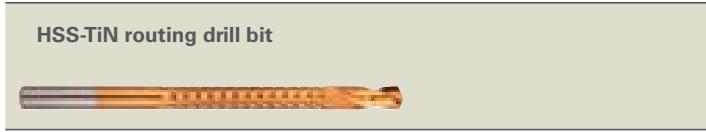

Metal drill bits, HSS-TiN, DIN 338, ground finish

Precision spiral drill made of titanium coated top grade high-speed steel according to DIN 338, precision ground, cylindrical, right-hand cutting, type N, crosswise ground 135^ (from 3 mm upwards) to DIN 1412 C, gold colour surface finish.

Application:

For exceptional demands in craft and industry. For drilling steel and cast-steel, alloyed and non-alloyed, grey cast iron, annealed cast-iron, nickel silver, graphite, bronze and brass up to 900 N/mm2 tensile strength.

Drill bits for stone Page 115-116 Universal drill bits Page 117

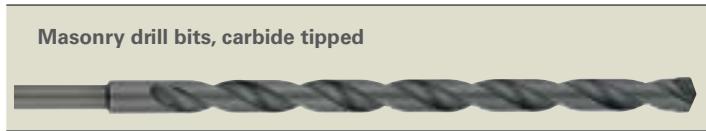

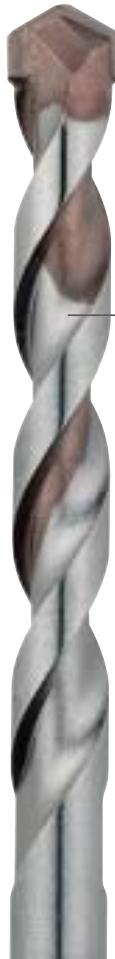

Masonry drill bit, Carbide-tipped

Very robust, high grade stone drill bits for rotary and impact drills, HM plate 130^ , milled angle groove, straight spiral intake, heat resistant, good durability and long service life.

Application:

For drilling concrete, masonry and natural stone

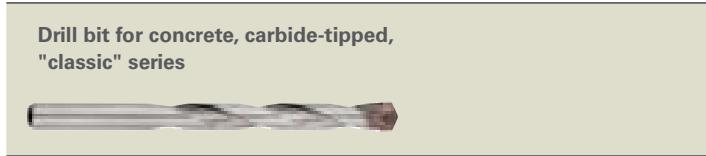

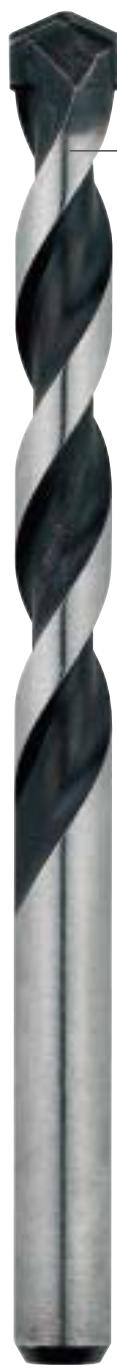

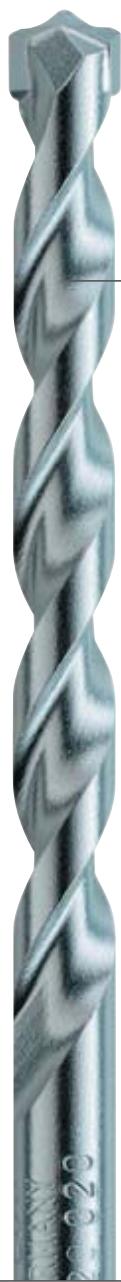

Concrete drill bit, carbide-tipped, „classic“ series

Concrete drill for rotary and impact drills according to DIN 8039, milled angle groove, straight spiral intake, long service life, heat-resistant, carbide plate 130^ , negative chamfer, robust version, surface, shot peened.

Application:

For drilling concrete, masonry and natural stone

Concrete drill bit, carbide-tipped, "pro" series

High grade, robust concrete drill, carbide plate 130^ , specially heat resistant, very long service life with special groove for rapid swarm removal, surface blank with black grooves.

Application:

Suitable for drilling of concrete, brick walls, natural and artificial stone.

Universal drill bit, carbide-tipped

Multi purpose drill bit with cylindrical shaft for rotary use, diamond ground HM inserts and a positive aggressive cutting angle, ideally suited for the use with cordless machines.

Application:

Suitable for drilling in wood, metal, plastic, brick, gypsum boards, gas concrete, tiles, ceramics, etc.

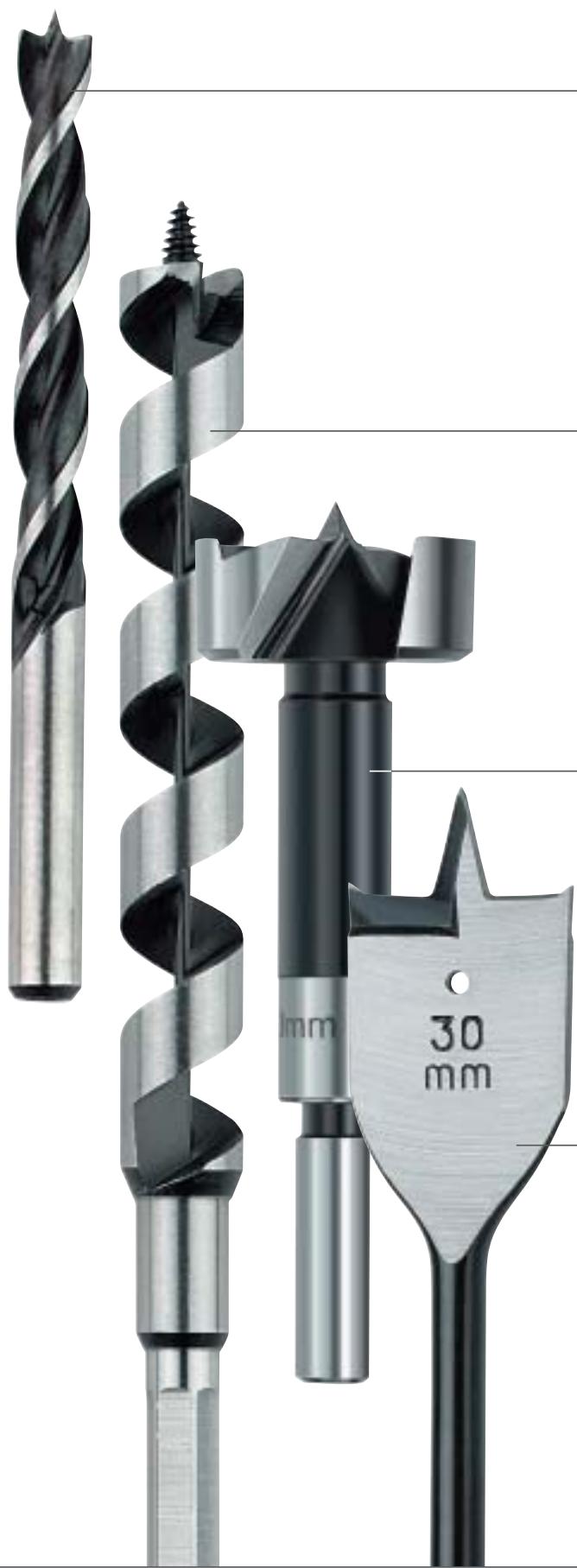

Wood drill bit CV

Spiral drill of top quality for wood drilling, similar to DIN 7487, hardened with spot drill point

Application:

For drilling hard and soft wood, plywood, chipboards etc.

Auger bit

Auger bit for timber with self centring thread point and pre-cutting action, with hexagon shaft, specially fast drilling cycle, very good swarf removal.

Application:

Ideal for drilling deep holes in thick hard and soft wood, especially timber beams.

Forstner pattern drill bit

similar to DIN 7483 with spotting centre, 2 main cutting edges and 2 taper taps.

Application:

For use on hard and soft wood, veneered wooden panels.

Suited for drilling blind holes.

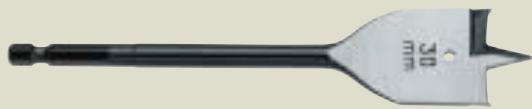

Flat timber drill bit

Wood drill of top grade steel, manufactured with spotting points for accurate spot drilling and equipped with

2 side cutting edges to ensure splinter-free drilling.

The 3/4'' (6,35 mm) hexagonal shaft fits into common chucks and into E 6.3 adapters.

Application:

For quick drilling soft wood, boards, chipboards, plywood, etc.

DRILL BITS FOR METAL

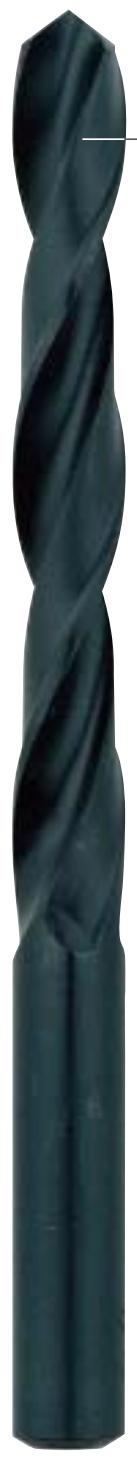

HSS-R metal drill bit, DIN 338, roll-milled

• Spiral drill bit made of high grade high speed steel according to DIN 338, roll-milled, cylindrical, right-hand cutting, type N
  Cone-shaped shell polished surface 118^ diameter tolerance h8
  Black surface
• Suitable for drilling in steel, non-ferrous metals, alloyed and non-alloyed cast steel. Up to 900N / mm^2 tensile strength.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Packed loosely
1	34	12	10	6.27700
1,1	36	14	10	6.27701
1,2	38	16	10	6.27702
1,3	38	16	10	6.27703
1,4	40	18	10	6.27704
1,5	40	18	10	6.27705
1,6	43	20	10	6.27706
1,7	43	20	10	6.27707
1,8	46	22	10	6.27708
1,9	46	22	10	6.27709
2	49	24	10	6.27710
2,1	49	24	10	6.27711
2,2	53	27	10	6.27712
2,3	53	27	10	6.27713
2,4	57	30	10	6.27714
2,5	57	30	10	6.27715
2,6	57	30	10	6.27716
2,7	61	33	10	6.27717
2,8	61	33	10	6.27718
2,9	61	33	10	6.27719
3	61	33	10	6.27720
3,1	65	36	10	6.27721
3,2	65	36	10	6.27722
3,3	65	36	10	6.27723
3,4	70	39	10	6.27724
3,5	70	39	10	6.27725
3,6	70	39	10	6.27726
3,7	70	39	10	6.27727
3,8	75	43	10	6.27728
3,9	75	43	10	6.27729
4	75	43	10	6.27730
4,1	75	43	10	6.27731
4,2	75	43	10	6.27732
4,3	80	47	10	6.27733
4,4	80	47	10	6.27734
4,5	80	47	10	6.27735
4,6	80	47	10	6.27736
4,7	80	47	10	6.27737
4,8	86	52	10	6.27738
4,9	86	52	10	6.27739
5	86	52	10	6.27740
5,1	86	52	10	6.27741
5,2	86	52	10	6.27742
5,3	93	57	10	6.27743
5,4	93	57	10	6.27744
5,5	93	57	10	6.27745
5,6	93	57	10	6.27746
5,7	93	57	10	6.27747
5,8	93	57	10	6.27748
5,9	93	57	10	6.27749
6	93	57	10	6.27750
6,1	101	63	10	6.27751
6,2	101	63	10	6.27752
6,3	101	63	10	6.27753
6,4	101	63	10	6.27754
6,5	101	63	10	6.27755

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
6,6	101	63	10	6.27756
6,7	101	63	10	6.27757
6,8	109	69	10	6.27758
6,9	109	69	10	6.27759
7	109	69	10	6.27760
7,1	109	69	10	6.27761
7,2	109	69	10	6.27762
7,3	109	69	10	6.27763
7,4	109	69	10	6.27764
7,5	109	69	10	6.27765
7,6	117	75	10	6.27766
7,7	117	75	10	6.27767
7,8	117	75	10	6.27768
7,9	117	75	10	6.27769
8	117	75	10	6.27770
8,1	117	75	10	6.27771
8,2	117	75	10	6.27772
8,3	117	75	10	6.27773
8,4	117	75	10	6.27774
8,5	117	75	10	6.27775
8,6	125	81	10	6.27776
8,7	125	81	10	6.27777
8,8	125	81	10	6.27778
8,9	125	81	10	6.27779
9	125	81	10	6.27780
9,1	125	81	10	6.27781
9,2	125	81	10	6.27782
9,3	125	81	10	6.27783
9,4	125	81	10	6.27784
9,5	125	81	10	6.27785
9,6	133	87	10	6.27786
9,7	133	87	10	6.27787
9,8	133	87	10	6.27788
9,9	133	87	10	6.27789
10	133	87	10	6.27790
10,2	133	87	5	6.27792
10,5	133	87	5	6.27795
11	142	94	5	6.27800
11,5	142	94	5	6.27805
12	151	101	5	6.27810
12,5	151	101	5	6.27815
13	151	101	5	6.27820
Self-service packaging
1	34	12	2	6.27821
1,5	40	18	2	6.27822
2	49	24	2	6.27823
2,5	57	30	2	6.27824
3	61	33	2	6.27825
3,2	65	36	2	6.27826
3,5	70	39	2	6.27827
4	75	43	2	6.27828
4,2	75	43	1	6.27829
4,5	80	47	1	6.27830
4,8	86	52	1	6.27831
5	86	52	1	6.27832
5,5	93	57	1	6.27833
6	93	57	1	6.27834
6,5	101	63	1	6.27835
6,8	109	69	1	6.27836
7	109	69	1	6.27837
7,5	109	69	1	6.27838
8	117	75	1	6.27839
8,5	117	75	1	6.27841
9	125	81	1	6.27842
9,5	125	81	1	6.27843
10	133	87	1	6.27844
10,5	133	87	1	6.27846
11	142	94	1	6.27847
11,5	142	94	1	6.27848
12	151	101	1	6.27849
12,5	151	101	1	6.27850
13	151	101	1	6.27851

HSS-R metal drill bit, DIN 338, roll-milled, assortments

		Order no.
	6-piece, in small plastic case Ø 2 / 3 / 4 / 5 / 6 / 8 mm	6.27160
	10-piece, in small plastic case Ø 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm	6.27158
	13-piece, in small plastic case Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 / 4.8 / 5 / 5.5 / 6 / 6.5 mm	6.27161
	13-piece, in small plastic case Ø 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 mm	6.27162
	19-piece, in small metal case Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 mm	6.27164
	25-piece, in small metal case Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm	6.27159

HSS-R metal drill bit, DIN 338, with offset shaft

• Spiral drill bit made of high grade high speed steel according to DIN 338, roll-milled, cylindrical, right-hand cutting, type N
  Cone-shaped shell polished surface 118^ diameter tolerance h8
  Black surface
• Suitable for drilling in steel, non-ferrous metals, alloyed and non-alloyed cast steel. Up to 900N / mm^2 tensile strength.

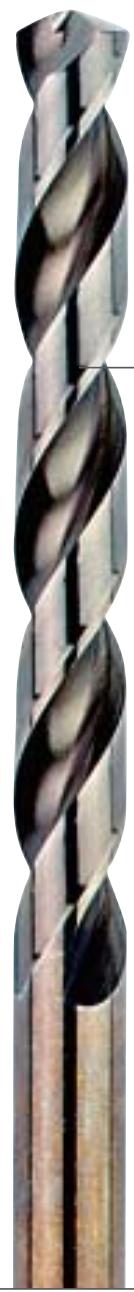

HSS-G metal drill bit, DIN 338, ground

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
Shaft-Ø 10 mm
10,5	133	87	1	6.25000
11	142	94	1	6.25001
11,5	142	94	1	6.25002
12	151	101	1	6.25003
12,5	151	101	1	6.25004
13	151	101	1	6.25005
13,5	160	108	1	6.25006
14	160	108	1	6.25007
14,5	169	114	1	6.25008
15	169	114	1	6.25009
15,5	178	120	1	6.25010
16	178	120	1	6.25011
Shaft-Ø 13 mm
16,5	184	125	1	6.25012
17	184	125	1	6.25013
17,5	191	130	1	6.25014
18	191	130	1	6.25015
18,5	198	135	1	6.25016
19	198	135	1	6.25017
19,5	205	140	1	6.25018
20	205	140	1	6.25019

• Precision spiral drill bit made of high-grade high speed steel according to DIN 338, precision ground, cylindrical, right-hand cutting, type N, crosswise grinding 135^ according to DIN 1412 C (from 3 mm), diameter tolerance h8
  Bare surface
  For maximum load and precision in industry and craft. For drilling steel and cast steel, alloyed and unalloyed, grey cast iron, malleable cast iron, ductile cast iron, sintered iron, nickel silver, graphite, non-ferrous metals, plastic. Up to 900N / mm^2 tensile strength.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Packed loosely
1	34	12	10	6.27852
1,1	36	14	10	6.27853
1,2	38	16	10	6.27854
1,3	38	16	10	6.27855
1,4	40	18	10	6.27856
1,5	40	18	10	6.27857
1,6	43	20	10	6.27858
1,7	43	20	10	6.27859
1,8	46	22	10	6.27860
1,9	46	22	10	6.27861
2	49	24	10	6.27862
2,1	49	24	10	6.27863
2,2	53	27	10	6.27864
2,3	53	27	10	6.27865
2,4	57	30	10	6.27866
2,5	57	30	10	6.27867
2,6	57	30	10	6.27868
2,7	61	33	10	6.27869
2,8	61	33	10	6.27870
2,9	61	33	10	6.27871
3	61	33	10	6.27872
3,1	65	36	10	6.27873
3,2	65	36	10	6.27874
3,3	65	36	10	6.27875
3,4	70	39	10	6.27876
3,5	70	39	10	6.27877
3,6	70	39	10	6.27878
3,7	70	39	10	6.27879
3,8	75	43	10	6.27880
3,9	75	43	10	6.27881
4	75	43	10	6.27882
4,1	75	43	10	6.27883
4,2	75	43	10	6.27884
4,3	80	47	10	6.27885
4,4	80	47	10	6.27886
4,5	80	47	10	6.27887
4,6	80	47	10	6.27888
4,7	80	47	10	6.27889
4,8	86	52	10	6.27890
4,9	86	52	10	6.27891
5	86	52	10	6.27892
5,1	86	52	10	6.27893
5,2	86	52	10	6.27894
5,3	86	52	10	6.27895
5,4	93	57	10	6.27896
5,5	93	57	10	6.27897
5,6	93	57	10	6.27898
5,7	93	57	10	6.27899
5,8	93	57	10	6.27900
5,9	93	57	10	6.27901
6	93	57	10	6.27902
6,1	101	63	10	6.27903
6,2	101	63	10	6.27904
6,3	101	63	10	6.27905
6,4	101	63	10	6.27906
6,5	101	63	10	6.27907
6,6	101	63	5	6.27908
6,7	101	63	5	6.27909
6,8	109	69	5	6.27910
6,9	109	69	5	6.27911
7	109	69	5	6.27912
7,1	109	69	5	6.27913
7,2	109	69	5	6.27914
7,3	109	69	5	6.27915
7,4	109	69	5	6.27916
7,5	109	69	5	6.27917
7,6	117	75	5	6.27918
7,7	117	75	5	6.27919
7,8	117	75	5	6.27920
7,9	117	75	5	6.27921
8	117	75	5	6.27922
8,1	117	75	5	6.27923
8,2	117	75	5	6.27924
8,3	117	75	5	6.27925
8,4	117	75	5	6.27926
8,5	117	75	5	6.27927
8,6	125	81	5	6.27928
8,7	125	81	5	6.27929
8,8	125	81	5	6.27930
8,9	125	81	5	6.27931
9	125	81	5	6.27932
9,1	125	81	5	6.27933
9,2	125	81	5	6.27934
9,3	125	81	5	6.27935
9,4	125	81	5	6.27936
9,5	125	81	5	6.27937
9,6	133	87	5	6.27938
9,7	133	87	5	6.27939
9,8	133	87	5	6.27940
9,9	133	87	5	6.27941
10	133	87	5	6.27942
10,2	133	87	5	6.27943
10,5	133	87	5	6.27944
11	142	94	5	6.27945
11,5	142	94	5	6.27946
12	151	101	5	6.27947
12,5	151	101	5	6.27948
13	151	101	5	6.27949
Self-service packaging
1	34	12	2	6.27950
1,5	40	18	2	6.27951
2	49	24	2	6.27952
2,5	57	30	2	6.27953
3	61	33	2	6.27954
3,2	65	36	2	6.27955
3,5	70	39	2	6.27957
4	75	43	2	6.27958
4,2	80	47	1	6.27960
4,5	80	47	1	6.27961
4,8	86	52	1	6.27962
5	86	52	1	6.27963
5,5	93	57	1	6.27966
6	93	57	1	6.27967
6,5	101	63	1	6.27968
6,8	109	69	1	6.27969
7	109	69	1	6.27970
7,5	109	69	1	6.27971
8	117	75	1	6.27973
8,5	117	75	1	6.27975
9	125	81	1	6.27976
9,5	125	81	1	6.27977
10	133	87	1	6.27978
10,5	133	87	1	6.27980
11	142	94	1	6.27981
11,5	142	94	1	6.27982
12	151	101	1	6.27983
12,5	151	101	1	6.27984
13	151	101	1	6.27985

HSS-G metal drill bit, DIN 338, ground, assortments

		Order no.
	6-piece, in small plastic case Ø 2/3/4/5/6/8 mm	6.27094
	13-piece, in small plastic case Ø 1.5/2/2.5/3/3.2/3.5/4/4.5/ 4.8/5/5.5/6/6.5 mm	6.27096
	19-piece, in small metal case Ø 1/1.5/2/2.5/3/3.5/4/4.5/ 5/5.5/6/6.5/7/7.5/8/8.5/ 9/9.5/10 mm	6.27097
	25-piece, in small metal case Ø 1/1.5/2/2.5/3/3.5/4/4.5/5/ 5.5/6/6.5/7/7.5/8/8.5/9/9.5/ 10/10.5/11/11.5/12/12.5/13 mm	6.27098

HSS-GS metal drill bit, DIN 1897, extra short

• Special spiral drill bit made of high grade high speed steel according to DIN 1897, ground from the whole, extra short, right-hand cutting, with crosswise grinding 118^ (from 3 mm), diameter tolerance h8
  Bare surface
  For drilling steel and cast steel, alloyed and non-alloyed. Bis zu 900N / mm^2 Zugestigkeit.
• Suitable for high demands on automatic systems and revolving lathes.

	Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
	Packed loosely
	2	38	12	10	6.25071
	2,1	38	12	10	6.25072
	2,2	38	12	10	6.25073
	2,3	40	13	10	6.25074
	2,4	43	14	10	6.25075
	2,5	43	14	10	6.25076
	2,6	43	14	10	6.25077
	2,7	46	16	10	6.25078
	2,8	46	16	10	6.25079
	2,9	46	16	10	6.25080
	3	46	16	10	6.25081
	3,1	49	18	10	6.25082
	3,2	49	18	10	6.25083
	3,25	49	18	10	6.25084
	3,3	49	18	10	6.25085
	3,4	52	20	10	6.25086
	3,5	52	20	10	6.25087
	3,6	52	20	10	6.25088
	3,7	52	20	10	6.25089
	3,8	55	22	10	6.25090
	3,9	55	22	10	6.25091
	4	55	22	10	6.25092

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
4,1	55	22	10	6.25093
4,2	55	22	10	6.25094
4,3	58	24	10	6.25095
4,4	58	24	10	6.25096
4,5	58	24	10	6.25097
4,6	58	24	10	6.25098
4,7	58	24	10	6.25099
4,8	62	26	10	6.25100
4,9	62	26	10	6.25101
5	62	26	10	6.25102
5,1	62	26	10	6.25103
5,2	62	26	10	6.25104
5,5	66	28	10	6.25105
5,7	66	28	10	6.25106
6	66	28	10	6.25107
6,5	70	31	10	6.25108
7	74	34	10	6.25109
7,5	74	34	5	6.25110
8	79	37	5	6.25111
8,5	79	37	5	6.25112
9	84	40	5	6.25113
10	89	43	5	6.25115

HSS-G metal drill bit, long, DIN 340

• Precision spiral drill bit made of high grade high speed steel according to DIN 340, ground from the whole, long, cylindrical, right-hand cutting, type N, crosswise grinding 135^ according to DIN 1412 C (from 3 mm), diameter tolerance h8
  Bare surface
  For highest demands and precision in industry and craft
  For drilling steels, cast steel, alloyed and unalloyed, grey cast iron, ductile cast iron, sintered iron, nickel silver, graphite. Up to 900N / mm^2 tensile strength.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
2	85	56	1	6.25031
2,5	95	62	1	6.25032
3	100	66	1	6.25033
3,1	106	69	1	6.25034
3,2	106	69	1	6.25035
3,3	112	73	1	6.25036
3,5	112	73	1	6.25037
4	119	78	1	6.25038
4,1	119	78	1	6.25039
4,2	119	78	1	6.25040
4,5	126	82	1	6.25041
4,8	132	87	1	6.25042
5	132	87	1	6.25043
5,1	139	87	1	6.25044
5,2	139	87	1	6.25045
5,3	139	87	1	6.25046
5,5	139	91	1	6.25047
5,7	139	91	1	6.25048
5,8	139	91	1	6.25049
6	139	91	1	6.25050
6,5	148	97	1	6.25051
6,8	156	102	1	6.25052
7	156	102	1	6.25053
7,5	156	102	1	6.25054
8	165	109	1	6.25055
8,5	165	109	1	6.25056
9	175	115	1	6.25057
9,5	175	115	1	6.25058
10	184	121	1	6.25059

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
10,2	184	121	1	6.25060
10,5	184	121	1	6.25061
11	195	128	1	6.25062
11,5	195	128	1	6.25063
12	205	134	1	6.25064
12,5	205	134	1	6.25065
13	205	134	1	6.25066

HSS-GS double-end drill bit

• Special spiral drill bit made of high-grade high speed steel according to works standards, ground from the whole, extra short, right-hand cutting, with crosswise grinding 118^ (from 3 mm), diameter tolerance h8
  Bare surface
  Double-sided special drill for thin sheet holes
  Sturdy construction for robust drilling conditions in the hand-held drill
• For drilling thin workpieces such as sheet steel, brass sheet, zinc sheet, copper sheet, aluminium sheet, plastic boards

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Packed loosely
2,5	43	10	10	6.25133
3	46	12	10	6.25134
3,1	49	12	10	6.25135
3,2	49	12	10	6.25136
3,3	49	12	10	6.25137
3,5	52	12	10	6.25138
4	55	12	10	6.25139
4,1	55	12	10	6.25140
4,2	55	12	10	6.25141
4,5	58	12	10	6.25142
4,8	62	14	10	6.25143
5	62	14	10	6.25144
5,1	62	14	10	6.25145
5,2	62	14	10	6.25146
5,5	66	16	10	6.25147
6	66	19	10	6.25148

HSS-G metal drill bit, DIN 3126, with hexagonal shank

High quality precision tool made of the finest hardened steel
- Precision ground from one piece (not a bolted or welded 2-piece product).
- Ideal for the new generation of drills equipped with quick change keyless chuck according to DIN 3126.
- Our drills' strict compliance to DIN 3126 E6.3 ensures that the chuck is not damaged.

	Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
	2	47	16	1	6.27514
	3	47	16	1	6.27515
	4	53	20	1	6.27516
	5	59	26	1	6.27517
	6	59	26	1	6.27518
	8	60	32	1	6.27519

HSS-Co metal drill bit, DIN 338

• Precision spiral drill bit made of cobalt-alloy high-grade high speed steel according to DIN 338, precision-ground, cylindrical, type N, reinforced core thickness, with crosswise grinding 135^ according to DIN 1412 C (from 2 mm), diameter tolerance h8
  Bronze surface
  For exceptional demands and precision work in small trading and industry
  ■ For drilling in steel, VA steel, cast steel, NE metals, plastics, special alloys, CrNi steel up to 1100N / mm^2 tensile strength

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
1	34	12	2	6.27430
1,5	40	18	2	6.27431
2	49	24	2	6.27432
2,5	57	30	2	6.27433
3	61	33	2	6.27435
3,2	65	36	2	6.27436
3,3	65	36	2	6.27437
3,5	70	39	2	6.27438
4	75	43	2	6.27439
4,1	75	43	1	6.27440
4,2	75	43	1	6.27441
4,5	80	47	1	6.27442
4,8	86	52	1	6.27443
5	86	52	1	6.27444
5,1	86	52	1	6.27445
5,2	86	52	1	6.27446
5,5	93	57	1	6.27447
6	93	57	1	6.27448
6,5	101	63	1	6.27449
6,8	109	69	1	6.27450
7	109	69	1	6.27451
7,5	109	69	1	6.27452
8	117	75	1	6.27454
8,2	117	75	1	6.27455
8,5	117	75	1	6.27456
9	125	81	1	6.27457
9,5	125	81	1	6.27458
10	133	87	1	6.27459
10,2	133	87	1	6.27460
10,5	133	87	1	6.27461
11	142	94	1	6.27462
11,5	142	94	1	6.27463
12	151	101	1	6.27464
12,5	151	101	1	6.27465
13	151	101	1	6.27466

HSS-Co metal drill bit, DIN 338,
assortments

		Order no.
	6-piece, in small plastic case Ø 2 / 3 / 4 / 5 / 6 / 8 mm	6.27119
	13-piece, in small plastic case Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 / 4.8 / 5 / 5.5 / 6 / 6.5 mm	6.27120
	19-piece, in small metal case Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 mm	6.27121

		Order no.
	25-piece, in small metal case Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm	6.27122

HSS-TiN metal drill bit, DIN 338

• Precision spiral drill bit made of high grade high speed steel according to DIN 338
• Coating with titanium nitride for especially high tool life, precision-ground, cylindrical, right-hand cutting, type N, crosswise grinding 135^ according to DIN 1412 C (from 3 mm), diameter tolerance h8.
  Gold painted surface
  For drilling steels, cast steel, alloyed and unalloyed, grey cast iron, non ferrous metals, plastics. Up to 900N / mm^2 tensile strength.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
1	34	12	2	6.27540
1,5	40	18	2	6.27541
2	49	24	2	6.27542
2,5	57	30	2	6.27543
3	61	33	2	6.27545
3,2	65	36	2	6.27546
3,5	70	39	2	6.27548
4	75	43	2	6.27550
4,2	75	43	1	6.27552
4,5	80	47	1	6.27554
4,8	86	52	1	6.27555
5	86	52	1	6.27556
5,5	93	57	1	6.27559
6	93	57	1	6.27560
6,5	101	63	1	6.27561
6,8	109	69	1	6.27562
7	109	69	1	6.27563
7,5	109	69	1	6.27564
8	117	75	1	6.27566
8,5	117	75	1	6.27568
9	125	81	1	6.27569
9,5	125	81	1	6.27570
10	133	87	1	6.27571
10,5	133	87	1	6.27573
11	142	94	1	6.27574
11,5	142	94	1	6.27575
12	151	101	1	6.27576
12,5	151	101	1	6.27577
13	151	101	1	6.27578

HSS-TiN metal drill bit, DIN 338, assortments

		Order no.
	6-piece, in small plastic case Ø 2 / 3 / 4 / 5 / 6 / 8 mm	6.27171
	13-piece, in small plastic case Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 / 4.8 / 5 / 5.5 / 6 / 6.5 mm	6.27176
	19-piece, in small metal case Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 mm	6.27173
	25-piece, in small metal case Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm	6.27191

• Routing drill bit made of HSS steel with very efficient routing spirals, crosswise grinding 135^ according to DIN 1412 C, titanium nitride coating
• Extremely suitable for drilling and moulding/routing any contours in sheets and other thin-walled materials

	Diameter mm	Overall length mm	Packing unit	Order no.
	Self-service packaging
	6	90	1	6.25150

MAISONRY DRILL BIT

Drill bit for stone, carbide-tipped

• Masonry drill bit for rotary and impact drills, milled version, carbide plate 130^ , robust version
• Suitable for drilling in bricks, masonry, natural stone ...

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
3	60	30	1	6.27467
4	75	40	1	6.27468
5	85	50	1	6.27469
5,5	85	50	1	6.27470
6	100	55	1	6.27471
6,5	100	60	1	6.27472
7	100	60	1	6.27473
8	120	70	1	6.27474
9	120	70	1	6.27475
10	120	70	1	6.27476
11	150	85	1	6.27477
12	150	85	1	6.27478
13	150	95	1	6.27479
14	150	95	1	6.27480
15	150	95	1	6.27481
16	150	95	1	6.27482
18	160	105	1	6.27483
20	160	105	1	6.27484
5	150	85	1	6.27485
5,5	150	85	1	6.27486
6	150	85	1	6.27487
6,5	150	85	1	6.27488
7	150	85	1	6.27489
6	200	135	1	6.27490
8	200	135	1	6.27491
10	200	135	1	6.27492
12	200	135	1	6.27493
14	200	135	1	6.27494

Masonry drill bits, carbide tipped, assortments
		Order no.
	5-piece, in small plastic case Ø 4 / 5 / 6 / 8 / 10 mm	6.27192
	8-piece, in small plastic case Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm	6.27193

MASONRY DRILL BIT

• Strong masonry drill bit for rotary and impact drills, milled version with carbide plate 130^
  Shaft model: drill bit 08 - 15 mm = round shaft
  Shaft model: drill bit 16 - 22mm = hexagonal shank
• Suitable for drilling deep holes in bricks, masonry, natural and artificial stone

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
8	400	300	1	6.27208
10	400	300	1	6.27209
12	400	300	1	6.27210
14	400	300	1	6.27211
16	400	300	1	6.27212
18	400	300	1	6.27213
20	400	300	1	6.27207
22	400	300	1	6.27214
8	600	450	1	6.27215
10	600	450	1	6.27216
12	600	450	1	6.27217
14	600	450	1	6.27218
16	600	450	1	6.27219
18	600	450	1	6.27220
20	600	450	1	6.27222
22	600	450	1	6.27221

CONCRETE DRILL

Concrete drill bit for rotary and impact drills according to DIN 8039, milled angle groove, straight spiral intake, long tool life, heat-resistant, carbide plate 130^ , negative chamfer, robust version
Surface: shot blasted
- Suitable for drilling in concrete, masonry, natural stone

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
4	75	40	1	6.27625
5	85	40	1	6.27626
5,5	85	50	1	6.27627
6	100	55	1	6.27646
6,5	100	55	1	6.27650
7	100	55	1	6.27651
8	120	70	1	6.27652
9	120	70	1	6.27653
10	120	70	1	6.27654
11	150	90	1	6.27655
12	150	90	1	6.27656
13	150	90	1	6.27657
14	150	90	1	6.27658
15	160	100	1	6.27659
16	160	100	1	6.27661
18	160	100	1	6.27662
20	160	100	1	6.27664
5	150	90	1	6.27665
5,5	150	90	1	6.27674

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
6	150	90	1	6.27675
6,5	150	90	1	6.27677
7	150	90	1	6.27678
8	200	150	1	6.27679
10	200	150	1	6.27697
12	200	150	1	6.27698
14	200	150	1	6.27699

Concrete drill bits, carbide tipped, "classic" series, assortments
Drill bit for concrete, carbide-tipped, "pro" series

		Order no.
	5-piece, in small plastic case Ø 4 / 5 / 6 / 8 / 10 mm	6.27180
	8-piece, in small plastic case Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm	6.27182

• High grade, robust concrete drill bit according to DIN 8039 with carbide plate 130^ , especially heat-resistant, very long tool life, with special groove for quick boring dust discharge
• Suitable for 3 light rotary hammers and 3 master taps
  Surface: blank with black grooves
• Suitable for drilling in concrete, masonry, natural and artificial stone

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
4	75	40	1	6.27224
5	85	40	1	6.27225
5,5	85	50	1	6.27226
6	100	55	1	6.27227
6,5	100	55	1	6.27228
7	100	55	1	6.27229
8	120	70	1	6.27230
9	120	70	1	6.27389
10	120	70	1	6.27391
11	150	90	1	6.27392
12	150	90	1	6.27393
13	150	90	1	6.27394
14	150	90	1	6.27395
15	150	90	1	6.27396
16	150	90	1	6.27399
18	160	95	1	6.27409
20	160	95	1	6.27410
5	150	105	1	6.27421
5,5	150	105	1	6.27422
6	150	105	1	6.27423
6,5	150	105	1	6.27424
7	150	105	1	6.27425
8	200	135	1	6.27426
10	200	135	1	6.27427
12	200	135	1	6.27428
14	200	135	1	6.27429

Concrete drill bits, carbide tipped, "pro" series, assortments

		Order no.
	5-piece, in small plastic case Ø 4 / 5 / 6 / 8 / 10 mm	6.27181

DRILL FOR VARIOUS MATERIALS

Universal drill bit, carbide-tipped

• Multi-purpose drill bit for straight shaft, for rotary use
• With diamond-ground carbide plate and positive, aggressive cutting angle. Ideal also for use in cordless drills
• Suitable for drilling in wood, metal, plastic, brick, gypsum boards, aerated concrete, tiles, ceramics, etc.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
3	70	40	1	6.27696
4	85	50	1	6.27680
5	85	50	1	6.27681
5,5	85	50	1	6.27682
6	100	60	1	6.27683
6	150	90	1	6.27684
6,5	100	60	1	6.27685
6,5	150	90	1	6.27686
7	100	60	1	6.27687
8	120	80	1	6.27688
8	250	200	1	6.27689
9	120	80	1	6.27690
10	120	80	1	6.27691
10	250	200	1	6.27692
12	150	90	1	6.27693
12	250	200	1	6.27694
14	250	200	1	6.27695

Universal drill bits, carbide tipped, assortments

	Order no.
4-piece, in small plastic case Ø 5 / 6 / 8 / 10 mm	6.27185

Assortment of drill bits for metal, stone, wood

		Order no.
1	9-piece, in small plastic case 3 x 0 5 / 6 / 8 mm each	6.27179
2	18-piece, in small plastic case 3 x 0 3 / 4 / 5 / 6 / 8 / 10 mm each	6.27190

Glass drill bits, carbide tipped

Glass drill bit with special carbide plate
For drilling in glass, mirror glass, bottles, tiles, etc.
Attention: set low speeds and sufficient cooling

Diameter mm	Overall length mm	Packing unit	Order no.
Self-service packaging
4	65	1	6.27243
5	65	1	6.27244
6	65	1	6.27245
8	70	1	6.27246
10	80	1	6.27247

Diamond drill bit

High-performance diamond drill bits for all types of tiles up to a scratch hardness of class 8. Also suitable for glass, porcelain, marble, etc.
- The drill bit must be cooled with water constantly. For this, use the supplied cooling and centering system.
For this, use the supplied cooling and centring system.

Diameter mm	Overall length mm	Working length	Packing unit	Order no.
Self-service packaging
5	55	30	1	6.27534
6	55	30	1	6.27535
7	55	30	1	6.27536
8	55	30	1	6.27537
10	55	30	1	6.27538
12	55	30	1	6.27539

WOOD DRILL BITS

CV drill bit for wood, with centring point

Similar to DIN 7487
- Wood spiral drill bit made of high grade steel, hardened, with centring point
For use in hard and soft wood, plywood, chipboards, etc.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
3	61	33	1	6.27986
4	75	43	1	6.27987
5	86	52	1	6.27988
6	93	57	1	6.27989
7	109	69	1	6.27990
8	117	75	1	6.27991
9	120	81	1	6.27992
10	133	87	1	6.27993
11	142	89	1	6.27994
12	151	96	1	6.27995
13	151	96	1	6.27996
14	151	96	1	6.27997
15	160	100	1	6.27998
16	160	100	1	6.27999
18	180	130	1	6.27339
20	200	140	1	6.27340

Wood drill bits, CV, with centring point, assortments

		Order no.
	5-piece, in small plastic case Ø 4 / 5 / 6 / 8 / 10 mm	6.27200
	8-piece, in small plastic case Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm	6.27202

Wood drill bits with hexagonal shank, DIN 3126

High quality precision tool made of the finest hardened steel
- Precision ground from one piece (not a bolted or welded 2-piece product).
- Ideal for drills equipped with quick change keyless chuck according to DIN 3126.
- Our drills' strict compliance to DIN 3126 E6.3 ensures that the chuck is not damaged.
- With centering point for precise spot-drilling.

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
2	55	20	1	6.27522
3	65	35	1	6.27523
4	75	40	1	6.27524
5	85	50	1	6.27525
6	90	55	1	6.27526
8	90	55	1	6.27527
10	100	60	1	6.27528

Rose bits 90^

• 5-cut rose bit made of WS steel for acute-angled countersinks, with Allen screw, for fitting on wood spiral bits
• Can also be used as depth guide, countersink easy to rotate

	Diameter mm	Overall length mm	Packing unit	Order no.
Self-service packaging
3	16	1		6.25020
4	16	1		6.25021
5	16	1		6.25022
6	16	1		6.25023
8	20	1		6.25024
10	20	1		6.25025

Timber auger bits for wood with hexagonal shank

• Timber auger bit with self-centring thread tip and rough cutter
• Ideal for drilling deep holes in hard and soft wood, especially beams

	Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
Self-service packaging
6	230	155	1	6.27115
7	230	155	1	6.27116
8	230	155	1	6.27124
10	230	155	1	6.27125
12	230	155	1	6.27126
14	230	155	1	6.27127
16	230	155	1	6.27128
18	230	155	1	6.27129
20	230	155	1	6.27130
22	230	155	1	6.27131
24	230	155	1	6.27132
26	230	155	1	6.27133
28	230	155	1	6.27134
30	230	155	1	6.27135
32	230	155	1	6.27136

Diameter mm	Overall length mm	Working length mm	Packing unit	Order no.
8	460	385	1	6.27137
10	460	385	1	6.27138
12	460	385	1	6.27139
14	460	385	1	6.27140
16	460	385	1	6.27141
18	460	385	1	6.27142
20	460	385	1	6.27143
22	460	385	1	6.27144
24	460	385	1	6.27145
26	460	385	1	6.27146
28	460	385	1	6.27147
30	460	385	1	6.27148
32	460	385	1	6.27150

Forstner pattern bits, similar to DIN 7483 G

• Forstner pattern bit, similar to DIN 7483 G with centering point, 2 main cutters and 2 ring cutters
• For use in hard and soft wood, veneered wooden boards, etc. Suitable for drilling blind holes.

Diameter mm	Overall length mm	Packing unit	Order no.
In plastic round box
10	90	1	6.27579
12	90	1	6.27580
14	90	1	6.27581
15	90	1	6.27582
16	90	1	6.27583
18	90	1	6.27584
20	90	1	6.27585
22	90	1	6.27586
24	90	1	6.27587
25	90	1	6.27588
26	90	1	6.27589
28	90	1	6.27590
30	90	1	6.27591
32	90	1	6.27592
34	90	1	6.27593
35	90	1	6.27594
36	90	1	6.27595
38	90	1	6.27596
40	90	1	6.27597
45	90	1	6.27598
50	90	1	6.27599

Carbide multi-spur machine bits

• Precision multispur machine bit, similar to DIN 7483 C with centring point, 2 sharp rough cutters and 2 main cutters made of carbide steel
• For professional use and non-splintering drilling in veneered wooden boards as well as all natural hard and soft wood types

Diameter mm	Overall length mm	Packing unit	Order no.
In plastic round box
10	90	1	6.25120
15	90	1	6.25121
18	90	1	6.25122
20	90	1	6.25123
22	90	1	6.25124
24	90	1	6.25125
25	90	1	6.25126
26	90	1	6.25127
30	90	1	6.25128
35	90	1	6.25129
40	90	1	6.25130
45	90	1	6.25131
50	90	1	6.25132

Flat timber drill bits with 1/4'' (6.35 mm) hexagonal shank

• Wood drill bit made of high grade steel, with centring point for high-precision spot-drilling and two side cutters for quick and non-splintering drilling in soft wood, chipboard, plywood, light construction materials...
  1/4" (6.35mm) -hexagonal shank fits into conventional chucks and E6.3 ends

	Diameter mm	Overall length mm	Packing unit	Order no.
Self-service packaging
8	160	1	6.27311
10	160	1	6.27312
12	160	1	6.27313
13	160	1	6.27314
14	160	1	6.27315
16	160	1	6.27316
18	160	1	6.27317
19	160	1	6.27318
20	160	1	6.27319
22	160	1	6.27320
24	160	1	6.27321
25	160	1	6.27322
26	160	1	6.27323
28	160	1	6.27324
30	160	1	6.27325
32	160	1	6.27326
36	160	1	6.27327
38	160	1	6.27328

Extension for flat timber drill bit

Working length mm	Packing unit	Order no.
305	1	6.27329

Countersink

		Order no.
	pierced Ø 16 mm	6.23521

Formwork drill bits HSS, DIN 7490

• Spiral drill bit made of HPHSS steel for extra long tool life
  Corresponds to the safety requirements of the Wood Professional Association according to DIN 7490
  No clamping in drill hole, good chip removal
• For drilling in wallings in construction industry as well as boards, bars, floor boards made of soft and hard wood. Also suitable for facade and roofer's drill for metal, profile sheets etc.

Diameter mm	Overall length mm	Packing unit	Order no.
Self-service packaging
6	400	1	6.27330
8	400	1	6.27331
10	400	1	6.27332
12	400	1	6.27333
14	400	1	6.27334
16	400	1	6.27335
18	400	1	6.27336
20	400	1	6.27337
22	400	1	6.27338
6	600	1	6.27400
8	600	1	6.27401
10	600	1	6.27402
12	600	1	6.27403
14	600	1	6.27404
16	600	1	6.27405
18	600	1	6.27406
20	600	1	6.27407
22	600	1	6.27408

SAWING ACCESSORIES

Hole saw set for wood
	Order no.
with 8 interchangeable inserts Ø 25-68 mm, with pilot drill Ø 6 mm, shaft Ø 10 mm	6.23531

Multipurpose hole saw "Pionier", carbide tipped, with M 16 FThr

• Hole saw with carbide cutters. ideal for electricians, tile layers, sanitation installers, heater contractors, cabinet makers, kitchen studios, artisans
  For solid wood, plywood, chipboard, plastics, acrylic glass, tiles (up to scratch hardness 6), plaster concrete blocks, aerated concrete, wood-wool boards, fibre cement, solid brick
  Maximum cutting depth 60~mm
  Only use for rotating, turn off impact

Diameter mm	Order no.
Self-service packaging
25	6.27001
30	6.27002
35	6.27003
40	6.27004
50	6.27005
60	6.27006
63	6.27007
65	6.27008
68	6.27009
74	6.27010
80	6.27012
105	6.27013

	Order no.
Pilot drill For work with light core bits and the universal hole saws "Pionier" (M16 FThr) in combination with one of the anchor-head holders Diameter: 8 mm Overall length: 120 mm	6.27040

Anchor-head holders with M 16 male thread

	Shaft type	Overall length mm	Order no.
	SW11	118	6.27037
	SDS-plus shank end	118	6.27038
	SDS-plus shank end	220	6.27039

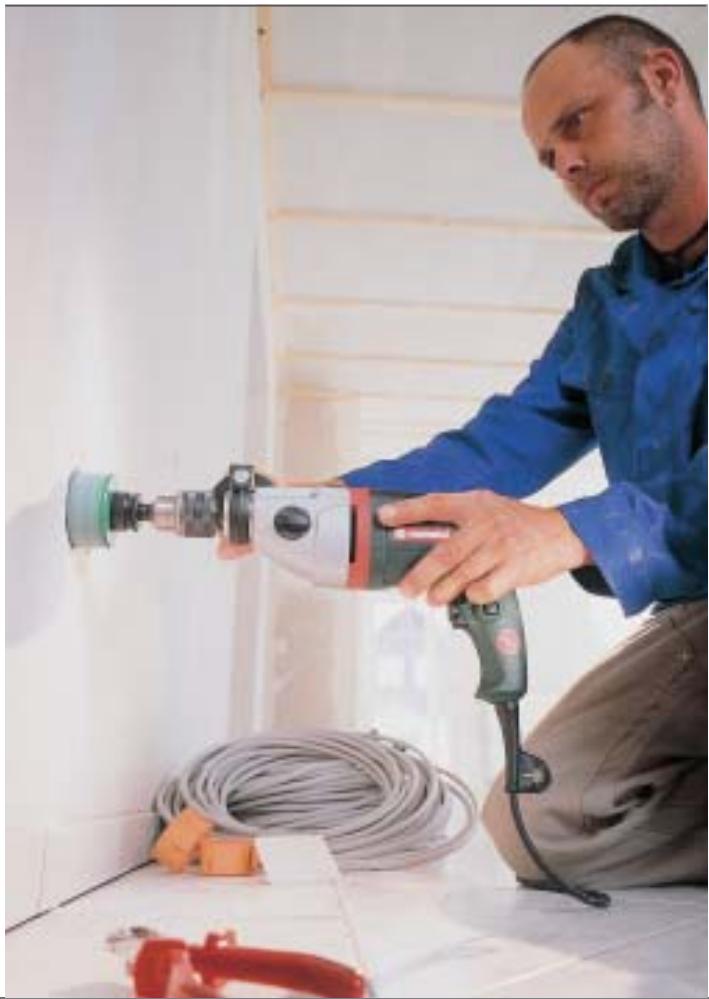

HSS bi-metal hole saws with Vario-tooth pitch

Hole saws made of bi-metal with hardened teeth made of high alloyed quick steel
- Quicker and softer chip removal through new kind of teeth with irregular tooth shape and division; thus less vibration
The larger teeth gaps and the inclination ensure effective chip removal
For use in cast steel and grey cast iron, stainless steel, constructional steel, aluminium, bronze, copper, PVC, acrylic glass, wood.
Maximum cutting depth approx. 40~mm
- When sawing thick or heavy materials it is advantageous to drill many thin holes directly on the inside of the round cut
This simplifies chip removal and prevents frequent interruption in cutting and cleaning of teeth points
- When sawing in wood, it is best to end the working cycle from the other side to avoid splintering

Diameter mm	Packing unit	Order no.
Self-service packaging
14	1	6.25160
16	1	6.25161
17	1	6.25162
19	1	6.25163
20	1	6.25164
21	1	6.25165
22	1	6.25166
24	1	6.25167
25	1	6.25168
27	1	6.25169
29	1	6.25170
30	1	6.25171
32	1	6.25172
33	1	6.25173
35	1	6.25174
37	1	6.25175
38	1	6.25176
40	1	6.25177
41	1	6.25178
43	1	6.25179
44	1	6.25180
46	1	6.25181
48	1	6.25182
51	1	6.25184
52	1	6.25185
54	1	6.25186
56	1	6.25187
57	1	6.25188
59	1	6.25189
60	1	6.25190
64	1	6.25191
65	1	6.25192
67	1	6.25193
68	1	6.25194
70	1	6.25195
73	1	6.25196
76	1	6.25197
79	1	6.25198
83	1	6.25199
86	1	6.25200
89	1	6.25201
92	1	6.25202
95	1	6.25203
98	1	6.25204
102	1	6.25205
105	1	6.25206
108	1	6.25207
111	1	6.25208
114	1	6.25209
121	1	6.25210
127	1	6.25211
140	1	6.25213
152	1	6.25214

	Order no.
Pilot drill for work with the HSS bi-metal hole saws in combination with one of the anchor-head holders Diameter: 6,35 mm	6.25220

Anchor-head holders for HSS bi-metal hole saws
		Order no.
	Hole saw Ø: 14 - 30 mm Shaft type: SW9	6.25215
	Hole saw Ø: 32 - 152 mm Shaft type: SW11	6.25216
	Hole saw Ø: 14 - 30 mm Shaft type: SDS-plus shank end	6.25217
	Hole saw Ø: 32 - 152 mm Shaft type: SDS-plus shank end	6.25218
	For tough applications: reduces vibrations and increases the tool life of the hole saw Hole saw Ø: 38 - 152 mm Shaft type: SW9	6.25219

HSS bi-metal hole saws, assortments
	Order no.
HSS bi-metal assortment 1 (9-piece) Comprising bi-metal hole saws Ø 22,29, 35, 44, 51 and 64 mm, Adapter for Ø14-30 mm (KW 9), Adapter for Ø 32-152 mm (KW 11) and ejection spring. In carry case	6.25434
HSS bi-metal assortment 2 (12-piece) Comprising bi-metal hole saws Ø 19, 22, 29, 35, 44, 51, 57, 64 and 68 mm, Adapter for Ø14-30 mm (KW 9), Adapter for Ø 32-152 mm (KW 11) and ejection spring. In carry case	6.25435

ACCESSORIES FOR FASTENING SCREWS

Screwdriver bit assortment 1/4" (6.35 mm) hexagonal shank
		Order no.
NEW	Bit box with stainless steel bits (10-piece) Small plastic case Consisting of a "rapid in/easy out" bit holder and the bits mostly commonly used in woodwork. Sizes: PH2, PZ2x2, PZ1, TX10, TX15, TX20, TX25, TX30 Bits and holders are made from stainless steel.	6.25388
NEW	Bit box with stainless steel bits (10-piece) Small plastic case Consisting of a "rapid in/easy out" bit holder and the bits most commonly used in metal-working. Sizes: PH1x2, PH2x2, PH3, Allen 2.5,3.0,4.0,5.0. Bits and holders are made from stainless steel.	6.25389
NEW	Bit box torsion (10-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) each with one bit for slotted-head screws 0.8 x 5.5 mm, 1.0 x 5.5 mm und 1.2 x 6.5 mm Bit holder "Rapid in/easy out"	6.25390
NEW	Bit box Torx + Pozidriv (10-piece) Small plastic case Consisting of: Pozidriv bits sizes 1, 2, 3 (torsion bits, 1 each size) Torx bits sizes TX 10, 15, 20, 25, 30 and 40 (1 each) Bit holder "Rapid in/easy out"	6.25391
NEW	Bit box torsion Universal (10-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each) Bit holder "Rapid in/easy out"	6.25396
NEW	Bit box diamond Pozidriv (7-piece) Small plastic case Consisting of: Pozidriv bits 2 x size 1, 3 x size 2, 1 x size 3 (diamond) Bit holder "Rapid in/easy out"	6.25393
NEW	Bit box torsion Torx (7-piece) Small plastic case Consisting of: Torx bits 8, 9, 10, 15, 20, 25, 27, 30 and 40 (1 each) Bit holder "Rapid in/easy out"	6.25394
NEW	Bit box diamond Universal (7-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each) Bit holder "Rapid in/easy out"	6.25397

Screwdriver bit sets
Bit holders

		Order no.
	Torsion Phillips bit set (3-piece)	6.31560
	Self-service packaging Consisting of Phillips bits, sizes 1, 2 and 3 (1 each size)
	Pozidriv bit set (3-piece)	6.31561
	Self-service packaging Consisting of Pozidriv bits, sizes 1, 2 and 3 (1 each size)
NEW	Bit set Torx (3-piece)	6.24405
	Self-service packaging Consisting of one Torx bit size 15, size 20, size 25
NEW	Slotted bit set (3-piece)	6.24406
	Self-service packaging Consisting of one slotted bit size 0.8, size 1.0, size 1.2

with 1/4'' (6.35 mm) hexagonal shank

		Order no.
NEW	Quick action, rapid in/easy out bit holder. Also for bits according to DIN 3126-C 6.3 and also suitable for E 6.3. Overall length: 50 mm	6.25386
NEW	Quick action, rapid in/easy out bit holder. Also for bits according to DIN 3126-C 6.3 and also suitable for E 6.3. Ideal for fastening very long screws and for overhead fastening. The zinc phosphate coating makes it particularly resistant to corrosion. Overall length: 60 mm	6.25387
	non-magnetic, with snap ring Overall length: 75 mm	6.30560
	magnetic, with quick-action coupling Overall length: 76,5 mm	6.30648
	magnetic, with quick-action coupling Overall length: 79 mm	6.25509

Bit retaining bush

		Order no.
Bit retaining bush For fitting bits and sockets with 1/4" (6.35 mm) hexagon in the spindle of drills and impact drills with spindle thread 1/2"-20 UNF and hexagon recess 1/4" (6.35 mm)		6.31281

ACCESSORIES FOR SANDING/GRINDING AND POLISHING

		Order no.
	Rubber backing pad Dimensions: Ø 125 mm Clamping shaft Ø: 6 mm Packing unit: 1	6.23259
	Lambswool bonnet Diameter: 130 mm Packing unit: 1	6.23266
	Backing pad Dimensions: Ø 115 mm Clamping shaft Ø: 6 mm Packing unit: 1	6.24839
	Cling-fit abrasive nylon web Dimensions: Ø 115 mm Grit: P 100 Packing unit: 1	6.24838
	Cling-fit lambswool polishing disc Dimensions: Ø 115 mm Packing unit: 1	6.24911
	Cling-fit polishing sponge Dimensions: Ø 130 mm Packing unit: 1	6.31222
	Sanding drum Dimensions: Ø 45 x 30 mm Clamping shaft Ø: 6 mm Packing unit: 1	6.23269
	Abrasive bands for sanding drum	6.24207
	Dimensions: Ø 45 x 30 mm Grit: P 60 Packing unit: 6
	Dimensions: Ø 45 x 30 mm Grit: P 100 Packing unit: 6
	Flap wheels	6.31110
	Shaft Ø: 6 mm Grit: P 60 Diameter x width: Ø 50 x 20 mm Maximum speed: 15.300 /min Packing unit: 1
	Shaft Ø: 6 mm Grit: P 60 Diameter x width: Ø 60 x 30 mm Maximum speed: 12.700 /min
	Shaft Ø: 6 mm Grit: P 60 Diameter x width: Ø 60 x 40 mm Maximum speed: 12.700 /min

POLISHING ACCESSORIES

		Order no.
	Cotton polishing mop	6.23270
	Dimensions:
	70x20x10 mm
	Packing unit: 1
	Buffing mop	6.23244
	Dimensions:
	100x13x10 mm
	Packing unit: 1
	Felt disc	6.23234
	Dimensions:
	100x15x10 mm
	Packing unit: 1

		Order no.
-	Arbor	6.27104
	Dimensions: Ø 10 mm
	Clamping shaft Ø: 8 mm
	Packing unit: 1
-	Polishing paste	6.27231
	Packing unit: 1

ACCESSORIES

FOR GRINDING METAL

		Order no.
	Grinding wheels
	Dimensions: Ø 75x10x10 mm; pink aluminium oxide type Grit: P 80 Packing unit: 1	6.27383
	Dimensions: Ø 75x10x10 mm; pink aluminium oxide type Grit: P 80 Packing unit: 1	6.27384
	Arbor Dimensions: Ø 10 mm Clamping shaft Ø: 8 mm Packing unit: 1	6.27104
	Mounted points set Pink aluminium oxide, grit and grade 80 N Packing unit: 5	6.27521

BRUSHING ACCESSORIES

Steel-wire brushes
	Clamping shaft Ø mm	Outside Ø mm	Version	Order no.
	Steel-wire wheel brush
	6	75	Fine	6.30550
	6	100	Coarse	6.30551
	Steel-wire cup brushes
	6	75	Coarse	6.30552
	6	75	Fine	6.30553
	Steel-wire busby-end brush
	6	25	Crimped	6.30554

ACCESSORIES

FOR STIRRING PAINT ETC.

	Order no.
Special stirrer Special stirrer for thick liquid-like materials (e.g. plaster and mortar) Shaft type: SW12 Stirring basket Ø: 130 mm Length: 600 mm	6.31043
Universal stirrer Also suitable for stirring mortar Shaft type: SW10 Stirring basket Ø: 100 mm Length: 600 mm	6.31044

ANGLE ATTACHMENTS

		Order no.
Angle drilling and screw-driving attachment (fits most corded rotary & impact drills) ■ Makes easy work of drilling and screw-driving in confined spaces ■ Spindle with hexagon recess for screwdriver bits; bit retaining bush ■ Suitable for clockwise and anticlockwise rotation ■ Metabo quick-action coupling ■ Gear ratio 1:1 Locating bore: 43 mm Spindle thread: 1/2" - 20 UNF Spindle with hexagon recess: 1/4" (6.35 mm) Weight: 0,5 kg	6.31078
Pump attachment BPV 03 ■ Self-priming ■ Suitable for driving units with speed up to 3400 rpm ■ Metabo quick-action coupling ■ Featuretext Z4 Maximum delivery output: 3.000 l/h Maximum suction height: 4 m Maximum delivery height: 20 m Locating bore: 43 mm Connection piece for hose: R 3/4" Weight: 0,6 kg	6.27640
Hexagon nut With female thread 1/2"-20 UNF; To drive the angle attachment 6.31078 or the pump attachment 6.27640 on a drill with a 1/2"-20 UNF threaded spindle, but no hexagon shoulder on the spindle, requires a 19 mm AF hexagon nut (KW 19) with 1/2"-20 UNF female thread.	6.27601
Pump attachment BPV 01 ■ Self-priming ■ Suitable for driving units with speed up to 2600 rpm ■ Fitted with its pin in the chuck of the driving unit ■ Featuretext Z4 Maximum delivery output: 1.500 l/h Maximum suction height: 2 m Maximum delivery height: 4 m Connection piece for hose: 1/2" Weight: 0,1 kg	6.27621
Clamp ■ For the secure fitting on a work table	6.27107
Flexible shaft ■ Suitable for speeds of 2000 to 5000 rpm Length: 1,2 m Driving shaft Ø: 6 mm Collet bore: 6 mm Weight: 0,8 kg	6.27608

DRILL STANDS AND MACHINE VICES

		Order no.
Drill stand 890 ■ The design of the feed mechanism enables the maximum drilling depth of 65 mm to be achieved with a swivelling motion ■ Asymmetrical arrangement of the column to the base plate enables the processing of larger workpieces ■ Unlimited access to the controls of drill and drill stand by angled cantilever ■ No risk of injury or drill breakage by the safe adjustment of the device carrier to the required working height ■ Stable base plate with grooves for locking a machine vice ■ Adjustable depth guide Distance, bit centre to column: 165 mm Working stroke: 65 mm Height of column: 500 mm Column Ø: 40 mm Locating bore: 43 mm Base plate: 220 x 213 mm Weight: 5,5 kg	6.00890
Machine vice 041 Width of jaws: 80 mm Clamping width: 86 mm	6.12003
Machine vice 038 Width of jaws: 100 mm Clamping width: 100 mm	6.12001
Machine vice 27106 Width of jaws: 80 mm Clamping width: 80 mm	6.27106

OTHER ACCESSORIES

		Order no.
	Clamping stand For clamping the router motor when working with the flexible shafts Locating bore Ø 43 mm	6.27354
	Clamp For the secure fitting on a work table	6.27107
	Scaffolding hook Scaffolding hook with simple snap-on connection For hanging the machine securely on scaffolds or ladders For SE 2800, SE 4000 For BE 4006, BE 4010 For BHE 20 Compact	6.25070
	Cable strain relief strap
	For attaching between the machine power plug and the extension lead socket (prevents the plug of the power tool from accidentally being pulled out of the socket)	6.31070
	Side handle for rotary hammers and impact drills Diameter of locating bore: 43 mm	6.31052
	Side handle with case for rotary hammers and impact drills Diameter of locating bore: 43 mm	6.31072
	Side handle, long type, for rotary hammers and impact drills Diameter of locating bore: 43 mm	6.31074
	Drilling depth guide	6.27288
NEW	Full-view safety goggles Very comfortable full-view safety goggles. Only light pressure around the eye area, giving a comfortable secure fit due to the use of two compound materials (hard and soft components). The excellent ventilation leaves the eye area feeling pleasant and free from irritation. Also suitable for people who wear glasses. UV protection 2-1, coating on the lens: scratch-free on the outside and mist-free on the inside.	6.31071
	Personal safety set Provides protection against dust, noise, and sparks, comprising: mask with valve, ear protection and full-view safety goggles, flexible	6.31750

		Order no.
Dust extraction set For all machines with 43 mm collar diameter Diameter of locating bore: 43 mm Comprising extraction unit for drilling with 4-20 mm diameter drill bits, support handle, suction hose, 28 mm diameter, (5 metres long), adapter and connector for connecting the suction hose to a Metabo multi-purpose vacuum cleaner or to a normal domestic vacuum cleaner	6.31600
Code! Key For protection of Metabo machines (with CODE! configuration) from misuse The complete Metabo tool park (with CODE! configuration) can be protected with a single CODE! protected with key	6.23127
Carry case for impact drill SBE 600 Impuls	6.25442
Carry case for impact drills SB 660, SBE 660, SBE 705	6.25443
Carry case for impact drills SBE 750 -1010	6.25444
Metabox I for all impact drills For SB 660, SBE 660, SBE 705, SBE 750, SBE 850, SBE 1010 Plus	6.23598
