| Product Type | Built-in Microwave |
| Model | IM 90L RFS |
| Brand | Cylinda |
| Capacity | 90 Liters |
| Dimensions (W x H x D) | 595 x 455 x 550 mm |
| Built-in Dimensions (W x H x D) | 560 x 450 x 550 mm |
| Weight | 35 kg |
| Power Supply | 230 V ~ 50 Hz |
| Microwave Power | 900 W |
| Grill Power | 1200 W |
| Convection Power | 1500 W |
| Functions | Microwave, Grill, Convection, Combi, Defrost, Auto Menus |
| Controls | Touch control panel with LED display |
| Interior Light | Yes |
| Turntable | Yes, removable |
| Child Lock | Yes |
| Cleaning | Clean with damp cloth; avoid abrasive cleaners |
| Safety Features | Auto shut-off, door lock, overheating protection |
| Spare Parts Availability | Contact Cylinda service center |
| Energy Consumption (Standby) | < 1 W |
Frequently Asked Questions - IM 90L RFS Cylinda
User questions about IM 90L RFS Cylinda
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave in PDF format for free! Find your manual IM 90L RFS - Cylinda and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IM 90L RFS by Cylinda.
USER MANUAL IM 90L RFS Cylinda
IM 90L RFS
IM 90L VIT
SVENSKA....3
ENGLISH 20
SVENSKA
Kontakta Cylinda service.
1. FUNKTIONSVRED
CRISPPANNA
GALLER
HEALTH & SAFETY, USE & CARE and INSTALLATION GUIDE
Index
Health and Safety guide
SAFETY INSTRUCTIONS....21
SAFEGUARDING THE ENVIRONMENT 23
PRODUCT
Use and Care guide
DESCRIPTION 24
CONTROL PANEL....24
DESCRIPTION OF DISPLAY 25
ACCESSORIES 26
FUNCTIONS....27
USING THE APPLIANCE FOR THE FIRST TIME 29
DAILY USE 30
COOKING TABLE 32
TESTED RECIPES 33
CLEANING 34
TROUBLESHOOTING....35
TECHNICAL DATA 36
AFTER-SALES
SERVICE 36
Installation guide 37
IMPORTANT TO BE READ AND OBSERVED
Before using the appliance read these safety instructions. Keep them for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
SAFETY WARNINGS
Very young (0-3 years) and young children (3-8 years) shall be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
WARNING: The appliance and its accessible parts become hot during use, children less than 8 year of age shall be kept away unless continuously supervised.
WARNING: Avoid touching heating elements or interior surface - risk of burns. Never leave the appliance unattended during food drying. If the appliance is suitable for probe usage, only use the temperature probe recommended for this oven.
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
The microwave oven is intended for heating food and beverages. Drying of food or cloathing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
The contents of feeding bottels and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
Eggs in their shell and shole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
Only use utensils suitable for use in a microwave oven.
If smoke is emitted switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Do not use your microwave oven for deep-frying, because the oil temperature cannot be controlled.
Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely.
Overheated oils and fats catch fire easily. Always be vigilant when cooking food rich in fat, oil or when adding alcohol (e.g. rum, cognac, wine) - risk of fire. Use oven gloves to remove pans and accessories, taking care not to touch the heating elements. At the end of cooking, exercise caution when opening the door, by letting the hot air or steam exit gradually before accessing the appliance.
Do not obstruct hot air vents at the front of the oven.
PERMITTED USE
CAUTION: The appliance is not intended to be operated by means of an external timer or separate remote controlled system.
This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential environments;
- Bed and breakfast type environments.
This appliance is solely for domestic, not professional use. Do not use the appliance outdoors.
Do not store explosive or flammable substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched on.
No other use is permitted (e.g. heating rooms).
INSTALLATION

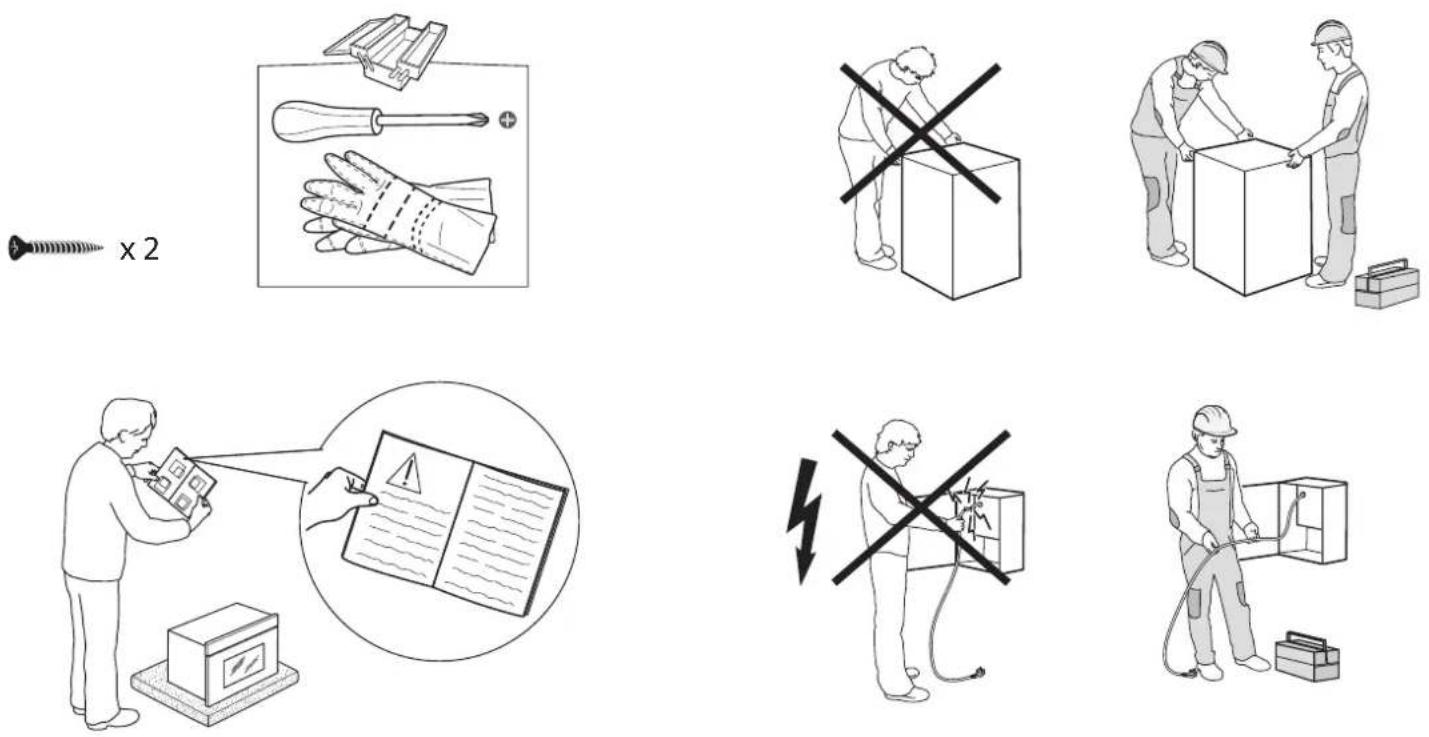

The appliance must be handled and installed by two or more persons. Use protective gloves to unpack and install the appliance.
This appliance is intended to be used built-in. Do not use it freestanding.
Installation and repairs must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically
stated in the user manual. Children should not perform installation operations. Keep children away during installation. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation.
After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service.
The appliance must be disconnected from the power supply before any installation operation.
During installation, make sure the appliance does not damage the power cable.
Only activate the appliance when the installation has been completed.
After installation, the bottom of the appliance must no longer be accessible.

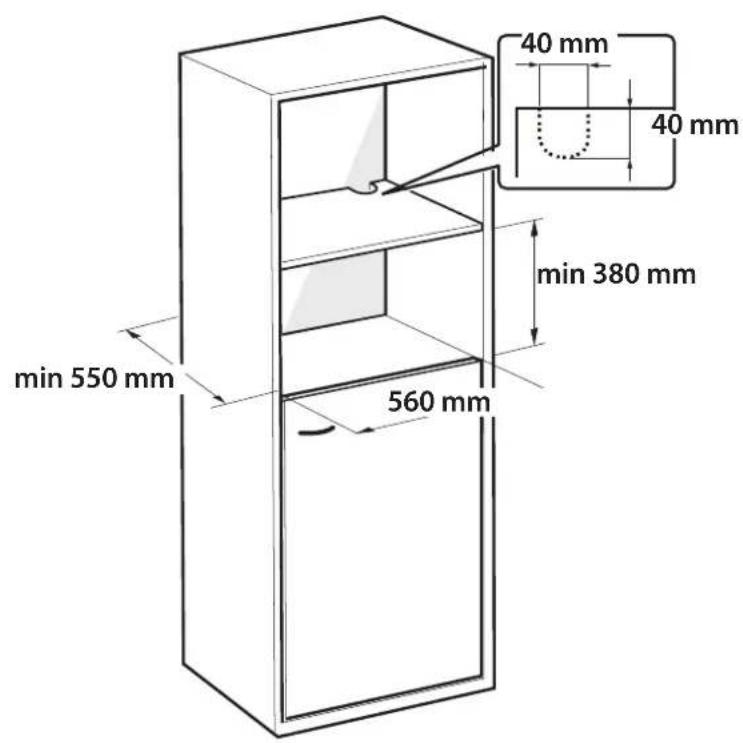

Carry out all cabinet cutting works before fitting the appliance in the furniture and carefully remove all wood chips and sawdust.
Do not obstruct the minimum gap between the worktop and the upper edge of the oven.
Only remove the oven from its polystyrene foam base at the time of installation.
Do not install the appliance behind a decorative door - Risk of fire.
After unpacking the appliance, make sure that the appliance door closes properly.
In the event of problems, contact the dealer or your nearest After-sales Service.
ELECTRICAL WARNINGS
For installation to comply with current safety regulations, an omnipolar switch with minimum contact gap of 3 mm is required and the appliance must be earthed.
If the power cable is damaged, replace with an identical one.
The power cable must only be replaced by a qualified technician in compliance with the manufacturer instruction and current safety regulations. Contact an authorized service center.
It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by means of an accessible multi-pole switch installed upstream of the socket in conformity with national electrical safety standards.

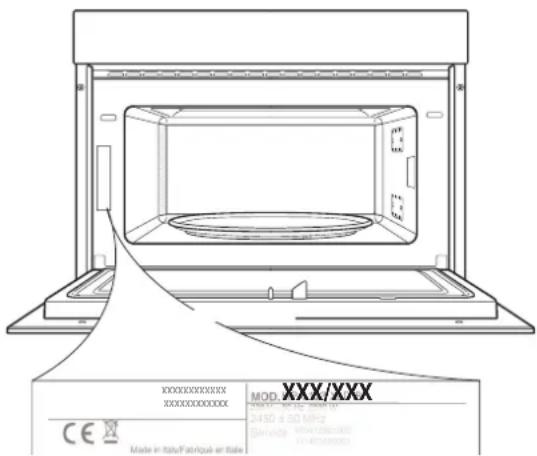

The rating plate is on the front edge of the oven (visible when the door is open).
In case of replacement of power cable, contact an authorized service center.
If the fitted plug is not suitable for your socket outlet, contact a qualified technician.
The power cable must be long enough to connect the appliance, once fitted in its housing, to the main power supply. Do not pull the power supply cable.
Do not use extension leads, multiple sockets or adapters. Do not operate this appliance if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Keep the cord away from hot surfaces.
The electrical components must not be accessible to the user after installation.
Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
CLEANING AND MAINTENANCE
Never use steam cleaning equipment.
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the appliance door glass since they can scratch the
surface, which may result in shattering of the glass.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which give protection against exposure to microwave energy.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
The oven shall be cleaned regularly and any food deposits removed.
Wear protective gloves for cleaning and maintenance.
The appliance must be disconnected from the power supply before any maintenance operation.
Ensure the appliance is cooled down before carrying out any cleaning or maintenance operation.
SAFEGUARDING THE ENVIRONMENT
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle symbol 🌐.
The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.
SCRAPPING OF HOUSEHOLD APPLIANCES
When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped.
This appliance is manufactured with recyclable 📋 or reusable materials.
Dispose of it in accordance with local waste disposal regulations.
For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance. This appliance is marked in compliance with European Directive 2012/19/EU,WasteElectricaland Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.
ENERGY SAVING TIPS
Only preheat the oven if specified in the cooking table or your recipe. Use dark lacquered or enamelled baking moduls as they absorb heat far better.
Food requiring prolonged cooking will continue to cook even once the oven is switched off.
PRODUCT DESCRIPTION
Read the safety instructions carefully before using the product
- Control panel
- Identification plate (do not remove)
- Door
- Upper heating element/grill
- Light
- Turntable
CONTROL PANEL
1. SELECTION KNOB
For switching the oven on by selecting a function. Turn to the "0" position to switch the oven off.
2. STOP
For stopping the function that is currently active at any time and putting the oven into standby mode.
3. BACK
For returning to the previous menu.
4. DISPLAY
5. CONFIRMATION BUTTON
For confirming a selected function or a set value.
6. START
For immediately starting a function. When the oven is switched off, it activates the "Jet Start" microwave function.
7. ADJUSTMENT KNOB
For scrolling through the menus and applying or changing settings.
Please note: All knobs are push-activated knobs. Push down on the centre of the knob to release it from its seating.
DESCRIPTION OF DISPLAY
- Symbol for the function selected
- Defrost function
- Clock; information and function duration
- Function settings (type of food, grill level)
- Automatic functions
- Microwave power
- Setting the time and function duration
ACCESSORIES
TURNTABLE
Placed on its support, the glass turntable can be used with all cooking methods.
be used as a base plate for other containers and accessories.
The turntable must always
TURNTABLE SUPPORT
Only use the support for the glass turntable. Do not rest other accessories on the support.
CRISP PLATE
Only for use with the specific "Dynamic Crisp" function.
The crisp plate must always be placed in the centre of the glass turntable and can be
preheated when empty, using the special function for this purpose only.
Place the food directly on the crisp plate. Do not place any other accessories on the crisp plate as the intense heat could damage them.
HANDLE FOR THE CRISP PLATE
The crisp plate heats up very quickly: The handle supplied allows it to be removed from the oven safely.
Hook the handle to the edge of the crisp plate and squeeze firmly to
ensure a good grip.
WIRE RACK
This allows you to place food closer to the grill in order to brown your dish perfectly and ensure optimal hot air circulation. Place the wire rack on the turntable, making
sure that it does not come into contact with other surfaces.
COVER
Useful for covering food while it is cooking or reheating in the microwave.
The cover reduces splashes, keeps foods moist and can also be used to create two cooking levels.
It is not suitable for use with convection cooking or with any of the grill functions (including "Crisp").
The number and type of accessories may vary depending on which model is purchased.
Other accessories can be purchased separately from the After-sales Service.
There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.
Metallic containers for food or drink should never be used for microwave cooking.
Always ensure that foods and accessories do not come into contact with the inside walls of the oven.
Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.
MICROWAVE
For quickly cooking and reheating food or
drinks.
POWER RECOMMENDED FOR
| 1000 W | Quickly heating drinks or other foods with a high water content |
| 750 W | Cooking vegetables |
| 650 W | Cooking meat and fish |
| 500 W | Cooking meat-based sauces, or sauces containing cheese or egg. For finishing meat stews or pasta bakes |
| 350 W | Slow, gently cooking. Perfect for melting butter or chocolate |
| 160 W | Defrosting frozen foods or softening butter and cheese |
| 90 W | Softening ice cream |
Recommended accessory: cover
CRISP
Using the microwaves and the grill, the
Crisp-plate quickly reaches the ideal temperature for perfectly browning both the upper and lower surfaces of the food.
Use this function to reheat and cook pizzas, or other dough-based food. It is also good for frying bacon and eggs, sausages, potatoes, french fries, hamburgers and other meats, etc. without adding oil (or by adding only a very limited quantity of oil).
This function must only be used with the special Crisp-plate provided, which must be placed at the centre of the glass turntable.
It is recommended to preheat the plate for 2-3 minutes before cooking any food items that do not require long cooking times, like pizza or desserts.
Required accessories: crisp plate, handle for the crisp plate
GRILL
For browning, grilling and gratins. It is
recommended to turn the food items during the cooking process.
It is useful for browning foods like cheese on toast, hot sandwiches, potato croquettes, sausages and vegetables. It is recommended to arrange the food items on the wire rack and to turn them during the cooking process.
Ensure that the utensils utilized are heat resistant and suitable for oven cooking purposes. For best results, preheat the grill for 3-5 minutes.
Recommended accessory: wire rack
GRILL + MICROWAVE
For quickly cooking entrées (even au gratin) using both microwaves and the grill. It is useful for cooking food like lasagne, fish and potato gratins. Place food on the wire rack, on the glass turntable or in microwave-safe containers suitable for oven use.
Recommended accessory: wire rack
AUTO AUTOMATIC FUNCTIONS
With the automatic functions, simply select the type and weight or quantity of food to achieve the best results. The oven will automatically calculate the optimum settings and continue to change them as cooking progresses. The total time does not include preparation or preheating phases.
[1] * DEFRO AUTO DEFROST DYNAMIC
For quickly defrosting various different types of food simply by specifying their weight.
Food should be placed directly onto the glass turntable. Turn the food when prompted. Food should be placed directly onto the glass turntable. Turn the food when prompted.
A standing time after defrosting always improves the result.
CATEGORY RECOMMENDED FOODS WEIGHT
| MEAT(mince, cutlets, steaks, roasting joints) | 100 g - 2 kg | |
| POULTRY(whole chicken, pieces, fillets) | 100 g - 2.5 kg | |
| FISH(whole, steaks, fillets) | 100 g - 1.5 kg | |
| VEGETABLES(mixed vegetables, peas, broccoli, etc.) | 100 g - 1.5 kg | |
| BREAD(loaves, buns, rolls) | 100 g - 2 kg |
REHEAT DYNAMIC
For reheating ready-made food that is either frozen or at room temperature.
The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof dinner plate or dish.
CATEGORY FOOD WEIGHT
| 1 | CONVENIENCE 250 - 500g |
| 2* | FROZEN PORTION 250 - 500 g |
| 3* | FROZEN LASAGNA 250 - 500 g |
| 4 | SOUPS 200 - 800 g |
| 5 | BEVERAGES 1 - 5 dl |
Accessory required: crisp plate, handle for the crisp plate
CRISP DYNAMIC
For quickly reheating and cooking frozen foods and giving them a golden, crunchy top. Only use this function with the crisp plate provided. Turn the food when prompted.
CATEGORY FOOD WEIGHT
| FRENCH FRIES(spread out in a single layer and sprinkle with salt before cooking) | 200 - 500 g | |
| PIZZA, THIN CRUST | 200 - 600 g | |
| PIZZA, THICK CRUST 300 - 800 g | ||
| CHICKEN WINGS, CHICKEN PIECES(Lightly oil the plate) | 200 - 500 g | |
| FISH FINGERS(Crisp plate must be preheated) | 100 - 500 g | |
Required accessories: Crisp plate, handle for the Crisp plate
COOK DYNAMIC
For oven-cooking foods quickly and achieving optimal results. Use cookware that is suitable for oven cooking and resistant to microwaves.
| CATEGORY | FOOD | WEIGHT |
| 1 | BAKED POTATOES(Turn when prompted) | 200g - 1kg |
| 2 | FRESH VEGETABLES(Cut uniformly and add 2 to 4 tablespoons of water. Cover) | 200 - 800 g |
| 3* | FROZEN VEGETABLES (Turn when prompted. Cover) | 200 - 800 g |
| 4 | CANNED VEGETABLES | 200 - 600 g |
| 5 | POPCORN | 100 g |
SETTI SETTINGS
For changing the oven settings (language, clock, audible signal volume, brightness, Eco mode).
Please note: When Eco mode is active, the brightness of the display will be reduced after a few seconds to save energy. It is reactivated automatically whenever any of the buttons are pressed, etc.
USING THE APPLIANCE FOR THE FIRST TIME
1. SELECT THE LANGUAGE
You will need to set the language and the time when you switch on the appliance for the first time: "ENGLISH" will scroll along the display: Turn the adjustment knob to scroll through the list of available languages and select the one you require.
ENGLI
Press OK confirm your selection.
Please note: The language can subsequently be changed from the "Settings" menu.
2. SET THE TIME
After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.
Turn the adjustment knob to set the correct hour and press OK/select : The two digits for the minutes will flash on the display.
Turn the adjustment knob to set the minutes and press OK to confirm.
Please note: You may need to set the time again following lengthy power outages.
DAILY USE
1. SELECT A FUNCTION
Turn the adjustment knob until the function you require is shown on the display: The display will show the icon for the function and its basic settings.
![[〃 〃] 0:30 650*](/content/2026/07/1518235/images/e2b966001c191e7156a76eba402ba0c46e42d0f353b5cfe1d07d363b94a5b76e.jpg)
To select an item from the menu (the display will show the first available item), turn the adjustment knob until the item you require is shown.
![[\(\ddot{\mathcal{U}}\) \(\ddot{\mathcal{U}}\)]*DEFRO AUTO](/content/2026/07/1518235/images/5b2ddad4105b1e60682643d21da367c4134a40ca8845c76dddb78d7a6c6fec4d.jpg)
Press OK confirm your selection: The display will show the basic settings.
2. SET THE FUNCTION
After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence.
![[ ヨ レ ] 07:30 650=](/content/2026/07/1518235/images/9b833a7217d189811268a48eee604081652b5d0661cca1dd24beb62460df0395.jpg)
With the setting flashing on the display, turn the adjustment knob to change the setting, then press OK select to confirm and continue with the settings that follow.
![[〃 〃] 07:30 650w](/content/2026/07/1518235/images/4f8b025db2ee3b6780a15106b07860997c4272c42538f60810a5ffe74e80267f.jpg)
Please note: Pressing < allows you to change the previous setting again.
3. ACTIVATE THE FUNCTION
Once you have applied the settings you require, press ▶ to activate the function.
You can press a) any time to pause the function that is currently active.
.SAFETY LOCK
This function is automatically activated to prevent the oven from being switched on accidentally.
![[ ] DOOR 650_w](/content/2026/07/1518235/images/dcba254067dc4343e582fc0cde3274faccd29ef4c518ae6da95601d8dc11ae12.jpg)
Open and close the door, then press ▶to start the function.
.PAUSE
To pause an active function, for example to stir or turn the food, simply open the door.
To start it up again, close the door and press ▷.
.JET START
When the oven is switched off, press ▶ to activate cooking with the microwave function set at full power (1000 W) for 30 seconds.
Every time the ▶ button is pressed again, the cooking time will be increased by a further 30 seconds.
.AUTOMATIC FUNCTIONS
CATEGORIES
When using certain automatic functions, you will need to select a category for the food you are cooking.
The reference category corresponds to the number indicated at the top right of the display.
Refer to the table containing descriptions of the functions for information on all of the categories.
DEGREE OF DONENESS
Most of the automatic functions will prompt you to select how well done you require the food to be. The degree of doneness can be altered during the first 20 seconds of operation after activating the function: Activate the function, then turn the adjustment knob to select the setting you require.
![[___]MID 0 AUTO](/content/2026/07/1518235/images/f63c32c01237d16b0d704a223238a34c5bdc62d5140386efd4be4c18b19a39f7.jpg)
ACTIONS (STIRRING OR TURNING FOOD)
Certain automatic functions will pause to allow you to turn or stir the food.
![[■]TURN AUTO](/content/2026/07/1518235/images/2b13f0d0f72f13f59568ddf2a403422ca7171a2498de2c90740ba8b7f4d6d8a0.jpg)
Once the oven has paused cooking, open the door and carry out the action you are prompted to perform. Then close the door again and press ▶ to continue cooking.
Please note: When using the "Dynamic defrost" function, the function will start again automatically after two minutes, even if you have not turned or stirred the food.
.TIMER
When the oven is switched off, the display can be used as a timer. To activate the function and set the length of time you require, turn the adjustment knob.
Press OK start the timer: An audible signal will sound and the display will indicate once the timer has finished counting down the selected time.
Please note: The timer does not activate any of the cooking cycles.
To change the time set for the timer, press <> to pause it and then press twice to go back to viewing the current time.
Once the timer has started, you can activate a function: The timer will continue to count down independently without interfering with the function itself.
![[~~~] 04:29](/content/2026/07/1518235/images/8ca6f686fc894b71f042eaeb59a831bbadc64c928ac7f88ff9f2884b4663b1a4.jpg)
To go back to viewing the timer, wait for the function to finish or stop the oven function by pressing □
COOKING TABLE
| FOOD FUNCTION POWER (W) | TIME (MIN) | ACCESSORIES | ||
| Sponge cake |  | -7 - 15 |  | |
| Fruit pie |  | -12 - 20 |  | |
| Cookies |  | -4 - 6 |  | |
| Savoury pies or Quiche Lorraine(1 - 1.2 kg) | [DCSY] | -18 - 25 |  | |
| Ready-made meals (250 - 500 g) |  | 800 4 - 7 | [THAR] | |
| Lasagna/pasta bake |  | 350 - 500 15 - 25 |  | |
| Frozen lasagna (500 - 700 g) |  | 500 - 800 14 - 20 | [W400] | |
| Pizza (400 - 500 g) |  | -10 - 12 |  | |
| Meat (chops, steaks) |  | 500 10 - 15 |  | |
| Poultry (whole, 800 g - 1.5 kg) |  | 350 - 500 30 - 45 * | [GBX2] | |
| Chicken fillets or pieces |  | 350 - 500 10 -17 |  | |
| Roasts (800 g - 1.2 kg) |  | 350 - 500 25 - 40 * |  | |
| Sausages/kebabs |  | - | 20 - 40 * |  |
| Sausages/hamburgers |  | - | 6 - 16 * |  |
| Fish (slices or fillets) |  | 160 - 350 | 15 - 20 * |  |
| Whole fish (800 g - 1.2 kg) |  | 160 - 350 | 20-30 * |  |
| Baked potatoes (600 g - 1 kg) |  | 350 - 500 30 - 50 * |  | |
| Potato wedges (500 g - 800 g) |  | - | 20-30 |  |
| Baked apples |  | 160 -350 | 15 -25 |  |
* Turn the food halfway through cooking
** Preheat the crisp plate for 3-5 minutes
| FUNCTIONS | Crisp | Grill | Grill + Microwaves |
 |  |  |
| ACCESSORIES | Heatproof plate/container suitable for use in microwaves | Rack | Crisp plate |
TESTED RECIPES
Compiled for the certification authorities in accordance with the IEC 60705 standard.
| FOOD FUNCTION | WEIGHT (g) | COOKING TIME (min:sec) | TEMP./ GRILL LEVEL | POWER (W) | PREHEAT. ACCESSORIES | ||
| Pastry cream |  | 1000 | 12:00 - 13:00 | - | 650 | - | Microwave-safe container (Pyrex 3.227) |
| Sponge cake |  | 475 8:00 - 10:00 - 750 - | Microwave-safe container (Pyrex 3.827) | ||||
| Meat loaf |  | 900 13:00 - 14:00 - 750 - | Microwave-safe container (Pyrex 3.838) | ||||
| Potato gratin |  | 1100 | 28:00 - 30:00 | 190 | 350 | - | Microwave-safe container (Pyrex 3.827) |
| Chicken |  | 1200 | 35:00 - 40:00 | 210 | 350 | - | Microwave-safe container (Pyrex 3.220) |
| Defrosting meat (turn halfway through the defrosting process) |  | 500 | 10:30 | - | 160 | - | Turntable |
| Toast |  | - | 4:00 - 6:00 | 3 | - | Yes | Wire rack |
| FUNCTIONS | Microwave | Grill | Grill + Microwaves |
 |
CLEANING
Make sure that the oven has cooled down before carrying out any maintenance or cleaning.
Do not use steam cleaners.
Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.
EXTERIOR SURFACES
- Clean the surfaces with a damp cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
- Clean the door glass with a suitable liquid detergent.
- At regular intervals or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
- The grill does not need to be cleaned as the intense heat burns away any dirt: Use this function on a regular basis.
ACCESSORIES
All accessories are dishwasher safe with the exception of the crisp plate.
The crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the crisp plate to cool down before cleaning.
TROUBLESHOOTING
Any problems that arise or faults that occur can often be resolved easily.
Before contacting the After-sales Service, check the following table to see whether you can resolve the problem yourself.
if the problem persists, contact your nearest After-sales Service Centre.
Read the safety instructions carefully before carrying out any of the following work
| Problem Possible cause Solution | ||
| The oven is not working | Power cutDisconnection from the mainsFault | Check for the presence of mains electrical power and whether the oven is connected to the electricity supply |
| Turn the oven off and on again to see whether the fault persists | ||
| The buttons are not working | Oven is switched off. | Turn the selection knob to select a function and switch on the oven. |
| The time is flashing | Power cut. | You need to reset the time: Follow the instructions given in the "Using the appliance for the first time" section |
| The display is showing "Err" | Software fault. | Contact you nearest After-sales Service Centre and state the letter or number that follows "Err". |
| The brightness of the display is reduced | ECO function enabled. | From the "Settings" - "ECO" section, select the "No" option to deactivate it. |
| The oven is making noises, even when it is switched off | Cooling fan active. | Open the door or wait until the cooling process has finished. |
TECHNICAL DATA
A complete product specification, including the energy efficiency ratings for this oven, can be consulted at and downloaded from our website www.cylinda.se
AFTER-SALES SERVICE
BEFORE CONTACTING THE CUSTOMER SUPPORT SERVICE
-
Check whether you can resolve the problem yourself using any of the measures described in the "Troubleshooting" section.
-
Turn the oven off and on again to see whether the fault persists.
IF THE FAULT PERSISTS AFTER HAVING PERFORMED ALL OF THE NECESSARY CHECKS, CONTACT YOUR NEAREST AFTER-SALES SERVICE CENTRE.
To receive assistance, call the number given on the warranty leaflet enclosed with the product or follow the instructions on our website. Be prepared to provide:
• A brief description of the fault
• The exact type of model of your product
- The assistance code (the number following the word SERVICE on the identification plate attached to the product; this can be seen on the left-hand edge of the cooking compartment when the oven door is open).
- Your full address
- A contact telephone number
Please note: If repairs are required, contact an authorised service centre that is guaranteed to use original spare parts and perform repairs correctly.
Please refer to the enclosed warranty leaflet for more information on the warranty.
?
service
• Vi har service i hela landet / Nationwide service
• Gå in på www.cylinda.se / Visit www.cylinda.se
• Ring 0771-25 25 00 (endast lokaltaxa) / Call 0771-25 25 00
uppge
- Maskintyp / Model code
• Serienummer / Serial number
• Inköpsdatum / Purchase date
- SVENSKA
- FUNKTIONSVRED
- CRISPPANNA
- GALLER
- HEALTH & SAFETY, USE & CARE AND INSTALLATION GUIDE
- INDEX
- HEALTH AND SAFETY GUIDE
- PRODUCT
- USE AND CARE GUIDE
- IMPORTANT TO BE READ AND OBSERVED
- SAFETY WARNINGS
- PERMITTED USE
- INSTALLATION
- ELECTRICAL WARNINGS
- CLEANING AND MAINTENANCE
- SAFEGUARDING THE ENVIRONMENT
- DISPOSAL OF PACKAGING MATERIALS
- SCRAPPING OF HOUSEHOLD APPLIANCES
- ENERGY SAVING TIPS
- PRODUCT DESCRIPTION
- READ THE SAFETY INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT
- CONTROL PANEL
- SELECTION KNOB
- STOP
- BACK
- DISPLAY
- CONFIRMATION BUTTON
- START
- ADJUSTMENT KNOB
- DESCRIPTION OF DISPLAY
- ACCESSORIES
- TURNTABLE
- TURNTABLE SUPPORT
- CRISP PLATE
- HANDLE FOR THE CRISP PLATE
- WIRE RACK
- COVER
- MICROWAVE
- CRISP
- GRILL
- GRILL + MICROWAVE
- AUTO AUTOMATIC FUNCTIONS
- [1] * DEFRO AUTO DEFROST DYNAMIC
- REHEAT DYNAMIC
- CRISP DYNAMIC
- COOK DYNAMIC
- SETTI SETTINGS
- USING THE APPLIANCE FOR THE FIRST TIME
- SELECT THE LANGUAGE
- SET THE TIME
- DAILY USE
- SELECT A FUNCTION
- SET THE FUNCTION
- ACTIVATE THE FUNCTION
- SAFETY LOCK
- PAUSE
- JET START
- AUTOMATIC FUNCTIONS
- CATEGORIES
- DEGREE OF DONENESS
- ACTIONS (STIRRING OR TURNING FOOD)
- TIMER
- TESTED RECIPES
- CLEANING
- EXTERIOR SURFACES
- TROUBLESHOOTING
- TECHNICAL DATA
- AFTER-SALES SERVICE
- SERVICE
- UPPGE
Brand : Cylinda
Model : IM 90L RFS
Category : Microwave
