HEALTH & SAFETY, USE & CARE and INSTALLATION GUIDE

Index

Health and Safety guide

SAFETY INSTRUCTIONS....17

Use and Care guide

PRODUCT DESCRIPTION 19

CONTROL PANEL....19

ACCESSORIES 20

FUNCTIONS....21

USING THE APPLIANCE FOR THE FIRST TIME....21

DAILY USE 22

USEFUL TIPS 23

COOKING TABLES 24

TESTED RECIPES 25

CLEANING 26

TROUBLESHOOTING....27

PRODUCT FICHE 28

AFTER-SALES SERVICE....28

Installation guide 29

SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

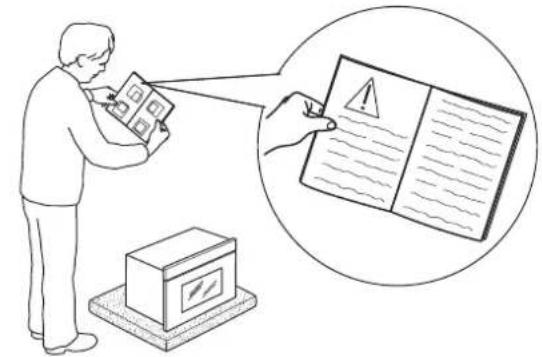

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

⚠️ Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

⚠ WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age must be kept away unless continuously supervised.

⚠️ Never leave the appliance unattended during food drying. If the appliance is suitable for probe usage, only use a temperature probe recommended for this oven - risk of fire.

⚠ Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely - risk of fire. Always be vigilant when cooking foods rich in fat, oil or when adding alcoholic beverages - risk of fire. Use oven gloves to remove pans and accessories. At the end of cooking, open the door with caution, allowing hot air or steam to escape gradually before accessing the cavity - risk of burns. Do not obstruct hot air vents at the front of the oven - risk of fire.

Exercise caution when the oven door is in the open or down position, to avoid hitting the door. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired - risk of injury.

⚠ WARNING: Liquids and foods must not be heated in sealed containers - risk of explosion. Heating of beverages can result in delayed eruptive boiling, care must be taken when handling the container - risk of burns.

⚠ Do not dry food or clothing or heat warming pads, slippers, sponges and similar - risk of fire. When heating food in plastic or paper containers, remain vigilant on the oven - risk of fire.

⚠️ Contents of feeding bottles and baby food jars

must be stirred or shaken and temperature checked - risk of burns. Do not heat eggs in their shell and whole hard-boiled eggs - risk of explosion.

⚠️ Only use utensils suitable for microwave ovens. Do not use metallic containers - risk of injury.

⚠️ Only use a temperature probe recommended for this oven - risk of fire.

⚠️ If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

⚠️ If appliance is installed above 850 mm height from floor, care should be taken not to displace turntable while removing container - risk of injury.

⚠ Do not use your microwave oven for deep-frying, because the oil temperature cannot be controlled.

PERMITTED USE

⚠️ CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. ⚠️ This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

⚠️ No other use is permitted (e.g. heating rooms).

⚠ This appliance is not for professional use. Do not use the appliance outdoors.

⚠ Do not store explosive or flammable substances (e.g. gasoline or aerosol cans) inside or near the appliance - risk of fire.

INSTALLATION

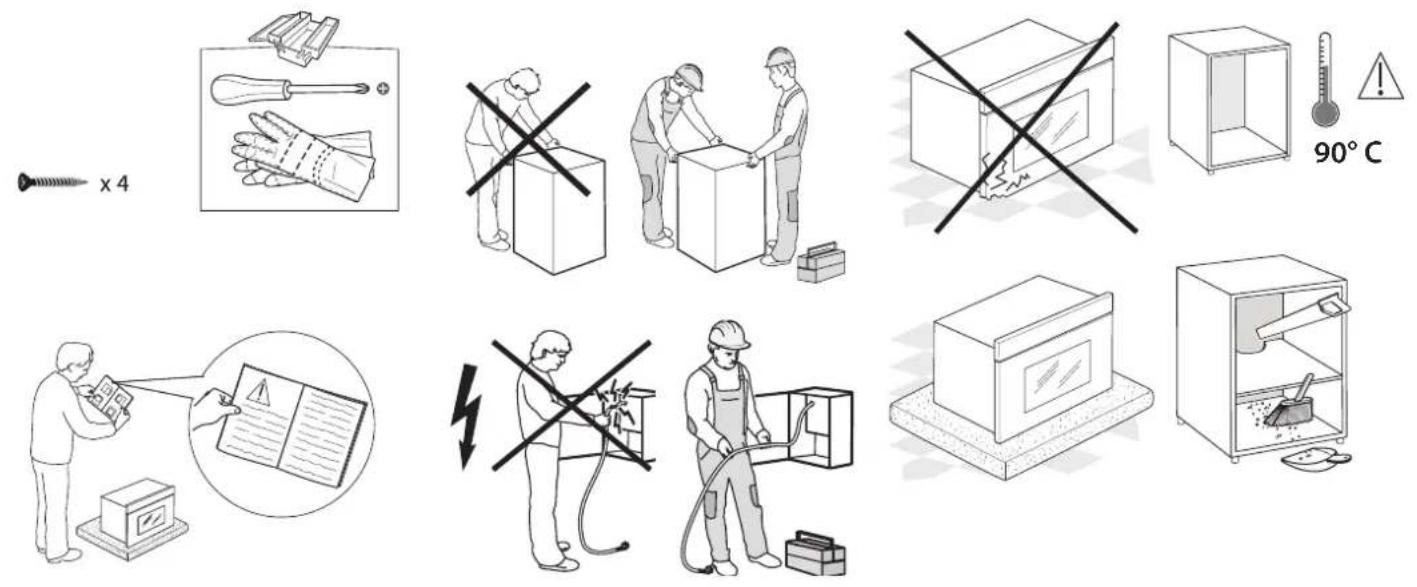

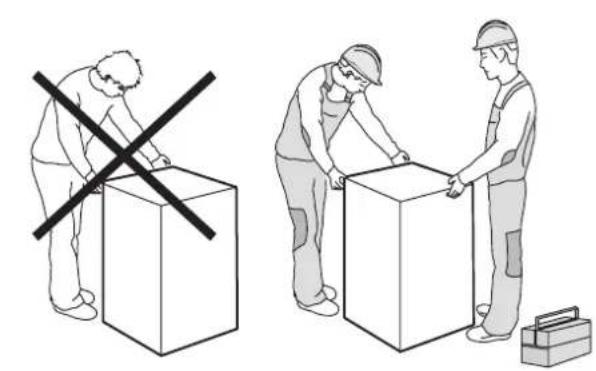

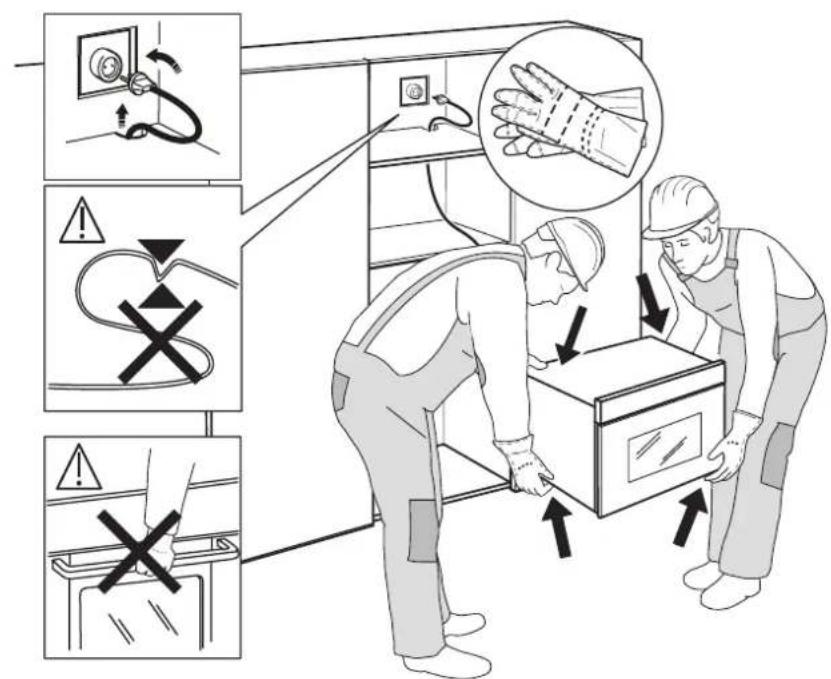

⚠ The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

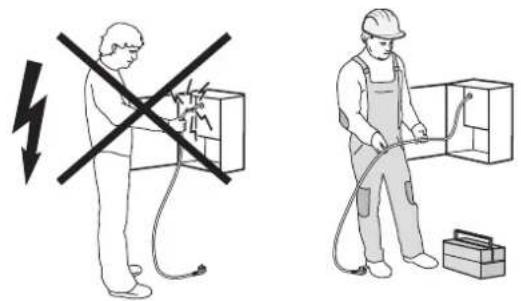

⚠️ Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

This appliance is intended to be used built-in. Do not use it freestanding or place into a cabinet.

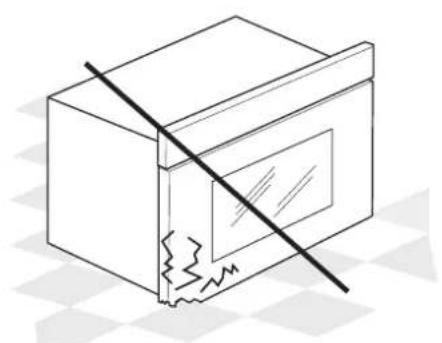

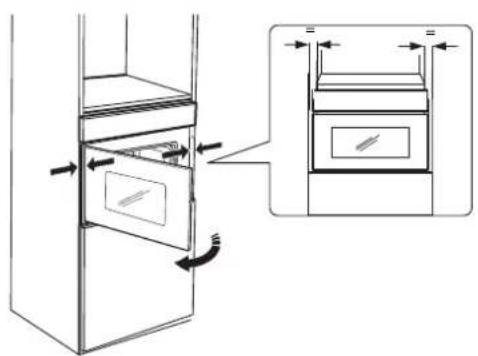

After unpacking the appliance, make sure that the

appliance door closes properly.

In the event of problems, contact the dealer or your nearest After-sales Service.

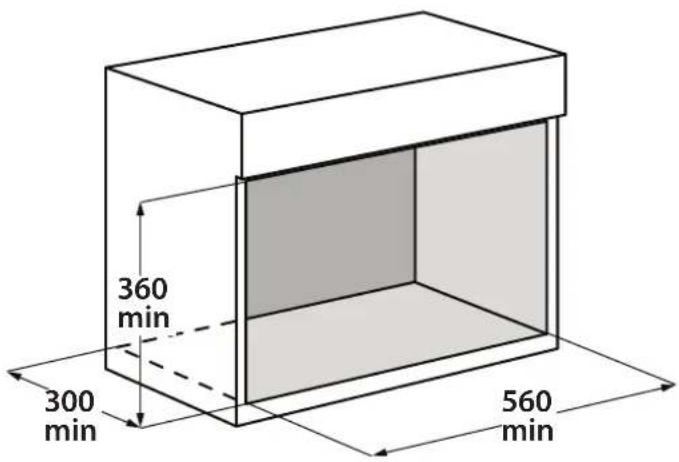

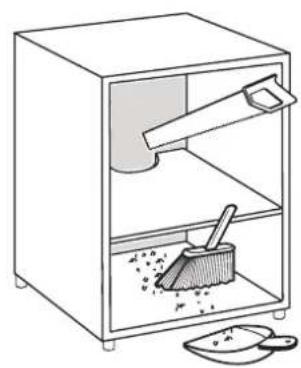

⚠️ Carry out all cabinet cutting operations before fitting the appliance and remove all wood chips and sawdust.

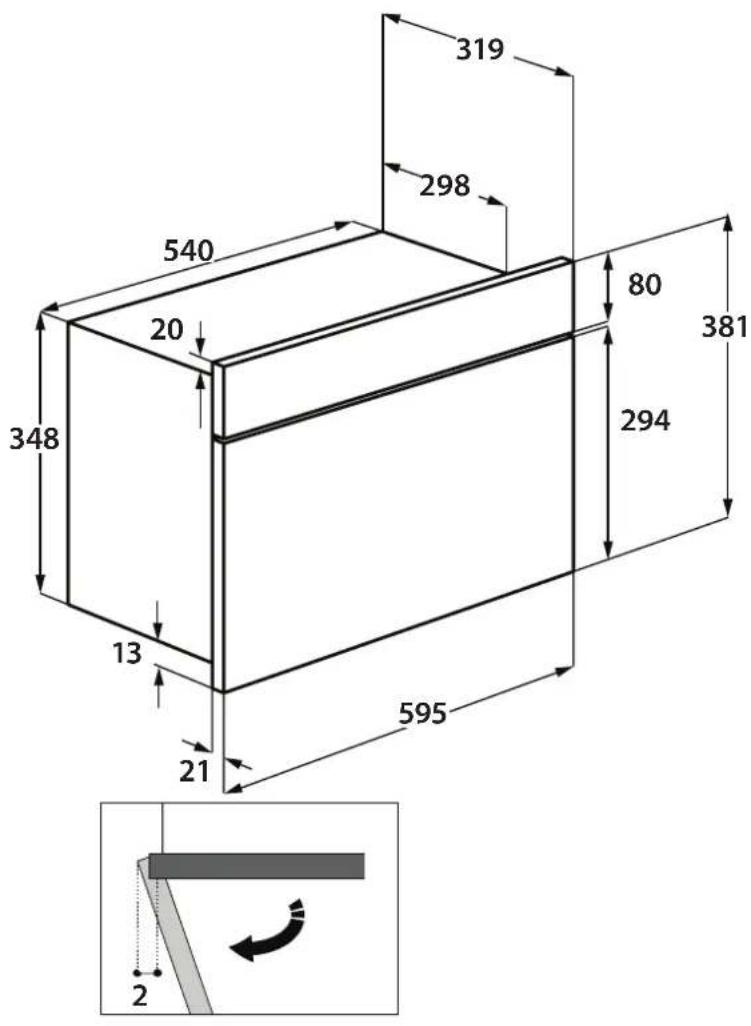

Do not obstruct the minimum gap between the worktop and the upper edge of the oven - risk of burns.

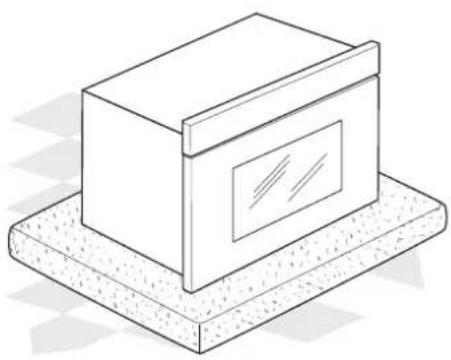

Do not remove the oven from its polystyrene foam base until the time of installation.

⚠️ After installation, the bottom of the appliance must no longer be accessible - risk of burns.

⚠️ Do not install the appliance behind a decorative door - risk of fire.

ELECTRICAL WARNINGS

⚠ The rating plate is on the front edge of the oven (visible when the door is open).

⚠ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

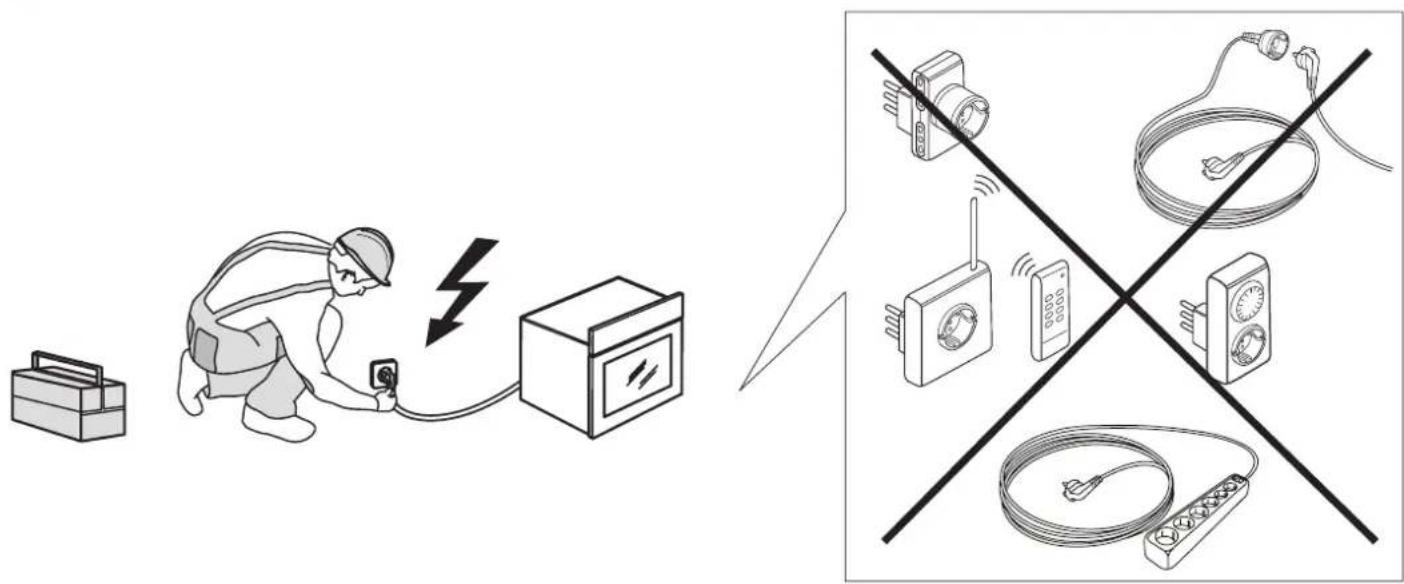

⚠ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.

⚠️ If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.

⚠ In case of replacement of power cable, contact an authorised service centre.

CLEANING AND MAINTENANCE

⚠ WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which give protection against exposure to microwave energy.

⚠️Failure to maintain the oven in a cleancondition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠ The oven must be cleaned regularly and any food deposits removed.

⚠ WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

⚠️Do not use harsh abrasive cleaners or metal scrapers to clean the door glass since they can scratch the surface, which may result in shattering of the glass.

⚠ Ensure the appliance is cooled down before any cleaning or maintenance - risk of burns.

⚠ WARNING: Switch off t he a appliance b efore replacing the lamp - risk of electric shock.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol 📁.

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol 📄 on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

PRODUCT DESCRIPTION

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Light
5. Turntable

Note: once the cooking is complete and the oven has been switched off, the cooling fan may remain in function for a certain period of time.

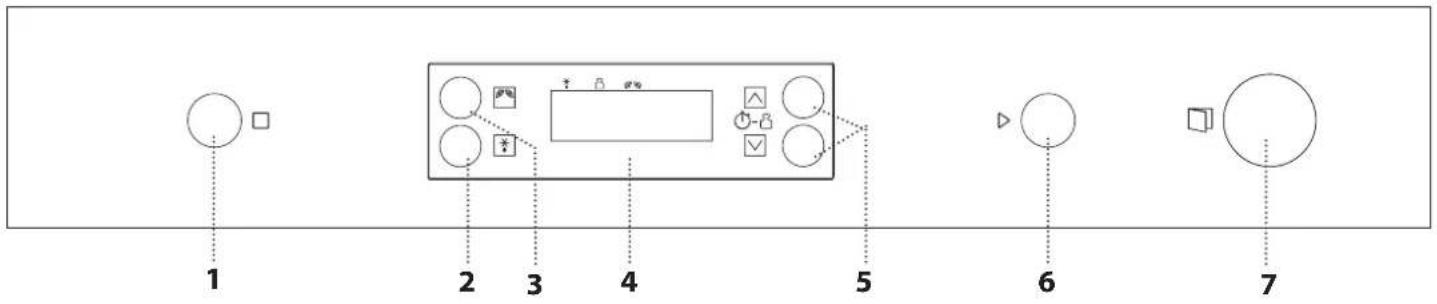

CONTROL PANEL

1. STOP

For stopping a function or an audible signal, cancelling the settings and switching off the oven.

2. DEFROST

3. MICROWAVE / POWER FUNCTION

For selecting the microwaves function and setting the required power level.

4. DISPLAY

5. + / - BUTTONS

For adjusting the settings of a function (e.g. length, weight).

6. START

For starting a function. When the oven is switched off, it activates the "Jet Start" microwave function.

7. DOOR OPENING BUTTON

ACCESSORIES

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used for microwave cooking.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used as a base plate for other containers and accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable. Do not rest other accessories on the support.

Simple line drawing of a triangular structure inside an oval frame (no text or symbols)

COVER

Useful for covering food while it is cooking or heating in the microwave.

The cover reduces splashes, keeps foods moist and can also be used to create two cooking levels.

Line drawing of a food display with a bowl and plate, no text or symbols present

The number and type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

MICROWAVES

For quickly cooking and reheating food or drinks.

POWER RECOMMENDED FOR

750 W	Quickly reheating drinks or other foods with a high water content or meat and vegetables
500 W	Cooking fish, meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes
350 W	Slow, gently cooking. Perfect for melting butter or chocolate
160 W	Defrosting frozen food or softening butter and cheese
0 W	When using the timer only

DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly onto the glass turntable. Turn the food when prompted. Food should be placed directly onto the glass turntable. Turn the food when prompted. A standing time after defrosting always improves the result.

Read the safety instructions carefully before using the product

USING THE APPLIANCE

FOR THE FIRST TIME

1. SETTING THE TIME

With the oven switched off, press □

until the two digits for the hour (on the

left) starting flashing.

Use △ or □ to set the correct hour and press to confirm: The minutes will flash on the display.

Use △ or □ to set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages.

DAILY USE

. SELECT A FUNCTION

Simply press the button for the function you require to select it.

. SET THE LENGTH

After selecting the function you require, use or to set the length for it to run.

The time can be changed during cooking by pressing △ or ▼ or by increasing the length for 30 seconds each time by pressing ▷

Press as many times as required to select the power level for the microwave.

Please note: You can also change this setting during cooking by pressing 📋

. DYNAMIC DEFROST

Press ☐, then use △ or ▼ to set the weight of the food.

During defrosting, the

function will pause briefly to allow you to turn the food.

Once the operation is complete, close the door and press ▷

. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press ▷ to activate the function.

You can press ☐ at any time to pause the function that is currently active.

. JET START

When the oven is switched off, press ▷ to activate cooking with the microwave function set at full power (750 W) for 30 seconds.

Every time the ▷ button is pressed again, the cooking time will be increased by a further 30 seconds.

.SAFETY LOCK

door This function is automatically activated to prevent the oven from being switched on accidentally. Open and close the door, then press ▷ to start the function.

.PAUSE

To pause an active function, for example to stir or turn the food, simply open the door.

To start it up again, close the door and press ▷

. SET THE TIME

☐ ☐:☐ ☐ With the oven switched off, press ☐ until the two digits for the hour (on the left) starting flashing.

Use □ or ▼ to set the correct hour and press ▷ to confirm: The minutes will flash on the display. Use □ or ▼ to set the minutes and press ▷ to confirm.

Please note: You may need to set the time again following lengthy power outages.

. TIMER

When the oven is switched off, the display can be used as a timer. To activate the function and set the length of time you require, use △ or □ press to set the power to 0 W, then press ▶ to activate the countdown.

Please note: The timer does not activate any of the cooking cycles.

To stop the timer at any time, press☐

HOW TO READ THE COOKING TABLE

The table indicates the best functions to use for any given food.

The cooking times refer to the food cooking cycle inside the oven, excluding the pre-heating phase (where required).

The cooking values and times are indicative, and depend upon the amount of food and the types of accessories utilized.

Always cook food for the minimum cooking time given and check that is it cooked through. In order to obtain optimal results, carefully follow the recommendations contained in the cooking table when selecting the accessories.

Since microwaves penetrate the food to a limited depth, if there are a number of pieces to cook at once, arrange the pieces in a circle to create more outside pieces.

Small pieces cook more quickly than large pieces: in order to ensure uniform cooking, cut the food items into pieces of equal size.

Moisture evaporates during the microwave cooking process: using a microwave-resistant cover helps reduce moisture loss.

Most foods will continue to cook after microwave has finished cooking it. Therefore, always allow for standing time to complete the cooking.

It is recommended to mix the food items during the microwave cooking process. When stirring, bring the cooked portions on the outside edges towards the centre and the less-cooked centre portions towards the outside.

Place thin slices of meat one on top of another or overlapping. Thicker slices, such as meat loaf and sausage, should be placed next to one another.

CLING FILM AND PACKAGING

Remove any wire twist-ties from paper or plastic bags before placing them in the oven for microwave cooking purposes.

Plastic film should be scored or perforated with a fork in order to relieve the pressure and prevent bursting due to the steam building up during the cooking process.

LIQUIDS

Liquids may overheat beyond boiling point without visibly bubbling.

This could cause hot liquids to suddenly boil over. To prevent this possibility:

- Avoid using containers with narrow necks.

- Stir the liquid before placing the container in the microwave oven cavity and leave the teaspoon in the container.

• After heating, stir again before carefully removing the container from the microwave oven.

FROZEN FOOD

For best results, we recommend defrosting directly on the glass turntable. If needed, it is possible to use a light-plastic container that is suitable for microwave. Boiled food, stews and meat sauces defrost better if stirred during the defrosting time. Separate the food items once they begin to defrost: the separated portions will defrost more quickly.

FOOD FOR INFANTS

After heating baby food or liquids in a baby bottle or in a baby food jar, always stir and check the temperature before serving.

This will ensure that the heat is evenly distributed and avoid the risk of scalding or burns.

Ensure the lid and the teat is removed before heating.

COOKING TABLES

FOOD QUANTITY		FUNC-TION	POWER (W)	TIME (MIN)	STANDING TIME (MIN)	ACCESSORIES	NOTES
Popcorn 1 packet			750 2 - 3 -			-	Fold the packet over.
Potatoes 4			500 12 - 15 * 4			-	Prick with a fork.
Vegetables (fresh) 300 - 400 g			750 4 - 7 2			-	Cover with lid.Add water.
Vegetables (frozen) 250 - 400 g			750 4 - 9 2			-	Cover with lid.
Chicken (fillets or pieces)	400 - 500 g		750 8 - 10 5			-	Place on one level only.
Bacon 4 rashers			750 3 - 5	1 - 2		-	Cover with lid.
Pieces of meat	600 - 700 g		750	10 - 12	5	-	Cover with lid.
Fish fillets	400 g		500 6 - 8 2			-	Cover with lid.

HEATING IN THE MICROWAVE

FOOD QUANTITY		FUNCTION	POWER(W)	TIME(MIN)	STANDING TIME (MIN)	ACCESSORIES	NOTES
Dinner Plate	400 - 500 g		500 6 - 7 1 Cover with lid.
Hot dog	1 - 2 Pieces	[BH6A]	750 1 - 2 2				Prick.
Meatballs	250 g		750 2 - 3 2
Beverage	2 cups 750	1 -
Soup	1 bowl		500 4 - 6 2				Cover with lid.Stir.
Sauce	1 bowl		500 4 - 6 2				Do not fill the bowl more than 3/4 full. Stir.

* Turn the food halfway through cooking

Legend	Microwave	Heatproof plate/container suitable for use in microwaves

TESTED RECIPES

Compiled for the certification authorities in accordance with the IEC 60705 standard.

FOOD FUNCTION QUANTITY COOK TIME (MIN)			POWER(W)	ACCESSORIES
Beverage (reheating)		2 cups 1 - 2 750 Microwave-safe container
Pastry cream		750 g 10 - 11 750		Microwave-safe container(Pyrex 3.220)
Sponge cake		475 g 6 - 7 750		Microwave-safe container(Pyrex 3.827)
Meat loaf		900 g 13 - 15 750		Microwave-safe container(Pyrex 3.838)
Defrosting meat (turn halfway through the defrosting process)		500 12 - 13 160 Turntable

Legend	Microwave Heatproof plate/container suitable for use in microwaves

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp cloth. If they are very dirty, add a few drops of mild detergent. Finish off with a dry cloth.
• Clean the door glass with a suitable liquid detergent.
• At regular intervals or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.

- In order to remove particularly stubborn food residues, it is recommended to boil a cup of tap water by placing it in the microwave at maximum power for a few minutes: the resulting steam will soften the residues and facilitate their removal.

Please note: adding lemon juice to the water helps to eliminate cooking odours.

ACCESSORIES

All accessories are dishwasher safe.

TROUBLESHOOTING

Any problems that arise or faults that occur can often be resolved easily.

Before contacting the After-sales Service, check the following table to see whether you can resolve the problem yourself.

if the problem persists, contact your nearest After-sales Service Centre.

Read the safety instructions carefully before carrying out any of the following work

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.Fault.	Verify that the mains power supply is functioning and that the oven is connected to the electrical outlet.Turn the oven off and on again to see whether the fault persists.
The time of day is flashing.	Power cut.	You need to reset the time: Follow the instructions given in the "Using the appliance for the first time" section.
"Err" is shown on the display.	Software fault.	Contact you nearest After-sales Service Centre and state the letter or number that follows "Err".
The oven makes noise, even when it is switched off.	Cooling fan active.	Open the door or wait until the cooling process has finished.

PRODUCT FICHE

www A complete product specification, including the energy efficiency ratings for this oven, can be consulted at and downloaded from our website www.cylinda.se

AFTER-SALES SERVICE

BEFORE CONTACTING CYLINDA AFTER-SALES SERVICE

1. Check whether you can resolve the problem yourself using any of the measures described in the "Troubleshooting" section.

2. Turn the oven off and on again to see whether the fault persists.

IF THE FAULT PERSISTS AFTER HAVING PERFORMED ALL OF THE NECESSARY CHECKS, CONTACT YOUR NEAREST CYLINDA SERVICE CENTRE.

To receive assistance, call the number given on the warranty leaflet enclosed with the product or follow the instructions on our website. Be prepared to provide:

• A brief description of the fault
• The exact type of model of your product
- The assistance code (the number following the word SERVICE on the identification plate attached to the product; this can be seen on the left-hand edge of the cooking compartment when the oven door is open).
- Your full address
• A contact telephone number

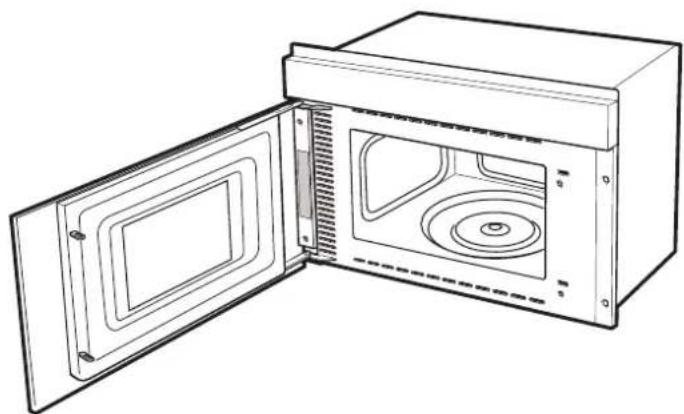

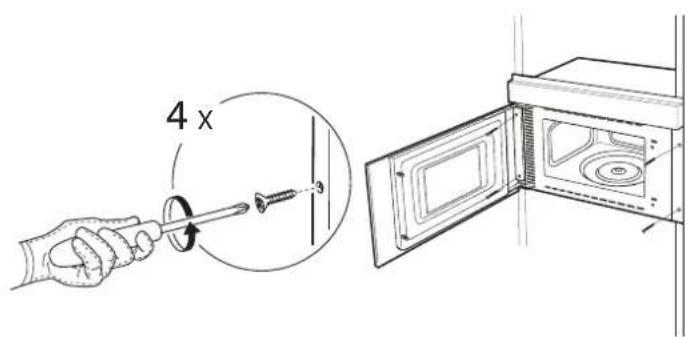

Line drawing of an open microwave oven with internal compartments and ventilation slots (no text or symbols)

Please note: If repairs are required, contact an authorised service centre that is guaranteed to use original spare parts and perform repairs correctly.

Please refer to the enclosed warranty leaflet for more information on the warranty.

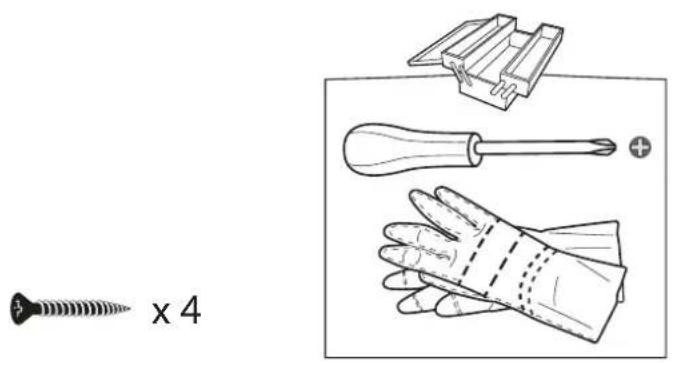

Illustration of four different types of screw and tool components: a screw, a plunger, a hand with gloves, and a bracket (no text or symbols present)

Illustration showing two workers handling boxes with a cross symbol, one marked with a crossed-out box and the other with a toolbox (no text or symbols present)

Simple line drawing of a box with a diagonal line crossing through it, showing a crack or defect (no text or symbols)

Isometric line drawing of a rectangular box mounted on a textured base (no text or symbols)

Line drawing of a kitchen sink with a broom and spoon, no text or symbols present

?

service

• Vi har service i hela landet / Nationwide service
• Gå in på www.cylinda.se / Visit www.cylinda.se
• Ring 0771-25 25 00 (endast lokaltaxa) / Call 0771-25 25 00

uppge

• Maskintyp / Model code
  • Serienummer / Serial number
  • Inköpsdatum / Purchase date

• Problembeskrivning / Problem description
