Product type	Wall hood
Brand	Cecotec
Model	Bolero Flux Tir 908000 A
Width	90 cm
Material	Stainless steel
Color	Stainless steel
Power supply	220-240 V ~ 50 Hz
Motor power	220 W
Max airflow	650 m³/h
Max noise level	65 dB(A)
Lighting	LED, 2 x 1.5 W
Controls	Touch
Number of speeds	3 + intensive
Grease filter	Aluminium, dishwasher safe
Charcoal filter	Included, rechargeable
Evacuation mode	Extraction or recirculation
Outlet diameter	150 mm
Energy class	A
Net weight	12 kg
Dimensions (W x D x H)	90 x 50 x 50 cm

Frequently Asked Questions - Bolero Flux Tir 908000 A CECOTEC

How to install the Cecotec Bolero Flux Tir 908000 A hood?

Installation must be carried out by a qualified professional. Make sure the hood is firmly fixed to the wall at least 65 cm above an electric hob or 75 cm for a gas hob. Follow the detailed instructions provided in the manual.

How to clean the grease filters?

The aluminium grease filters can be washed in the dishwasher or by hand with warm soapy water. Let them dry completely before putting them back. Regular cleaning (every 2-3 months) is recommended.

When should the charcoal filter be replaced?

The charcoal filter must be replaced every 3 to 6 months depending on use, or when it is saturated. The hood can be used in recirculation mode without external evacuation.

How to change the charcoal filter?

Unclip the hood panel, remove the used charcoal filter and insert the new one, making sure it is firmly engaged. Put the panel back in place.

The hood does not turn on, what to do?

First check the power supply (outlet, fuse). If the problem persists, contact Cecotec after-sales service. Do not open the appliance yourself.

How to use the remote control?

The remote control allows you to control the speeds and lighting remotely. Point it at the hood's receiver. Replace the battery if the range decreases.

What is the difference between extraction and recirculation modes?

In extraction mode, air is evacuated to the outside via a duct. In recirculation mode, air is filtered by the charcoal filter then returned to the kitchen. Recirculation mode requires an active charcoal filter.

How to reduce the noise of the hood?

Use the lowest possible speed for quiet operation. Check that the filters are clean and that the hood is properly installed. Soundproofing the duct can also help.

Does the hood have a warranty?

The Cecotec warranty is 2 years from the date of purchase. Keep the invoice. For any claim, contact customer service.

How to replace the LED bulb?

The LED bulbs are integrated and must be replaced by a professional. Contact Cecotec after-sales service if the lighting no longer works.

USER MANUAL Bolero Flux Tir 908000 A CECOTEC

Safety instructions 8

1. Parts and components 55

2. Before use 55

3. Installation 55

4. Operation 56

5. Cleaning and maintenance 58

6. Troubleshooting 59

7. Technical specifications 60

8. Disposal of old electrical and electronic appliances 61

9. Technical support and warranty 62

10. Copyright 62

11. Simplified EU Declaration of Conformity 62

SOMMAIRE

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• You must allow the appliance to be disconnected from the power supply after installation.

• The air discharge regulations must be complied with.

• Things you should never do:

I. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!

II. Do not install the kitchen hood above a cooker with a high-level grill.
III. Do not leave pans unattended during use because overheated fats or oils may catch fire.

• Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.
• Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.
• Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.
• Never leave open flames under the kitchen hood.
• If the kitchen hood is damaged, do not attempt to use it.
• When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• Important! Always disconnect the power supply during installation and maintenance.
• The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.
• All installation work must be carried out by a competent person or a qualified electrician.
• Dispose of the packaging material carefully. Children are vulnerable to it.
• Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.

• Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.

• Warning: failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.

• Warning: before accessing the electrical terminals, all power supply circuits must be disconnected.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• Warning: the appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.
• Local air discharge regulations must be complied with.
• For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.
• You must not use a steam cleaner.
• Never try to put out the fire with water. Instead, turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.
• Never use extension leads, multiple socket connections or external timer connection elements.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.
• The appliance must not be operated if the power supply cable is damaged or cut.
• If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.
• Cecotec disclaims all liability for any damage or injury

caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• There is a risk of fire if cleaning is not carried out according to the instructions.
• Do not flambé under the kitchen hood.
• CAUTION: accessible parts can become hot when used with cooking appliances.
• Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.
• The minimum distance between the worktop and the lowest part of the kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:
• Non-combustible parts of kitchen hoods.
• Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).
• The air discharge regulations must be complied with.

INSTRUCTIONS DE SÉCURITÉ

1 Electrical connections
2 Kitchen hood body
3 Light panel
4 Couplings

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance to keep a correct traceability of it in case of assistance.

Box content

• Extractor hood
• Assembly kit
• Carbon filter ∅176 x2
• Instruction manual

3. INSTALLATION

Before installation

In figure 2, you can see the dimensions required for the extractor hood installation.

The tools required for installation are gloves, crosshead screw, work surface, ladder, saw, ruler and electric drill.

1. Make sure that the distance between the cooker and the kitchen hood corresponds to the dimensions indicated before. The distance between the cooker and the kitchen hood should be between 65 and 150 cm. Fig. 3
2. Above the cooker you need an opening with the dimensions shown in figure 4. Reinforce the ceiling around the opening with a slatted or stainless-steel frame, according to the dimensions shown in the figure.
3. You can either discharge air to the outside (exhaust air mode), or recirculate air (recirculation mode), Figure 5. If discharging air, connect the end of the exhaust duct to the roof or wall outlet, Figure 6.
4. Install and fix it to the ceiling or wall. The power socket must be located close to the power cable. Fig. 7

Installation

1. Open the packaging and inspect all parts for any damage that may have occurred during transport.
2. Remove all packing material and place the kitchen hood on a stable surface.
3. Adjust the direction of the air outlet according to your wall or ceiling installation and fix the exhaust duct. Fig. 8
4. Open the central glass cover, remove the aluminium filter and the 6 screws, disconnect the terminals of the wires connected to the switch and the LED light. Remove the entire central glass cover assembly. Fig. 9
5. With the help of another person, place the hood near the hole in the ceiling. A third person must insert the plug into the previously installed socket.
6. Slide the hood into the hole in the ceiling. Then, tighten the 4 screws on the underside of the hood so that the 4 brackets are firmly attached to the ceiling frame, ensuring that the hood is firmly attached to the ceiling and none of the sides are loose. Fig. 10
7. Fit the cover and reconnect the wire terminals of the switch and LED light, then, with the help of another person, secure it again with the 6 screws firmly.
8. Fit the filter and close the cover. Switch on the kitchen hood using the remote control. Fig. 11

4. OPERATION

This kitchen hood is designed to be operated exclusively by the remote control, ensuring convenient and efficient control of its functions.

Remote control

When switching on the kitchen hood, the appliance will beep. At this point, you have 15 seconds to press any button on the remote control to pair it. If you fail to do so within this time, you must switch the hood off and on again to repeat the process.

Fig. 12

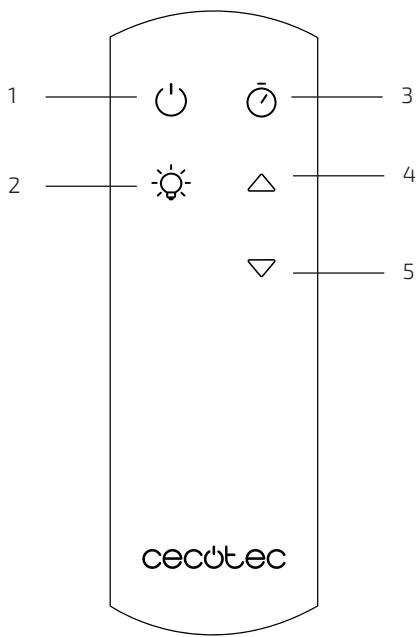

1 Power button
2 Light button
3 Delay button
4 Increase button
5 Decrease button

	Power button: press this button to switch on the appliance. The kitchen hood will operate at speed 1. Press again to switch it off. Press this button to switch off the motor, but not the light.
	Increases speed from 1 to 4.
	Reduces speed from 4 to 1.
	Briefly press this button to switch on/off the light. Press and hold this button to adjust the light intensity.
	Press this button to set the timer. The default time is 3 minutes. Press + or - to select the desired time.

Carbon filters

The filter contains activated carbon that absorbs the odour. The activated carbon will become saturated after some time, so the adsorption capacity will be shortened.

When the appliance is used frequently, the active carbon filter should be replaced every 2-3 months.

Note: if frying more frequently or deep frying, shorten this interval.

The following is the procedure for changing the carbon filters, ensuring optimum performance of the hood.

1 Remove the aluminium filters.
2 The vegetal carbon filters are located on both sides of the motor. Turn the filters, until they are firmly in place. Fig. 13
3 To replace the carbon filter, proceed in reverse order.

5. CLEANING AND MAINTENANCE

Instructions for cleaning the kitchen hood

Warning: before cleaning, do not forget to switch off the power supply to the appliance.

A To protect the main body from corrosion over a long period of time, the kitchen hood should be cleaned with hot water and non-corrosive detergent every two months.
B Please do not use abrasive detergent, or it will damage the body.
C Keep the motor and other spare parts free of water, as this will cause damage to the appliance.
D The carbon filter must not be exposed to heat.

Cleaning the grease filter mesh

• Do not use corrosive detergents.
• Keeping this filter clean will keep the appliance working properly.
• This filter cannot be washed or cleaned in any other way than the following.

Method 1:

1 Place the mesh in 40-50 c of clean water.
2 Pour in the detergent and let it soak for 2-3 minutes.
3 Wear gloves and clean with a soft brush.
Note: do not exert too much pressure, as the mesh is delicate and easily damaged.
4 Rinse the mesh well with clean water to remove any detergent residue.
5 Allow to dry completely before replacing it in the hood.
6 Make sure that the mesh is completely dry to avoid damage or malfunction.
7 Finally, install it back in place.

Method 2:

It can be put in the dishwasher. Set the temperature to about 60 °C .

1. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The light is on, but the motor does not work	1 The exhaust duct is obstructed.2 The condenser is damaged.3 The motor is jammed, or the bearing is damaged.4 The motor has a loose internal cable or releases a bad smell.	1 Remove the obstruction.2 Replace the condenser. To do so, contact the official Cecotec Technical Support Service.3 Replace the motor. To do so, contact the official Cecotec Technical Support Service.4 Replace the motor. To do so, contact the official Cecotec Technical Support Service.
Suction power level is low	1 Filters are dirty or clogged.2 The distance between the hood and the cooker is too big.3 Air duct is blocked or leaking.	1 Clean or replace the filters.2 Adjust the height of the hood, if possible.3 Contact the official Cecotec Technical Support Service.
Excessive vibration or noise	1 The motor is incorrectly fixed, or the screws are loose.2 Improperly installed or malfunctioning filters.	1 Tighten the screws and secure the motor properly.2 Reposition or replace the filters.
Persistent smell of smoke or grease	1 Activated carbon filters are saturated.2 Aluminium filters are full of grease.3 Air duct is blocked or incorrectly installed.	1 Replace the carbon filters.2 Clean the aluminium filters.3 Check and clean the drain hose or contact the official Cecotec Technical Support Service.
The lights do not work	1 The light strip is burnt out.2 There is a problem in the electrical circuit of the lights.	1 Replace the light strip.2 Contact the official Cecotec Technical Support Service.
The kitchen hood switches itself off	1 Motor overheating.2 The timer is activated.	1 Let the appliance cool down and check the motor ventilation.2 Check and adjust the timer settings.

7. TECHNICAL SPECIFICATIONS

Product reference: 02923

Product: Bolero Flux TIR 908000 Inox A++

All technical information is available on the public website of the European Product Register for Energy Labelling (EPREL): eprel.ec.europa.eu/screen/home

Regulation (EU) 65/2014

EU Directive 2010/30/EU

Rated voltage: 220-240 V\~

Rated frequency: 50 Hz

Total power: 218 W

Motor power: 210 W

Light power: 1x8 W

800 m³/h air flow

Light type: LED strip light

Bulb dimensions: (590 x 220) mm

ILCOS D Code: DBL-8-S-590/220

	Symbol	Value	Quantity
Model reference		02923
Annual energy consumption	AEC_Hood	23.5	kWh/a
Time increment factor	f	0.6
Fluid dynamic efficiency	FDE_Hood	37.7
Energy Efficiency Index (EEIW)	EEI_Hood	36.3
Measured air flow at the maximum efficiency point	Q_BEP	312.3	m3/h
Air pressure measured at maximum efficiency point	P_BEP	359	Pa
Maximum airflow	Q_max	Highest setting: 586.4	m3/h
		Lowest setting: 265.3

Electrical input power measured at maximum efficiency point	W_BEP	82.5	W
Nominal power of the lighting system	W_L	7.5	W
Measured illumination of the illumination system on the cooking surface	E_med	160	lux
Standby power consumption	P_S	N/A	W
Power consumption in off mode	P_o	0.46	W
Noise level (Highest setting)	L_WA	66	dB
Noise level (Lowest setting)	L_WA	46	dB
Sound level (Boost)	L_WA	74	dB

This appliance features a light source with an energy efficiency grade B.

The appliance power consumption when off is 0.46 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/knob of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU

Declaration of Conformity can be found at the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

Directive 2010/30/UE

Code ILCOS D: DBL-8-S-590/220

Codice ILCOS D: DBL-8-S-590/220

ILCOS-code D: DBL-8-S-590/220

Kod ILCOS D: DBL-8-S-590/220

ILCOS Kod D: DBL-8-S-590/220

Fig./Img./Abb./Afb./ Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./ Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./ Rys./Obr. 13

www.cecotec.es
