Product type	Decorative kitchen hood
Brand	Cecotec
Model	Bolero Flux Drt 358000 A
Color	Stainless steel
Dimensions (L x W x H)	60 x 50 x 130 cm
Net weight	15 kg
Power supply	220-240 V ~ 50 Hz
Motor power	250 W
Lighting power	2 x 3 W (LED)
Maximum airflow	650 m³/h
Maximum noise level	65 dB(A)
Number of speeds	3 + intensive
Control type	Touch electronic
Filter type	Aluminum grease filter + charcoal filter (optional)
Number of filters	2 grease filters + 1 charcoal filter
Saturation indicator	Yes, for grease and charcoal filters
Evacuation type	Recirculation or external evacuation (Ø 150 mm)
Special functions	Timer, remote control (infrared)
Maintenance and cleaning	Dishwasher-safe filters; removable glass panel
Safety	Automatic shut-off, overheat protection
Spare parts available	Filters, LED bulbs, remote control
Repairability	Repairability index 8.5/10
General information	2-year warranty, manufactured in China

Frequently Asked Questions - Bolero Flux Drt 358000 A CECOTEC

How to install the Cecotec Bolero Flux Drt 358000 A hood?

Follow the instructions in the manual: attach the wall bracket, connect the exhaust duct (Ø 150 mm) or install the charcoal filter for recirculation. Plug the appliance into a 230 V socket. Check the safety distances (min. 65 cm above the hob).

How to clean the grease filters?

The aluminum grease filters are dishwasher-safe (cycle at max 65°C). You can also clean them by hand with warm soapy water. Dry them well before putting them back.

When should the charcoal filter be replaced?

The activated charcoal filter must be replaced every 3 to 6 months depending on use. A saturation indicator on the control panel reminds you when to change it.

Why doesn't the hood turn on?

Check that the appliance is plugged in and the circuit breaker hasn't tripped. If the remote doesn't work, replace the battery (CR2025) and point it at the infrared sensor.

How to use the remote control?

The infrared remote control allows you to turn on/off, adjust speed and activate the timer. Maximum range: 5 meters. Keep the line of sight clear.

The hood makes noise, is that normal?

The noise level ranges from 45 to 65 dB depending on the speed. In intensive speed, the noise is louder. If an abnormal noise appears, check that the filters are properly in place and nothing is blocking the motor.

Can the hood be used without external evacuation?

Yes, in recirculation mode: install the supplied charcoal filter. The vapors are filtered then returned to the kitchen. Remember to ventilate regularly.

How to set the timer?

Press the Timer button (clock): the hood will stop automatically after 5 minutes. You can extend up to 15 minutes by pressing multiple times.

What to do if the LED lighting no longer works?

The LED bulbs are integrated and not individually replaceable. Contact Cecotec after-sales service for replacement under warranty or repair.

Where to find spare parts like filters?

Grease and charcoal filters are available on the Cecotec website or from authorized dealers. References: grease filter (ref. 35800) and charcoal filter (ref. 35801).

USER MANUAL Bolero Flux Drt 358000 A CECOTEC

Campana a pared redonda/ Round wall-mounted hood

bolero

Safety instructions 8

1. Parts and components 65

2. Before use 65

3. Installation 65

4. Operation 67

5. Cleaning and maintenance 68

6. Troubleshooting 70

7. Recycling of electrical

and electronic equipment 71

1. Copyright 72

2. Simplified EU Declaration of Conformity 72

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and

above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• There is a risk of fire if cleaning is not carried out according to the instructions.
• Do not flambé under the kitchen hood.
• CAUTION: Accessible parts can become hot when used with cooking appliances.
• Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.
• The minimum distance between the worktop and the lowest part of the kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

I. Non-combustible parts of kitchen hoods.

II. Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).

- The air discharge regulations must be complied with.

- The kitchen hood is intended for installation only over a hob with four cooking zones.

- Things you should never do:

I. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!
II. Do not install the kitchen hood above a cooker with a high level grill.
III. Do not leave pans unattended during use because overheated fats or oils may catch fire.

- Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.

- Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.

- Never leave open flames under the kitchen hood.

- If the kitchen hood is damaged, do not attempt to use it.

- When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

- Important! Always disconnect the power supply during installation and maintenance.

- The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.

- All installation work must be carried out by a qualified person or electrician.

- Dispose of the packaging material carefully. Children are vulnerable to it.

- Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.

- Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.

- Warning: Failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.

- Warning: Before accessing the electrical terminals, all power supply circuits must be disconnected.

- There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

- Caution: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.

- Local air discharge regulations must be complied with.

- For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.

- Do not use a steam cleaner.

- NEVER attempt to extinguish a fire with water. Instead, switch off the appliance and then smother the flames using, for example, a lid or a fire blanket.

- Never use extension leads, multiple socket connections or external timer connection elements.

- If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.

- The appliance must not be operated if the power supply cord is damaged or cut.

• If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

declaration-of-conformity

1. PARTS AND COMPONENTS

Fig. 1

1. Mesh filter
2. Control panel
3. Chimney
4. Lights
5. Ventilation grille

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Round wall-mounted hood
• Assembly kit
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Figure 2 shows the hood dimensions. Use these to ensure correct installation according to your specific model.

External ventilation

"V" flap assembly

If the hood does not have the "V" flap assembled, you must fit the parts to body 1.

Figure 3 shows only an example of "V" flap assembly, as the outlet may vary according to different models and configurations.

To mount the "V" flap:

• Mount both halves 2 to body 6.
• Ensure pin 3 is pointing upwards.
• Insert shaft 4 into holes 5 on the body.
• Repeat all operations for the second half.

For external exhaust, the hood can be connected as shown in figure 4 using an extraction duct (enamel, aluminium, flexible pipe or non-flammable material with an internal diameter of 120/150 mm).

1. Before installation, switch off the appliance and disconnect it from the power socket.
2. The hood should be placed 65\~75 cm above the cooking surface for best effect. Fig. 5.
3. Drill 3 ∅8 mm holes in a suitable place on the wall once the installation height has been set.
4. Place the dowels in the holes, screw the 2 ST4*30 mm screws halfway into the dowels to fix the hood body. Fig. 6.
5. Install the "V" damper and expansion pipe in the hood and secure the expansion pipe with a flange. Fig. 7
6. Hang the hood on the screws and then fix the body with 1 ST4*30 mm security screw. Fig. 8

Note: Two safety ventilation grilles are positioned on the rear housing, with 6 mm diameter.

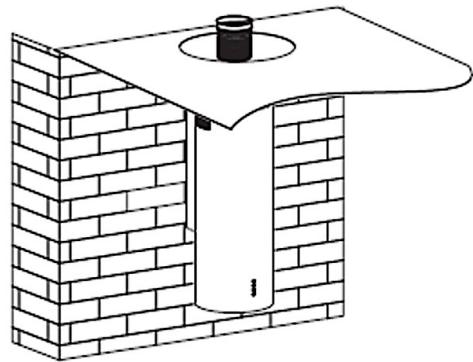

1. Bring the expansion pipe to the outside. Fig. 9

Extraction duct installation tips

The following rules must be strictly followed for optimal air extraction:

• Keep the expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe, always install it taut to minimise pressure loss.
• Failure to follow these basic instructions will reduce performance and increase hood noise levels.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the hood's ducting system to any existing ventilation system used for another appliance, such as heating, gas or hot air tube.

• The expansion pipe bend angle should not be less than 120^ ; pipe should be directed horizontally, or alternatively, pipe should rise from the initial point and be directed to an external wall.

• After installation, ensure the hood is level to prevent grease collection at one end.

• Ensure the expansion pipe selected for installation complies with relevant standards and is fire-retardant.

WARNING:

• For safety reasons, use only the fixing/mounting screw size recommended in this instruction manual.
• Failure to install screws or fixing devices in accordance with these instructions may result in electrical hazards.

4. OPERATION

Control panel

Fig. 10

1. Timer touch icon
2. Light touch icon
3. LED display
4. Speed touch icon

5. Power ON/OFF touch icon

6. Switching on

After connecting the hood to the power supply, all indicator lights on the touch icons will light up and a buzzer will sound. The LED display turns off and the hood enters standby mode.

1. Light touch icon

Pressing the light ON/OFF touch icon will turn on the indicator light and the hood illuminates. Pressing it again will turn them off. You can repeat these steps as many times as you wish.

1. Power ON/OFF touch icon

By touching the ignition touch icon, the motor will start running and the LED display will show "1", indicating low speed. Touching it again will stop the motor. The speed can only be adjusted when the power ON/OFF touch icon is activated.

Note: If you turn the hood off with this icon and then turn it back on, the motor will run at the last speed used.

1. Speed touch icon

The hood has three speed levels: low, medium and high, and the LED display will show "1", "2" or "3" respectively.

- When turned on with the power ON/OFF touch icon, the hood starts running at low speed and the LED display will show "1".

• Press the speed touch icon again when operating at low speed to make the hood run at medium speed; the LED display will show "2".
• Press the speed touch icon again when operating at medium speed to make the hood run at high speed; the LED display will show "3".
• During operation, you can touch the speed touch icon to change the speed in a circular fashion: "low → medium → high → low → medium...".

5. Timer touch icon

The timer touch icon is only used when the hood is operating. It will not work in standby mode or if the lamp is switched on separately.

• Press the timer touch icon once to enter the timer function. The setting is 9 minutes, and the display will show "9".
• After activating the timer function, the LED display will show "9, 8, 7..." decreasing by the minute. When the time is up, the hood will automatically switch off and the display will turn off, as will the lamp.
• Press the timer touch icon once to enter the timer function. Press again to exit this function.
• The above steps can be repeated. Pressing the speed touch icon while the hood is in timer mode will automatically exit the timer function.

NOTE:

To reduce the overall environmental impact (e.g. energy use) during the cooking process:

• Install the hood in a suitable location with efficient ventilation.
• Clean the hood regularly to avoid airflow obstruction.
• Remember to turn off the hood light after cooking.
• Remember to turn off the hood after cooking.

5. CLEANING AND MAINTENANCE

Caution:

• Before carrying out any maintenance or cleaning tasks, disconnect the hood from the mains power supply. Ensure the hood is switched off and the plug is removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to achieve the best result without damage.

General

Cleaning and maintenance should be performed with the appliance cold, especially when cleaning. Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.

Stainless steel

Stainless Steel Stainless steel must be cleaned regularly (e.g., weekly) to ensure a long service life. Dry it thoroughly with a clean, soft cloth. A specialised cleaning fluid for stainless steel can be used.

NOTE: Ensure cleaning follows the grain of the stainless steel to prevent unsightly cross-grain scratching patterns.

Control panel surface

The control panel can be cleaned using warm soapy water.

Ensure the cloth is clean and well wrung before cleaning.

Use a soft, dry cloth to remove any excess moisture after cleaning.

Important: Use neutral detergents and avoid harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appearance of the appliance's surfaces and potentially remove control panel printing, voiding the manufacturer's warranty.

Mesh filter cleaning

The disassembly of the mesh filter is shown in Figure 11.

1. Press the filter latch to release the mesh filter.
2. Carefully remove the mesh filter from the hood.
3. After cleaning or necessary maintenance, replace the mesh filter.
4. Make sure the latch is tightened securely to hold the filter in place.

For cleaning:

• Wash the filter with hot water and mild detergent to degrease.
• Use a soft brush to remove accumulated grease.
• If the filter is dishwasher safe, you can place it in the dishwasher for further cleaning.
• Be sure to rinse the filter thoroughly to remove any detergent residue.
• Allow the filter to air dry completely before reinstalling it.
• Make sure there are no wetted parts to avoid corrosion.

Carbon filter

Fig. 12

The activated carbon filter is used to trap odours. Normally, it should be changed every 3-6 months depending on your cooking habits.

The installation procedure is as follows:

1. Before installing or replacing the charcoal filters, disconnect the main power supply to the appliance.

ENGLISH

1. Press the filter latch and remove the mesh filter.
2. Turn the carbon filter on both sides of the motor counterclockwise.
3. Replace the carbon filters with new ones.
4. Install the mesh filter.
5. Connect the plug to the mains socket.

NOTE:

Ensure the filter is securely locked. Otherwise, it could loosen and cause danger.

When the activated carbon filter is in place, the suction power will be reduced.

IMPORTANT: Install carbon filters only if using the hood in air recirculation mode (WITHOUT EXTERNAL EXHAUST DUCT)

LED light replacement

Fig. 13

Precautions:

• Only a qualified electrician should perform lamp replacement. Ensure the hood is switched off and disconnected from the mains.
• Risk of burns! Allow the lamp to cool before replacement.
• Use gloves or a cloth to avoid direct hand contact, which could reduce lamp life.

Steps to follow:

1. Rotate the light cover, use your hand to turn the cover counterclockwise.
2. Remove the light cover carefully.
3. Unplug the bulb that needs to be replaced.
4. Insert the new bulb.
5. Turn the light cover clockwise to secure it.

Note: Be sure to follow the instructions carefully to ensure a safe and effective replacement.

Disassembly information

Do not disassemble the device in a manner not indicated in the user's manual. The user must not disassemble the device. At the end of its useful life, the appliance must not be disposed of with household waste. Consult your local authority or recycling service for advice on recycling.

6. TROUBLESHOOTING

Notice: Before performing any repairs o maintenance tasks, ensure the appliance is disconnected from the mains socket. This is crucial for your safety and to avoid electrical hazards when opening or handling the device.

Problem	Possible cause	Possible solution
The light turns on, but the motor does not work.	Fan switch off.	Select a fan switch position.
	Fan switch failure.	Contact Cecotec's Official Technical Support Service.
	Motor failure.	Contact Cecotec's Official Technical Support Service.
	Blown fuses.	Reset/Replace fuses.
The light and motor do not work.	The main power cord is loose or disconnected.	Connect the power cord to the mains socket. Switch on the power socket.
Oil leakage .	The one-way valve and outlet are not properly sealed.	Remove the one-way valve and seal with sealant.
	Leakage from chimney and cover connection.	Remove the chimney and seal.
The lights do not work	Broken or defective light bulbs.	Replace the bulbs according to the instructions.
Insufficient extraction power.	The distance between the hood and the gas hob is excessive.	Adjust the hood at the correct distance.
The hood tilts.	The fixing screw is not sufficiently tightened.	Tighten the suspension screw and level it.

NOTE: Any electrical repairs to this appliance must comply with local, state and federal laws. Please contact Cecotec's Official Technical Support Service if you have any doubts before performing any of the above actions.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and

electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

https://storececotec.de/de/information/declaration-of-conformity

1. PARTI E COMPONENTI

Figura 1

6. PROBLEEMOPLOSSING

ETSH ASH I SIR G E T S W O, YI YI L A G W O Q T P S W O T M W O Q T F V F C H N M: Y E R S L L I T A I Y O T S M Q T H A L T H I I L E G I P F S H I A O A P G I Y O T H I Y

“1” وا “2” وا “3” يل اوتلا ىل ع

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./ Rys. 12

Fig./Img./Abb./Afb./ Rys. 13

www.cecotec.es
