Product type	Stick vacuum
Brand	Cecotec
Model	Conga Rockstar 3500 Storm Pet Flex
Usage	Hard floors, carpets and rugs
Filtration technology	Cyclonic bagless
Reservoir capacity	0.6 L
Battery	Lithium-ion 22 V
Maximum runtime	45 minutes
Charging time	4 to 5 hours
Power	120 W
Noise level	75 dB
Weight	2.5 kg
Dimensions (L x W x H)	110 x 25 x 15 cm
Included accessories	Crevice tool, pet brush, flexible hose
Features	Turbo mode, LED battery indicator
Maintenance	Washable filter, easy-empty reservoir
Safety	Automatic shutdown in case of overheating
Spare parts and repairability	Available on the manufacturer's website

Frequently Asked Questions - Conga Rockstar 3500 Storm Pet Flex CECOTEC

How to empty the reservoir?

Press the reservoir unlock button, empty it into a trash can, then click it back into place.

How to wash the filter?

Remove the cyclonic filter, rinse it with cold water, dry it completely before reinstalling.

What is the runtime in turbo mode?

In turbo mode, the runtime is reduced to approximately 15 minutes.

Can I use the vacuum on hard floors?

Yes, it is suitable for hard floors and carpets. Use the appropriate nozzle.

How to recharge the battery?

Plug the power adapter into the wall charger, then connect the vacuum to the charger.

What to do if the vacuum does not turn on?

Check that the battery is charged and properly inserted. If the problem persists, contact customer service.

How to clean the pet brush?

Remove the brush, remove hair and fur with scissors or a comb, then wash it with soapy water.

Can the vacuum pick up liquids?

No, this vacuum is designed only for dry waste. Do not use it on liquids.

Where to buy spare parts?

Spare parts are available on the official Cecotec website or from authorized dealers.

How to use turbo mode?

Press the turbo button on the handle to increase suction power.

USER MANUAL Conga Rockstar 3500 Storm Pet Flex CECOTEC

Aspirador vertical / Upright vacuum cleaner

cecòtec

Safety instructions 9

1. Parts and components 60

2. Before use 60

3. Assembling the appliance 61

4. Operation 62

5. Cleaning and maintenance 63

6. Troubleshooting 64

7. Technical specifications 65

8. Disposal of old electrical and electronic appliances 66

9. Technical support and warranty 66

10. Copyright 66

11. Simplified EU Declaration of Conformity 67

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. Should the cable be damaged or the appliance not work properly, it must be repaired by the official Cecotec Technical Support Service to avoid any danger.
• The appliance must be powered at a low safety voltage as stated on the marking.
• Do not attempt to repair the appliance yourself. Contact the official Cecotec Technical Support Service for advice.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.
• Do not use the appliance if it has been dropped or if there are any visible signs of damage.

• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.

• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.

• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use on concrete, tarmac or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Keep the air outlet unblocked to avoid losing suction power.
• Check the suction tube from time to time to make sure it is not blocked.
• Take special care when using the appliance near stairs.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Do not pull on the cable to disconnect the appliance. Pull from the plug.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Battery instructions

• WARNING: to recharge the battery, only use the supply unit provided with the appliance, with reference CZH015350050EUWH or GQ18-350050-AG
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or break secondary batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion,

please seek medical attention immediately.

- Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

- Do not short-circuit the battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

- Do not subject batteries to mechanical shock.

- Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

- Do not use any charger other than the one supplied specifically for this appliance.

- Observe the positive (+) and negative (-) markings on the battery and equipment and make sure the former is inserted accordingly.

- Do not use any battery that is not designed for this appliance.

- Do not use the appliance if powered with batteries that differ in capacity, size, or type.

- Children must be supervised if they handle the battery.

- In case of battery ingestion, please seek medical attention immediately.

- Always use the battery recommended for this appliance.

- Keep batteries and cells clean and dry.

- Wipe the battery terminals with a clean, dry cloth if they become dirty.

- Secondary batteries must be charged before use. Always

use the specified charger and refer to these instructions.

• Do not leave the battery on prolonged charge when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Keep this instruction manual for future reference.
• Use the battery only for its intended purpose, i.e., for use with this appliance.
• Remove the battery from the appliance when not in use whenever possible.
• Dispose of the battery properly.
• Non-rechargeable batteries must not be recharged.

INSTRUCTIONS DE SÉCURITÉ

1. Battery
2. Dirt tank
3. Dirt-tank opening button
4. Suction-tube release button
5. Tubo ErgoFlex
6. Vacuum-head release button
7. Vacuum head
8. Display
9. Speed selector
10. Power button
11. Charging port
12. Wall bracket
13. Accessory for corners
14. 2-in-1 accessory for furniture
15. Adapter
16. Flexible hose
17. Accessory for pets

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This upright vacuum cleaner includes a package designed to protect it during transport. Take the upright vacuum cleaner out of the box and remove all packaging materials. Keep the original box and other elements in a safe place, as this will help you prevent damage to the upright vacuum cleaner when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Fully charge the appliance before first use. When the battery is fully charged, unplug it.

Box content

• Upright vacuum cleaner

• ErgoFlex tube

• Vacuum head

• Wall bracket
• Hairless brush
• 2-in-1 accessory for furniture
• Accessory for corners
• Flexible hose
• Accessory for pets
• Instruction manual

Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. ASSEMBLING THE APPLIANCE

Assembling the battery

Fig. 2

• Insert the battery in the corresponding slot on the main body. Once inserted, it will click into place. Make sure it is secured in position.
• To remove the battery, press the battery release button and remove it.

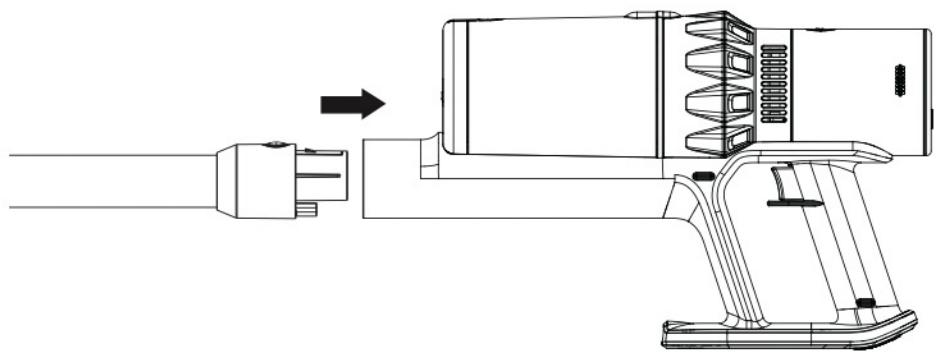

Attaching the suction tube to the main body

Fig. 3

• To attach the suction tube to the main body, align both until they match and insert the tube into the main body until it clicks into place.
• To detach it, press the release button and pull the suction tube while firmly holding the main body.

Attaching the accessories

Fig. 4

To complete the installation of the upright vacuum cleaner, once the suction tube is connected to the main body, hold the tube upright and attach the desired accessory.

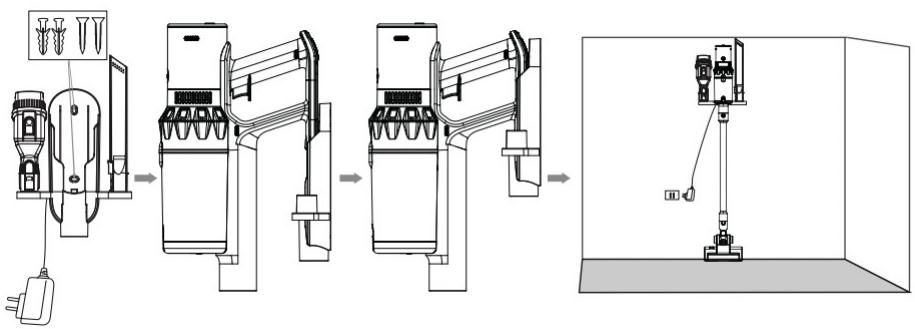

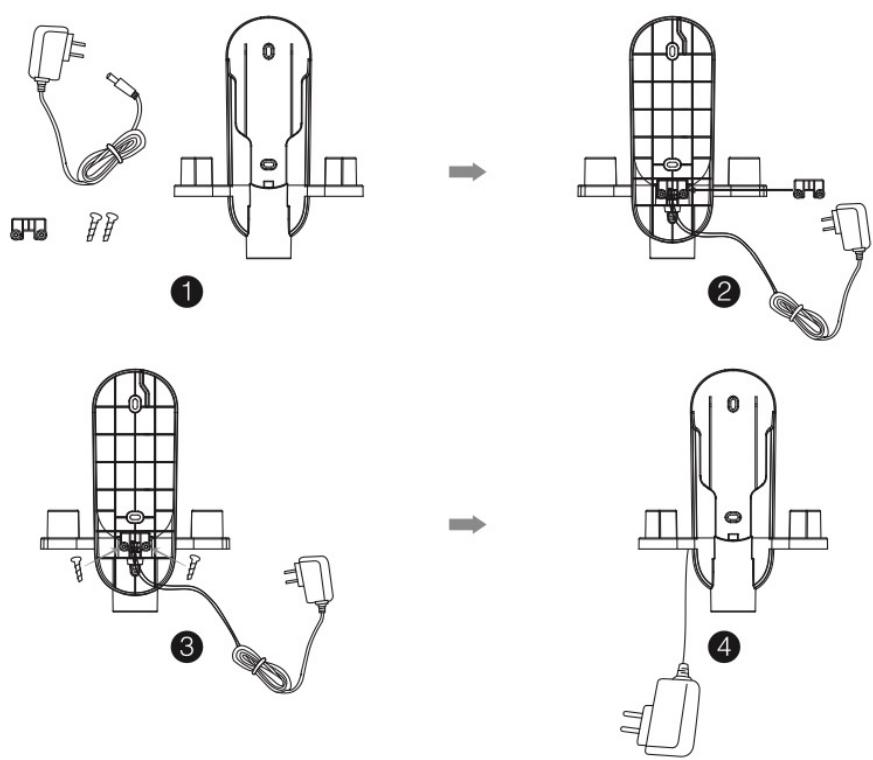

Installing the wall bracket

Fig. 5-6

Attach the adapter to the wall bracket as shown in Figure 5.

Place the wall bracket against the wall and mark the drilling points for later fixing of the bracket. It is important that the vacuum head rests on the floor to make sure the wall bracket doesn't support the full weight of the vacuum cleaner.

ENGLISH

Drill the holes and fix the wall bracket with the expansion screws, then place the vacuum cleaner and the attached accessory on the wall bracket as shown in Figure 6.

4. OPERATION

You can use this vacuum cleaner in two different ways:

1. As a handheld vacuum cleaner, attaching the accessories directly to the main body. Fig. 7
2. As an upright vacuum cleaner, using the suction tube with the accessories assembled. Fig. 4

Using the vacuum cleaner

This vacuum cleaner features the following modes:

Low: low speed, activated by pressing the Power button once.

Med: medium speed, activated by pressing the speed selector once.

Turbo: high speed, activated by pressing the speed selector twice. Press the speed selector once more to return to the low-speed setting.

Automatic: speed adjusts automatically based on the amount of dirt.

To switch the vacuum cleaner off, press the Power button twice.

Charge and display

If the last indicator light on the LED display flashes green, it means that battery is low and must be recharged. Connect the charger to the power supply and charging port. While charging, all four indicator lights will flash green.

Once the battery is fully charged, all four indicator lights will light up green.

Accessory for pets. Fig. 8

This accessory allows you to effortlessly brush your pet.

1. To attach the accessory for pets to the main body, align and fit both until the accessory clicks into place.
2. To remove the accessory, pull the accessory for pets with one hand while holding the main body firmly with the other.
3. Press the trigger to release the hair and instantly vacuum it.
4. This accessory includes a flexible hose to be connected to the main body for more comfortable brushing of your pet. Fig. 9

Fig. 8 key:

1. Trigger

5. CLEANING AND MAINTENANCE

• Turn the appliance off, unplug it from the power socket, and allow it to cool down before cleaning it.
• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids. Do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the appliance.
• Do not leave the vacuum cleaner in a place with direct sunlight.
• Do not leave the vacuum cleaner in a wet place after cleaning it.
• After the brush has been used for a long time, bristles might start to tangle with hair and other dirt. Clean the brush to ensure cleaning efficiency.

Tank cleaning. Fig. 10

1. Press the dirt-tank release button and remove it.
2. Empty the tank.

Cleaning the filters. Fig. 11

• To prevent the appliance from overheating and losing suction power, it is suggested to clean the filters frequently. To make the most of the suction power, it is suggested to clean the filter after every use.

• The filters' shelf life will depend on the accumulated use and the type of dirt that is frequently vacuumed. It is recommended to replace the filters every 6 months.

• Press the dirt-tank release button and remove it.

• Remove the filtering system from inside the dirt tank.
• Separate the filters from the filtering system as shown in Figure 11.
• Vacuum and shake the filter to remove every particle and dirt remain that may block them and hinder proper air circulation. Remember not to use the vacuum cleaner without the filter properly assembled. Filters cannot be washed inside a washing machine nor dried with a hair dryer. Do not brush the high-efficiency filter.
• Put the filters back into the filtering system.
• Put the filtering system back into the dirt tank.
• Put the dirt tank back into the appliance.

Cleaning the brush

• Slide the brush release button with your finger and remove the side cover.
• Remove the brush.
• It is important to remove any dirt that may have deposited in the brush inlet.
• If you decide to wash the brush, all parts must be left to dry. Assemble the pieces back in order to use the brush again.

ENGLISH

Removing the battery

Press the battery release button and remove it. Store the battery in a dry place.

Storing the vacuum cleaner

If the robot is not going to be used for a long time, remove the battery and store it in a dry and safe place.

6. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The vacuum cleaner does not work	Battery is discharged.	Charge the vacuum cleaner.
	The suction tube, brush, battery, or the appliance itself are not correctly positioned.	Make sure all parts of the vacuum cleaner are correctly assembled.
The suction power decreased, and the vacuum cleaner makes a lot of noise	The dirt tank is full.	Empty the dirt tank and clean the filtering system.
	The filter is too dirty, the brush inlet is clogged, or the brush is blocked.	Empty the dirt tank and clean the filtering system, brush inlet, and brush.
Insufficient operating time after charging the vacuum cleaner (the battery life may vary according to the room temperature)	Insufficient charge time.	Fully charge the battery following the instructions in this manual.
	Battery life has been exceeded.	Batteries are easily recycled. Go to the nearest recycling point to discard the battery and buy a new one.

Note:

If none of these situations match your problem, do not attempt to disassemble or repair the appliance by yourself. Repairs carried out by unqualified people may result in injury or serious malfunctions. Contact the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must only use original spare parts.

Error codes:

Error code	Problem	Solution
E1	Charger voltage is not suitable.	Use the charger supplied by Cecotec.
E2	The base brush is blocked.	Check that no foreign object (dirt, hair, lint, etc.) is preventing the brush from rotating normally.
E3	Overheated motor.	Check that the filters are clean, and let the appliance cool down for 5 minutes.
E4	Overheated battery.	Let the appliance cool down for 5 minutes.
E5	Overheated brush motor.	Let the appliance cool down for 5 minutes.
E9	Overcharged battery.	The battery charging time has been exceeded. Unplug the appliance from the power supply.
CF	Filter cleaning reminder.	Clean the filter after every use.

7. TECHNICAL SPECIFICATIONS

Conga Rockstar 3500 Storm Pet Flex

Product reference: EU01_107958

Voltage: 100-240 V \~

Frequency: 50/60 Hz

Rated motor power: 485 W

Brush rated power: 15 W

Charger output: 35 V = 0.5 A

Battery data:

29.6 V, 2500 mAh, 74.00 Wh

Input: 35 V, 0.5 A

Type: 8INR19/66

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the

following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Installation du support mural

Img. 5-6

3. HET APPARAAT MONTEREN

Montage van de accu

Fig. 2

6. PROBLEEMOPLOSSING

https://cecotec.es/es/information/declaration-of-conformity

TÜRKÇE

es/es/information/declaration-of-conformity

CATALÀ

1. PECES I COMPONENTS

Fig. 1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

(1)

(2)
Fig./Img./Abb./Afb./Rys./Obr. 10

1

2

3

4

5

6

7

Fig./Img./Abb./Afb./Rys./Obr. 11

www.cecotec.es
