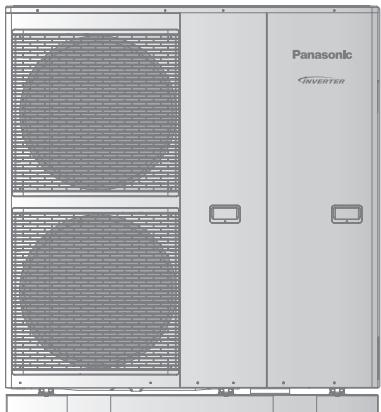

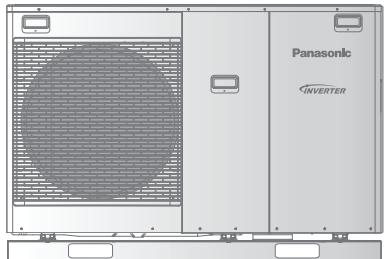

Product Type	Air-to-water monobloc heat pump
Brand	Panasonic
Model	WHMXC09H3E5
Heating Capacity	9,000 BTU/h (estimate)
Cooling Capacity	9,000 BTU/h (estimate)
Power Supply	Single-phase 230 V / 50 Hz
Power Consumption	~2.7 kW (estimate)
Refrigerant	R32
Dimensions (W x H x D)	800 x 600 x 300 mm (estimate)
Weight	60 kg (estimate)
Main Functions	Heating, cooling, domestic hot water (DHW) production
Special Modes	Turbo, silent, DHW forced, heating forced, weekly timer, forced defrost
Control	Wired remote control with LCD screen
Operating Temperature Range	-15 °C to +35 °C (estimate)
Sound Level (indoor unit)	~45 dB(A) (estimate)
Sound Level (outdoor unit)	~55 dB(A) (estimate)
Maintenance	Filter cleaning every 3 months, annual check by a professional
Safety	Remote control child lock, frost protection
Spare Parts	Filters, remote control, temperature sensors, backup heater
Repairability Index	Not disclosed by the manufacturer

Frequently Asked Questions - WHMXC09H3E5 PANASONIC

How to activate turbo heating mode?

From the main screen, press the Quick Menu button, select the Turbo Heating icon with the arrows, then confirm with the ON/OFF button. The mode starts after 1 minute.

What to do if domestic hot water no longer heats?

Check that the Force Backup DHW mode is activated in the quick menu. If the problem persists, refer to the error code section.

How to program the heating for the week?

In the quick menu, select Weekly Prog. Use the arrows to choose the program (1 to 6), set the time, temperature and days, then confirm.

Why is my unit making an abnormal noise?

The Silent mode can be activated to reduce noise. Also check that the unit is level and the filters are not clogged.

How to lock the remote control?

Go to the quick menu, select Remote Lock, confirm with Yes. To unlock, press any key and enter the 4-digit password (default 0000).

What does the operating icon '— —' mean?

The '— —' icon indicates the unit is running. An '⏻' icon means off. These symbols are displayed on the main screen.

How to reset error codes?

In the quick menu, select Error Code Reset. Make sure the unit is stopped before confirming to restore previous settings.

Can I use the backup electric heating at the same time as turbo?

No. The Force Backup Heating mode is disabled when Turbo mode is activated. Only one forced mode can be active at a time.

How to manually defrost the outdoor unit?

Use the Force Defrost option in the quick menu. The screen will display 'Request accepted' and defrosting will start automatically.

What to do if I forgot the lock password?

Turn the unit off, then simultaneously press the ▲, ▼ and ON/OFF buttons for 5 seconds. The screen displays 'Reset', select it to reset the password to 0000.

USER MANUAL WHMXC09H3E5 PANASONIC

Air-to-Water Heatpump

Model No.

WH-MDC05H3E5

WH-MDC07H3E5

WH-MDC09H3E5

Model No.

WH-MDC12H6E5

WH-MDC16H6E5

WH-MXC09H3E5

WH-MXC12H6E5

WH-MXC09H3E8

WH-MXC12H9E8

WH-MXC16H9E8

Quick Menu Guide

(Mono bloc) Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

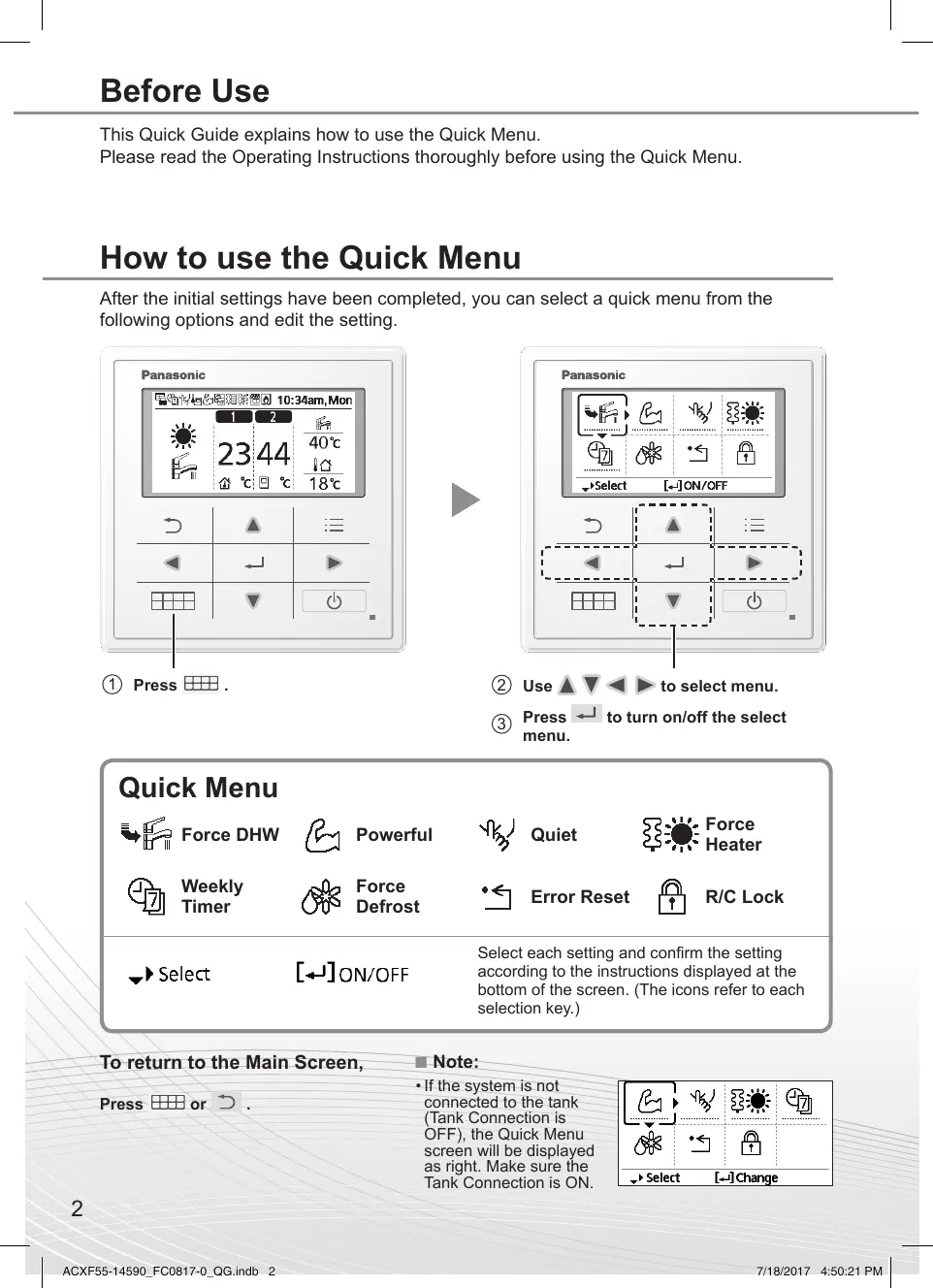

How to use the Quick Menu

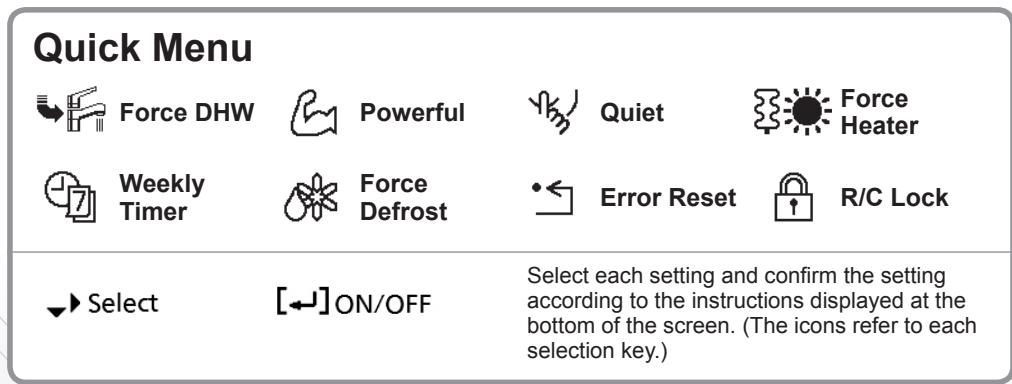

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

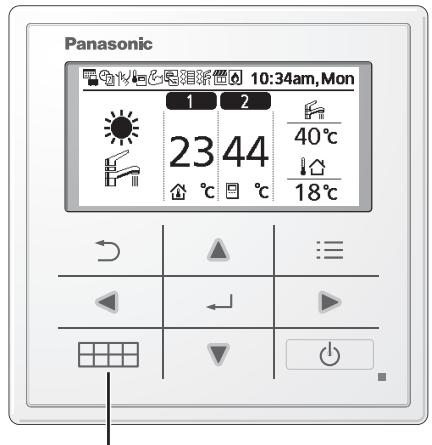

① Press .

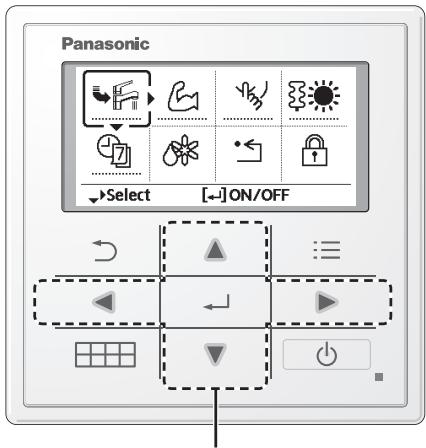

② Use ▲ ▼ ▶ ▷ to select menu.

③ Press ← to turn on/off the select menu.

To return to the Main Screen, Note:

Press or

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "……" = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.

• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

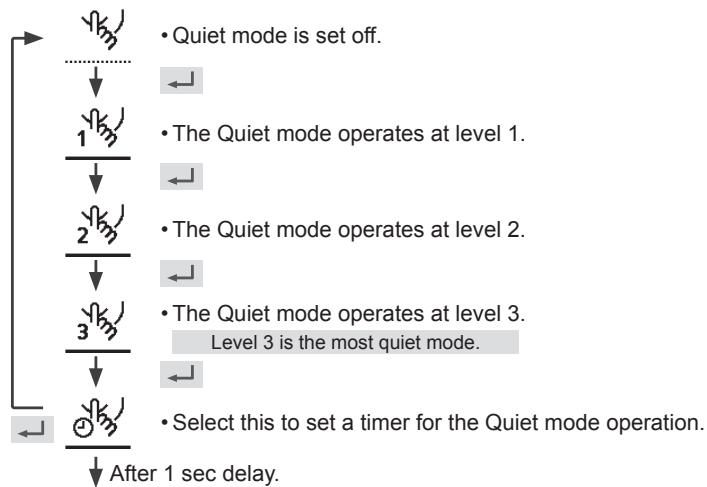

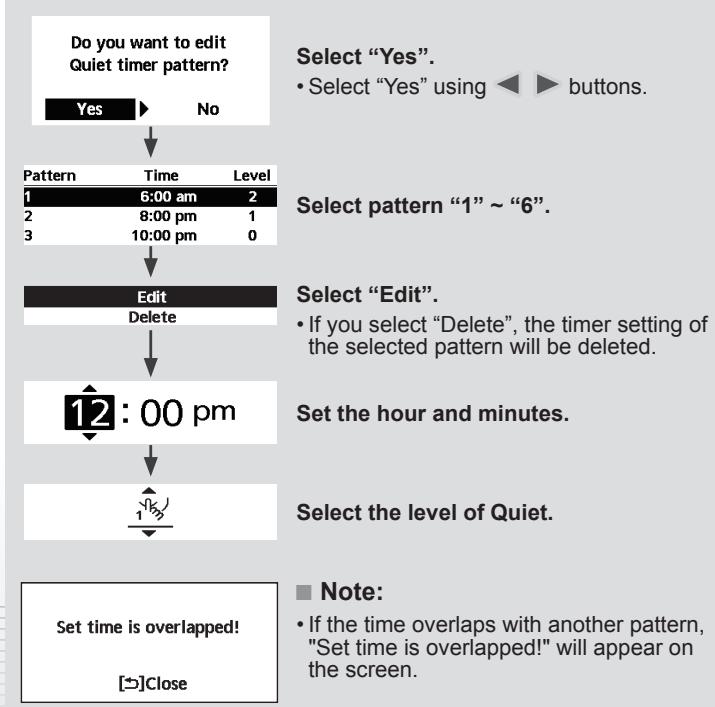

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

• Force Heater is turned off.
• Force Heater is turned on.

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

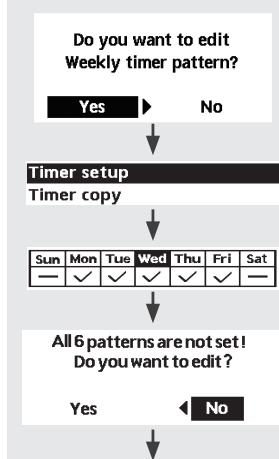

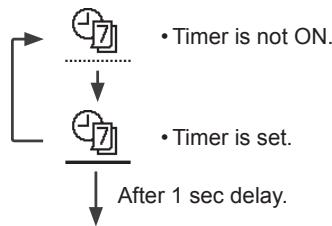

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.

• Timer copy: Select to copy a timer setting.

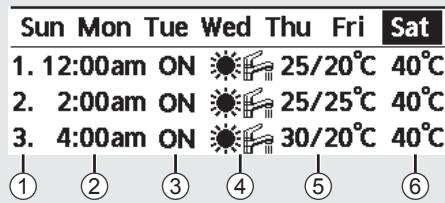

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern "1" ~ "6".
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
  If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[Close

Force Defrost

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

Error Reset

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

R/C Lock

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 PASSWORD is reset to 0000
2.Remote control is unlocked

(The screen will be off after 3 seconds.)

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

1.Password is reset to 0000

2.Remote control is unlocked

Kraftfull inaktiveras nar driften stangs AV.

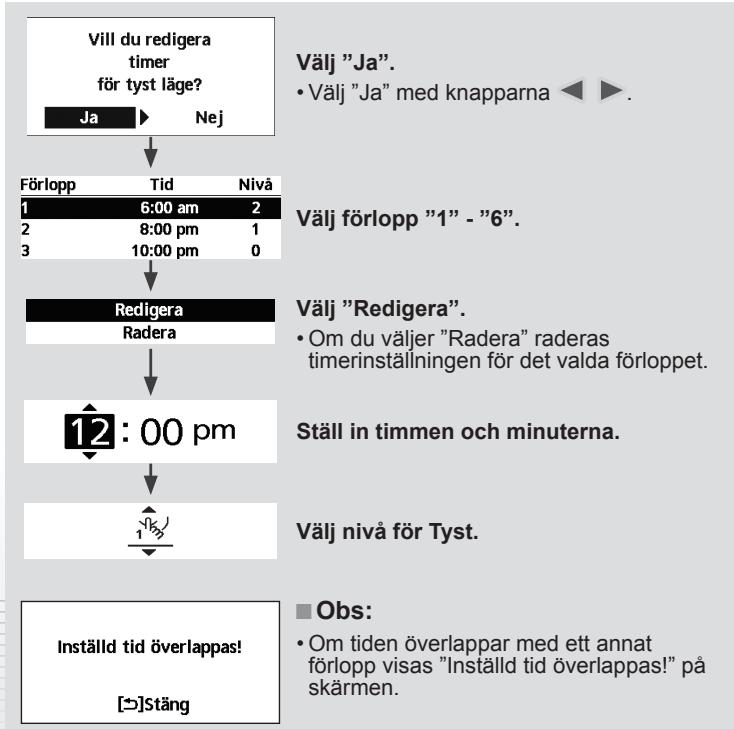

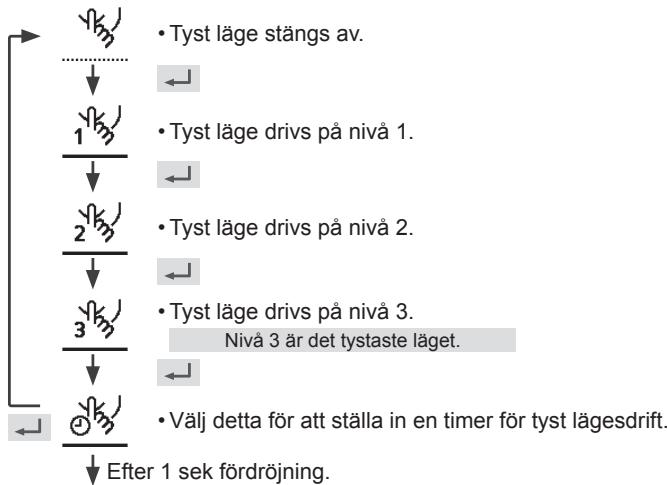

Tystläge

Väljennaikonforattdravystyst.

Tryck pa for att bekräfta ditt val.

(Den tysta driften,startar ungefjar 1 minut after att trycks ner.)

Tvinga värm.

Zon1	Zon2	P
PÁ	25°C	PÁ

(6) Ställ in tanktemperatures.

Obs:

1. 12:00am TIL 25/20°C 40°C
2. 2:00am TIL 25/25°C 40°C
3. 4:00am TIL 30/20°C 40°C
   1 ② ③ ④ ⑤ ⑥
