Conga Rockstar 10000 Nebula Station - Stick vacuum CECOTEC - Free user manual and instructions

Product Type	Stick vacuum with automatic station
Brand	Cecotec
Model	Conga Rockstar 10000 Nebula Station
Maximum suction power	10000 Pa
Battery type	Lithium-ion 2500 mAh
Runtime	30 minutes
Charging time	4 to 5 hours
Dust bin capacity	0.6 L
Filtration type	Washable HEPA filter
Docking station function	Automatic bin emptying (Nebula Station)
Suction modes	3 modes (Auto, Turbo, Eco)
Main brush	Motorized anti-tangle brush
Included accessories	Crevice tool, 2-in-1 brush, charging adapter
Net weight	2.5 kg (main body)
Dimensions (W x D x H)	28 x 18 x 120 cm
Noise level	75 dB
Warranty	2 years
Recommended maintenance	Clean the filter every month, empty the bin after each use
Available spare parts	Filters, brushes, battery, nozzles

Frequently Asked Questions - Conga Rockstar 10000 Nebula Station CECOTEC

How to use the Nebula station to automatically empty the bin?

Place the vacuum on the Nebula station. The station detects the vacuum and automatically empties the dust bin into the station's collection bag. The process takes about 10 seconds.

How to clean the HEPA filter of my Conga Rockstar 10000?

Remove the HEPA filter located on top of the bin. Wash it with warm water and let it dry completely for at least 24 hours before reinstalling. Do not use detergent.

What to do if the vacuum does not charge?

Check that the station is plugged in and the vacuum is correctly positioned. Check the charging contacts. If the problem persists, contact Cecotec customer service.

Can the vacuum be used in handheld mode?

Yes, press the release button to separate the main body from the tube. You can then use the vacuum as a handheld vacuum for upholstered surfaces or stairs.

How to manually empty the dust bin?

Press the bin release button, remove it and empty the contents into a trash bin. You can also wash it with warm water. Make sure it is dry before reattaching.

Why does the vacuum stop during use?

This may be due to overheating (let it cool down for 30 minutes) or a discharged battery. Recharge the vacuum on the station. If the problem persists, check for blockages in the duct.

What is the maintenance of the motorized brush?

Regularly clean the bristles and remove hair or threads wrapped around the roller. Use the provided safety scissors if necessary. The brush can be washed with water.

How to replace the battery?

The battery is removable and is located behind the bottom panel. Unscrew the cover screws, disconnect the old battery and connect the new one. Only use original Cecotec batteries.

What to do if the station does not suck dust?

Check that the station's collection bag is not full. Replace it if necessary. Make sure the duct between the station and the vacuum is clean and not obstructed.

Is the vacuum suitable for hard floors and carpets?

Yes, the motorized brush roller automatically adapts to different floor types. Use Auto mode for optimal power on all floors.

USER MANUAL Conga Rockstar 10000 Nebula Station CECOTEC

Upright vacuum cleaner with self-emptying base

Safety instructions 7

1. Parts and components 42

2. Before use 43

3. Operation 43

4. Cleaning and maintenance 46

5. Troubleshooting 48

6. Technical specifications 52

7. Disposal of old electrical and electronic appliances 52

8. Technical support and warranty 53

9. Copyright 53

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• The device must only be supplied at a safety extra-low voltage in accordance with the voltage indicated on the device.
• Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. If the power cable is damaged, it must be replaced by a special cable or assembly to be supplied by the manufacturer or its after-sales service.
• WARNING: to recharge the battery, use only the power supply included with the device.
• Non-rechargeable batteries should not be recharged.
• The supply terminals must not be short-circuited.
• Batteries may leak under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with

clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• The mains plug of the power cord must be removed from the base before cleaning or maintenance operations.
• ATTENTION: use the appliance and its accessories with caution, as is a risk of entrapment by rotating parts of the appliance.
• CAUTION: this tube contains electrical connections. Do not immerse in water for cleaning. Do not use the appliance to vacuum water. The hose should be checked regularly and must not be used if damaged.
• The appliance can only be used with the supply unit provided with it.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Make sure that the mains voltage matches the voltage stated on the product marking.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use on concrete, tarmac, or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Keep the air outlet unblocked to avoid losing suction power.

- Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

INSTRUCTIONS DE SÉCURITÉ

1. Dust tank
2. Dust-tank cover release button
3. Dust-tank cover
4. Tube release button
5. Dust-tank release button
6. Battery release button
7. Power button
8. Display
9. HEPA filter release button
10. Air outlet
11. Handle
12. Battery

Fig. 2

1. Dust collection port
2. Handheld vacuum cleaner fixing groove
3. Self-emptying base lid
4. Self-emptying base support rod
5. Accessory holder
6. Base
7. Self-emptying base cover release button

Fig. 3

1. Dust tube

2. Floor brush release button

Fig. 4

1. Motorised floor brush

2. LED light

Display. Fig. 5

1. LED light failure indicator light
2. Abnormal fan operation indicator light
3. Eco mode
4. Battery percentage
5. Abnormal operation indicator light
6. Floor brush blocked indicator light
7. Auto mode
8. Turbo mode
9. High Mode

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the Official Cecotec Technical Support Service immediately.

Box content. Fig. 6

1. Instruction manual
2. HEPA air inlet filter x2
3. Cleaning brush x1
4. Corner head x1
5. Dirt-disposal bag x3
6. Self-emptying base power cable x1
7. Self-emptying base fibre cloth x2
8. Round head x1
9. HEPA air outlet filter x1

3. OPERATION

Motorised brush

Motorised brush to clean hard floors, tiles or short pile carpets, etc. It is recommended to use it with a metal extension tube for a better experience.

Corner head

It must be inserted into the tube and secured in place. It can be used to vacuum ceilings, shelves, computer keyboards and corners or junctions that are not easy to clean.

Round head

1. It can be used to clean desks, worktops, sofas, short bristle carpets, etc.
2. When connected to the metal tube, it can be used to clean the ceiling, curtains, and other high places.

Usage

Assembly of cordless handheld vacuum cleaner parts

Assembly and disassembly of the battery. Fig. 7

Assembly

First align the battery and the main unit. Then, slid them in, you will hear a click. This indicates that the assembly has been carried out correctly.

Disassembly

Press the battery release button first and then push it forward to remove the battery.

When using a new battery or a battery being used for the first time after prolonged storage, charge it fully. When storing the device for a long time without using it, be sure to charge and discharge it at least once every three months.

Assembly and disassembly of the dust tank. Fig. 8

Assembly

Use the end that has no button and attach it into the main unit. When you hear a “click” this means that the assembly has been carried out correctly.

Disassembly

Press the dust-tank cover release button and remove the tank.

Assembly and disassembly of the floor brush. Fig. 9

Assembly

Use the end that has no button and attach the floor brush. When you hear a "click" this means that the assembly has been carried out correctly.

Disassembly

Press the floor brush release button and pull out the tube.

Assembly of the self-emptying base. Fig. 10

Assembly

Select either end of the support rod to align it with the base and insert it straight in. Then, take the bottom of the self-emptying base and align it with the support rod; insert it straight in. After inserting it into place, installation is complete.

Disassembly

Hold the base, lift the self-emptying base to remove it and then remove the support rod from the base to complete disassembly.

Usage

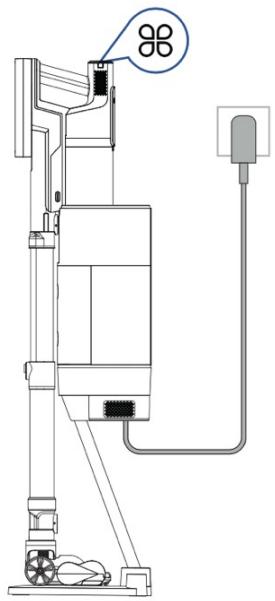

Charging. Fig. 11

The vacuum cleaner can be directly charged on the self-emptying base. Pay attention to the position of the charging pin (it is not necessary to remove the dust tube and floor brush).

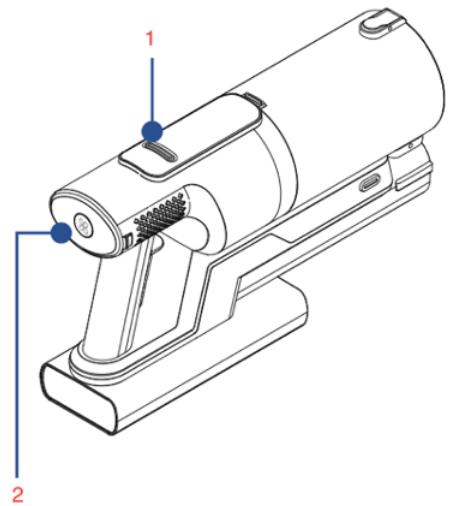

Main unit use. Fig. 12

1. Power button

2. Mode change button

Start

Press the power button to switch on the main unit. It starts operating in Auto mode by default.

Suction level

The vacuum cleaner has 4 suction power levels: 3 standard levels and 1 turbo level. Press the 88 button shortly. Adjustable cyclical levels: Eco - Auto - High. Press and hold 88 for 2 seconds to activate the Turbo power level which can be used to clean bigger dirt. After releasing the button for 1 second, the machine will automatically return to the previous level.

Note: the maximum duration of the Turbo power level is 15 seconds.

Switch-off

Press the power button to switch off the vacuum cleaner.

Note: the button is a small button that can be switched on/off with a light touch.

Self-emptying base usage. Fig. 13

Charging

The vacuum cleaner can be directly charged on the self-emptying base. Pay attention to the position of the charging pin (it is not necessary to remove the dust tube and floor brush).

Dust collection

When the vacuum cleaner is placed on the self-emptying base, the dust tank cover will open automatically. In that moment, press and hold the mode change button 88 for 1 second to start the automatic dust collection function. The dust collection time lasts 15 seconds.

Note: make sure that the dirt-disposal bag is installed before starting dust collection.

4. CLEANING AND MAINTENANCE

Product maintenance

Main unit maintenance

Body maintenance

Wipe the surface of the machine with a damp cloth after wringing it out to prevent water from entering the machine.

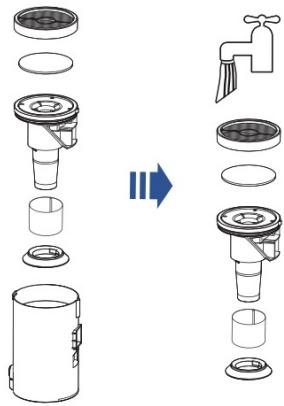

Disassembly and maintenance of the dust tank and filter assembly. Fig. 14

Disassembly

Press the dust tank release buttons at the same time on both sides of the main unit to remove the dust tank.

Note: after washing the HEPA filter and filter sponge, dry them before use. (Do not expose them to the sun)

Assembly. Fig. 15

Assembly of the filter assembly

1. Install the filter elements in the order shown below.
2. Place the entire filter assembly into the dust tank from above. Pay attention to the square opening in the side of the filter assembly and the dust collection port of the dust tank.
3. Place the sponge and HEPA filter over the filter assembly in sequence. Note: The side of the HEPA filter with the cord is facing upwards.

Install the dust tank. Fig. 16

1. Fit the dust tank clip onto the main motor clip and make sure it is in place.
2. Push the bottom of the dust tank inwards in the direction shown in the figure until you hear a click.

Maintenance of the self-emptying base. Fig. 17

Assembly and disassembly of the dirt-disposal bag. Fig. 18

Note: the dirt-disposal bag must be pushed down to avoid air leakage.

1. TROUBLESHOOTING

Part	Problem	Possible cause	Solution
Main unit	The fan does not work	The battery is not properly installed.	Install the battery correctly
		The battery is empty.	Charge the vacuum cleaner.
	Suction power is weak	The dust tank filter is clogged.	Clean or replace the dust tank filter.
		The dust tank is full of dust.	Use the self-emptying base to clean up the dust.
		The air inlet duct of the suction head is blocked, or the rotating brush is blocked.	Clean the dust adhering to the suction head.
	Charging indicator light does not light up during charging	Charging terminal is not fully inserted at the DC end.	Fully insert the charging terminal into the charging port.
	Short battery life	Not charged enough.	Fully charge the battery according to the instructions in the charging section.
		Battery life is deteriorating.	The battery is a consumable item and can be replaced by contacting customer service during the warranty period.
	Floor brush is blocked	Bad contact between floor brush and dust tube/bad contact between dust tube and main unit.	Make sure the contact is firm and then restart the machine.
		The floor brush is blocked, and a large volume of foreign objects are being inhaled.	Clean the floor brush tangle.
		The floor brush is blocked, and the rotating brush is wrapped with too many fibres.
		The floor brush is defective.	Go to the designated maintenance point for replacement or return for repair.
		The fan does not work properly.	Check if the suction port is blocked and remove the blockage.
			If the main unit is hot, turn it off and let it stand for a while before use.
	Air outlet is hot	Filter assembly is blocked.	Clean the dust tank and HEPA filter.
Self-emptying base	Self-emptying base is not working.	Power cable is loose.	Make sure the power cable is installed in place.
		The yellow light is always on, the dirt-disposal bag is full.	Replace the dirt-disposal bag for a new one.
		Yellow light flashes, dirt-disposal bag is not installed / dirt-disposal bag is not installed properly.	Install the dirt-disposal bag properly.
		Red light is always on, self-emptying base cover is not in place.	Install the self-emptying base cover in its place.
		Red light flashes slowly, air duct is blocked.	Clean the blockages in the suction port and the fan port of the self-emptying base.
		Red light flashes rapidly and the fan does not rotate.	Go to the designated maintenance point for replacement or return for repair.

6. TECHNICAL SPECIFICATIONS

Product name: Conga 10000 Nebula Station

Product reference: 04943

Main unit

Voltage and frequency: 100-240 V \~, 50-60 Hz

Lithium-ion battery: 29.6 V 2500 mAh 74 Wh

Nominal engine power: 450 W

Brush rated power: 30 W

Rated power of charger: 34.2 V

Charging time: 3-4 h

Dust tank capacity: 660 ml

Self-emptying base

Supply voltage range 100-240 V AC

Rated power: 1050 W

Dirt-disposal bag capacity: 3 l

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Click

Fig. / Img. / Rys. / Obr. 7

Fig. / Img. / Rys. / Obr. 8

Fig. / Img. / Rys. / Obr. 9

Fig. / Img. / Rys. / Obr. 10

Fig. / Img. / Rys. / Obr. 11

Fig. / Img. / Rys. / Obr. 12

Fig. / Img. / Rys. / Obr. 13

Fig. / Img. / Rys. / Obr. 14

Fig. / Img. / Rys. / Obr. 15

Fig. / Img. / Rys. / Obr. 16

Fig. / Img. / Rys. / Obr. 18

www.cecotec.es
